2AANA-SEM-HP2020Stereo Bluetooth Headphone

OPERATING INSTRUCTIONS 1 3 4 89 5 7 Front view Back view Side view 1. Volume + key 2. Volume - key 3. On/ off switch 4. Adjustable & foldable headband 5. Skip + key 6. Skip - key 7. Micro USB charging socket 8. LED indicator 9. Multi-function key 10. Microphone 2 6 Location of controls Welcome to HP-2020 A stylish headphone with Bluetooth & Hands free function. Adjustable & foldable headband design for extra comfort. Basic playback control is included at the side of the headphone: Volume +/- and Skip +/- (forward/ backward) of one song. To begin with, switch ON the headphone. The LED indicator will flash in blue rapidly repeatedly to indicate pairing mode. Steps for Bluetooth® Connection 1. Switch on the Bluetooth® function of the device you would like to pair with. 2. On your device's Bluetooth® settings, add or search for a new Bluetooth® device, and locate this device. 3. Press the "Connect" button on your device to start the pairing process. 4. When it is successfully paired, the LED indicator will flash twice. 5. Playback control can be done directly through your device: SKIP +: To go to next song / SKIP - : To go to pervious song (Multi-function key): Press once & release to pause, press again & release to resume playback. (Note: If you press & hold this key for more than 2 seconds, it will unpair the headphone from your device). 6. To unpair a Bluetooth® device that has already been paired, press & hold the Multi-function key. Hands free function At anytime during playback, you can pick up phone a call by simply pressing the “Multi-function” key. You can press the key again to hang up. Charging the headphone This device comes with a micro USB port for charging. Use the supplied micro USB cable to connect the headphone to any standard USB port. Charging time depends on the output capacity of the USB port, but it will take averagely 2 hours for a full charge (based on a 1000mA USB port). Playback time depends on the type of music you are listening to and the volume level, but it can play up to 10 hours under normal conditions. When it is successfully being charged, the LED indicator will turn red to indicate it is in charging mode. 10 THE DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE PRODUCT. NOTE: THIS PRODUCT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. THIS PRODUCT GENERATES, USES AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. HOWEVER, THERE IS NO GUARANTEE THAT INTERFERENCE WILL NOT OCCUR IN A PARTICULAR INSTALLATION. IF THE PRODUCT DOES CAUSE HARMFUL INTERFERENCE TO RADIO OR TELEVISION RECEPTION, WHICH CAN BE DETERMINED BY TURNING THE EQUIPMENT OFF AND ON, THE USER IS ENCOURAGED TO TRY TO CORRECT THE INTERFERENCE BY ONE OR MORE OF THE FOLLOWING MEASURES : -REORIENT OR RELOCATE THE RECEIVING ANTENNA. -INCREASE THE SEPARATION BETWEEN THE PRODUCT AND RECEIVER. -CONNECT THE PRODUCT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT TO WHICH THE RECEIVER IS CONNECTED. -CONSULT THE DEALER OR AN EXPERIENCED RADIO/TV TECHNICIAN FOR HELP.

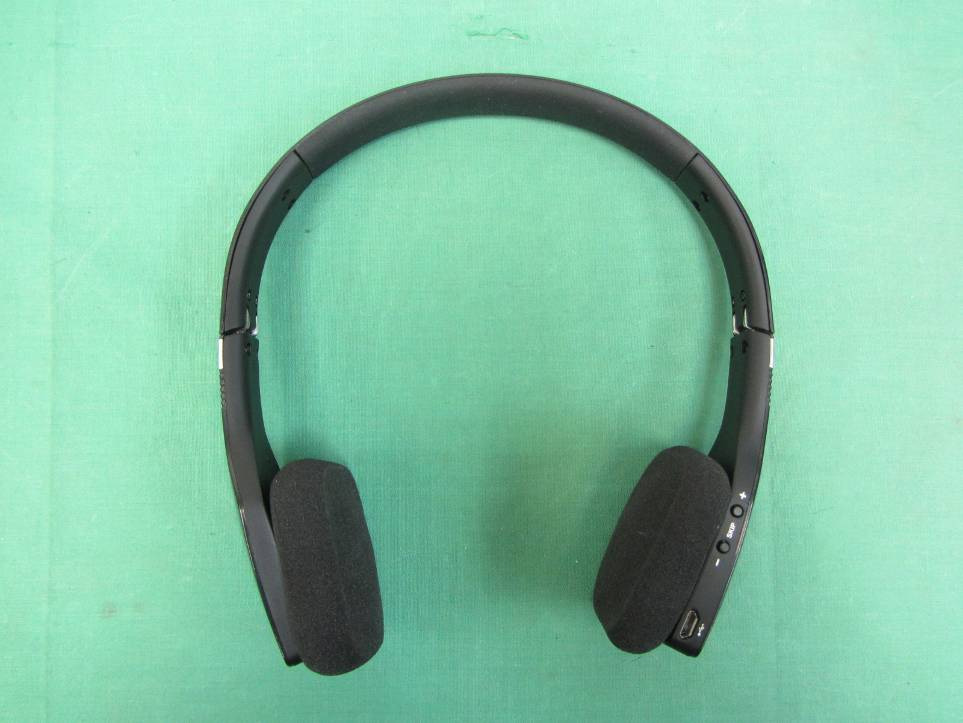

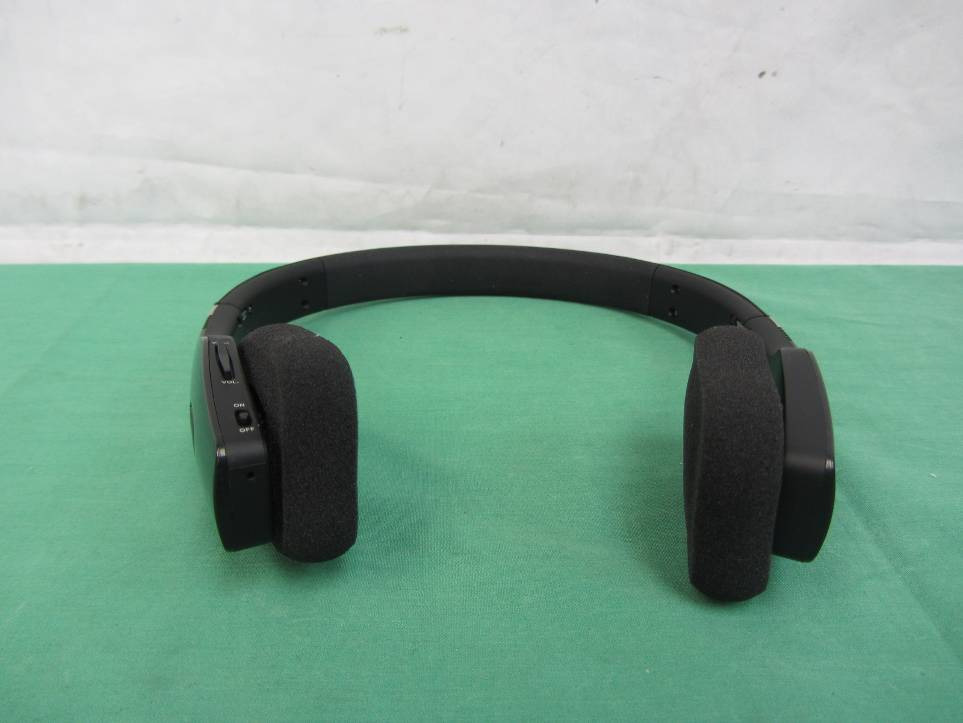

FCC ID: 2AANA-SEM-HP2020 External Photos FCC ID: 2AANA-SEM-HP2020 FCC ID: 2AANA-SEM-HP2020

FCC ID: 2AANA-SEM-HP2020 Internal Photo FCC ID: 2AANA-SEM-HP2020 FCC ID: 2AANA-SEM-HP2020 FCC ID: 2AANA-SEM-HP2020 FCC ID: 2AANA-SEM-HP2020 FCC ID: 2AANA-SEM-HP2020 FCC ID: 2AANA-SEM-HP2020

Report No.: HKES131100275401 Page: 1 of 27 Authorized Signature: LOKE Sai Kit, Wilson Senior Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS IECC Limited or testing done by SGS IECC Limited in connection with, distribution or use of the product described in this report must be approved by SGS IECC Limited in writing. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC ID: 2AANA-SEM-HP2020 Member of the SGS Group (SGS SA) FCC Test Report Application No.: HKES131100275401 Applicant: S.E.M. INDUSTRIES Address: 35/F., Tower A, Billion Centre No.1 Wang Kwong Road, Kowloon Bay, Kowloon Hong Kong Product Information: Product Description: Stereo Bluetooth Headphone Model: HP-2020-BTHF, HP-2020, HP2020 ♣ ♣ Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. Brand Name: S.E.M./ S-LOGO/ NIL/ SYSTEM.5/ S-DIGITAL/ S.E.M. AUDIO LABORATORIES Product Class : Low Power Communication Device – Transmitter (2.4 GHz) FCC ID: 2AANA-SEM-HP2020 Requirement: CFR 47 FCC PART 15 SUBPART C, 2012 - Intentional Radiators. (Section 15.249) Date of Receipt: 2013-11-04 Date of Test: 2013-11-06 to 2013-11-07 Date of Issue: 2013-11-12 Test Result : PASS* * In the configuration tested, the EUT complied with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. Report No.: HKES131100275401 Page: 2 of 27 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC ID: 2AANA-SEM-HP2020 Member of the SGS Group (SGS SA) 2 Test Summary Test Test Requirement Test Method Result Conducted Emission (150KHz to 30MHz) FCC PART 15, SUBPART C: 2012 ANSI C63.4:2003 PASS Radiated Emission (9kMHz to 1GHz) FCC PART 15, SUBPART C: 2012 ANSI C63.4:2003 PASS Radiated Emission above 1 GHz FCC PART 15, SUBPART C: 2012 ANSI C63.4:2003 PASS Band edge / 20 dB Bandwidth FCC PART 15, SUBPART C: 2012 ANSI C63.4:2003 Marker-Detla measurement PASS ♣ Item no.: HP-2020-BTHF, HP-2020, HP2020 According to the confirmation from the applicant, the above models are identical in all electrical aspects in relating to the circuit design, PCB layout and construction. The difference is the model number, trade name, colour, cosmetic outlook and sikscreen. Therefore only the item HP-2020-BTHF was tested in this report. Report No.: HKES131100275401 Page: 3 of 27 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of t…

Text truncated - open the document above for the full version.

FCC ID: 2AANA-SEM-HP2020 Setup Photo Radiated emission FCC ID: 2AANA-SEM-HP2020 FCC ID: 2AANA-SEM-HP2020 FCC ID: 2AANA-SEM-HP2020 FCC ID: 2AANA-SEM-HP2020 Conducted emission FCC ID: 2AANA-SEM-HP2020
