2AANA-SEM-SP3000Mini Speaker System

E-2 High Power Mini Speaker System OPERATING INSTRUCTIONS MODEL : SP-3000-BTHF WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product. The lightning flash and arrowhead within the triangle is a warning sign alerting you of "dangerous voltage" inside the product. CAUTION DO NOT EXPOSE TO DRIPPING OR SPLASHING LIQUIDS! NOTE: CAUTION SYMBOLS ARE PRINTED ON REAR OF UNIT. PLEASE REFER TO INSTRUCTION MANUAL. WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHING LIQUIDS. PLEASE NOTE: YOU WILL FIND THE RATING LABEL FOR THIS PRODUCT LOCATED ON THE REAR OF THE UNIT. THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE APPARATUS. THE MARKING AND RATING LABEL IS LOCATED AT REAR ENCLOSURE OF THE APPARATUS. UNDER THE INFLUENCE OF ELECTROSTATIC PHENOMENON, THE PRODUCT MAY MALFUNCTION AND USER TO POWER RESET. BATTERY SHOULD NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product. NOTE: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : -Reorient or relocate the receiving antenna. -Increase the separation between the product and receiver. - Connect the product into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. BLUETOOTH® WIRELESS PLAYBACK THE UNIT CAN WIRELESSLY STREAM AUDIO FROM ANY BLUETOOTH® DEVICE WITHIN 30 FEET. SIMPLY PAIR THE DEVICE AND ENJOY WIRELESS PLAYBACK AND CONTROL FROM YOUR BLUETOOTH® DEVICE. PREPARE THE UNIT: - PRESS AND HOLD THE ON/STANDBY KEY ABOUT 2 SECONDS TO TURN THE UNIT ON. - THE LED INDICATOR WILL FLASH TO INDICATE THE UNIT IS ON AND WAITING FOR PARING. - THE LED INDICATOR WILL REMAIN LIT ON WHEN PAIRED. *NOTE ONLY ONE DEVICE CAN BE PAIRED AT ANY GIVEN TIME. PREPARE YOUR PHONE OR OTHER BLUETOOTH® DEVICE: - TURN ON THE BLUETOOTH® FUNCTION, THIS IS USUALLY FOUND UNDER GENERAL SETTINGS OR OPTIONS. *PLEASE REFER TO YOUR DEVICE’S MANUAL FOR FURTHER BLUETOOTH® DETAILS. MAKE THE CONNECTION: - GO TO YOUR DEVICE’S BLUETOOTH® SETTINGS - ADD OR SEARCH FOR DEVICES - IF ASKED FOR A PASS CODE, ENTER “0000” *THIS IS A ONE-TIME EVENT PER DEVICE. TO PAIR YOUR UNIT TO ANOTHER DEVICE, REPEAT THE ABOVE PREPARATION AND CONNECTION STEPS. DISABLING THE CONNECTION TO UNPAIR A BLUETOOTH® DEVICE THAT IS ALREADY PAIRED, PRESS AND HOLD THE PAIR KEY FOR A FEW SECONDS. VOLUME CONTROL: INCREASE AND DECREASE VOLUME USING THE VOLUME UP AND VOLUME DOWN KEYS ON THE UNIT OR USING THE VOLUME CONTROLS ON YOUR BLUETOOTH® ENABLED DEVICE. *NOTE THAT IF THERE IS NO PLAYBACK, ENSURE THAT NEITHER THE UNIT NOR YOUR BLUETOOTH® DEVICE ARE SET TO ZERO VOLUME AND THE CORRECT DEVICE FOR PLAYBACK IS PAIRED. E-4 USING THE AUDIO LINE IN CONNECTION (AUX-INPUT) - YOU CAN CONNECT THE AUDIO OUTPUT OF AN EXTERNAL DEVICE SUCH AS A MP3 PLAYER TO THIS UNIT, TO LISTEN TO THE SOUND OF THAT DEVICE THROUGH THE HIGH QUALITY AMPLIFIER OF THIS MUSIC SYSTEM. - TO CONNECT THE EXTERNAL DEVICE PLEASE USE A STANDARD STEREO HEADPHONE (3.5MM TO 3.5MM PLUGS) CABLE TO CONNECT THE "HEADPHONE-OUT OR AUDIO LINE-OUT" OF THE DEVICE TO THE AUX-INPUT SOCKET OF THIS UNIT. - SELECT THE FUNCTION TO "AUX IN" BY PRESSING THE SOURCE KEY ONCE. - SWITCH ON THE EXTERNAL DEVICE (eg. MP3-PLAYER). - START PLAYBACK OF THE EXTERNAL DEVICE AND ADJUST THE VOLUME CONTROL OF THE UNIT TO THE DESIRED LEVEL. - REMEMBER TO SWITCH OFF THE UNIT AND THE EXTERNAL DEVICE WHEN YOU ARE FINISHED USING THE EXTERNAL DEVICE. - SWITCH BACK TO BLUETOOTH® MODE ANYTIME BY PRESSING THE SOURCE KEY AGAIN. SPEAKER OPERATION - AT ANYTIME DURING PLAYBACK, PRESS THE PLAY/PAUSE KEY TO PAUSE OPERATION. PRESS AGAIN TO RESUME OPERATION AT THE SAME TRACK & POSITION. - AT ANYTIME DURING PLAYBACK, “PRESS AND RELEASE” THE NEXT OR BACK KEY : OR TO SKIP BACKWARDS OR FORWARDS BY ONE TRACK, AS DESIRED. - PRESS THE PLAY/PAUSE KEY TO START PLAYBACK. - THE UNIT INCLUDES A VERY USEFUL HANDS-FREE FUNCTION WHICH ENABLES YOU TO USE IT AS A SPEAKER PHONE. - MAKE SURE THE UNIT IS ON AND PAIRED WITH YOUR PHONE DEVICE AS DESCRIBED. TO RECEIVE A CALL: PRESS THE HANDS-FREE KEY (7) ONCE. TO END A CALL: PRESS THE HANDS-FREE KEY (7) AGAIN WHEN THE CALL IS FINISHED. TO REJECT A CALL: PRESS THE ON/ STANDBY/ CALL REJECT KEY (8). HANDS-FREE OPERATION LOCATION OF CONTROLS E-3 1. VOLUME DOWN KEY 2. VOLUME UP KEY 3. BASS KEY 4. BACK KEY 5. NEXT KEY 6. SOURCE KEY 7. PAIR/ PLAY/ PAUSE/ HANDS FREE KEY TOP VIEW…

Text truncated - open the document above for the full version.

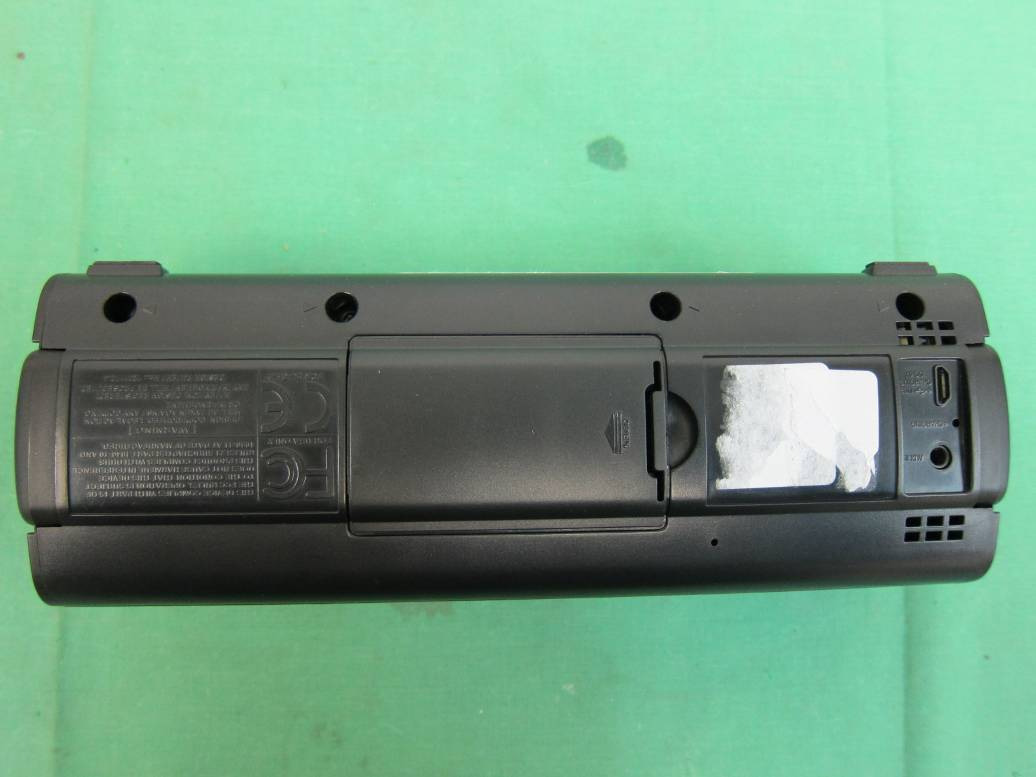

FCC ID: 2AANA-SEM-SP3000 External Photo FCC ID: 2AANA-SEM-SP3000 FCC ID: 2AANA-SEM-SP3000

FCC ID: 2AANA-SEM-SP3000 Internal Photo FCC ID: 2AANA-SEM-SP3000 FCC ID: 2AANA-SEM-SP3000 FCC ID: 2AANA-SEM-SP3000 FCC ID: 2AANA-SEM-SP3000 FCC ID: 2AANA-SEM-SP3000

Report No.: HKES141200240602 Page: 1 of 24 Authorized Signature: CHEN Jian-feng, Jeffrey The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS IECC Limited or testing done by SGS IECC Limited in connection with, distribution or use of the product described in this report must be approved by SGS IECC Limited in writing. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC ID: 2AANA-SEM-SP3000 Member of the SGS Group (SGS SA) FCC Test Report Application No.: HKES141200240601 Applicant: S.E.M. INDUSTRIES Address: 35/F., Tower A, Billion Centre No.1 Wang Kwong Road, Kowloon Bay, Kowloon Hong Kong Product Information: Product Description: Mini Speaker System Model: SP-3000-BTHF, SP-3000-BT, SP-3000, SP3000 ♣ ♣ Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. Brand Name: S.E.M/ S-LOGO/ NIL/ S-DIGITAL/ SDIGITAL/ S.E.M. AUDIO LABORATORIES Product Class : Low Power Communication Device – Transmitter (2.4 GHz) FCC ID: 2AANA-SEM-SP3000 Requirement: CFR 47 FCC PART 15 SUBPART C, 2014 - Intentional Radiators (Section 15.249) Date of Receipt: 2014-12-08 Date of Test: 2014-12-12 to 2014-12-15 Date of Issue: 2014-12-18 Test Result : PASS* In the configuration tested, the EUT complied with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. Report No.: HKES141200240602 Page: 2 of 24 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC ID: 2AANA-SEM-SP3000 Member of the SGS Group (SGS SA) 2 Test Summary Test Test Requirement Test Method Result Conducted Emission (150KHz to 30MHz) FCC PART 15, SUBPART C: 2014 ANSI C63.4:2003 PASS Radiated Emission (9kMHz to 1GHz) FCC PART 15, SUBPART C: 2014 ANSI C63.4:2003 PASS Radiated Emission above 1 GHz FCC PART 15, SUBPART C: 2014 ANSI C63.4:2003 PASS Band edge / 20 dB Bandwidth FCC PART 15, SUBPART C: 2014 ANSI C63.4:2003 Marker-Detla measurement PASS ♣ Item no.: SP-3000-BTHF, SP-3000-BT, SP-3000, SP3000 According to the confirmation from the applicant, the above models are identical in all electrical aspects in relating to the circuit design, PCB layout and construction. The differences are the model no. trade name, color, cosmetic outlook and silkscreen. Therefore only the item SP-3000-BTHF was tested in this report. Report No.: HKES141200240602 Page: 3 of 24 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of th…

Text truncated - open the document above for the full version.

FCC ID: 2AANA-SEM-SP3000 Setup Photo Radiated emission FCC ID: 2AANA-SEM-SP3000 FCC ID: 2AANA-SEM-SP3000 Conducted emission
