2AANL-WL811WIFI Module

Long Ben(Dong Guan)Elec. Tech. Co., Ltd.
WIFI Module - FCC ID 2AANL-WL811 - Long Ben(Dong Guan)Elec. Tech. Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 18, 2013
Application Purpose
Original Equipment
Date of Application
Dec 18, 2013
Equipment Note
WIFI Module
Frequency Range
2412.00000000 - 2462.00000000
Company
Long Ben(Dong Guan)Elec. Tech. Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Long Ben Electronics Co., Ltd Specification Dongguan Long Ben electronics Co.,Ltd Specification Model : WL811 Design Zhiheng yao Description: WIFI Module Verify File NO. : RD2013072002 Version : 1.0 Approve Release Date: 2013.7.20 Pagination :1/12 LB-QP-703-004-A0 Long Ben Electronics Co., Ltd Specification 1.Brief Description: WL811 is a WiFi module complies with the 802.11n standards and the transferring rate is up to 150Mbps--3X the traditional 11g wireless products. The WL811 also backwards complies with all 802.11b/g wireless equipment. It allows users to connect a device to a wireless network at 150Mbps. By adopting the advanced low power dissipation & economization design, the power consumption and RF radiation have cut down obviously. It also features advanced wireless encryption and easy installation. Long Ben Electronics Co., Ltd Specification 2.Electrical Specification: Recommended operating rating Element DC supply voltage Sysmbol UV+ Min 4.75 Typ 5.0 Max 5.25 Unit (V) DC Characteristics Symbol Parameter Min Typ Max Unit UV+ Supply voltage 4.75 5.0 5.25 (V) Tx Current(1M/14dBm) -- 190 255 (mA) Tx Current(6M/14dBm) -- 180 245 (mA) Tx Current(11M/14dBm) -- 175 230 (mA) Tx Current(54M/14dBm) -- 130 170 (mA) Tx Current(MCS0/14dBm/HT20) -- 185 245 (mA) Tx Current(MCS0/12dBm/HT40) -- 175 230 (mA) Tx Current(MCS7/14dBm/HT20) -- 130 170 (mA) Tx Current(MCS7/12dBm/HT40) -- 115 150 (mA) Rx Current -- 75 100 (mA) ESD Information Mode Level Unit HBM +/-2k V MM +/-200 V Environment condition Temperature Operating Temperature: 0 deg.C ~ 55 deg.C Storage Temperature: -40 deg.C ~ 80 deg.C Humidity Operating Humidity: 20% ~ 90% Storage Humidity: 20% ~ 90% Long Ben Electronics Co., Ltd Specification 3.RF Specification IEEE802.11b Items Contents Specification IEEE802.11b Mode DSSS/CCK Channel CH1-CH11 Date rate 1,2,5.5,11Mbps TX Characteristics Min. Typ. Max. Unit 1.Power Lereis(Calibrated) 1) Target Power@1Mbps 12 14 16 dBM 2) Target Power@2Mbps 12 14 16 dBM 3) Target [email protected] 12 14 16 dBM 4) Target Power@11Mbps 12 14 16 dBM 2.Spectrum Mask @16dBm 1)fc-33MHZ﹤f﹤fc-22MHZ - - -50 dBr 2)fc-22MHZ﹤f﹤fc-11MHZ - - -30 dBr 3)fc+11MHZ﹤f﹤fc+22MHZ - - -30 dBr 4)fc+22MHZ﹤f﹤fc+33MHZ 0 - -50 dBr 3.Frequency Error -20 - +20 ppm 4. Modulation Accuracy(EVM)@16dBM 1)1Mbps - -10 dB 2)2Mbps - -10 dB 3)5.5Mbps - -10 dB 4)11Mbps - -10 dB RX Characteristics Min. Typ. Max. Unit 5. Minimun Imput Levl Sensitivity 1)1Mbps(FER≤8%) - -94 -91 dBm 2)2Mbps(FER≤8%) - -93 -90 dBm 3)5.5Mbps(FER≤8%) - -91 -88 dBm 4)11Mbps(FER≤8%) - -88 -85 dBm 6 Maximum Input Level(FER≤8%) -10 -5 - dBm Long Ben Electronics Co., Ltd Specification IEEE802.11g Items Contents Specification IEEE802.11g Mode OFDM Channel CH1-CH11 Date rate 6,9,12,18,24,36,48,54Mbps TX Characteristics Min. Typ. Max. Unit 1.Power Lereis(Calibrated) 1) Target Power@6Mbps 10.5 12 13 dBm 2) Target Power@9Mbps 10.5 12 13 dBm 3) Target Power@12Mbps 10.5 12 13 dBm 4) Target Power@18Mbps 10.5 12 13 dBm 5) Target Power@24Mbps 10.5 12 13 dBm 6) Target Power@36Mbps 10.5 12 13 dBm 7) Target Power@48Mbps 10.5 12 13 dBm 8) Target Power@54Mbps 10.5 12 13 dBm 2.Spectrum Mask @14dBm 1) ar fc +/-11MHz - - -20 dBr 2) ar fc +/-20MHz - - -28 dBr 3) ar fc >+/-30MHz - - -40 dBr 3 Modulation Accuracy(EVM)@14dBM 1)6Mbps - - -5 dB 2)9Mbps - - -8 dB 3)12Mbps - - -10 dB 4)18Mbps - - -13 dB 5)24Mbps - - -16 dB 6)36Mbps - - -19 dB 7)48Mbps - - -22 dB 8)54Mbps - -28 -25 dB 4 Frequency Error -20 - +20 ppm RX Characteristics Min. Typ. Max. Unit 5 Minimun Imput Levl Sensitivity 1)6Mbps(PER﹤10%) - -90 -87 dBm 2)9Mbps(PER﹤10%) - -89 -86 dBm 3)12Mbps(PER﹤10%) - -87 -84 dBm 4)18Mbps(PER﹤10%) - -85 -82 dBm 5)24Mbps(PER﹤10%) - -82 -79 dBm Long Ben Electronics Co., Ltd Specification 6)36Mbps(PER﹤10%) - -79 -76 dBm 7)48Mbps(PER﹤10%) - -75 -72 dBm 8)54Mbps(PER﹤10%) - -74 -69 dBm 6 Maximum Input Level(PER﹤10%) -20 -15 - dBm Long Ben Electronics Co., Ltd Specification IEEE802.11n HT20 Items Contents Specification IEEE802.11n HT20 Mode OFDM Channel CH1 to CH11 Date rate(MCS index) MCS0/1/2/3/4/5/6/7 TX Characteristics Min. Typ. Max. Unit 1. Power Levels (Calibrated) 1) Target Power@MCS0 10.5 12 13 dBm 2) Target Power@MCS1 10.5 12 13 dBm 3) Target Power@MCS2 10.5 12 13 dBm 4) Target Power@MCS3 10.5 12 13 dBm 5) Target Power@MCS4 10.5 12 13 dBm 6) Target Power@MCS5 10.5 12 13 dBm 7) Target Power@MCS6 10.5 12 13 dBm 8) Target Power@MCS7 10.5 12 13 dBm 2. Spectrum Mask @ 14dBm 1) at fc +/- 11MHz - - -20 dBr 2) at fc +/- 20MHz - - -28 dBr 3) at fc +/-30MHz - - -45 dBr 3. Modulation Accuracy(EVM)@14dBm 1) MCS0 - - -5 dB 2) MCS1 - - -10 dB 3) MCS2 - - -13 dB 4) MCS3 - - -16 dB 5) MCS4 - - -19 dB 6) MCS5 - - -22 dB 7) MCS6 - - -25 dB 8) MCS7 - - -28 dB 4. Frequency Error -20 - 20 ppm RX Characteristics Min. Typ. Max. Unit 5. Minimum Input Level Sensitivity 1) MCS0 (PER< 10%) - -89 -86 dBm 2) MCS1 (PER< 10%) - -87 -84 dBm 3) MCS2 (PER< 10%) - -85 -82 dBm 4) MCS3 (PER< 10%) - -82 -79 dBm 5) MCS4 (PER< 10%) - -79 -76 dBm 6) MCS5 (PER< 10%) - -75 -72 dBm 7) MCS6 (PER< 10%) - -73 -70 dBm 8) MCS7 (PER< 10%) - -72 -69 dBm 6. Maximum Input Level (PER < 10%) -20 -15 - dBm Long Ben Electronics Co., Ltd Specification IEEE802.11n HT40 Items Contents Specification IEEE802.11n HT40 Mode OFDM Channel CH3 to CH9 Date rate(MCS index) MCS0/1/2/3/4/5/6/7 TX Characteristics Min. Typ. Max. Unit 1. Power Levels (Calibrated) (*1) 1) Target Power@MCS0 7.5 9 10.5 dBm 2) Target Power@MCS1 7.5 9 10.5 dBm 3) Target Power@MCS2 7.5 9 10.5 dBm 4) Target Power@MCS3 7.5 9 10.5 dBm 5) Target Power@MCS4 7.5 9 10.5 dBm 6) Target Power@MCS5 7.5 9 10.5 dBm 7) Target Power@MCS6 7.5 9 10.5 dBm 8) Target Power@MCS7 7.5 9 10.5 dBm 2. Spectrum Mask @ 12dBm 1) at fc +/- 21MHz - - -20 dBr 2) at fc +/- 40MHz - - -28 dBr 3) at fc +/- 60MHz - - -45 dBr 3. Modulation Accuracy(EVM)@12dBm 1) MCS0 - -8 -5 dB 2) MCS1 - -13 -10 dB 3) MCS2 - -16 -13 dB 4) MCS3 - -19 -16 dB 5) MCS4 - -21 -19 dB 6) MCS5 - -25 -22 dB 7) MCS6 - -28 -25 dB 8) MCS7 - -31(3%) -28 dB 4. Frequency…

Text truncated - open the document above for the full version.

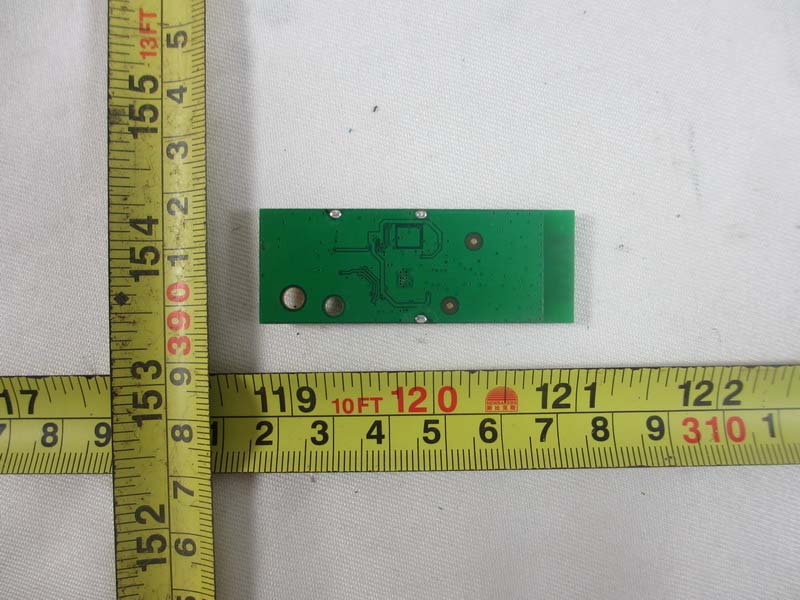

External Photos

Neutron Engineering Inc. Project No.: 1310C016 Page 2 of 4 Neutron Engineering Inc. Project No.: 1310C016 Page 3 of 4 Neutron Engineering Inc. Project No.: 1310C016 Page 4 of 4

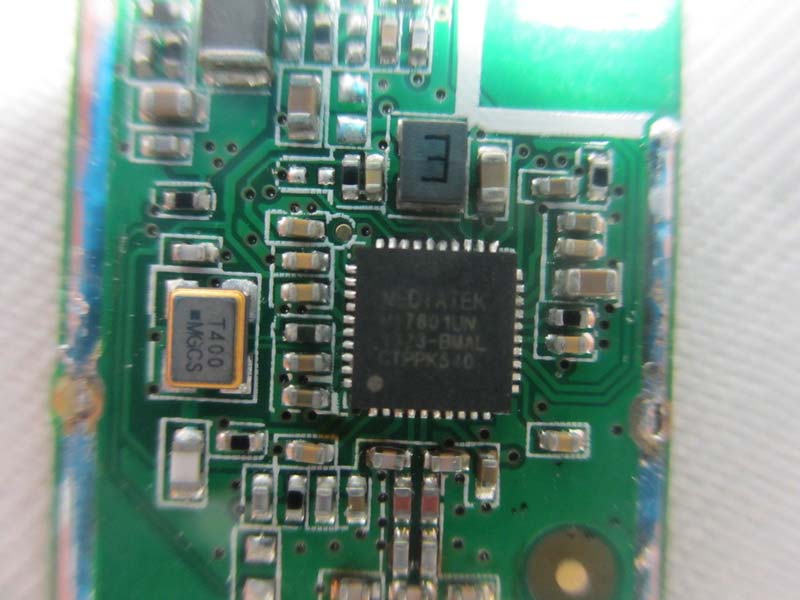

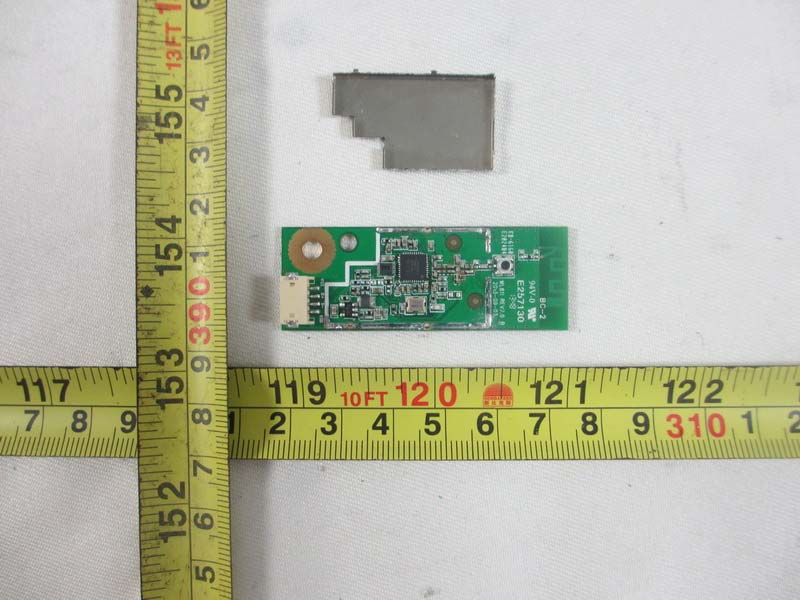

Internal Photos

Neutron Engineering Inc. Project No.: 1310C016 Page 2 of 4 Neutron Engineering Inc. Project No.: 1310C016 Page 3 of 4 Neutron Engineering Inc. Project No.: 1310C016 Page 4 of 4

RF Exposure Info

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: 2AANL-WL811 Project No. : 1310C016 Equipment : WIFI Module Model : WL811 Applicant : Long Ben(Dong Guan)Elec. Tech. Co., Ltd. Address : No.19, Jian She Road, Shi Ma Villa ge, Tang Xia Town, Dong Guan, China According: : FCC Guidelines for Human Exposure IEEE C95.05.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Note 1 N/A N/A Printed N/A 1.61 Neutron Engineering Inc. TEST RESULTS EUT: WIFI Module Model Name : WL811 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX B MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.61 1.4488 19.63 91.8333 0.026481971 Complies 1.61 1.4488 19.81 95.7194 0.027602621 Complies 1.61 1.4488 19.53 89.7429 0.025879171 Complies EUT: WIFI Module Model Name : WL811 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX G MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.61 1.4488 24.16 260.6154 0.075153701 Complies 1.61 1.4488 24.00 251.1886 0.072435321 Complies 1.61 1.4488 24.29 268.5344 0.077437331 Complies Neutron Engineering Inc. EUT: WIFI Module Model Name : WL811 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N20MHz MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.61 1.4488 23.86 243.2204 0.070137511 Complies 1.61 1.4488 24.04 253.5129 0.073105551 Complies 1.61 1.4488 23.79 239.3316 0.069016091 Complies EUT: WIFI Module Model Name : WL811 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N40MHz MODE CH03/CH06/CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.61 1.4488 22.04 159.9558 0.046126491 Complies 1.61 1.4488 22.01 158.8547 0.045808951 Complies 1.61 1.4488 22.48 177.0109 0.051044671 Complies Note: the calculation distance is 20cm.

Test Report

Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 1 of 126 FCC&IC Radio Test Report FCC ID: 2AANL-WL811 IC: 10616A-WL811 This report concerns (check one): Original Grant Class II Change Issued Date : Dec. 12, 2013 Project No. : 1310C016 Equipment : WIFI Module Model Name : WL811 Applicant : Long Ben(Dong Guan)Elec. Tech. Co., Ltd. Address : NO.19,JianShe Road, ShiMa Village, TangXia Town, DongGuan, Guangdong, China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 10, 2013 Date of Test: Oct. 10, 2013~ Dec. 11, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 2 of 126 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 3 of 126 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 22 4.2.4 DEVIATION FROM TEST STANDARD 22 4.2.5 TEST SETUP 23 4.2.6 EUT OPERATING CONDITIONS 24 4.2.7 TEST RESULTS (BELOW 30MHZ) 25 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 26 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 33 5 . BANDWIDTH TEST 81 5.1 APPLIED PROCEDURES / LIMIT 81 5.1.1 MEASUREMENT INSTRUMENTS LIST 81 5.1.2 TEST PROCEDURE 81 5.1.3 DEVIATION FROM STANDARD 81 5.1.4 TEST SETUP 81 5.1.5 EUT OPERATION CONDITIONS 81 5.1.6 TEST RESULTS 82 Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 4 of 126 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 90 6.1 APPLIED PROCEDURES / LIMIT 90 6.1.1 MEASUREMENT INSTRUMENTS LIST 90 6.1.2 TEST PROCEDURE 90 6.1.3 DEVIATION FROM STANDARD 90 6.1.4 TEST SETUP 90 6.1.5 EUT OPERATION CONDITIONS 90 6.1.6 TEST RESULTS 91 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 93 7.1 APPLIED PROCEDURES / LIMIT 93 7.1.1 MEASUREMENT INSTRUMENTS LIST 93 7.1.2 TEST PROCEDURE 93 7.1.3 DEVIATION FROM STANDARD 93 7.1.4 TEST SETUP 93 7.1.5 EUT OPERATION CONDITIONS 93 7.1.6 TEST RESULTS 94 8 . POWER SPECTRAL DENSITY TEST 114 8.1 APPLIED PROCEDURES / LIMIT 114 8.1.1 MEASUREMENT INSTRUMENTS LIST 114 8.1.2 TEST PROCEDURE 114 8.1.3 DEVIATION FROM STANDARD 114 8.1.4 TEST SETUP 114 8.1.5 EUT OPERATION CONDITIONS 114 8.1.6 TEST RESULTS 115 9 . EUT TEST PHOTO 123 Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 5 of 126 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FICP-1-1310C016 Original Issue. Dec. 12, 2013 Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 6 of 126 1. CERTIFICATION Equipment : WIFI Module Brand Name : N/A Model Name : WL811 Applicant : Long Ben(Dong Guan)Elec. Tech. Co., Ltd. Manufacturer : LONG BEN TECHNOLOGY LIMITED Address : NO.19,JianShe Road, ShiMa Village, TangXia Town, DongGuan, Guangdong, China Date of Test : Oct. 10, 2013~ Dec. 11, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 Canada RSS-210:2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FICP-1-1310C016) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 7 of 126 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15 (15.247) , Subpart C RSS-210: 2010 Standard(s) Section Test Item Judgment Remark 15.207 RSS-GEN 7.2.2Conducted Emission PASS 15.247(d) RSS-210 A8.5 Antenna conducted Spurious Emission PASS 15.247(…

Text truncated - open the document above for the full version.

Test Setup Photos

Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 123 of 126 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 124 of 126 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 125 of 126 Radiated Measurement Photos 30M~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1310C016 Page 126 of 126 Radiated Measurement Photos Above 1000MHz

Contact Information

Applicant

Sui Xiong Diao(General Manager)
[email protected]+86-139 2292 7321Fax: +86-769 8781 9239

Test Firm

BTL Inc.Daisy Dai
[email protected]008676983183000Fax: 0086 769 83196000

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz270.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power output listed is peak conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC accepted multi-transmitter procedures. OEMs and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz and 40 MHz bandwidth mode.
