2AANZ200HOVER-1 - SELF-BALANCING SCOOTER

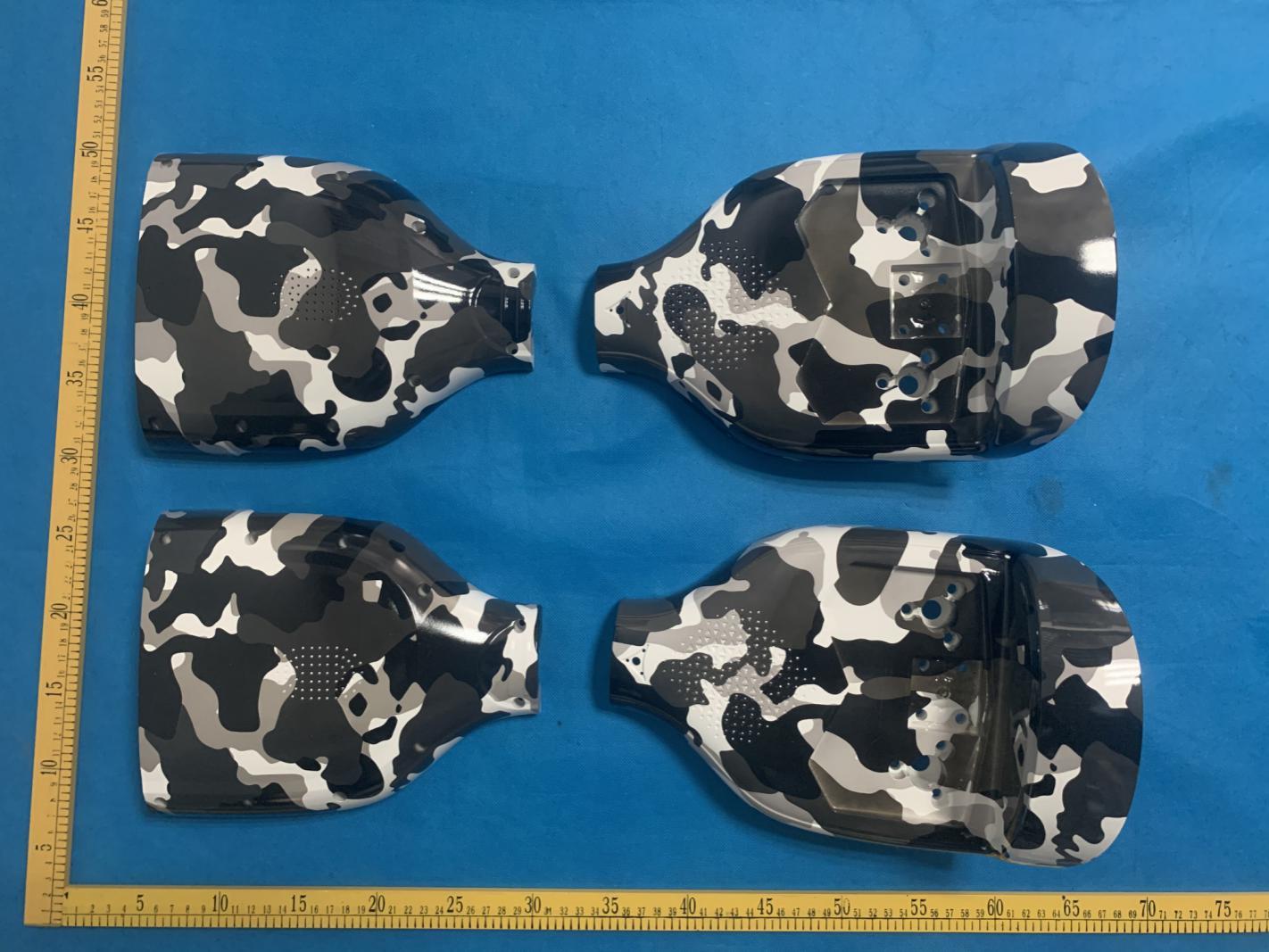

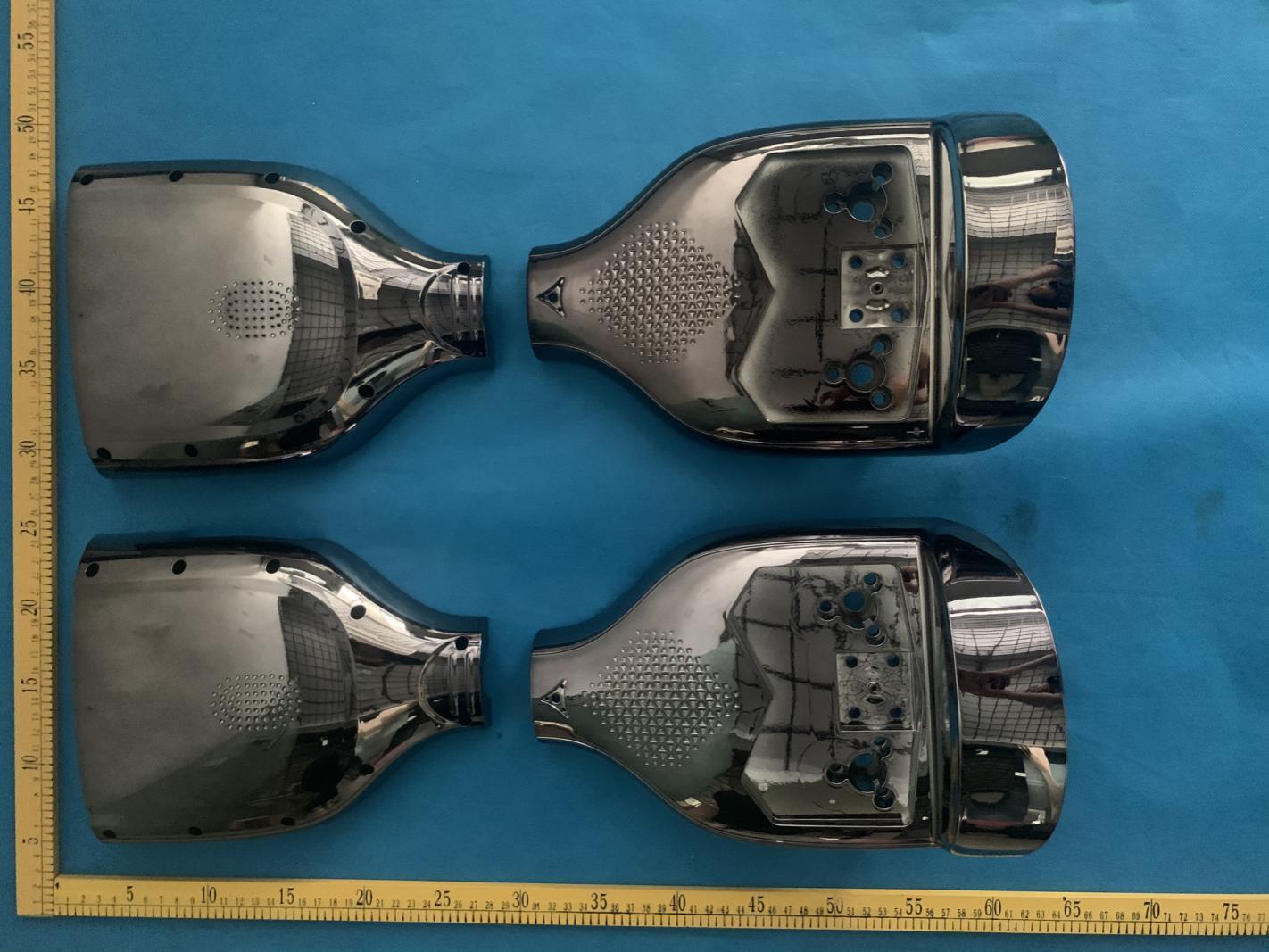

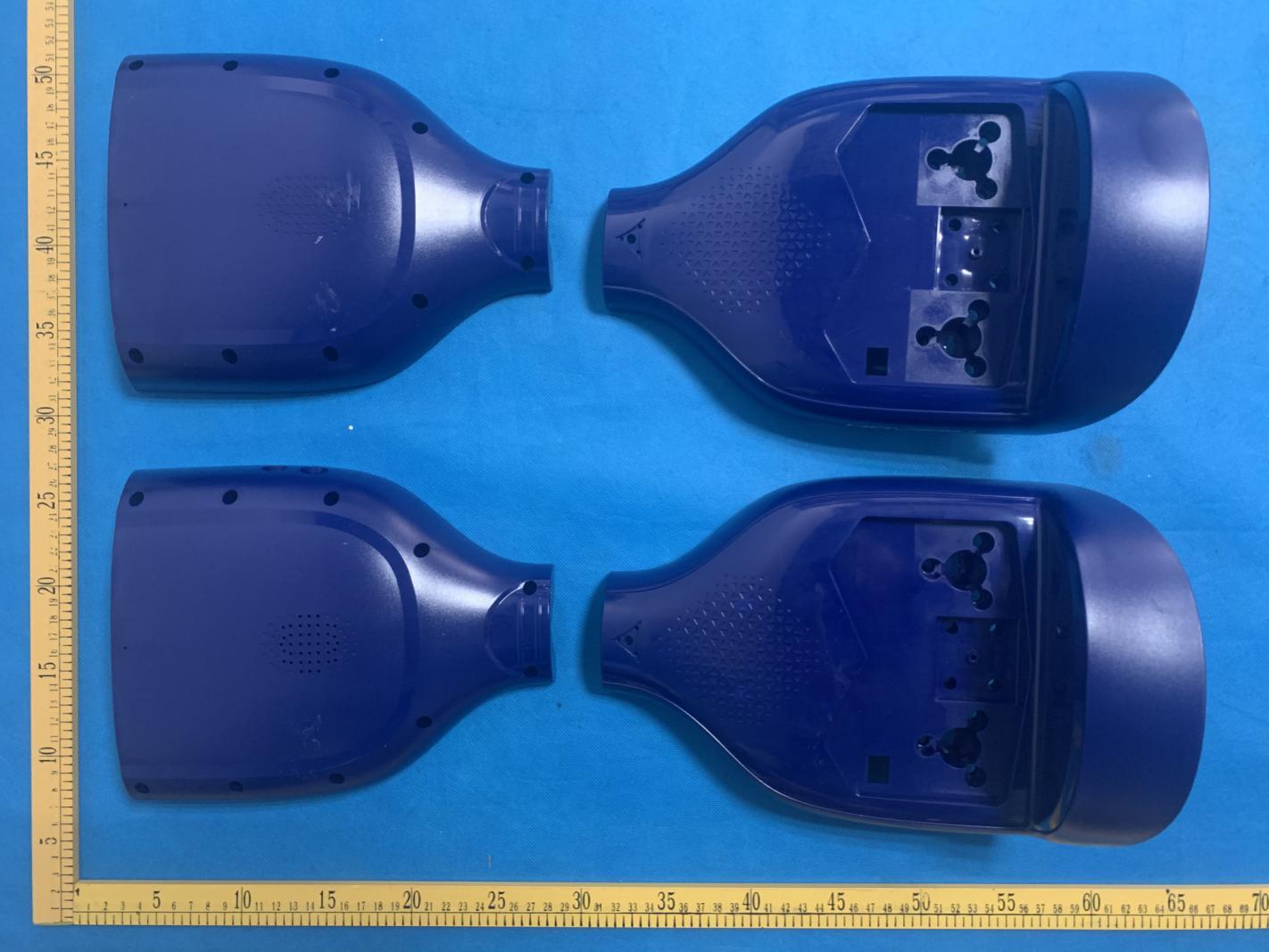

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT) VIEW OF ADAPTER VIEW OF SHELL-1 VIEW OF SHELL-2 VIEW OF SHELL-3 VIEW OF SHELL-4 VIEW OF SHELL-5 VIEW OF SHELL-6

Label size：--mm * --mm * --mm

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT Antenna INTERNAL VIEW-7 OF EUT VIEW OF BATTERY

DGL Group, Ltd Josephine Tran 195 Raritan Center Parkway Edison, NJ 08837 Declaration concerning Antenna Specification It is hereby declared that the product Model: H1-200-BLK, H1-200-GMT, H1-200-CAMO, H1-200-GLX, H1-200-IRD, H1-200-PNK, H1-200- BLU, H1-200, H1-200-XXX FCC ID: 2AANZ200 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 2.402 GHz to 2.480GHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: DGL Group LTD. Address: 195 Raritan Center Parkway Edison, New Jersey United States 08837 Place: New Jersey Date: 2020-07-13 Signature:

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description HOVER-1 - SELF-BALANCING SCOOTER Model Name H1-200-BLK, H1-200-GMT, H1-200-CAMO, H1-200-GLX, H1-200-IRD, H1-200-PNK, H1-200-BLU, H1-200, H1-200-XXX FCC ID 2AANZ200 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =2.327dBm=1.71mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.71mW /5mm) .[√2.48(GHz)]= 0.54<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 74 FCC Test Report Report No.: AGC01559200507FE03 FCC ID : 2AANZ200 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : HOVER-1 - SELF-BALANCING SCOOTER BRAND NAME : N/A MODEL NAME : H1-200-BLK, H1-200-GMT, H1-200-CAMO, H1-200-GLX, H1-200-IRD, H1-200-PNK, H1-200-BLU, H1-200, H1-200-XXX APPLICANT : DGL GROUP LTD DATE OF ISSUE : Jun. 19, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01559200507FE03 Page 2 of 74 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 19, 2020 Valid Initial Release Report No.: AGC01559200507FE03 Page 3 of 74 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2 EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 20 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 20 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 27 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 27 Report No.: AGC01559200507FE03 Page 4 of 74 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 27 10. RADIATED EMISSION ............................................................................................................................... 37 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 37 10.2. TEST SETUP ....................................................................................................................................... 39 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 40 10.4. TEST RESULT ..................................................................................................................................... 40 11. NUMBER OF HOPPING FREQUENCY .....................................................…

Text truncated - open the document above for the full version.

Report No.: AGC01559200507FE03 Page 59 of 74 Line Conducted Emission Test Line 2-N RESULT: PASS Note: All the test modes had been tested, the mode 1 was the worst case. Only the data of the worst case would be record in this test report. Report No.: AGC01559200507FE03 Page 60 of 74 APPENDIX A: PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ Report No.: AGC01559200507FE03 Page 61 of 74 CONDUCTED EMISSION TEST SETUP Report No.: AGC01559200507FE03 Page 62 of 74 APPENDIX B: PHOTOGRAPHS OF EUT ALL VIEW OF EUT TOP VIEW OF EUT Report No.: AGC01559200507FE03 Page 63 of 74 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC01559200507FE03 Page 64 of 74 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC01559200507FE03 Page 65 of 74 RIGHT VIEW OF EUT VIEW OF EUT(PORT) Report No.: AGC01559200507FE03 Page 66 of 74 OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT Report No.: AGC01559200507FE03 Page 67 of 74 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Report No.: AGC01559200507FE03 Page 68 of 74 INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT Report No.: AGC01559200507FE03 Page 69 of 74 INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT Antenna Report No.: AGC01559200507FE03 Page 70 of 74 INTERNAL VIEW-7 OF EUT VIEW OF BATTERY Report No.: AGC01559200507FE03 Page 71 of 74 VIEW OF ADAPTER VIEW OF SHELL-1 Report No.: AGC01559200507FE03 Page 72 of 74 VIEW OF SHELL-2 VIEW OF SHELL-3 Report No.: AGC01559200507FE03 Page 73 of 74 VIEW OF SHELL-4 VIEW OF SHELL-5 Report No.: AGC01559200507FE03 Page 74 of 74 VIEW OF SHELL-6 ----END OF REPORT----

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST SETUP
