2AANZHYDROBASSBluetooth Speaker

Manual Model No.: HY-PLM-GRN (C1) Function instruction z Bluetooth play/SD paly/LINE IN mode/U memory card z time Bluetooth play and LINE IN play z Long Press the“-” or“+” button on the unit to adjust the volume; z Short press to next or previous song. z USB charge cord z Hands-free z Voice prompt function 1. User manual 1. make sure the smartphone，tablet or computer you want to hook up to speaker has Bluetooth. 2. Turn on the speaker and look for the little blinking light 3. make sure Bluetooth speaker is power on, then you can choose other way player, needing put in the TF memory card. 4. look for C1 BT-SPK in your device’s Bluetooth list or click 5. Depending on your device you may be prompted to enter a pairing code. 6. when the audio device is in play model，the music will sound from the C1 BT-SPK speakers. Long Press the“-” or“+” button on the C1 BT-SPK to adjust the volume If you want to change another music，short press“-” or “+” button on the C1 BT-SPK to adjust the music Depending on your device you may be prompted to enter a pairing code. If prompted enter “0000” as the code. Hello? Speakerphone? Yes! Here’s how it works: 1. Make sure your phone and the speaker are connected through Bluetooth and not on a “break.” 2. Answering and ending a call works the same way: simply click the PLAY/PAUSE button on your C1 BT-SPK 3. If you’d rather not talk, hold down the PLAY/PAUSE button on your C1 BT-SPK for three seconds to ignore the call. THE COOLEST PART: The C1 BT-SPK knows when a call is coming in and pauses the music before ringing. When you hang up, the music starts where it left off—and so does the party. If it’s you making the call, just start dialing from your phone, and C1 BT-SPK automatically does its hands-free thing. Isn’t it refreshing to know your speaker totally gets you? Charging the speakers is so easy you’ve probably figured it out by now, but just in case, you’ve got two options: your computer or a wall outlet. 1. The cord that came with the speaker—the one with the USB on one end and the Micro USB on the other—will work with your computer. 2. If you want to use the wall outlet, you’ll need to pick up a power cord with a Micro USB the next time you’re at the store, or use any USB AC adapter, including the one for your cell. Now go get ready for an epic night while your speaker does too. It needs about 2 hours of me time for 4 hours of party time. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

PAGE 3 OF 4 Date : October 21, 2014 PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 Blomberg Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. KC Lee as agent for DGL Group, Ltd. 195 Raritan Center Parkway, Edison, NJ 08837 to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of DGL Group, Ltd. Product name : Bluetooth Speaker Model: HY-PLM-GRN (C1)

Page 1 Company Name: DGL Group, Ltd. Address: 195 Raritan Center Parkway, Edison, NJ 08837 Date : October 21, 2014 FCC ID: 2AANZHYDROBASS To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “DGL Group, Ltd.” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) block diagram (4) Circuit Description (5) All specifications Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection.

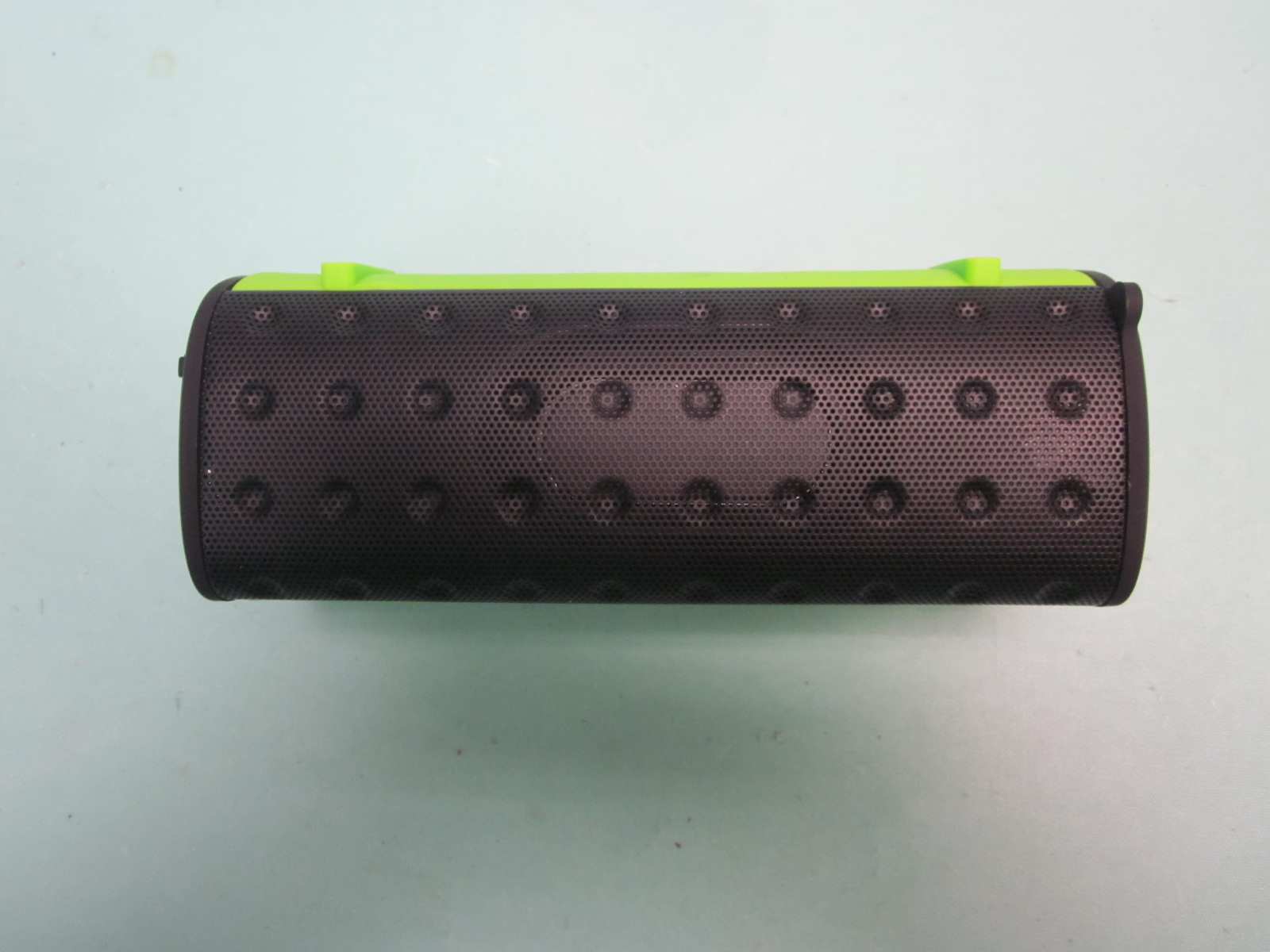

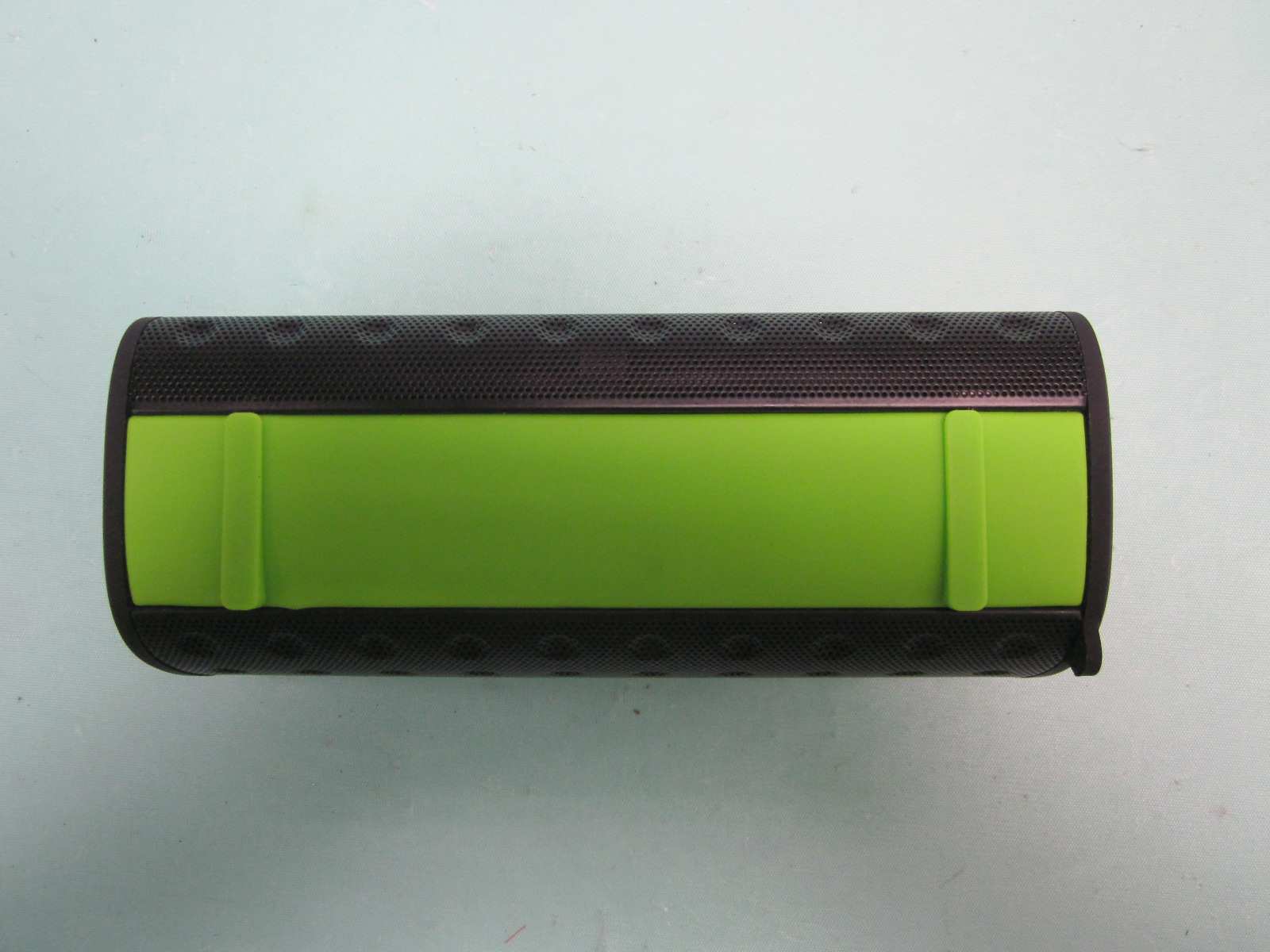

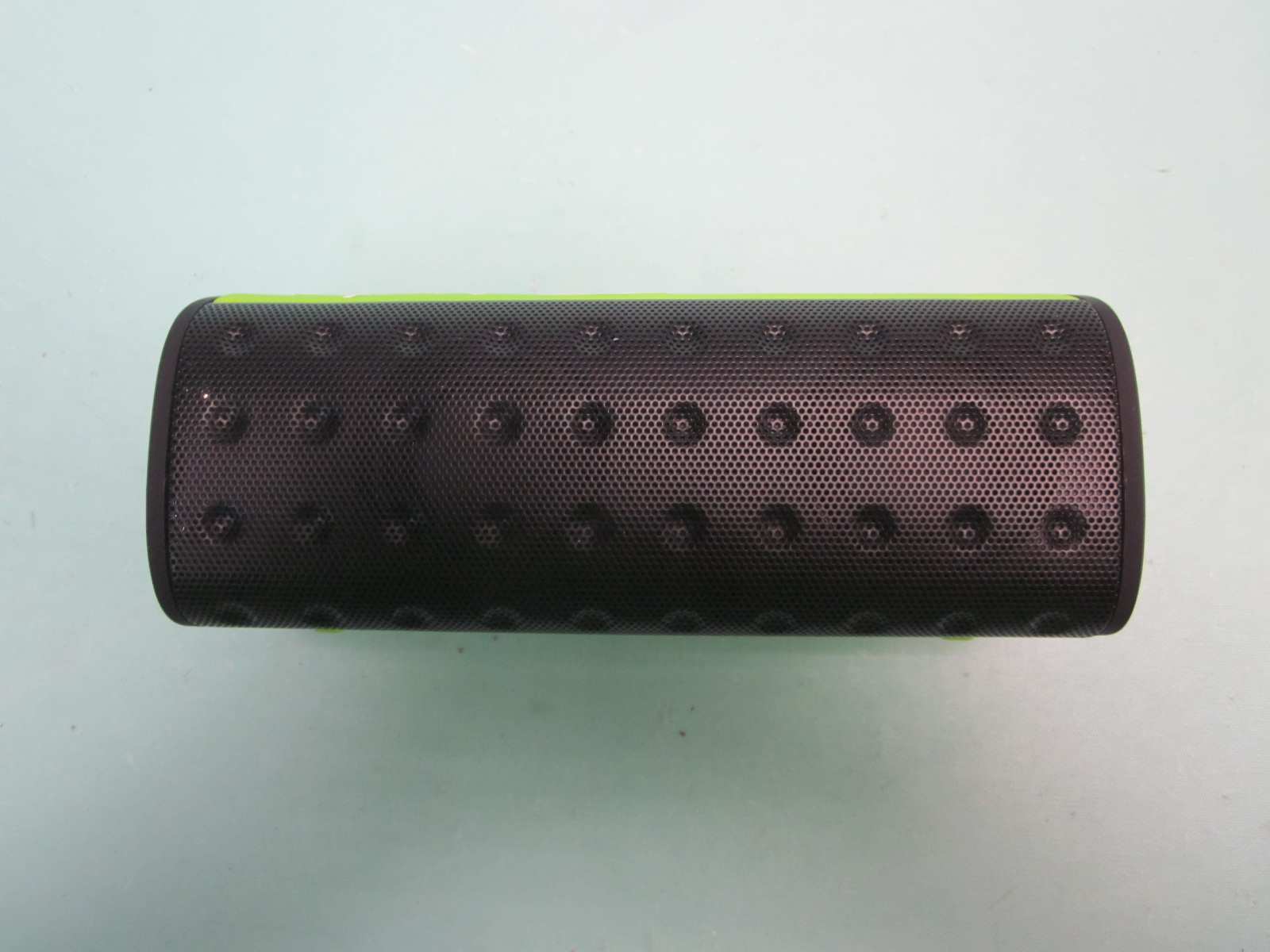

FCC ID: 2AANZHYDROBASS PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT FCC ID: 2AANZHYDROBASS PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT FCC ID: 2AANZHYDROBASS PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT FCC ID: 2AANZHYDROBASS PHOTOGRAPH OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

FCC ID: 2AANZHYDROBASS MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, includin g interference that may cause undesired operation.

FCC ID: 2AANZHYDROBASS PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW FCC ID: 2AANZHYDROBASS PHOTOGRAPH OF THE PRODUCT FCC ID: 2AANZHYDROBASS PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW FCC ID: 2AANZHYDROBASS PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2014-10-30 Page 1 of 93 No.: DM117204 Applicant : DGL Group, Ltd. 195 Raritan Center Parkway Edison, NJ 08837 Manufacturer: Dongguan Jin Wen Hua Audio Product limited No.1 Hua Da Road, Longbei Ling, Tiangxia Town, Dongguan Description of Sample(s): Product: Bluetooth Speaker Brand Name: N/A Model Number: HY-PLM-GRN (C1) FCC ID: 2AANZHYDROBASS Date Sample(s) Received: 2014-10-13 Date Tested: 2014-10-22 to 2014-10-29 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2013 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2014-10-30 Page 2 of 93 No.: DM117204 CONTENT: Cover Page 1 of 93 Content Page 2-3 of 93 1.0 General Details 1.1 Test Laboratory Page 4 of 93 1.2 Equipment Under Test [EUT] Page 4 of 93 Description of EUT operation 1.3 Date of Order Page 4 of 93 1.4 Submitted Sample Page 4 of 93 1.5 Test Duration Page 4 of 93 1.6 Country of Origin Page 4 of 93 1.7 RF Module Details Page 5 of 93 1.8 Antenna Details Page 5 of 93 2.0 Technical Details 2.1 Investigations Requested Page 6 of 93 2.2 Test Standards and Results Summary Page 6 of 93 2.3 Table for Test Modes Page 7 of 93 3.0 Test Results 3.1 Emission Page 8 - 87 of 93 STC Test Report Date: 2014-10-30 Page 3 of 93 No.: DM117204 Appendix A List of Measurement Equipment Page 88 of 93 Appendix B Ancillary Equipment Page 89 of 93 Appendix C Photographs Page 90- 93 of 93 STC Test Report Date: 2014-10-30 Page 4 of 93 No.: DM117204 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Bluetooth Speaker Manufacturer: Dongguan Jin Wen Hua Audio Product limited Brand Name: N/A Model Number: HY-PLM-GRN (C1) Rating: 5Vd.c. (Powered by PC USB port) / 3.7Vd.c. (rechargeable battery x 1) 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Bluetooth Speaker. The RF signal is modulated by IC; and the type of modulation used is frequency hopping speed spectrum Modulation. 1.3 Date of Order 2014-10-13 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2014-10-22 to 2014-10-29 1.6 Country of Origin China STC Test Report Date: 2014-10-30 Page 5 of 93 No.: DM117204 1.7 RF Module Details Module Model Number: AK1055C Module FCC ID: N/A Module Transmission Type: Bluetooth V2.1+EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB Layout Meander-line antenna Antenna Gain: -1.25dBi STC Test Report Date: 2014-10-30 Page 6 of 93 No.: DM117204 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2013 Regulations. FCC Pubic Notice DA 00-705 and ANSI C63.4: 2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Maximum Peak Conducted Output Power FCC 47CFR 15.247(b)(1) FCC Pubic Notice DA 00-705 N/A Radiated Spurious Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A AC Mains Conducted Emissions FCC 47CFR 15.207 ANSI C63.4:2009 N/A Number of Hopping Frequency FCC 47CFR 15.247(a)(2)(b)(1) FCC Pubic Notice DA 00-705 N/A 20dB Bandwidth FCC 47CFR 15.247(a)(2) FCC Pubic Notice DA 00-705 N/A Hopping Channel Separation FCC 47CFR 15.247(a)(1) FCC Pubic Notice DA 00-705 N/A Band-edge measurement (Radiated) FCC 47CFR 15.247(c) FCC Pubic Notice DA 00-705 N/A Pseudorandom Hopping Algorithm FCC 47CFR 15.247(a)(1) N/A N/A Time of Occupancy (Dwell Time) FCC 47CFR 15.247(a)(1)(iii) FCC Pubic Notice DA 00-705 N/A Antenna requirement FCC 47CFR 15.203 N/A N/A RF Exposure FCC 47CFR 15.247(i) N/A N/A Note: N/A – Not Applicable STC Test Report Date: 2014-10-30 Page 7 of 93 No.: DM117204 2.3 Table for Test Modes Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate in the table below is the worst case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. The following table is a list of the test modes shown in this test report. Test Items Mode Data Rate Maximum Peak Conducted Output Power GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Hopping Channel Separation GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Number of Hopping Frequency GFSK / π/4-DQPSK / 8DPSK 2MBps Time of Occupancy(Dwell Time) 8DPSK (DH1 / DH3 / DH5) 2MBps Radiated Spurious Emissions GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Band-edge compliance of Conducted Emission GFSK / π/4-DQPSK / 8DPSK 2MBps STC Test Report Date: 2014-10-30 Page 8 of 93 No.: DM117204 3.0 Test Results 3.1 Emission 3.1.1 Maximum Peak Conducted Output Power Test Requirement: FCC 47CFR 15.247(b)(1) Test Method: FCC Pubic Notice DA 00-705 Test Date: 2014-10-23 Mode of Operation: Tx mode Test Method: The RF output of the EUT was connected to the spectrum analyzer. All the attenuation or cable loss will be added to the measured maximum output power. The results are recorded in dBm. Spectrum Analyzer Setting: RBW = 3 MHz, VBW= 3MHz, Sweep = Auto, Span = 10MHz Detector = Peak, Trace = Max. hold Test Setup: EUT Atten…
