2AANZPROAir Play True Wireless Earbuds

DGL Group LTD.
Air Play True Wireless Earbuds - FCC ID 2AANZPRO - DGL Group LTD.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
May 12, 2020
Application Purpose
Original Equipment
Date of Application
May 12, 2020
Equipment Note
Air Play True Wireless Earbuds
Frequency Range
2402.00000000 - 2480.00000000
Company
DGL Group LTD.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

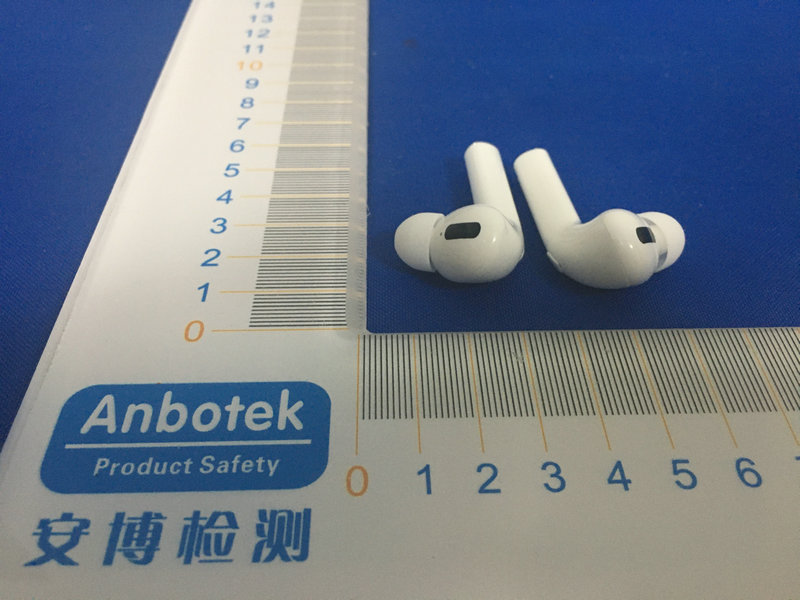

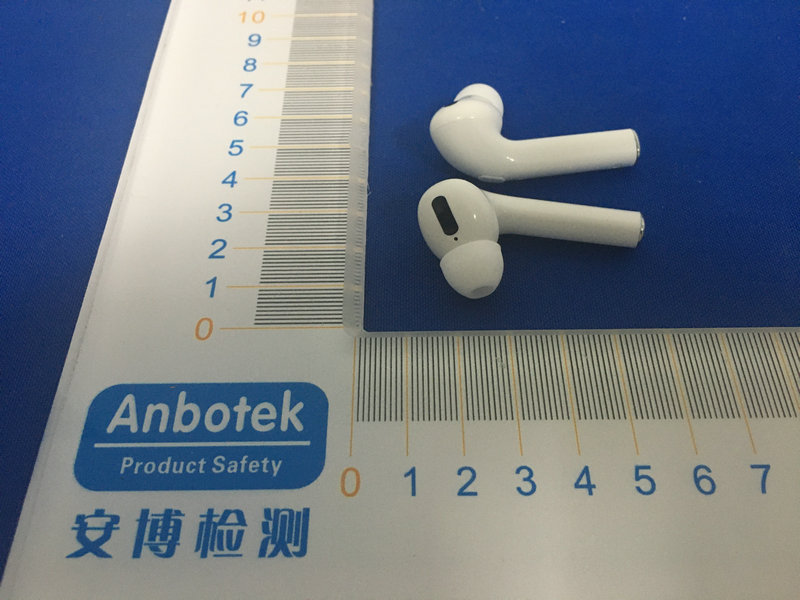

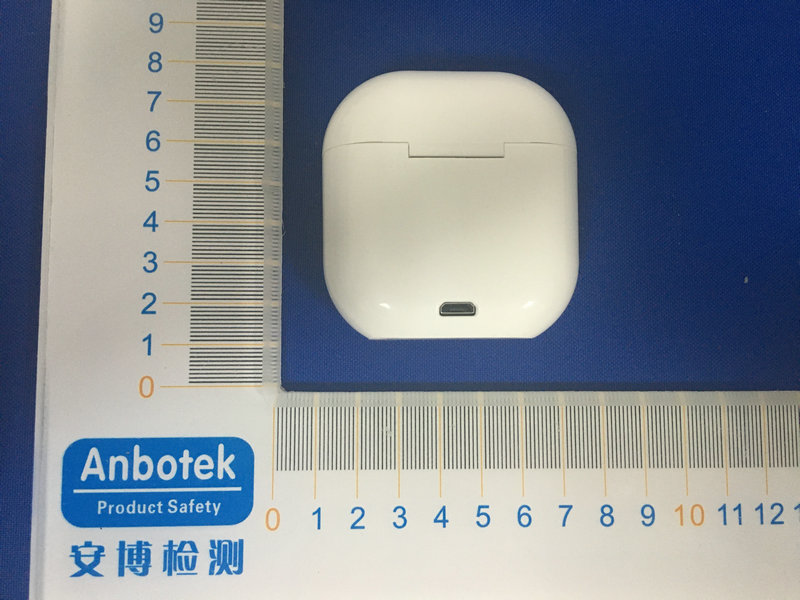

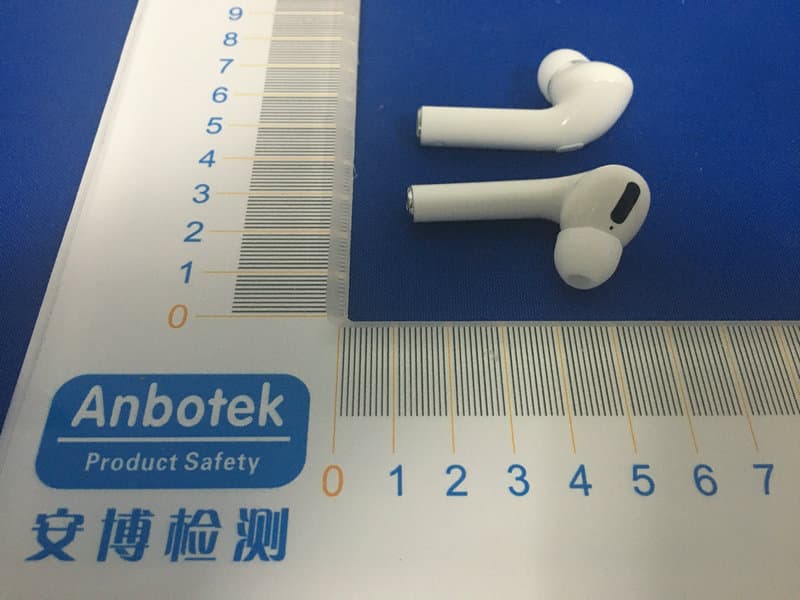

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Size: 414x57mm, 材质: 1 28g铜板纸, 双面印刷 蓝色线为刀模线,不需要印刷 QUICK START GUIDE , QUICK START GUIDE , QUICK START GUIDE , QUICK START GUIDE QUICK START GUIDE QUICK START GUIDE I T R U E W I R E L E S S ST E R E O E A R B U D S I T R U E W I R E L E S S ST E R E O EA R B U D S I T R U E W I R E L E S S S T E R E O E A R B U D S I T R U E W I R E L E S S ST E R E O E A R B U D S I T R U E W I R E L E S S ST E R E O EA R B U D S II T R U E W I R E L E S S ST E R E O E A R B U D S ry ht d , jl tteligrge 了 Red is charging Blue is fuUy chcrgedl se tO 2 red ds nc.励i ed a 三 庄 hts th e 8 w m e ea 8 bo omnneeloggthatoon c o b bo die wly 芒 二 On on E g onswer训bl a 己 二 g po g and 门 勹 Double click the multifunction button on either ea『bud to select a master earbud. The twa earbuds will pair to each other automatically. The indicator lights of both earbuds will flash red and blue quickly to indicate they a「epai「edsuccessfully. Both ea『budsstill flash red and blue to indicate it is ready to pair. 勹/ Tum on Bluetooth on you「To turn OFF press and phone cr tat.et. Choose hold the multifunction "VTY-PCH". Enter "0000" if button on both eorbuds asked. You're paired! Both until the LED tiashes「ed earbuds flash blue every 6 for three times. seconds USING EARBUDS FOR DIFFERENT DEVICES The earbuds can be paired to different devices. For example, you can use one earbud with a smart phone and the other earbud for a tablet. l 它 3} by ea吨 g on an g em sec red ~ th3Sh OnedfOfflatheoff Tumand 言 勹 ` Select "VTY-PCH" from the Bluetooth menu of your 阮t device. Enter PIN code ,如'ifosked. Th�eorbud is ready to use. To pair the other earbud, make sure your other wireless device is nearby. Same pairing operation as the fi吓t earbud Choose "VJY-PCH". Enter ''O'.XXJ"if asked. QUICK START GUIDE , QUICK START GUIDE , QUICK START GUIDE , QUICK START GUIDE QUICK START GUIDE QUICK START GUIDE TRUE WIRELESS STEREO EARBUDS I TRUE WIRELESS STEREO EARBUDS ITRUE WIRELESS STEREO EARBUDS I TRUE WIRELESS STEREO EARBUDS I TRUE WIRELESS STEREO EARBUDSI TRUE WIRELESS STEREO EAR BUDS MUSIC CONTROLS • Press the button once to pause your music • Press and hold the bvtton for 1.5 seconds, it will go to next track. • Volume contr吐on'{ through your smart phone or wireless device USING YOUR EARBUDS FOR CALLS • Press the button once to answer or end call. • Press and hold the button to reject a call. • Press the bu廿ontwice to dial the last call. NO正Whenan邓enngcals, the call can be heard and controlled by both earbuds CONNECTION LOST? • If only one earbud works, turn off the earbud and reconnect earbuds as a pair. If paired two earbuds don't work, turn off the earbud and reconnect earbuds as a pair. • Make sure your earbuds are within range of your smart device. • If you hear a long beep, you need to recharge your earbuds. Connection may be lost due to low battery. FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the lo眙wingtwo conditions: (1) This device may nat cause hamiful i11te什erence,and (2) this device must accept any Interference received, including interference that may中useundesired operation. Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC INSTRUCTIONS FOR A CLASS B DIGITAL DEVICE OR PERIPHERAL Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to port 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separatian between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. general RF exposure requirement. The device can be used in portable exposure condition without restriction. WA RNING K eep away from v., 志,and mci女 Keep away from heat sou忙毡 Da notrlisis沪mble. C E @! RF warning statement: The device has been evaluated to meet HY-PRO-ASST Model:HY-PRO-ASST

External Photos

FCC ID: 2AANZPRO

ID Label/Location Info

Label Location On EUT LeftRight Label FCC ID: 2AANZPRO

Internal Photos

FCC ID: 2AANZPRO ANT

Operational Description

version01 DGLGroupLTD. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: HY-PRO-ASST, HY-PRO, HY-PRO-XXX (X:A~Z) FCCID:2AANZPRO fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: BDR: Model No. of antenna: N/A Type of antenna:PCB Antenna Gain of the antenna: 0.68 dBi Frequency range:2402MHz~2480MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: DGL Group LTD. Address: 195 Raritan Center Parkway, Edison, New Jersey, United States, 08837 City:Edison ZIP / Postal code: 08837 Country:United States Place:United StatesDate: 2020-05-12 Signature:

RF Exposure Info

RF EXPOSURE EVALUATION FCC ID: 2AANZPRO According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters withoutput power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 2402-0.547 -0.547±10.45350.344 3 BDR 2441-0.040 -0.040±10.96050.390 3 2480-0.082 -0.082±10.91850.389 3 2402-1.119 -1.119±1-0.11950.302 3 EDR 2441-1.053 -1.053±1-0.05350.309 3 2480-0.961 -0.961±10.03950.318 3 Test Results:PASS.

Test Report

Report No.: 18220WC00026001FCC ID: 2AANZPROPage 1 of 63 Code:AB-RF-05-a FCC TEST REPORT Client Name: DGL GROUP LTD. Address: 195 Raritan Center Parkway, Edison, New Jersey, United States, 08837 Product Name: Air Play True Wireless Earbuds Date: May 12, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00026001FCC ID: 2AANZPROPage 2 of 63 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 6 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 7 1.6. Description Of Test Setup ......................................................................................................................... 8 1.7. Test Equipment List .................................................................................................................................... 9 1.8. Measurement Uncertainty ....................................................................................................................... 10 1.9. Description of Test Facility ...................................................................................................................... 10 2. Summary of Test Results ................................................................................................................................... 11 3. Conducted Emission Test ................................................................................................................................... 12 3.1. Test Standard and Limit .......................................................................................................................... 12 3.2. Test Setup .................................................................................................................................................. 12 3.3. Test Procedure .......................................................................................................................................... 12 3.4. Test Data .................................................................................................................................................... 12 4. Radiation Spurious Emission and Band Edge ................................................................................................ 15 4.1. Test Standard and Limit .......................................................................................................................... 15 4.2. Test Setup .................................................................................................................................................. 15 4.3. Test Procedure .......................................................................................................................................... 16 4.4. Test Data .................................................................................................................................................... 17 5. Maximum Peak Output Power Test .................................................................................................................. 25 5.1. Test Standard and Limit .......................................................................................................................... 25 5.2. Test Setup .................................................................................................................................................. 25 5.3. Test Procedure .......................................................................................................................................... 25 5.4. Test Data .................................................................................................................................................... 25 6. 20DB Occupy Bandwidth Test ........................................................................................................................... 29 6.1. Test Standard ............................................................................................................................................ 29 6.2. Test Setup .................................................................................................................................................. 29 6.3. Test Procedure .......................................................................................................................................... 29 6.4. Test Data .................................................................................................................................................... 29 7. Carrier Frequency Separation Test ................................................................................................................... 33 7.1. Test Standard and Limit .......................................................................................................................... 33 7.2. Test Setup .................................................................................................................................................. 33 7.3. Test Procedure .......................................................................................................................................... 33 7.4. Test Data .....…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: 2AANZPRO Photo of Conducted Emission Measurement Photo of Radiation Emission Test

Contact Information

Applicant

Amy Chao
[email protected]001-732-692-5180Fax: 001-732-692-5000

Test Firm

Shenzhen Anbotek Compliance Laboratory LimitedJeff Zhu
[email protected]86-755-26064492Fax: 86-755-26014772

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted.
