2AANZRCBTL1GENERIC RC BATTLE CAR

DGL Group LTD.
GENERIC RC BATTLE CAR - FCC ID 2AANZRCBTL1 - DGL Group LTD.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
May 19, 2020
Application Purpose
Original Equipment
Date of Application
May 19, 2020
Equipment Note
GENERIC RC BATTLE CAR
Frequency Range
2405.00000000 - 2480.00000000
Company
DGL Group LTD.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Model: AW-RC-BTL FCCSTATEMENT: ThisdevicecomplieswithPart15oftheFCCRules.Operationissubject tothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. Warning:Changesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser'sauthoritytooperatethe equipment. NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththe limitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules. Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipment generatesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguarantee thatinterferencewillnotoccurinaparticularinstallation.Ifthisequipment doescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuseris encouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthatto whichthereceiverisconnected. Consultthedealeroranexperiencedradio/TVtechnicianforhelp. RFwarningstatement: ThedevicehasbeenevaluatedtomeetgeneralRFexposure requirement.Thedevicecanbeusedinportableexposurecondition withoutrestriction.

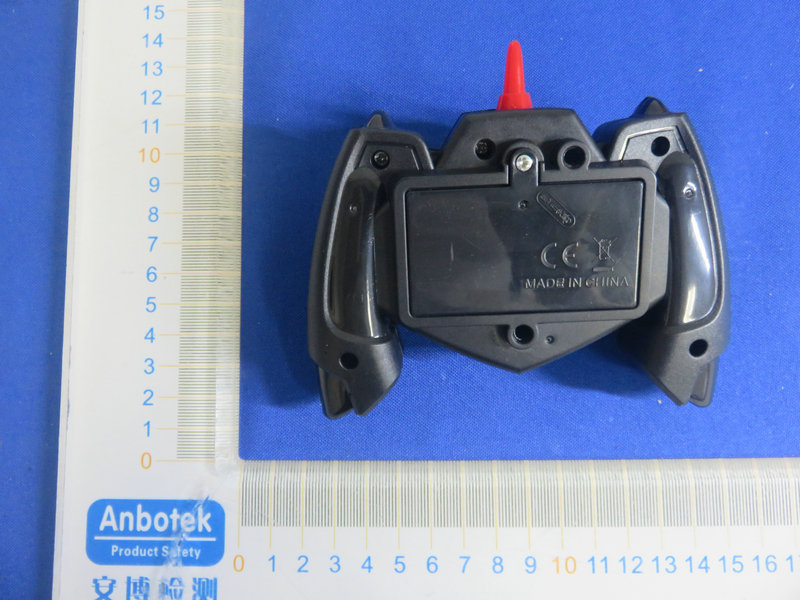

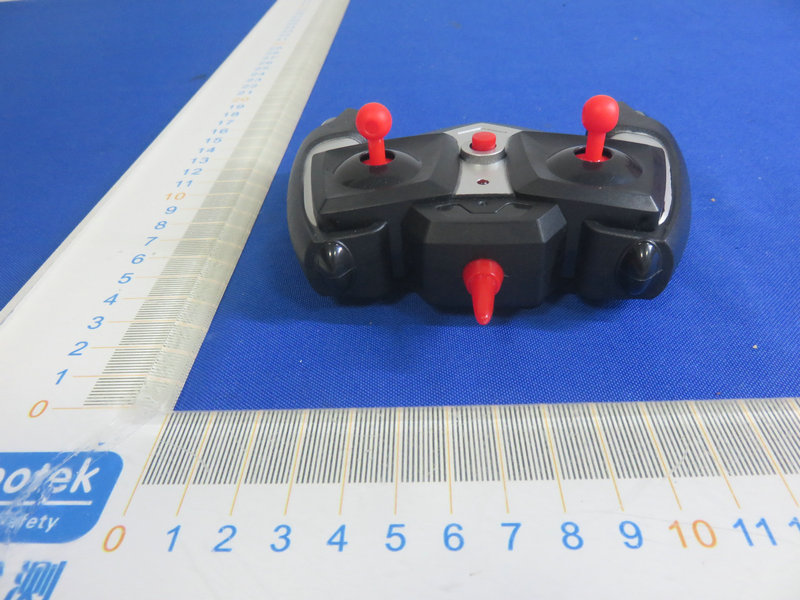

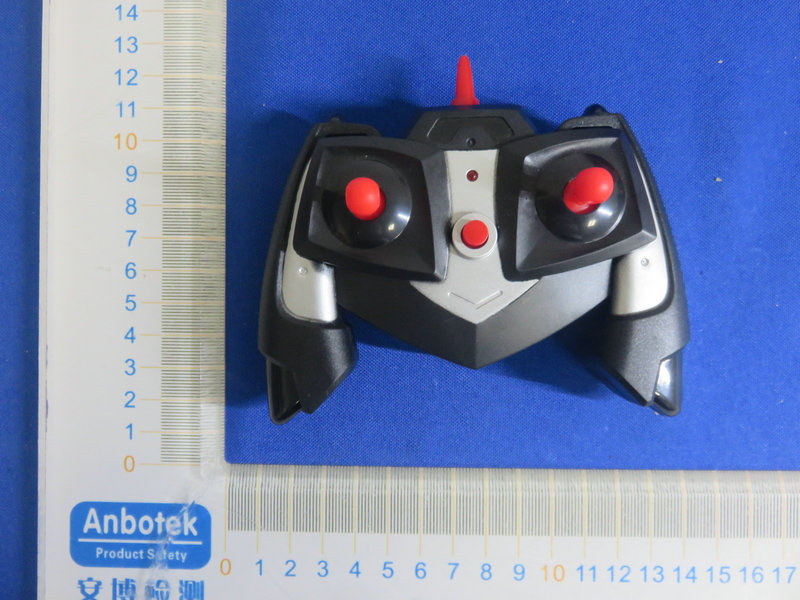

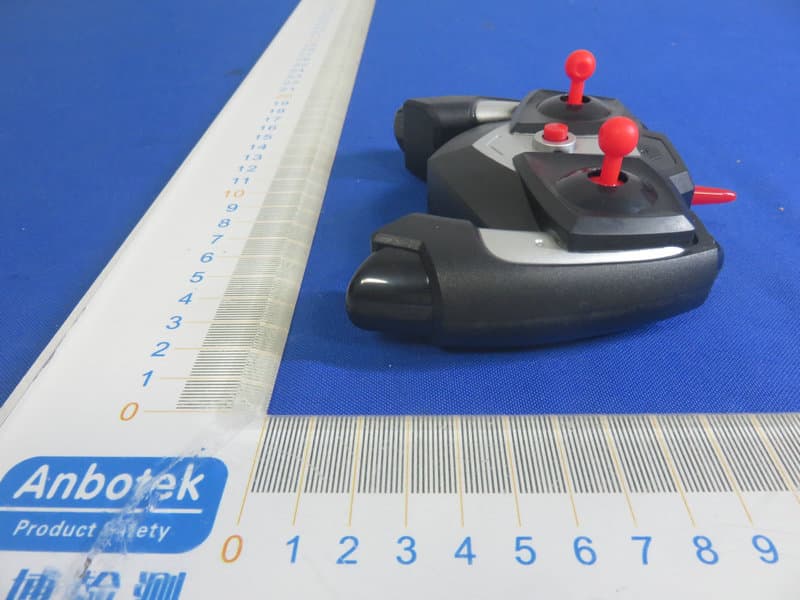

External Photos

FCC ID: 2AANZRCBTL1

ID Label/Location Info

Label Location On EUT Label Product Name: GENERIC RC BATTLE CAR Model No.: AW-RC-BTL FCC ID: 2AANZRCBTL1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

FCC ID: 2AANZRCBTL1 ANT

Operational Description

version01 DGLGroupLTD. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: AW-RC-BTL FCCID:2AANZRCBTL1 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: AW-RC-BTL Type of antenna:Integrated Antenna Gain of the antenna: 0 dBi Frequency range:2405~2480MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: DGL Group LTD. Address: 195 Raritan Center Parkway, Edison, New Jersey, United States, 08837 City:Edison ZIP / Postal code: 08837 Country:United States Place:United StatesDate:2020-05-19 Signature:

RF Exposure Info

FCCID:2AANZRCBTL1 RFEXPOSUREEVALUATION EUTSpecification EUTGENERICRCBATTLECAR ModelNameAW-RC-BTL Frequencyband (Operating) WLAN:2.412GHz~2.462GHz WLAN:5.18GHz~5.32GHz/5.50GHz~5.70GHz WLAN:5.745GHz~5825GHz Others(2.405GHz~2.480GHz) DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Max.outputpower94.46dBuV/m(-0.798dBm)(0.832mW) Antennagain0dBi EvaluationappliedMPEEvaluation SAREvaluation StandardRequirement PortableDevice Accordingto§15.247(i)and§1.1307b(1),systemsoperatingundertheprovisionsofthissection shallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequency energylevelsinexcessoftheCommission’sguidelines.SeeKDB447498D01GeneralRF ExposureGuidanceV6,section4.3.1. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR, 16 where ·f(GHz)istheRFchanneltransmitfrequencyinGHz ·PoweranddistanceareroundedtothenearestmWandmmbeforecalculation17 ·Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50 mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. FCCID:2AANZRCBTL1 MeasurementResult Channel Frequency (MHz) MaxOutput power (dBuV/m) MaxOutput power(dBm) MaxOutput power(mW) Calculation Value (Note1) Threshold Value 240592.80-2.4580.5680.1763.0 244194.46-0.7980.8320.2603.0 248091.84-3.4180.4550.1433.0 EIRP=E-104.8+20logD=94.46-104.8+20log3=-0.798dbm Note1:CalculationValue=[(max.powerofchannel,mW)/(min. testseparationdistance,mm)]·[√f(GHz)]. Foxexample:0.832/5*√2.441=0.260≤3.0 AccordingtoKDB447498D01V6,thresholdatwhichnoSARrequiredis≤3.0for1-gSAR, separationdistanceis5mm,andnosimultaneousSARmeasurementisrequired.

Test Report

Report No.: 18220WC00042101FCC ID: 2AANZRCBTL1Page 1 of 38 Code:AB-RF-05-a FCC TEST REPORT Client Name: DGL Group LTD. Address: 195 Raritan Center Parkway, Edison, New Jersey, United States 08837 Product Name: GENERIC RC BATTLE CAR Date: May 18, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00042101FCC ID: 2AANZRCBTL1Page 2 of 38 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 4 1.1. Client Information ....................................................................................................................................... 4 1.2. Description of Device (EUT) ..................................................................................................................... 4 1.3. Auxiliary Equipment Used During Test ................................................................................................... 5 1.4. Description of Test Modes ........................................................................................................................ 5 1.5. List of Channels .......................................................................................................................................... 6 1.6. Description of Test Setup .......................................................................................................................... 7 1.7. Test Equipment List .................................................................................................................................... 8 1.8. Measurement Uncertainty ......................................................................................................................... 9 1.9. Description of Test Facility ........................................................................................................................ 9 2. Summary of Test Results ................................................................................................................................... 10 3. Conducted Emission Test ................................................................................................................................... 11 3.1. Test Standard and Limit .......................................................................................................................... 11 3.2. Test Setup .................................................................................................................................................. 11 3.3. Test Procedure .......................................................................................................................................... 11 3.4. Test Data .................................................................................................................................................... 12 4. Radiated Emission and Band Edge .................................................................................................................. 13 4.1. Test Standard and Limit .......................................................................................................................... 13 4.2. Test Setup .................................................................................................................................................. 14 4.3. Test Procedure .......................................................................................................................................... 15 4.4. Test Data .................................................................................................................................................... 16 5. 20dB Bandwidth Test .......................................................................................................................................... 26 5.1. Test Standard and Limit .......................................................................................................................... 26 5.2. Test Setup .................................................................................................................................................. 26 5.3. Test Procedure .......................................................................................................................................... 26 5.4. Test Data .................................................................................................................................................... 26 6. Antenna Requirement ......................................................................................................................................... 29 6.1. Test Standard and Requirement ............................................................................................................ 29 6.2. Antenna Connected Construction .......................................................................................................... 29 APPENDIX I -- TEST SETUP PHOTOGRAPH ................................................................................................... 30 APPENDIX II -- EXTERNAL PHOTOGRAPH ..................................................................................................... 31 APPENDIX III -- INTERNAL PHOTOGRAPH ..................................................................................................... 35 Report No.: 18220WC00042101FCC ID: 2AANZRCBTL1Page 3 of 38 Code:AB-RF-05-a TEST REPORT Applicant: DGL Group LTD. Manufacturer: DGL Group LTD. Product Name: GENERIC RC BATTLE CAR Model No.: AW-RC-BTL Trade Mark: N.A. Rating(s): Input: DC 3V, by "AA"*2 battery inside Test Standard(s) : FCC Part15 Subpart C, Paragraph 15.249 Test Method(s): ANSI C63.10: 2013 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Amy Chao
[email protected]001-732-692-5180Fax: 001-732-692-5000

Test Firm

Shenzhen Anbotek Compliance Laboratory LimitedJeff Zhu
[email protected]86-755-26064492Fax: 86-755-26014772

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz840.00 µW
