2AANZRCCPGENERIC RC RACER CAR

DGL Group LTD.
GENERIC RC RACER CAR - FCC ID 2AANZRCCP - DGL Group LTD.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
May 07, 2020
Application Purpose
Original Equipment
Date of Application
May 07, 2020
Equipment Note
GENERIC RC RACER CAR
Frequency Range
27.14500000 - 27.14500000
Company
DGL Group LTD.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

VEHICLE TRANSMITTER 4AA BATTERIES(not included) 2AA BATTERIES(not included) RIGHT TURN LEFT TURN ... ANTENNA STEERDIG WHEEL BACKWARD FORWARD - Specification FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

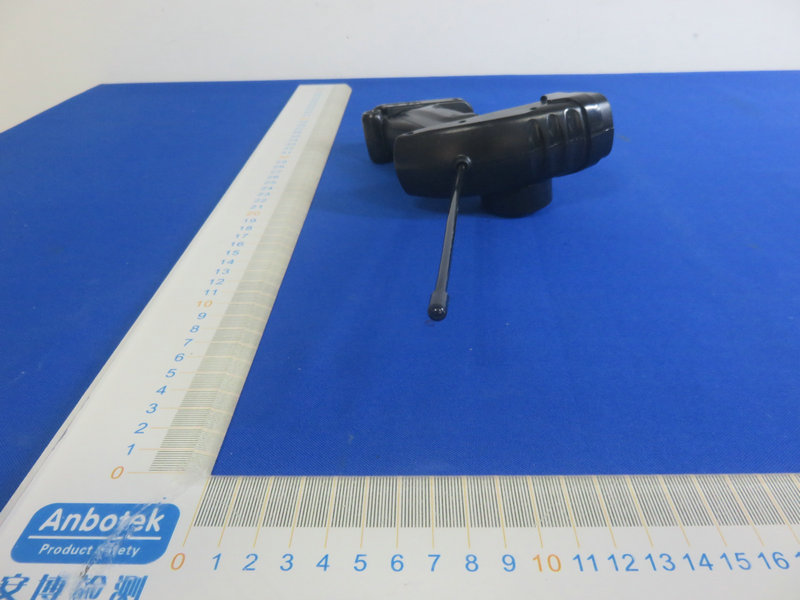

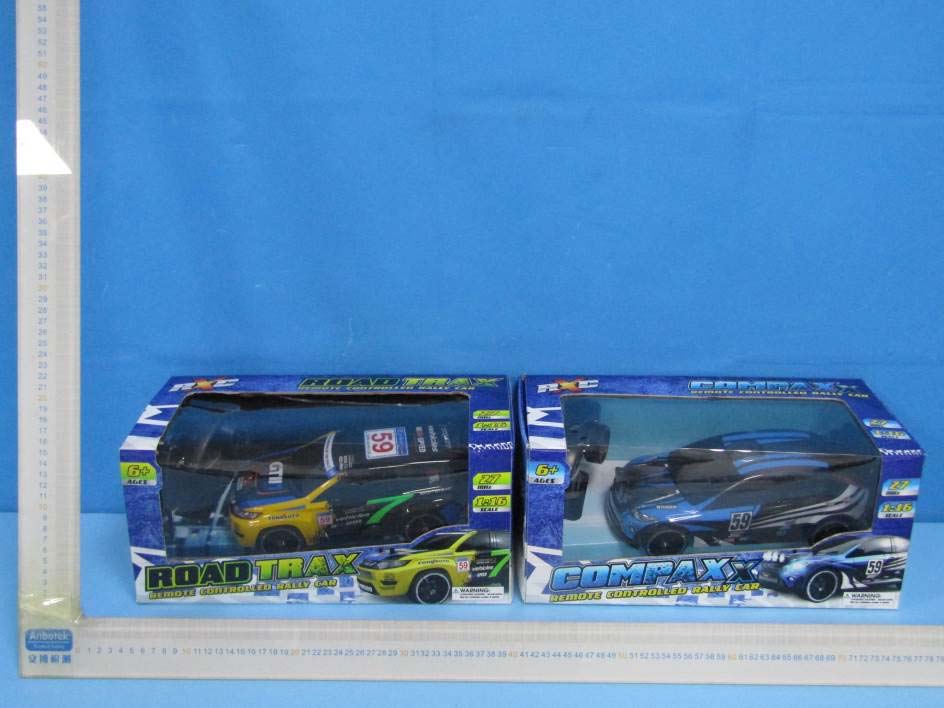

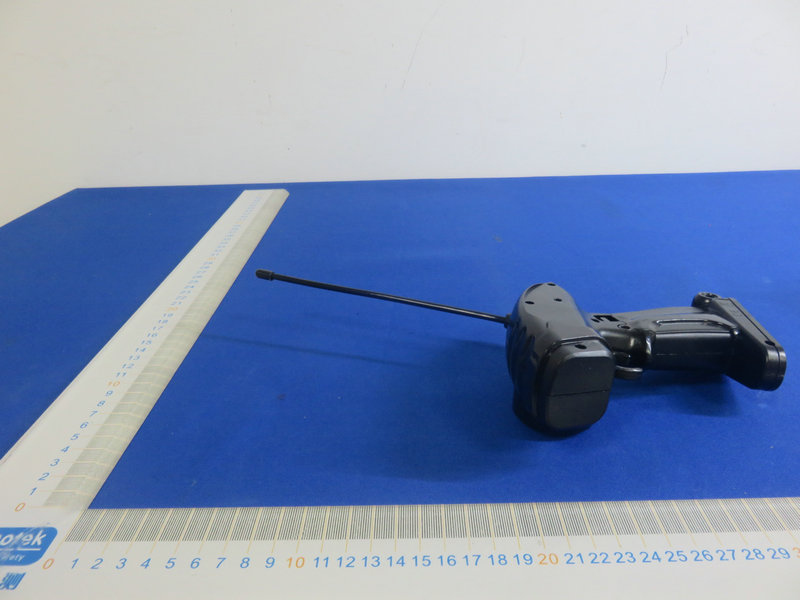

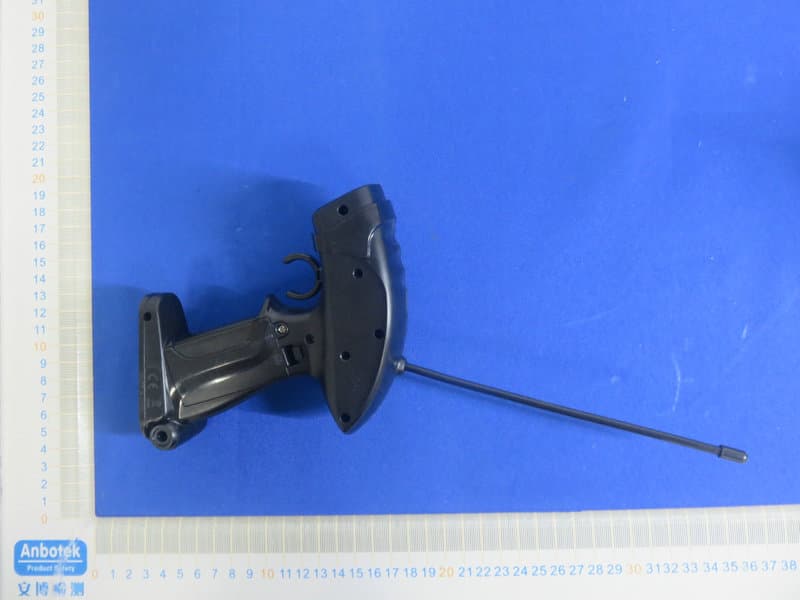

External Photos

FCC ID: 2AANZRCCP

ID Label/Location Info

Label Location On EUT Label Product Name: GENERIC RC RACER CAR Model No.: AW-RC-RTX FCC ID: 2AANZRCCP This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

FCC ID: 2AANZRCCP ANT

Operational Description

DGL Group LTD. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: AW-RC-RTX, AW-RC-CP FCC ID : 2AANZRCCP fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: AW-RC-RTX Type of antenna: Spring Antenna Gain of the antenna: 3 dBi Frequency range: 27.145MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: DGL Group LTD. Address: 195 Raritan Center Parkway, Edison, New Jersey, United States, 08837 City: Edison ZIP / Postal code: 08837 Country: United States Place: United States Date: 2020-04-28 Signature: version01

RF Exposure Info

FCC ID: 2AANZRCCP RF EXPOSURE EVALUATION EUT Specification EUT GENERIC RC RACER CAR Model Name AW-RC-RTX Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(27.145MHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 54.66 dBuV/m (-40.598dBm)(0.000087mW) Antenna gain 3 dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance V6, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2AANZRCCP Measurement Result Channel Frequency (MHz) Max Output power (dBm) Max Output power (mW) Calculation Value (Note 1) Threshold Value 27.145 -40.598 0.000087 2.9e-06 3.0 EIRP=E-104.8+20logD= 54.66 -104.8+20log3= -40.598dbm Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 0.000087/5*√0.027145= 2.9e-06 ≤3.0 According to KDB447498 D01 V6, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required. Standard Applicable According to 2.1093 this is a portable device. According to KDB 447498 D01 V6, Appendix A SAR test exclusion thresholds for below table, the power level 39mW at 5mm. Measurement Result: This is a portable device and the Max. peak output power is -40.598dBm(0.000087mW) lower than low threshold 39mW at 5mm in general population category; The SAR measurement is not necessary.

Test Report

ReportNo.:18220WC00033601FCCID:2AANZRCCPPage1of29 Code:AB-RF-05-a FCCTESTREPORT ClientName:DGLGroupLTD. Address: 195RaritanCenterParkway,Edison,NewJersey,United States08837 ProductName:GENERICRCRACERCAR Date:Apr.26,2020 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC00033601FCCID:2AANZRCCPPage2of29 Code:AB-RF-05-a Contents 1.GeneralInformation ............................................................................................................................................... 4 1.1.ClientInformation ....................................................................................................................................... 4 1.2.DescriptionofDevice(EUT) ..................................................................................................................... 4 1.3.AuxiliaryEquipmentUsedDuringTest ................................................................................................... 5 1.4.DescriptionofTestModes ........................................................................................................................ 5 1.5.ListofChannels .......................................................................................................................................... 5 1.6.DescriptionofTestSetup .......................................................................................................................... 6 1.7.TestEquipmentList .................................................................................................................................... 7 1.8.MeasurementUncertainty ......................................................................................................................... 8 1.9.DescriptionofTestFacility ........................................................................................................................ 8 2.SummaryofTestResults ..................................................................................................................................... 9 3.ConductedEmissionTest ................................................................................................................................... 10 3.1.TestStandardandLimit .......................................................................................................................... 10 3.2.TestSetup .................................................................................................................................................. 10 3.3.TestProcedure .......................................................................................................................................... 10 3.4.TestData .................................................................................................................................................... 10 4.RadiatedEmissionandBandEdge .................................................................................................................. 11 4.1.TestStandardandLimit .......................................................................................................................... 11 4.2.TestSetup .................................................................................................................................................. 12 4.3.TestProcedure .......................................................................................................................................... 13 4.4.TestData .................................................................................................................................................... 13 5.20dBBandwidthTest .......................................................................................................................................... 18 5.1.TestStandardandLimit .......................................................................................................................... 18 5.2.TestSetup .................................................................................................................................................. 18 5.3.TestProcedure .......................................................................................................................................... 18 5.4.TestData .................................................................................................................................................... 18 6.AntennaRequirement ......................................................................................................................................... 20 6.1.TestStandardandRequirement ............................................................................................................ 20 6.2.AntennaConnectedConstruction .......................................................................................................... 20 APPENDIXI--TESTSETUPPHOTOGRAPH ................................................................................................... 21 APPENDIXII--EXTERNALPHOTOGRAPH ..................................................................................................... 22 APPENDIXIII--INTERNALPHOTOGRAPH ..................................................................................................... 26 ReportNo.:18220WC00033601FCCID:2AANZRCCPPage3of29 Code:AB-RF-05-a TESTREPORT Applicant: DGLGroupLTD. Manufacturer: DGLGroupLTD. ProductName: GENERICRCRACERCAR ModelNo.:AW-RC-RTX,AW-RC-CP TradeMark: N.A. Rating(s): Input:DC3Vby"AA"*2batteryinside TestStandard(s): FCCPart15SubpartC,Section15.227 TestMethod(s): ANSIC63.10:2013 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsth…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: 2AANZRCCP Photo of Radiation Emission Test

Contact Information

Applicant

Amy Chao
[email protected]001-732-692-5180Fax: 001-732-692-5000

Test Firm

Shenzhen Anbotek Compliance Laboratory LimitedJeff Zhu
[email protected]86-755-26064492Fax: 86-755-26014772

Technical Specifications

#Rule PartsFrequency RangePower Output
115C27.145 MHz - 27.145 MHz-
