Portable CD Player with PLL AM/FM Radio and Bluetooth Model : CD-725BT Remark: Please read and follow these instructions, before using your unit. SAFETY INSTRUCTION • TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. • THIS APPLIANCE SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING WATER AND THAT NO OBJECT FILLED WITH LIQU IDS SUCH AS VASES SHALL BE PLACED ON APPARATUS. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN Warning: To reduce the rise of electric shock, do not remove cover (or back) no user-serviceable parts inside. Refer servicing to qualified service personnel. IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Insta ll in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the pol arized or grounding-type plug. A polarized plug has two blades with one wider than the other . A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, c onsult an electrician fo r replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularl y at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. - 1 - 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the appara tus. When a cart is used, use caution when moving the cart/apparatus combinati on to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service pers onnel. Servicing is requi red when the apparatus has been damaged in any way, such as power-s upply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Grounding or Polarization – This pr oduct may be equipped with a polarized alternating-current line plug (a plug having one bl ade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsol ete outlet. Do not defeat the safety purpose of the polarized plug. 16. Alternate Warnings – This product is equipped with a three-wire ground-type plug, a plug having a third (grounding) pin. This plug will onl y into a grounding-type power outlet. This is a safety feature. If you are unable to insert the pl ug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug. 17. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protec t it from overheating, and these openings must not be blocked or covered. The openings shoul d never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unl ess proper ventilation is provided or the manufacturer’s instructions have been adhered to. 18. The MAINS plug or an appliance coupler is us ed as the disconnect device, the disconnect device shall remain readily operable. 19. 回 : CLASS II apparatus with double insulati on, and no protective earth provided. 20. Caution Marking and rating plate was located at bottom enclosure of the apparatus. 21. WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 22. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus. 23. The mains plug is used as disconnect device. The mains plug of apparatus should not be obstructed OR should be easily accessed duri ng intended use. To be completely disconnect the power input, the mains plug or apparatus shall be disconnected from the mains. 24. Battery shall not be exposed to excessive heat such as sunshine, fire or the like. 25. Excessive sound pressure from ear phones and headphone can cause hearing loss. - 2 - FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limit s are designed to provide reasonable protection against harmful interference in a residential inst allation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferenc e to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, t he user is encouraged to try to correct the interference by one or more of the following measures: – R…

Text truncated - open the document above for the full version.

Differences Declaration To whom concern, We company Wing Hing Electronics Industrial Ltd. hereby declares: The product model(s) CD6962 is identical in the same PCB layout, interior structure and electrical circuits with the model CD-725BT which tested in Global United Technology Services Co., Ltd., the only differences are the model name for commercial purpose. Authorized signature: Name: Simon Chu Position: Marketing Manager Date: 2014-4-16

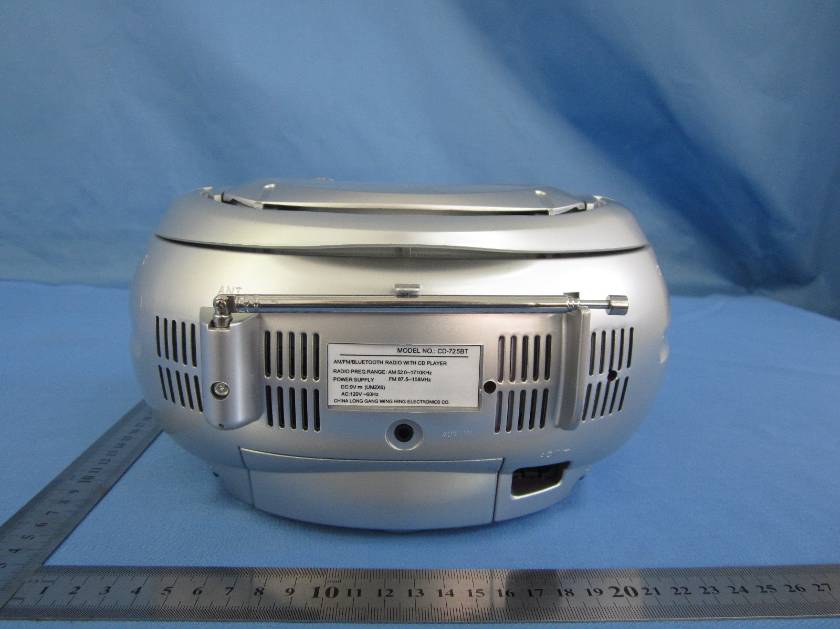

CD725 Rating Label Size : W 43.5mm x H 19.5mm Scale 1:1 Color : White backgound with Black text Model : CD725BT Frequency Range: AM 520 – 1710 KHz FM 87.5 – 108 MHz Power Supply: DC: 9V (6 x UM2 ‘C’ size batteries) AC: 120V ~ 60Hz CD Boombox Tested to comply with the FCC standards. FCC ID: 2AAOLCD725BT LASERSCHUTZKLASSE 1 PRODUKT CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 CD725 Class 1 Label Size : W 38 mm x H 12.5mm Scale 1:1 Color : Yellow backgound with Black text FCC Label Size: W 48 x H 12 mm

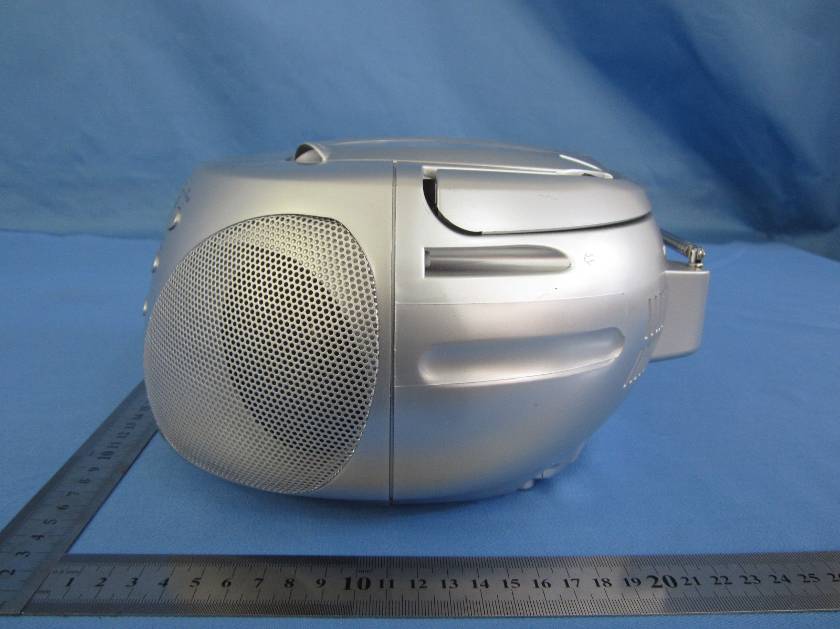

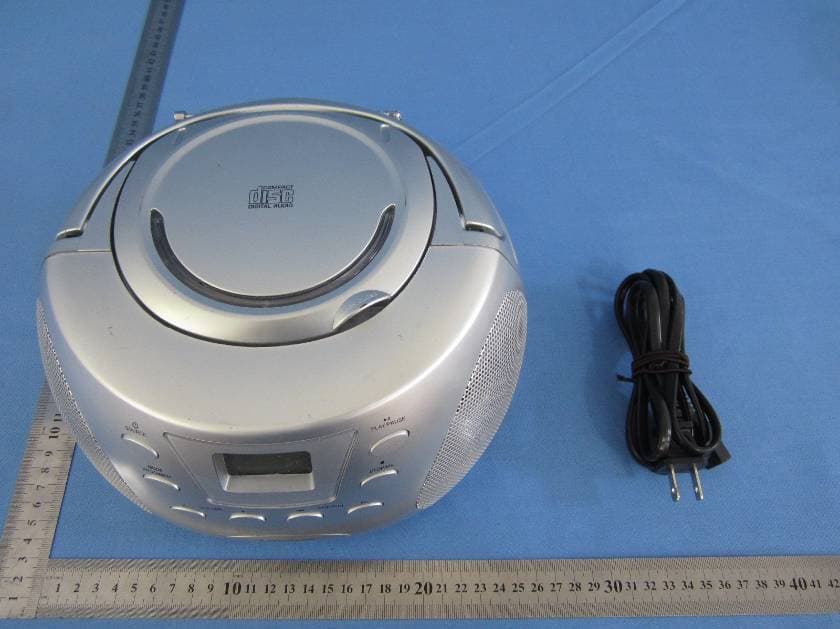

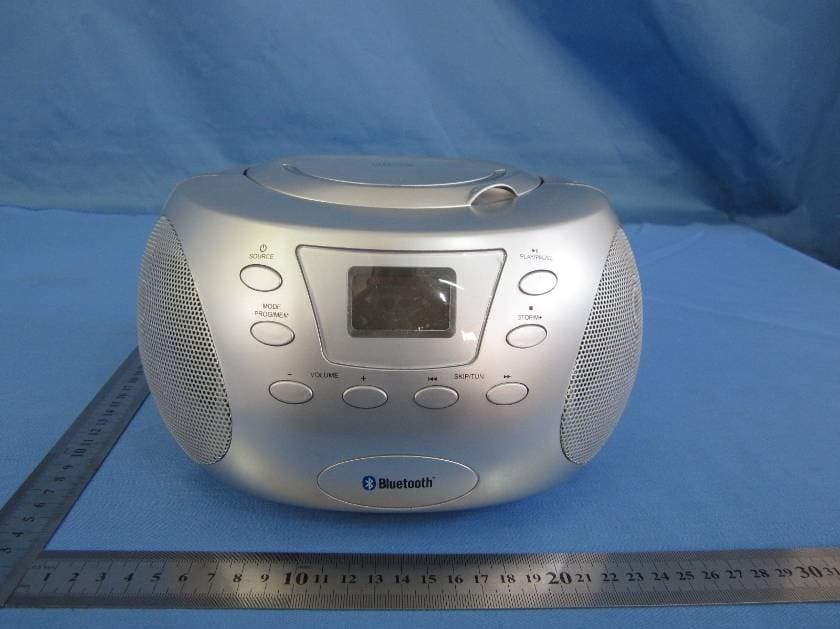

Label location

FCC ID: 2AAOLCD725BT According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The resul t is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30gt where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---0.2m So pt = (EXd) 2 /30 x gt Field strength = 92.04dBuV/m @3m Ant gain =2dBi, so Ant numeric gain= 1.58 So pt={ [10 (92.04/20) /10 6 x 3] 2 /30x1 }x1000 mW = 0.00135mW So (0.00135 mW /5mm)x √2.48 = 0.00042 <3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE14030026801 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: Wing Hing Electronics Industrial Ltd. Address of Applicant: Room 1902-03, 19/F., Enterprise Square One, Tower 3, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong. Equipment Under Test (EUT) Product Name: CD Boombox with Bluetooth Model No.: CD-725BT, CD6962 FCC ID: 2AAOLCD725BT Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2013 Date of sample receipt: April 09, 2014 Date of Test: April 09-15, 2014 Date of report issued: April 16, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE14030026801 Global United Technology Services Co., Ltd. Project No.: GTSE140300268RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 33 2 Version Version No. Date Description 00 April 16, 2014 Original Prepared By: Date: April 16, 2014 Project Engineer Check By: Date: April 16, 2014 Reviewer Report No.: GTSE14030026801 Global United Technology Services Co., Ltd. Project No.: GTSE140300268RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 33 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.5 TEST FACILITY .................................................................................................................................... 7 5.6 TEST LOCATION ................................................................................................................................. 7 5.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2 CONDUCTED EMISSIONS ................................................................................................................... 10 7.3 RADIATED EMISSION METHOD ........................................................................................................... 13 7.3.1 Field Strength of The Fundamental Signal ................................................................................ 15 7.3.2 Spurious emissions .................................................................................................................... 16 7.3.3 Bandedge emissions.................................................................................................................. 20 7.4 20DB OCCUPY BANDWIDTH .............................................................................................................. 21 8 TEST SETUP PHOTO ............................................................................................................................ 23 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 25 Report No.: GTSE14030026801 Global United Technology Services…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
