CQL1430-B Bluetooth Wireless Speaker Instruction Manual (Read before proceeding) Power:  Works on internal rechargeable battery. Please charge your speaker fully before first use. To charge the battery : Using a Micro USB cable (included), insert the jack into ”Charging” jack located on the back of the unit and then plug the USB connecter into the USB port on a computer for charging.  A red light will indicate the charging situation. When battery is full, the red light will turn off automatically. Bluetooth Speaker Operation  Turn on the unit by pushing the switch on the back to “ “position. A Blue light will start blinking to indicate the speaker is in paring mode and searching for your Bluetooth mobile device.  Open the Bluetooth function on your device and search the speaker named “SMPS-560”. After selecting this speaker, your device will pair without a password. (If required, enter the password “0000” to finalize the paring).The Blue light will begin to flashing slowly after pair is complete.  Start playing music on your device. Keep your device within 33feet (10meter) of your speaker.  Adjust the volume of your device to a comfortable level.  Turn off the unit when not in used. Universal Speaker Operation  For other music devices without Bluetooth, turn on the unit by pushing the switch to “Aux” position, use the included audio input cable, insert the USB jacks into the “AUX-IN” jack and into the earphone jack on your device.  Turn on the unit and start playing music.  Turn off the unit when not in used. Color Light Operation  Turn on the color light by pushing the switch to “ON” position  Translucent cabinet changes in 7 colors gradually every 5 seconds.  Turn off the color light by pushing the switch to “OFF” position Caution:  This is not a toy. Please keep away from small children.  Please keep away from water / heat.  Low power may cause poor connection even no working of Bluetooth.  Do not over charge the battery.  Battery pack shall not be exposed to excessive heat such as sunshine, fire or the like FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Sure Wave (HongKong) Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-07-07 Subject; Request for Long Term Confidentiality FCC ID: 2AAPLCQL1430-B-1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Emma Lee Title: Manager

Sure Wave (HongKong) Limited A-703,Building 2, TianAn Cyber Park, Huangge North Road, Longgang District, Shenzhen, 518172, China Statement Product: Bluetooth Wireless Speaker Model: CQL1430-B Additional Model: SMPS-560, SMPS-560B, SMPS-560XXXXX(Where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers) Trademark : Jensen We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature： Date: 2021/07/07 Name: Emma Lee Company Name: Sure Wave (HongKong) Limited Address: A-703,Building 2, TianAn Cyber Park, Huangge North Road, Longgang District, Shenzhen, 518172, China Tel / Fax: 86-755-22157741/86-75588157700 E-Mail: [email protected]

Sure Wave (HongKong) Limited Agent Authorization Company: Sure Wave (HongKong) Limited Address: A-703,Building 2, TianAnCyber Park, Huangge North Road, Longgang District, Shenzhen, 518172, China Product Name: Bluetooth Wireless Speaker Model Number(s): CQL1430-B, SMPS-560, SMPS-560B, SMPS- 560XXXXX(Where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers) Product Description: Bluetooth Wireless Speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature:Date: 2021-07-07 Name:Emma Lee Title:Manager Company: Sure Wave (HongKong) Limited

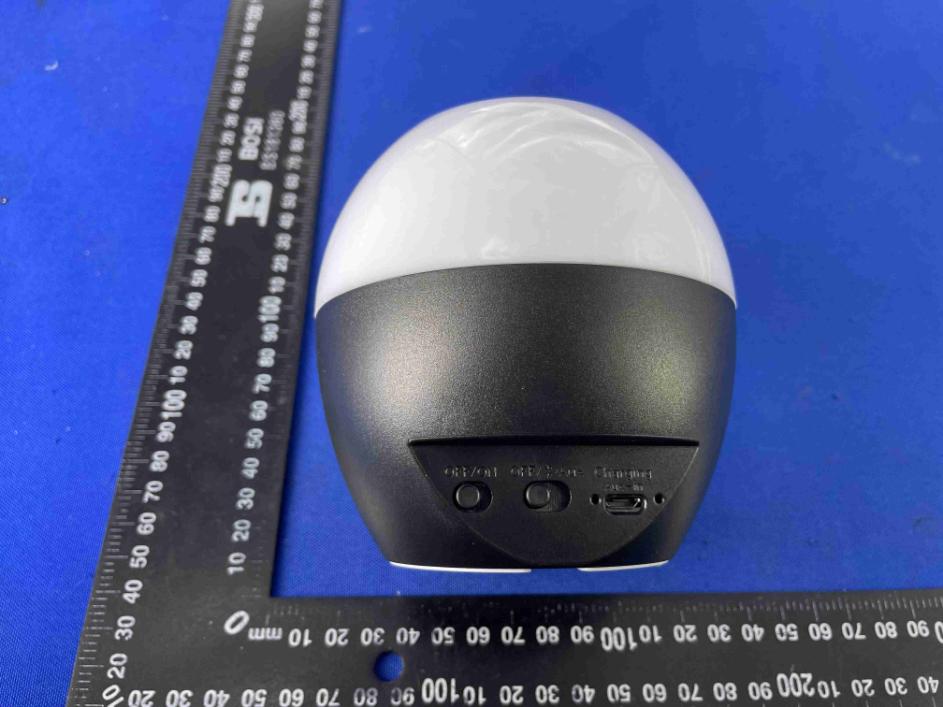

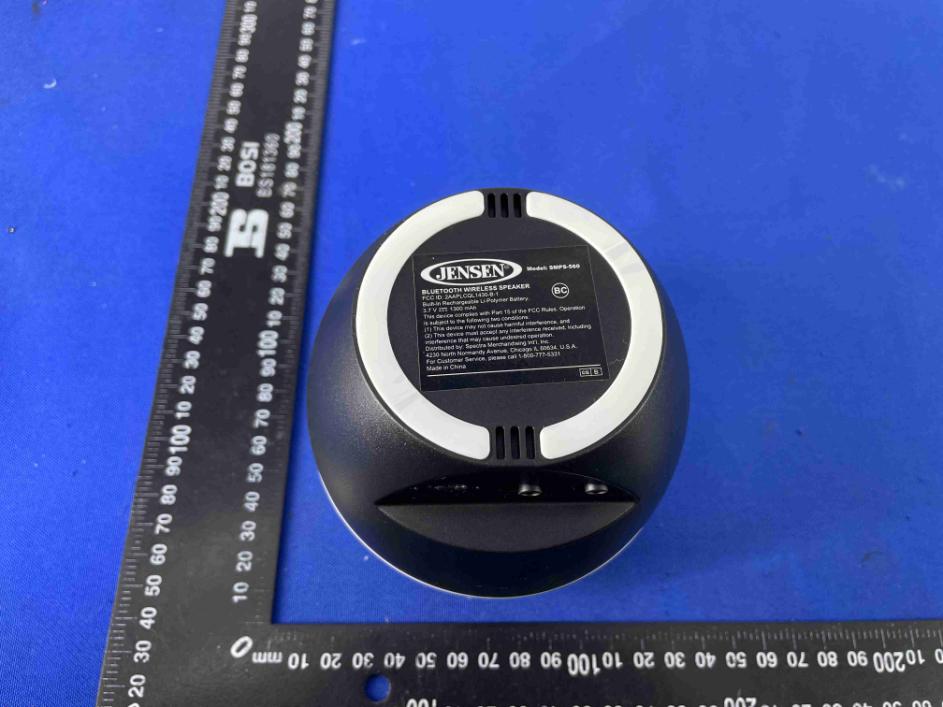

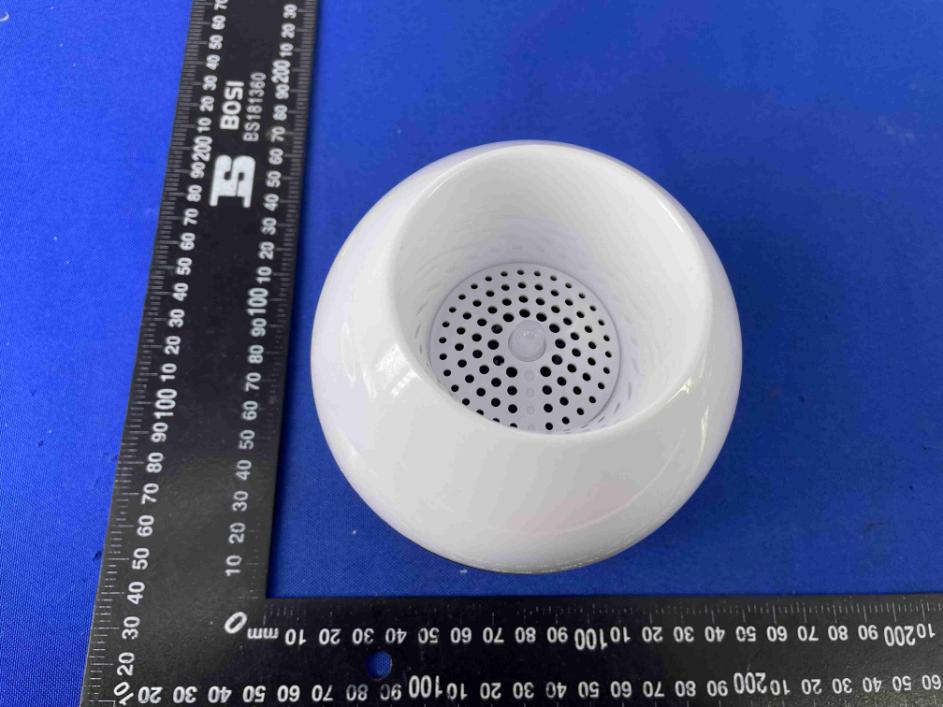

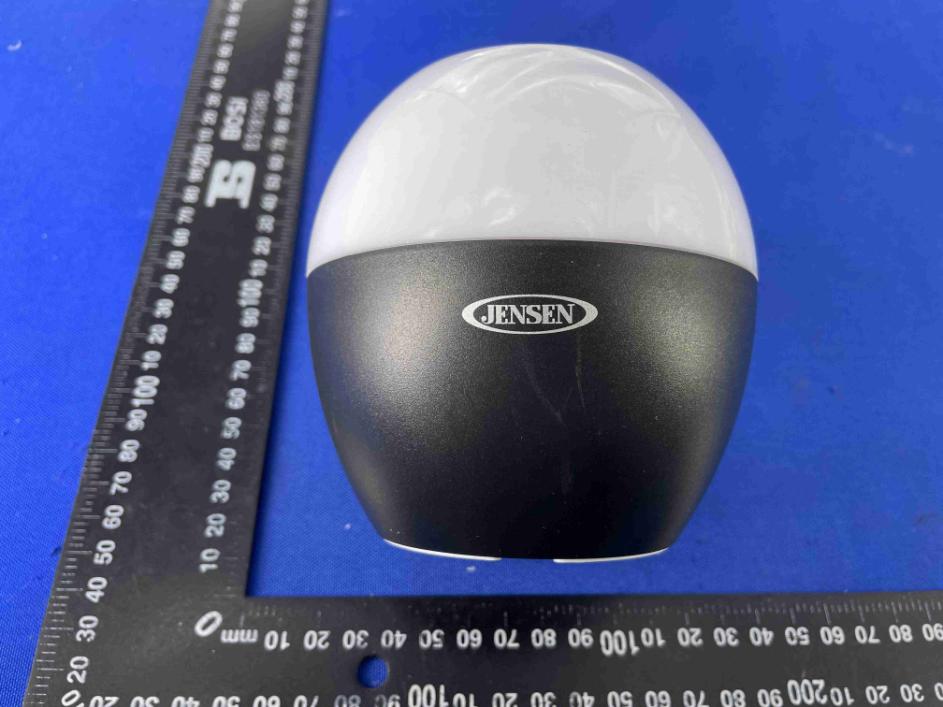

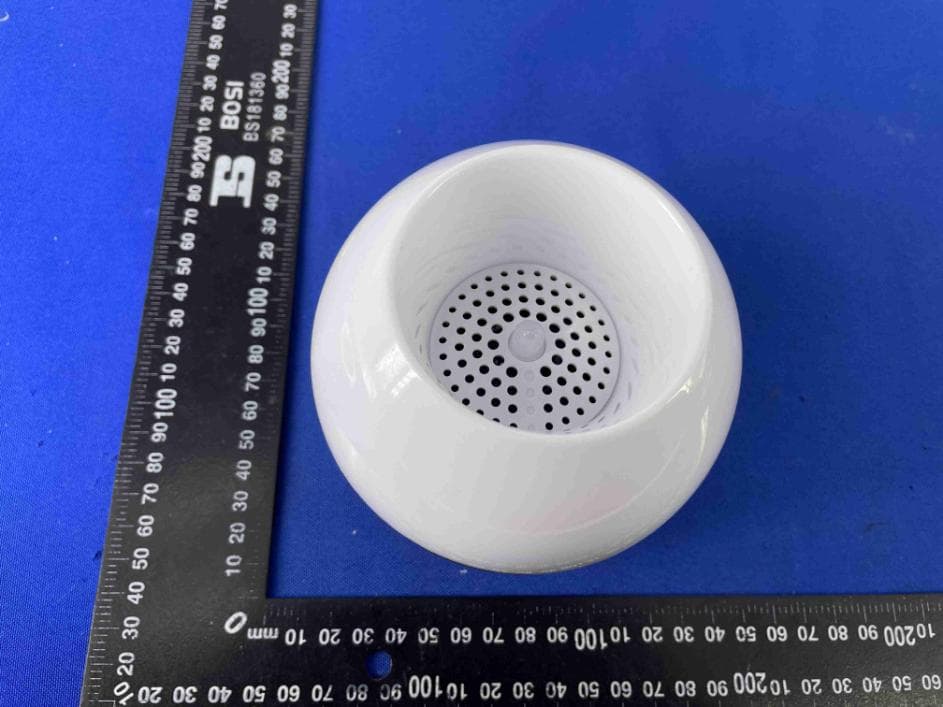

Page 1 of 4 Appendix B: Photographs of EUT Product: Bluetooth Wireless Speaker Model: CQL1430-B External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: CQL1430-B Label: Size: L*W=60*40mm Bluetooth Wireless Speaker Model: CQL1430-B FCC ID: 2AAPLCQL1430-B-1 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Location

Page 1 of 3 Appendix B: Photographs of EUT Product: Bluetooth Wireless Speaker Model: CQL1430-B Internal Photos Page 2 of 3 Antenna Page 3 of 3

RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  For EDR+BDR: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 0 2.402 1.396 1±1 2 1.58 5 0.49 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2AAPLCQL1430-B-1 Test Report No. ............... : TCT210623E013 Date of issue ................... : Jul. 06, 2021 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: TCT Testing Industrial Park Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Sure Wave (HongKong) Limited Address ........................... : A-703,Building 2, TianAn Cyber Park, Huangge North Road, Longgang District, Shenzhen, 518172, China Manufacturer's name ... : Sure Wave (HongKong) Limited Address ........................... : A-703,Building 2, TianAn Cyber Park, Huangge North Road, Longgang District, Shenzhen, 518172, China Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 Test item description ..... : Bluetooth Wireless Speaker Trade Mark ...................... : Jensen Model/Type reference..... : CQL1430-B, SMPS-560, SMPS-560B, SMPS-560XXXXX(Where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers) Rating(s).......................... : Rechargeable Li-ion Battery DC 3.7V Date of receipt of test item ......................................... : Jun. 23, 2021 Date (s) of performance of test ................................... : See dates for each test case Tested by (+signature) ... : Brave Zeng Check by (+signature) .... : Beryl Zhao Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT210623E013 Page 2 of 87 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 1.3. Operation Frequency ............................................................................................ 4 2. Test Result Summary .............................................................................. 5 3. General Information ................................................................................. 6 3.1. Test environment and mode ................................................................................. 6 3.2. Description of Support Units ................................................................................ 6 4. Facilities and Accreditations .................................................................. 7 4.1. Facilities ................................................................................................................. 7 4.2. Location ................................................................................................................. 7 4.3. Measurement Uncertainty ..................................................................................... 7 5. Test Results and Measurement Data ..................................................... 8 5.1. Antenna requirement ............................................................................................ 8 5.2. Conducted Emission ............................................................................................. 9 5.3. Conducted Output Power ................................................................................... 13 5.4. 20dB Occupy Bandwidth .................................................................................... 14 5.5. Carrier Frequencies Separation ......................................................................... 15 5.6. Hopping Channel Number .................................................................................. 17 5.7. Dwell Time ............................................................................................................ 18 5.8. Pseudorandom Frequency Hopping Sequence ................................................ 19 5.9. Conducted Band Edge Measurement ................................................................ 20 5.10.Conducted Spurious Emission Measurement .................................................. 21 5.11.Radiated Spurious Emission Measurement ..................................................... 22 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT210623E013 Page 3 of 87 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Test item description ........... : Bluetooth Wireless Speaker Model/Type reference........... : CQL1430-B Sample Number....................: TCT210623E013-0101 Bluetooth Version ................ : V5.0 Operation Frequency ........... : 2402MHz~2480MHz Transfer Rate ........................ : 1/2/3 Mbits/s Number of Channel .............. : 79 Modulation Type ................... : GFSK, π/4-DQPSK, 8DPSK Modulation Technology ....... : FHSS Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0dBi Rating(s)................................ : Rechargeable Li-ion Battery DC 3.7V Remark .................................. : / Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2…
