2AAQ6TALONCV001CDMA vehicle tracking device

TALONCV001 User Manual FCC ID: 2AAQ6TALONCV001 Copyright ©MONTAGE SYSTEMS, INC. All rights reserved. TALONCV001 User Manual MONTAGE SYSTEMS, INC. 65 ENTERPRISE,ALISO VIEJO,CA 92656 2 Contents 1 Specification .............................................................................................................................. 3 2 Installation ................................................................................................................................. 4 3 LED’s .......................................................................................................................................... 5 4 Caution ...................................................................................................................................... 6 TALONCV001 User Manual MONTAGE SYSTEMS, INC. 65 ENTERPRISE,ALISO VIEJO,CA 92656 3 1 Specification  CDMA 2000 1x 800/1900MHz; GPS  Voltage: 12V DC Input（1A current）  Dimension: 86.7( L )*30 .8( W )*10.7( H )mm  Weight: 75g  Operation Temperature: ‐40 °C to 85°C  Storage Temperature: ‐50 °C to +100° C  Operation Humidity: 20% to 90%  Storage Humidity: 10% to 95%  Altitude: ‐500 to +18,000m  GPS : L1‐band (1.57542GHz) TALONCV001 User Manual MONTAGE SYSTEMS, INC. 65 ENTERPRISE,ALISO VIEJO,CA 92656 4 2 Installation TALONCV001 User Manual MONTAGE SYSTEMS, INC. 65 ENTERPRISE,ALISO VIEJO,CA 92656 5 3 LED’s Two LED status indicators are provided to verify correct installation and operation. The status LEDs are color coded and directly convey the status of the CDMA and GPS subsystems as described in the table below. Their valid operation also indicates operational status and power. LED Function Status Red GPS On: GPS satellites acquired and Locked Flash Slow: GPS satellite search is in progress Off: No power or GPS subsystem fault Green CDMA/CDMA Connection On: Indicates CDMA connection is made Flash Slow: CDMA subsystem initialized but no connection Flash Fast: CDMA initialization in process Off: No power or CDMA subsystem fault TALONCV001 User Manual MONTAGE SYSTEMS, INC. 65 ENTERPRISE,ALISO VIEJO,CA 92656 6 4 Caution The devise cannot be used within 20cm of any persons and must not be co‐located within 20cm of other transmitter antennas.

MONTAGE SYSTEMS, INC._ Request for Confidentiality Date: 2013-9-23 Subject: Confidentiality Request for: ___2AAQ6TALONCV001_____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ___MONTAGE SYSTEMS, INC.___ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. 1

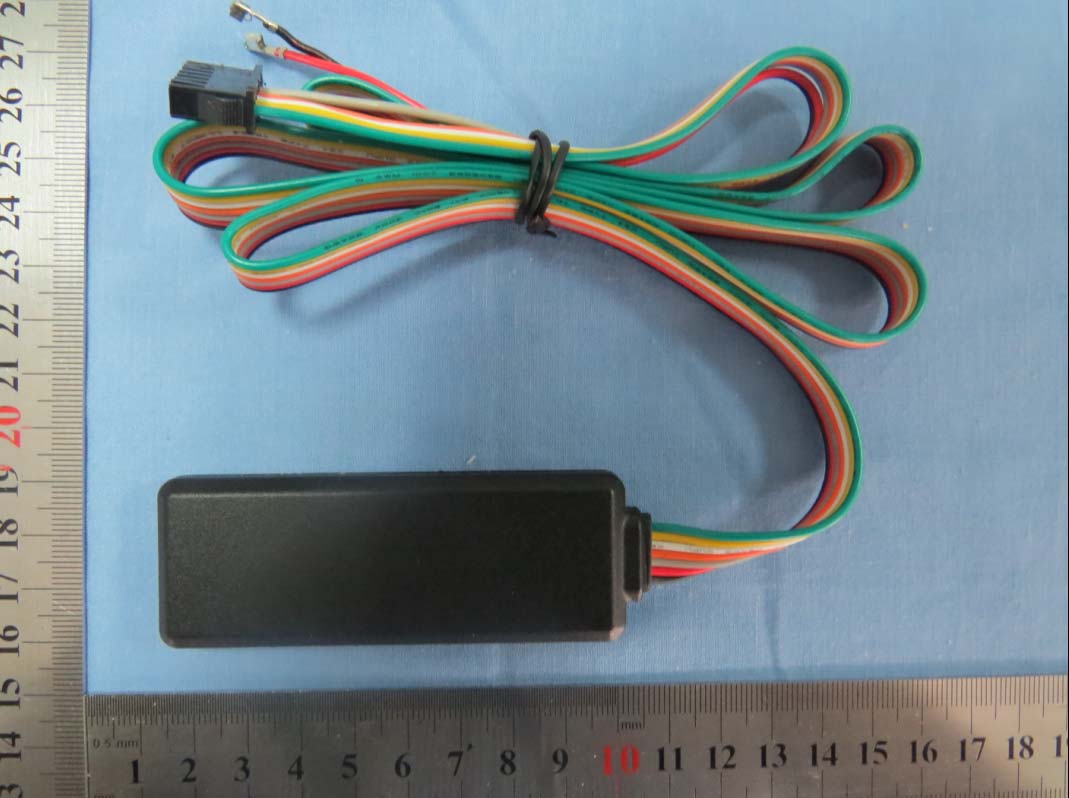

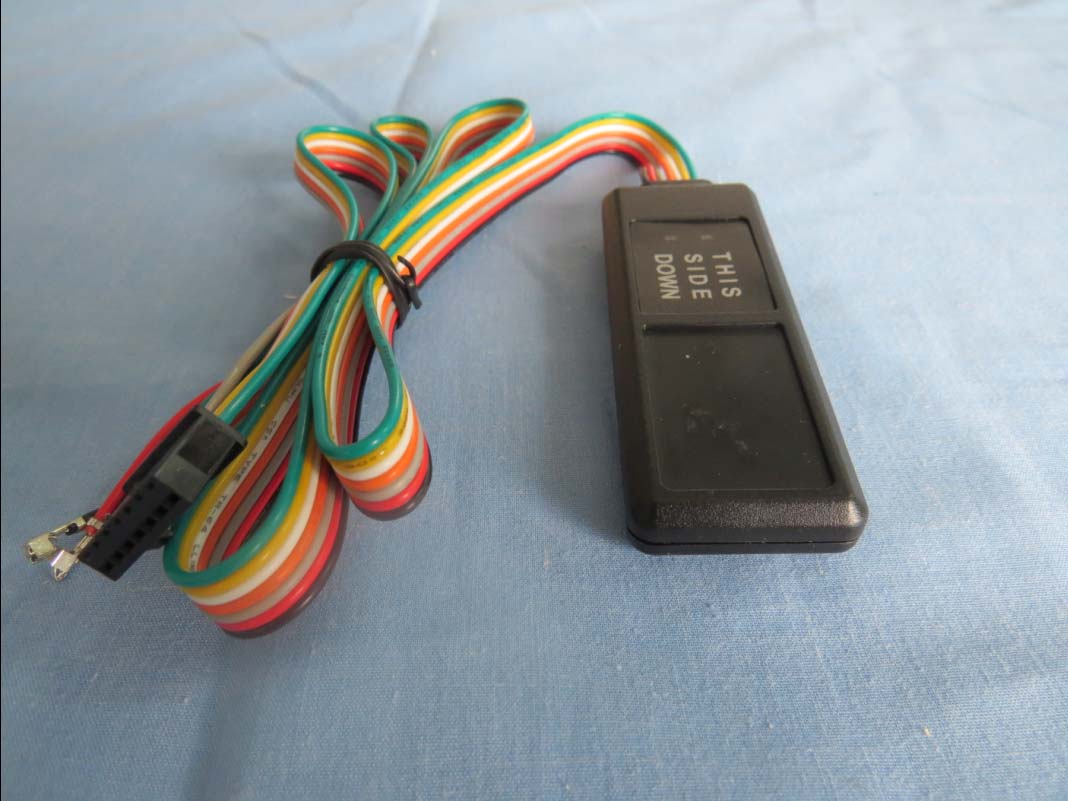

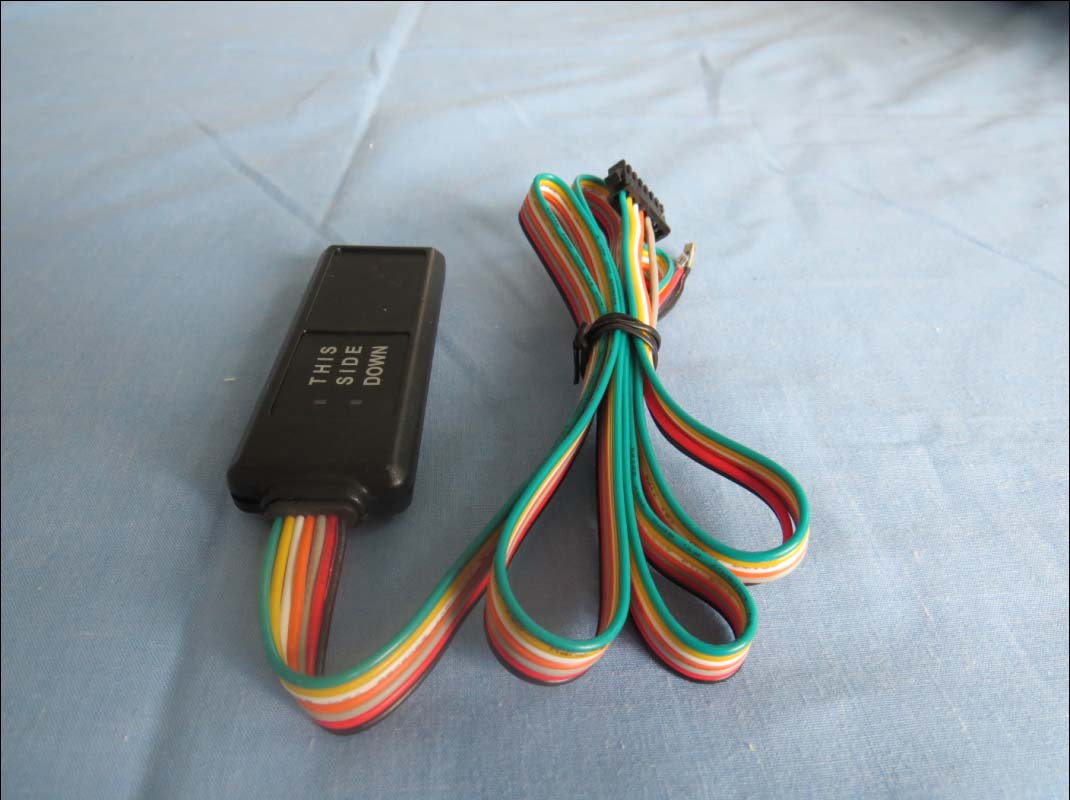

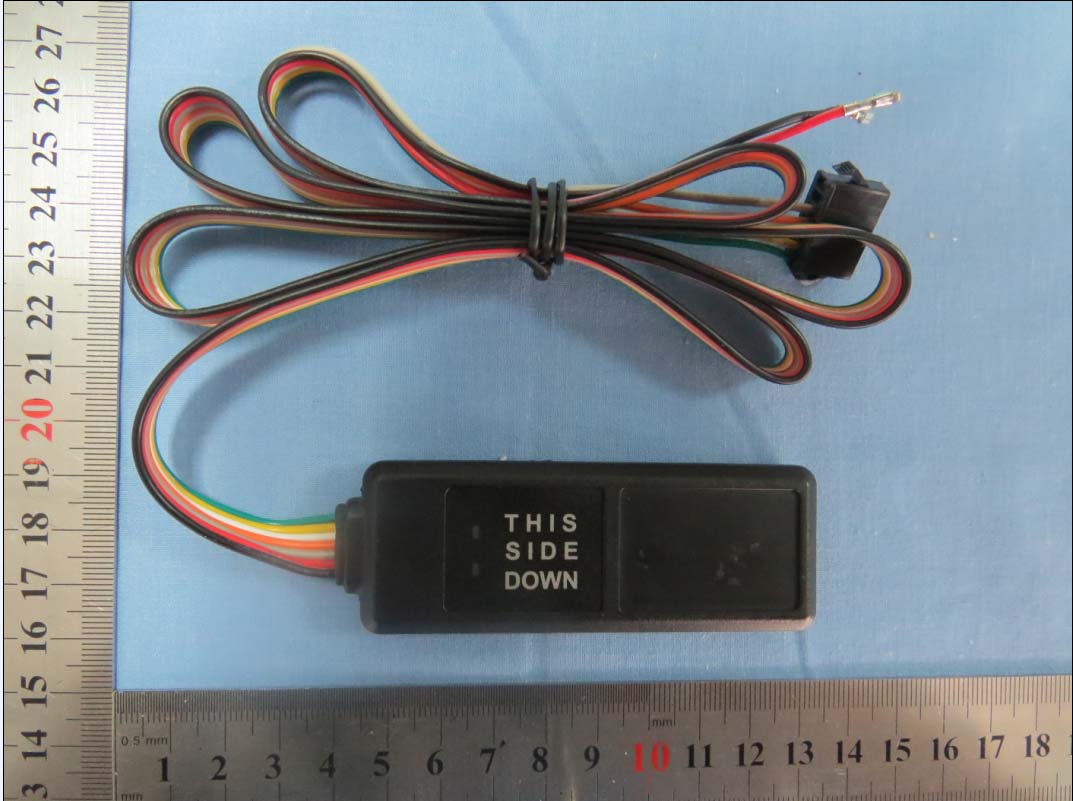

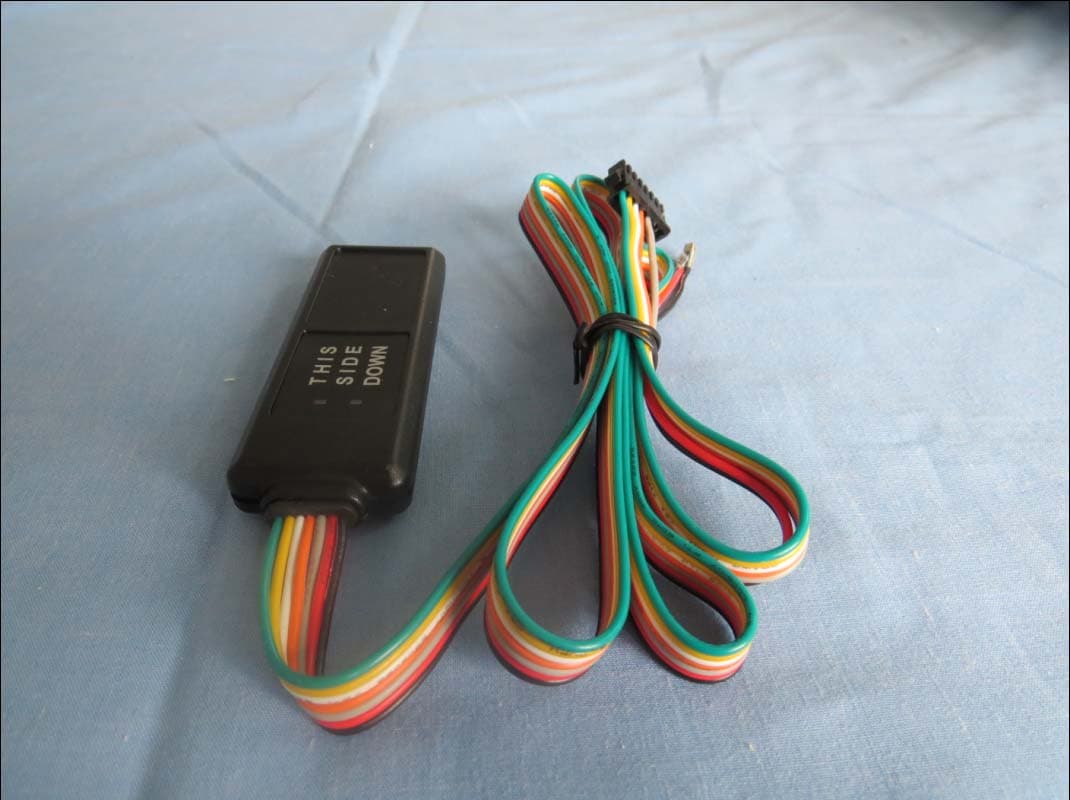

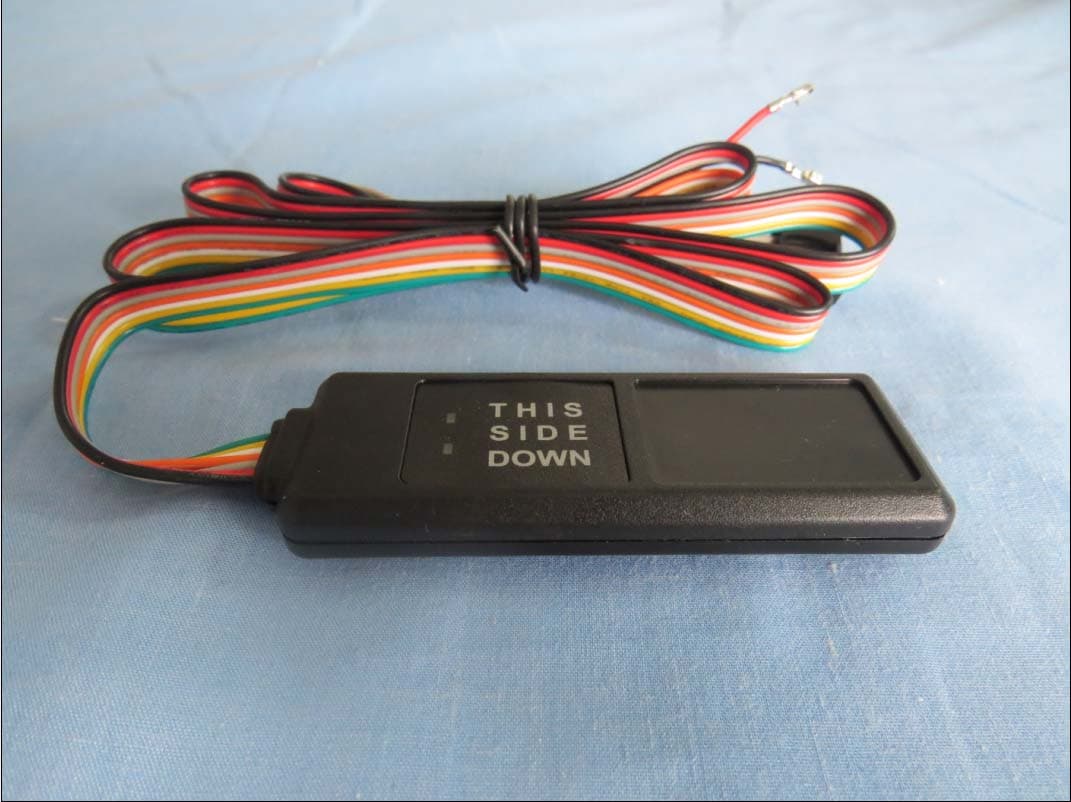

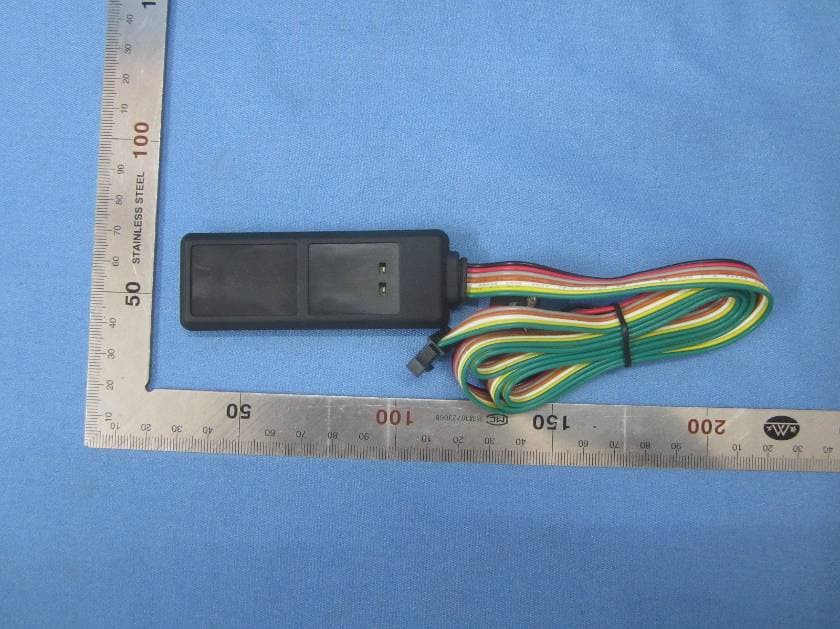

TALONCV001 External Photo

32.5mm 21.5mm

TALONCV001 Internal photo With Shielding Case---front side With Shielding Case---back side GPS CDMA Without Shielding Case-- front side Without Shielding Case --back side

Report No.: RXA1307-0096MPE Page 1 of 5 : MPE REPORT Product Name Module Model TALONCV001 FCC ID 2AAQ6TALONCV001 Client MONTAGE SYSTEMS, INC. Manufacture Asiatelco Technologies Co. Date of issue September 11, 2013 Approved by Director Revised by Manager Performed by Engineer Test By Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai,China Contact: Yang Weizhong Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] TA Technology (Shanghai)Co.,Ltd. Test Report Report No.: RXA1307-0096MPE Page 2 of 5 Maximum Permissible Exposure Type of EUT: Module FCC ID: 2AAQ6TALONCV001 Manufacturer: Asiatelco Technologies Co. Model: TALONCV001 Maximum conducted output power (measured) and antenna Gain: According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following Band Time-average maximum tune up procedure (dBm) Antenna Gain (dBi) CDMA 800 25 2 CDMA 1900 25 2 TA Technology (Shanghai)Co.,Ltd. Test Report Report No.: RXA1307-0096MPE Page 3 of 5 Note1. Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. Note2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. TA Technology (Shanghai)Co.,Ltd. Test Report Report No.: RXA1307-0096MPE Page 4 of 5 The maximum permissible exposure for 300~1500MHz is f/1500, 1500~100,000MHz is 1.So IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. Band The maximum permissible exposure CDMA 800 0.55 mW/cm² CDMA 1900 1 mW/cm² TA Technology (Shanghai)Co.,Ltd. Test Report Report No.: RXA1307-0096MPE Page 5 of 5 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the conducted power, considering maximum power and antenna gain. The formula shown in OET Bulletin 65 is used in the calculation. Equation from OET Bulletin 65, Edition 97-01 is: S= PG / 4∏R 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = Time-average maximum tune up procedure (in appropriate units, e.g., mW) G = the numeric gain of the antenna R = distance to the center of radiation of the antenna ( 20 cm = limit for MPE) So, the numeric gain (G) of the antenna with a gain specified in dB is determined by Numeric gain (G)=10^(antenna gain/10)=10^(2/10)=1.58 dB CDMA 800: PG = 25dBm+ (1.58dB) =26.58dBm=454.99mW CDMA1900 PG = 25dBm+ (1.58dB) =26.58dBm=454.99mW R =20 cm ∏= 3.1416 Solving for S, the power density at 20 cm is Band Test Result (mW/cm 2 ) Limit Value (mW/cm 2 ) CDMA 800 0.091 0.55 mW/cm² CDMA1900 0.091 1 mW/cm² Note: For mobile or fixed location transmitters, minimum separation distance is 20cm, even if calculations indicate MPE distance is less.

Report No.: RXA1307-0096RF01R1 Page 1of 40 TESTING No. L2264 Part 22 TEST REPORT Product Name CDMA vehicle tracking device Model Name TALONCV001 FCC ID 2AAQ6TALONCV001 Client MONTAGE SYSTEMS, INC. Manufacturer Asiatelco Technologies Co. Date of issue September 23, 2013 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1307-0096RF01R1 Page 2of 40 GENERAL SUMMARY Reference Standard(s) FCC CFR47 Part 2 (2012) Frequency Allocations And Radio Treaty Matters; General Rules And Regulations FCC CFR 47 Part 22H (2012) Public Mobile Services(850MHz) ANSI/TIA-603-C(2004) Land mobile FM or PM Communications Equipment Measurements and Performance Standards. KDB 971168 D01 Power Meas License Digital Systems v02r01 Measurement Guidance for Certification of Licensed Digital Transmitters Conclusion This fixed equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 2 of this test report are below limits specified in the relevant standards. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Director Revised by RF Manager Performed by RF Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1307-0096RF01R1 Page 3of 40 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the test report ......................................................................................................... 4 1.2. Testing laboratory ................................................................................................................. 5 1.3. Applicant Information ............................................................................................................ 5 1.4. Manufacturer Information ...................................................................................................... 5 1.5. Information of EUT ................................................................................................................ 6 1.6. Test Date .............................................................................................................................. 7 2. Test Information ........................................................................................................................... 8 2.1. Summary of test results ........................................................................................................ 8 2.2. RF Power Output .................................................................................................................. 9 2.3. Effective Radiated Power .................................................................................................... 11 2.4. Occupied Bandwidth ........................................................................................................... 14 2.5. Band Edge Compliance ...................................................................................................... 19 2.6. Peak-to-Average Power Ratio (PAPR) ............................................................................... 23 2.7. Frequency Stability ........................................................................................................... .. 28 2.8. Spurious Emissions at Antenna Terminals ......................................................................... 30 2.9. Radiates Spurious Emission ............................................................................................... 34 3. Main Test Instruments ................................................................................................................ 38 ANNEX A: EUT Appearance and Test Setup ..................................................................................... 39 A.1 EUT Appearance ................................................................................................................ 39 A.2 Test Setup ........................................................................................................................... 40 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1307-0096RF01R1 Page 4of 40 1. General Information 1.1. Notes of the test report TA Technology (Shanghai) Co., Ltd. has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L2264. TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 428261. TA Technology (Shanghai) Co., Ltd. has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 8510A. TA Technology (Shanghai) Co., Ltd. guarantees the reliability of the data presented in this test report, which is the results of measurements and tests performed for the items under test on the date and under the conditions stated in this test report and is based on the knowledge and technical facilities available at TA Technology (Shanghai) Co., Ltd. at the time of execution of the test. TA Technology (Shanghai) Co., Ltd. is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the items under test and the results of the test. This report only refers to the item that has undergone the test. This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of TA Technology (Shanghai) Co., Ltd. and the Accreditation Bodies, if it applies. If the electrical report is inconsistent with the printed one, it should be subject to the latter. TA Technology (Shanghai) Co., Ltd. Test Report Report…
