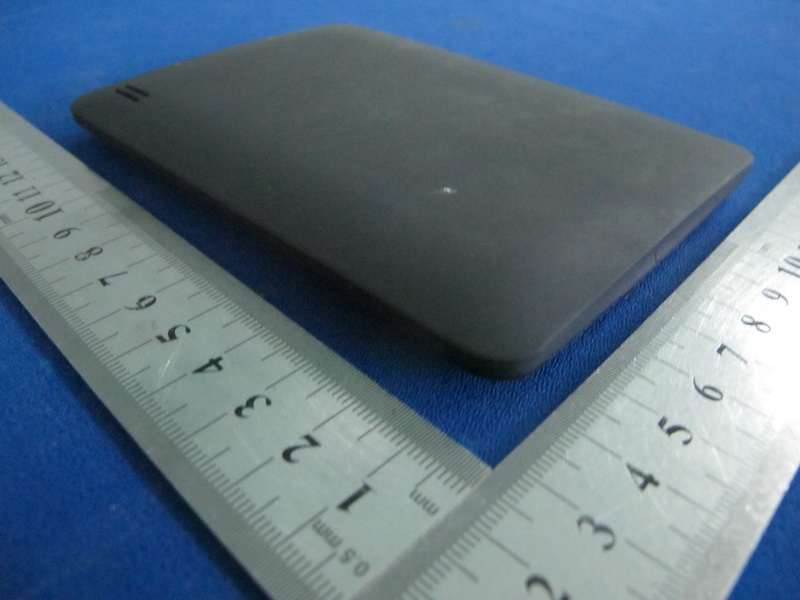

Report No.: TB-FCC137854 Page: 3 of 10 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC137854 Page: 4 of 10 TB-RF-075-1.0 Photo 3 Appearance of EUT

Report No.: TB-FCC137854 Page: 2 of 10 TB-RF-075-1.0 Appendix II ID Label Location FCC ID LOCATION

Report No.: TB-FCC137854 Page: 5 of 10 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 4 Internal of EUT Photo 5 Appearance of PCB Report No.: TB-FCC137854 Page: 6 of 10 TB-RF-075-1.0 Photo 6 Appearance of PCB Photo 7 Appearance of PCB WiFi Antenna Report No.: TB-FCC137854 Page: 7 of 10 TB-RF-075-1.0 Photo 8 Appearance of Battery Photo 9 Appearance of Screen

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE137855 Page: 1 of 4 TB-RF-075-1.0 10/F., A Block, Jiada R & D Bldg., No.5 Songpingshan Road, Science & Technology Park, Nanshan District, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AAQF-PLT4315 1. Client Information Applicant : CHINA ELECTRONICS SHENZHEN COMPANY Address : F35/F., Electronics Science & Technology Building, Shennan Zhong Road, Shenzhen, China Manufacturer : ATION ELECTRIC CO., LTD. Address : No.82, Huize Road, Shuikou Town, Huicheng District, Huizhou, China 2. General Description of EUT EUT Name : MID Models No. : PLT4315, BC-204A Model Difference : The different models are identical in schematic, structure and critical component, the only different is the appearance. Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz Number of Channel: 802.11b/g/n(HT20):11 channels Out Power: 802.11b: 8.94 dBm 802.11g: 8.75 dBm 802.11n (HT20): 8.61 dBm Antenna Gain: 0 dBi Chip Antenna Modulation Type: 802.11b: DSSS (CCK, QPSK, BPSK) 802.11g: OFDM 802.11n: OFDM Bit Rate of Transmitter: 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n:up to 150Mbps Power Supply : USB DC power from Hostsystem. DC Voltage supplied from Li-Polymer battery. Power Rating : USB DC 5.0V power from Hostsystem. DC 3.7V 1100mAh from Li-Polymer battery Report No.: TB-MPE137855 Page: 2 of 4 TB-RF-075-1.0 Connecting I/O Port(S) : Please refer to the User's Manual Note For a more detailed features description, please refer to the RF Test Report. Report No.: TB-MPE137855 Page: 3 of 4 TB-RF-075-1.0 MPE Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies V05. Appendix A: SAR Test Thresholds for 100MHz~6GHz and ≤50mm. SAR can be exempted if the output power is less than the SAR exclusion (1)Threshold: For F=2450, and Distance=5mm, the output power is less than 10mW (10 dBm). Please see the follow table: Report No.: TB-MPE137855 Page: 4 of 4 TB-RF-075-1.0 2. Calculation: EIRP= P+G Where P=Conducted Output Power (dBm) G=Power Gain of the Antenna (dBi) So 802.11b/g/n(HT20) Test Mode Conducted Power (dBm) Antenna Gain (dBi) EIRP (dBm) EIRP (mW) 802.11b 8.94 0 8.94 7.8343 802.11g 8.75 0 8.75 7.3114 802.11n(HT20) 8.61 0 8.61 7.2946 3. Conclusion: No SAR Evaluation required since Transmitter output power is bellow FCC threshold and IC standards.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC137854 Page: 1 of 70 TB-RF-074-1.0 10/F., A Block, Jiada R & D Bldg., No.5 Songpingshan Road, Science & Technology Park, Nanshan District, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AAQF-PLT4315 Report No. : TB-FCC137854 Applicant : CHINA ELECTRONICS SHENZHEN COMPANY Equipment Under Test (EUT) EUT Name : MID Model No. : PLT4315 Serial No. : BC-204A Brand Name : N/A Receipt Date : 2013-07-22 Test Date : 2013-07-30 to 2013-08-02 Issue Date : 2013-08-06 Standards : FCC Part 15, Subpart C (15.247:2011) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC137854 Page: 2 of 70 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 5 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. CONDUCTED EMISSION TEST ........................................................................................... 10 3.1 Test Standard and Limit .................................................................................................... 10 3.2 Test Setup ........................................................................................................................... 10 3.3 Test Procedure ................................................................................................................... 10 3.4 Test Equipment Used ........................................................................................................ 11 3.5 EUT Operating Mode ........................................................................................................ 11 3.6 Test Data ............................................................................................................................. 11 4. RADIATED EMISSION TEST ................................................................................................ 14 4.1 Test Standard and Limit .................................................................................................... 14 4.2 Test Setup ........................................................................................................................... 15 4.3 Test Procedure ................................................................................................................... 16 4.4 EUT Operating Condition ................................................................................................. 16 4.5 Test Equipment .................................................................................................................. 17 4.6 Test Data ............................................................................................................................. 17 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 29 5.1 Test Standard and Limit .................................................................................................... 29 5.2 Test Setup ........................................................................................................................... 29 5.3 Test Procedure ................................................................................................................... 30 5.4 EUT Operating Condition ................................................................................................. 30 5.5 Test Equipment .................................................................................................................. 30 5.6 Test Data ............................................................................................................................. 31 6. BANDWIDTH TEST ................................................................................................................. 38 6.1 Test Standard and Limit .................................................................................................... 38 6.2 Test Setup ........................................................................................................................... 38 6.3 Test Procedure ................................................................................................................... 38 6.4 EUT Operating Condition ................................................................................................. 38 6.5 Test Equipment…

Text truncated - open the document above for the full version.

Report No.: TB-FCC137854 Page: 8 of 10 TB-RF-075-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission Report No.: TB-FCC137854 Page: 9 of 10 TB-RF-075-1.0 Photo of Setup for Radiated Emission Report No.: TB-FCC137854 Page: 10 of 10 TB-RF-075-1.0 Photo of Setup for Conducted Emission
