CHINA ELECTRONICS SHENZHEN COMPANY Date:2013-09-25 FCC ID: 2AAQFBT-1013 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Test firm: Interocean EMC Technology Corp. Location: No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City,Taiwan 244, R.O.C. Yours sincerely, Signatory Signature NameAshley Luo TitleSales Manager 2013-09-25

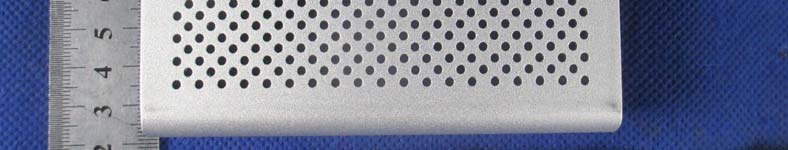

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

BLUETOOTH SPEAKER FCC ID: 2AAQFBT-1013 Model Name: BT-1013 CHINA ELECTRONICS SHENZHEN COMPANY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12

FCC ID: 2AAQFBT-1013 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Maximum measured transmitter power 1Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 -0.893 0.81 2441 0 -0.846 0.82 2480 0 -1.127 0.77 2Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 -1.909 0.65 2441 0 -1.877 0.64 2480 0 -1.081 0.78 3Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 -1.878 0.64 2441 0 -1.851 0.64 2480 0 -2.098 0.63 Refer to 447498 25 D01 General RF Exposure Guidance v05 Appendix A, you see that for Maximum Conducted AV Output Power 0.82 mW(<10mW), so no SAR is required.

FCC RADIO TEST REPORT FCC ID: 2AAQFBT-1013 Product： BLUETOOTH SPEAKER Trade Name： Malektronic Model Name： BT-1013 Serial Model： Rocky Report No.： STT-2013DG0916223F Prepared for CHINA ELECTRONICS SHENZHEN COMPANY F35/F., Electronics Science& Technology Building, Shennan Zhong Road,Shenzhen, China Prepared by Shenzhen STONE Testing Technology Co.,Ltd. F/6, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District Shenzhen P.R. China Page 2 of 75 Report No.: STT-2013DG0916223F TEST RESULT CERTIFICATION Applicant’s name................. : CHINA ELECTRONICS SHENZHEN COMPANY Address ................................. : F35/F., Electronics Science& Technology Building, Shennan Zhong Road,Shenzhen, China Manufacture's Name............ : CHINA ELECTRONICS SHENZHEN COMPANY Address ................................. : F35/F., Electronics Science& Technology Building, Shennan Zhong Road,Shenzhen, China Product description Product name ........................... : BLUETOOTH SPEAKER Model and/or type reference : BT-1013 Serial Model： Rocky Standards............................. : FCC Part15.247 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by STT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STT, this document may be altered or revised by STT, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 09 Sep. 2013 ~16 Sep. 2013 Date of Issue...........................................: 16 Sep. 2013 Test Result...............................................: Pass Testing Engineer : (Eric Wang) Technical Manager : (Jerry You) Authorized Signatory : (Jack yu) Page 3 of 75 Report No.: STT-2013DG0916223F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . NUMBER OF HOPPING CHANNEL 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 34 5 . AVERAGE TIME OF OCCUPANCY 36 5.1 APPLIED PROCEDURES / LIMIT 36 Page 4 of 75 Report No.: STT-2013DG0916223F Table of Contents Page 5.1.1 TEST PROCEDURE 36 5.1.2 DEVIATION FROM STANDARD 36 5.1.3 TEST SETUP 37 5.1.4 EUT OPERATION CONDITIONS 37 5.1.5 TEST RESULTS 38 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 44 6.1 APPLIED PROCEDURES / LIMIT 44 6.1.1 TEST PROCEDURE 44 6.1.2 DEVIATION FROM STANDARD 44 6.1.3 TEST SETUP 44 6.1.4 EUT OPERATION CONDITIONS 44 6.1.5 TEST RESULTS 45 7 . BANDWIDTH TEST 51 7.1 APPLIED PROCEDURES / LIMIT 51 7.1.1 TEST PROCEDURE 51 7.1.2 DEVIATION FROM STANDARD 51 7.1.3 TEST SETUP 51 7.1.4 EUT OPERATION CONDITIONS 51 7.1.5 TEST RESULTS 52 8 . PEAK OUTPUT POWER TEST 58 8.1 APPLIED PROCEDURES / LIMIT 58 8.1.1 TEST PROCEDURE 58 8.1.2 DEVIATION FROM STANDARD 58 8.1.3 TEST SETUP 58 8.1.4 EUT OPERATION CONDITIONS 58 8.1.5 TEST RESULTS 59 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 65 9.1 DEVIATION FROM STANDARD 65 9.2 TEST SETUP 65 9.3 EUT OPERATION CONDITIONS 65 9.4 TEST RESULTS 66 10 . ANTENNA REQUIREMENT 73 10.1 STANDARD REQUIREMENT 73 10.2 EUT ANTENNA 73 11 . EUT TEST PHOTO 74 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 75 Report No.: STT-2013DG0916223F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 75 Report No.: STT-2013DG0916223F 1.1 TEST FACILITY Shenzhen STONE Testing Technology Co.,Ltd. Add. : F/1, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District Shenzhen China FCC Registration No.: 323508; IC Registration No.: 11043A 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 75 Report No.: STT-2013DG0916223F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment BLUETOOTH SPEAKER Trade Name Malektronic Model Name BT-1013 Serial Model Rocky Model Difference All the model are the same circuit and RF module,except the model names. Product Description The EUT is a BLUETOOTH SPEAKER Operation Frequency…
