2AAQFSPB60Bluetooth Speaker

WELCOME Fast Start Instruction Welcome to use SPB60 super Bluetooth speaker, to use the device correctly, please read this instruction very carefully before use. Product Specification Bluetooth version: Bluetooth V2.1+EDR Working distance: support wireless music within 10m, working distance may be different with different environment and Bluetooth device. Built-in battery: 1200mAh RMS: 1.6W*2 Rated Voltage: DC5V Audio input: 3.5mm Speaker weight: 480g Speaker size: 186*58*58mm Package list: Speaker: 1 User manual: 1 USB cable: 1 Warranty card: 1 Aux-in cable: 1 Product Indicators: 1 、 Microphone 7 、 Hands free 2 、 Bluetooth/AUX mode indicator 8 、 Power 3 、 Volume down 9 、 Charging indicator 4 、 Volume up 10 、 AUX input jack 5 、 Pause 11 、 Micro USB charging socket 6 、 Bluetooth pair Fast Learning Picture 1: Turn the power button to 'ON', when the blue indicator flashes slowly, the device is pairing with the latest paired device. Picture 2: Searching Bluetooth device when speaker is on, device is pairing when the blue indicator flash quickly; device is connected when the blue indicator is bright constantly. Picture 3: Play audio with phones. Buttons: 1. long press, device sounds when volume is up; short press, next track. 2. short press, device sounds when volume is down; short press, prev track. 3. short press, music stop; shor t press again, music plays. 4. long press, start pairing; long press, cancel the connection with phones. 5. short press, pick up phone calls; short press again, hang up phone calls; long press, refuse to pick up phone calls. When entering the hands-free call tim e, Please press always the call will transfer. Product Introduction Bluetooth Music: play Bluetooth music with several digital devices, 10 meters working distance with wireless music stream. Hands free function: built-in microphone, pick up phone calls wirelessly. Mobile HIFI: dual tracks with 1.5 inches drivers and passive radiator enhanced bass performance. Long endurance: 1200mA built-in Lithium battery supports freely and long endurance play. Aluminum Alloy: Casing made from aluminum alloy, Apple style surface finishing, and elegant design. Piano finish: surface finished with piano paint, anti scratching. Warnings Please read this safety and operation manual before use z Be aware of all warnings on the device and user manual z Please DO NOT use accessories which are not recommended by the manufacturer z To prevent dropping, please DO NOT put the speaker on any unstable devices. z Please DO NOT put any liquid container around the speaker or put the speaker into any liquid. z Please DO NOT put the speaker in high temperat ure or wet environment for long time period. z Please DO NOT wipe the speaker with Chemical solvents, such as alcohol and diethyl ether . z To prevent disturbing by electromagnetism, please DO NOT use communication apparatus near the speaker. z To enjoy music in better quality, please set volume in appropriate level. z To prevent damage to speaker please do not use during electrical storms. z No user-serviceable parts, co ntact dealer for any repairs. z Please remove the adapter from wall ch argers when it is not being used. z Bluetooth working distance is 10 meters, but it can be affected by various environments and barriers. z Battery working capacity can be affe cted by usage patterns and age. Trouble shooting Problems Solutions Cannot connect successfully please check if the speaker is in standby mode or is it disturbed by other Bluetooth devices, please turn them off if yes. Volume is too low or distorts please check volume setting of the speaker and set it in appropriate level. Music cannot plays consistently please if it is used over working distance, or ther e are barriers between speaker and music players. Intermittent ticking sound the alarm battery is low, please charge. Pause button do not works please try to control by music players. FCC Caution: Any changes or modifications not expressl y approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. O peration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-loc ated or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comp ly with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limit s are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac cordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radi o or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. changes or modifications not expressly approv ed by the party responsible for compliance could void the user's authority to operate the equipment. Name and content of toxic and harmful substances of the device Speaker The toxic and harmful substances Part Names X O O O O O Cable X O O O O O PW/As X O O O O O Plastic parts O O O O O O Wood parts O O O O O O Metaillic elements X O O O O O O: weight of toxic and harmful substance…

Text truncated - open the document above for the full version.

CHINA ELECTRONICS SHENZHEN COMPANY SPB60, BT-2008 Merkury 2013.10.20

CHINA ELECTRONICS SHENZHEN COMPANY

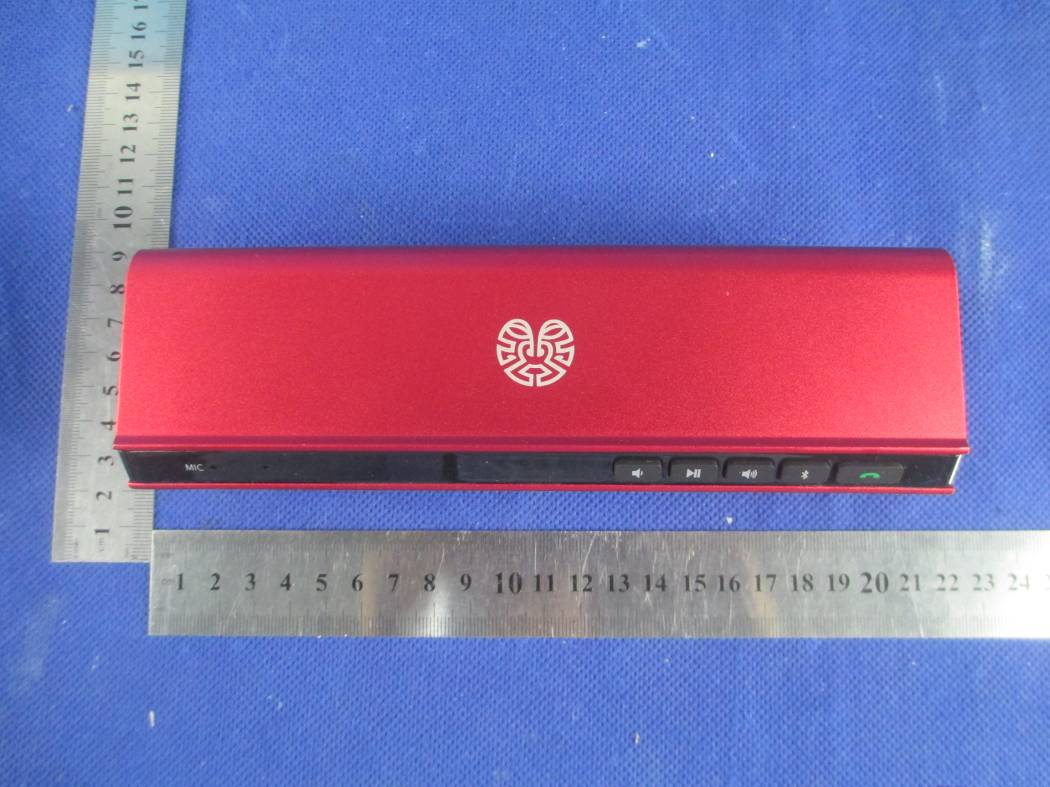

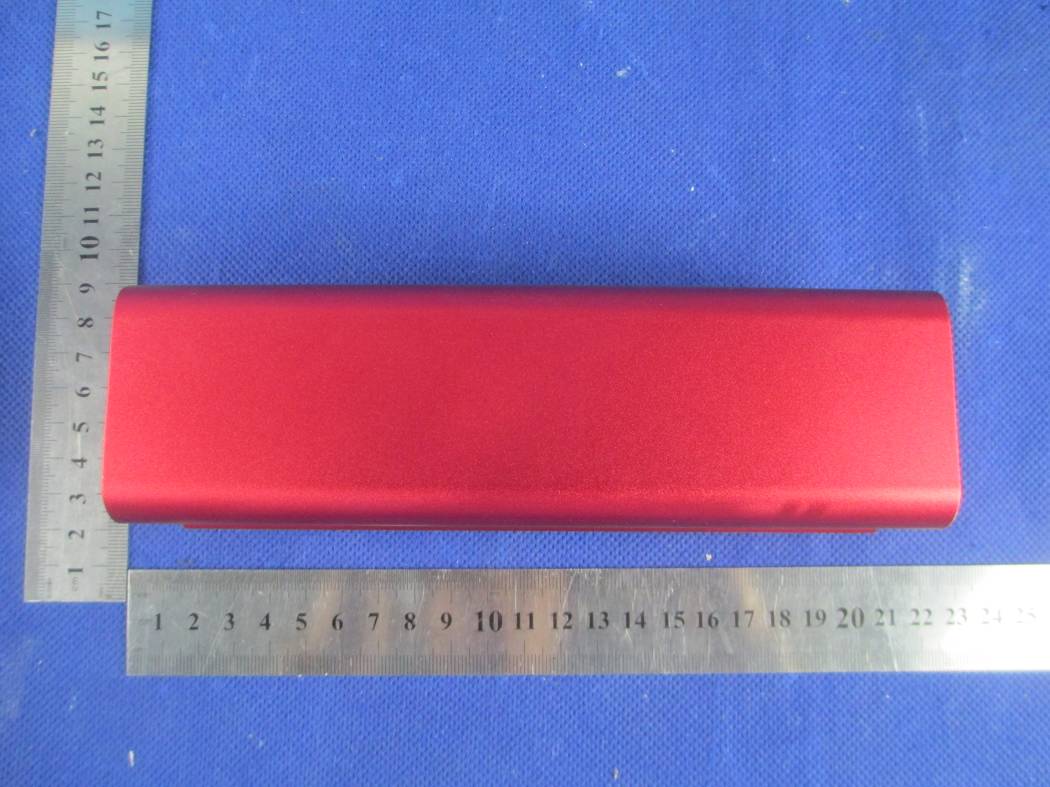

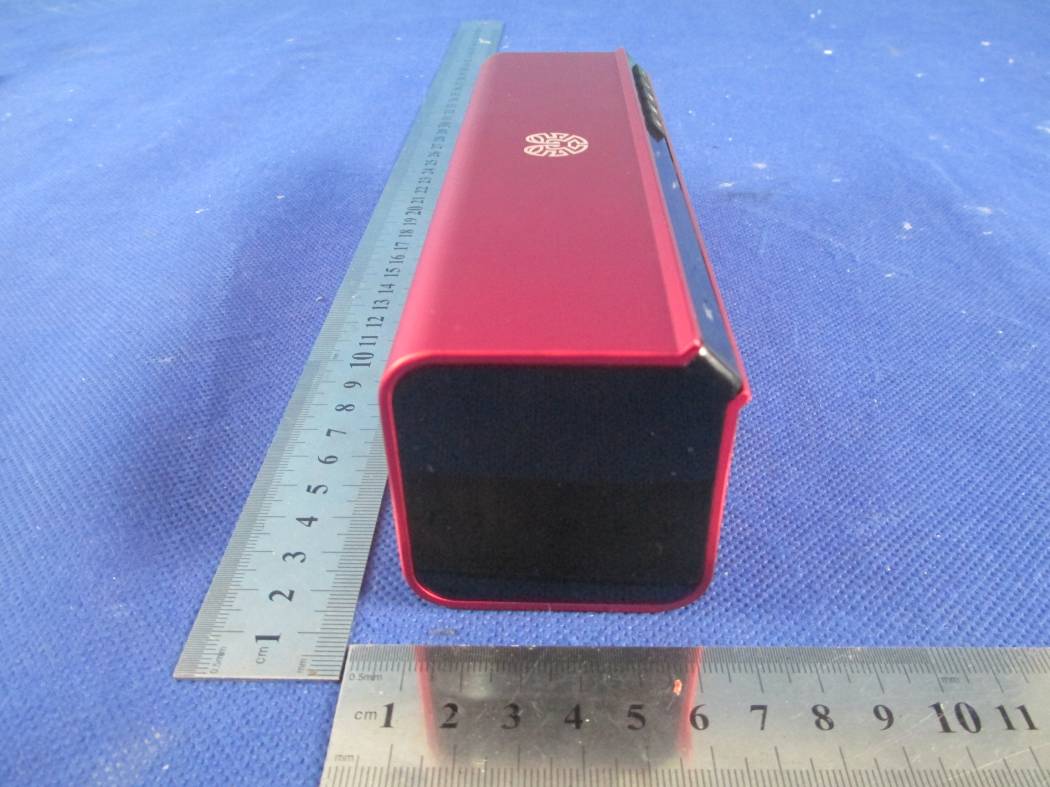

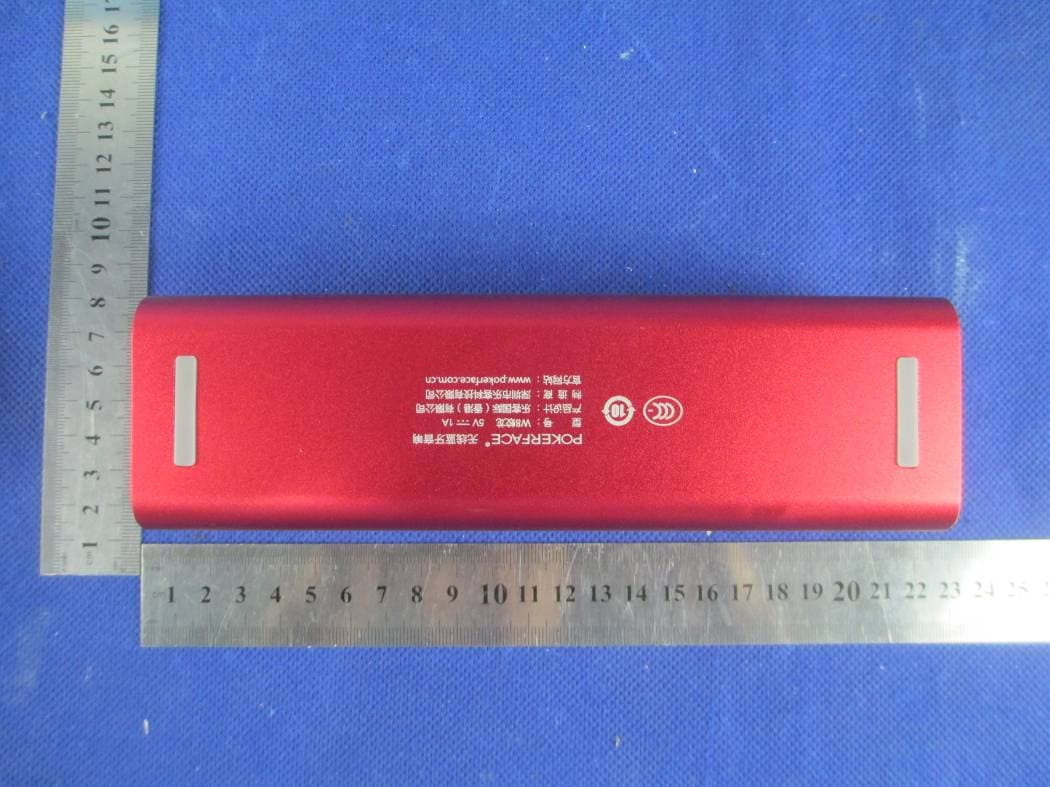

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Bluetooth speaker Model Name : SPB60 FCC ID: 2AAQFSPB60 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Photo 7 Photo 8 Photo 9 Photo 10 ANT

FCC ID: 2AAQFSPB60 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Maximum measured transmitter power 1Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 0.532 1.13 2441 0 1.441 1.39 2480 0 1.841 1.53 2Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 0.113 1.020 2441 0 0.986 1.254 2480 0 1.515 1.417 3Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 0.483 1.117 2441 0 1.414 1.384 2480 0 1.860 1.535 Refer to 447498 25 D01 General RF Exposure Guidance v05 Appendix A, you see that for Maximum Conducted AV Output Power 1.535 mW(<10mW), so no SAR is required.

FCC RADIO TEST REPORT FCC ID: 2AAQFSPB60 Product： Bluetooth speaker Trade Name： Merkury Model Name： SPB60 Serial Model： BT-2008 Prepared for China Electronics Shenzhen Company F35/F., Electronics Science& Technology Building, Shennan Zhong Road,Shenzhen, China Prepared by Shenzhen STONE Testing Technology Co.,Ltd. F/6, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District Shenzhen P.R. China Page 2 of 76 Report No.: STT-2013DG1020358F TEST RESULT CERTIFICATION Applicant’s name................. : China Electronics Shenzhen Company Address ................................. : F35/F., Electronics Science& Technology Building, Shennan Zhong Road,Shenzhen, China Manufacture's Name............ : China Electronics Shenzhen Company Address ................................. : F35/F., Electronics Science& Technology Building, Shennan Zhong Road,Shenzhen, China Product description Product name ........................... : Bluetooth speaker Model and/or type reference : SPB60 Serial Model： BT-2008 Standards............................. : FCC Part15.247 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by STT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STT, this document may be altered or revised by STT, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 15 Oct. 2013 ~25 Oct. 2013 Date of Issue...........................................: 25 Oct. 2013 Test Result...............................................: Pass Testing Engineer : (Eric Wang) Technical Manager : (Jerry You) Authorized Signatory : (Jack yu) Page 3 of 76 Report No.: STT-2013DG1020358F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . NUMBER OF HOPPING CHANNEL 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 34 5 . AVERAGE TIME OF OCCUPANCY 36 5.1 APPLIED PROCEDURES / LIMIT 36 Page 4 of 76 Report No.: STT-2013DG1020358F Table of Contents Page 5.1.1 TEST PROCEDURE 36 5.1.2 DEVIATION FROM STANDARD 36 5.1.3 TEST SETUP 37 5.1.4 EUT OPERATION CONDITIONS 37 5.1.5 TEST RESULTS 38 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 44 6.1 APPLIED PROCEDURES / LIMIT 44 6.1.1 TEST PROCEDURE 44 6.1.2 DEVIATION FROM STANDARD 44 6.1.3 TEST SETUP 44 6.1.4 EUT OPERATION CONDITIONS 44 6.1.5 TEST RESULTS 45 7 . BANDWIDTH TEST 51 7.1 APPLIED PROCEDURES / LIMIT 51 7.1.1 TEST PROCEDURE 51 7.1.2 DEVIATION FROM STANDARD 51 7.1.3 TEST SETUP 51 7.1.4 EUT OPERATION CONDITIONS 51 7.1.5 TEST RESULTS 52 8 . PEAK OUTPUT POWER TEST 58 8.1 APPLIED PROCEDURES / LIMIT 58 8.1.1 TEST PROCEDURE 58 8.1.2 DEVIATION FROM STANDARD 58 8.1.3 TEST SETUP 58 8.1.4 EUT OPERATION CONDITIONS 58 8.1.5 TEST RESULTS 59 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 65 9.1 DEVIATION FROM STANDARD 65 9.2 TEST SETUP 65 9.3 EUT OPERATION CONDITIONS 65 9.4 TEST RESULTS 66 10 . ANTENNA REQUIREMENT 74 10.1 STANDARD REQUIREMENT 74 10.2 EUT ANTENNA 74 11 . EUT TEST PHOTO 75 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 76 Report No.: STT-2013DG1020358F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 76 Report No.: STT-2013DG1020358F 1.1 TEST FACILITY Shenzhen STONE Testing Technology Co.,Ltd. Add. : F/1, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District Shenzhen China FCC Registration No.: 323508; IC Registration No.: 11043A 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 76 Report No.: STT-2013DG1020358F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth speaker Trade Name Merkury Model Name SPB60 Serial Model BT-2008 Model Difference All models are identical except model names. Product Description The EUT is a Bluetooth speaker Operation Frequency: 2402~2480 MHz Modulation Type: BT(1Mbps): GFSK BT EDR(2Mbps): ∏ /4-…

Text truncated - open the document above for the full version.

Page 75 of 76 Report No.: STT-2013DG1020358F 11. EUT TEST PHOTO Radiated Measurement Photos Page 76 of 76 Report No.: STT-2013DG1020358F CONDUCTED EMISSION Photos
