2AAQHD97A11-2STablet

Tablet PC Brand Name: AOC Model Name: D97A11-2S FCC ID: 2AAQHD97A11-2S English User Manual Thanks for buying this Tablet PC. This manual will introduce you to the functions of your device and make you aware of anything requiring attention. Please read this manual carefully before using the device. 1. Power button 2. VOL+ 3. VOL- 4. Earphone jack 5. OTG USB Port 6. DC Socket 7. TF card slot 8. Reset 9. Speaker ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ 1 1. Important information  Please protect the device from moisture and dust.  Do not leave the device in a high-temperature environment, especially in a closed car in hot weather.  Do not drop or strike the device.  Do not shake the device violently, particularly the LCD screen, as this may cause the display to malfunction.  Please make sure to carefully adjust the earphone volume; excessive volume may be harmful to your hearing.  Please charge the device when: (1) The power icon shows that the battery is nearly flat (2) The device turns itself off automatically and will not come back on. (3) There is no response when operating the buttons. Attention: Please use only the charger provided by the manufacturer; other chargers may damage the device. Input: 100-240V ~ 50/60 Hz Output: 5V 2000 mA  Do not disconnect the device from your PC when downloading, uploading or formatting, as this may cause programming errors in the device.  Do not disassemble the device yourself; only allow an expert to do so.  Do not use alcohol, thinner or benzene-based chemicals to clean the surface of the device.  Do not use the device in places where its use is prohibited, such as aircraft.  Please make sure to always back up your device. The manufacturer is not responsible for lost files or data after damage to or repair of the device.  The manufacturer reserves all the rights to the technology and design of the device and has no obligation to inform the user if new versions or designs have been developed.  The device is NOT waterproof; please keep it away from moisture at all times. This device will take approximately 20 seconds to power up; please don't try to operate the device during this period. 2 2. Introduction 2.1 Key functions Name Description POWER Press this button briefly for sleep/wake up mode; Press and hold for several seconds to turn device ON or OFF MENU Press this button briefly to access the submenu ESC Press briefly to exit current mode TF Card Slot For external TF card, 1GB to 16GB Stereo earphone jack Stereo jack for earphone DC Socket To connect device to 5V DC charger MINI USB Port Micro 5-pin USB Port USB Host Port Port for external USB driver, 3G dongle, mouse, keyboard, etc. (2.0) Display HD Display area 2.2 Features Overview  CPU: Rockchip3188 Cortext A9, 1.2GHz. with ANDROID 4.2.2 operating system.  7' TFT touch screen LCD display, 1024x600 pixel resolution.  Supports 4~16GB built-in Flash Memory, support 128MB-16GB external TF card.  Media support for video, audio, pictures, E-books, etc.  Built-in Wi-Fi, supports external 3G USB-DONGLE wireless network card (3G card or USB-Dongle are not provided by the Tablet PC manufacturer). 2.412 GHz~2.462GHz  Various applications are available in the ANDROID 4.2.2 OS (APK applications only).  Supports built-in microphone record function (optional).  Supports USB-HOST and external U-disk, MP3, MP4, mouse, keyboard, etc.  Supports G-sensor screen rotation function.  Supports stereo earpieces and speaker.  Supports multiple languages.  The device can be used as a USB portable hard disk, driver not needed for WIN2000 or above.  Supports Bluetooth, V 3.0, 2402 MHz to 2480 MHz 2.3 Technical Specifications Screen 7 inch Capacitive Touch Screen. Five-point Multi-touch Resolution: 1024x600 Aspect Ratio: 16:9 CPU Chipset: ROCKCHIP3188; Processor: Cortex A9; Frequency: 1.2GHz RAM DDR3: 512MB Storage 4GB External TF card increase storage from 1GB to 16 GB. System Android 4.2.2 Network Wi-Fi: Built-in Wi-Fi Module. IEEE 802.11b/g/n. 11Mbps to 54Mbps 3G: External 3G by USB Dongle. 3 Applications APK format applications Video RM, AVI, MOV, WMV, MP4, ASF, 3GP, TS, MKV, MPEG, etc. All videos support HD 1080P. Music MP3, WMA, WAV, APE, FLAC, AAC, OGG, etc. Pictures JPG, BMP, PNG, TIFF, etc. E-books TXT, PDF, CHM, HTML, PDB, UMD, FB2, LRC, EPUB. Office Files Supported files: Word, Excel, PDF, etc. PC Connection Micro USB2.0 x 1 Battery Built-in Lithium Battery: 2500 mAh. 4 3. Quick Guide 3.1 About the Touch Screen The screen is a capacitive touch screen; you can use five fingers to touch the screen at the same time. 3.2 Switch On/Off Switch On and Unlock: When the device is in the OFF mode, press and hold the ‘POWER’ key for 3 seconds to enter the Android start-up progress bar; it takes approx. 20 seconds to display the system desktop. When the LCD is in locked mode, press and drag the icon to the green point and the LCD will unlock automatically, see the illustration below: 3.3 Power Save Mode and Lock Screen  Briefly press the 'POWER' key after starting up the system to go to power save and lock mode.  Briefly press the 'POWER' key or tap the touch screen and system will activate in 1 second  The primary functions of the device – e.g. playing music, movies, etc. – will not stop in the power save mode; only the LCD is turned off and shows a black screen.  Switch OFF: When the device is in the OFF mode, press and hold the 'POWER' key for 3 seconds. The screen will display the power off interface; select the power off icon to confirm and the system will shut down automatically. 【Note】When the battery is low, the device will sound a continuous alarm and shut off automatically if it is not charged. If the device will not start up, check if the battery is low and try again after the battery has been charged. 3.4 Battery management and charging 3.4.1 Before using your device for the first time, charge the battery for 8-12 hours to give the device a full charge. 3.4.2 Insert the micro port of the battery adaptor in…

Text truncated - open the document above for the full version.

Sep. 29, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AAQHD97A11-2S Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List 5:Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, AAPPAA TECHNOLOGY(HK) LIMITED Contact person: Summer Lau Title: Manager

FCC ID Label Location Table PC Model: D97A11‐2S Trade Name: AOC FCC ID: 2AAQHD97A11-2S D97A11‐2M/D97A11‐2N /D97A11‐2R/D97A11‐2C /D97A11‐2P/Q97A13‐3S/ Q97A13‐3C/Q97A13‐3M /Q97A13‐3N/D90A10‐LN /D90A10‐LW/D90A10‐LC /D90A10‐LM AAPPAA, YARVIK, MULTILASER

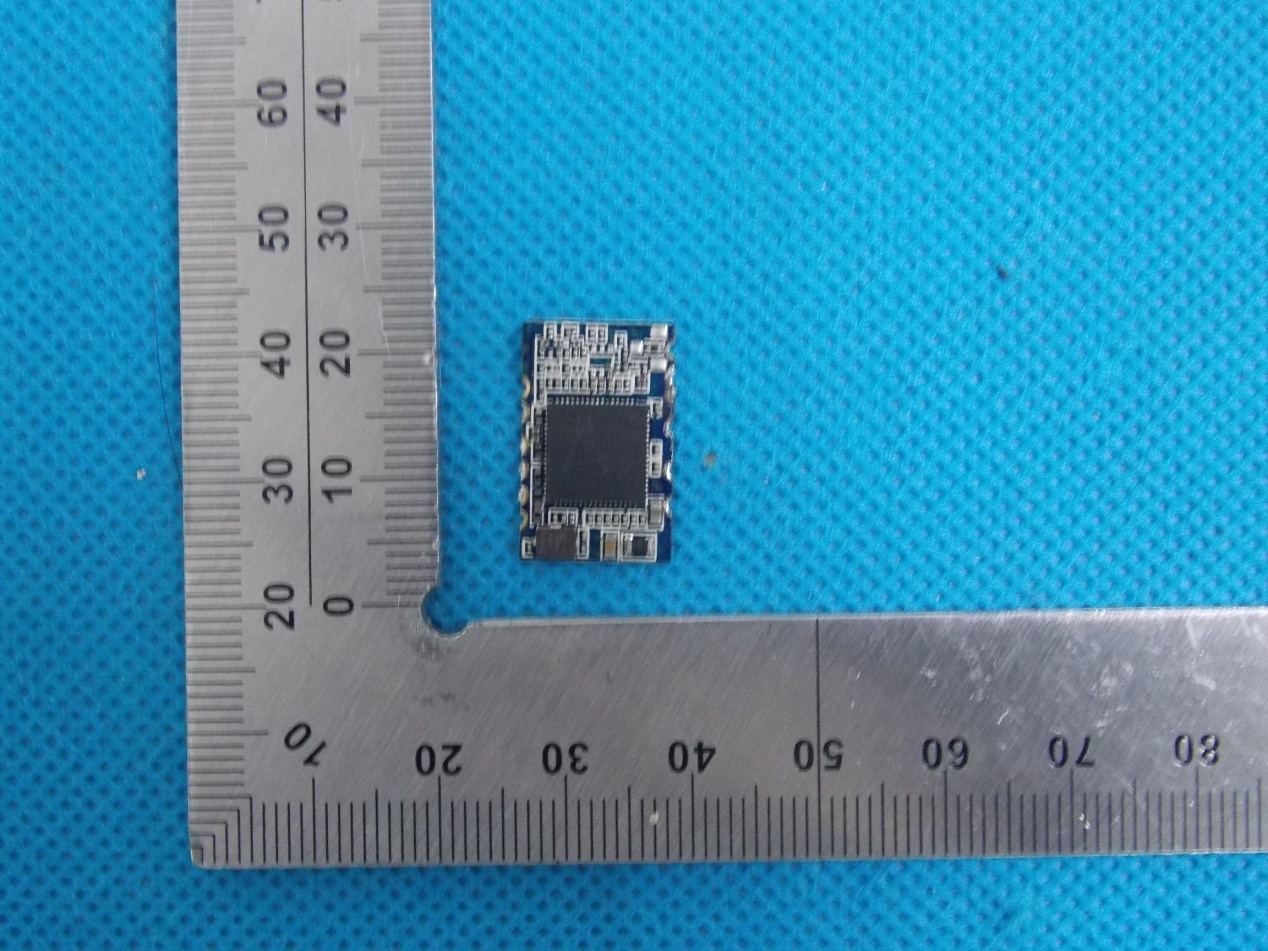

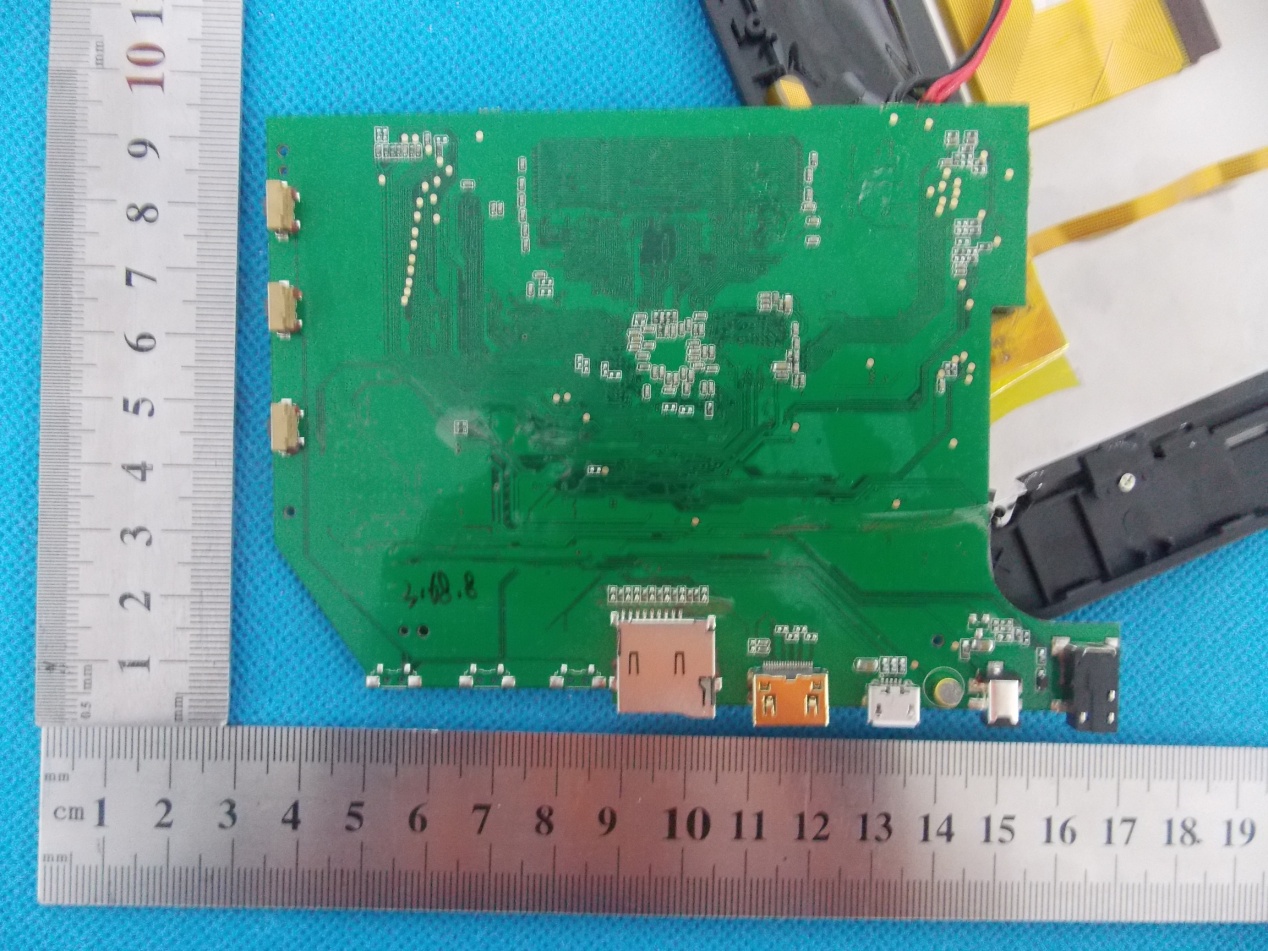

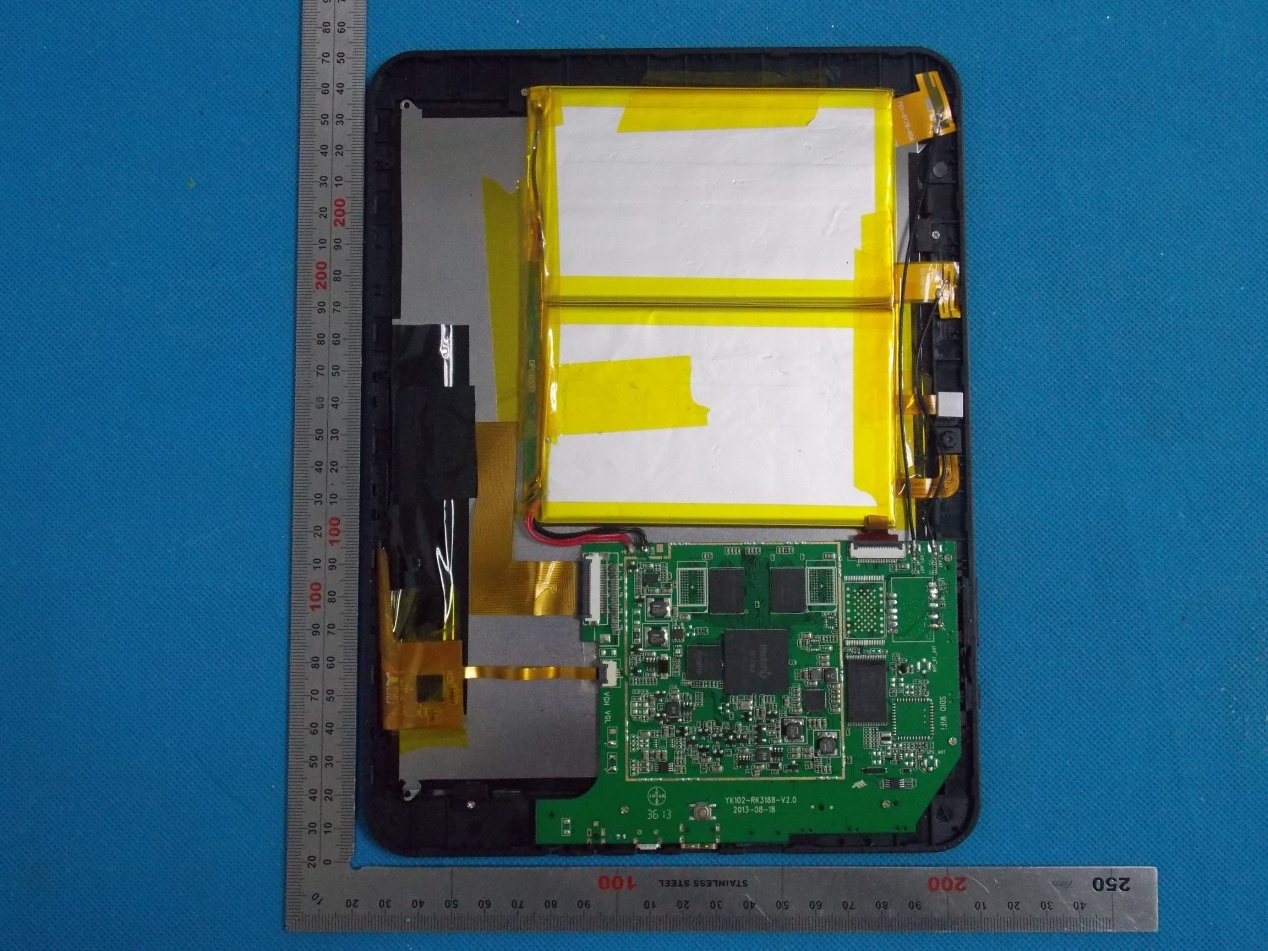

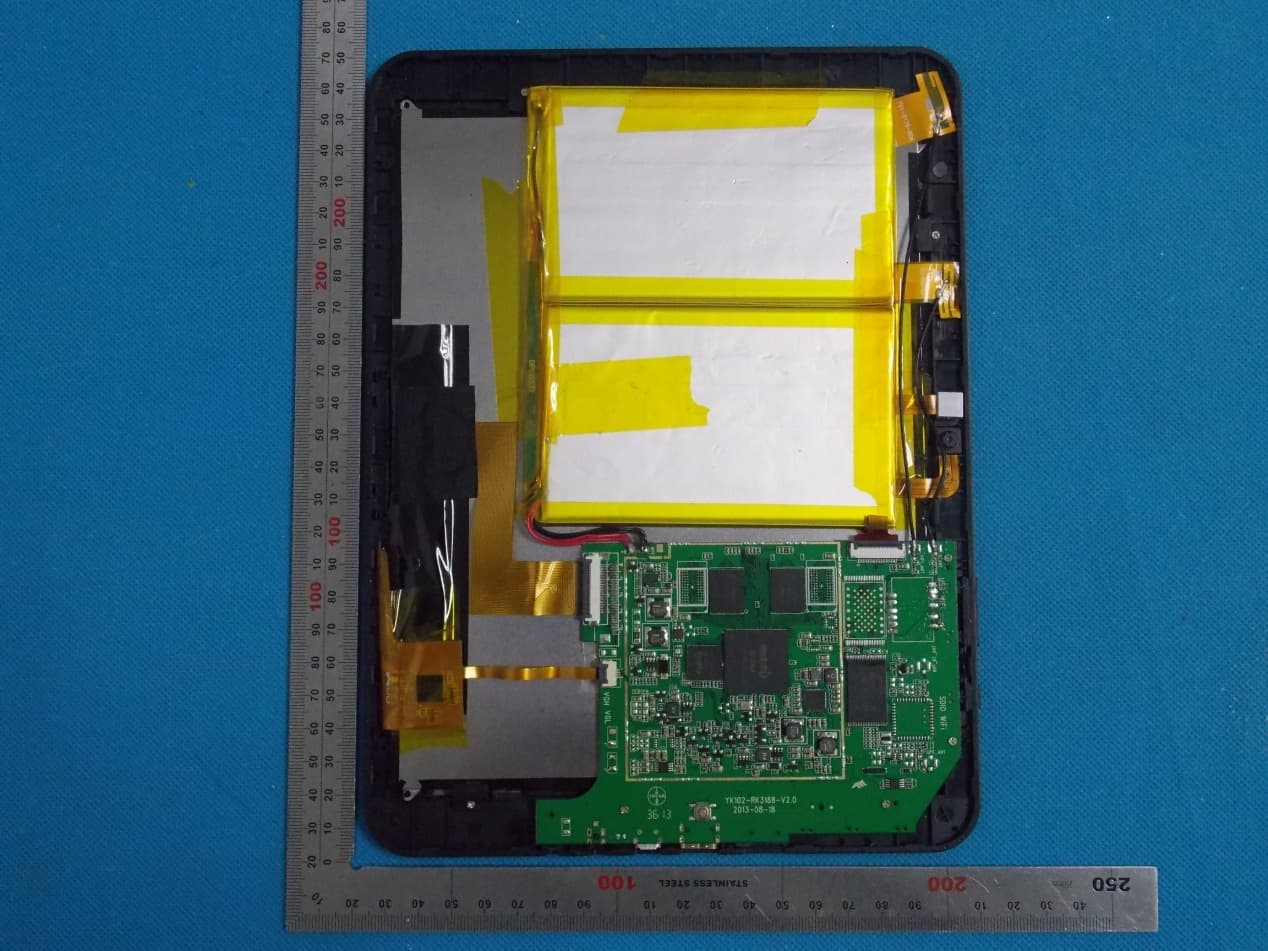

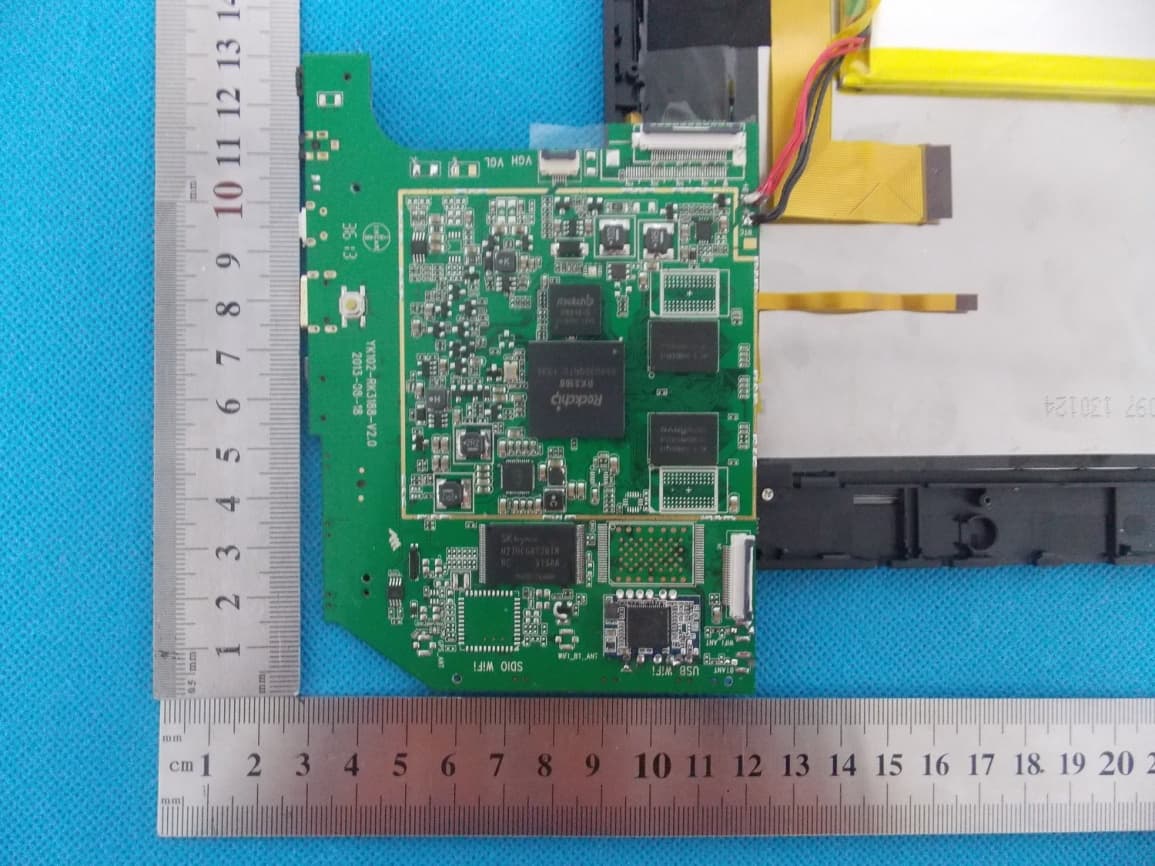

Internal Photos OPEN VIEW OF EUT WIFI Antenna BT Antenn OPEN VIEW OF EUT OPEN VIEW OF EUT

RF Exposure (FCC ID:2AAQHD97A11-2S) Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. KDB447498 D01 V05 was used as the guidance. For WiFi: Maximum measured transmitter Conducted Power: 802.11b Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 10.2 8.33 6.81 Maximum measured transmitter Conducted Power: 802.11g Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 9 7.14 5.18 Maximum measured transmitter Conducted Power: 802.11n HT20 Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 9 7.15 5.19 Maximum measured transmitter Conducted Power: 802.11n HT20 Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 7.1 5.22 3.33 For BT: Maximum measured transmitter Conducted Power: GFSK MOUDULATION Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 9.21 7.33 5.41 Maximum measured transmitter Conducted Power: Π /4-DQPSK MODULATION Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 5.72 3.85 2.43 Maximum measured transmitter Conducted Power: 8-DPSK MODULATION Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 5.29 3.36 2.17 Refer to 447498 25 D01 General RF Exposure Guidance v05 Appendix A, you see that for Maximum Conducted Output Power 6.81mW (<10mW), so no SAR is required. •

Report No.: AGC00901130903FE03 Page 1 of 58 FCC Test Report Report No.: AGC00901130903FE03 FCC ID : 2AAQHD97A11-2S APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Tablet PC BRAND NAME : AOC/AAPPAA/YARVIK/MULTILASER MODEL NAME : See page 5. CLIENT : AAPPAA TECHNOLOGY(HK) LIMITED DATE OF ISSUE : Sep.27, 2013 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00901130903FE03 Page 2 of 58 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Sep.27, 2013 Valid Original Report Report No.: AGC00901130903FE03 Page 3 of 58 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ......................................................................................5 2. GENERAL INFORMATION ..................................................................................................6 2.1. PRODUCT DESCRIPTION ............................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ........................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ............................................................ 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ........................................................................................ 8 2.7. TEST METHODOLOGY ................................................................................................................. 8 2.8. SPECIAL ACCESSORIES .............................................................................................................. 8 2.9. EQUIPMENT MODIFICATIONS ..................................................................................................... 8 3. MEASUREMENT UNCERTAINTY .......................................................................................9 4. DESCRIPTION OF TEST MODES .......................................................................................9 5. SYSTEM TEST CONFIGURATION ....................................................................................10 5.1. CONFIGURATION OF EUT SYSTEM ......................................................................................... 10 5.2. EQUIPMENT USED IN EUT SYSTEM ........................................................................................ 10 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 10 6. TEST FACILITY .................................................................................................................11 7. PEAK OUTPUT POWER ....................................................................................................12 7.1. MEASUREMENT PROCEDURE ................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT ..................................................................................... 13 8. 20DB BANDWIDTH............................................................................................................19 8.1. MEASUREMENT PROCEDURE ................................................................................................. 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS ................................................................................... 19 9. CONDUCTED SPURIOUS EMISSION ...............................................................................26 9.1. MEASUREMENT PROCEDURE ................................................................................................. 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ........................................................................................ 26 9.4. LIMITS AND MEASUREMENT RESULT ..................................................................................... 26 10. RADIATED EMISSION .....................................................................................................31 10.1. MEASUREMENT PROCEDURE ............................................................................................... 31 10.2. TEST SETUP .............................................................................................................................. 33 Report No.: AGC00901130903FE03 Page 4 of 58 10.3. TEST RESULT ............................................................................................................................ 34 11. BAND EDGE EMISSION ..................................................................................................42 11.1. MEASUREMENT PROCEDURE ................................................................................................ 42 11.2. TEST SET-UP ............................................................................................................................. 42 11.3. TEST RESULT ............................................................................................................................ 43 12. NUMBER OF HOPPING FREQUENCY ............................................................................48 12.1. MEASUREMENT PROCEDURE ............................................................................................…

Text truncated - open the document above for the full version.

Te s t Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
