2AAQT-BT-WQ02-DWireless Mouse Receiver

2.4 G Wireless mouse specification Item:2.4 G Mini Wireless mouse Model:BY-WQ02 Zero -Latency:The resolution is high to 1600DPI Color:white,blue,pink,etc((No color can choose to leave a message note) 1.Delicate appearance is perfect for netbooks .the nano reciever make it possible to plug and play. 2.Zero -Latency:2.4G High-speed wireless connectivity. 3.2.4 Gwireless transmission ,the valid distance is high to 10 meters. 4.1200dpi high-precision red light LED tracing the engine. 5.Can be realized to scroll up and down by line . 6.Power Source: 2AAA batteries. 7.Power Saving Mode:Three-Level sleep + Fluctuations in the power switch,the lifetime of batteries is 3 months. 8.High -perfo rmance wear-resisting floor MATS,accessible to slide easyly . 2.4G Wireless Mouse: Wireless carrier frequency:2402Mhz-2480Mhz Working frequency:16,automatic frequency adjustment. Rated working voltage:3V Rated working current:13mA Tracing System: photoelectricity USB Connector: 1.1 Version Demension:112.6mm*57.6mm*36.6mm Technical Parameters: Wireless Transimitting distance: ≧10 m Wireless carrier frequency:2402Mhz-2480Mhz Wieless working channel:16,automatic frequency adjustment. Rated working current:13mA@3V Full Travel:0.8mm Pressure of the key:70-80+/ -10g Key Life:3 million Product Feature: *Ergonomic design,fashionable appearance, comfortable hand feeing. *Professional optical positioning, much more accuracy to position. *Intelligent mini receiver, automatic connection, without cumbersome to code *Up to 16 million kinds of ID code design, enhance the anti-jamming of the mouse *Arbitrary Angle of 360 degrees around,the valid distance is high to 10 meters *The unique management of intelligent circuit design,make the mouse smater and save power *The resolution is adjustable during 800-1600dpi,enjoy your free time. *Compatible :Windows 2000/XP/Vista/Linlux/7 and MAC system. Instruction: *.Plug the receiver into the computer USB connector,put on 2AAA Batteries(note the plus -n-minus),Then turn on the switch. Trouble removal: 1.The receiver is not on the computer USB connector.You could turn on the porsche switch ,the LED light on then off,that because the porsche do not find the signal. 2.When you plug out the receiver ,the porsche willturn off the power resource autmaticly,and the LED will light off. 3.The porsche's cursor is direction of automatic positioning.Your hands couldn't press on the left or right key of mouse.Or ir will be on a flect of cursor backing.You could restart the computer ,then the mouse is well. Manufacturer:He Sheng Wei Ye Electronic Limited Company FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct The interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. such modifications could void the user’s authority to operate this equipment.

Dura Gold Ltd. FCC ID: 2AAQT-BY-WQ02-D DATE: July 27, 2013 To whom it may concern: We the undersigned, hereby authorize Shenzhen Sinco Testing Technology Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Shenzhen Sinco Testing Technology Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Dura Gold Ltd. We additionally authorize teleconformity Mr. M. Koop to process this FCC application . Sincerely yours, Dura Gold Ltd. Navin Hu/ Manager Fax: 852 3167 7880 Tel: 852 3157 1339 E-mail: [email protected] E-mail: [email protected]

Dura Gold Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Dura Gold Ltd. would like the following documents regarding this submission for FCC ID: 2AAQT-BY-WQ02-D to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, Dura Gold Ltd. Navin Hu/ Manager Fax: 852 3167 7880 Tel: 852 3157 1339 E-mail: [email protected]

Dura Gold Ltd. Attestation for FCC Declaration of Conformity FCC ID: 2AAQT-BY-WQ02-D Data: Aug 17,2013 Please be notified that we, the undersigned, Dura Gold Ltd. declare that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. Testing in regards to this report was done by Compliance Certification Services Inc. Wugu Laboratory, located at No.11,Wugong 6th Rd.,Wugu Dis., New Taipei City 248,Taiwan (R.O.C.) which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. We will ensure that the final DoC will be signed by a legal entity in the U.S., in accordance with the rules defined in 2.909(c) Sincerely yours, Dura Gold Ltd. Navin Hu/ Manager Fax: 852 3167 7880 Te l : 852 3157 1339 E-mail: [email protected] E-mail: [email protected]

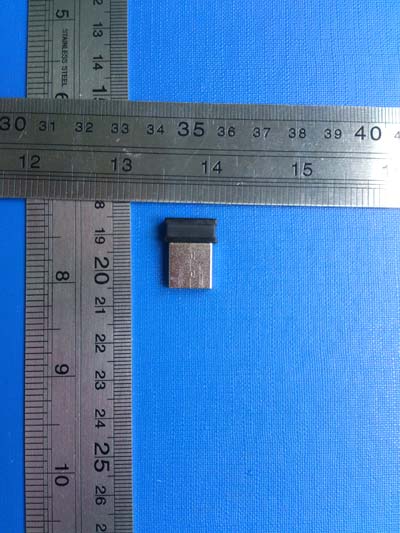

External photos of the EUT

Label and Label Location

Internal photos of the EUT

FCC TEST REPORT 47 CFR FCC Part 15 Subpart C 12.249 FCC ID .............................................. : Report Reference No. ..................... : 2AAQT-BY-WQ02-D SKW1307017E Compiled by ( position+printed name+signature) .. : File administrators Lion Cai Supervised by ( position+printed name+signature) .. : Technique principal Kendy Wang Approved by ( position+printed name+signature) .. : Manager Tony Wu Date of issue ..................................... : Aug 20, 2013 Representative Laboratory Name . : Shenzhen Sinco Testing Technology Co., Ltd. Address ............................................ : 4F, Block B, Famous Industry Products Center Baoyuan Rd., Xixiang, Baoan, Shenzhen, China Testing Laboratory Name .............. : Bontek Compliance Testing Laboratory Ltd Address ............................................ : 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name ............................ : Dura Gold Ltd. Address ............................................ : Unit 1313, 13/F Peninsula Square, 18 Sung On St.,Hung Hom,Kowloon,Hongkong Test specification: Standard ........................................... : 47 CFR FCC Part 15 Subpart C - Intentional Radiators ANSI C63.10: 2009 TRF Originator .................................. : Shenzhen Sinco Testing Technology Co., Ltd. Master TRF ....................................... : Dated 2012-06 Shenzhen Sinco Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Sinco Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Sinco Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ........................ : Wireless mouse receiver Trade Mark ....................................... : / Manufacturer .................................... : Shenzhen XinBoYing Technology Co.,Ltd. Model/Type reference ....................... : BY-WQ02,WCM-24/1542,CCM-12/5886,CBWM-001 Listed Models .................................. : / Operation Frequency ........................ : From 2402MHz to 2480MHz Modulation Type ............................... : GFSK Result................................................ : Positive V1.0 Page 2 of 27 Report No.: SKW1307017E T E S T R E P O R T Test Report No. : SKW1307017E Aug 20, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wireless mouse receiver Model /Type : BY-WQ02,WCM-24/1542,CCM-12/5886,CBWM-001 Listed Models : / Applicant : Dura Gold Ltd. Address : Unit 1313, 13/F Peninsula Square, 18 Sung On St.,Hung Hom,Kowloon,Hongkong Manufacturer Shenzhen XinBoYing Technology Co.,Ltd. Address : 4 Floor,Building 46 xitian the Second Industrial Park,Shenzhen City China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 27 Report No.: SKW1307017E Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY ............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. EUT operation mode 5 2.4. Related Submittal(s) / Grant (s) 5 2.5. Modifications 5 2.6. Configuration of Tested System 5 2.7. NOTE 5 3. TEST ENVIRONMENT ............................................................... 6 3.1. Address of the test laboratory 6 3.2. Test Facility 6 3.3. Environmental conditions 6 3.4. Statement of the measurement uncertainty 6 3.5. Equipments Used during the Test 7 4. TEST CONDITIONS AND RESULTS ............................................. 8 4.1. Conducted Emissions Test (Not Applicable) 8 4.2. Radiated Emission Test 11 4.3. Out of band emissions 19 4.4. 20dB Bandwidth Measurement 22 4.5. ANTENNA REQUIREMENT 24 5. TEST SETUP PHOTOS OF THE EUT .......................................... 25 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 26 V1.0 Page 4 of 27 Report No.: SKW1307017E 1. TEST STANDARDS The tests were performed according to following standards: 47 CFR FCC Part 15 Subpart C - Intentional Radiators ANSI C63.10: 2009 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in theRange of 9 kHz to 40GHz V1.0 Page 5 of 27 Report No.: SKW1307017E 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : July 30,2013 Testing commenced on : July 30,2013 Testing concluded on : Aug 20, 2013 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC z Other (specified in blank below) DC 5.0V from USB 2.3. EUT operation mode The EUT has been tested under typical operating condition. 2.4. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: 2AAQT-BY-WQ02-D filing to comply with the FCC Part 15, Subpart C 15.249 Rules. 2.5. Modifications No modifications were implemented to meet testing criteria. 2.6. Configuration of Tested System Configuration of Tested System 2.7. NOTE 1. The EUT is a 2.4GHz car wireless mouse ,The functions of the EUT listed as below: Test Standards Reference Report Radio FCC Part 15 Subpart C (Section15.249) SKW1307017E EUT V1.0 Page 6 of 27 Report No.: SKW1307017E 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (20…

Text truncated - open the document above for the full version.

Test setup photos of the EUT
