983104 Wireless Weather Station Instruction Manual Please read all instructions carefully and retain for future use Welcome! Thank you for purchasing our Journey’s Edge Wireless Weather Station. Please store this manual in a safe place for future reference. GETTING STARTED • Remove the unit from the box. • Remove any packaging from the product. • Please read all instructions and retain all packaging until you have checked and counted all of the parts. PACKAGE CONTENTS • Wireless Weather Station • Outdoor Temperature Sensor • Instruction Manual FEATURES • Indoor / Outdoor Temperature • Humidity • Time and Calendar • Blue LED Backlight • Alarm and Snooze • Moon Phase BATTERY INSTALLATION • Battery for Wireless Weather Station: 3 x AAA (not included) • Battery for Outdoor Temperature Sensor: 2 x AAA (not included) • Remove the cover of compartment and insert 3 x AAA in the Receiver AND 2 x AAA in the Sensor as per indicated polarity. • Put the battery cover back on to the compartment. SAFETY PRECAUTIONS • This unit is intended for indoor or outdoor use. If used outdoor, place it in a safe area sheltered from extreme weather, heat or moisture. • This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience or knowledge. They should be given supervision and instruction in the use of the unit by a person responsible for their safety. • Close supervision is required when using this unit near small children. • Never leave unit unattended within reach of young children. • Ensure the unit is not close to any heat sources. • To reduce the risk of the unit overheating, ensure the surrounding area is clear and well ventilated. • Keep the unit clean and free of dust, lint, hair, etc. • Repairs of electrical appliances must only be performed by qualified personnel; improper repairs may put user, people and property at risk. (Warranty stands void in case of inappropriate and / or unauthorized service of this unit or its parts.) • Avoid liquid spills onto the unit or controllers. • DO NOT immerse the unit in water or any other liquids. • DO NOT use if unit has been dropped or damaged in any way. • DO NOT operate unit after a malfunction. • DO NOT used this unit for purposes other than its intended use. • DO NOT put objects into or covers over openings on unit. • DO NOT place batteries in the unit if storing or being left unused for long periods. • DO NOT use with wet hands. 1 Note: Outdoor Temperature Sensor is to be installed on the outside of the house, office etc, so outer temperature can be scanned and transmitted to the Wireless Weather Station. Wireless Weather Station is for indoor use, and displays both indoor and outdoor temperature. DESCRIPTION OF PARTS (Back of Wireless Weather Station) 2 Outdoor Temperature Sensor Wireless Weather Station MODE Button: • Press “MODE” button once to switch between the time and alarm mode. • Press and hold “MODE” button for seconds to enter setting mode. UP Button: • Press “UP” button once, to display Outdoor temperature CH1
CH2
CH3. • Press and hold “UP” button for a few seconds, to refresh display of Outdoor temperature. DOWN Button: • Press “DOWN” button once to switch between °C/°F (Celsius & Fahrenheit) temperature display. MAX/MIN Button: • Press “MAX/MIN” button once to check the maximum and minimum of temperature and humidity. SNZ Button: • SNZ stands for Snooze. Press “SNZ” button to snooze the alarm. Default snooze duration is 5 minutes. It can be adjusted anywhere between 1 and 20 minutes. • Pressing “SNZ” button also turns on the display backlight. • “SNZ” and “Light/SNZ” buttons have same functions. A. TIME (Default time format shown 24HR) • Press and hold “MODE” button for seconds to enter the Time setting mode. • Setting format: year
month
date
12/24HR
hour
minute
exit. • Default calendar at 0:00, January 01, 2008 • Press “MODE” button once to confirm and go to the next setting. • Press “UP” button once to increase value slightly. Press and hold “UP” button for seconds to increase value rapidly. • Press “DOWN” button once to decrease value slightly. Press and hold “DOWN” button for seconds to decrease value rapidly. • Moon Phase and Week Display updates as per calendar setting. B. ALARM (Default alarm at 7:00) • Press “MODE” button once to switch between the Display & Alarm mode. • Press “UP” button once to activate the alarm function with (((•))) icon, and press the button once again to deactivate the alarm function. • Press and hold “MODE” button for seconds to enter the Alarm setting mode. • Setting format: hour
minute
SNZ time. [Default SNZ time: 5 minutes] (You can select 1-20 minutes) • Press “UP” button once to increase value slightly. Press and hold “UP” button for seconds to increase value rapidly. • Press “DOWN” button once to decrease value slightly. Press and hold “DOWN” button for seconds to decrease value rapidly. • Press “MODE” button once to confirm the alarm setting time. Buzzer sound of the alarm: • 0-10 seconds: BEEP 1 time per second • 10-20 seconds: BEEP 2 times per second • 20-30 seconds: BEEP 4 times per second • After 30 seconds: serial BEEP During BEEP, press “SNZ” or “LIGHT/SNZ” button once to repeat the alarm again in preset SNZ time later, or press any other button to off the alarm. The preset alarm time will remain valid on the following days as well. C. TEMPERATURE ALERT (Default format shown °C) Indoor temperature range: -9.9°C to +50°C Indoor humidity range: 20% - 95% Scanning time: +/- 30 seconds Temperature not display when alarm goes off. 3 D. INDEX OF ENVIRONMENT Dry : humidity below 40% Comfort : temperature within 20°C-28°C AND humidity within 40%-70% Wet : humidity above 70% No Display : temperature out of 20°C-28°C AND humidity out of 40%-70% E. WEATHER FORECAST (Default at Slightly cloudy) Weather forecast indicates the weather trend in 24 hours. Weather forecast: Sunny, Slightly cloudy, cloudy and rainy. Sca…

Text truncated - open the document above for the full version.

Dura Gold Ltd. AGENCY AUTHORIZATION LETTER Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AAQT983104 Date：2014-07-17 To whom it may concern: We, the undersigned, hereby authorize Richard Li from SGS-CSTC Standards Technical Services Co., Ltd. to act on our behalf, as our agent, in the following matters related to the FCC approval of our product: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Richard Li within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, -------------------------------------- Name/Title Navin Hu/ Director Company Name: Dura Gold Ltd. Address: Unit 1313, 13/F Peninsula Square, 18 Sung On St., HongKong, China Tel: 852 3167 7880 Fax: 852 3157 1339 Email: [email protected]

Dura Gold Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AAQT983104 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------- Name/Title Navin Hu/ Director Company Name: Dura Gold Ltd. Address: Unit 1313, 13/F Peninsula Square, 18 Sung On St., HongKong, China Tel: 852 3167 7880 Fax: 852 3157 1339 Email: [email protected]

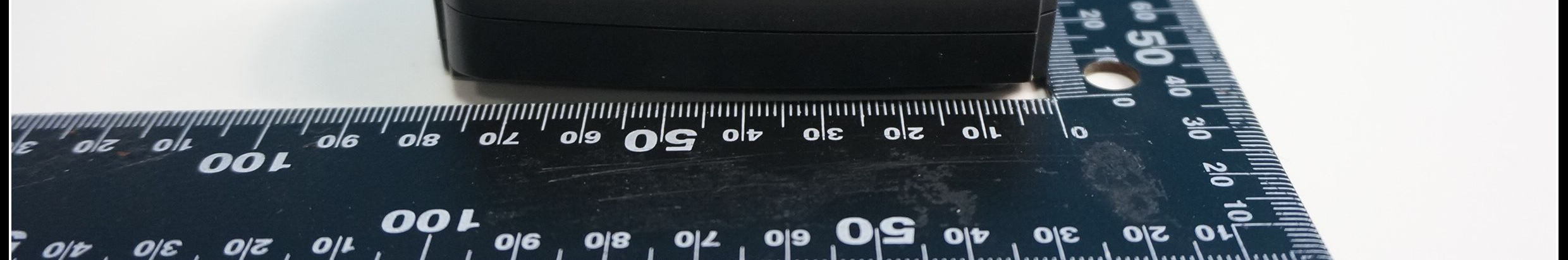

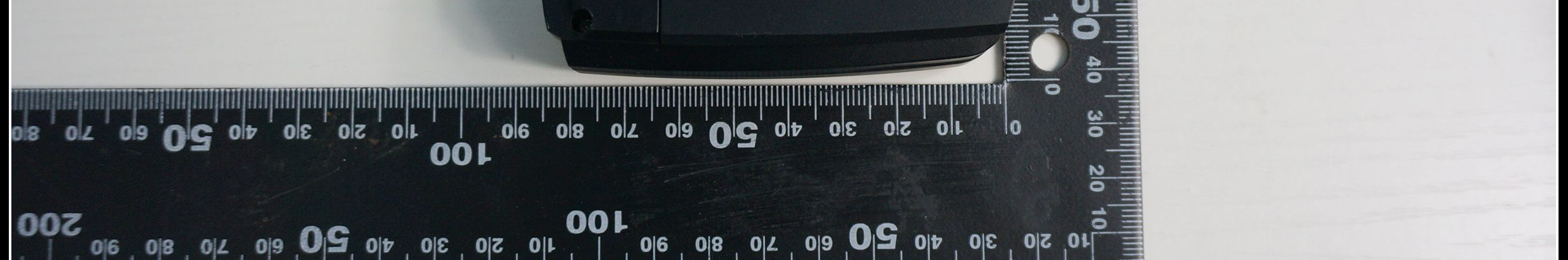

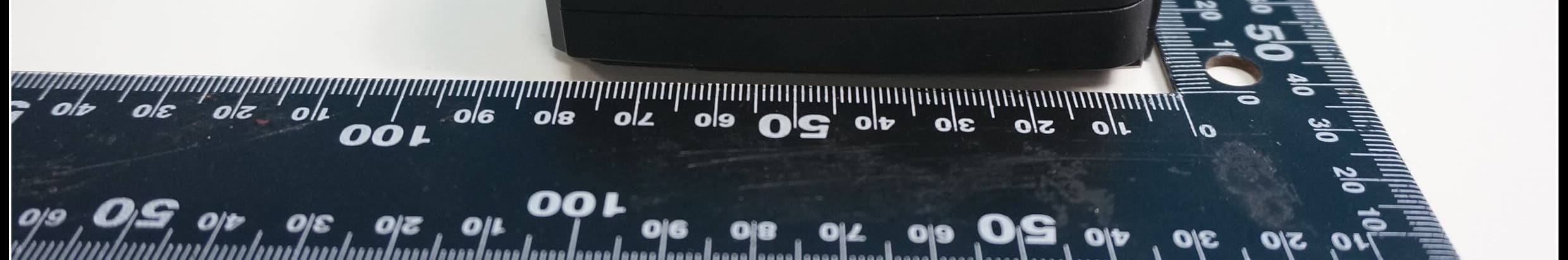

External Photos

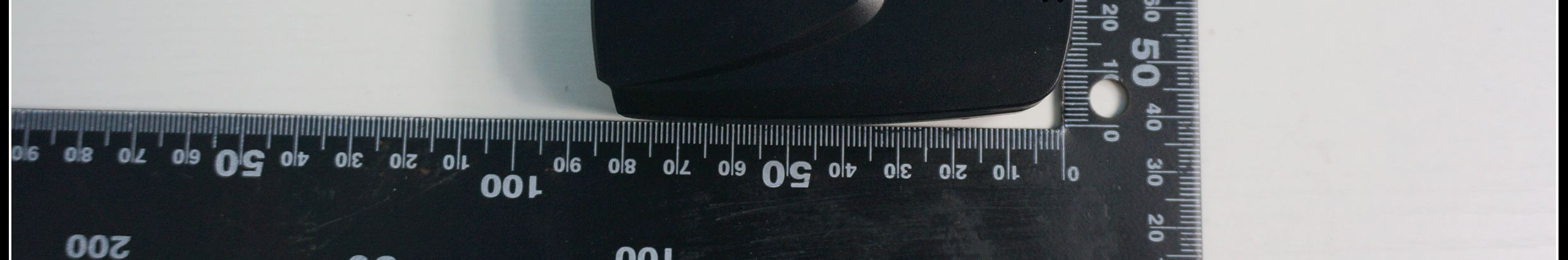

Internal Photos
