LNL-1 manual Fujitecom., Inc. 2013 Pipeline Leak Noise Monitoring System LNL-1 Fuji Leak Nets Operation Manual Fuji Tecom Inc. February 20, 2014 LNL-1 manual Fujtecom., Inc. 2014 2 Table of contents What is Fuji Leak Nets? .......................................................................................................................................... 4 Application.............................................................................................................................................................. 4 System configuration .............................................................................................................................................. 5 Safety precautions ................................................................................................................................................... 6 [Hardware] 1.Product configuration.....................................................................................................................................11 1-1Standard products ..................................................................................................................................11 1-2Optional accessories ..............................................................................................................................11 2.Name of each part and explanation of switches ............................................................................................ 12 2-1Analyzer ............................................................................................................................................... 12 2-2Logger .................................................................................................................................................. 13 3.Before use of the product .............................................................................................................................. 14 4.Work flow ..................................................................................................................................................... 15 4-1Monitoring of pipeline.......................................................................................................................... 15 4-2Selection of pipeline ............................................................................................................................. 16 5.Setting of device and operating procedure .................................................................................................... 17 6.Display and function of logger...................................................................................................................... 18 6-1Turning on the power supply................................................................................................................ 18 6-2Turning off the power supply ............................................................................................................... 18 7.Analyzer display screen and function ........................................................................................................... 19 7-1“Start screen”........................................................................................................................................ 19 7-2“Main menu” ........................................................................................................................................ 19 7-3“Logger Data Collection Menu” .......................................................................................................... 20 7-4“Data Display Menu” ........................................................................................................................... 21 7-4-1“Logger List Display Screen” ........................................................................................................ 21 7-4-2“Min. sound level list display screen” ........................................................................................... 21 7-4-3“Trend Graph Display” .................................................................................................................. 22 7-4-4“Distribution Display Screen” ....................................................................................................... 22 7-5“Setting Menu”..................................................................................................................................... 23 7-5-1“Logger ID Editing Screen (Logger Selection)”............................................................................ 24 7-5-2“Logger ID Editing Screen (ID Edit)” ........................................................................................... 24 7-5-3“Date/time Setting Screen” ............................................................................................................ 25 7-5-4“Measurement Time Setting Screen” ............................................................................................. 25 7-5-5“Threshold Value Setting Screen”.................................................................................................. 26 7-5-6“Data Collection Time Setting Screen” ......................................................................................... 26 7-5-7“Data Collection Day-of-week Setting Screen”............................................................................. 27 7-5-8“Logger Setting Screen” ................................................................................................................ 28 7-5-9AnalyzerMemory Capacity Check Screen” ............................................................................... 29 7-5-10“Data Delete Selection Screen” ..................................................................................................... 30 7-5-11Logger Test Mode Screen” .............................................................................................…

Text truncated - open the document above for the full version.

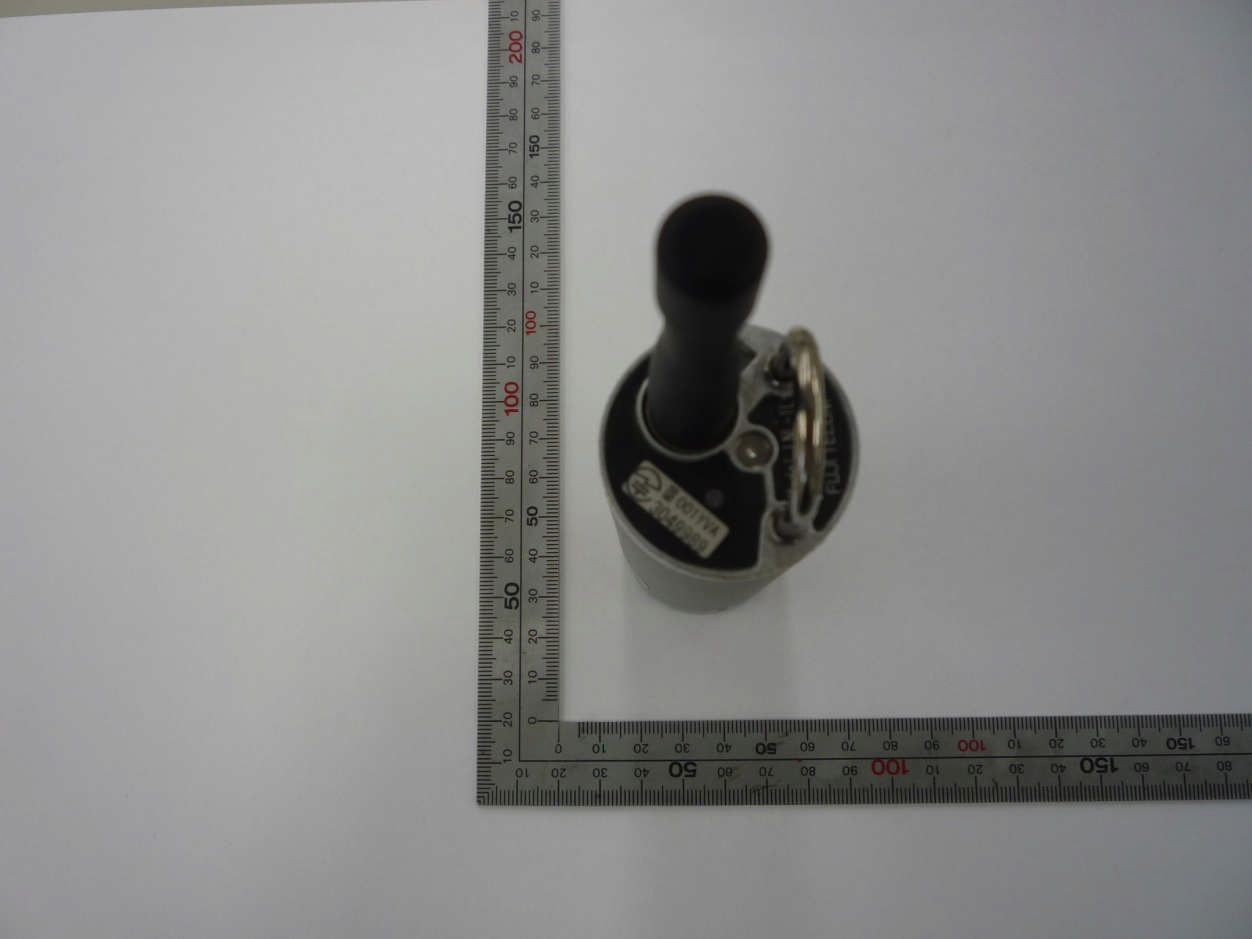

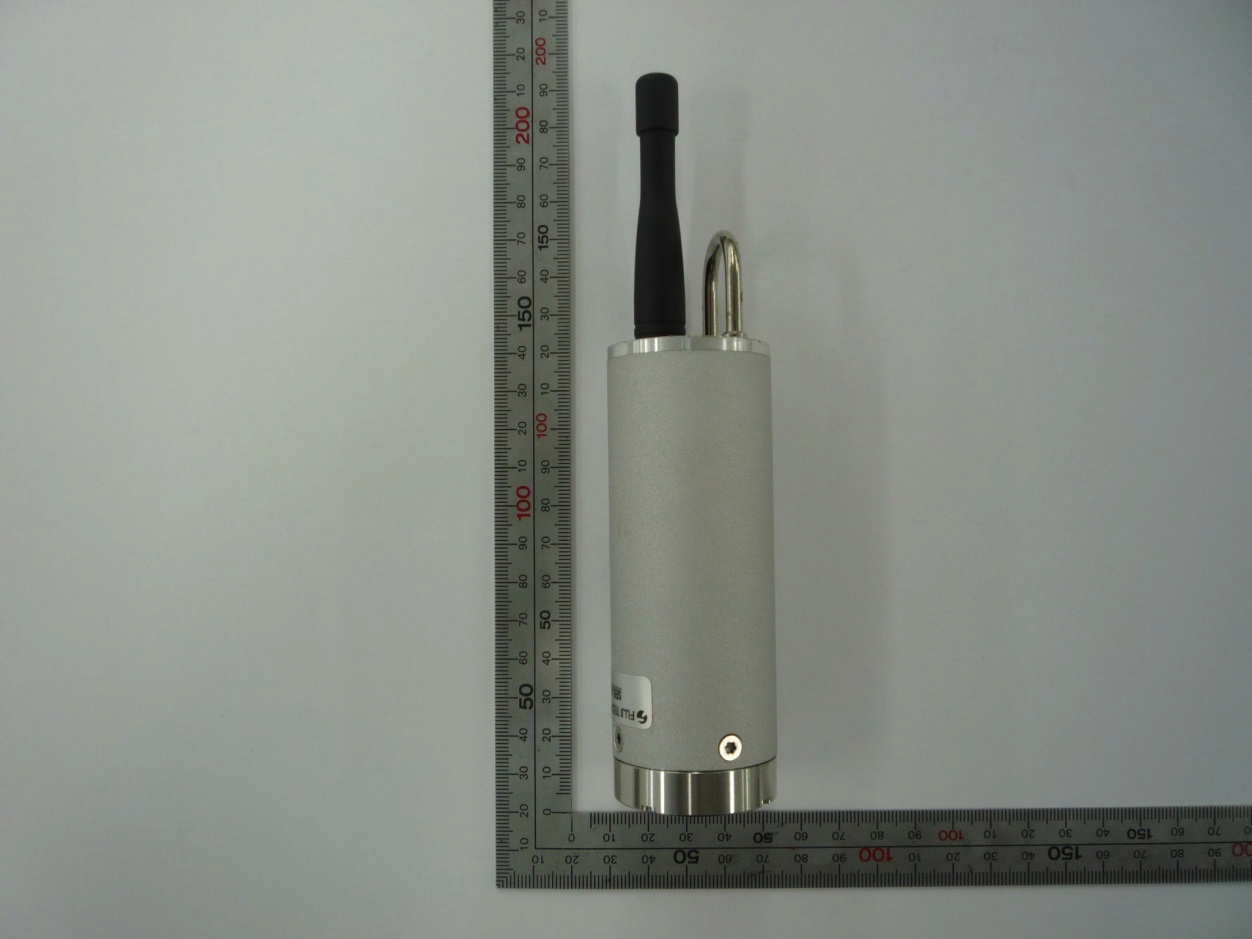

- 1 - Appearance photo of Logger Side view of Logger Top view of Logger - 2 - Bottom view of Logger

- 1 - Disassemble photo of Logger Remove sensor and 4 screw View of inside - 2 - Remove case and view main PCB Structure of PCB (Bottom view) - 3 - Structure of PCB (Top view) Structure of PCB (Antenna side view) - 4 - Structure of PCB (Rear view) Remove battery from main PCB RF module Main PCB - 5 - Remove RF module from main PCB Remove antenna harness from main PCB - 6 - Top view of main PCB Bottom view of main PCB Battery holder - 7 - View of near antenna holder at main PCB View of near LED at main PCB - 8 - Top view of RF module Bottom view of RF module

e-OHTAMA, LTD., Tokyo LaboratoryTest Report Number EOTEL002 2-8-20 Kurigi, Asao-ku Kawasaki-shi, Kanagawa, JapanForm Rev. 1.00 TEL: +81-44-980-2052 Page 2 of 15 Page Cover Page.......................................................................................................................................................1 Table of Contents..............................................................................................................................................2 1.Summary ................................................................................................................................................ 3 1.1Terms and definitions .................................................................................................................... 3 1.2Standard(s) and Result.................................................................................................................. 3 1.3Deviations from Standard(s) .......................................................................................................... 3 1.4Antenna Requirements .................................................................................................................. 3 2.Equipment Under Test (EUT) ................................................................................................................. 4 2.1General Descriptions ..................................................................................................................... 4 2.2Detailed Descriptions..................................................................................................................... 4 2.3Labeling Requirements.................................................................................................................. 4 2.4Measurement Condition ................................................................................................................ 5 3.Test Data................................................................................................................................................ 6 3.1Test specification........................................................................................................................... 6 3.220dB Bandwidth / 99% Bandwidth................................................................................................. 7 3.3Conditions for intentional radiators to comply with periodic operation ........................................... 8 3.4Field strength of Emissions............................................................................................................ 9 4.Photographs of Test setup.................................................................................................................... 14 5.Test facility ........................................................................................................................................... 15 5.1Test Instruments.......................................................................................................................... 15 5.2Interconnecting Cables ................................................................................................................ 15 e-OHTAMA, LTD., Tokyo LaboratoryTest Report Number EOTEL002 2-8-20 Kurigi, Asao-ku Kawasaki-shi, Kanagawa, JapanForm Rev. 1.00 TEL: +81-44-980-2052 Page 3 of 15 1. Summary 1.1Terms and definitions AV Average DoC Declaration of Conformity EUT Equipment Under Test QP Quasi-peak 1.2Standard(s) and Result Applied Standard(s) Normative Reference(s)Test LimitFCC Part and RSS Section(s) ResultReference Clause No. FCC Part15 Subpart C IC 20dB Bandwidth 99％Bandwidth FCC 15.231 (c)L imits15.215(c) N/A Pass3.2 Conditions for intentional radiators to comply with periodic operation FCC 15.231 (e)L imits15.231(e)Pass3.3 Field StrengthFCC 15.209 limits FCC 15.231 limits RSS-210 table A or B limits 15.231 (b)(e) RSS-210 A1.1 Pass3.4 Table 1Standard and result 1.3Deviations from Standard(s) There was no deviation from the standard. 1.4Antenna Requirements Excerpt from §15.203 of the FCC Rules/Regulations: “An intentional radiator antenna shall be designed to ensure that no antenna other than that furnished by the responsible party can be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section.” The antennas of the FUJI TECOM.INC’s Leak noise logger are permanently attached. The connection to an outside antenna becomes the structure not to come off easily to fix it by a special screw. Conclusion: The FUJI TECOM INC. FCC ID: 2AARD0002 equipment complies with the requirement of §15.203. e-OHTAMA, LTD., Tokyo LaboratoryTest Report Number EOTEL002 2-8-20 Kurigi, Asao-ku Kawasaki-shi, Kanagawa, JapanForm Rev. 1.00 TEL: +81-44-980-2052 Page 4 of 15 2. Equipment Under Test (EUT) 2.1General Descriptions The loggers mounted with sensors are installed on the ancillary equipment of water pipeline such as valves, fire hydrants and air valves, and “minimum sound levels of water leak noise” are collected at a certain interval. The minimum sound levels recorded on the loggers are transmitted to the data collector via radio communication. The collected minimum sound levels are judged normal or abnormal based on the threshold in the management software and the results are displayed on the map. In addition, the respective logger data displayed in the graph can be compared, and ageing variation can be found. Therefore, faulty pipelines can be detected very effectively. 2.2Detailed Descriptions Product NameLogger Model NumberLNL-1L Serial Number13034030 Power SupplyDC 3.6V Dimension 40.0mmΦ × 110.0mm(H) Operating Frequency 429.250～429.475MHz Equipment CategoryPart15:Remote Control / Security Device Transceiver IC:Wireless Video or Data Device (54-806 MHz) Normal PlacementOutdoor equipment Condition of the EUTProd…

Text truncated - open the document above for the full version.

e-OHTAMA, LTD., Tokyo Laboratory 2-8-20 Kurigi, Asao-ku Kawasaki-shi, Kanagawa, Japan TEL: +81-44-980-2052 Page 1 of 1 Test Setup Photos (Logger) Photo1 Field strength emissions & Bandwidth (Antenna side) Photo2 Field strength emissions & Bandwidth (EUT side)
