2AARFBFP118001Digital Radio

Acknowledgment! Thank you for buying this digital two-way radio manufactured by BEIFENG TELECOM, which are believed to be capable of providing you with convenient and reliable communication and producing the best possible results. BEIFENG TELECOM digital two-way radio adopts advanced technologies and it is believed that quality and function of the product will make you satisfied. Applicable model BF-P108: UHF digital two-way radio Need-To-Know Safety: It is important that a user keeps good understanding and knowledge of general danger information about two-way radios. Precautions Please follow following precautions to prevent fire, personal injury or damage to two-way radio: l It is recommended to use the two-way radio with 1 minute of TX and 4 minutes of RX. Long-term continuous TX may result in heating of the rear of the product. Do not place the rear of the product on the surface of a plastic object. l Under no circumstances can the product be modified. u Operation of a radio transmitter is banned by a government decree within its jurisdiction area without prior permission. u Apply to the local radio management committee for a frequency before using two-way radios; otherwise, illegal operation will be penalized or arrested. u Only a professional technician is allowed for maintenance. Warnings: Explosive environment (gas, dust or smoke) When filling or parking in a filling station, please power the two-way radio off. If secondary development is performed on the product, please contact BEIFENG TELECOM or BEIFENG TELECOM vendors. l Do not expose the product to the direct sunlight for a long time or place it near a heating unit. l Do not place the product in an extremely dusty, damp or splashy place or put it on an unstable surface. l If unusual odor or smoke is sensed from the product, please cut the power source off immediately, and then remove the battery pack or battery case from the product. After this, contact local BEIFENG TELECOM vendors for information. Contents Unpacking and Inspection Attached Accessories Preparation Use of Lithium Battery Characteristics Charging Installation/Removal Antenna Belt clip Harness About the product Basic Operations Power ON/OFF Volume adjustment Channel Selection Make a call Receiving Functions General Settings Voice Prompt signaling System Key Definitions Key Functions Keys Single-key call SMS Emergency System Address Book Channel Channel Functions Scan Functions of Scan Group Technical Specifications Unpacking and Inspection Note: following unpacking descriptions are only for BEIFENG TELECOM vendors, authorized BEIFENG TELECOM service centers or factories. Please carefully take the product out of the package. It is recommended to check accessories contained in the package according to the following table before discarding its package. If any article is missed or damaged, please immediately submit a claim letter to the freighter. n Attached accessories Items Attachment No. Quantity Antenna 1 Harness 1 Belt clip 1 Operating Instruction 1 Antenna 对 Harness Belt clip ！ Warnings: l Do not make the battery cell overcharged! If charging for the battery pack is not completed in a specified time, please stop charging; otherwise, the battery pack may be overheated, cracked or on fire. l Do not put the battery pack into a microwave oven and high-pressure container! Otherwise, the battery pack may be overheated, cracked or on fire. l Do not put a cracked and leaked battery pack near fire source! If the battery pack is leaked (or smells acrid fume), please immediately keep it away from the flammable area, as electrolyte leaked from the battery pack may easily result in fire, thus causing smoke or sudden fire. l Do not use an abnormal battery pack! If the battery pack smells acrid fume and exhibits different color, deformation or exception due to any reason, please remove the battery pack from the charger or two-way radio and discard it. l Use BF-P108 specific charger. BF-P118 charger is specially designed for the product, providing reasonable, safe and reliable charging. This charger model can identify type of BF-P108 battery pack. Preparation n Use of Lithium Battery l Charge the battery pack before use. l To try to reduce discharge of the battery pack, remove it from the product when it is left unused and store it in a cool and dry place. l If the battery pack is left unused for a long time: 1 Remove it from the product. 2 If possible, discharge the battery pack. 3 Store the battery pack in a cool and dry place (lower than 25°C). n Characteristics: l The capacity is gradually reduced after repeated charging and discharging. l It is also aged if left unused. l It requires longer charging time in a cool place. l Charging in a heat place will shorten its service life. It is aged more quick if stored in a heat place. Do not leave the battery pack in a car or next to a heating unit. l If its service time shortens, even though it is fully charged, replace it with a new one. Continuous charging and discharging will result in leakage of the electrolyte. Charging After the BF-P108 charger is energized, the orange indicator is not on. Install the battery pack, contact properly, and then the red indicator is on to start charging. After the battery is fully charged, the green indicator is on. If the temperature is beyond the range during charging, the orange indicator flashes; if the battery is damaged or poorly contacted, the red indicator flashes. n Installation/Removal 1. Gently press the battery pack into the rear of the product and push horizontally it till you hear “click” until the battery is locked by the latch at the bottom of the rear of the product. u Do not have battery terminals short circuited and do not put the battery in the fire. u Do not remove the case of the battery pack. u Do not install the battery pack in a dangerous environment; otherwise, spark may result in explosion. 2. To remove the battery pack, press the latch at the bottom of the rear of …

Text truncated - open the document above for the full version.

1 Thank you for your selection of BFDX radio, We believe, the radio will provide convenient and reliable communication and make your communication with high efficiency. BFDX adopt the advanced technology and is convinced that the product quality and function will make you feel satisfied. BF-P118：Digital series radio in UHF User Instructions Transmitting operation is not allowed for the unlicensed radio within the government controlled area The radio user should apply frequency license from local Radio Management Committee, illegal operation will be subject to a fine or detention. The repair can be performed only by the professional and technical personnel. Safety It is very important for the users to have the general knowledge and understanding of the risk involved during using. Warning Explosive environment (gas, dust and smoke, etc) is not allowed Please turn off the radio when in the in gas station or fuel pipelining Guidelines for user Please obey the following precautions to prevent fire, personal injury and radio damage, ●The best work way recommended is that transmitting for one minute and receiving for four minutes, Long time continuously transmitting will battery pack heat, do not make the heated battery pack contact with the plastic surface to avoid risk of the plastic surface been dissolved ●Never modify this radio in any case. ●Don't expose the radio to long periods of direct sunlight, nor place it close to heating appliances. ●Don’t place radio in excessively dusty, humid and wet area, also not unstable surface. ●If an abnormal smell or smoke is detected coming from the radio, switch off the power immediately and remove the optional battery pack from the radio, contact your local dealer. Contents Unpacking and accessories checking Battery information Use the Li-ion battery pack The characteristic of the Li-ion battery Charging for the Li-ion battery Accessory install Install & Take off the battery pack Install the antenna Install the belt clip Install the hand strap 2 Getting acquainted Operation Basics Switching power ON/OFF Adjusting the volume Channel knob Transmitting Receiving Emergency Alarm Indication Radio features General Settings Tone alerts Menu Contact List Radio mark explanation Scan Call log Setting Signaling system Button function Keypad Configuring One Touch Calls Text Message Emergency Systems Alarm Type Mode Impolite Retries Polite Retries Hot Mic Duration (sec) Menu operation Contact list Channel Scan Function Scan Scan group function P118 Technical parameters Unpacking and accessories checking Note: The following explain for unpacking is aim to the dealer, promised service institution or factory. Please carefully unpack the radio, we recommend you identify the items listed in the following table. If 3 any item is missing or have been damaged, please immediately contact your dealer. Supplied accessories: Item No. Quantity Antenna 1 Hand strap 1 Belt clip 1 User’s manual 1 Antenna Hand strap Belt clip Alarm ●Please don’t charging too long for the battery pack If the charging not finished in the stated time, please stop it, the battery pack may over heat and smoking blast or build a fire. ●Please don’t put the battery pack into the microwave or high voltage container The battery pack may over heat and smoking blast or build a fire. ●Please don’t close the damaged battery pack to the fire If the battery pack broken and with the bad smell, please put them far from the flammable area. The electrolyte is easy to fire, may result in the battery pack smoking or fire. ●Please don’t use the exceptional battery pack If the battery pack smelled bad, different color, anamorphic or some other reason for the abnormity, please take off the battery pack from the charger or operation equipment and not to use. ●Please use the special charger The charger has been specifically developed for BF-P118, it is scientific and more safe for charging to this model. Use the Li-ion battery pack ●Please make it full charged before using ●In order to avoid the discharge, please take off the battery pack and placed it at cool and dry place ●When need long time to store the battery pack, please: ◆Tack off the battery pack from the radio 4 ◆If possible, please discharge for the battery pack ◆Put the battery pack on the cool (≤25) and dry pl°Cace The characteristic of the Li-ion battery ●The capacity reduce after charging and discharging again and again ●Even if not use the battery pack, it will also aging ●It need more time in wet environment for charging ●It may reduce the using life if charging in heat environment, the battery pack may aging faster when store in heat environment. Please don’t leave the battery pack in vehicle or beside the heater. ●Please change the battery pack if the use duration become shorter even if it’s at the full capacity, Go on charging and discharge for the battery pack, it may result in the electrolyte leak. Charging for the Li-ion battery When connect the charger of model BF-P118 to power supply, the light will turn green, put the battery in then it will turn red and start to charging. The light will turn green after full, if the temperature exceed the using range, the red light will flicker. If the battery damaged or undesirable circuit connect, the red light will flicker. Install & Take off the battery pack u Can not be short circuit or put the battery into the fire u Can not try to take off the cover of the battery pack u Can not to install the battery pack on dangerous environment, otherwise the spark will cause the blast 1. Press the battery pack behind the radio, push it in till you hear a “kada” sound, the battery pack will be locked. 2. Press the latch at the bottom of the battery pack to take it off on the upward direction. 5 Install the antenna Hold the bottom of the antenna, spin the antenna into the connector of the radio with clockwise, till it is fixed. Install the belt clip Put the belt clip into the grooving slot, push it in till you hear a “kad…

Text truncated - open the document above for the full version.

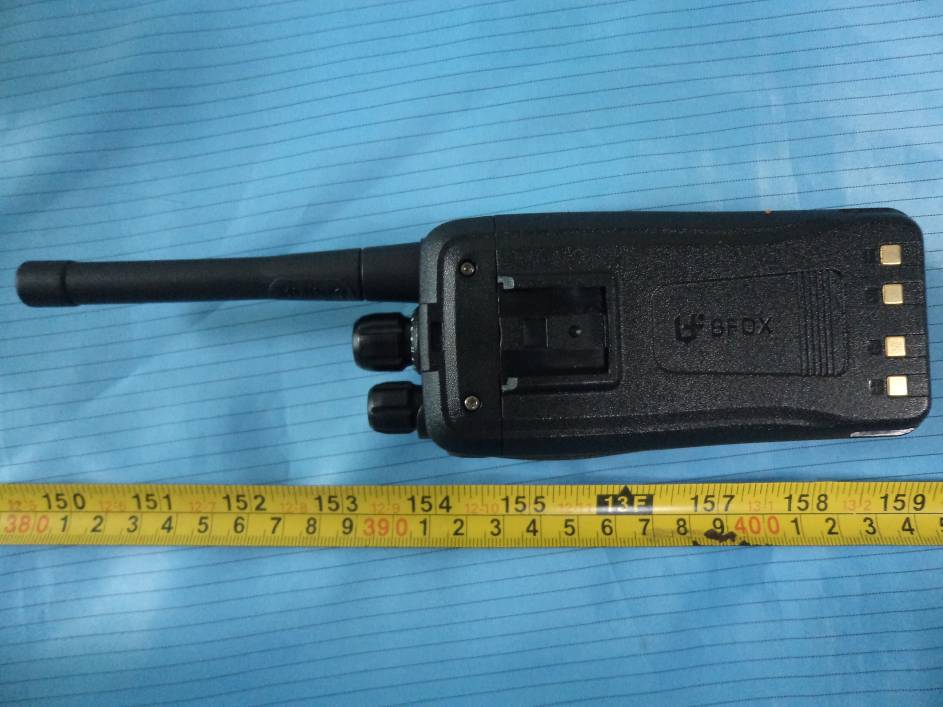

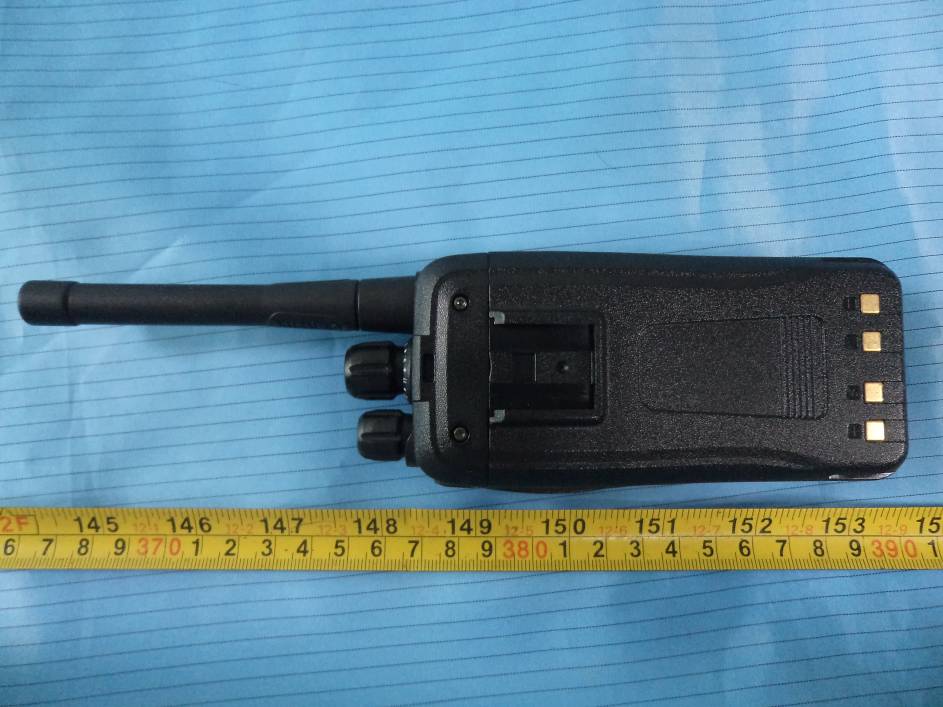

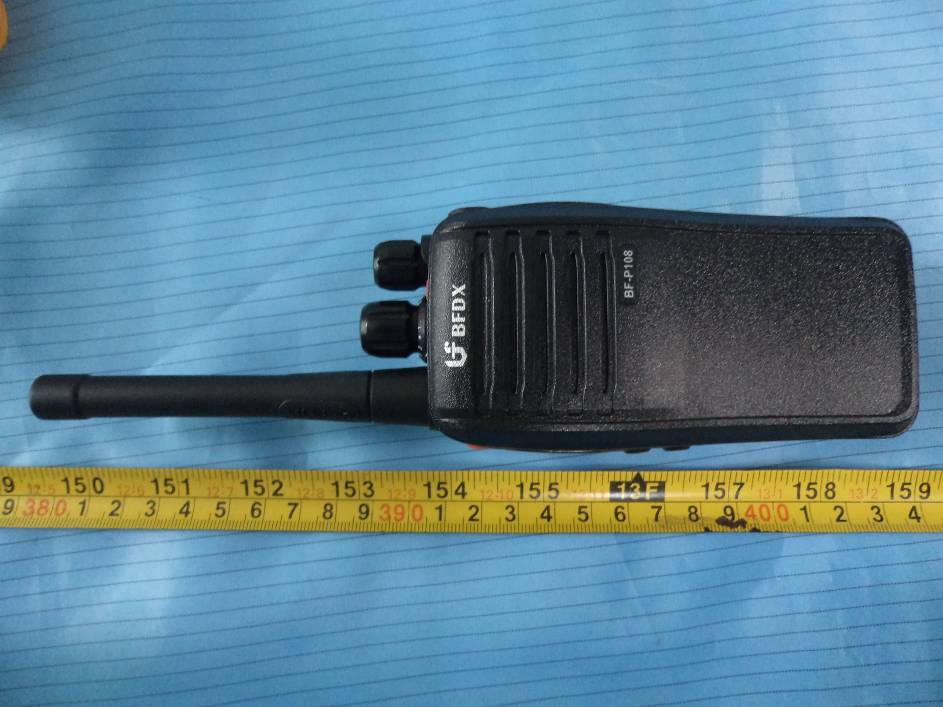

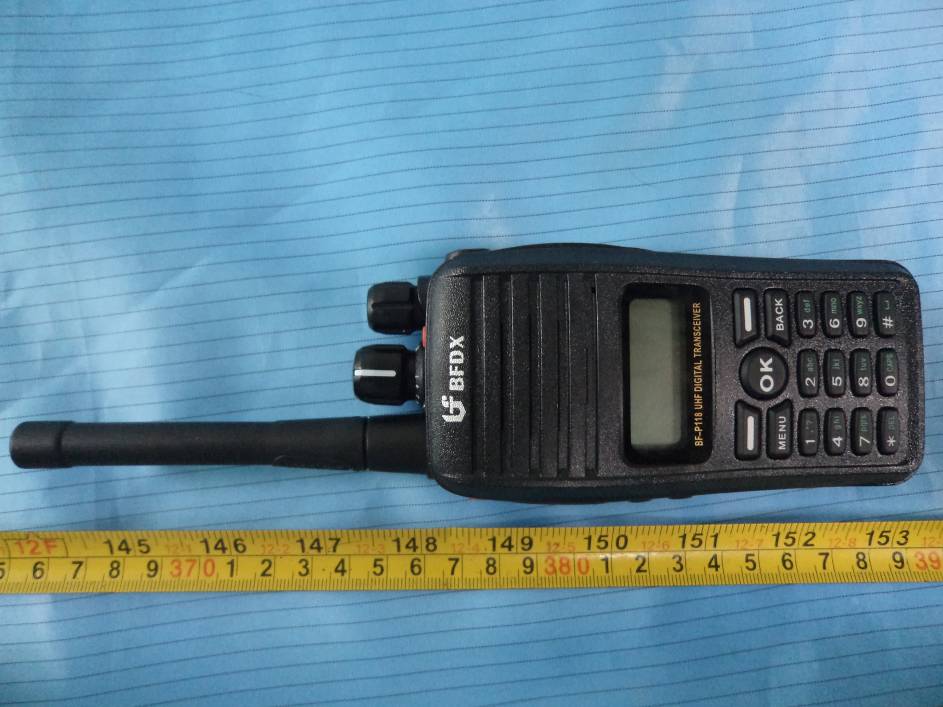

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Model: BF-P108 EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View Model: BF-P118 EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Lable here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Model: BF-P108 EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View Model: BF-P118 EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Keyboard with LCD Top View EUT – Keyboard with LCD Bottom View EUT – Antenna View 1 EUT – Antenna View 2 EUT – Battery Label View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For Fujian Beifeng Telecom Technology Co., Ltd. A15 Huaqiao Economic Development Zone, Shuangyang, Luojiang, Quanzhou, Fujian, China FCC ID: 2AARFBFP118001 Report Type: Original Report Product Type: Digital Radio Test Engineer: Sandy Wang Report Number: RSZ130411003-20C Report Date: 2013-08-30 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ130411003-20C SAR Evaluation Report 2 of 71 Attestation of Test Results Company Name Fujian Beifeng Telecom Technology Co., Ltd. EUT Description Digital radio FCC ID 2AARFBFP118001 Model Number BF-P108, BF-P118 EUT Information Test Date 2013-07-28 Model Frequency (MHz) Max. SAR Level(s) Report Limit (W/Kg) BF-P108 Digital 6.25kHz Face up: 4.347 W/kg Body-Back: 5.998 W/kg BF-P118 400-470 Digital 6.25kHz Face up: 3.188 W/kg Body-Back: 3.856 W/kg 8 ANSI / IEEE C95.1: 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3: 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528:2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Applicable Standards KDB procedures KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies KDB 643646 SAR Test Reduction Considerations for Occupational PTT Radios Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ130411003-20C SAR Evaluation Report 3 of 71 TABLE OF CONTENTS DOCUMENT REVISION HISTORY .........................................................................................................................5 EUT DESCRIPTION ....................................................................................................................................................6 TECHNICAL SPECIFICATION.........................................................................................................................................6 REFERENCE, STANDARDS, AND GUILDELINES ...............................................................................................7 SAR LIMITS.................................................................................................................................................................8 FACILITIES AND ACCREDITATION .....................................................................................................................9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................10 EQUIPMENT LIST AND CALIBRATION .............................................................................................................17 EQUIPMENTS LIST & CALIBRATION INFORMATION....................................................................................................17 SAR MEASUREMENT SYSTEM VERIFICATION ..............................................................................................18 LIQUID VERIFICATION...............................................................................................................................................18 SYSTEM ACCURACY VERIFICATION...........................................................................................................................20 SAR SYSTEM VALIDATION DATA .....................................................................................................................21 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................25 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................25 CHEEK/TOUCH POSITION...........................................................................................................................................26 EAR/TILT POSITION...................................................................................................................................................26 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS..............................................................................27 SAR EVALUATION PROCEDURE.................................................................................................................................28 CONDUCTED OUTPUT POWER MEASUREMENT ...........................................................................................29 PROVISION APPLICABLE............................................................................................................................................29 TEST PROCEDURE......................................................................................................................................................29 MAXIMUM OUTPUT POWER AMONG PRODUCTION UNITS.......................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 90 TEST REPORT For Fujian Beifeng Telecom Technology Co., Ltd A15 Huaqiao Economic Development Zone, Shuangyang, Luojiang, Quanzhou, Fujian, China FCC ID: 2AARFBFP118001 Report Type: Original Report Product Type: Digital Radio Test Engineer: Rocky Kang Report Number: RSZ130411003-00 Report Date: 2013-10-10 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130411003-00 FCC Part 90 Page 2 of 28 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE...........................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 FCC §1.1307(b) & §2.1093 - RF EXPOSURE.............................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 FCC §2.1046 & §90.205- RF OUTPUT POWER........................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC §2.1049, §90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK......................................14 APPLICABLE STANDARD............................................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST DATA................................................................................................................................................................15 FCC §2.1051 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................18 APPLICABLE STANDARD............................................................................................................................................18 TEST PROCEDURE......................................................................................................................................................18 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................18 TEST DATA................................................................................................................................................................19 FCC §2.1053 & §90.210 - RADIATED SPURIOUS EMISSIONS ..........................................................................21 APPLICABLE STANDARD............................................................................................................................................21 TEST PROCEDURE.......................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1 GHz: Transmitting Radiated Emissions View Above 1 GHz: Transmitting Radiated Emissions View Extreme Condition View
