2AARVRCE-NOVAX350RC EYE NovaX 350

CEI Conrad Electronic International (HK) Limited
RC EYE NovaX 350 - FCC ID 2AARVRCE-NOVAX350 - CEI Conrad Electronic International (HK) Limited
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Aug 24, 2015
Application Purpose
Original Equipment
Date of Application
Aug 24, 2015
Equipment Note
RC EYE NovaX 350
Frequency Range
2402.00000000 - 2480.00000000
Company
CEI Conrad Electronic International (HK) Limited
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

88012RC (ArF) 88014RC (RtF) NovaX 350 Operating instructions M1 2 EVER WONDERED WHAT INNOVATION LOOKS LIKE? NovaX 350. 3 1. QUICK START INSTRUCTIONS .............................................6 2. INTRODUCTION ....................................................................8 3. MODULES .............................................................................8 4. LATEST OPERATING INSTRUCTIONS ..................................8 5. SYMBOLS ..............................................................................8 6. INTENDED USE ....................................................................9 7. PRODUCT DESCRIPTION ......................................................9 8. DELIVERY CONTENTS ........................................................10 9. EYECONTROL APP .............................................................10 9.1 Download ..........................................................................................10 9.2 Instructions and tutorials ...................................................................10 10. VIDEO INSTRUCTIONS .......................................................10 11. FIRMWARE .........................................................................10 12. SPARE PARTS .....................................................................11 13. COMPATIBLE ACCESSORIES .............................................11 14. WHAT YOU NEED FOR THE ‘ArF’ VERSION? ....................12 14.1 Receiver ............................................................................................12 14.2 Transmitter ........................................................................................12 15. SAFETY INSTRUCTIONS .....................................................12 15.1 Persons/Product ...............................................................................12 15.2 Before commissioning.......................................................................13 15.3 During Operation...............................................................................13 15.4 Outdoor flying locations ....................................................................13 15.5 Batteries ............................................................................................13 15.5.1 General information ........................................................13 15.5.2 LiPo batteries ..................................................................14 15.6 Miscellaneous ...................................................................................15 16. SAFETY FEATURES AND ACCIDENT PREVENTION .........16 16.1 Safety features ..................................................................................16 16.2 Accident prevention ..........................................................................16 16.2.1 Flight conditions ..............................................................16 16.2.2 Area clearance ................................................................16 16.2.3 Learn from experienced pilots ........................................16 16.2.4 No stunts/tricks at entry level ..........................................17 17. LED – STATUS/INDICATIONS ............................................17 18. ELECTRICAL AND ELECTRONIC CONNECTIONS AND COMPONENTS ....................................................................17 18.1 Wire slack .........................................................................................17 18.2 Short cicuiting ...................................................................................17 18.3 Electrostatic discharge ......................................................................17 18.4 Magnetic power.................................................................................17 19. WEIGHTS AND PAYLOAD ..................................................18 20. PCB BOARD ........................................................................18 21. PARTS AND COMPONENTS ...............................................19 TABLE OF CONTENTS 4 22. DIMENSIONS ......................................................................20 22.1 Short legs ..........................................................................................20 22.2 Long legs ..........................................................................................21 23. TERMS .................................................................................22 23.1 Throttle ..............................................................................................22 23.2 Elevator .............................................................................................22 23.3 Rudder ..............................................................................................22 23.4 Aileron ...............................................................................................22 23.5 Hover ................................................................................................22 23.6 Mode 1, Mode 2 ................................................................................22 23.7 GNSS ................................................................................................22 23.8 I.R.P.C ...............................................................................................22 23.9 S.M.A.R.T .........................................................................................22 23.10 T.P.C.S ..............................................................................................23 24. CANOPY .............................................................................23 24.1 Removing ..........................................................................................23 24.2 Mounting ...........................................................................................23 25. BATTERY .............................................................................24 25.1 Dangers ................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

If you have questions or need further information, please contact the undersigned.

External Photos

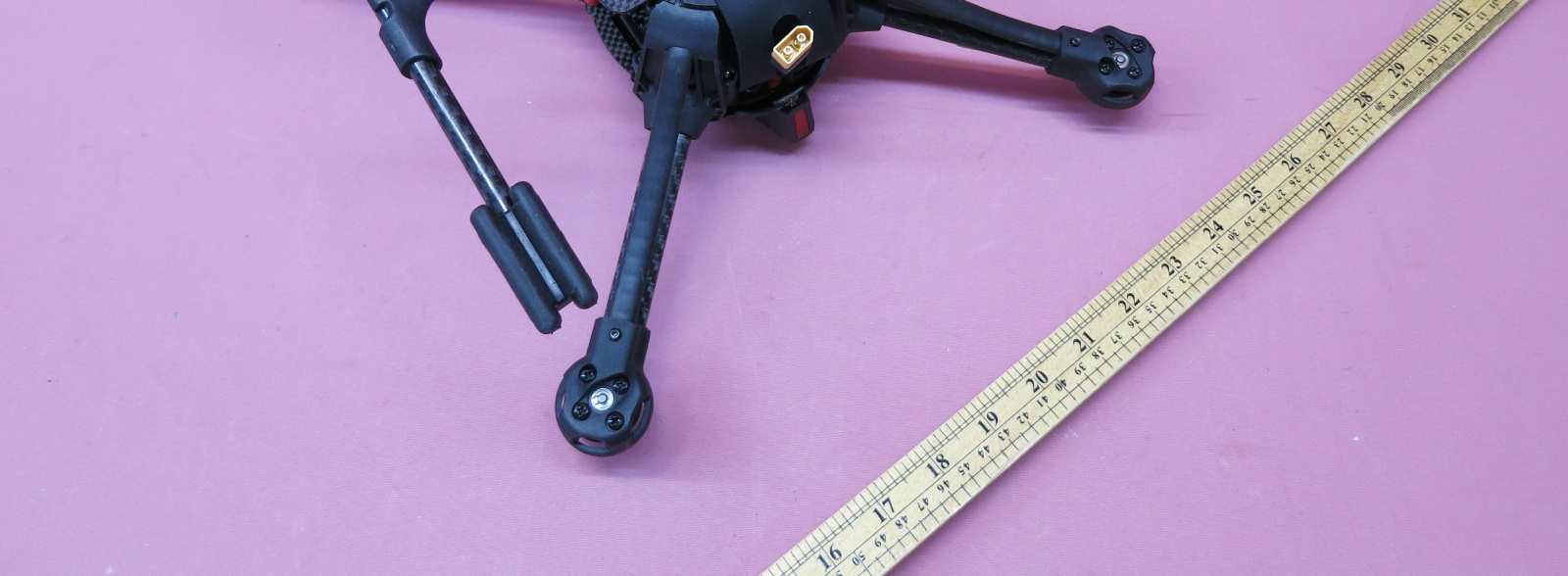

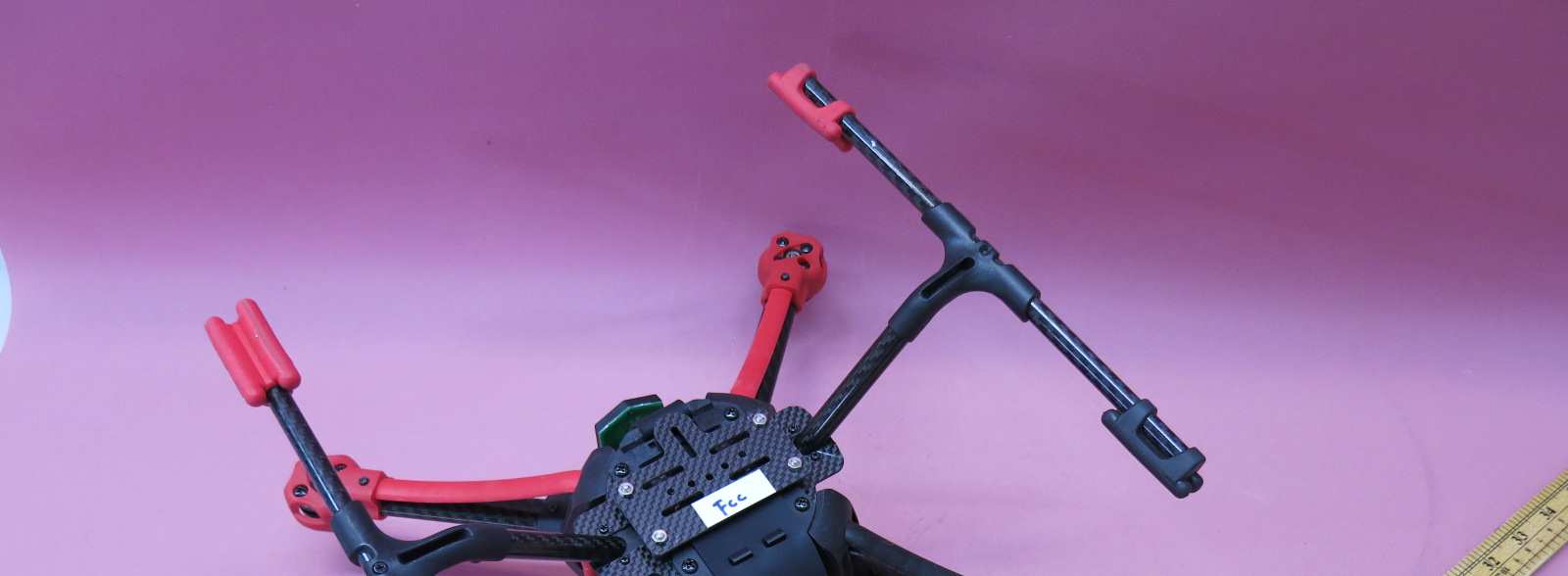

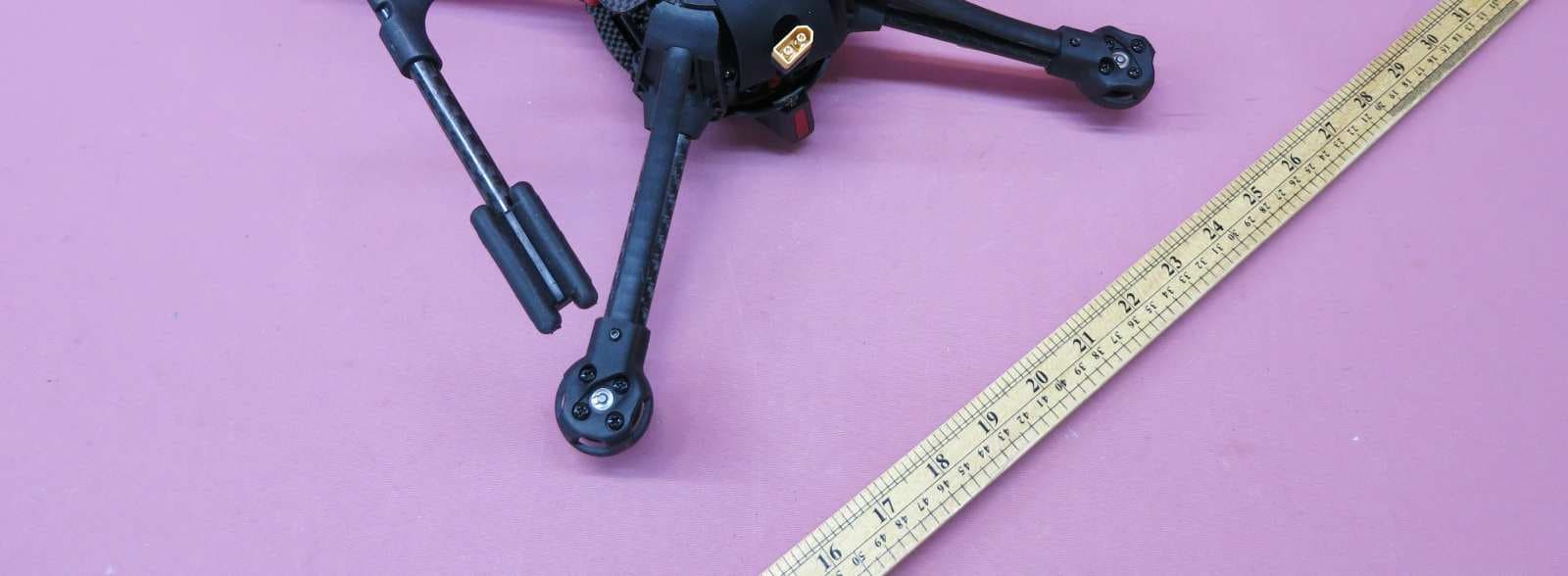

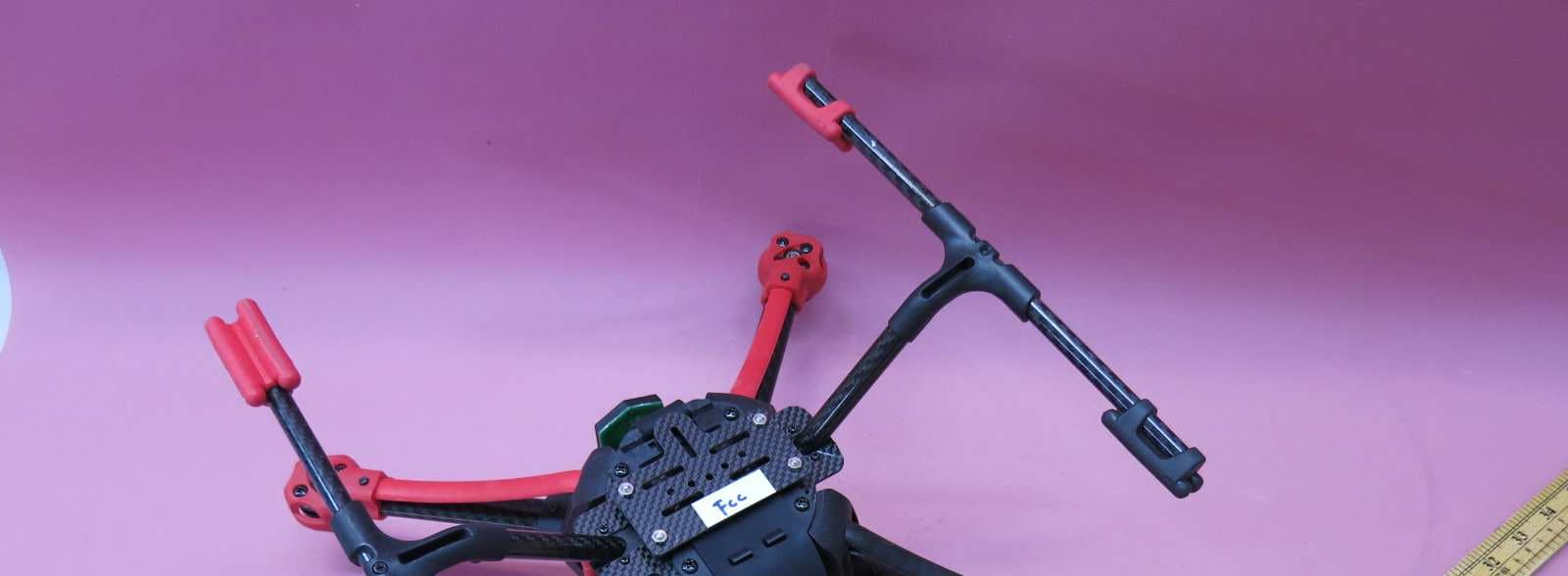

INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (External)

Internal Photos

INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal) INTERTEK TESTING SERVICE Report No.: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Equipment Photographs Model: 88012RC (Internal)

RF Exposure Info

INTERTEK TESTING SERVICES FCC ID: 2AARVRCE-NOVAX350 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. The Equipment Under Test (EUT) is a Bluetooth 4.0 transceiver for a helicopter which operates in the frequency range 2402MHz to 2480MHz (40 channels with 2 MHz spacing). The EUT is powered by 1 x 11.1V Rechargeable battery. There are two RF Modules into the Helicopter, one is embedded Bluetooth and other one is a plug in transceiver of RF2.4GHz respectively. The function of Bluetooth is for calibration. The EUT can be connected to the Smartphone via Bluetooth to finish the calibration procedure. Then the helicopter can enter into the other RF2.4GHz function part for normal controlling. When powering on the helicopter, the LED (red color) on the plane will be lighted. It can be controlled in flying forward, turning left and right by corresponding Controller. The helicopter can also be connected to the PC for data transfer function such as upgrading firmware. Regarding the plug in RF2.4GHz module portion, which had been certified and granted . (FCC ID: N4ZFLYSKYIA6B). As per the measured data shown on the RF exposure of certified plug in Transceiver 2.4GHz RF (FCC ID: N4ZFLYSKYIA6B), the measured power is 15.346mW. The antenna gain is 2 dBi = 1.58 (num gain) From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 15.346 mW The power density at 20cm = 15.346 *1.58/ 4πR 2 = 0.00484 mW cm -2 INTERTEK TESTING SERVICES FCC ID: 2AARVRCE-NOVAX350 RF exposure - 1 of 1 For the 2.4GHz Bluetooth Transmission; From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: Antenna Type: Internal antenna Antenna Gain: +0dBi Nominal rated field strength: 94.5 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 97.5dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.687mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Maximum Conducted Power =1.687mW. The Conducted Power = 1.687 mW The power density at 20cm = 1.687 *1/ 4πR 2 = 0.00336 mW cm -2 INTERTEK TESTING SERVICES FCC ID: 2AARVRCE-NOVAX350 RF exposure - 1 of 1 Per KDB 447498 D01 v05, simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on calculated or measured field strengths or power density, is ≤ 1.0. The MPE ratio for Certified RF2.4GHz Transmission can be calculated as follow: = The power density at 20cm / MPE limit = 0.00484 mW cm -2 / 1.0 mW cm -2 = 0.00484 The MPE ratio for Bluetooth Transmission can be calculated as follow: = The power density at 20cm / MPE limit = 0.00336 mW cm -2 / 1.0 mW cm -2 = 0.00336 The sum of the MPE ratios for all simultaneous transmitting antennas = 0.00484 + 0.00336 = 0.0082 As the sum of MPE ratios for all simultaneous transmitting antennas is ≤ 1.0, simultaneous transmission MPE test exclusion will be applied. Conclusion In frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As simultaneous transmission MPE test exclusion is applied and the measured power density at 20cm from all the standalone transmissions is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

Test Report

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 15010579HKG-001 CEI Conrad Electronic International (HK) Limited Application For Certification (Original Grant) (FCC ID: 2AARVRCE-NOVAX350) Transceiver Prepared and Checked by: Approved by: Signed On File Josie Yao Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: July 27, 2015 INTERTEK TESTING SERVICES Report No.: 15010579HKG-001 i FCC ID: 2AARVRCE-NOVAX350 GENERAL INFORMATION Grantee: CEI Conrad Electronic International (HK) Limited Grantee Address: 18/F., Tower 2, Nina Tower, 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong Contact Person: Patrick Chan Tel: (852) 2589 5141 Fax: (852) 2964 6315 e-mail: [email protected] Manufacturer: Yongden Technology Corp. Manufacturer Address: 345 MacArthur Highway Tabang, Guiguinto, Bulacan,Philippines. Brand Name: RC Logger Model: 88012RC Type of EUT: Transceiver Description of EUT: RC EYE NovaX 350 Serial Number: N/A FCC ID : 2AARVRCE-NOVAX350 Date of Sample Submitted: Jan 15, 2015 Date of Test: Jan 15, 2015 to May 21, 2015 Report No.: 15010579HKG-001 Report Date: July 27, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 15010579HKG-001 ii FCC ID: 2AARVRCE-NOVAX350 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.209, 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2014 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 15010579HKG-001 iii FCC ID: 2AARVRCE-NOVAX350 Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 2 2.0 System Test Configuration ................................................................................... 3 2.1 Justification.......................................................................................................... 3 2.2 EUT Exercising Software..................................................................................... 3 2.3 Special Accessories ............................................................................................ 3 2.4 Measurement Uncertainty.................................................................................... 3 2.5 Support Equipment List and Description.............................................................. 3 3.0 Emission Results .................................................................................................. 4 3.1 Field Strength Calculation.................................................................................... 4 3.2 Radiated Emission Configuration Photograph ..................................................... 5 3.3 Radiated Emission Data ...................................................................................... 5 3.4 Conducted Emission Configuration Photograph .................................................. 5 3.5 Conducted Emission Data ................................................................................... 5 4.0 Equipment Photographs ..................................................................................... 10 5.0 Product Labelling ................................................................................................ 10 6.0 Technical Specifications .................................................................................... 10 7.0 Instruction Manual .............................................................................................. 10 8.0 Miscellaneous Information ................................................................................. 11 8.2 …

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICE Report No: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 88012RC INTERTEK TESTING SERVICE Report No: 15010579HKG-001 FCC ID: 2AARV-RCENOVAX350 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 88012RC

Contact Information

Applicant

Charles Wong(QA Supervisor (Engineers))
[email protected]85225895601Fax: 85225401122

Technical Contact

Intertek Testing Services Hong Kong Ltd.Terry Chan
[email protected](852) 2173 8888

2/F., Garment Centre, · Kowloon · Hong Kong

Non-Technical Contact

Intertek Testing Services Hong Kong Ltd.Terry Chan
[email protected](852) 2173 8888

Test Firm

Intertek Testing Services Hong Kong Ltd.Billy Chow
[email protected]85221738528Fax: 85227410521

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
Confidentiality
Long Term
Grant Notes
This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users must be informed of the operating requirements for satisfying RF exposure compliance.
