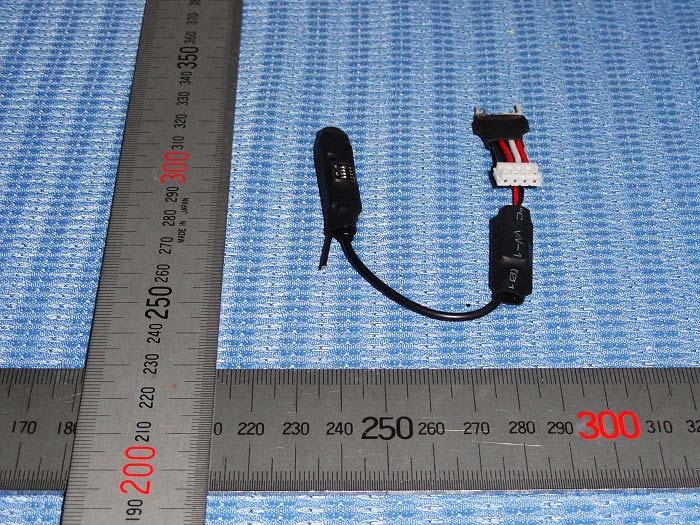

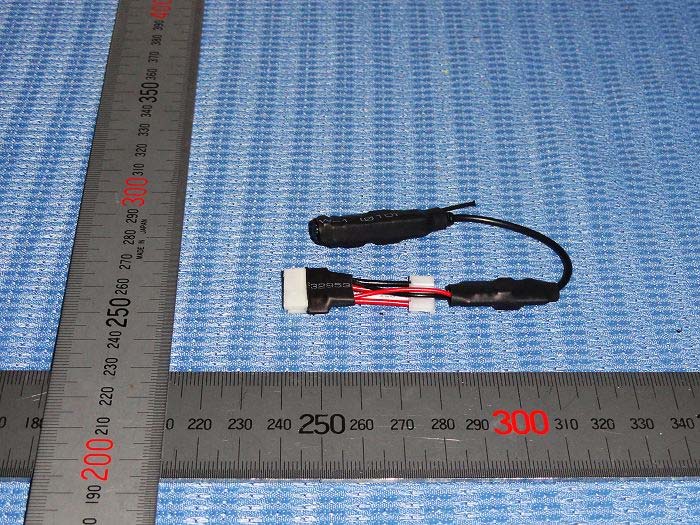

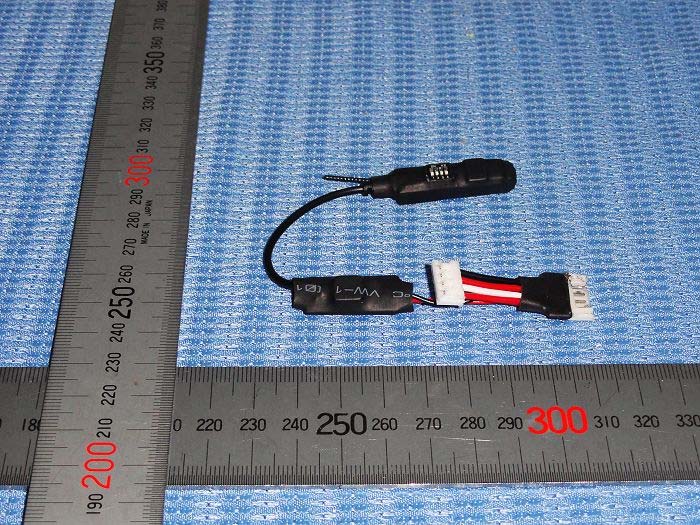

2AARVRCE-ONE-CAMTXRC EYE OneCam TX

Operating instructions RC EYE OneCam TX No. 89049RC Version 08/13 1. INtRoduCtIoN Dear customer, Thank you for making the excellent decision to purchase this RC Logger® product. You now have a high-quality product with a name that represents outstanding products. This product complies with the applicable National and European standards and regulations. We kindly request the user to follow the operating instructions, to preserve this condition and to ensure safe operation! These operating instructions relate to this product. They contain important notices on commissioning and handling. Please take this into consideration when you pass the product on to third parties. Please keep these instructions for further reference! All company names and product designations contained herein are trademarks of the respective owners. All rights reserved. We wish you a great deal of enjoyment with your new RC Logger® product! 2. INteNded use The model “RC EYE OneCam TX” is a light-weight wireless camera, equipped with a CMOS image sensor and 5.8 GHz wireless AV transmitting technology. The camera is solely designed to be used in a model making environment and shall never be used for surveillance purposes of any kind. The camera shall only be used in dry locations and environments. The product must not become damp or wet. This product is not a toy and not suitable for children under 14 years of age. For safety and approval purposes (CE), you must not rebuild and/or modify this product. If you use the product for purposes other than those described above, the product may be damaged. In addition, improper use can cause hazards such as short circuiting, fire, electric shock etc. Read the instructions carefully and keep them. Make this product available to third parties only together with its operating instructions. 3. delIveRy CoNteNt 1 x RC EYE OneCam TX 2 x Double sided tape (30 x 8 mm) Operating instructions 4. safety INstRuCtIoNs Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee. surveillance >You must strictly adhere to national laws governing the use of such camera devices. Misuse may result in legal prosecution. Persons / Product >The device is not a toy. Keep it out of the reach of children and pets. >Do not leave packaging material lying around carelessly. These may become dangerous playing material for children. >Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity, moisture, flammable gases, vapours and solvents. >Do not place the product under any mechanical stress. >If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use. Safe operation can no longer be guaranteed if the product: -is visibly damaged, -is no longer working properly, -has been stored for extended periods in poor ambient conditions or -has been subjected to any serious transport-related stresses. >Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage the product. >Also observe the safety and operating instructions of any other devices which are connected to the product. >Not following the instructions in these operating instructions may result in dangers such as short circuit, fire, electric shock, etc. Observe the safety information under all circumstances! Miscellaneous >Consult an expert when in doubt about operation, safety or connection of the device. >Maintenance, modifications and repairs are to be performed exclusively by an expert or at a qualified shop. >If you have questions which remain unanswered by these operating instructions, contact our technical support service or other technical personnel. 5. oPeRatINg eleMeNts 1 2 3 4 5 6 7 1 Female connector (Connects to “RC EYE One S” battery) 2 Power board 3 Male connector (Connects to “RC EYE One S”) 4 Antenna 5 Dip switches 6 Main camera 7 Camera lens Not shown: Double sided tape 6. MouNtINg the CaMeRa the camera and its electronis components are very delicate. do not use sharp objects, such as knives or pliers to handle the camera. any defects to electric cables may result in short circuits and damage the camera. do not pull the electric cables! the camera Must be mounted securely at all times. an improperly mounted camera can damage not only the camera but also your “RC eye one s”. Fig. 1 Fig. 2 1. Carefully slide the camera out of the antistatic bag. 2. Put your “RC EYE One S” quad-copter on a clean and stable surface. 3. Connect the male connector (3) of the camera to the female input port on the “RC EYE One S”. 4. Put the battery in place as usual. Secure the battery including, power board (2) and camera cables with the Velcro ® strap (see Fig. 1). attention! It is very important to ensure the cables cannot be caught and entangled while the rotors are in motion. Do not establish the power connection yet! 5. Clean the canopy top with a damp cloth and little diswashing liquid. Take care that no water enters the product! Dry the canopy top. 6. Peel off the protective foil on one side of the double sided tape. 7. Stick the double sided tape along the middle axis on the canopy top (The camera lens (7) shall eventually sit between the two red propellers). Peel off the remaining protective foil of the double sided tape. These operating instructions are published by CEI Conrad Electronic International (HK) Limited, 18th Floor, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, New Territories, Hong Kong. All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. The operating instruction…

Text truncated - open the document above for the full version.

DATE : Sep 18, 2013 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint _ Shenzhen Timeway Technology Consulting Co., Ltd. East 5/Block 4, Anhua Industrial Zone, No.8,Tairan Rd. CheGongMiao, FuTian District, Shenzhen City, Guangdong Province, China_, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with CEI Conrad Electronic International (HK) Limited/ 18/F, Tower 2, Nina Tower, 8 Yeung Uk Road, Tsuen Wan. N.T., Hong Kong Dated this Sep 18, 2013 Agency agreement expiration date: Usually Give 8 - 12 Months By: Hindratno Setiadharma Signature Printed Title: Manager On behalf of : CEI Conrad Electronic International (HK) Limited Telephone: (852) 2559 6328

DATE : Sep 18, 2013 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A ARVRCE-ONE-CAMTX Product Name: RC EYE OneCam TX Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Sep 18, 2013 Agency agreement expiration date: Usually Give 8 - 12 Months By: Hindratno Setiadharma Signature Printed Title: Manager On behalf of : CEI Conrad Electronic International (HK) Limited Telephone: (852) 2559 6328

RF Exposure evaluation According to 447498 1 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength =104.11dBuV/m @3m Ant gain =10dBi So pt={ [10 (104.11/20) /10 6 x3] 2 /30x10 }x1000 mW So ( 0.773 mW/5mm)x √5.733 = 0.37<3 Then SAR evaluation is not required
