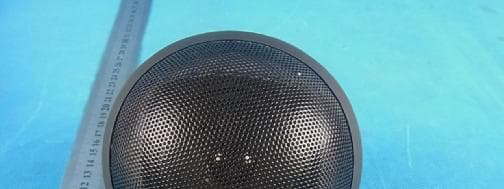

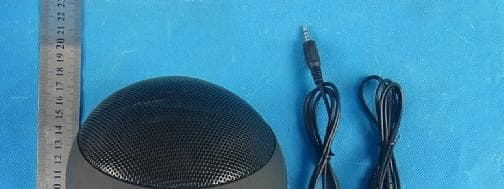

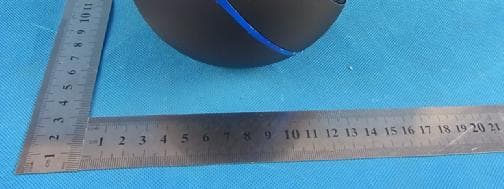

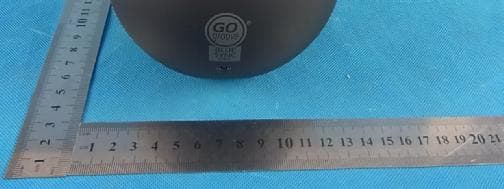

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 PDF created with pdfFactory Pro trial version www.pdffactory.com Photo 3 Photo 4 PDF created with pdfFactory Pro trial version www.pdffactory.com Photo 5 Photo 6 PDF created with pdfFactory Pro trial version www.pdffactory.com Photo 7 PDF created with pdfFactory Pro trial version www.pdffactory.com

FCC ID LABELING AND LOCATION FCC ID Label Bluetooth Speaker Model NO.：GGBSOR3 Input Rating：DC 5V Battery:3.7V/ 1200mAh FCC ID: 2AASCGGBSOR3 Shenzhen Alpinor Technology Company Limited Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) PDF created with pdfFactory Pro trial version www.pdffactory.com

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 PDF created with pdfFactory Pro trial version www.pdffactory.com Photo 3 Photo 4 PDF created with pdfFactory Pro trial version www.pdffactory.com Photo 5 PDF created with pdfFactory Pro trial version www.pdffactory.com

RF EXPOSURE EVALUATION METHOD FCC ID：2AASCGGBSOR3 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. PDF created with pdfFactory Pro trial version www.pdffactory.com Maximum measured transmitter power. frequency Maximum Peak Conducted Output Power Max Antenna Gain GHz dBm dBi 2.402 -4.092 1.0 Remark: The best case gain of the antenna is 1.0dBi. 1.0dBi logarithmic terms convert to numeric result is nearly 1.26 -4.092dbm=0.39mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.39/5*√2.402=0.12≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. PDF created with pdfFactory Pro trial version www.pdffactory.com

FCC RADIO TEST REPORT FCC ID: 2AASCGGBSOR3 Product： Bluetooth Speaker Trade Name： N/A Model Name： GGBSOR3 Serial Model： BT-860，BT-830,BT-831,BT-832,BT-833,BT-835, BT-836,BT-838,BT-810 Report No.： NTEK-2013NT0731775F Prepared for Shenzhen Alpinor Technology Company Limited JingHua Industrial Park, PingHu LongGang ShenZhen China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn PDF created with pdfFactory Pro trial version www.pdffactory.com Page 2 of 79 Report No.:NTEK-2013NT0731775F TEST RESULT CERTIFICATION Applicant’s name ................. Shenzhen Alpinor Technology Company Limited Address ................................. JingHua Industrial Park, PingHu LongGang ShenZhen China Manufacture's Name ............ Shenzhen Alpinor Technology Company Limited Address ................................. JingHua Industrial Park, PingHu LongGang ShenZhen China Product description Product name ...........................Bluetooth Speaker Model and/or type reference .............................................. GGBSOR3 Serial Model： BT-860，BT-830,BT-831,BT-832,BT-833,BT-835, BT-836,BT-838,BT-810 Standards ............................. FCC Part15.247 Test procedure ............................. ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ......................................... : Date (s) of performance of tests ............ : 31 Jul. 2013 ~13 Aug. 2013 Date of Issue ........................................ : 13 Aug. 2013 Test Result ............................................ : Pass Testing Engineer : (Apple Huang) Technical Manager : (Brown Lu) Authorized Signatory : (Bovey Yang) PDF created with pdfFactory Pro trial version www.pdffactory.com Page 3 of 79 Report No.:NTEK-2013NT0731775F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . NUMBER OF HOPPING CHANNEL 36 4.1 APPLIED PROCEDURES / LIMIT 36 4.1.1 TEST PROCEDURE 36 4.1.2 DEVIATION FROM STANDARD 36 4.1.3 TEST SETUP 36 4.1.4 EUT OPERATION CONDITIONS 36 4.1.5 TEST RESULTS 37 5 . AVERAGE TIME OF OCCUPANCY 39 5.1 APPLIED PROCEDURES / LIMIT 39 PDF created with pdfFactory Pro trial version www.pdffactory.com Page 4 of 79 Report No.:NTEK-2013NT0731775F Table of Contents Page 5.1.1 TEST PROCEDURE 39 5.1.2 DEVIATION FROM STANDARD 39 5.1.3 TEST SETUP 40 5.1.4 EUT OPERATION CONDITIONS 40 5.1.5 TEST RESULTS 41 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 47 6.1 APPLIED PROCEDURES / LIMIT 47 6.1.1 TEST PROCEDURE 47 6.1.2 DEVIATION FROM STANDARD 47 6.1.3 TEST SETUP 47 6.1.4 EUT OPERATION CONDITIONS 47 6.1.5 TEST RESULTS 48 7 . BANDWIDTH TEST 54 7.1 APPLIED PROCEDURES / LIMIT 54 7.1.1 TEST PROCEDURE 54 7.1.2 DEVIATION FROM STANDARD 54 7.1.3 TEST SETUP 54 7.1.4 EUT OPERATION CONDITIONS 54 7.1.5 TEST RESULTS 55 8 . PEAK OUTPUT POWER TEST 61 8.1 APPLIED PROCEDURES / LIMIT 61 8.1.1 TEST PROCEDURE 61 8.1.2 DEVIATION FROM STANDARD 61 8.1.3 TEST SETUP 61 8.1.4 EUT OPERATION CONDITIONS 61 8.1.5 TEST RESULTS 62 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 68 9.1 DEVIATION FROM STANDARD 68 9.2 TEST SETUP 68 9.3 EUT OPERATION CONDITIONS 68 9.4 TEST RESULTS 69 10 . ANTENNA REQUIREMENT 77 10.1 STANDARD REQUIREMENT 77 10.2 EUT ANTENNA 77 11 . EUT TEST PHOTO 78 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS PDF created with pdfFactory Pro trial version www.pdffactory.com Page 5 of 79 Report No.:NTEK-2013NT0731775F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report PDF created with pdfFactory Pro trial version www.pdffactory.com Page 6 of 79 Report No.:NTEK-2013NT0731775F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Tes…

Text truncated - open the document above for the full version.

Page 78 of 79 Report No.:NTEK-2013NT0731775F 11. EUT TEST PHOTO Radiated Measurement Photos PDF created with pdfFactory Pro trial version www.pdffactory.com Page 79 of 79 Report No.:NTEK-2013NT0731775F CONDUCTED EMISSION Photo PDF created with pdfFactory Pro trial version www.pdffactory.com
