2AASG-CS7219Bluetooth Image Scanner

CS7219-BT Cordless Image Scanner User Manual Version: CS7219-BT_UM_EN_V1.0.1 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  -Reorient or relocate the receiving antenna.  -Increase the separation between the equipment and receiver.  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. i Notice Make sure you carefully read the following information to ensure that your barcode scanner is able to perform at the level for which it is designed. 1) All software, including firmware, furnished to the user is on a licensed basis. 2) The right is reserved to make changes to any software or product to improve reliability, function, or design. 3) The material in this manual is subject to change without notice. 4) The manufacturer assumes no responsibility for any loss or claims by third parties which may arise from the use of this manual. 5) A standard kit contains: a handheld unit, a cradle, a USB cable, and a quick guide. 6) Do not throw or drop the scanner or otherwise subject it to strong impact, which can damage the scanner, interrupt program execution, corrupt memory contents, or otherwise interfere with proper operation. 7) Use a blunt object to operate the stroke keys. Use of a sharp pointed object can damage stroke keys and cause shorting of internal circuitry. 8) Do not remove the battery from the barcode scanner before you read the instructions carefully. 9) Sudden temperature changes can cause condensation to form on the scanner’s case. Operating the scanner while condensation is present can interfere with proper operation. Take care to avoid conditions that cause the formation of condensation. If condensation does form, wait until it dries completely before using the scanner. 10) In order to obtain constantly good communication quality, it is recommended to place the cradle on a higher location, generally more than 1 meter above the ground. If working outdoor, the higher location the better. ii Safety precautions – Danger! Be sure to read the following safety precautions carefully before trying to use the barcode scanner for the first time. Keep this manual in handy place for future reference. Danger! Lithium-ion battery 1) Never allow the battery to become wet. Water can create the danger of battery heat emission, explosion, and fire. 2) Never use or leave the battery next to open flame, near a stove, or any other area exposed to high heat. Doing so creates the danger of battery heat emission, explosion, and fire. 3) Never use the battery with any device other than this unit. Doing so can creates the danger of battery heat emission, explosion, and fire.Note that the battery’s positive (+) and negative (-) terminals must be oriented correctly when it is loaded into the Barcode Scanner. Connecting the battery with its terminals reversed creates the danger of battery fluid leakage, heat emission, explosion, and fire. 4) Never dispose of the battery by incinerating it or otherwise expose it to heat. Doing so creates the danger of battery heat emission, explosion, and fire. 5) Never allow the positive (+) and negative (-) terminals of the battery to become connected (shorted) by metal. Doing so create the danger of battery heat emission, explosion, and fire. 6) Never transport or store the battery together with a necklace, hair pins or other metal objects. Doing so can short battery terminals, and create the danger of battery heat emission, explosion and fire. Be sure to place the battery in its case whenever transporting or storing it. 7) Never throw the battery or otherwise subject it to strong impact. Dong so creates the danger of battery heat emission, explosion, and fire. 8) Never pierce the battery with nails, hit it with a hammer, or step on it. Doing so can create the danger of battery heat emission, explosion, and fire. 9) Never try to take apart the battery in any way. Doing so creates the danger of battery heat emission, explosion, and fire. 10) Use only the specified charger to charge the battery. Use of other types of charger creates the danger of battery heat emission explosion, and fire. iii Safety precautions – Warning! Warning! Disassembly and modification Never try to disassemble or modify the unit in any way. High voltage inside creates the danger of electrical shock. Interior parts and components Never touch interior high-voltage parts or components. Doing so creates the danger of electrical shock. Abnormal conditions Should the unit become hot or start to emit smoke or a strange odor, immediately turn off the power and contact your original dealer. Continued use creates the danger of fire and electrical shock. For…

Text truncated - open the document above for the full version.

Shenzhen MinDe Electronics Technology Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter December 12, 2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AASG-CS7219 Per section 2.911(d)(7) of the FCC rules, Shenzhen MinDe Electronics Technology Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: Mars Register Agent LLC Physical U.S. Company Address: 8932 MISSION DR 207 Rosemead, CA 91770-1452 United States Agent name: JESSIE PENG Agent Email Address: [email protected] FRN: 0033790684 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Guowen Zhou Printed name: Jessie Peng Title: Marketing Manager Title: Founder Company Name: Shenzhen MinDe Electronics Technology Ltd. Company Name: Mars Register Agent LLC Date: December 12, 2023 Date: December 12, 2023 FRN Code: 0022893515 FRN Code: 0033790684

Shenzhen MinDe Electronics Technology Ltd. Covered Equipment Certification Attestation Letter 12/8/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AASG-CS7219 Shenzhen MinDe Electronics Technology Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen MinDe Electronics Technology Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Guowen Zhou Title: Marketing Manager Company Name: Shenzhen MinDe Electronics Technology Ltd. Date: 12/8/2023

Differences Declaration SUBJECT: FCC Application for FCC ID: 2AASG-CS7219 To whom concern, We company Shenzhen MinDe Electronics Technology Ltd. Here by declares: The product model(s) CS7219-HD, CS7219, CS7219i, CS7XXX, CS7XXXi, CS7XXX-HD, CS7XXX-XD, CS7XXX-SR, CS7XXXi-HD, CS7XXXi-XD, CS7XXXi-SR (X Stand for 0-9, A-Z) (All these models are identical in the same PCB, layout, electrical circuit and enclosure. The difference is the model name.) Sincerely yours, Signature: Name: Guowen Zhou Company: Shenzhen MinDe Electronics Technology Ltd. Address: 5th Floor, Section 1, 25th Block, No.5, Kezhi Xi Road, Keji Yuan, Nanshan District, Shenzhen, P.R. China Phone: 0755-82178516 Fax: 0755-82281509 Email: [email protected]

Shenzhen MinDe Electronics Technology Ltd. Date: Nov. 13, 2023 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__2AASG-CS7219____ Product Name:___Bluetooth Image Scanner____ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  BOM List  Block Diagram  Operation Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Guowen Zhou Company: Shenzhen MinDe Electronics Technology Ltd. Address: 5th Floor, Section 1, 25th Block, No.5, Kezhi Xi Road, Keji Yuan, Nanshan District, Shenzhen, P.R. China Phone: 0755-82178516 Fax: 0755-82281509 Email: [email protected]

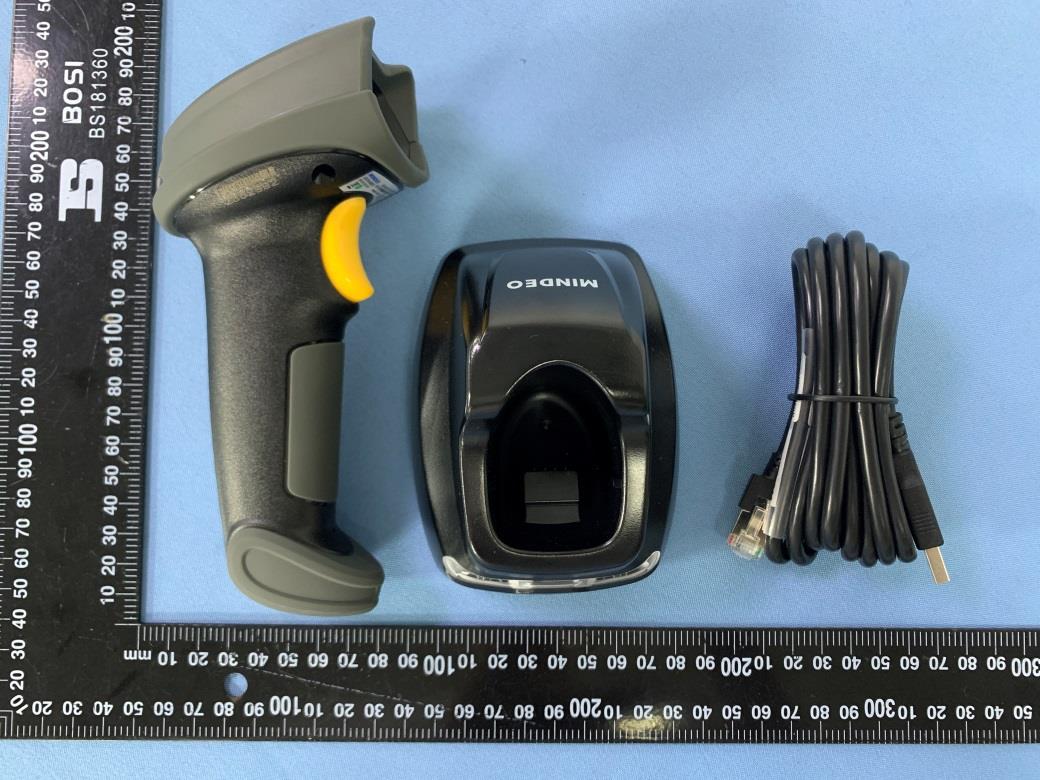

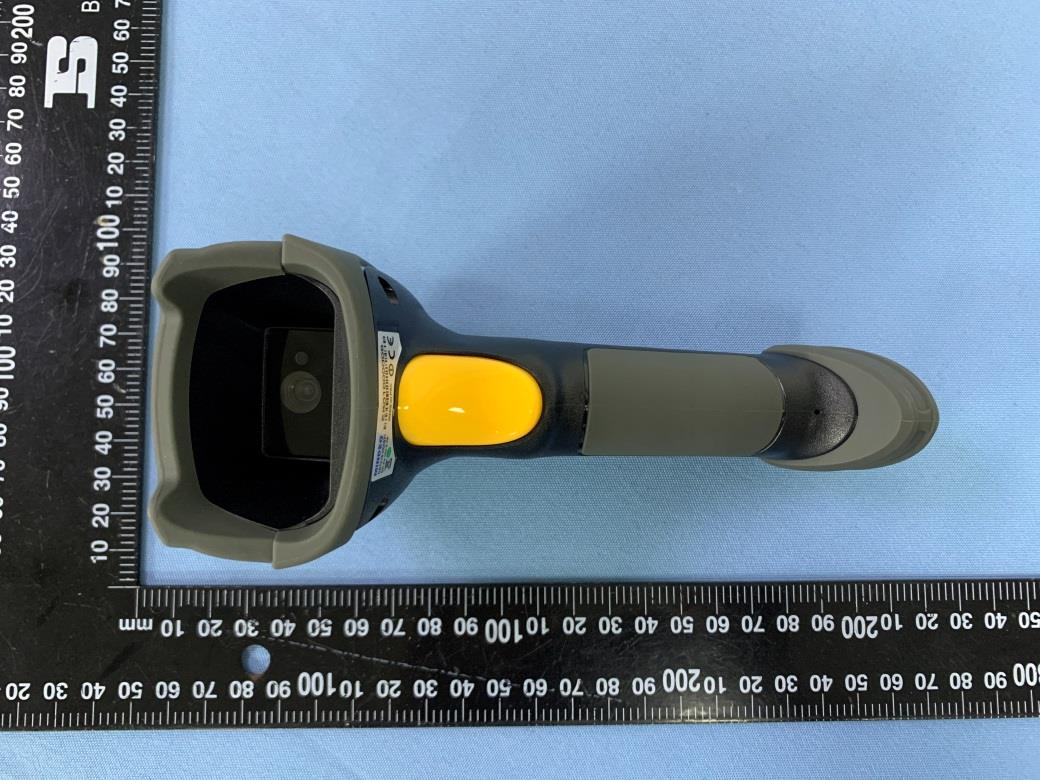

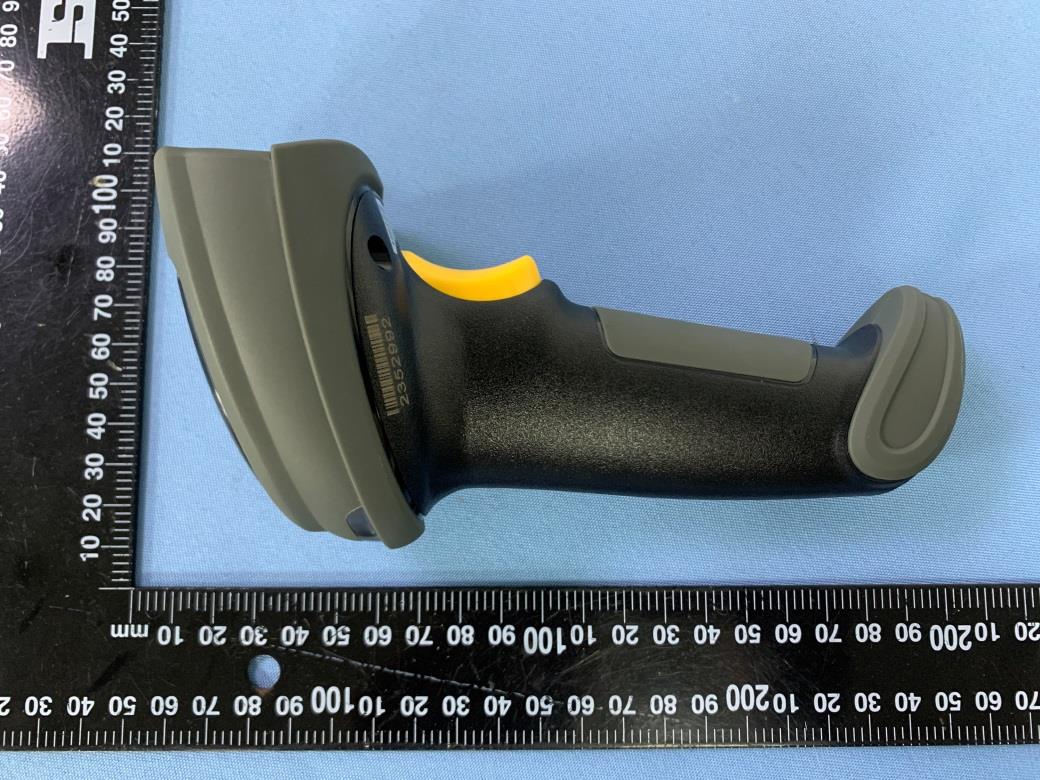

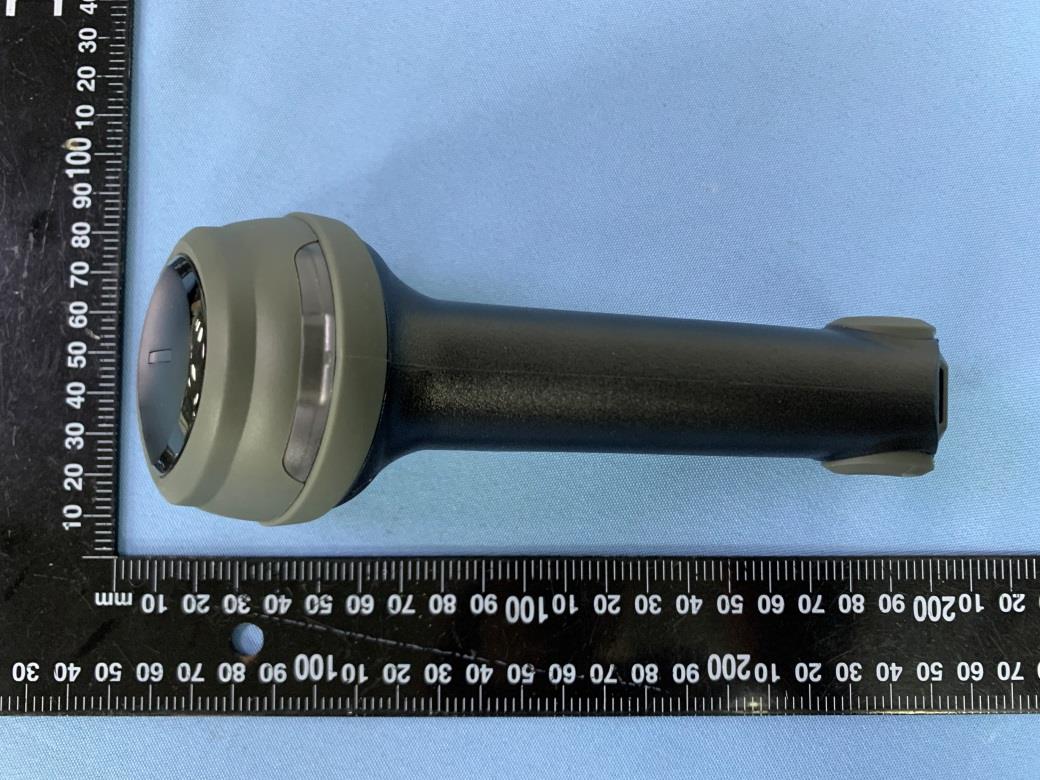

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn Page 1 of 4 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn Page 1 of 1 Label Label Location 1.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn Page 1 of 6 Internal Photos Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 BT Antenna Page 6 of 6

CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn RF Exposure Evaluation FCC ID: 2AASG-CS7219 According to KDB 447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a). EUT Specification Product Name: Bluetooth Image Scanner Trade Mark: Model/Type Reference: CS7219-HD(BT) Listed Model(s): CS7219-HD, CS7219, CS7219i, CS7XXX, CS7XXXi, CS7XXX-HD, CS7XXX-XD, CS7XXX-SR, CS7XXXi-HD, CS7XXXi-XD, CS7XXXi-SR (X Stand for 0-9, A-Z) Model Differences: All these models are identical in the same PCB, layout, electrical circuit and enclosure. The difference is the model name. Frequency Band (Operating) BT: 2402MHz ~ 2480MHz Device Category Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Antenna Diversity Single antenna Multiple antennas TX diversity RX diversity TX/RX diversity Antenna Gain (Max) 2.66dBi Limit For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR Where: -f (GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The result is rounded to one decimal place for comparison -The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. Page 2 of 2 Report No.: CTC20231892E08 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Measurement Result Mode Frequency (MHz) Max. Measured Power (dBm) Max. Tune up Power (dBm) Result Limit Verdict GFSK (BLE) 2402 6.22 7.00 1.55 3.0 Pass 8-DPSK 2402 7.01 8.00 1.96 3.0 Pass Note: 1. Calculate in the worst-case mode. 2. Max. Tune Up Power is declared by manufacturer, and used to calculate. 3. For a more detailed features description, please refer to the RF Test Report. **********************THE END**********************

CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn TEST REPORT Report No. .................................... : CTC20231892E07 FCC ID ........................................... : 2AASG-CS7219 Applicant ...................................... : Shenzhen MinDe Electronics Technology Ltd. Address .......................................... : 5th Floor, Section 1, 25th Block, No.5, Kezhi Xi Road, Keji Yuan, Nanshan District, Shenzhen, P.R. China Manufacturer..................................: Shenzhen MinDe Electronics Technology Ltd. Address..........................................: 5th Floor, Section 1, 25th Block, No.5, Kezhi Xi Road, Keji Yuan, Nanshan District, Shenzhen, P.R. China Product Name .............................. : Bluetooth Image Scanner Trade Mark .................................... : Model/Type reference .................... : CS7219-HD(BT) Listed Model(s) .............................. : CS7219-HD, CS7219, CS7219i, CS7XXX, CS7XXXi, CS7XXX-HD, CS7XXX-XD, CS7XXX-SR, CS7XXXi-HD, CS7XXXi-XD, CS7XXXi-SR (X Stand for 0-9, A-Z) Standard ....................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample........: Oct. 12, 2023 Date of testing..............................: Oct. 12, 2023 to Nov. 8, 2023 Date of issue................................: Dec. 12, 2023 Result............................................: PASS Compiled by: (Printed name+signature) Jim Jiang Supervised by: (Printed name+signature) Eric Zhang Approved by: (Printed name+signature) Totti Zhao $英文检测章$ $Totti$ This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The Test Result in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely corresponds to the test sample. Page 2 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION ......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 3 1.4. TEST FACILITY .............................................................................................................................................................. 4 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 5 2. GENERAL INFORMATION .......................................................................................................................................... 6 2.1. CLIENT INFORMATION ................................................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3. ACCESSORY EQUIPMENT INFORMATION ............................................................................................................................ 7 2.4. OPERATION STATE ........................................................................................................................................................ 8 2.5. MEASUREMENT INSTRUMENTS LIST ................................................................................................................................. 9 3. TEST ITEM AND RESULTS ........................................................................................................................................ 11 3.1. CONDUCTED EMISSION................................................................................................................................................ 11 3.2. RADIATED EMISSION ................................................................................................................................................... 14 3.3. BAND EDGE EMISSIONS (RADIATED) .............................................................................................................................. 28 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) ...................................................................................................... 41 3.5. 20DB BANDWIDTH .................................................................................................…

Text truncated - open the document above for the full version.

Page 57 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 3.5. 20dB Bandwidth Limit N/A Test Configuration Test Procedure 1. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 2. OCB and 20dB Spectrum Setting: (1) Set RBW = 1% ~ 5% occupied bandwidth. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. Note: The EUT was set to continuously transmitting in each mode and low, Middle and high channel for the test. Test Mode Please refer to the clause 2.4. Test Result Test Mode Antenna Channel 99% Bandwidth (MHz) 20 dB Bandwidth (MHz) 20dB Bandwidth *2/3 (MHz) DH5 Ant1 2402 0.878 1.116 0.744 2441 0.875 1.122 0.748 2480 0.872 1.125 0.750 2DH5 Ant1 2402 1.190 1.398 0.932 2441 1.196 1.398 0.932 2480 1.193 1.395 0.930 3DH5 Ant1 2402 1.190 1.371 0.914 2441 1.205 1.380 0.920 2480 1.208 1.389 0.926 Page 58 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 99% Bandwidth: DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Page 59 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Page 60 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 3DH5_Ant1_2441 3DH5_Ant1_2480 Page 61 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 20dB Bandwidth: DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Page 62 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Page 63 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 3DH5_Ant1_2441 3DH5_Ant1_2480 Page 64 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 3.6. Channel Separation Limit FCC CFR Title 47 Part 15 Subpart C Section 15.247 (a)(1) / RSS-247 5.1 b Test Item Limit Frequency Range (MHz) Channel Separation >25kHz or >two-thirds of the 20 dB bandwidth Which is greater 2400~2483.5 Test Configuration Test Procedure 1. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 2. Spectrum Setting: (1) Set RBW = 100 kHz. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. Test Mode Please refer to the clause 2.4. Test Result Test Mode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.997 ≥0.748 PASS 2DH5 Ant1 Hop 1.116 ≥0.932 PASS 3DH5 Ant1 Hop 1.000 ≥0.920 PASS Page 65 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Test plot as follows: DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page 66 of 80 Report No.: CTC20231892E07 CTC Laboratories, Inc. 2/F., Building 1 and 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Longhua District, Sh…

Text truncated - open the document above for the full version.

Walsin Technology Corporation 566­1, Ko­Shi Road , Yang­Mei, Tao­Yuan, 32668, Taiwan Page 1 of 8 ASC_RFANT5220110A0T_V08 Sep. 2006 MULTILAYER CERAMIC ANTENNA RFANT Series – RoHS Compliance 2.4 GHz ISM Band Working Frequency P/N: RFANT5220110A0T *Contents in this sheet are subject to change without prior notice. Page 2 of 8 ASC_RFANT5220110A0T_V08 Sep. 2006 L= 2.0 ±0.2 mm T= 1.15 ±0.10 mm W = 5.2 ± 0.2 mm B = 0.40 ± 0.25 mm A = 0.40 ± 0.25 mm WTC L= 2.0 ±0.2 mm T= 1.15 ±0.10 mm W = 5.2 ± 0.2 mm B = 0.40 ± 0.25 mm A = 0.40 ± 0.25 mm WTC FEATURES … Surface Mounted Devices with a small dimension of 5.2 x 2.0 x 1.1 mm 3 meet future miniaturization trend. … Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product. … High Stability in Temperature / Humidity Change APPLICATIONS … Bluetooth … Wireless LAN … HormRF … ISM band 2.4GHz wireless applications DESCRIPTION Walsin Technology Corporation develops a new ceramic embedded antenna specified for 2.4 GHz ISM Band application, as shown in below “CONSTRUCTION”. Both of Wireless LAN IEEE 802.11b and Bluetooth TM typically located on this unlicensed frequency band which range covers from 2.4GHz to 2.4835GHz. To fulfil the friendly usage for antenna, this antenna has been designed to a typical 150MHz bandwidth through Walsin’s advanced LTCC (Low Temperature Co-fired Ceramic) technology and superior product design via 3D EM Simulation Skill. This antenna has a rectangular ceramic body with a tiny dimension of 5.2x 2.0 x 1.1 mm 3 meet the future SMT automation and miniaturization requirements on modern portable devices. CONSTRUCTION Fig 1. Outline of 2.4GHz Antenna – RFANT5220110A0T Fig 2. Dimension WTC WTC Soldering terminal Identification mark Feeding WTC WTC Soldering terminal Identification mark Feeding Walsin Technology Corporation 566­1, Ko­Shi Road , Yang­Mei, Tao­Yuan, 32668, Taiwan Page 3 of 8 ASC_RFANT5220110A0T_V08 Sep. 2006 SOLDER LAND PATTERN DESIGN Figure ELECTRICAL CHARACTERISTICS Item Specification Working Frequency Range 2.4 GHz ～ 2.5GHz Gain 2.66 dBi (Max) VSWR2 max. PolarizationLinear Azimuth Beamwidth Omni-directional Impedance50Ω Rated Power (max.) 3 Watts Maximum Input Power 5 Watts for 5 minutes Operation Temperature -40°C ~ +85°C Remark: The specification is defined based on the test board dimension as in below To 50Ω RF I/O GROUND 6.4 1.0 1.0 4.4 2.0 Ground Soldering Pad 50 ΩTransmission Line Unit : mm 1.0 To 50Ω RF I/O GROUND 6.46.4 1.0 1.0 4.4 2.0 Ground Soldering Pad 50 ΩTransmission Line Unit : mm 1.0 Walsin Technology Corporation 566­1, Ko­Shi Road , Yang­Mei, Tao­Yuan, 32668, Taiwan Page 4 of 8 ASC_RFANT5220110A0T_V08 Sep. 2006 Antenna on Test Board ( FR4 Thickness 0.8mm) Antenna S11 on Test Board Bandwidth >150MHzBandwidth >150MHz Empty Area Empty Area 18x9 mm 50ΩFeed line GROUND 30x18 mm 1mm 3.3mm 1.5mm WTC 2.5mm 18mm Empty Area Empty Area 18x9 mm 50ΩFeed line GROUND 30x18 mm 1mm 3.3mm 1.5mm WTCWTC 2.5mm 18mm Walsin Technology Corporation 566­1, Ko­Shi Road , Yang­Mei, Tao­Yuan, 32668, Taiwan Page 5 of 8 ASC_RFANT5220110A0T_V08 Sep. 2006 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of RFANT5220110A0T antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Vertical Horizontal Y - Z Plane Average Gain= -3.22 dBi Peak Gain = 1.69 dBi Average Gain = -0.82 dBi Peak Gain= -5.42 dBi Average Gain=-8.98 dBi X - Z Plane Average Gain= -3.24 dBi Peak Gain= -5.97 dBi Average Gain= -8.61dBi Peak Gain= 2.66 dBi Average Gain= -0.91 dBi X - Y Plane Average Gain= …

Text truncated - open the document above for the full version.
