2AASXMTNTB785IPS7.85inch Tablet PC

1 TabletPC UserManual 2 Content 1Announcement ................................................................................................................................ 3 2Introduction ..................................................................................................................................... 4 2.1InstructionsonKeys. .............................................................................................................. 4 2.2FeaturesOverview ................................................................................................................. 5 2.3TechnicalSpecifications .......................................................................................................... 6 3QuickGuides .................................................................................................................................... 6 3.1SwitchOn/Off. ........................................................................................................................ 6 3.2PowerSavingModesandPoweroff ...................................................................................... 7 3.3Batterymanagement. ............................................................................................................ 7 3.4DefinitionfortheiconsoftheFunctions ............................................................................... 8 3.5USBFunction .......................................................................................................................... 8 3.6TFCardStorage ...................................................................................................................... 9 4NetworkAccess ................................................................................................................................ 9 4.1NetworkAccessbyWi-Fi ....................................................................................................... 9 5Storage ........................................................................................................................................... 10 6MainFunctionsIntroduction ......................................................................................................... 10 6.1AudioFunction ..................................................................................................................... 10 6.2Picture&VideoFunction ....................................................................................................... 12 6.3RecordFunction ................................................................................................................... 13 6.4InternetBrowser .................................................................................................................. 14 6.5EmailFunction ..................................................................................................................... 16 6.6APKInstaller ......................................................................................................................... 17 6.7Camera ................................................................................................................................. 20 7SystemSettings .............................................................................................................................. 21 7.1Wireless&NetworksSetting ............................................................................................... 22 7.2SoundSetting ....................................................................................................................... 22 7.3DisplaySetting. .................................................................................................................... 22 7.4ScreenshotSetting ............................................................................................................... 22 7.5SecuritySetting. ................................................................................................................... 22 7.6ApplicationsSetting. ............................................................................................................ 22 7.7Backup&resetSetting. ......................................................................................................... 22 7.8StorageSetting. .................................................................................................................... 22 7.9Language&InputSetting. ................................................................................................... 22 7.10AboutTabletSetting. ......................................................................................................... 22 8FAQ ................................................................................................................................................. 22 3 1Announcement ThanksforbuyingtheTabletPC.Themanualistointroducethefunctionsofthedevice,aswellas matterswhichneedattention.Pleasereadthismanualcarefullytocreatetheenjoymentwiththe tablet. 1.Pleasekeepthedeviceawayfrommoistanddust. 2.DonotputthedeviceinHigh-temperatureenvironment,especiallyclosedcarinhotweather. 3.Donotdroporstrikethedevice. 4.Donotshakethedeviceviolently,especiallytheLCDScreenpart.Or,itwillcauseabnormal displayonthescreen. 5.Pleasechoosepropervolumewhenusingtheearphonewhichwillbegoodforyourear. 6.Pleasechargethedevicewhen (1)Thepowericonshowslowestpower. (2)Thedeviceisturnedoffautomatically,andwhenyouturniton,itisturnedoff automaticallyagain. (3)Noresponsewhenoperatingthebuttons. 【Note】Pleaseusethechargerofferedbymanufacturertocharge,otherchargersmaycause damagetothedevice. 7.DonotdisconnectthedevicefromPCwhendownloading,uploadingorformatting,otherwise, itwillcauseprogrammingerrorsonthedevice. 8.Donotdismountingthedeviceprivatelywithoutprofessionalguidance. 9.Donotusealcohol,thinnerorbenzene-chemicaltocleanthesurfaceofthedevice. 10.Donotusethedeviceinforbiddenplace,likeairplane. 11 .Pleaseback-upyourfilesindev…

Text truncated - open the document above for the full version.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 MEERA INTERNATIONAL LIMITED ______________________________________________________ 3/24/2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AASXMTNTB785IPS We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Kalwani/ Manager Contact information / address: MEERA INTERNATIONAL LIMITED / 301 Kam On Building, 176A Queen's Road Central, Central,

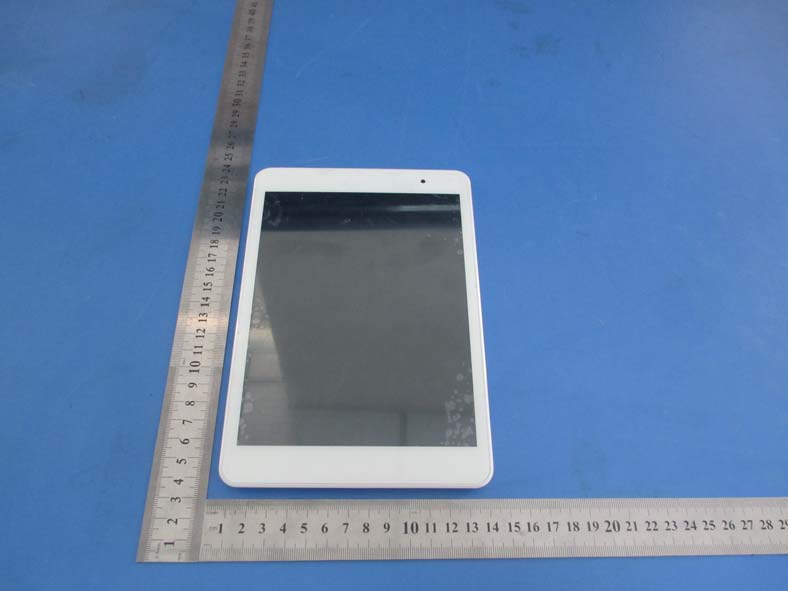

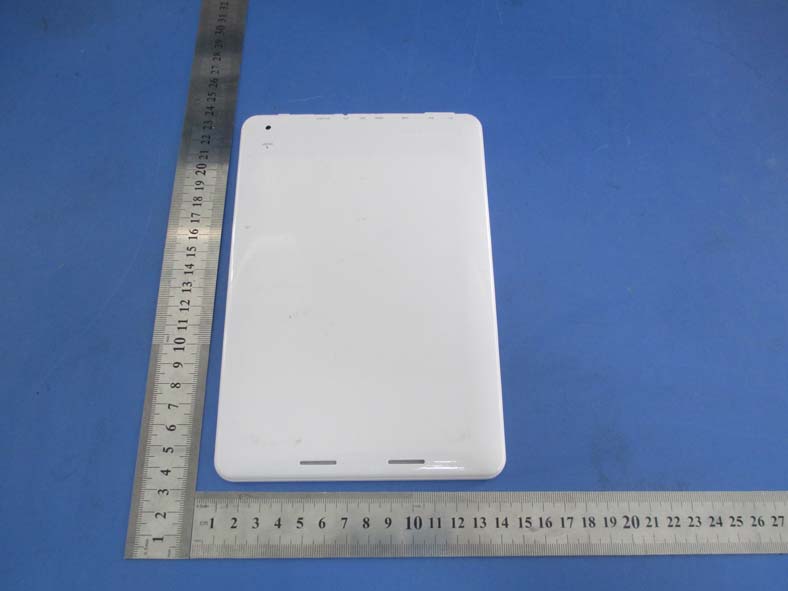

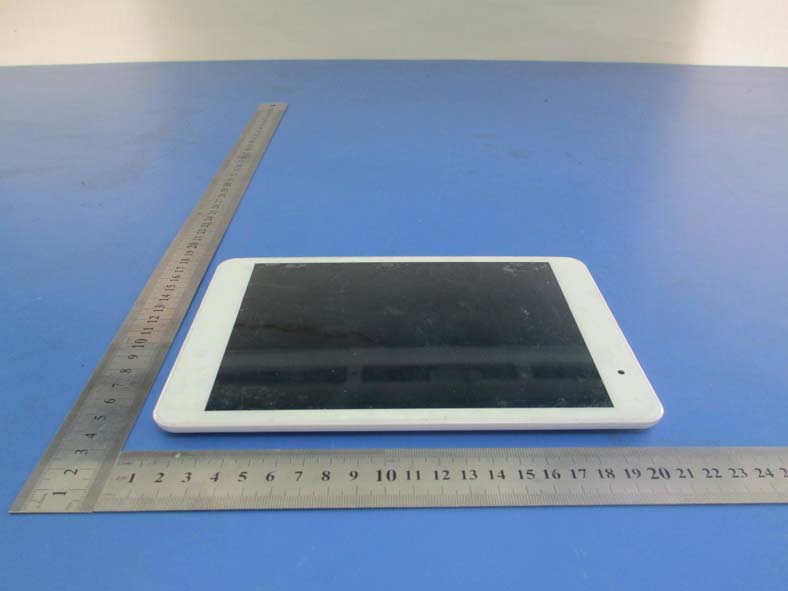

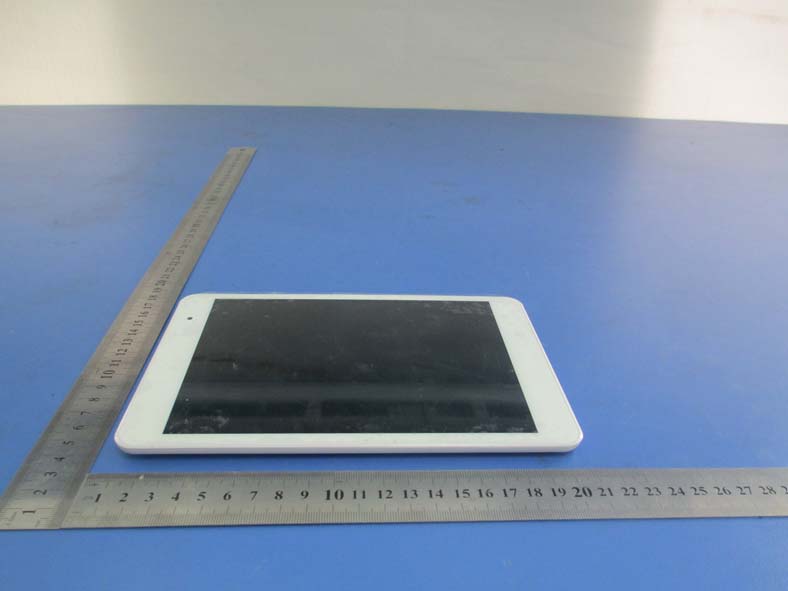

Title: EMC Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 140210106-FCC-E Issue Date: March 20, 2014 Page: 19 of 35 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Whole Package - Top View Title: EMC Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 140210106-FCC-E Issue Date: March 20, 2014 Page: 20 of 35 www.siemic.com.cn EUT - Front View EUT - Rear View Title: EMC Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 140210106-FCC-E Issue Date: March 20, 2014 Page: 21 of 35 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: EMC Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 140210106-FCC-E Issue Date: March 20, 2014 Page: 22 of 35 www.siemic.com.cn EUT - Left View EUT - Right View

Label and Location: Model No: INPUT:DC 5V 2A FCC ID: Made in china This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MT-785 IPS 7.85inch Tablet PC 2AASXMTNTB785IPS

Label Location: Lable Location

Title: EMC Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 140210106-FCC-E Issue Date: March 20, 2014 Page: 23 of 35 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View 1 Cover Off - Top View 2 WIFI Antenna BT Antenna Title: EMC Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 140210106-FCC-E Issue Date: March 20, 2014 Page: 24 of 35 www.siemic.com.cn Battery - Top View Battery - Bottom View Title: EMC Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 140210106-FCC-E Issue Date: March 20, 2014 Page: 25 of 35 www.siemic.com.cn LCD - Top View LCD - Bottom View Title: EMC Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 140210106-FCC-E Issue Date: March 20, 2014 Page: 26 of 35 www.siemic.com.cn EUT PCB - Top View EUT PCB - Bottom View Title: EMC Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 140210106-FCC-E Issue Date: March 20, 2014 Page: 27 of 35 www.siemic.com.cn Uncover Without Shielding - Top View

MEERA INTERNATIONAL LIMITED 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS March 20, 2014 Report No.: 14020106-FCC-H1 (This report supersedes none) Modifications made to the product : None This Test Report is Issued Under the Authority of: Amos Xia Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Exposure Evaluation Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: §15.247 (i), §2.1093 Report No.: 14020106-FCC-H1 Issue Date: March 20, 2014 Page: 2 of 9 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Exposure Evaluation Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: §15.247 (i), §2.1093 Report No.: 14020106-FCC-H1 Issue Date: March 20, 2014 Page: 3 of 9 www.siemic.com.cn This page has been left blank intentionally. Title: RF Exposure Evaluation Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: §15.247 (i), §2.1093 Report No.: 14020106-FCC-H1 Issue Date: March 20, 2014 Page: 4 of 9 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 Title: RF Exposure Evaluation Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: §15.247 (i), §2.1093 Report No.: 14020106-FCC-H1 Issue Date: March 20, 2014 Page: 5 of 9 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the MEERA INTERNATIONAL LIMITED, 7.85inch Tablet PC and model: MT-785 IPS against the current Stipulated Standards. The 7.85inch Tablet PC has demonstrated compliance with the §15.247 (i), §2.1093. EUT Information EUT Description 7.85inch Tablet PC Main Model MT-785 IPS Serial Model NTB-785 IPS Antenna Gain Bluetooth:0.39dBi WIFI: 0.42dBi Input Power Li-ion Battery: 3.7V 4000mAh POWER SUPPLY: Model: XHY050200UUCH Input: AC 100-240V 50/60Hz 0.5A MAX Output: DC 5.0V 2.0A Classification Per Stipulated Test Standard §15.247 (i), §2.1093 Title: RF Exposure Evaluation Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: §15.247 (i), §2.1093 Report No.: 14020106-FCC-H1 Issue Date: March 20, 2014 Page: 6 of 9 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of 7.85inch Tablet PC with stipulated standard Applicant / Client MEERA INTERNATIONAL LIMITED 301 Kam On Building, 176A Queen's Road Central, Central, Hong Kong， China Manufacturer Shenzhen Beneworld Technology Co. Ltd. Building 3, Huangtian Industrial Park, Xixiang, Baoan District, Shenzhen, Guangdong, China Laboratory performing the tests SIEMIC (Nanjing-China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel: +86(25)86730128/86730129 Fax: +86(25)86730127 Email: [email protected] Test report reference number 14020106-FCC-H1 Date EUT received February 21, 2014 Standard applied §15.247 (i), §2.1093 Dates of test (from – to) March 10 to March 19, 2014 No of Units : #1 Equipment Category : Spread Spectrum System/Device Trade Name : N/A RF Operating Frequency (ies) 802.11b/g/n: 2412-2462 MHz Bluetooth: 2402-2480 MHz Number of Channels Bluetooth: 79CH 802.11b/g/n: 11CH Modulation 802.11b/g/n: CCK/OFDM Bluetooth: GFSK&π/4-DQPSK &8DPSK Port Earphone Port, HDMI Port, USB Port FCC ID 2AASXMTNTB785IPS Title: RF Exposure Evaluation Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: §15.247 (i), §2.1093 Report No.: 14020106-FCC-H1 Issue Date: March 20, 2014 Page: 7 of 9 www.siemic.com.cn 3 MODIFICATION NONE Title: RF Exposure Evaluation Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: §15.247 (i), §2.1093 Report No.: 14020106-FCC-H1 Issue Date: March 20, 2014 Page: 8 of 9 www.siemic.com.cn 4 TEST SUMMARY The product was tested in accordance with the following specifications. All testing has been performed according to below product classification: Test Results Summary FCC Rules Description of Test Result §15.247 (i), §2.1093 RF Exposure Compliance Title: RF Exposure Evaluation Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: §15.247 (i), §2.1093 Report No.: 14020106-FCC-H1 Issue Date: March 20, 2014 P…

Text truncated - open the document above for the full version.

MEERA INTERNATIONAL LIMITED 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS March 20, 2014 Report No.: 14020106-FCC-R2 (This report supersedes none) Modifications made to the product : None This Test Report is Issued Under the Authority of: Amos Xia Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 14020106-FCC-R2 Issue Date: March 20, 2014 Page: 2 of 73 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 14020106-FCC-R2 Issue Date: March 20, 2014 Page: 3 of 73 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 14020106-FCC-R2 Issue Date: March 20, 2014 Page: 4 of 73 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 52 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 57 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 68 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 72 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 73 Title: RF Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 14020106-FCC-R2 Issue Date: March 20, 2014 Page: 5 of 73 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the MEERA INTERNATIONAL LIMITED, 7.85inch Tablet PC and model: MT-785 IPS against the current Stipulated Standards. The 7.85inch Tablet PC has demonstrated compliance with the FCC Part 15.247: 2013, ANSI C63.4: 2009. EUT Information EUT Description 7.85inch Tablet PC Main Model MT-785 IPS Serial Model NTB-785 IPS Antenna Gain Bluetooth:0.39 dBi WIFI: 0.42 dBi Input Power Li-ion Battery: 3.7V 4000mAh POWER SUPPLY: Model: XHY050200UUCH Input: AC 100-240V 50/60Hz 0.5A MAX Output: DC 5.0V 2.0A Classification Per Stipulated Test Standard FCC Part 15.247: 2013, ANSI C63.4: 2009 Note:the difference between these models please refer to the Annex E. Title: RF Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 14020106-FCC-R2 Issue Date: March 20, 2014 Page: 6 of 73 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of 7.85inch Tablet PC with stipulated standard Applicant / Client MEERA INTERNATIONAL LIMITED 301 Kam On Building, 176A Queen's Road Central, Central, Hong Kong，China Manufacturer Shenzhen Beneworld Technology Co. Ltd. Building 3, Huangtian Industrial Park, Xixiang, Baoan District, Shenzhen, Guangdong, China Laboratory performing the tests SIEMIC (Nanjing-China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel: +86(25)86730128/86730129 Fax: +86(25)86730127 Email: [email protected] Test report reference number 14020106-FCC-R2 Date EUT received February 21, 2014 Standard applied FCC Part 15.247: 2013, ANSI C63.4: 2009 Dates of test (from – to) December 26, 2013 to January 05, 2014 No of Units : #1 Equipment Category : DTS Trade Name : N/A RF Operating Frequency (ies) 802.11b/g/n: 2412-2462 MHz Bluetooth : 2402-2480 MHz Number of Channels Bluetooth: 79CH 802.11b/g/n: 11CH Modulation 802.11b/g/n: CCK/OFDM Bluetooth: GFSK&π/4-DQPSK &8DPSK GPRS Multi-slot class 8/10/12 Port Earphone Port, HDMI Port, USB Port FCC ID 2AASX MTNTB785IPS Title: RF Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Mod…

Text truncated - open the document above for the full version.

Title: RF Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 14020106-FCC-R2 Issue Date: March 20, 2014 Page: 66 of 73 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Conducted Emissions Test Setup – Front View Conducted Emissions Test Setup – Side View Title: RF Test Report for 7.85inch Tablet PC Main Model: MT-785 IPS Serial Model: NTB-785 IPS To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 14020106-FCC-R2 Issue Date: March 20, 2014 Page: 67 of 73 www.siemic.com.cn Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View
