2AATB-000002Video Bridge

Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. FOR MOBILE DEVICE USAGE (>20cm/low power) Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES) Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only. P/N:150500021700T

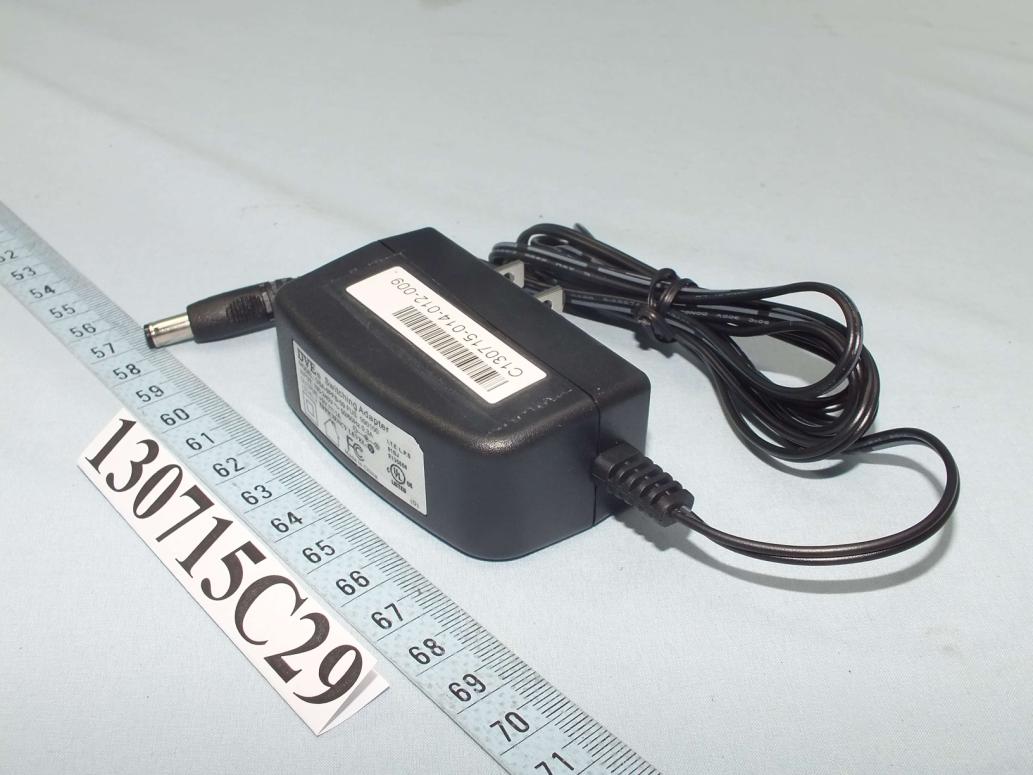

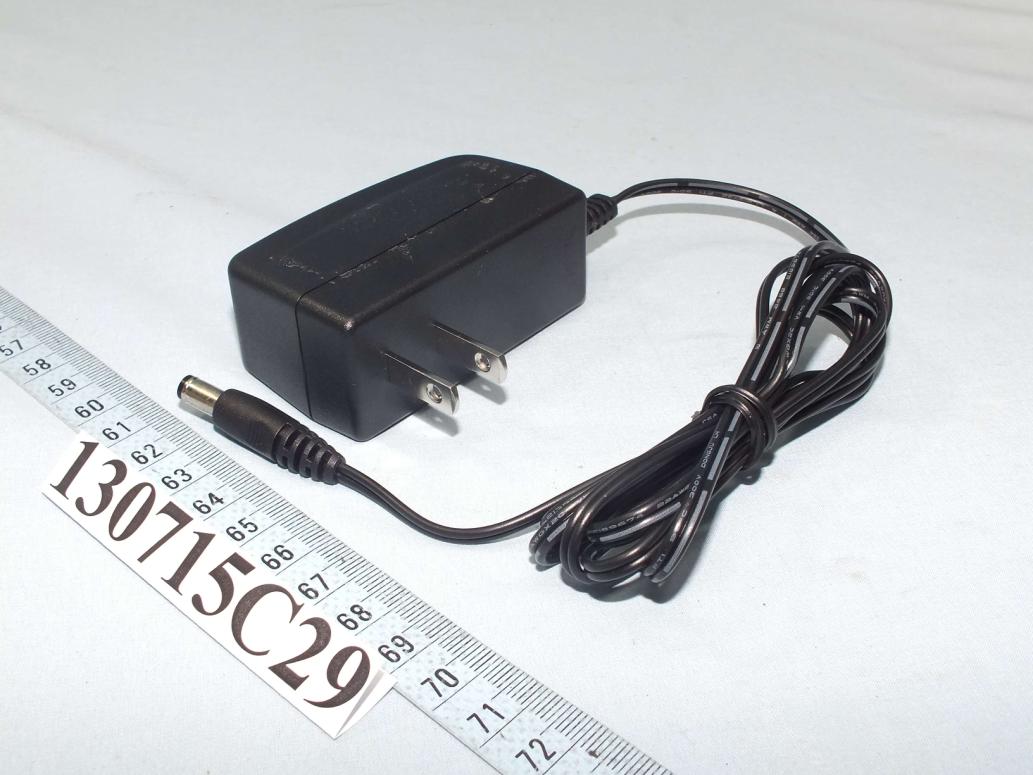

1 CONSTRUCTION PHOTOS OF EUT 2 10 11

Back Cover of EUT FCC ID: 2AATB-000002 Label Location

SN:A9D00006LAM MAC:00803F1A3200 ÌD1I00026MAB~Î Í :v!ÈA644bÎ Made in China WAP-7420 Video Bridge 9V 1.0 A FCC ID:2AATB-000002

3 4 5 6 7 8 9

Report No.: SA130715C29 1 of 5 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA130715C29 MODEL NO.: WAP-7420 FCC ID: 2AATB-000002 RECEIVED: Jul. 15, 2013 ISSUED: Aug. 14, 2013 APPLICANT: TATUNG TECHNOLOGY INC ADDRESS: 22, CHUNGSHAN N.RD., 3RD SEC.,TAIPEI, TAIWAN, 10435 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA130715C29 2 of 5 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION .............................................................................................. 4 2. RF EXPOSURE ................................................................................................ 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................ 5 2.2 MPE CALCULATION FORMULA ....................................................................... 5 2.3 CLASSIFICATION .............................................................................................. 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ..................... 5 Report No.: SA130715C29 3 of 5 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130715C29 Original release Aug. 14, 2013 Report No.: SA130715C29 4 of 5 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Video Bridge MODEL: WAP-7420 BRAND: TATUNG TECHNOLOGY INC APPLICANT: TATUNG TECHNOLOGY INC TEST SAMPLE: Production Unit STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: WAP-7420) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE : Aug. 14, 2013 Vera Huang / Specialist APPROVED BY : , DATE : Aug. 14, 2013 Gordon Lin / Assistant Manager Report No.: SA130715C29 5 of 5 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER Frequency band (MHz) Conducted Avg. power (dBm) Antenna Gain (dBi) E.I.R.P. (mW) Power Density (mW/cm2) Limit (mW/cm2) 5190-5230 16.02 9.01 318.42 0.063 1 5755-5795 21.82 8.67 1119.44 0.223 1 Note: For 5190-5230: Directional gain = 2.99dBi + 10log(4) = 9.01dBi For 5755-5795: Directional gain = 2.65dBi + 10log(4) = 8.67dBi

Report No.: RF130715C29 1 of 37 Report Format Version 5.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF130715C29 MODEL NO.: WAP-7420 FCC ID: 2AATB-000002 RECEIVED: Jul. 15, 2013 TESTED: Jul. 18, 2013 ~ Aug. 07, 2013 ISSUED: Aug. 14, 2013 APPLICANT: TATUNG TECHNOLOGY INC ADDRESS: 22, CHUNGSHAN N.RD., 3RD SEC.,TAIPEI, TAIWAN, 10435 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF130715C29 2 of 37 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 4 1. CERTIFICATION .......................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................ 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 7 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................... 8 3.3 DESCRIPTION OF SUPPORT UNITS ....................................................................... 10 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 10 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 11 4. TEST TYPES AND RESULTS .................................................................................... 12 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................... 12 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .................. 12 4.1.2 TEST INSTRUMENTS ................................................................................................ 13 4.1.3 TEST PROCEDURES ................................................................................................ 14 4.1.4 DEVIATION FROM TEST STANDARD ...................................................................... 14 4.1.5 TEST SETUP .............................................................................................................. 15 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 15 4.1.7 TEST RESULTS ......................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 19 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 19 4.2.2 T EST INSTRUMENTS ............................................................................................... 19 4.2.3 TEST PROCEDURES ................................................................................................ 20 4.2.4 DEVIATION FROM TEST STANDARD ...................................................................... 20 4.2.5 TEST SETUP .............................................................................................................. 20 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 20 4.2.7 TEST RESULTS ......................................................................................................... 21 4.3 6dB BANDWIDTH MEASUREMENT .......................................................................... 23 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................... 23 4.3.2 TEST SETUP .............................................................................................................. 23 4.3.3 TEST INSTRUMENTS ................................................................................................ 23 4.3.4 TEST PROCEDURE ................................................................................................... 23 4.3.5 DEVIATION FROM TEST STANDARD ...................................................................... 23 4.3.6 EUT OPERATING CONDITIONS .................................................…

Text truncated - open the document above for the full version.

Report No.: RF130715C29-1 1 of 36 Report Format Version 5.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF130715C29-1 MODEL NO.: WAP-7420 FCC ID: 2AATB-000002 RECEIVED: Jul. 15, 2013 TESTED: Jul. 18, 2013 ~ Aug. 07, 2013 ISSUED: Aug. 14, 2013 APPLICANT: TATUNG TECHNOLOGY INC ADDRESS: 22, CHUNGSHAN N.RD., 3RD SEC.,TAIPEI, TAIWAN, 10435 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF130715C29-1 2 of 36 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD 4 1. CERTIFICATION 5 2. SUMMARY OF TEST RESULTS 6 2.1 MEASUREMENT uncertainty 6 3. GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 7 3.2.1 Test Mode Applicability and tested channel detail 8 3.3 DESCRIPTION OF SUPPORT UNITS 10 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST 10 3.4 Duty cycle of test signal 11 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS 11 4. TEST TYPES AND RESULTS 12 4.1 Radiated Emission AND BANDEDGE Measurement 12 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT 12 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS 13 4.1.3 TEST INSTRUMENTS 14 4.1.4 TEST PROCEDURES 15 4.1.5 DEVIATION FROM TEST STANDARD 15 4.1.6 TEST SETUP 16 4.1.7 EUT OPERATING CONDITION 16 4.1.8 Test RESULTs 17 4.2 CONDUCTED EMISSION MEASUREMENT 20 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT 20 4.2.2 TEST INSTRUMENTS 20 4.2.3 TEST PROCEDURES 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS 22 4.3 Peak transmit power MEASUREMENT 24 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT 24 4.3.2 TEST SETUP 24 4.3.3 TEST INSTRUMENTS 24 4.3.4 TEST PROCEDURE 25 4.3.5 DEVIATION FROM TEST STANDARD 25 4.3.6 EUT OPERATING CONDITIONS 25 4.3.7 TEST RESULTS 26 4.4 PEAK power spectral density measurement 27 4.4.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT 27 4.4.2 TEST SETUP 27 Report No.: RF130715C29-1 3 of 36 Report Format Version 5.0.0 4.4.3 TEST INSTRUMENTS 27 4.4.4 TEST PROCEDURES 27 4.4.5 DEVIATION FROM TEST STANDARD 28 4.4.6 EUT OPERATING CONDITIONS 28 4.4.7 TEST RESULTS 28 4.5 Peak power EXCURSION MEASUREMENT 29 4.5.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT 29 4.5.2 TEST SETUP 29 4.5.3 TEST INSTRUMENTS 29 4.5.4 TEST PROCEDURE 29 4.5.5 DEVIATION FROM TEST STANDARD 29 4.5.6 EUT OPERATING CONDITIONS 29 4.5.7 TEST RESULTS 30 4.6 FREQUENCY STABILITY 31 4.6.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT 31 4.6.2 TEST SETUP 31 4.6.3 TEST INSTRUMENTS 31 4.6.4 TEST PROCEDURE 32 4.6.5 DEVIATION FROM TEST STANDARD 32 4.6.6 EUT OPERATING CONDITION 32 4.6.7 TEST RESULTS 33 5. PHOTOGRAPHS OF THE TEST CONFIGURATION 34 6. INFORMATION ON THE TESTING LABORATORIES 35 7. APPENDIX A - Modifications recorders for engineering changes to the eut BY THE LAB 36 Report No.: RF130715C29-1 4 of 36 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF130715C29-1 Original release Aug. 14, 2013 Report No.: RF130715C29-1 5 of 36 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Video Bridge MODEL NO.: WAP-7420 BRAND: TATUNG TECHNOLOGY INC APPLICANT: TATUNG TECHNOLOGY INC TESTED: Jul. 18, 2013 ~ Aug. 07, 2013 TEST SAMPLE: Production Unit STANDARDS: FCC Part 15, Subpart E (Section 15.407) ANSI C63.10-2009 The above equipment (model: WAP-7420) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE : Aug. 14, 2013 Vera Huang / Specialist APPROVED BY : , DATE : Aug. 14, 2013 Sam Chen / Assistant Manager Report No.: RF130715C29-1 6 of 36 Report Format Version 5.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC PART 15, SUBPART E (SECTION 15.407) STANDARD SECTION TEST TYPE RESULT REMARK 15.407(b)(6) AC Power Conducted Emission PASS Meet the requirement of limit. Minimum passing margin is -7.95dB at 16.22656MHz. 15.407(b/1/2/3) (b)(6) Spurious Emissions PASS Meet the requirement of limit. Minimum passing margin is -0.16dB at 5150MHz. 15.407(a/1/2) Peak Transmit Power PASS Meet the requirement …

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
