2AATB-WAP-3518-01Dual Band Wireless Router

WAP-3518 Dual Band Wireless Router Quick Start Guide Panel 1 Power LED： 5 WAN Port： Off：No power Connect a network cable into this port On(Green Light)：Device is ready to establish WAN connection. When in Flashing(Orange Light)：WPS is MESH mode, WAN port works as a LAN processing or enter the reset mode. Port. 2 5G Signal LED： 6 LAN Port: No light：No 5GHz signal. Connect a network cable into these Green Light：5GHz Wireless system ports to establish LAN connection. is ready. 7 Reset Button: Flashing Green Light：Transmitting or Press and hold the button for 10 receiving data via wireless connection. seconds. When the power indicator is 3 2.4G Signal LED： flashing orange light, the router will No Light：No 2.4GHz signal. enter the reset mode, and revert back to Green Light：2.4GHz Wireless system Factory settings. is ready. 8 WPS Button: Flashing Green Light：Transmitting or Pushing this button will initiate automatic receiving data via wireless connection. pairing. 4 Power (DC IN) Port： Connect your router to an AC socket with the power adapter. Safety Information  Do not let liquids make contact with the router. If this happens, wipe the router with a dry cloth immediately.  Do not use thinner, alcohol, benzene or other chemicals when cleaning the box.  To avoid electrical shock, do not disassemble the case.  To prevent overheating and damage to the router, avoid placing router in areas with dust and sand.  To avoid areas with strong magnetic fields, do not place the router near metallic objects or similar environments.  Do not place the router under direct sunlight or expose router to extreme temperatures.  Do not drop, hit, or place heavy objects on the router. 1. Installation Wired Connection a. Plug in power adapter. b. Use a network cable to connect modem and router's WAN port. c. Use a network cable to connect your computer and router's LAN port. Wireless Connection Method 1: Manually connect to the network a. Plug in power adapter. b. Use a network cable to connect modem and router's WAN port. c. Connect your computer or mobile phone to router via WiFi:  SSID：TTI_3518_5G or TTI_3518_2.4G  Password：00000000 (default value) Method 2: Use WPS to connect to the network (Do not use WPS if the wireless network has not been encrypted) a. Press down on the WPS button on router until the power light flashes orange indicating that the WPS pairing is in progress. b. When router power light flashes orange, start the WPS pairing on your wireless device within 2 minutes, or follow the instructions on the wireless device to set WPS. c. Your wireless device will start scanning and will connect to the router's wireless network. When the power light on router stops flashing, the device and router has successfully connected. 2. Router Set-Up via Mobile Phone App a. Connect your mobile phone to router via WiFi. SSID：TTI_3518_5G or TTI_3518_2.4G Password：00000000 (default value) b. Open the Mobile Phone App, key in the default user name (admin) and password (admin). c. After login, you can now set-up router. 3.R outer Set-Up via Web UI Your Wireless Router comes with an intuitive web graphical user interface (GUI) that allows you to easily configure its various features through a web browser such as Internet Explorer, Firefox, Safari, or Google Chrome. Login to Web UI(Wired Connection or Wireless Connection by computer) a. Manually key in the wireless router's default IP address ( 192.168.10.1) on your web browser. b. On the login page, key in the default user name (admin) and password (admin). c. You can now use the Web GUI to configure various settings of your Wireless Router. 4.E asy Mesh Set Up Controller Device Set up a)Use network cable and connect your modem or router LAN port to the LAN port on the first WAP- 3518 and plug in the power supply. b)Connect to the WAP-3518 device with a smart device (notebook or mobile phone) Wired connection -- Connect to the LAN port of the WAP-3518 device via the RJ-45 cable. Wireless connection -- a wireless network connected to the WAP-3518 device SSID：TTI_3518_5G or TTI_3518_2.4G Password：00000000 (default value) c)Launch a web browser, type in the IP address (192.168.10.1) in the browser’s address bar of the WAP-3518 device. d)On the login page, type in the default user name (admin) and password (admin). e)Follow the setup steps below to set up the Controller Device. 1.Click the EASYMESH tab on the left menu. 2. Then select the Role as a Controller (wlan0 is the default value for the Backhaul BSS). 3.Click Save & Apply to finish the Controller Device set up. Agent Device Set up a)Plug the power adapter in to the second WAP-3518. b)Connect to the second WAP-3518 device with a smart device (notebook or mobile phone) Wired connection -- Connect to the LAN port of the WAP-3518 device via the RJ-45 cable. Wireless connection -- a wireless network connected to the WAP-3518 device SSID：TTI_3518_5G or TTI_3518_2.4G Password：00000000 (default value) c) Launch a web browser, type in the IP address (192.168.10.1) in the browser’s address bar of the WAP-3518 device. d) On the login page, type in the default user name (admin) and password (admin). e) Follow the setup steps below to set up the Controller Device. 4. Click the EASYMESH tab on the left menu. 5. Then select the Role as an Agent (wlan0 is the default value for the Backhaul BSS). 6. Click Save & Apply to finish the Agent Device set up. Easy Mesh Connection Set up a) Press and hold the WPS bottom of the first (Controller) and the second WAP-3518 (Agent) for more than two seconds, until the power light of both flashes orange indicating that the WPS pairing is in progress. b) Wait until the power light turn to green solid light, which indicates the WAP-3518 Controller and Agent has been successfully connected wirelessly. c) If necessary, you can set the third WAP-3518 (Agent), refer to the: Agent Device Set up & Easy Mesh Connection Set up. 5. Mounting Instruction Elegant design to have multiple usage sc…

Text truncated - open the document above for the full version.

Tatung Technology Inc. QA-FR-171-A FCC Confidential Authorization 2021-04-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AATB-WAP-3518-01 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, T atung T ec hnol og y I nc . hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Jo y Hsu / M anager jo y [email protected] 1 0 F, No .2 8 8 , Sec 6 , Civ ic Blv d, Xiny i D ist, Ta ipe i City 1 1 0 8 7 , Taiwan

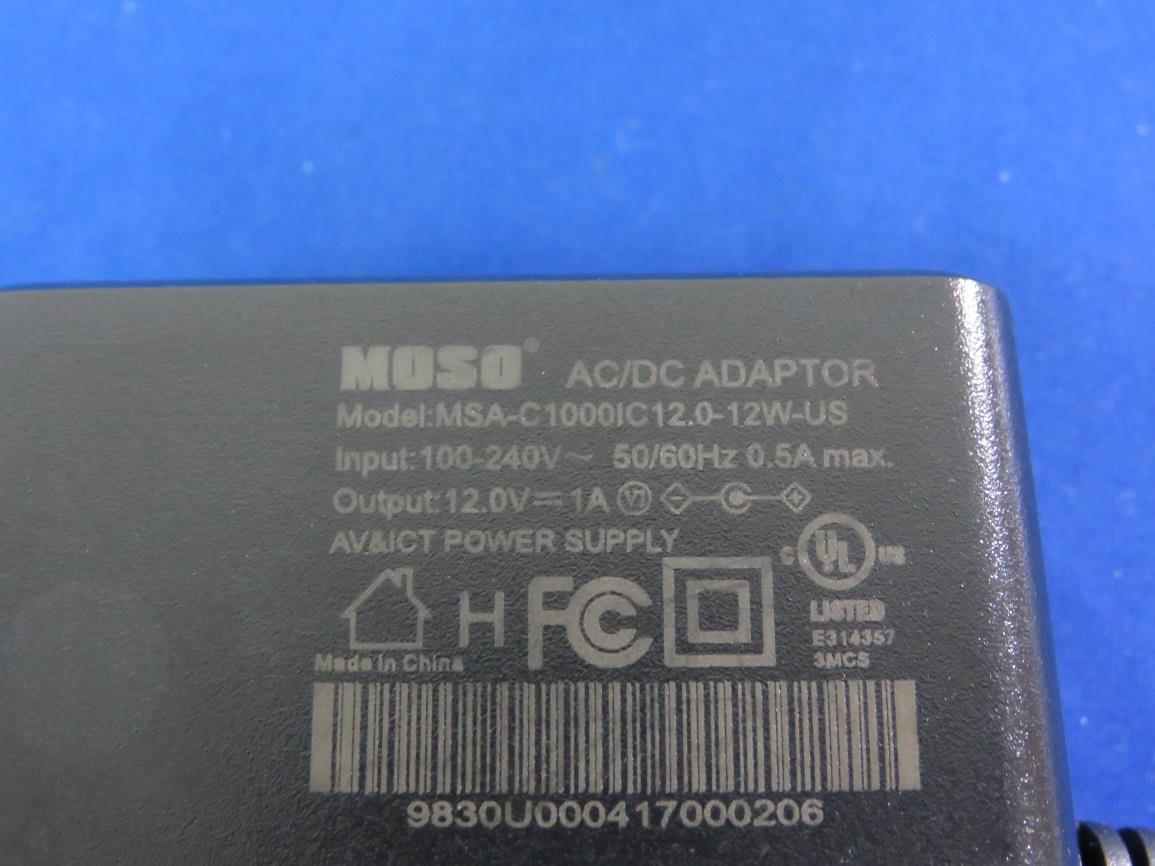

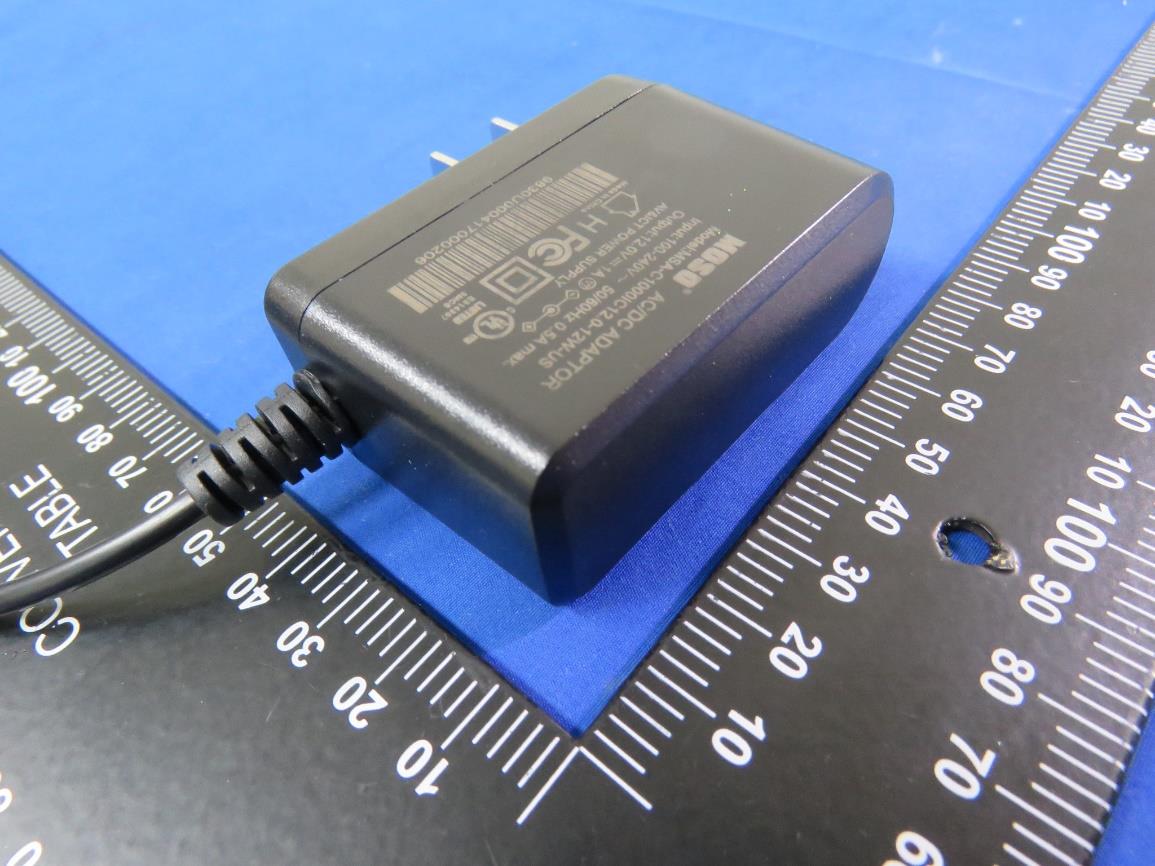

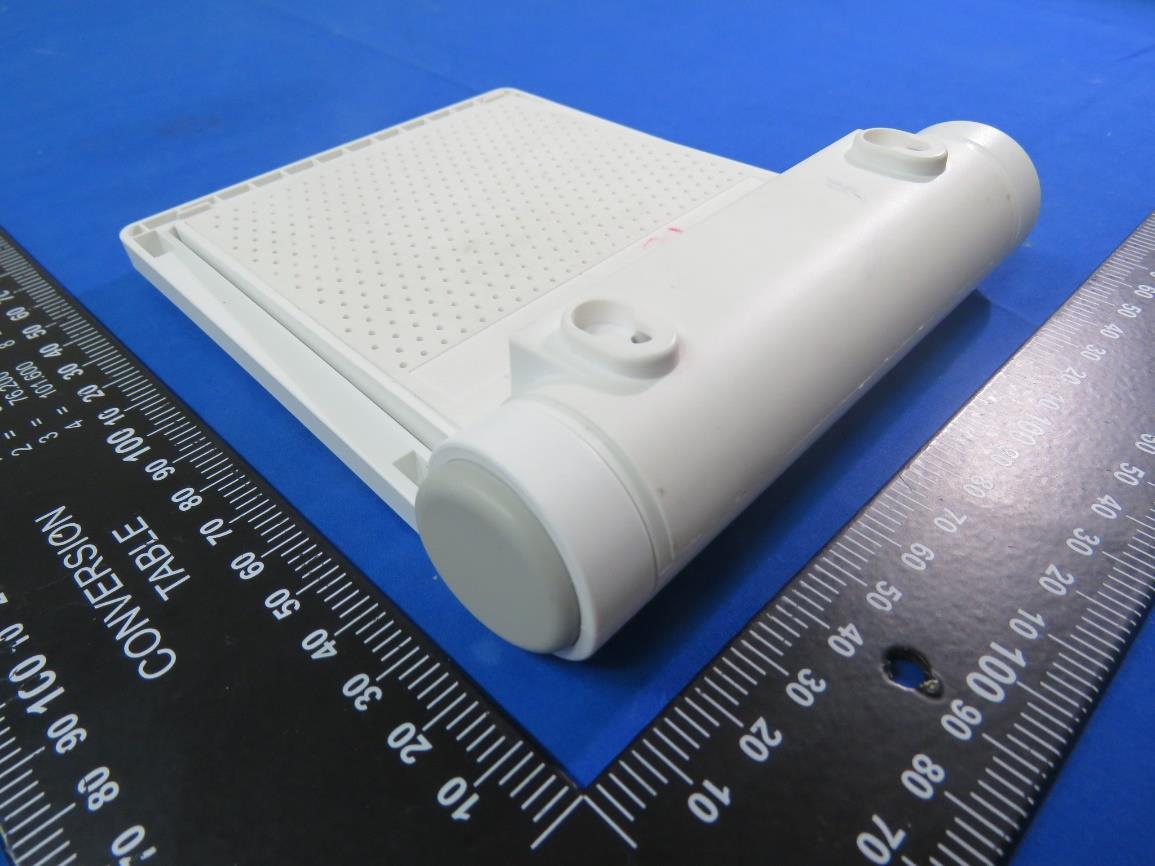

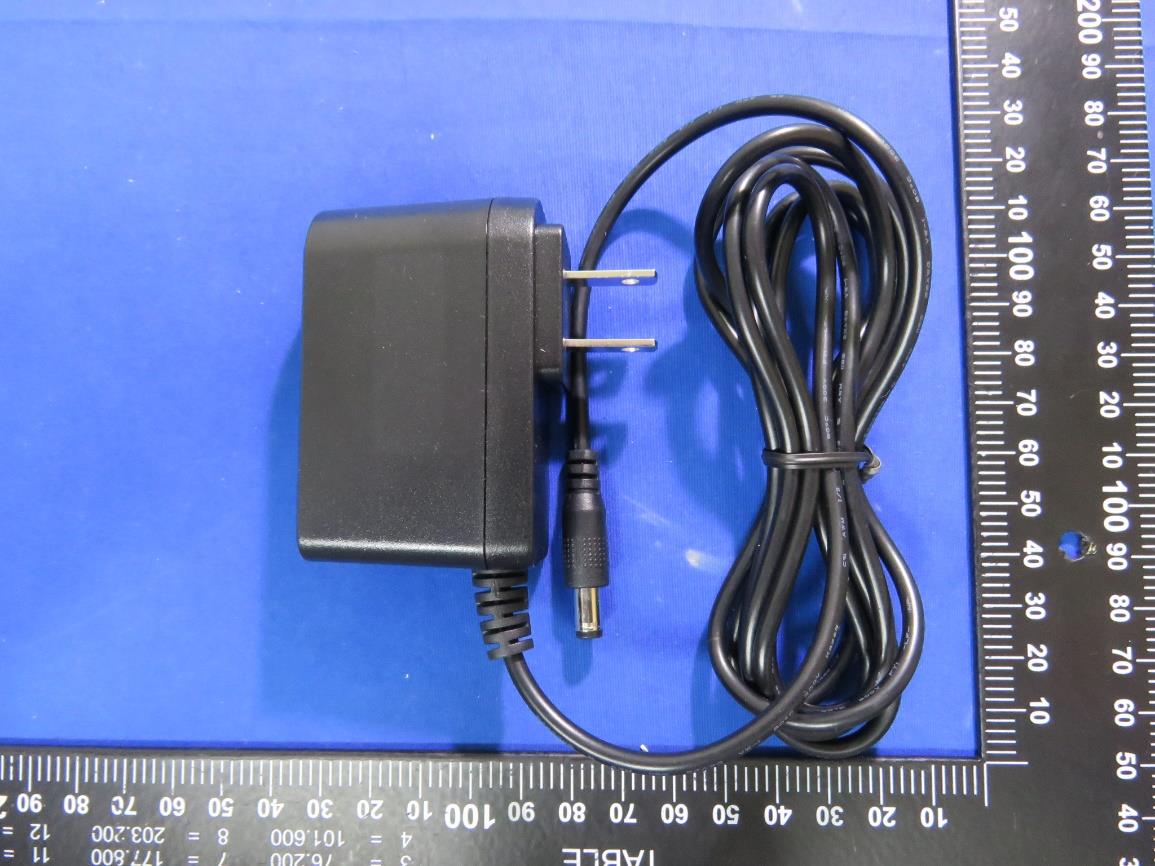

Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK210317001-FRW Page 1 of 5 External Photographs External Photos Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK210317001-FRW Page 2 of 5 Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK210317001-FRW Page 3 of 5 Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK210317001-FRW Page 4 of 5 Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK210317001-FRW Page 5 of 5

TITLE Placement of Labels NO. PAGE DATE 1/1 APPRO.Check.DSGN. REV. R01 MODEL ASSI. DEPT. ENGINEERING SPECIFICATION Q.C.P.E.INCOMINGDESIGN WAP-3518 2021/05/24 Una Chien Serial No.: XXXXXXXXXXX ÌD1I00026MAB~Î WAP-3518 Dual Band Wireless Router DC Input: 12V 1 A Made in China Serial No.: XXXXXXXXXXX ÌD1I00026MAB~Î WAP-3518 Dual Band Wireless Router DC Input: 12V 1 A Made in China P/N: 146000178400T System Label Scale: 100% Size: 100 x 12mm

Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK210317001-FRW Page 1 of 5 Internal Photographs Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK210317001-FRW Page 2 of 5 Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK210317001-FRW Page 3 of 5 Antenna Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK210317001-FRW Page 4 of 5 Wi-Fi 5G Module (Chip) Wi-Fi 2.4G Module (Chip) Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK210317001-FRW Page 5 of 5

Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK210317001-FRW02 Page 12 of 51 4 FCC§15.407(f), §1.1307, § 2.1091 – Maximum Permissible Exposure (MPE) 4.1 Applicable Standard According to §15.407(f), U-NII devices are subject to the radio frequency radiation exposure requirements specified in § 1.1307(b), and 2.1091 of this chapter, as appropriate. All equipment shall be considered to operate in a "general population/uncontrolled" environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: 4.2 RF Exposure Evaluation Result MPE Evaluation: Mode Frequency Range (MHz) Antenna Gain Target Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) Wi-Fi 2.4G 2412-2462 3.20 2.0893 30.00 1000.0000 20 0.4159 1.0 Wi-Fi 5G UNII-1 5150-5250 3.20 2.0893 25.00 316.2278 20 0.1315 1.0 Wi-Fi 5G UNII-3 5745-5850 3.20 2.0893 25.00 316.2278 20 0.1315 1.0 Note: Wi-Fi 2.4G and Wi-Fi 5G can’t simultaneously. Result: MPE evaluation of single transmission meet the requirement of standard.

FCC Part 15.407 TEST REPORT For Tatung Technology Inc. 10F, No. 288, Sec. 6, Civic Blvd, Xinyi Dist, Taipei City 11087, Taiwan Report Type Original Report FCC Identity: FCC ID: 2AATB-WAP-3518-01 Brand Name Product Name Dual Band Wireless Router Model Name WAP-3518 Report Number RLK210317001-FRW02 Report Date 2021/05/31 Reviewed By Zeus Chen Prepared By: Bay Area Compliance Laboratories Corp.(Linkou Laboratory) No. 6, Wende 2Rd., Guishan Dist., Taoyuan City 33382, Taiwan (R.O.C.) Tel: +886 (3)3961072; Fax: +886 (3) 3961027 www.bacl.com.tw Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK210317001-FRW02 Page 2 of 51 Revision History Revision Report Number Issue Date Description 1.0 RLK210317001-FRW02 2021/05/31 Original Report Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK210317001-FRW02 Page 3 of 51 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................................................ 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 1.2 OPERATION CONDITION OF EUT ........................................................................................................................... 5 1.3 OBJECTIVE AND TEST METHODOLOGY .................................................................................................................... 5 1.4 MEASUREMENT UNCERTAINTY .............................................................................................................................. 5 1.5 ENVIRONMENTAL CONDITIONS AND TEST DATE ........................................................................................................ 6 1.6 TEST FACILITY .................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION ....................................................................................................................... 7 2.1 TEST CHANNELS AND DESCRIPTION OF WORST TEST CONFIGURATION .......................................................................... 7 2.2 SUPPORT EQUIPMENT LIST AND EXTERNAL CABLE LIST ............................................................................................... 8 2.3 BLOCK DIAGRAM OF TEST SETUP ........................................................................................................................... 9 2.4 DUTY CYCLE ...................................................................................................................................................... 9 3 SUMMARY OF TEST RESULTS ......................................................................................................................... 11 4 FCC§15.247(I), §1.1307, § 2.1091 – MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................ 12 4.1 APPLICABLE STANDARD ...................................................................................................................................... 12 4.2 RF EXPOSURE EVALUATION RESULT ..................................................................................................................... 12 5 FCC §15.203 - ANTENNA REQUIREMENTS ...................................................................................................... 13 5.1 APPLICABLE STANDARD ...................................................................................................................................... 13 5.2 ANTENNA LIST AND DETAILS ............................................................................................................................... 13 6 FCC §15.207 - AC LINE CONDUCTED EMISSIONS ............................................................................................. 14 6.1 APPLICABLE STANDARD ...................................................................................................................................... 14 6.2 EUT SETUP AND TEST PROCEDURE ...................................................................................................................... 14 6.3 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 15 6.4 TEST RESULT .................................................................................................................................................... 15 7 FCC §15.209, §15.205, §15.407(B) – SPURIOUS EMISSIONS ............................................................................ 16 7.1 APPLICABLE STANDARD ...................................................................................................................................... 16 7.2 EUT SETUP AND TEST PROCEDURE ...................................................................................................................... 18 7.3 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 19 7.4 TEST RESULT .................................................................................................................................................... 20 8 FCC §15.407(A) AND §15.407(E) –EMISSION BANDWIDTH ............................................................................. 28 8.1 APPLICABLE STANDARD ...................................................................................................................................... 28 8.2 TEST PROCEDURE ..............................................................................................................…
