2AATD-PREMIUMBSV23Base station for the abatec LPM systems

User manual LPM Basisstation Ser.1 Basisstation LPM Basisstation Ser. 1 power supply: 100 - 240VAC / 50 - 60Hz power: 12 W transmission power:: 25mW EIRP transmission frequency: 5,725 – 5,875 GHz, licence-free ISM Band data transfer to the LPM server LWL Multimode dimensions: 197 x 138 x 70mm weight: 1,6 kg type of protection: IP65 antenna: Patch: 65°h / 35°v / 11dBi The base station measures the time differences of transponders and base station followed by transmitting them to the Hub (Multiplexer). The base stations has to be installed by the supplier. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. inmotiotec GmbH Local Position Measurement The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AATD-PremiumBSV23 The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AATD-PremiumBSV23 ISM 5,8GHzFrequency 25mW EIRPTransm. power 110 -230VACPower supply 123456Serial no. Premium BS V23Product ISM 5,8GHzFrequency 25mW EIRPTransm. power 110 -230VACPower supply 123456Serial no. Premium BS V23Product Safety Precautions for technical personal: Follow the instructions below to prevent damage to the device and the risk of fire or electric shock: • Use the power adapter supplied with the unit and plug it into a suitably rated power outlet. • Leave sufficient space around the device to allow the free flow of air for heat dissipation. Do not cover the device as this will result in the device overheating. • Do not install in a damp environment or allow fluid to spill on the device or Power Supply. • Install on a stable surface. Support: Telefon: 0043 7672 27720 – 0 Web: http://www.abatec-ag.com/inmotiotec-rtls/

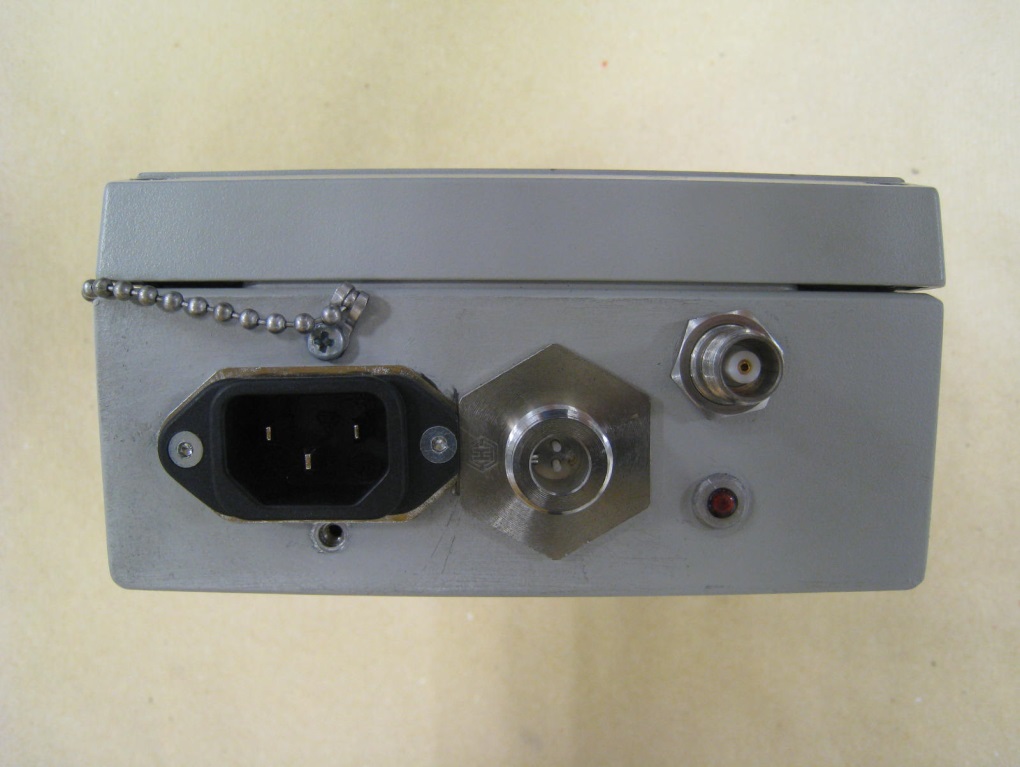

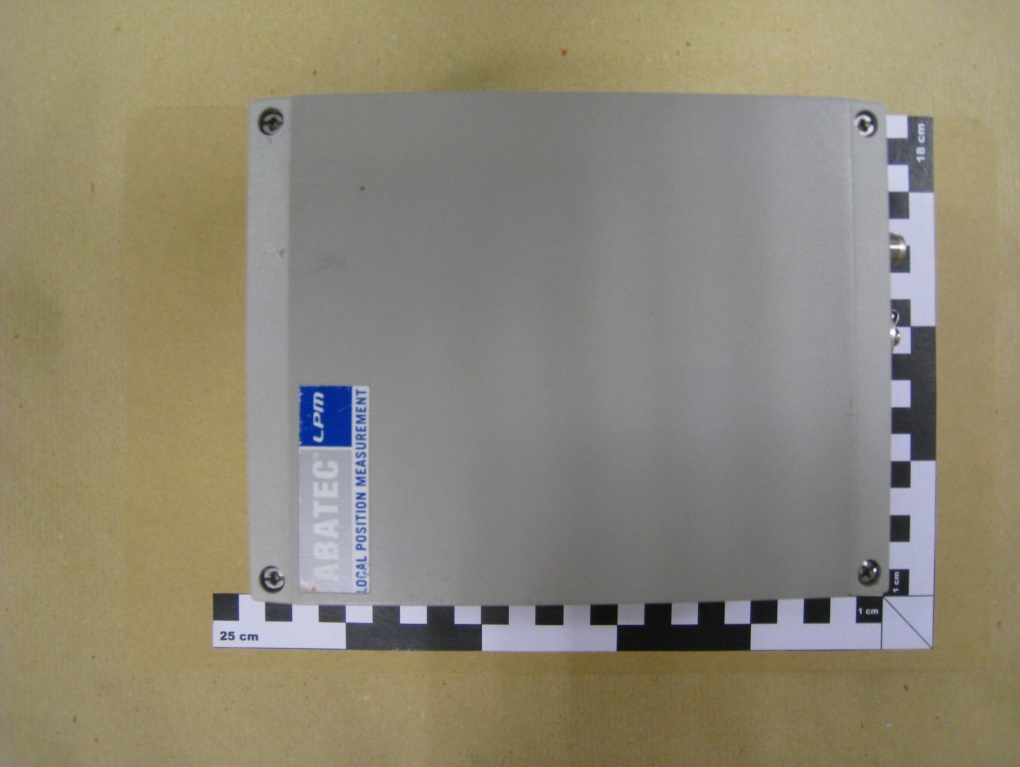

External Photos page 1 Model No.: LPM Basisstation Ser. 1 FCC ID: 2AATD-PREMIUMBSV23 Project No.: G0M-1308-3097 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany External Photos page 2 Model No.: LPM Basisstation Ser. 1 FCC ID: 2AATD-PREMIUMBSV23 Project No.: G0M-1308-3097 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Label Sampel and Label Location page 1 Model No.:LPM Basistation Ser.1 FCC ID: 2AATD-PREMIUMBSV23 Project No.: G0M-1308-3097 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Internal Photos page 1 Model No.: LPM Basisstation Ser. 1 FCC ID: 2AATD-PREMIUMBSV23 Project No.: G0M-1308-3097 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany Internal Photos page 2 Model No.: LPM Basisstation Ser. 1 FCC ID: 2AATD-PREMIUMBSV23 Project No.: G0M-1308-3097 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

HUBER+SUHNER

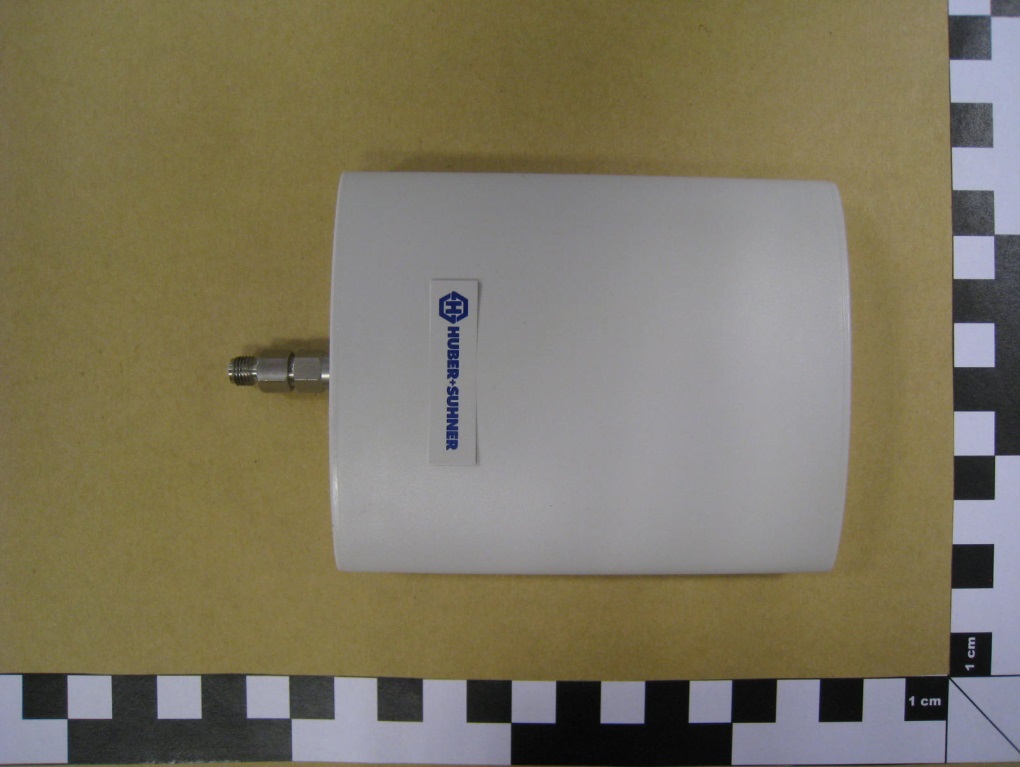

PLANAR ANTENNA FOR WIRELESS COMMUNICATION SPA 5600/65/12/0/V Technical Data Electrical Properties Frequency range 5150 – 5875 MHz Impedance 50 Ω VSWR 1.5 Polarization linear, vertical Gain 11.5 dBi 3 dB beamwidth horizontal 65° 3 dB beamwidth vertical 35° Downtilt 0° Front to back ratio 18 dB Max. power 80 W (CW) at 50°C Mechanical Properties Dimensions 101 x 80 x 20 mm (3.97” x 3.15” x 0.79”) Weight 0.13 kg (0.29 lbs.) Radome material ASA Radome color RAL 7035 (light-grey) Operating temperature range - 40°C to + 80°C Storage temperature range - 40°C to + 80°C Windload15 N at 160km/h (100mph) Available TypesArticle no. 1356.19.000223041806SMA female 1356.26.000223041809TNC female Mounting Hardware Wall and mast mounting bracket (1 metal band) included, mast diameter 40-60 mm (1.57” – 2.36”) vertical horizontal Radiation Pattern Back to Main Menu Mounting and security instructions see HUBER+SUHNER document number 01.02.0777. The document can be ordered at HUBER+SUHNER AG, Switzerland. Document no.:01.02.0980 Uncontrolled Copy Issue no.: 1Issued/Checked/Released:4159/4174/10.2003 Supersedes: 10.2003Last amended:4159 HUBER+SUHNER AG Wired Solutions + Networks Communication + Power Networks CH-9100 Herisau , Switzerland Tel.: +41 (0)71 353 41 11 Fax: +41 (0)71 353 47 51 www.hubersuhner.com WAIVER! While the information contained has been carefully compiled to the best of our present knowledge, it is not intended as representation or warranty of any kind on our part regarding the fitness of the products concerned for any particular use or purpose and neither shall any statement contained herein be construed as a recommendation to infringe any industrial property rights or as a license to use any such rights. The fitness of each product for any particular purpose must be checked beforehand with our specialists. HUBER+SUHNER group is certified according to ISO 9001 and ISO 14001. HUBER+SUHNER
PLANAR ANTENNA FOR WIRELESS COMMUNICATION SPA 5600/65/12/0/V Dimensions (mm) Back to Main Menu

Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 27 EMC TEST REPORT FCC 47 CFR Part 15B Industry Canada RSS-Gen Electromagnetic compatibility - Unintentional radiators Report Reference No. ..................... : G0M-1308-3097-EF01-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address ............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ...................................... A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : inmotiotec GmbH Address ............................................. : Oberregauer Straße 48 4844 Regau AUSTRIA Test specification: Standard ........................................... : 47 CFR Part 15 Subpart B RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Basisstation Model No. LPM Basisstation Ser.1 Additional Models None Hardware version H2.3 Firmware / Software version fcc0 Contains FCC-ID: 2AATD-PREMIUMBSV23 IC: N/A Test result Passed Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 27 Version History Version Issue Date Remarks Revised by V01 2014-12-04 Initial Release Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 27 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment external 6 1.2 Photos – Equipment internal 8 1.3 Photos – Test setup 10 1.4 Supporting Equipment Used During Testing 11 1.5 Input / Output Ports 11 1.6 Operating Modes and Configurations 12 1.7 Test Equipment Used During Testing 13 1.8 Sample emission level calculation 14 2 RESULT SUMMARY 15 3 TEST CONDITIONS AND RESULTS 16 3.1 Test Conditions and Results – Radiated emissions 16 3.2 Test Conditions and Results – AC power line conducted emissions 24 Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 27 1 Equipment (Test item) Description Description Basisstation Model LPM Basisstation Ser.1 Additional Models None Serial number None Hardware version H2.3 Software / Firmware version fcc0 Contains FCC-ID 2AATD-PREMIUMBSV23 Contains IC N/A Power supply 120 VAC AC/DC-Adaptor None Manufacturer Abatec Group AG Oberregauerstraße 48 4844 Regau Austria Highest emission frequency Fmax [MHz] = 110 Device classification Class B Equipment type Tabletop Number of tested samples 1 Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 27 1.1 Photos – Equipment external EUT OVERVIEW EUT TOP Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 27 EUT CONNECTORS ANTENNA1 TOP Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 27 1.2 Photos – Equipment internal EUT OPEN PCB TOP Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 27 PCB BOTTOM PCB RF-PART Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 27 1.3 Photos – Test setup Test Setup : Radiated Emissions Test Setup : Conducted Emissions Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 27 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE Antenna Huber & Suhner Planar Antenna SPA 5600/65/12/0/V *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables 1.5 Input / Output Ports Port # Name Type* Max. Cable Length Cable Shielded Comments 1 AC power port AC >3m No - 2 Fiber Optic Port N/E up to 1000 m No Abatec Protocol no standard 3 Antenna I/O >3m Yes - *Note: Use the following abbreviations: AC : AC power port DC : DC power port N/E : Non electrical I/O : Signal input or output port TP : Telecommunication port Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 27 1.6 Operating Modes and Configurations Mode # Description 1 TX mode Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 13 of 27 1.7 Test Equipment Used During Testing Measurement Software Description Manufacturer Name Version EMC Test Software Dare Instruments Radimation 2014.1.15 Radiated emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Biconical Antenna R&S HK 116 EF00012 2013-02 2016-02 LPD-Antenne R&S HL 223 EF00187 2014-03 2017-03 Horn antenna Schwarzbeck BBHA 9120D EF00018 2013-09 2016-09 EMI Test Receiver R&S ESU8 EF00379 2014-03 2015-03 EMI Test Receiver R&S ESCS30 EF00295 2014-10 2015-10 Conducted emissions Description Manufacturer Model Identifier Cal. Date Cal. Due AMN R&S ESH3-Z5 EF00036 2012-11 2014-11 EMI Test Receiver R&S ESCS 30 EF00295 2014-10 2015-10 Test Report No.: G0M-1308-3097-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 14 of 27 1.8 Sample emission level calculation The following is a description of terms and a sample calculation, as appears in the radiated emissions data table. The numbers used in the calculation are for example only. There is no direct correlation to the specific data taken for the product described in this document: Reading: This is the reading obtained on the spectrum analyzer in dBμV. Any external preamplifiers used are taken into accou…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 46 FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Intentional radiator operating within the 2400 – 2483.5 MHz band Report Reference No. ..................... : G0M-1308-3097-TFC249DT-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : inmotiotec GmbH Address ............................................ : Oberregauer Straße 48 4844 Regau AUSTRIA Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Basisstation Model No. LPM Basisstation Ser.1 Additional Model(s) None Brand Name(s) None Hardware version H2.3 Firmware / Software version fcc0 FCC-ID: 2AATD-PREMIUMBSV23 IC: N/A Test result Passed Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 46 Version History Version Issue Date Remarks Revised by 01 2014-12-04 Initial Release Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 46 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION: 5 1.1 Photos – Equipment External 7 1.2 Photos – Equipment internal 11 1.3 Photos – Test setup 13 1.4 Supporting Equipment Used During Testing 14 1.5 Test Modes 15 1.6 Test Equipment Used During Testing 16 1.7 Sample emission level calculation 17 2 RESULT SUMMARY 18 3 TEST CONDITIONS AND RESULTS 19 3.1 Test Conditions and Results – Fundamental field strength emissions 19 3.2 Test Conditions and Results – Emissions radiated outside the specified frequency band 21 3.4 Test Conditions and Results – AC power line conducted emissions 24 ANNEX A Fundamental field strength emissions 27 ANNEX B Transmitter radiated spurious emissions 33 Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 46 1 Equipment (Test item) Description: Description Basisstation Model LPM Basisstation Ser.1 Additional Model(s) None Brand Name(s) None Serial number None Hardware version H2.3 Software / Firmware version fcc0 FCC-ID 2AATD-PREMIUMBSV23 IC N/A Equipment type End product Radio type Transceiver Radio technology custom Operating frequency range 5738.633 MHz Assigned frequency band 5725 - 5875 MHz Frequency range F MID 5738.633 MHz Spreading None Modulations 2-FSK Number of channels 1 Channel spacing None Number of antennas 1 Antenna 1 Type external dedicated Model Planar Antenna SPA 5600/65/12/0/V Manufacturer HUBER & SUHNER Gain 11.5 dBi Antenna 2 Type external dedicated Model OMNI-S Antenna SWA-2459/360/4/45/V Manufacturer HUBER & SUHNER Gain 4.0 dBi Antenna 3 Type external dedicated Model Flat Panel Antenna XW-5XO-FP7 Manufacturer Luxul Gain -7.0 dBi (Circular) Manufacturer Abatec Group AG Oberregauerstraße 48 4844 Regau Austria Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 46 Power supply V NOM 120 VAC V MIN N/A V MIN N/A AC/DC-Adaptor Model N/A Vendor N/A Input N/A Output N/A Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 46 1.1 Photos – Equipment External EUT OVERVIEW EUT TOP Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 46 EUT LABEL EUT CONNECTORS Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 46 ANTENNA1 TOP ANTENNA2 TOP Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 46 ANTENNA3 TOP ANTENNA3 BOTTOM Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 46 1.2 Photos – Equipment internal EUT OPEN PCB TOP Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 46 PCB BOTTOM PCB RF-PART Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 13 of 46 1.3 Photos – Test setup RADIATED TEST SETUP CONDUCTED TEST SETUP Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 14 of 46 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments None *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 15 of 46 1.5 Test Modes Mode # Description Single General conditions: EUT powered by fully charged battery Radio conditions: Mode = standalone transmit Modulation = 2-FSK Power level = Maximum Test Report No.: G0M-1308-3097-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 16 of 46 1.6 Test Equipment Used During Testing Measurement Software Description Manufacturer Name Version EMC Test Software Dare Instruments Radimation 2014.1.15 Occupied Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2014-02 2015-02…

Text truncated - open the document above for the full version.

Test Set-Up Photos page 1 Model No.: LPM Basistation Ser. 1 FCC ID: 2AATD-PREMIUMBSV23 Project No.: G0M-1308-3097 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany
