2AATD-TPV23Standard measurement transponder for the abatec LPM systems

User manual transponder LPM Tp. Ser.1 Transponder LPM Tp. Ser. 1 power supply: Lithium-Ion Akku: 1500mAh, 3,7VDC runtime: appr. 5 hours transmission power: 25mW EIRP transmission frequency: 5,725 – 5,875 GHz, licence free ISM dimension: 90 x 60 x 15mm (L x B x D) weight: 61 g data channel: 4 Byte/Messzyklus type of protection: IP54 balun antenna: 360°h / 120°v / 3 dBi antennas: F-antenna: 360°h / 90°v / 4 dBi The shock- and waterproof transponders are available in different types. Individual adjustments are possible after inquiry. The transponder is triggered by the master base station to transmit its own radio signal. The transponder is used by the user or operator and can be used in sports or entertainment. The transponder can also be used for tracking vehicles or animals. The transponder communicates up to 1.000 measurements per second with the base stations and has a weight of 61 gram. The transponder has to be configured with a special software named transponder configurator. The user can add a special ID-number or he can also define how many antennas are connected with the transponder. With this software it is also possible to switch the transponder on or off This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. inmotiotec GmbH Local Position Measurement The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AATD-TPV23 The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AATD-TPV23 ISM 5,8GHzFrequency 25mW EIRPTransm. power Li-Pol 3,7VDCPower supply 123456Serial no. Transponder V23Product ISM 5,8GHzFrequency 25mW EIRPTransm. power Li-Pol 3,7VDCPower supply 123456Serial no. Transponder V23Product Disposal and recycling information The transponder must be disposed of properly according to local laws and regulations. Because it contains a battery, the transponder must be disposed of separately from household waste. When your transponder reaches its end of life, contact Inmotiotec. Battery replacement: The lithium-ion battery in your transponder should be replaced only by Inmotiotec and must be recycled or disposed of separately from household waste. . The symbol above means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your product and/or its battery at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. Support: Telefon: 0043 7672 27720 – 0 Web: http://www.abatec-ag.com/inmotiotec-rtls/

External Photos page 1 Model No.:LPM Tp. Ser.1 FCC ID: 2AATD-TPV23 Project No.: G0M-1309-3212 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Label Sampel and Label Location page 1 Model No.:LPM Tp.Ser.1 FCC ID: 2AATD-TPV23 Project No.: G0M-1309-3212 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

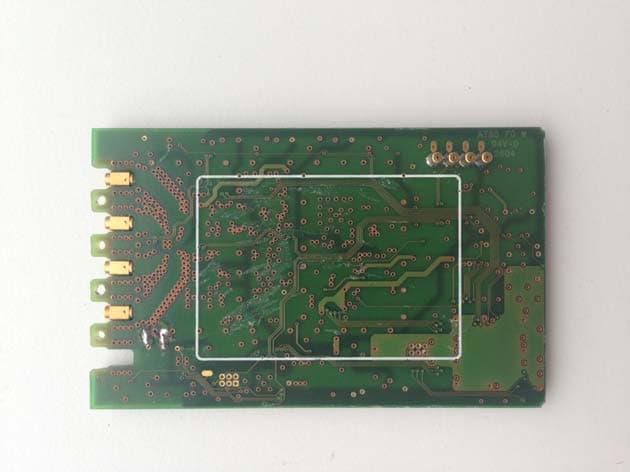

Internal Photos page 1 Model No.:LPM Tp. Ser.1 FCC ID: 2AATD-TPV23 Project No.: G0M-1309-3212 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany Internal Photos page 2 Model No.:LPM Tp. Ser.1 FCC ID: 2AATD-TPV23 Project No.: G0M-1309-3212 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 34 FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Intentional radiator operating within the 5735 - 5865 MHz band Report Reference No. .................... : G0M-1309-3212-TFC249D-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : inmotiotec GmbH Address ............................................ : Oberregauer Straße 48 4844 Regau AUSTRIA Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Transponder Model No. LPM Tp. Ser.1 Hardware version H2.3 Firmware / Software version fcc0 FCC-ID: 2AATD-TPV23 Test result Passed Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 34 Version History Version Issue Date Remarks Revised by 01 2013-09-119 Initial Release Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 34 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment External 6 1.2 Photos – Equipment internal 7 1.3 Photos – Test setup 8 1.4 Supporting Equipment Used During Testing 9 1.5 Test Modes 10 1.6 Test Equipment Used During Testing 11 1.7 Sample emission level calculation 12 2 RESULT SUMMARY 13 3 TEST CONDITIONS AND RESULTS 14 3.1 Test Conditions and Results – Fundamental field strength emissions 14 3.2 Test Conditions and Results – Emissions radiated outside the specified frequency band 16 3.3 Test Conditions and Results – AC power line conducted emissions 18 ANNEX A Fundamental field strength emissions 21 ANNEX B Transmitter radiated spurious emissions 25 Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 34 1 Equipment (Test item) Description Description Transponder Model LPM Tp. Ser.1 Serial number None Hardware version H2.3 Software / Firmware version fcc0 FCC-ID 2AATD-TPV23 Equipment type End product Radio type Transceiver Radio technology custom Operating frequency range 5735 - 5865 MHz Assigned frequency band 5725 - 5875 MHz Frequency range CSS F MID 5735 - 5865 MHz Frequency range FSK F MID 5862 MHz Spreading CSS & None (FSK) Modulations None (CSS) & FSK for telemetry mode Channel spacing None Number of antennas 2 Antenna 1 Type external dedicated Model Sperrtopf Antenne Manufacturer Abatec Gain 3 dBi Antenna 2 Type external dedicated Model F-Antenne Manufacturer Abatec Gain 3 dBi Manufacturer Abatec Group AG Oberregauerstraße 48 4844 Regau Austria Power supply V NOM 3.7 VDC (Lithium-Battery) 120VAC (Charging station) V MIN -- V MIN -- AC/DC-Adaptor Model N/A Vendor N/A Input N/A Output N/A Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 34 1.1 Photos – Equipment External EUT OVERVIEW WITH ANTENNAS EUT TOP EUT BOTTOM EUT LEFT SIDE EUT RIGHT SIDE Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 34 1.2 Photos – Equipment internal PCB TOP PCB BOTTOM PCB TOP WITHOUT SHIELDING PCB BOTTOM WITHOUT BATTERY Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 34 1.3 Photos – Test setup TESTSETUP RADIATED MEASUREMENTS TESTSETUP CONDUCTED MEASUREMNETS Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 34 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments None *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 34 1.5 Test Modes Mode # Description Single General conditions: EUT powered by fully charged battery Radio conditions: Mode = standalone transmit Modulation = FMCW / FSK Power level = Maximum Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 34 1.6 Test Equipment Used During Testing Field strength emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Semi-anechoic chamber Frankonia AC 5 EF00395 -- -- Spectrum Analyzer R&S FSIQ26 EF00242 2013-06 2014-06 Biconical Antenna R&S HK 116 EF00012 2013-02 2016-02 LPD Antenna R&S HL 223 EF00187 2011-02 2014-02 LPD Antenna R&S HL 025 EF00327 2013-02 2016-02 AC powerline conducted emissions Description Manufacturer Model Identifier Cal. Date Cal. Due AMN R&S ESH2-Z5 EF00182 2012-10 2014-10 AMN R&S ESH3-Z5 EF00036 2012-11 2014-11 EMI Test Receiver R&S ESCS 30 EF00297 2012-09 2013-09 Test Report No.: G0M-1309-3212-TFC249D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 34 1.7 Sample emission level calculation The following is a description of terms and a sample calculation, as appears in the radiated emissions data table. The numbers used in the calculation are for example only. There is no direct correlation to the specific data taken for the product described in this document: Reading: This is the reading obtained on the spectrum analyzer in dBμV. Any external preamplifiers used are taken…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1309-3212-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 20 EMC TEST REPORT FCC 47 CFR Part 15B Industry Canada RSS-Gen Electromagnetic compatibility - Unintentional radiators Report Reference No. .................... : G0M-1309-3212-EF01-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : inmotiotec GmbH Address ............................................ : Oberregauer Straße 48 4844 Regau AUSTRIA Test specification: Standard ........................................... : 47 CFR Part 15 Subpart B RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Transponder Model No. LPM Tp. Ser.1 Additional Models None Hardware version H2.3 Firmware / Software version fcc0 FCC-ID 2AATD-TPV23 Test result Passed Test Report No.: G0M-1309-3212-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 20 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 4 1.1 Photos – Equipment external 5 1.2 Photos – Equipment internal 6 1.3 Photos – Test setup 7 1.4 Supporting Equipment Used During Testing 8 1.5 Operating Modes 9 1.6 Test Equipment Used During Testing 10 1.7 Sample emission level calculation 11 2 RESULT SUMMARY 12 3 TEST CONDITIONS AND RESULTS 13 3.1 Test Conditions and Results – Radiated emissions 13 3.2 Test Conditions and Results – AC power line conducted emissions 18 Test Report No.: G0M-1309-3212-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 20 1 Equipment (Test item) Description Description Transponder Model LPM Tp. Ser.1 Additional Models None Serial number None Hardware version H2.3 Software / Firmware version fcc0 FCC-ID 2AATD-TPV23 Power supply 3.7 VDC (Lithium Battery) / 120VAC Charging station AC/DC-Adaptor None Manufacturer Abatec Group AG Oberregauerstraße 48 4844 Regau Austria Highest emission frequency Fmax [MHz] = 48 Device classification Class B Equipment type Tabletop Number of tested samples 1 Test Report No.: G0M-1309-3212-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 20 1.1 Photos – Equipment external EUT OVERVIEW WITH ANTENNAS EUT TOP EUT BOTTOM EUT LEFT SIDE EUT RIGHT SIDE Test Report No.: G0M-1309-3212-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 20 1.2 Photos – Equipment internal PCB TOP PCB BOTTOM PCB TOP WITHOUT SHIELDING PCB BOTTOM WITHOUT BATTERY Test Report No.: G0M-1309-3212-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 20 1.3 Photos – Test setup TESTSETUP RADIATED MEASUREMENTS TESTSETUP CONDUCTED MEASUREMNETS Test Report No.: G0M-1309-3212-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 20 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE Charging Station Inmotitec LPM *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Test Report No.: G0M-1309-3212-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 20 1.5 Operating Modes Mode # Description 1 Transmit mode active 2 Charging mode Test Report No.: G0M-1309-3212-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 20 1.6 Test Equipment Used During Testing Radiated emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Biconical Antenna R&S HK 116 EF00012 2013-02 2016-02 LPD-Antenne R&S HL 223 EF00187 2011-02 2014-02 LPD-Antenna R&S HL 025 EF00327 2013-02 2016-02 EMI Test Receiver R&S ESU8 EF00379 2013-03 2014-03 EMI Test Receiver R&S ESCS30 EF00295 2012-09 2013-09 Conducted emissions Description Manufacturer Model Identifier Cal. Date Cal. Due AMN R&S ESH2-Z5 EF00182 2012-10 2014-10 AMN R&S ESH3-Z5 EF00036 2012-11 2014-11 EMI Test Receiver R&S ESCS 30 EF00295 2012-09 2013-09 Test Report No.: G0M-1309-3212-EF01-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 20 1.7 Sample emission level calculation The following is a description of terms and a sample calculation, as appears in the radiated emissions data table. The numbers used in the calculation are for example only. There is no direct correlation to the specific data taken for the product described in this document: Reading: This is the reading obtained on the spectrum analyzer in dBμV. Any external preamplifiers used are taken into account through internal analyzer settings. A.F.: This is the antenna factor for the receiving antenna. It is a conversion factor, which converts electric fields strengths to voltages, which can be measured directly on the spectrum analyzer. It is treated as a loss in dB. Cable losses have been included with the A.F. to simplify the calculations. The antenna factor is used in calculations as follows: Reading on Analyzer (dBμV) + A.F. (dB) = Net field strength (dBμV/m) Net: This is the net field strength measurement (as shown above). Limit: This is the FCC Class B radiated emission limit (in units of dBμV/m). The FCC limits are given in units of μV/m. The following formula is used to convert the units of μV/m to dBμV/m: Limit (dBμV/m) = 20*log (μV/m) Margin: This is the margin of compliance below the FCC limit. The units are given in dB. A negative margin indicates the emission was below the limit. A positive margin indicates that the emission exceeds the limit. Example only: Re…

Text truncated - open the document above for the full version.

Test Set-Up Photos page 1 Model No.:LPM Tp. Ser.1 FCC ID: 2AATD-TPV23 Project No.: G0M-1309-3212 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany
