2AATFMA026WXWIFI module

www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 8 of 24 1.6 User Manual www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 9 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 10 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 11 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 12 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 13 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 14 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 15 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 16 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 17 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 18 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 19 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 20 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 21 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 22 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 23 of 24 www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 24 of 24

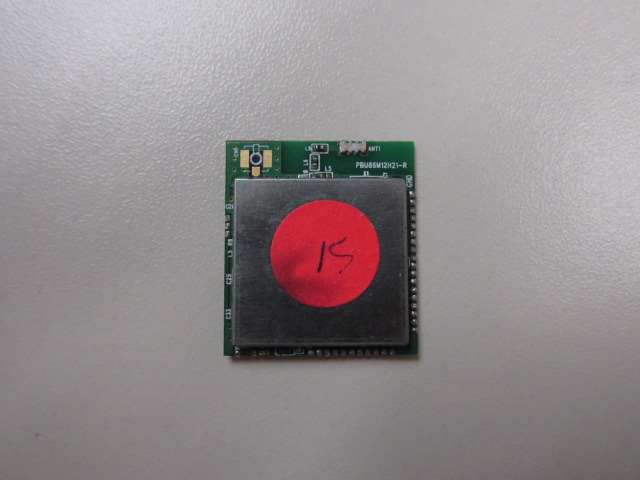

www.tuv.com Test Report No.: 14038604 001 Appendix 3 Page 2 of 2 External View External View

www.tuv.com Test Report No.: 14038604 001 Appendix 5 Page 2 of 24 1.1 FCCID Label Artwork

www.tuv.com Test Report No.: 14038604 001 Appendix 4 Page 2 of 2 Internal View Internal View

www.tuv.com Test Report No.: 14038604 001 Date:22.04.2015 Page 2 of 17 Table of Content Page Cover Page .............................................................................. 1 Table of Content ....................................................................... 2 Product information....................................................................................................... 4 Manufacturers declarations ....................................................................................................................... 4 Product function and intended use ........................................................................................................... 4 Submitted documents ................................................................................................................................. 4 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 5 Remark ......................................................................................................................................................... 5 Test Set-up and Operation Mode .................................................................................. 6 Principle of Configuration Selection ......................................................................................................... 6 Test Operation and Test Software ............................................................................................................. 6 Special Accessories and Auxiliary Equipment ......................................................................................... 6 Countermeasures to achieve EMC Compliance ....................................................................................... 6 Test Methodology .......................................................................................................... 7 Radiated Emission ...................................................................................................................................... 7 Field Strength Calculation .......................................................................................................................... 7 List of Test and Measurement Instruments ................................................................. 8 Results FCC Part 15 – Subpart C ................................................................................. 9 FCC 15.203 – Antenna Requirement 1 ............................................................................. Pass ................. 9 FCC 15.204 – Antenna Requirement 2 ............................................................................... N/A ................. 9 FCC 15.207 – Conducted Emission on AC Mains .......................................................... Pass ................. 9 FCC 15.247 (a)(2) – 6dB Bandwidth Measurement ........................................................ Pass ............... 10 FCC 15.247(b)(3) – Maximum Peak Couducted Output Power ..................................... Pass ............... 11 FCC 15.247(e) – Power Spectral Density......................................................................... Pass ............... 12 FCC 15.247(d) – Spurious Conducted Emissions .......................................................... Pass ............... 13 FCC 15.247 (d) – Band edge compliance of conducted emissions .............................. Pass ............... 14 FCC 15.247(d) or 15.205 – Radiated Emissions in Restricted Frequency Bands ....... Pass ............... 15 Appendix 1 – Test protocols 44 pages Appendix 2 – Test setup 2 pages www.tuv.com Test Report No.: 14038604 001 Date:22.04.2015 Page 3 of 17 Appendix 3 – EUT External Photos 2 pages Appendix 4 – EUT Internal Photos 2 pages Appendix 5 – Label, Operational Descriptions, Block Diagram, Schematics, User Manual 24 pages Appendix 6 – RF exposure information 2 pages www.tuv.com Test Report No.: 14038604 001 Date:22.04.2015 Page 4 of 17 Product information Manufacturers declarations Transceiver Operating frequency range 2412 - 2462 MHz Type of modulation DSSS, OFDM, MCS0-7 Number of channels 11 Channel separation 5 MHz Type of antenna Chip Antenna Antenna gain (dBi) 2.9 dBi Power level fix Type of equipment WIFI Module Connection to public utility power line No Nominal voltage V nor : 3.3 Vdc Independent Operation Modes Transmitting mode Product function and intended use The equipment under test (EUT) is a WIFI module using Texas Instruments CC3200 802.11b/g/n WIFI network processor. It is fully available for application development and rich peripheral interfaces to support a wide variety of network connectivity-based applications such as Internet of Things. It is operating from 2412MHz to 2462MHz, it supports 11 frequency channels and 20MHz bandwidth only. It uses integral chip antenna. This module could only be used in mobile or fix device which minimum separation distance between the radiator and the user or by-stander is 20cm. It is powered by 3.3VDC. FCC ID: 2AATFMA016WX Models Product description AW6202 WIFI module Submitted documents Circuit Diagram Block Diagram Bill of material User manual Label Independent Operation Modes The basic operation modes are: - WIFI transmit mode. For further information refer to User Manual www.tuv.com Test Report No.: 14038604 001 Date:22.04.2015 Page 5 of 17 Related Submittal(s) Grants This is a single application for certification of the single-modular transmitter. Remark Nil www.tuv.com Test Report No.: 14038604 001 Date:22.04.2015 Page 6 of 17 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in …

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14038604 001 Appendix 1 Page 1 of 44 Appendix 1 Test Results www.tuv.com Test Report No.: 14038604 001 Appendix 1 Page 2 of 44 AC Mains Conducted Emission Mode: 802.11b; TX frequency: 2437MHz; Line: L1 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV Mode: 802.11b; TX frequency: 2437MHz; Line: N 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV www.tuv.com Test Report No.: 14038604 001 Appendix 1 Page 3 of 44 Mode: 802.11g; TX frequency: 2437MHz; Line: L1 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV Mode: 802.11g; TX frequency: 2437MHz; Line: N 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV www.tuv.com Test Report No.: 14038604 001 Appendix 1 Page 4 of 44 Mode: 802.11n; TX frequency: 2437MHz; Line: L1 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV Mode: 802.11n; TX frequency: 2437MHz; Line: N 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV www.tuv.com Test Report No.: 14038604 001 Appendix 1 Page 5 of 44 6 dB Bandwidth Measurement Mode: 802.11b; TX frequency: 2412MHz A 2.40684 GHz Att 40 dB 2.40684 GHz * 2.40684 GHz Ref 10 dBm 2.40684 GHz Center 2.412 GHz 2.40684 GHz Span 20 MHz 2.40684 GHz 2 MHz/ 2.40684 GHz * 2.40684 GHz RBW 100 kHz 2.40684 GHzVBW 300 kHz 2.40684 GHz SWT 2.5 ms 2.40684 GHz 1 PK 2.40684 GHz MAXH 2.40684 GHz 2.40684 GHz 2.40684 GHz 2.40684 GHz 2.40684 GHz 2.40684 GHz 2.40684 GHz 2.40684 GHz 2.40684 GHz 2.40684 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.40684 GHz 1 Marker 1 [T1 ] -5.43 dB m 2.406840000 GHz 1 Delta 1 [T1 ] 1.54 dB 10.120000000 MHz D1 -3.48 dBm MARKER 1 2.40684 GHz Date: 7.APR.2015 09:39:16 Mode: 802.11b; TX frequency: 2437MHz A 2.43188 GHz Att 40 dB 2.43188 GHz * 2.43188 GHz Ref 10 dBm 2.43188 GHz 1 PK 2.43188 GHz MAXH 2.43188 GHz 2.43188 GHz 2.43188 GHz 2.43188 GHz 2.43188 GHz 2.43188 GHz 2.43188 GHz 2.43188 GHz 2.43188 GHz 2.43188 GHz Center 2.437 GHz 2.43188 GHz Span 20 MHz 2.43188 GHz 2 MHz/ 2.43188 GHz * 2.43188 GHz RBW 100 kHz 2.43188 GHzVBW 300 kHz 2.43188 GHz SWT 2.5 ms 2.43188 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.43188 GHz 1 Marker 1 [T1 ] -2.41 dBm 2.431880000 GHz 1 Delta 1 [T1 ] -0.39 dB 10.080000000 MHz D1 -2.37 dBm MARKER 1 2.43188 GHz Date: 7.APR.2015 09:42:18 www.tuv.com Test Report No.: 14038604 001 Appendix 1 Page 6 of 44 Mode: 802.11b; TX frequency: 2462MHz A 2.45688 GHz Att 40 dB 2.45688 GHz * 2.45688 GHz Ref 10 dBm 2.45688 GHz 1 PK 2.45688 GHz MAXH 2.45688 GHz 2.45688 GHz 2.45688 GHz 2.45688 GHz 2.45688 GHz 2.45688 GHz 2.45688 GHz 2.45688 GHz 2.45688 GHz 2.45688 GHz Center 2.462 GHz 2.45688 GHz Span 20 MHz 2.45688 GHz 2 MHz/ 2.45688 GHz * 2.45688 GHz RBW 100 kHz 2.45688 GHzVBW 300 kHz 2.45688 GHz SWT 2.5 ms 2.45688 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.45688 GHz 1 Marker 1 [T1 ] -2.26 dBm 2.456880000 GHz 1 Delta 1 [T1 ] -0.29 dB 10.040000000 MHz D1 -2.33 dBm MARKER 1 2.45688 GHz Date: 7.APR.2015 09:43:52 Mode: 802.11g; TX frequency: 2412MHz A 2.40436 GHz Att 40 dB 2.40436 GHz * 2.40436 GHz Ref 10 dBm 2.40436 GHz 2.40436 GHz 2.40436 GHz 2.40436 GHz 2.40436 GHz 2.40436 GHz 2.40436 GHz 2.40436 GHz 2.40436 GHz 2.40436 GHz 1 PK 2.40436 GHz MAXH 2.40436 GHz Center 2.412 GHz 2.40436 GHz Span 20 MHz 2.40436 GHz 2 MHz/ 2.40436 GHz * 2.40436 GHz RBW 100 kHz 2.40436 GHzVBW 300 kHz 2.40436 GHz SWT 2.5 ms 2.40436 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.40436 GHz 1 Marker 1 [T1 ] -7.68 dBm 2.404360000 GHz 1 Delta 1 [T1 ] 0.14 dB 15.160000000 MHz D1 -6.67 dBm MARKER 1 2.40436 GHz Date: 7.APR.2015 09:52:14 www.tuv.com Test Report No.: 14038604 001 Appendix 1 Page 7 of 44 Mode: 802.11g; TX frequency: 2437MHz A 2.42932 GHz Att 40 dB 2.42932 GHz * 2.42932 GHz Ref 10 dBm 2.42932 GHz 2.42932 GHz 2.42932 GHz 2.42932 GHz 2.42932 GHz 2.42932 GHz 2.42932 GHz 2.42932 GHz 2.42932 GHz 2.42932 GHz Center 2.437 GHz 2.42932 GHz Span 20 MHz 2.42932 GHz 2 MHz/ 2.42932 GHz * 2.42932 GHz RBW 100 kHz 2.42932 GHzVBW 300 kHz 2.42932 GHz SWT 2.5 ms 2.42932 GHz 1 PK 2.42932 GHz MAXH 2.42932 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.42932 GHz 1 Marker 1 [T1 ] -6.32 dB m 2.429320000 GHz 1 Delta 1 [T1 ] 1.27 dB 15.200000000 MHz D1 -3.97 dBm MARKER 1 2.42932 GHz Date: 7.APR.2015 09:50:44 Mode: 802.11g; TX frequency: 2462MHz A 2.45436 GHz Att 40 dB 2.45436 GHz * 2.45436 GHz Ref 10 dBm 2.45436 GHz 2.45436 GHz 2.45436 GHz 2.45436 GHz 2.45436 GHz 2.45436 GHz 2.45436 GHz 2.45436 GHz 2.45436 GHz 2.45436 GHz Center 2.462 GHz 2.45436 GHz Span 20 MHz 2.45436 GHz 2 MHz/ 2.45436 GHz * 2.45436 GHz RBW 100 kHz 2.45436 GHzVBW 300 kHz 2.45436 GHz SWT 2.5 ms 2.45436 GHz 1 PK 2.45436 GHz MAXH 2.45436 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.45436 GHz 1 Marker 1 [T1 ] -6.94 dBm 2.454360000 GHz 1 Delta 1 [T1 ] -0.03 dB 15.160000000 MHz D1 -7 dBm MARKER 1 2.45436 GHz Date: 7.APR.2015 09:48:22 www.tuv.com Test Report No.: 14038604 001 Appendix 1 Page 8 of 44 Mode: 802.11n; TX frequency: 2412MHz A 2.40436 GHz Att 40 dB 2.40436 GHz * 2.40436 GHz Ref 10 dBm 2.40436 GHz 2.40436 GHz 2.40436 GHz 2.40436 GHz 2.40…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14038604 001 Appendix 6 Page 2 of 2 Maximum transmitter power: 802.11b Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 2412 15.2 33.1 2437 14.7 29.5 2462 14.6 28.8 802.11g Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 2412 15.0 31.6 2437 16.5 44.7 2462 16.6 45.7 802.11n Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 2412 15.0 31.6 2437 16.2 41.7 2462 16.3 42.7 According to the manufacturer’s installation instruction, the EUT operating in standalone mobile exposure conditions which minimum test separation distance is 20cm between the antenna and radiating structures of the device and nearby persons. For Maximum Permissible Exposure (MPE) evaluation, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. Evaluation: The maximum conducted output power is 45.7mW, The power density at 20cm = (45.7mW x 1.95 )/4πR 2 = 0.0177 mWcm -2 Conclusion: In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons.

www.tuv.com Test Report No.: 14038604 001 Appendix 2 Page 2 of 2 Set-up for Radiated Emission Set-up for AC Mains Conducted Emission
