2AATFMB400ELDual Mode Bluetooth Low Energy Module

Able Trend Technology Limited 榮 通 科 技 有 限 公 司 Unit 513, 5/F, Enterprise Place, Hong Kong Science Park, Shatin, NT, Hong Kong Confidential Page 1/26 LE2201/203 Toshiba TC35661 Bluetooth SPP v1.1 module Introduction Able Trend Technology introduces the pioneer of the Bluetooth ver. 3.0 with SPP v1.1 profile compliant wireless module LE2201/203 that is a high performance, cost effective, low power and compact solution. The Bluetooth Smart module provides a complete 2.4GHz Bluetooth system based on Toshiba TC35661 chipset, which is a single chip radio and baseband IC for Bluetooth 2.4GHz systems. This module is fully compliant to Bluetooth SPP v1.1 profile for data communications. The integrated 2.4GHz RF transceiver offers full Bluetooth compatibility as well as excellent receiver sensitivity and robustness, thus building a reliable interface to the antenna. The pre-qualified module enables its user to create a SPP v1.1 profile product within the shortest possible time to market. LE2201 can be powered directly with a standard 3V coin cell battery or pair of AAA batteries. Certification:  SIG BQB certification (QDID: B021317)  Japan TELE (TELE ID: 005-100587)  US FCC (FCC ID: 2AATFMB400EL) Applications  Toys, Scanner, Power Meter, POS, Terminal control, etc... Able Trend Technology Limited 榮 通 科 技 有 限 公 司 Unit 513, 5/F, Enterprise Place, Hong Kong Science Park, Shatin, NT, Hong Kong Confidential Page 2/26 Product Specification Model Name LE2201 Product Description Bluetooth SPP v1.1 Profile Bluetooth Standard Bluetooth EDR Compliant with SPP v1.1 Profile Chipset Toshiba TC35661 Dimension 17mm x 19mm x 2.0mm Operating Conditions Operating Voltage 2.5~3.3V Temperature -10+70°C Storage Temperature -55~+125°C Electrical Specifications Frequency Range 2402~2480MHz Maximum RF Transmit Power +2.5dBm RF power control range 20dB Receive Sensitivity -90dBm (Bit error rate (BER) > 0.1%) Out of band blocking fTX=fRX=2460MHz, 30MHz - 2000MHz -20dBm fTX=fRX=2460MHz, 2GHz – 2.4GHz -27dBm fTX=fRX=2460MHz, 2.498GMHz – 3GHz -27dBm fTX=fRX=2460MHz, 3GHz – 12.75GHz -20dBm Able Trend Technology Limited 榮 通 科 技 有 限 公 司 Unit 513, 5/F, Enterprise Place, Hong Kong Science Park, Shatin, NT, Hong Kong Confidential Page 3/26 Dimensions Bottom View Pin Assignment Pin Name Description Pin Name Description 1 GND Ground 15 GPIO13 Configurable IO 2 GPIO10 Configurable IO 16 GPIO06 UART TX (Output) 3 GPIO11 Configurable IO 17 GPIO07 UART RX (Input) 4 GPIO17 Configurable IO 18 SLPCLK 32KHz Sleep Clock 5 GPIO18 Configurable IO 19 GND Ground 6 GPIO01 Status (Output) 20 AVDD33 Analog 3V3 7 GPIO16 Configurable IO 21 RESETX Reset 8 GPIO15 I2C SCL 22 GPIO09 UART CTS (Input) 9 GPIO14 I2C SDA 23 GPIO08 UART RTS (Output) 10 DVDD33 Digital 3V3 24 GPIO03 LED1 (4mA) 11 GD Ground 25 GPIO02 LED0 (4mA) 12 GPIO00 BT Wakeup (Input) 26 GPIO04 Host Wakeup 13 CLKREQ Clock Request 27 GPIO05 Configurable IO 14 GPIO12 Configurable IO 28 GND Ground Able Trend Technology Limited 榮 通 科 技 有 限 公 司 Unit 513, 5/F, Enterprise Place, Hong Kong Science Park, Shatin, NT, Hong Kong Confidential Page 4/26 UART interface TC35661 UART interface uses 4 signals, Tx/Rx pins and RTS/CTS pins and has following functions. 1. Programmable Baud Rate (Default value is 115200bps) 2. 4pins communication (Tx/Rx/RTS/CTS) 3. Data Format = Start bit + 8bit data + 1bit Stop bit without parity bit. 4. Support of Error detection, time-out/Over-run/Flaming Error TC35661 UART has the error detection function to get more reliable communication. When TC35661 detects UART communication error, TC35661 return the HW_Error_Event with error code to inform host CPU of the communication error. Timer of maximum transmit interval between each bytes is 8ms. If this error code occurs, check the transmitting Byte interval from HOST. 5. 4pins communication (Tx/Rx/RTS/CTS) 6. Data Format = Start bit + 8bit data + 1bit Stop bit without Parity bit Following figure shows the communication timing. Able Trend Technology Limited 榮 通 科 技 有 限 公 司 Unit 513, 5/F, Enterprise Place, Hong Kong Science Park, Shatin, NT, Hong Kong Confidential Page 5/26 UART Transport Packet Format in HCI mode UART Protocol in HCI mode is based on Bluetooth Core Spec.H4 (UART Transport Layer). The HCI packet indicator shall be sent immediately before the HCI packet. HCI packet type HCI packet indicator HCI Command Packet 0x01 HCI ACL Data Packet 0x02 HCI Synchronous Data Packet 0x03 (No Sup put) HCI Event Packet 0x04 Packet Format in Complete mode UART Protocol in Complete mode is based on TOSHIBA original. Following table shows the packet format of TC35661 UART Transport packet. TC35661 UART Transport Packet Format Packet Length Interface Data 3 bytes N bytes The Packet Length shows all length with Interface data and Packet length. The maximum Packet length is 7561019Bytes. The Interface Data Format Service ID OpCode Length Parameter 1 Byte 1 Byte 2 Bytes N Bytes Service ID means Bluetooth Protocol Layer for data field. OpCode means the content of Data field. Length means the volume of Data field. The command is input from Host CPU to TC35661 and the event is from TC35661 to host CPU. The type of BT Service ID Service ID Description 0xE1 Bluetooth Management Interface 0xE2 Handsfree Interface 0xE3 Object Push Interface 0xE4 Dialup Networking Interface 0xE5 SPP v1.1 0xE8 Audio/Video Interface 0xE9 PBAP Able Trend Technology Limited 榮 通 科 技 有 限 公 司 Unit 513, 5/F, Enterprise Place, Hong Kong Science Park, Shatin, NT, Hong Kong Confidential Page 6/26 Other Reserved RTS/CTS Flow Control CTS/RTS signals are used to get more reliable serial communication and to avoid the lost of Communication data. 1. CTS signal When CTS signal is set to GND, TC35661 setup the sending data to host CPU. After CTS signal is set to VCC and TC35661 has sending data, TC35661 stops to output sending data to host CPU. 2. RTS signal When RTS signal is set to GND, host CPU can send the data to TC35661. If TC35661 cannot arrange to receive the data from host…

Text truncated - open the document above for the full version.

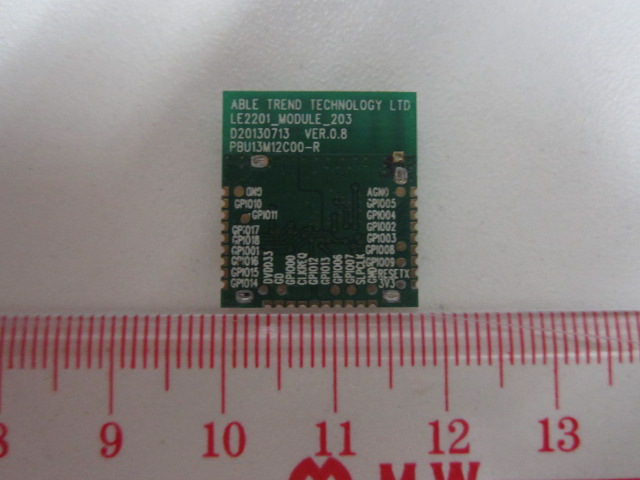

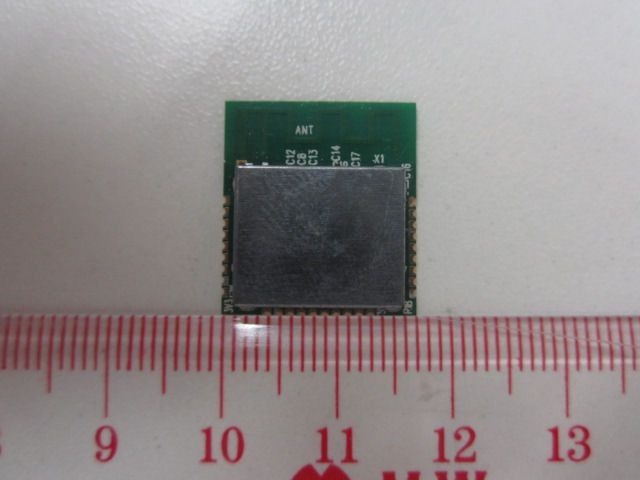

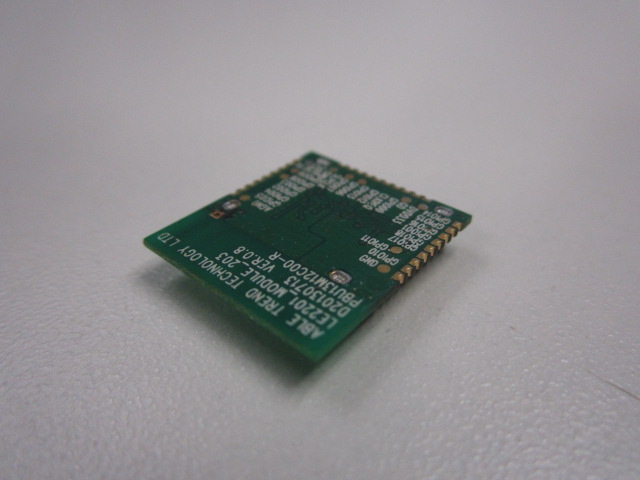

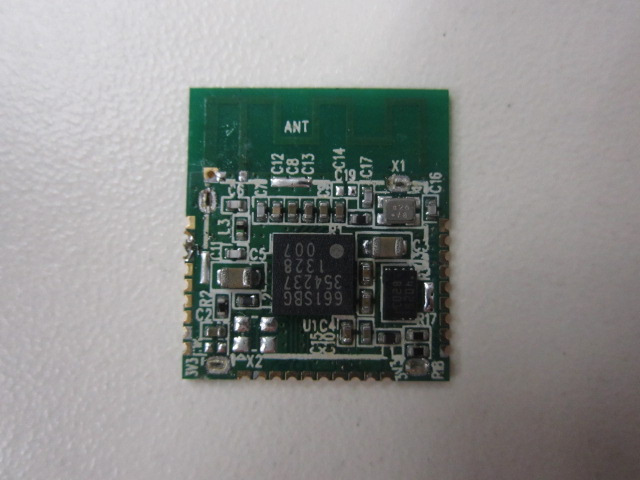

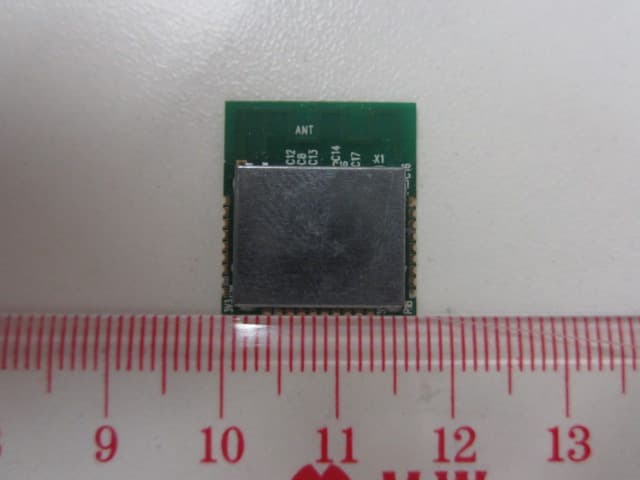

www.tuv.com Test Report No.: 14033654 001 Appendix 3 page 2 of 4 External View External View www.tuv.com Test Report No.: 14033654 001 Appendix 3 page 3 of 4 External View External View www.tuv.com Test Report No.: 14033654 001 Appendix 3 page 4 of 4 Internal View Internal View

www.tuv.com Test Report No.: 14033654 001 Appendix 4 page 2 of 32 1.1 FCCID Label Artwork The red oval shows the location of the Rating Label. The red oval shows the location of the Rating Label.

www.tuv.com Test Report No.: 14033654 001 Appendix 3 page 2 of 4 External View External View www.tuv.com Test Report No.: 14033654 001 Appendix 3 page 3 of 4 External View External View www.tuv.com Test Report No.: 14033654 001 Appendix 3 page 4 of 4 Internal View Internal View

www.tuv.com Test Report No.: 14033654 001 Date: 25.09.2013 page 2 of 16 Table of Content Page Cover Page .............................................................................. 1 Table of Content ....................................................................... 2 Product information....................................................................................................... 3
Manufacturers declarations ....................................................................................................................... 3
Product function and intended use ........................................................................................................... 4
Submitted documents ................................................................................................................................. 4
Remark ......................................................................................................................................................... 4
List of Test and Measurement Instruments ................................................................. 5
Results FCC Part 15 – Subpart C ................................................................................. 6
Subclause 15.203 – Antenna Information ....................................................................... Pass ................. 6
Subclause 15.204 – Antenna Information ....................................................................... Pass ................. 6
Subclause 15.207 – Disturbance Voltage on AC Mains ................................................. Pass ................. 6
Subclause 15.247 (a)(1) – Carrier Frequency Separation .............................................. Pass ................. 7
Subclause 15.247 (a)(1)(iii) – Number of hopping channels ......................................... Pass ................. 7
Subclause 15.247 (a)(1)(iii) – Time of Occupancy (Dwell Time) ................................... Pass ................. 8
Subclause 15.247 (a) – 20 dB Bandwidth ........................................................................ Pass ................. 8
Subclause 15.247 (a)(2) – 6dB Bandwidth Measurement .............................................. Pass ................. 9
Subclause 15.247 (a) – Hopping Sequence .................................................................... Pass ................. 9
Subclause 15.247 (b)(3) – Maximum Peak Output Power ............................................. Pass ............... 10
Subclause 15.247 (d) – Spurious Conducted Emissions .............................................. Pass ............... 12
Subclause 15.247 (d) – Spurious Radiated Emissions .................................................. Pass ............... 13
Subclause 15.247 (d) – Band Edge Emissions ............................................................... Pass ............... 15
Subclause 15.205 – Restricted Bands Next to The Band Edge ................................... Pass ............... 15
Subclause 15.247 (e) – Power Spectral Density ............................................................. Pass ............... 16
Appendix 1 – Test protocols 35 pages Appendix 2 – Test setup 3 pages Appendix 3 – Photo documentation 4 pages Appendix 4 – Product documentation 32 pages www.tuv.com Test Report No.: 14033654 001 Date: 25.09.2013 page 3 of 16 Product information Manufacturers declarations Transceiver Classic BT Mode BLE Mode Operating frequency range 2402 - 2480 MHz Type of modulation GFSK; Pi/4 DQPSK; 8 DPSK GFSK Number of channels 79 40 Channel separation 1 MHz 2 MHz Type of antenna PCB Antenna Antenna gain (dBi) 0 Power level fix Type of equipment stand alone radio device Connection to public utility power line No Nominal voltage V nor : 3.3V Independent Operation Modes Transmitting Receiving www.tuv.com Test Report No.: 14033654 001 Date: 25.09.2013 page 4 of 16 Product function and intended use The test item is a SPP v1.1 profile compliant Dual Mode Bluetooth Low Energy Module LE2201/203 that is a high performance, cost effective, low power and compact solution. The Bluetooth Smart module provides a complete 2.4GHz Bluetooth system based on Toshiba TC35661 chipset, which is a single chip radio and baseband IC for Bluetooth 2.4GHz systems. This module is fully compliant to Bluetooth SPP v1.1 profile for data communications. It support the following Applications: • Toys, • Scanner • Power Meter • POS • Terminal control For details, please refer to the datasheet. Submitted documents Circuit Diagram Block Diagram Bill of material User manual Remark Special accessories and auxiliary equipment Disturbance Voltage on AC Mains: - RS232 Level Shifter Board - DC Power Supply Brand: ISO-TECH Model No.: IPS 2303DD Serial No: 411B088G2 Radiated Emissions: - RS232 Level Shifter Board - DC Power Supply Brand: HP Model No.: E3611A Serial No: KR51309803 www.tuv.com Test Report No.: 14033654 001 Date: 25.09.2013 page 5 of 16 List of Test and Measurement Instruments Hong Kong Productivity Council (Registration number: 90656) Equipment Manufacturer Type S/N Due Date Semi-anechoic Chamber Frankonia Nil Nil 12-Apr-14 Test Receiver R & S ESU40 100190 19-Feb-14 Bi-conical Antenna R & S HK116 100241 11-Jun-15 Log Periodic Antenna R & S HL223 841516/017 10-Jun-15 Coaxial cable 50ohm Rosenberger RTK081-05S- 05S-10m LA2-001-10M / 001 15-Nov-13 Microwave amplifer 0.5- 26.5GHz, 25dB gain HP 83017A 3123A00437 03-Oct-13 High Pass Filter (cutoff freq. =1000MHz) Trilithic 23042 9829213 28-Oct-13 Horn Antenna EMCO 3115 9002-3347 11-Jun-15 Active Loop Antenna EMCO 6502 9107-2651 21-Jun-14 TÜV Rheinland Hong Kong Ltd. Equipment Manufacturer Type S/N Due Date FSP 30 Spectrum Analyser Rohde & Schwarz FSP 30 100007 03-Dec-14 Test Receiver Rohde & Schwarz ESCS30 100201 26-Feb-14 LISN Rohde & Schwarz ENV216 100273 06-Mar-14 www.tuv.com Test Report No.: 14033654 001 Date: 25.09.2013 page 6 of 16 Results FCC Part 15 – Subpart C…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14033654 001 Appendix 1 page 1 of 35 Appendix 1 Test Results www.tuv.com Test Report No.: 14033654 001 Appendix 1 page 2 of 35 Disturbance Voltage on AC Mains EUT Information Client / EUT: ABLE Trend BLE Dual Mode Module Model no. / Sample no.: LE2201 (00130905133-001) Test standard: FCC Part 15 Operating conditions: Frequency Hopping Operator: Mun Test voltage / frequency: 120V 60Hz Line / lead: L1 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV www.tuv.com Test Report No.: 14033654 001 Appendix 1 page 3 of 35 EUT Information Client / EUT: ABLE Trend BLE Dual Mode Module Model no. / Sample no.: LE2201 (00130905133-001) Test standard: FCC Part 15 Operating conditions: Frequency Hopping Operator: Mun Test voltage / frequency: 120V 60Hz Line / lead: N 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV www.tuv.com Test Report No.: 14033654 001 Appendix 1 page 4 of 35 Carrier Frequency Separation Ref 10 dBmAtt 20 dB * * * A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.441 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 0.15 dB m 2.441012000 GHz 2 Delta 2 [T1 ] -0.01 dB -1.002000000 MHz 3 Delta 3 [T1 ] 0.00 dB 1.002000000 MHz Date: 11.SEP.2013 17:19:33 www.tuv.com Test Report No.: 14033654 001 Appendix 1 page 5 of 35 Number of hopping channels Ref 10 dBmAtt 20 dB * * * A RBW 1 MHz VBW 3 MHz SWT 2.5 ms Start 2.4 GHzStop 2.441 GHz4.1 MHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 Date: 11.SEP.2013 17:22:01 Ref 10 dBmAtt 20 dB * * * A RBW 1 MHz VBW 3 MHz SWT 2.5 ms Start 2.441 GHzStop 2.4835 GHz4.25 MHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 Date: 11.SEP.2013 17:22:33 www.tuv.com Test Report No.: 14033654 001 Appendix 1 page 6 of 35 Dwell Time Ref 10 dBmAtt 20 dB * * Center 2.441 GHz3.16 s/ A RBW 1 MHz VBW 3 MHz SWT 31.601 s 1 PK MAXH SGL -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 Date: 11.SEP.2013 17:27:16 Ref 10 dBmAtt 20 dB * * Center 2.441 GHz400 μs/ CLRWR A TRG RBW 1 MHz VBW 3 MHz SWT 4 ms 1 AP -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -0.72 dBm 4.000000 μs 2 Delta 2 [T1 ] 0.84 dB 2.952000 ms TRG -4.9 dBm Date: 11.SEP.2013 17:28:14 www.tuv.com Test Report No.: 14033654 001 Appendix 1 page 7 of 35 20dB Bandwidth Modulation: GFSK Tx frequency: 2402MHz Ref 10 dBmAtt 20 dB * * * A RBW 30 kHz VBW 100 kHz SWT 5 ms Center 2.402 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -0.07 dBm 2.402018000 GHz 2 Delta 2 [T1 ] -20.83 dB -462.000000000 kHz 3 Delta 3 [T1 ] -20.21 dB 468.000000000 kHz Date: 11.SEP.2013 17:30:10 Modulation: GFSK Tx frequency: 2441MHz Ref 10 dBmAtt 20 dB * * * A RBW 30 kHz VBW 100 kHz SWT 5 ms Center 2.441 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 0.14 dBm 2.441012000 GHz 2 Delta 2 [T1 ] -20.76 dB -456.000000000 kHz 3 Delta 3 [T1 ] -20.11 dB 468.000000000 kHz Date: 11.SEP.2013 17:33:57 www.tuv.com Test Report No.: 14033654 001 Appendix 1 page 8 of 35 Modulation: GFSK Tx frequency: 2480MHz Ref 10 dBmAtt 20 dB * * * A RBW 30 kHz VBW 100 kHz SWT 5 ms Center 2.48 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 0.21 dBm 2.480018000 GHz 2 Delta 2 [T1 ] -20.65 dB -462.000000000 kHz 3 Delta 3 [T1 ] -20.07 dB 468.000000000 kHz Date: 11.SEP.2013 17:35:09 Modulation: 8DPSK Tx frequency: 2402MHz Ref 10 dBmAtt 20 dB * * * A RBW 30 kHz VBW 100 kHz SWT 5 ms Center 2.402 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -0.01 dBm 2.402018000 GHz 2 Delta 2 [T1 ] -21.14 dB -648.000000000 kHz 3 Delta 3 [T1 ] -20.49 dB 624.000000000 kHz Date: 11.SEP.2013 17:31:39 www.tuv.com Test Report No.: 14033654 001 Appendix 1 page 9 of 35 Modulation: 8DPSK Tx frequency: 2441MHz Ref 10 dBmAtt 20 dB * * * A RBW 30 kHz VBW 100 kHz SWT 5 ms Center 2.441 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 0.08 dBm 2.441012000 GHz 2 Delta 2 [T1 ] -21.18 dB -642.000000000 kHz 3 Delta 3 [T1 ] -20.41 dB 630.000000000 kHz Date: 11.SEP.2013 17:32:56 Modulation: 8DPSK Tx frequency: 2480MHz Ref 10 dBmAtt 20 dB * * * A RBW 30 kHz VBW 100 kHz SWT 5 ms Center 2.48 GHzSpan 3 MHz300 kHz/ 1 PK MAXH * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 0.27 dBm 2.480018000 GHz 2 Delta 2 [T1 ] -20.63 dB -648.000000000 kHz 3 Delta 3 [T1 ] -20.00 dB 618.000000000 kHz Date: 11.SEP.2013 17:36:06 www.tuv.com Test Report No.: 14033654 001 Appendix 1 page 10 of 35 6 dB Bandwidth Measurement Tx frequency: 2402MHz A 2.401766 GHz Ref 10 dBm 2.401766 GHz Center 2.402 GHz 2.401766 GHz Span 3 MHz 2.401766 GHz 300 kHz/ 2.401766 GHz * 2.401766 GHz RBW 100 kHz 2.401766 GHzVBW 300 kHz 2.401766 GHz SWT 2.5 ms 2.401766 GHz Att 30 dB 2.401766 GHz * 2.401766 GHz 1 PK 2.401766 GHz MAXH 2.401766 GHz 2.401766 GHz 2.401766 GHz 2.401766 GHz 2.401766 GHz 2.401766 GHz 2.401766 GHz 2.401766 GHz 2.401766 GHz 2.401766 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.401766 GHz 1 Marker 1 [T1 ] 0.03 dBm 2.401766000 GHz 2 Delta 2 [T1 ] -6.09 dB -90.000000000 kHz 3 Delta 3 [T1 ] -6.25 dB 582.000000000 kHz MARKER 1 2.401766 GHz Date: 12.SEP.2013 15:10:33 Tx frequency: 2440MHz A 2.439772 GHz Ref 10 dBm 2.439772 GHz Att 30 dB 2.439772 GHz * 2.439772 GHz 1 PK 2.439772 GHz MAXH 2.439772 GHz Center 2.44 GHz 2.439772 GHz Span 3 MHz 2.439772 GHz 300 kHz/ 2.439772 GHz * 2.439772 GHz RBW 100 kHz 2.439772 GHzVBW 300 kHz 2.439772 GHz SWT 2.5 ms 2.439772 GHz 2.439772 GHz 2.439772 GHz 2.439772 GHz 2.439772 GHz 2.439772 GHz 2.439772 GHz 2.439772 GHz 2.439772 GHz 2.439772 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 …

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14033654 001 Appendix 2 page 1 of 3 Appendix 2 Test Setup Photos www.tuv.com Test Report No.: 14033654 001 Appendix 2 page 2 of 3 Set-up for Disturbance Voltage on AC Main Set-up for Radiated Emission www.tuv.com Test Report No.: 14033654 001 Appendix 2 page 3 of 3 Set-up for Radiated Emission Set-up for Radiated Emission
