2AATL-6189S-SFWIFI Module

FN-LINKTECHNOLOGYLIMITEDProprietary&ConfidentialInformation 6189S-SF Wi-FiSingle-band1X1802.11b/g/n ModuleDatasheet FN-LINKTECHNOLOGYLIMITEDProprietary&ConfidentialInformation 6189S-SFModuleDatasheet Office:6Floor,BuildingU6,JunxiangU8Park, HangchengAvenue,Bao'anDistrict, ShenzhenCity,CHINA Factory:No.8,LitongRoad,LiuyangEconomic&Technical DevelopmentZone,Changsha,Hunan,CHINA TEL:+86-755-2955-8186 Website:www.fn-link.com CustomerApproval:Company Title Signature Date Fn-Link 6189S-SF FN-LINKTECHNOLOGYLIMITEDProprietary&ConfidentialInformation RevisionHistory VersionDateRevisionContentDraftApproved 1.02020/10/30NewversionLxySzs 6189S-SF FN-LINKTECHNOLOGYLIMITEDProprietary&ConfidentialInformation CONTENTS 1Overview .................................................................................................................................... 1 1.1Introduction ......................................................................................................................... 1 1.2Features .............................................................................................................................. 1 1.3GeneralSpecification ........................................................................................................ 2 1.4RecommendedOperatingRating .................................................................................... 2 ※ 1.5EEPROMInformation....................................................................................................2 2GeneralSpecification ............................................................................................................. 2 2.1Wi-FiRFSpecifications ..................................................................................................... 2 3PinAssignments ..................................................................................................................... 4 3.1PinOutline ........................................................................................................................... 4 3.2PinDefinition ....................................................................................................................... 4 4Dimensions ............................................................................................................................... 5 4.1ModulePicture ................................................................................................................... 5 4.2MarkingDescription ........................................................................................................... 6 4.3ModulePhysicalDimensions ........................................................................................... 6 4.4LayoutReference ............................................................................................................... 7 6HostInterfaceTimingDiagram ............................................................................................ 8 6.1SDIOPinDescription ........................................................................................................ 8 6.2SDIODefaultModeTimingDiagram .............................................................................. 9 6.3SDIOPower-onsequence ................................................................................................ 9 7ReferenceDesign ................................................................................................................. 10 8OrderingInformation ........................................................................................................... 11 9TheKeyMaterialList ........................................................................................................... 11 10EnvironmentalRequirements .......................................................................................... 11 10.1RecommendedReflowProfile ..................................................................................... 11 10.2PatchWi-Fimodulesinstalledbeforethenotice ...................................................... 12 11Package ................................................................................................................................. 13 11.1Reel .................................................................................................................................. 13 11.2PackagingDetail ............................................................................................................ 13 11.3CarrierTapeDetail ......................................................................................................... 15 11.4Moisturesensitivity ........................................................................................................ 15 6189S-SF FN-LINKTECHNOLOGYLIMITEDProprietary&ConfidentialInformation 1 1Overview 1.1Introduction 6189S-SFisahighlyintegratedandexcellentperformanceWirelessLAN(WLAN)SDIO networkinterfacedevice.High-speedwirelessconnectionupto150Mbps.Itcanbe easilymanufacturedonSMTprocess. ThisWLANModuledesignisbasedonRealtekRTL8189FTV-VC-CG.Itisahighly integratedsingle-chipWirelessLAN(WLAN)SDIOnetworkinterfacecontroller complyingwiththe802.11nspecification.ItcombinesaMAC,a1T1Rcapablebaseband, andRFinasinglechip.Itisdesignedtoprovideexcellentperformancewithlowpower Consumptionandenhancetheadvantagesofrobustsystemandcost-effective. ThiscompactmoduleisatotalsolutionforWi-Fitechnology.Themoduleisspecifically developedforSmartphonesandPortabledevices. 1.2Features OperateatISMfrequencybands(2.4GHz) CMOSMAC,BasebandPHY,andRFinasinglechipfor802.11b/g/ncompatible WLAN Wi-Fi1transmitterand1receiverallowdataratessupportingupto150Mbps downstreamand150MbpsupstreamPHYrates BlockDiagram: 6189S-SF FN-LINK TECHNOLOGY LIMITEDProprietary & Confidential Information 2 1.3 General Specification Model Name6189S-SF Product DescriptionSupport Wi-Fi functionalities Dimension L x W x T: 18.2 x 14.8 x 2.2 mm (typical) Wi-Fi Interface Support SDIO Operating temp…

Text truncated - open the document above for the full version.

DATE: 2021-2-9 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:2AATL-6189S-SF Product Name: 6189S-SF Request for Confidentiality the Pursuant following to Sections documents 0.457 be and held 0.459 confidential: of the commissions rules, we hereby request that (List here the documents for which you are seeking confidentiality - for example ... ) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> W / (1.;Q � Name, Wayne Zou Title: Manager Applicant Company: HUNAN FN-LINK TECHNOLOGY LIMITED

Compliance list INTEGRATION INSTRUCTIONS for 996369 D03 OEM the and 996369 D03 OEM by Sections 2.2 through 2.10. Requirement Yes N/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 YES Refer to instruction FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES Refer to instruction Integral antenna with antenna gain 2dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum N/A Not applicable signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements. 4 a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; d) Appropriate parts by manufacturer and specifications; e) Test procedures for design verification; and N/A Not applicable f) Production test procedures for ensuring compliance. The module grantee shall provide a notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufacturer to use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). YES Refer to instruction The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. 2.7 Antennas A list of antennas included in the application for certification must be provided in the instructions. For modular transmitters approved as limited modules, all applicable professional installer instructions mu…

Text truncated - open the document above for the full version.

Single Modular approval Declaration letter We,HUNAN FN-LI NK TECHNOLOGY LIMITED. apply Single modular approval for Product Name: WIFI Module Model:6189S-SF FCC ID:2 AATL-6189S-SF According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer ：Ye s; Shielded for both side . 2)The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer ：Ye s; All inputs to the modules are buffered through logic or microprocess or inputs. 3)T he modular transmitter must have its own power supply regulation. Answer ：Ye s；A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Ye s; Device is equipped with integral antenna. (5)The module must demonstrate compliance in a stand-alone configuration; Answer Answer ：Yes; distance between modular and all AEs are bigger than 10cm ，refer to setup photo. (6)The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See K DB Publication 784748 about label requirements); Answer ：Yes; The modular has a permanent fixed label, and below statement was listed in the User Manual; The host device must be labeled to display the FCC ID of the module “Contains FCC ID:2AATL-6189S-SF” (7)The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer ：Yes; The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8)The module must comply with RF exposure requirements Answer ：Yes; Transmitter meets MPE calculation of 47 CFR 1.1310 . Refer to MPE Reports and Refer to modular installation manual. Please contact me if you have any further questions. Thanks for your attention. Best Regards, <Signature> Name ：Wayne Zou Title：Manager Applicant Company ：HUNAN FN-LINK TECHNOLOGY LIMITED

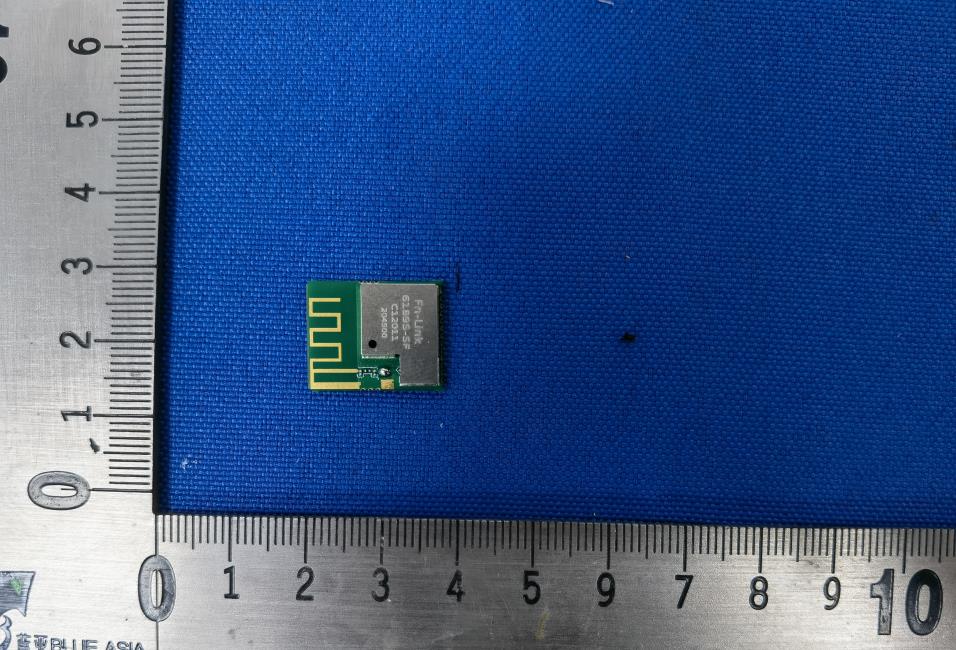

Model No.:6189S-SF

Model No.: 6189S-SF

Page 1 of 2 Product Name: WIFI Module Model No.：6189S-SF FCC ID：2AATL-6189S-SF RF Exposure Evaluation 1.1 RF Exposure Compliance Requirement 1.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Page 2 of 2 1.1.3 EUT RF Exposure Evaluation Antenna Gain: 2dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.585 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: TestMode Frequency (MHz) Max Conducted Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result 11nH20 243714.14625.980.008 1.0 PASS Note: Refer to report No. BLA-EMC-202101-A4802 for EUT test Max Conducted Peak Output Power value. The distance r (4th column) calculated from the Fries transmission formula is far greater than 20 cm separation Requirement

Report No.: BLA-EMC-202101-A4802 Page 56 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10 APPENDIX 10.1 APPENDIX : DTS BANDWIDTH Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.160 2407.400 2416.560 >=0.5 PASS 2437 8.120 2432.960 2441.080 >=0.5 PASS 2462 8.600 2457.440 2466.040 >=0.5 PASS 11G Ant1 2412 16.440 2403.760 2420.200 >=0.5 PASS 2437 16.400 2428.800 2445.200 >=0.5 PASS 2462 16.400 2453.800 2470.200 >=0.5 PASS 11N20SISO Ant1 2412 17.640 2403.160 2420.800 >=0.5 PASS 2437 17.640 2428.160 2445.800 >=0.5 PASS 2462 17.640 2453.160 2470.800 >=0.5 PASS 11N40SISO Ant1 2422 36.160 2403.760 2439.920 >=0.5 PASS 2437 36.320 2418.760 2455.080 >=0.5 PASS 2452 35.760 2433.920 2469.680 >=0.5 PASS Report No.: BLA-EMC-202101-A4802 Page 57 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report No.: BLA-EMC-202101-A4802 Page 58 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No.: BLA-EMC-202101-A4802 Page 59 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: BLA-EMC-202101-A4802 Page 60 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: BLA-EMC-202101-A4802 Page 61 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.2 APPENDIX : OCCUPIED CHANNEL BANDWIDTH Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.492 2405.203 2418.695 --- PASS 2437 13.551 2430.269 2443.820 --- PASS 2462 13.483 2455.199 2468.682 --- PASS 11G Ant1 2412 16.982 2403.488 2420.470 --- PASS 2437 17.125 2428.440 2445.565 --- PASS 2462 17.115 2453.387 2470.502 --- PASS 11N20SISO Ant1 2412 18.048 2402.946 2420.994 --- PASS 2437 18.068 2427.979 2446.047 --- PASS 2462 18.058 2452.897 2470.955 --- PASS 11N40SISO Ant1 2422 36.459 2403.771 2440.230 --- PASS 2437 36.423 2418.760 2455.183 --- PASS 2452 36.276 2433.830 2470.106 --- PASS Report No.: BLA-EMC-202101-A4802 Page 62 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report No.: BLA-EMC-202101-A4802 Page 63 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No.: BLA-EMC-202101-A4802 Page 64 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: BLA-EMC-202101-A4802 Page 65 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: BLA-EMC-202101-A4802 Page 66 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.3 APPENDIX : MAXIMUM CONDUCTED OUTPUT POWER Test Result TestMode Antenna Channel Read[dBm]Limit[dBm] Verdict 11BAnt1 2412 13.48 <=30 PASS 2437 12.80 <=30 PASS 246212.02<=30PASS 11GAnt1 2412 12.88 <=30 PASS 2437 13.27 <=30 PASS 2462 11.59 <=30 PASS 11N20SISOAnt1 2412 12.73 <=30 PASS 243713.60<=30PASS 246211.60<=30 PASS 11N40SISOAnt1 242212.20<=30 PASS 243710.82<=30 PASS 245211.82<=30 PASS TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11BAnt1 2412<=30PASS 2437<=30PASS 2462<=30PASS 11GAnt1 2412<=30PASS 2437<=30PASS 2462<=30PASS 11N20SISOAnt1 2412<=30PASS 2437<=30PASS 2462<=30PASS 11N40SISOAnt1 2422<=30PASS 2437<=30PASS 2452<=30PASS Note：Dutycycle fator= [10 log (1 / D)] Result =Read+Dutycycle fator 13.183 11.519 13.783 12.963 14.146 12.054 13.128 13.637 11.868 13.517 12.863 12.099 Report No.: BLA-EMC-202101-A4802 Page 67 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report No.: BLA-EMC-202101-A4802 Page 68 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No.: BLA-EMC-202101-A4802 Page 69 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: BLA-EMC-202101-A4802 Page 70 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: BLA-EMC-202101-A4802 Page 71 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.4 APPENDIX : MAXIMUM POWER SPECTRAL DENSITY Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.41 <=8 PASS 2437 -13.6 <=8 PASS 2462 -14.16 <=8 PASS 11G Ant1 2412 -16.29 <=8 PASS 2437 -15.82 <=8 PASS 2462 -17.3 <=8 PASS 11N20SISO Ant1 2412 -16.33 <=8 PASS 2437 -15.14 <=8 PASS 2462 -16.88 <=8 PASS 11N40SISO Ant1 2422 -18.61 <=8 PASS 2437 -19.65 <=8 PASS 2452 -18.82 <=8 PASS Report No.: BLA-EMC-202101-A4802 Page 72 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-230…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202101-A4802 Page 81 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 82 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 83 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 84 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 85 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 86 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 87 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 88 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 89 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 90 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N40SISO_Ant1_2422_0~Reference 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 91 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 92 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 Report No.: BLA-EMC-202101-A4802 Page 93 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.7 APPENDIX G: DUTY CYCLE Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11BAnt1 2412 8.19 8.26 99.15 24378.198.3198.56 2462 8.19 8.34 98.20 11GAnt1 2412 1.36 1.44 94.44 2437 1.36 1.48 91.89 2462 1.36 1.45 93.79 11N20SISOAnt1 24121.271.3494.78 2437 1.27 1.44 88.19 2462 1.271.41 90.07 11N40SISOAnt1 2422 0.630.79 79.75 2437 0.630.74 85.14 24520.630.9963.64 Note：Dutycycle fator= [10 log (1 / D)] TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Dutycycle fator 11BAnt1 2412 8.19 8.26 0.037 24378.198.310.063 2462 8.19 8.34 79 11GAnt1 2412 1.36 1.44 4 2437 1.36 1.48 67 2462 1.36 1.45 7 11N20SISOAnt1 24121.271.340.233 2437 1.27 1.44 0.546 2462 1.271.41 0.454 11N40SISOAnt1 2422 0.630.79 0.983 2437 0.630.74 699 24520.630.99.93 Report No.: BLA-EMC-202101-A4802 Page 94 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Report No.: BLA-EMC-202101-A4802 Page 95 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Report No.: BLA-EMC-202101-A4802 Page 96 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Report No.: BLA-EMC-202101-A4802 Page 97 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: BLA-EMC-202101-A4802 Page 98 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX A: PHOTOGRAPHS OF TEST SETUP Radiated Spurious Emissions Report No.: BLA-EMC-202101-A4802 Page 99 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Conducted Emissions at AC Power Line (150kHz-30MHz) Report No.: BLA-EMC-202101-A4802 Page 100 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX B: PHOTOGRAPHS OF EUT Report No.: BLA-EMC-202101-A4802 Page 101 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202101-A4802 Page 102 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com ----END OF REPORT---- The test report is effective only with both signature and specia…

Text truncated - open the document above for the full version.

Page 1 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : WIFI Module Brand Mark : N/A Model No. : 6189S-SF FCC ID : 2AATL-6189S-SF Report Number : BLA-EMC-202101-A4802 Date of Sample Receipt : 2021/1/20 Date of Test : 2021/1/20 to 2021/2/7 Date of Issue : 2021/2/7 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: HUNAN FN-LINK TECHNOLOGY LIMITED No. 8, Litong Road, Liuyang Economic Development Zone, Liuyang China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/2/7 Report No.: BLA-EMC-202101-A4802 Page 2 of102 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE …
