2AATL-FGN240ASRLWi-Fi module

N200AK-SR FN-LINKTECHNOLOGYLIMITED1 PRODUCTSPECIFICATION N240A-SRL Wi-Fi1x111axdualband+BLE5.4 ComboModule Version:v1.5 Customer: CustomerP/N: Signature: Date: Office:14thfloor,BlockB,phoenixzhigu,XixiangStreet,BaoanDistrict,Shenzhen Factory:NO.8,LitongRD.,LiuyangEconomic&TechnicalDevelopmentZone,Changsha,CHINA TEL:+86-755-2955-8186Website:www.fn-link.com N240A-SRL FN-LINKTECHNOLOGYLIMITED2 N240A-SRLModuleDatasheet Ordering Information PartNO.Description FGN240ASRL-00 AIC8800D40L,a/b/g/n/ac/ax,1T1R,Wi-Fi6,BLE5.4,12X12,1T1R, SDIO N240A-SRL FN-LINKTECHNOLOGYLIMITED3 CONTENTS 1.GeneralDescription..................................................................................................5 1.1Introduction............................................................................................................5 1.2Description.............................................................................................................5 2.Features.....................................................................................................................6 3.BlockDiagram...........................................................................................................6 4.GeneralSpecification................................................................................................7 4.12.4GHzRFSpecification........................................................................................7 4.2WI-FI5GHzSpecification.......................................................................................8 4.3BluetoothSpecification..........................................................................................9 5.IDsettinginformation.............................................................................................10 6.PinDefinition...........................................................................................................10 6.1PinOutline...........................................................................................................10 6.2PinDefinitiondetails.............................................................................................11 7.ElectricalSpecifications.........................................................................................12 7.1PowerSupplyDCCharacteristics........................................................................12 7.2PowerConsumption.............................................................................................12 8.Sizereference..........................................................................................................13 8.1ModulePicture.....................................................................................................13 8.2MarkingDescription.............................................................................................14 8.3PhysicalDimensions............................................................................................15 8.4PhysicalDimensions............................................................................................16 8.4LayoutRecommendation.....................................................................................17 9.TheKeyMaterialList...............................................................................................17 10.ReferenceDesign..................................................................................................17 11.RecommendedReflowProfile..............................................................................19 12.RoHScompliance..................................................................................................19 13.Package..................................................................................................................20 13.1Reel...................................................................................................................20 13.2CarrierTapeDetail.............................................................................................20 13.3PackagingDetail................................................................................................21 13.4Tray....................................................................................................................22 14.Moisturesensitivity...............................................................................................22 N240A-SRL FN-LINKTECHNOLOGYLIMITED4 RevisionHistory VersionDateContentsofRevisionChangeDraftCheckedApproved V1.02023/09/07NewversionLXPLXYQJP V1.12024/01/22Update2.4GmodeLXPTZQQJP V1.22024/11/18UpdateMarkingDescriptionLXPTZQQJP V1.32025/01/17UpdateModulePictureLXPTZQQJP V1.42025/03/21AddPhysicalDimensionsLXPTZQQJP V1.52025/06/17UpdatePin12VoltageLXPTZQQJP N240A-SRL FN-LINKTECHNOLOGYLIMITED5 1.GeneralDescription 1.1Introduction N240A-SRLisahighlyintegratedchipwithdualbandWi-Fi6,BLE5.4forwirelessapplication. ItsWLANfunctionsupportstheSDIO3.0interface,andBTonlysupportsUARTinterface.Themodule providessimplelegacyand20MHz/40MHzco-existencemechanismtoensurebackwardandnetwork compatibility.Support2.4GHz/5GHzWi-Fi6. ThewirelessmodulePHYratecanachieveup286.8Mbps 1.2Description ModelNameN240A-SRL ProductDescriptionSupportWi-Fi/BTfunctionalities Dimension LxWxH:12x12x2.47mm Wi-FiInterface SupportSDIO3.0 OSsupportedAndroid/Linux/WinCE/XP/WIN7/WIN10 Operatingtemperature-20°Cto80°C Storagetemperature-40°Cto125°C N240A-SRL FN-LINKTECHNOLOGYLIMITED6 2.Features General CompliantwithIEEE802.11a/b/g/n/ac/ax support2.4G+5Gdualband,20/40MHzbandwidth Wi-FiSecurityWEP/WPA/WPA2/WPA3-SAEPersonal,MFP SupportSTA,SoftAP,Wi-FiDirectmodesconcurrently SupportSTBC,beamforming SupportWi-Fi6TWT PHYFeatures Dataratesupto286.8Mbpswith20/40MHzbandwidth HostInterface SupportsSDIO3.0/USB2.0  SupportsallthemandatoryandoptionalfeaturesofBluetoothlowenergy5.4  Supportsadvancedmasterandslavetopologies 3.BlockDiagram N240A-SRL FN-LINKTECHNOLOGYLIMITED7 4.GeneralSpecification 4.12.4GHzRFSpecification Featur…

Text truncated - open the document above for the full version.

FCC ID: 2AATL-FGN240ASRL Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2AATL-FGN240ASRL 3. Result Worse case is as below: Mode Frequency (MHz) Prediction distance (cm) RF output power MPE (mW/cm 2 ) Limit (mW/cm 2 ) MPE Test Exclusion dBm mW BLE 2402-2480 20 9.634 9.1918 0.00511 1 Yes 2.4GWIFI 2412-2462 20 14.272 26.7424 0.01486 1 Yes 5GWIFI BAND 1 5180-5240 20 9.108 8.1433 0.00842 1 Yes 5GWIFI BAND 2 5260-5320 20 8.643 7.3164 0.00757 1 Yes 5GWIFI BAND 3 5500-5700 20 8.671 7.3638 0.00762 1 Yes 5GWIFI BAND 4 5745-5825 20 8.415 6.9422 0.00718 1 Yes Maximum Simultaneous transmission MPE Ratios for BLE+WIFI: Max MPE ratio EDR /Limit Max MPE ratio WIFI /Limit ∑MPE ratios Limit Result 0.00511 0.01486 0.01997 1 PASS BLE Antenna Gain: 4.46dBi, 2.79(numeric) 2.4GWIFI Antenna Gain: 4.46dBi, 2.79(numeric) 5GWIFI Antenna Gain: 7.16dBi, 5.20(numeric) Meet MPE requirements, RF Exposure evaluation is not required.

FCCID: 2AATL-FGN240ASRL IC: 12425A-FGN240ASRL Radiated Emission FCCID: 2AATL-FGN240ASRL IC: 12425A-FGN240ASRL

Page 113 of 118 Report No.: A2504349-C03-R02 Test Mode: IEEE 802.11b-Low Test Mode: IEEE 802.11b-High Test Mode: IEEE 802.11g-Low Test Mode: IEEE 802.11g-High Page 114 of 118 Report No.: A2504349-C03-R02 Test Mode: IEEE 802.11n20-Low Test Mode: IEEE 802.11n20-High Test Mode: IEEE 802.11n40-Low Test Mode: IEEE 802.11n40-High Page 115 of 118 Report No.: A2504349-C03-R02 Test Mode: IEEE 802.11ax20-Low Test Mode: IEEE 802.11ax20-High Test Mode: IEEE 802.11ax40-Low Test Mode: IEEE 802.11ax40-High Page 116 of 118 Report No.: A2504349-C03-R02 11. ANTENNA REQUIREMENT 11.1.Standard Requirement An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. 11.2.Antenna Connected Construction The antenna connector is unique antenna and no consideration of replacement. Please see EUT photo for details. 11.3.Results The EUT antenna is PCB Antenna. It complies with the standard requirement. Page 117 of 118 Report No.: A2504349-C03-R02 12. TEST SETUP PHOTO 12.1.Photo of Radiated Emission test Page 118 of 118 Report No.: A2504349-C03-R02 ---------END OF REPORT-------

Page 71 of 118 Report No.: A2504349-C03-R02 PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 Page 72 of 118 Report No.: A2504349-C03-R02 PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 Page 73 of 118 Report No.: A2504349-C03-R02 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 Page 74 of 118 Report No.: A2504349-C03-R02 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 Page 75 of 118 Report No.: A2504349-C03-R02 PSD NVNT n20 2462MHz Ant1 PSD NVNT n40 2422MHz Ant1 Page 76 of 118 Report No.: A2504349-C03-R02 PSD NVNT n40 2437MHz Ant1 PSD NVNT n40 2452MHz Ant1 Page 77 of 118 Report No.: A2504349-C03-R02 Page 78 of 118 Report No.: A2504349-C03-R02 8. BANDWIDTH 8.1. Test limits Please refer RSS-247 & FCC PART 15: 15.247 For direct sequence systems, the minimum 6dB bandwidth shall be at least 500 kHz. 8.2. Test Procedure Details see the ANSI C63.10-2020 + Cor. 1-2023 + C63.10a-2024 + Errata to C63.10a-2024 a) The bandwidth is measured at an amplitude level reduced 6dB from the reference level. The reference level is the level of the highest amplitude signal observed from the transmitter at the fundamental frequency. Once the reference level is established, the equipment is conditioned with typical modulating signal to produce the worst-case (i.e. the widest) bandwidth. b) The test receiver set RBW =1-5%BW, VBW≥3*RBW, Sweep time set auto, detail see the test plot for 99% Bandwidth and 6dB Bandwidth. 8.3. Test Setup 8.4. Test Results -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT ax20 2412 Ant1 18.6 0.5 Pass NVNT ax20 2437 Ant1 18.72 0.5 Pass NVNT ax20 2462 Ant1 18.66 0.5 Pass NVNT ax40 2422 Ant1 37.32 0.5 Pass NVNT ax40 2437 Ant1 37.62 0.5 Pass NVNT ax40 2452 Ant1 36.6 0.5 Pass NVNT b 2412 Ant1 9.18 0.5 Pass NVNT b 2437 Ant1 9.18 0.5 Pass NVNT b 2462 Ant1 9.18 0.5 Pass NVNT g 2412 Ant1 16.41 0.5 Pass NVNT g 2437 Ant1 16.41 0.5 Pass NVNT g 2462 Ant1 16.38 0.5 Pass NVNT n20 2412 Ant1 17.52 0.5 Pass NVNT n20 2437 Ant1 17.67 0.5 Pass NVNT n20 2462 Ant1 17.52 0.5 Pass NVNT n40 2422 Ant1 35.7 0.5 Pass NVNT n40 2437 Ant1 36.18 0.5 Pass NVNT n40 2452 Ant1 36.3 0.5 Pass EUT Spectrum Analyzer Page 79 of 118 Report No.: A2504349-C03-R02 -6dB Bandwidth NVNT ax20 2412MHz Ant1 -6dB Bandwidth NVNT ax20 2437MHz Ant1 -6dB Bandwidth NVNT ax20 2462MHz Ant1 Page 80 of 118 Report No.: A2504349-C03-R02 -6dB Bandwidth NVNT ax40 2422MHz Ant1 -6dB Bandwidth NVNT ax40 2437MHz Ant1 Page 81 of 118 Report No.: A2504349-C03-R02 -6dB Bandwidth NVNT ax40 2452MHz Ant1 -6dB Bandwidth NVNT b 2412MHz Ant1 Page 82 of 118 Report No.: A2504349-C03-R02 -6dB Bandwidth NVNT b 2437MHz Ant1 -6dB Bandwidth NVNT b 2462MHz Ant1 Page 83 of 118 Report No.: A2504349-C03-R02 -6dB Bandwidth NVNT g 2412MHz Ant1 -6dB Bandwidth NVNT g 2437MHz Ant1 Page 84 of 118 Report No.: A2504349-C03-R02 -6dB Bandwidth NVNT g 2462MHz Ant1 -6dB Bandwidth NVNT n20 2412MHz Ant1 Page 85 of 118 Report No.: A2504349-C03-R02 -6dB Bandwidth NVNT n20 2437MHz Ant1 -6dB Bandwidth NVNT n20 2462MHz Ant1 Page 86 of 118 Report No.: A2504349-C03-R02 -6dB Bandwidth NVNT n40 2422MHz Ant1 -6dB Bandwidth NVNT n40 2437MHz Ant1 Page 87 of 118 Report No.: A2504349-C03-R02 -6dB Bandwidth NVNT n40 2452MHz Ant1 Page 88 of 118 Report No.: A2504349-C03-R02 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT ax20 2412 Ant1 19.001 NVNT ax20 2437 Ant1 18.941 NVNT ax20 2462 Ant1 19.001 NVNT ax40 2422 Ant1 37.882 NVNT ax40 2437 Ant1 37.822 NVNT ax40 2452 Ant1 37.822 NVNT b 2412 Ant1 13.127 NVNT b 2437 Ant1 13.157 NVNT b 2462 Ant1 13.157 NVNT g 2412 Ant1 16.603 NVNT g 2437 Ant1 16.603 NVNT g 2462 Ant1 16.603 NVNT n20 2412 Ant1 17.832 NVNT n20 2437 Ant1 17.832 NVNT n20 2462 Ant1 17.862 NVNT n40 2422 Ant1 36.384 NVNT n40 2437 Ant1 36.503 NVNT n40 2452 Ant1 36.563 OBW NVNT ax20 2412MHz Ant1 OBW NVNT ax20 2437MHz Ant1 Page 89 of 118 Report No.: A2504349-C03-R02 OBW NVNT ax20 2462MHz Ant1 OBW NVNT ax40 2422MHz Ant1 Page 90 of 118 Report No.: A2504349-C03-R02 OBW NVNT ax40 2437MHz Ant1 OBW NVNT ax40 2452MHz Ant1 Page 91 of 118 Report No.: A2504349-C03-R02 OBW NVNT b 2412MHz Ant1 OBW NVNT b 2437MHz Ant1 Page 92 of 118 Report No.: A2504349-C03-R02 OBW NVNT b 2462MHz Ant1 OBW NVNT g 2412MHz Ant1 Page 93 of 118 Report No.: A2504349-C03-R02 OBW NVNT g 2437MHz Ant1 OBW NVNT g 2462MHz Ant1 Page 94 of 118 Report No.: A2504349-C03-R02 OBW NVNT n20 2412MHz Ant1 OBW NVNT n20 2437MHz Ant1 Page 95 of 118 Report No.: A2504349-C03-R02 OBW NVNT n20 2462MHz Ant1 OBW NVNT n40 2422MHz Ant1 Page 96 of 118 Report No.: A2504349-C03-R02 OBW NVNT n40 2437MHz Ant1 OBW NVNT n40 2452MHz Ant1 Page 97 of 118 Report No.: A2504349-C03-R02 Page 98 of 118 Report No.: A2504349-C03-R02 9. BAND EDGE (CONDUCTED) 9.1. Test limits In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in § 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in § 15.205(a), must also comply with the radiated emission limits specified in § 15.209(a) (see § 15.205(c)). 9.2. Block diagram of test setup 9.3. Test Procedure Details see the ANSI C63.10-2020 + Cor. 1-2023 + C63.10a-2024 + Errata to C63.10a-2024 9.3.1. Place the EUT on the table and set it in transmitting mode. 9.3.2. Remove the ant…

Text truncated - open the document above for the full version.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 400-8300-895 Website: http://www.a-lab.cn FCC&IC TEST REPORT FCC ID: 2AATL-FGN240ASRL IC: 12425A-FGN240ASRL On Behalf of FN-LINK TECHNOLOGY LIMITED Wi-Fi module Model No.: FGN240ASRL Prepared for : FN-LINK TECHNOLOGY LIMITED Address : No.8, Litong Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2504349-C03-R02 Date of Receipt : August 22, 2025 Date of Test : August 22, 2025 – December 2, 2025 Date of Report : December 2, 2025 Version Number : V0 Result Pass Page 2 of 118 Report No.: A2504349-C03-R02 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results -------------------------------------------------------------- 6 1.1. Description of Standards and Results ------------------------------------------------------- 6 2. General Information ------------------------------------------------------------------------------------ 7 2.1. Description of Device (EUT) ------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ------------------------------------------------------------------ 8 2.3. Tested Supporting System Details------------------------------------------------------------ 8 2.4. Block Diagram of Test ---------------------------------------------------------------------------- 8 2.5. Test Mode Description --------------------------------------------------------------------------- 9 2.6. Test Conditions ---------------------------------------------------------------------------------- 10 2.7. Test Facility --------------------------------------------------------------------------------------- 10 2.8. Measurement Uncertainty -------------------------------------------------------------------- 11 2.9. Test Equipment List----------------------------------------------------------------------------- 12 3. Spurious Emission ------------------------------------------------------------------------------------ 14 3.1. Test Limits ----------------------------------------------------------------------------------------- 14 3.2. Test Procedure ----------------------------------------------------------------------------------- 17 3.3. Test Setup ----------------------------------------------------------------------------------------- 17 3.4. Test Results--------------------------------------------------------------------------------------- 18 4. RF CONDUCTED SPURIOUS EMISSIONS ---------------------------------------------------- 27 4.1. Block diagram of test setup ------------------------------------------------------------------ 27 4.2. Limits ----------------------------------------------------------------------------------------------- 27 4.3. Test procedure ----------------------------------------------------------------------------------- 27 4.4. Test result ----------------------------------------------------------------------------------------- 27 5. Duty Cycle ----------------------------------------------------------------------------------------------- 46 5.1. Block diagram of test setup ------------------------------------------------------------------ 46 5.2. Test Procedure ----------------------------------------------------------------------------------- 46 5.3. Test Results--------------------------------------------------------------------------------------- 46 6. Conducted Maximum Output Power ------------------------------------------------------------ 56 6.1. Test limits ------------------------------------------------------------------------------------------ 56 6.2. Test Procedure ----------------------------------------------------------------------------------- 56 6.3. Test Setup ----------------------------------------------------------------------------------------- 56 6.4. Test Results--------------------------------------------------------------------------------------- 57 7. Peak Power Spectral Density --------------------------------------------------------------------- 67 7.1. Test limits ------------------------------------------------------------------------------------------ 67 7.2. Test Procedure ----------------------------------------------------------------------------------- 67 7.3. Test Setup ----------------------------------------------------------------------------------------- 67 7.4. Test Results--------------------------------------------------------------------------------------- 68 8. Bandwidth ------------------------------------------------------------------------------------------------ 78 8.1. Test limits ------------------------------------------------------------------------------------------ 78 8.2. Test Procedure ----------------------------------------------------------------------------------- 78 8.3. Test Setup ----------------------------------------------------------------------------------------- 78 8.4. Test Results--------------------------------------------------------------------------------------- 78 9. Band Edge (Conducted) ---------------------------------------------------------------------------- 98 9.1. Test limits ------------------------------------------------------------------------------------------ 98 Page 3 of 118 Report No.: A2504349-C03-R02 9.2. Block diagram of test setup ------------------------------------------------------------------ 98 9.3. Test Procedure ----------------------------------------------------------------------------------- 98 9.4. Test Results--------------------------------------------------------------------------------------- 98 10. Band Edge(Radiated) ----------------------------------------…

Text truncated - open the document above for the full version.

Page 65 of 69 Report No.: A2504349-C03-R01 Page 66 of 69 Report No.: A2504349-C03-R01 Page 67 of 69 Report No.: A2504349-C03-R01 Page 68 of 69 Report No.: A2504349-C03-R01 Page 69 of 69 Report No.: A2504349-C03-R01 ---------END OF REPORT-------

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 400-8300-895 Website: http://www.a-lab.cn FCC&IC TEST REPORT FCC ID: 2AATL-FGN240ASRL IC: 12425A-FGN240ASRL On Behalf of FN-LINK TECHNOLOGY LIMITED Wi-Fi module Model No.: FGN240ASRL Prepared for : FN-LINK TECHNOLOGY LIMITED Address : No.8, Litong Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2504349-C03-R01 Date of Receipt : August 22, 2025 Date of Test : August 22, 2025 – November 18, 2025 Date of Report : November 18, 2025 Version Number : V0 Result Pass Page 2 of 69 Report No.: A2504349-C03-R01 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ------------------------------------------------------------ 6 1.1. Description of Standards and Results ----------------------------------------------------- 6 2. General Information ---------------------------------------------------------------------------------- 7 2.1. Description of Device (EUT) ----------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ---------------------------------------------------------------- 8 2.3. Tested Supporting System Details---------------------------------------------------------- 8 2.4. Block Diagram of Test -------------------------------------------------------------------------- 8 2.5. Test Mode Description ------------------------------------------------------------------------- 9 2.6. Test Conditions ---------------------------------------------------------------------------------- 9 2.7. Test Facility --------------------------------------------------------------------------------------- 9 2.8. Measurement Uncertainty ------------------------------------------------------------------ 10 2.9. Test Equipment List--------------------------------------------------------------------------- 11 3. Spurious Emission ---------------------------------------------------------------------------------- 13 3.1. Test Limits --------------------------------------------------------------------------------------- 13 3.2. Test Procedure --------------------------------------------------------------------------------- 15 3.3. Test Setup --------------------------------------------------------------------------------------- 16 3.4. Test Results------------------------------------------------------------------------------------- 18 4. RF CONDUCTED SPURIOUS EMISSIONS -------------------------------------------------- 23 4.1. Block diagram of test setup ---------------------------------------------------------------- 23 4.2. Limits --------------------------------------------------------------------------------------------- 23 4.3. Test procedure --------------------------------------------------------------------------------- 23 4.4. Test result --------------------------------------------------------------------------------------- 23 5. Duty Cycle --------------------------------------------------------------------------------------------- 30 5.1. Block diagram of test setup ---------------------------------------------------------------- 30 5.2. Test Procedure --------------------------------------------------------------------------------- 30 5.3. Test Results------------------------------------------------------------------------------------- 30 6. Conducted Maximum Output Power ---------------------------------------------------------- 34 6.1. Test limits ---------------------------------------------------------------------------------------- 34 6.2. Test Procedure --------------------------------------------------------------------------------- 34 6.3. Test Setup --------------------------------------------------------------------------------------- 34 6.4. Test Results------------------------------------------------------------------------------------- 34 7. Peak Power Spectral Density ------------------------------------------------------------------- 39 7.1. Test limits ---------------------------------------------------------------------------------------- 39 7.2. Test Procedure --------------------------------------------------------------------------------- 39 7.3. Test Setup --------------------------------------------------------------------------------------- 39 7.4. Test Results------------------------------------------------------------------------------------- 39 8. Bandwidth ---------------------------------------------------------------------------------------------- 44 8.1. Test limits ---------------------------------------------------------------------------------------- 44 8.2. Test Procedure --------------------------------------------------------------------------------- 44 8.3. Test Setup --------------------------------------------------------------------------------------- 44 8.4. Test Results------------------------------------------------------------------------------------- 44 9. Band Edge (Conducted) -------------------------------------------------------------------------- 52 9.1. Test limits ---------------------------------------------------------------------------------------- 52 9.2. Block diagram of test setup ---------------------------------------------------------------- 52 9.3. Test Procedure --------------------------------------------------------------------------------- 52 9.4. Test Results------------------------------------------------------------------------------------- 52 Page 3 of 69 Report No.: A2504349-C03-R01 10. Band Edge(Radiated) ------------------------------------------------------------------------------ 57 10.1. Test limits ------------------------------…

Text truncated - open the document above for the full version.

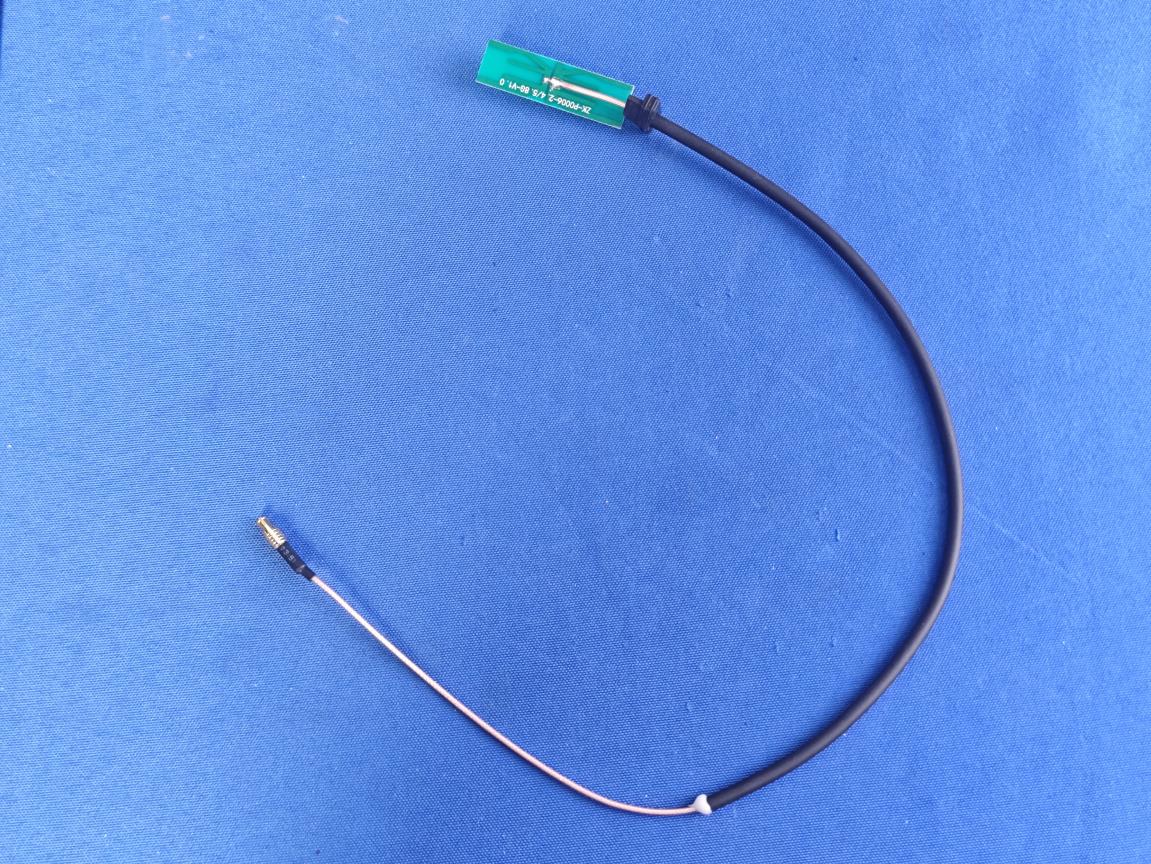

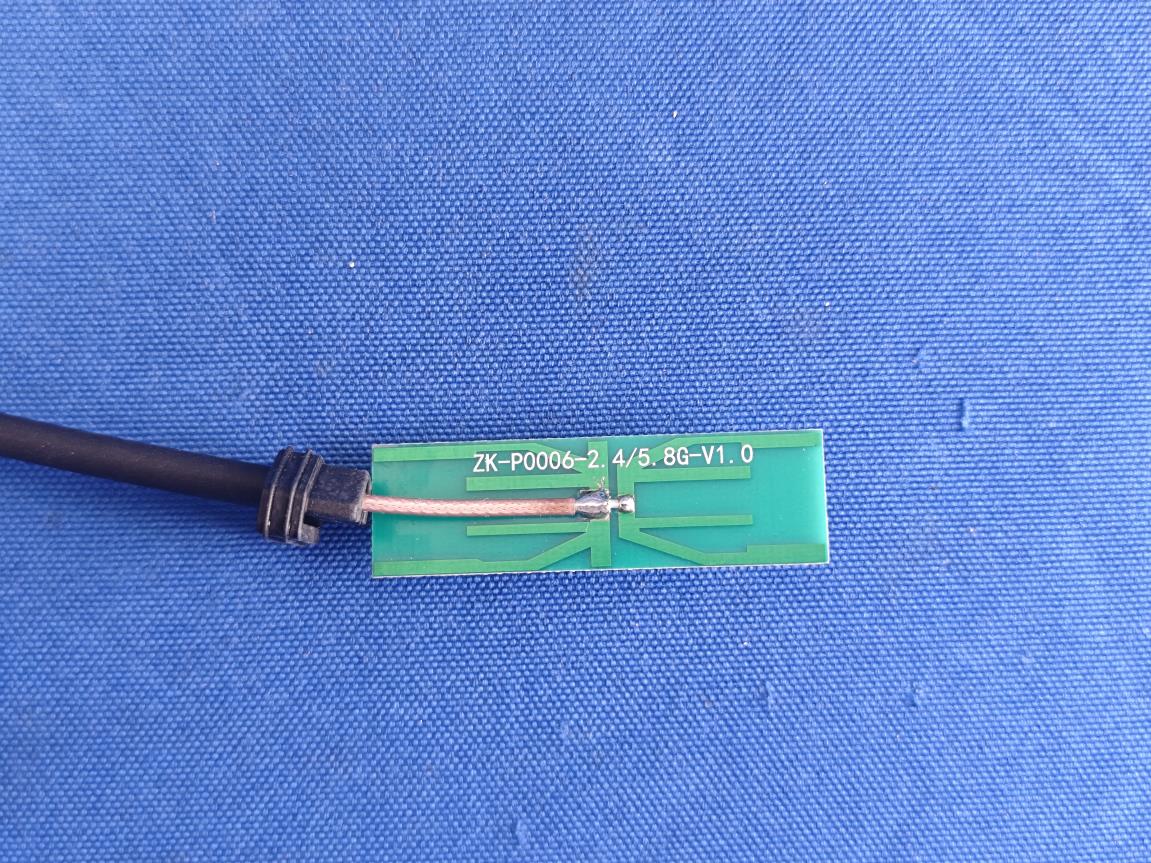

P0011- Antenna Device Specification Material code Material name P0011- Antenna components Product model P0011 Supplier Dongguan chrungmung Electronics Co., Ltd Version S1.0 Date August 30, 2025 Organization Proofreading Examine Approval Notice Document Number Date Internal version External version Modified Change Reason Changes 2025/8/30 S1.0 A1 Officially released First edition release Product Number: NB2450-08P006MCX Product Name: Antenna 第 | 页 1 Specification For Approval CUSTOMER NAME： Xingmai Innovation Technology (Suzhou) Co.,Ltd CUSTOMER P/N： XM030208-0002 PRODUCT SPEC： 2.4/5.8G frequency band, RG178 plus 4.5mm TPU outer back, total length 460MM, UV glue applied, connected to 180-degree MCX SUPPLIER P/N： NB2450-08P006MCX REV： 1.0 DATE： 2025/08/30 CUSTOMER APPROVE： PRODUCTION COMPANY： Dongguan Chrungmung Electronics Co., Ltd. E-mail：[email protected] Http：//www.Chrungmung.com Address: 1618, Building 1, No. 433 Zhen'an East Road, Chang'an Town, Dongguan City Contact phone number: 0769-85388271 +86 13925511731 DRAWING CHECK APPROVED FENG ZHU FENG DATE CHECK APPROVED Product Number: NB2450-08P006MCX Product Name: Antenna 第 | 页 2 Index: 1. Revision History / Page 3 2. Specification / Page 4 3. Characteristics and Reliability Test / Page 5 4. Antenna - S Parameter Test Data / Page 6 ~ 11 5. Testing Equipment and Principle / Page 12 6. Mechanical and Packing Drawing / Page 13 ~ 14 Product Number: NB2450-08P006MCX Product Name: Antenna 第 | 页 3 1. Revision History Revision Date Change Notification Description 1.0 2025.08.30 First edition Product Number: NB2450-08P006MCX Product Name: Antenna 第 | 页 4 2. Specification Sample Photo A. Electrical Characteristics Frequency 2400 ~ 2500 MHz 5150 ~ 5850 MHz V.S.W.R.<= 2.0 Antenna Gain 2400 ~ 2500 MHz 4.46dBi 5150 ~ 5850 MHz 7.16dBi Efficiency 2400 ~ 2500 MHz 57.6% 5150 ~ 5850 MHz 45.1% Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator PCB Cable Type O.D. 1.78/4.5mm C. Environmental Operation Temperature - 40 ̊C ~ + 65 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C Product Number: NB2450-08P006MCX Product Name: Antenna 第 | 页 5 3. Characteristics and Reliability Test Test Items Test Condition and Procedure Requirements C1 S.W.R. Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification C2 Antenna Gain Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification M1 Vibration GB / T2423 . 48-1997 Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz 3 directions; 2 hours for each direction 1. No Visual Damage 2. Frequency Tol.<= 5% M2 Random Drop GB / T2423.8-1995 Height: 1.0 Meter; 3 directions; 1 time for each direction 1. No parts separated 2. Frequency Tol.<= 5%…
