2AATL-6220HL-IFWIFI BT module

ye PRODUCTSPECIFICATION 6220HL-IF Wi-FiSingle-band1x1+Bluetooth4.2 ComboModule Version:v1.0 Customer: CustomerP/N: Signature: Date: Office:14thfloor,BlockB,phoenixzhigu,XixiangStreet,BaoanDistrict,Shenzhen Factory:NO.8,LitongRD.,LiuyangEconomic&TechnicalDevelopmentZone,Changsha,CHINA TEL:+86-755-2955-8186Website:www.fn-link.com FN-LINKTECHNOLOGYLIMITED1 FN-LINKTECHNOLOGYLIMITED2 6220HL-IFModuleDatasheet Ordering Information PartNO. Description FG6220HLIF-00 RTL8720CF-VA2-CG802.11 b/g/n/,33*18mm,UART/1T1R+BLE4.2板载天线+ipex头 FN-LINKTECHNOLOGYLIMITED3 6220HL-IF CONTENTS 1.GeneralDescription ............................................................................................................ 5 1.1Introduction ....................................................................................................................... 5 1.2Description........................................................................................................................5 2.Features..................................................................................................................................6 3.BlockDiagram.......................................................................................................................7 4.GeneralSpecification..........................................................................................................7 4.1WI-FISpecification.............................................................................................................7 4.2BluetoothSpecification..................................................................................................8 6.PinDefinition ......................................................................................................................... 9 6.1PinOutline........................................................................................................................9 6.2PinDefinitiondetails.....................................................................................................10 7.ElectricalSpecifications..................................................................................................11 7.1PowerSupplyDCCharacteristics..............................................................................11 7.2PowerConsumption......................................................................................................11 7.3PowerOnSequence.....................................................................................................12 7.4InterfaceCircuittimeseries........................................................................................12 7.4.1ResumefromStandby.............................................................................................12 7.4.2ShutdownSequence................................................................................................13 8.Sizereference......................................................................................................................13 8.1ModulePicture...............................................................................................................13 8.2MarkingDescription......................................................................................................13 8.3LayoutRecommendation.............................................................................................15 9.TheKeyMaterialList.........................................................................................................16 10.ReferenceDesign.............................................................................................................16 11.RecommendedReflowProfile ...................................................................................... 17 12.RoHScompliance.............................................................................................................17 13.Package ............................................................................................................................... 17 13.1Reel..............................................................................................................................17 14.Moisturesensitivity.........................................................................................................18 6220HL-IF FN-LINKTECHNOLOGYLIMITED4 RevisionHistory Version Date ContentsofRevisionChange DraftChecked Approved V1.02023/11/21Newversion LXP Zl Qjp 6220HL-IF FN-LINKTECHNOLOGYLIMITED5 1.GeneralDescription 1.1Introduction 6220HL-IFisanembeddedhigh-performanceWi-Fi+BLEmodule,whichadoptstheRealtekXMC1R-CGT chipplatformsolution.6220NM-INisanintegratedPCBon-boardantennaandanexternalfalse.Themodule ismainlyapplicabletosmarthomeappliances,homeautomation,industrialInternetandotherInternetof Thingsapplications. 1.2Description ModelName 6220HL-IF ProductDescriptionSupportWi-Fi/Bluetoothfunctionalities Dimension LxWxH:33x18x3.12mm Wi-FiInterface SDIOdevice,SPI,UART,GPIO,PWM,I2C Operatingtemperature -20°Cto+85°C Storagetemperature -40°Cto125°C 6220HL-IF FN-LINKTECHNOLOGYLIMITED6 2.Features General Complete802.11nsolutionfor2.4GHzband CMOSMAC,BasebandPHY,andRFinasinglechipfor802.11b/g/ncompatibleWLAN Compatiblewith802.11nspecification Backwardcompatiblewith802.11b/gdeviceswhileoperatingin802.11nmode Maximumdatarate26Mbpsin802.11gand65Mbpsin802.11n 65MbpsreceivePHYrateand65MbpstransmitPHYrateusing20MHzbandwidth 802.11i(WPA,WPA2).Open,sharedkey,andpair-wisekeyauthenticationservices HostInterface SupportSDIO2.0HighSpeedmode BluetoothFeatures BluetoothSmartReady(BluetoothLowEnergy)supportingBT4.2BQB 6220HL-IF FN-LINKTECHNOLOGYLIMITED7 3.BlockDiagram 4.GeneralSpecification 4.1WI-FISpecification Feature Description WLANStandard IEEE802.11b/g/nWi-Ficompliant FrequencyRange 2.400GHz~2.4835GHz(2.4GHzISMBand) NumberofChannels2.4GHz：Ch1~Ch14 Modulation WiFi：DSSSDBPSK/DQPSK/CCK OFDMBPSK/QPSK/16QAM/64QAM TestItems TypicalValueEVM OutputPower 802.11b/11Mbps:17dBm±2dB EVM≤-10dB …

Text truncated - open the document above for the full version.

FN-LINKTECHNOLOGYLIMITED 2026-08-26 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2AATL-6220HL- IF) [FN-LINKTECHNOLOGYLIMITED](“theapplicant”)certifiesthattheequipment forwhichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceiving anequipmentauthorizationpursuanttosection2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,theequipmentdoes notutilizecyber-securityoranti-virussoftwarefromKasperskyLab,Inc,oranyofits successorsandassignees,whichisalsoonthe“coveredlist”. Sincerely, JimHu Manager FN-LINKTECHNOLOGYLIMITED FN-LINKTECHNOLOGYLIMITED 2026-08-26 EurofinsElectricaland ElectronicTestingNA, Inc. 914 WestPatapscoAvenue Baltimore,MD 21230 RE: AttestationStatementsPart 2.911(d)(5)(ii)requestfor(FCC ID: 2AATL-6220HL- IF) [FN-LINKTECHNOLOGYLIMITED] (“the applicant”) certifiesthat,as of the date of the filingof the application,the applicantis notidentifiedon the CoveredList as an entityproducing“covered” equipment. Sincerely, Jim Hu Manager FN-LINKTECHNOLOGYLIMITED

FN-LINK TECHNOLOGY LIMITED Request for Modular/Limited Modular Approval Date: September 3, 2026 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: ______2AATL-6220HL-IF ______ 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Yes, the products have a shield, Physical components and tuning capacitor(s) are assembly to the module and located internal to the shield. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Yes, The module has buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Yes, The modular transmitter has its own power supply regulation. 4. The modular transmitter must comply with the antenna and transmission system requirements of ßß 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) Yes, The module contains a PCB antenna. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) Yes, The module demonstrates compliance in a stand-alone configuration. FN-LINK TECHNOLOGY LIMITED Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Yes, FCC ID label is placed in the user manual and package. 7. The modular transmitter must comply with all specific rule or operating requirements applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, …

Text truncated - open the document above for the full version.

FN-LINKTECHNOLOGYLIMITED 2026-08-26 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeGuangdongGlobalTestingTechnologyCo.,Ltd.toacton ourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthesigning ofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, JimHu Manager FN-LINKTECHNOLOGYLIMITED

FN-LINKTECHNOLOGYLIMITED 2026-08-26 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(EUTName:WIFIBTmodule /Model:6220HL-IF/FCCID:2AATL-6220HL-IF) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(BlockDiagram,OperationalDescription, Schematics)requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrom publicreview. Theabovedocumentsarecompanyproprietaryinformationthatcouldneverget intothepossessionofyourcompetition). Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, JimHu Manager FN-LINKTECHNOLOGYLIMITED

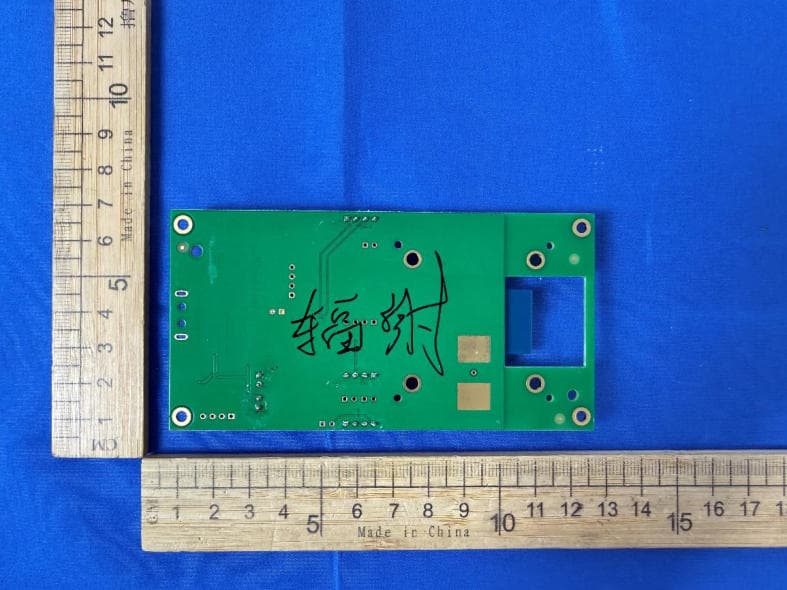

External

Model:6220HL-IF FCC ID:2AATL-6220HL-IF Due to the small size of the module, it is not possible to laser etch all the module information and FCC ID information, so the certification information will be reflected in the user manual and the shipping packaging. L x W : 33 x 18 (±0.2) 2.37 g

Internal Photographs Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in ß1.1307(b) FCC ID: 2AATL-6220HL-IF EUT Specification EUT WIFI BT module Frequency band (Operating) BLE: 2.402GHz ~ 2.480GHz WIFI: 2.412GHz ~ 2.462GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power BLE BLE 1M: 5.38 dBm 2.4G WIFI IEEE 802.11b: 16.94 dBm IEEE 802.11g: 15.84 dBm IEEE 802.11n-HT20: 13.73 dBm Antenna gain (Max) 1.58 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 2 / 4 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. 3 / 4 Measurement Result Operation Mode Channel Frequency (MHz) Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power (dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm2) Power density Limits (mW/ cm2) Results BLE 1Mbps 2440 5.38 5±1 6 3.98 1.58 1.439 0.001140 1 PASS 2.4GHz WIFI (802.11b) 2437 16.94 17±1 18 63.10 1.58 1.439 0.018060 1 PASS 4 / 4 Maximum Simultaneous transmission MPE Ratio for Bluetooth & 2.4G WIFI Maximum MPE ratio (Bluetooth) Maximum MPE ratio (2.4G WIFI) ∑ MPE ratios Limit Results 0.001140 0.018060 0.0192 1.000 Pass No need to test SAR. Signature: Alan He Date: 2026-08-26

3506-3509, Building A, Fucheng Time Plaza, Xin'an Street, Bao'an District, Shenzhen City, Guangdong Province, China Phone number:86-755-2955-8186 website:www.fn-link.com 承认书 Acknowledgment Letter FN-LINK TECHNOLOGY LIMITED Customer Project Name 6220HL-IF Customer NO. specification 6220HL-IF PCB Antenna Supplier NO. Specification NO. Write by zzq REV. Ver.1 Date 2026-8-2 Note antenna testing FN-LINK TECHNOLOGY LIMITED Change content version Change personApproved by FN-LINK TECHNOLOGY LIMITED Number content Page number - Acknowledgment Letter Cover one - Antenna test report two - Version change record three one Confirmation Letter Project Tablefour two Test equipment and conditions five three Prototype structure specification six four Finished antenna diagram seven five S11 eight six Gain/Efficiency/3D Graph nine -ten seven packing eleven 1. Recognition Letter Project Table (Index) FN-LINK TECHNOLOGY LIMITED (Test Equipment & Conditions) 1.1 Network Analyzers : KEYSIGHT P5002A1.2 Communications Test Set: R&S CMW 500 /5071C 1.3 3D Chamber Test System: （24 probe testing system） 1.Testing principle diagram of microwave anechoic chamber 2.Explanation. This report summarizes the electrical performance results of the antenna for the project, including the S11 parameters, Gain, and Efficiency of the antenna FN-LINK TECHNOLOGY LIMITED 1. Complete machine description 2. Debugging data report 3. Test data catalogue FN-LINK TECHNOLOGY LIMITED Finished antenna diagram FN-LINK TECHNOLOGY LIMITED antenna S11 FN-LINK TECHNOLOGY LIMITED Freq/GHz 241224422472 VSWR -14.39-16.73-13.85 FN-LINK TECHNOLOGY LIMITED Frequency/MhzMaxGain/dBiEfficiency / % 24001.0341.59 24101.1143.05 24201.3744.98 24301.4446.99 24401.5849.09 24501.4349.09 24601.446.99 24701.4144.36 24801.2741.69 24901.1538.82 25000.9935.89 FN-LINK TECHNOLOGY LIMITED FN-LINK TECHNOLOGY LIMITED

1 / 42 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT b 2412 Ant1 98.96 0.05 0.08 NVNT b 2437 Ant1 98.96 0.05 0.08 NVNT b 2462 Ant1 98.96 0.05 0.08 NVNT g 2412 Ant1 94.07 0.27 0.48 NVNT g 2437 Ant1 94.07 0.27 0.48 NVNT g 2462 Ant1 94.07 0.27 0.48 NVNT n20 2412 Ant1 93.66 0.28 0.52 NVNT n20 2437 Ant1 93.66 0.28 0.52 NVNT n20 2462 Ant1 93.66 0.28 0.52 2 / 42 Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 3 / 42 Duty Cycle NVNT b 2462MHz Ant1 Duty Cycle NVNT g 2412MHz Ant1 4 / 42 Duty Cycle NVNT g 2437MHz Ant1 Duty Cycle NVNT g 2462MHz Ant1 5 / 42 Duty Cycle NVNT n20 2412MHz Ant1 Duty Cycle NVNT n20 2437MHz Ant1 6 / 42 Duty Cycle NVNT n20 2462MHz Ant1 7 / 42 Maximum Average Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Conducted Power (W) Limit Conducted(dBm) Verdict NVNT b 2412 Ant1 16.7 0.04677 30 Pass NVNT b 2437 Ant1 16.94 0.04943 30 Pass NVNT b 2462 Ant1 16.71 0.04688 30 Pass NVNT g 2412 Ant1 15.53 0.03573 30 Pass NVNT g 2437 Ant1 15.84 0.03837 30 Pass NVNT g 2462 Ant1 15.56 0.03597 30 Pass NVNT n20 2412 Ant1 13.19 0.02084 30 Pass NVNT n20 2437 Ant1 13.53 0.02254 30 Pass NVNT n20 2462 Ant1 13.73 0.0236 30 Pass 8 / 42 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 9.178 0.5 Pass NVNT b 2437 Ant1 9.178 0.5 Pass NVNT b 2462 Ant1 9.181 0.5 Pass NVNT g 2412 Ant1 16.45 0.5 Pass NVNT g 2437 Ant1 16.39 0.5 Pass NVNT g 2462 Ant1 16.41 0.5 Pass NVNT n20 2412 Ant1 17.62 0.5 Pass NVNT n20 2437 Ant1 17.61 0.5 Pass NVNT n20 2462 Ant1 17.65 0.5 Pass 9 / 42 -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 10 / 42 -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 11 / 42 -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 12 / 42 -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 13 / 42 -6dB Bandwidth NVNT n20 2462MHz Ant1 14 / 42 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT b 2412 Ant1 14.007 NVNT b 2437 Ant1 14.007 NVNT b 2462 Ant1 14.024 NVNT g 2412 Ant1 16.712 NVNT g 2437 Ant1 16.662 NVNT g 2462 Ant1 16.714 NVNT n20 2412 Ant1 17.826 NVNT n20 2437 Ant1 17.873 NVNT n20 2462 Ant1 17.757 15 / 42 OBW NVNT b 2412MHz Ant1 OBW NVNT b 2437MHz Ant1 16 / 42 OBW NVNT b 2462MHz Ant1 OBW NVNT g 2412MHz Ant1 17 / 42 OBW NVNT g 2437MHz Ant1 OBW NVNT g 2462MHz Ant1 18 / 42 OBW NVNT n20 2412MHz Ant1 OBW NVNT n20 2437MHz Ant1 19 / 42 OBW NVNT n20 2462MHz Ant1 20 / 42 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/30kHz) Duty Factor (dB) Total PSD (dBm/30kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -5.17 0.05 -5.12 8 Pass NVNT b 2437 Ant1 -5.15 0.05 -5.1 8 Pass NVNT b 2462 Ant1 -4.9 0.05 -4.85 8 Pass NVNT g 2412 Ant1 -9.15 0.27 -8.88 8 Pass NVNT g 2437 Ant1 -8.13 0.27 -7.86 8 Pass NVNT g 2462 Ant1 -8.66 0.27 -8.39 8 Pass NVNT n20 2412 Ant1 -11.57 0.28 -11.29 8 Pass NVNT n20 2437 Ant1 -10.85 0.28 -10.57 8 Pass NVNT n20 2462 Ant1 -11.04 0.28 -10.76 8 Pass 21 / 42 PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 22 / 42 PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 23 / 42 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 24 / 42 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 25 / 42 PSD NVNT n20 2462MHz Ant1 26 / 42 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -51.02 -30 Pass NVNT b 2462 Ant1 -58.93 -30 Pass NVNT g 2412 Ant1 -34.95 -30 Pass NVNT g 2462 Ant1 -44.73 -30 Pass NVNT n20 2412 Ant1 -34.4 -30 Pass NVNT n20 2462 Ant1 -48.57 -30 Pass 27 / 42 Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission 28 / 42 Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission 29 / 42 Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission 30 / 42 Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission 31 / 42 Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission 32 / 42 Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission 33 / 42 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -47.35 -30 Pass NVNT b 2437 Ant1 -48.12 -30 Pass NVNT b 2462 Ant1 -48.32 -30 Pass NVNT g 2412 Ant1 -44.51 -30 Pass NVNT g 2437 Ant1 -44.15 -30 Pass NVNT g 2462 Ant1 -44.17 -30 Pass NVNT n20 2412 Ant1 -40.66 -30 Pass NVNT n20 2437 Ant1 -41.93 -30 Pass NVNT n20 2462 Ant1 -42.53 -30 Pass 34 / 42 Tx. Spurious NVNT b 2412MHz Ant1 Ref Tx. Spurious NVNT b 2412MHz Ant1 Emission 35 / 42 Tx. Spurious NVNT b 2437MHz Ant1 Ref Tx. Spurious NVNT b 2437MHz Ant1 Emission 36 / 42 Tx. Spurious NVNT b 2462MHz Ant1 Ref Tx. Spurious NVNT b 2462MHz Ant1 Emission 37 / 42 Tx. Spurious NVNT g 2412MHz Ant1 Ref Tx. Spurious NVNT g 2412MHz Ant1 Emission 38 / 42 Tx. Spurious NVNT g 2437MHz Ant1 Ref Tx. Spurious NVNT g 2437MHz Ant1 Emission 39 / 42 Tx. Spurious NVNT g 2462MHz Ant1 Ref Tx. Spurious NVNT g 2462MHz Ant1 Emission 40 / 42 Tx. Spurious NVNT n20 2412MHz Ant1 Ref Tx. Spurious NVNT n20 2412MHz Ant1 Emission 41 / 42 Tx. Spurious NVNT n20 2437MHz Ant1 Ref Tx. Spurious NVNT n20 2437MHz Ant1 Emission 42 / 42 Tx. Spurious NVNT n20 2462MHz Ant1 Ref Tx. Spurious NVNT n20 2462MHz Ant1 Emission

1 / 22 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant1 63.12 2 2.53 NVNT BLE 1M 2440 Ant1 63.12 2 2.53 NVNT BLE 1M 2480 Ant1 63.12 2 2.53 2 / 22 Duty Cycle NVNT BLE 1M 2402MHz Ant1 Duty Cycle NVNT BLE 1M 2440MHz Ant1 3 / 22 Duty Cycle NVNT BLE 1M 2480MHz Ant1 4 / 22 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit Conducted(dBm) Verdict NVNT BLE 1M 2402 Ant1 4.76 30 Pass NVNT BLE 1M 2440 Ant1 5.38 30 Pass NVNT BLE 1M 2480 Ant1 5.31 30 Pass 5 / 22 Peak Power NVNT BLE 1M 2402MHz Ant1 Peak Power NVNT BLE 1M 2440MHz Ant1 6 / 22 Peak Power NVNT BLE 1M 2480MHz Ant1 7 / 22 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.6519 0.5 Pass NVNT BLE 1M 2440 Ant1 0.6522 0.5 Pass NVNT BLE 1M 2480 Ant1 0.6425 0.5 Pass 8 / 22 -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 9 / 22 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 10 / 22 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant1 1.0227 NVNT BLE 1M 2440 Ant1 1.0279 NVNT BLE 1M 2480 Ant1 1.0232 11 / 22 OBW NVNT BLE 1M 2402MHz Ant1 OBW NVNT BLE 1M 2440MHz Ant1 12 / 22 OBW NVNT BLE 1M 2480MHz Ant1 13 / 22 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -10.43 8 Pass NVNT BLE 1M 2440 Ant1 -9.26 8 Pass NVNT BLE 1M 2480 Ant1 -9.95 8 Pass 14 / 22 PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 15 / 22 PSD NVNT BLE 1M 2480MHz Ant1 16 / 22 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -58.73 -20 Pass NVNT BLE 1M 2480 Ant1 -62.68 -20 Pass 17 / 22 Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission 18 / 22 Band Edge NVNT BLE 1M 2480MHz Ant1 Ref Band Edge NVNT BLE 1M 2480MHz Ant1 Emission 19 / 22 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -43.87 -20 Pass NVNT BLE 1M 2440 Ant1 -45.33 -20 Pass NVNT BLE 1M 2480 Ant1 -44.9 -20 Pass 20 / 22 Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Emission 21 / 22 Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Emission 22 / 22 Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Emission

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For WIFI BT module MODEL NUMBER: 6220HL-IF REPORT NUMBER: E04A26080079F00101 ISSUE DATE: September 16, 2026 FCC ID: 2AATL-6220HL-IF Prepared for FN-LINK TECHNOLOGY LIMITED No.8, Litong Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A26080079F00101 Page 2 of 47 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 September 16, 2026 Initial Issue REPORT NO.: E04A26080079F00101 Page 3 of 47 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 Pass Conducted Output Power ANSI C63.10-2020, Clause 11.9.2.3.2 FCC Part 15.247 (b)(3) RSS-247 Clause 6.3.2 Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 or 11.8.2 FCC Part 15.247 (a)(2) RSS-247 Clause 6.3.1(a) ISED RSS-Gen Clause 6.7 Pass Power Spectral Density ANSI C63.10-2020, Clause 11.10.5 FCC Part 15.247 (e) RSS-247 Clause 6.3.1(b) Pass Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 6.6 Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.12 FCC Part 15.247(d) FCC Part 15.205/15.209 RSS-247 Clause 6.6 RSS-GEN Clause 8.9 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass Note: 1. This report is also performed according to ANSI C63.10-2020 + Cor.1-2023 + C63.10a-2024 + Errata to C63.10a-2024 standards. 2. N/A: In this whole report no…
