2AATL-6221B-UUC6221B-UUC

FN-LINK TECHNOLOGY LIMITED Proprietary & Confidential Information 6221B-UUC Wi-Fi Dual-band 1x1 11ac + Bluetooth 4.2 Combo Module Datasheet FN-LINK TECHNOLOGY LIMITED Proprietary & Confidential Information 6221B-UUC Module Datasheet Office: 6 Floor, Building U6, Junxiang U8 Park, Hangcheng Avenue, Bao'an District, Shenzhen City, CHINA Factory: No.8, Litong Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, CHINA TEL: +86-755-2955-8186 Website: www.fn-link.com Customer Approval : Company Title Signature Date Fn-Link 6221B-UUC FN-LINK TECHNOLOGY LIMITED Proprietary & Confidential Information Revision History Version Date Revision Content Draft Approved 1.0 2019/10/29 Initial Release Wesley Stone 1.1 2019/11/08 Update section 4, 5 and 7 for CHIP_EN pin and thermal pad. Wesley Stone 1.2 2019/12/06 Update RF spec, add consumption data. Wesley Stone 1.3 2020/03/10 Refine section 2. Wesley Stone 1.4 2020/03/11 Modify freq. tolerance spec. Wesley Stone 6221B-UUC FN-LINK TECHNOLOGY LIMITED Proprietary & Confidential Information CONTENTS 1 Overview ................................................................................................................ 1 1.1 Introduction ....................................................................................................... 1 1.2 Features ............................................................................................................ 1 1.3 Block Diagram ................................................................................................... 2 1.4 General Specification ........................................................................................ 2 1.5 Recommended Operating Rating ...................................................................... 2 ※1.6 EEPROM Information .................................................................................... 3 2 Wi-Fi RF Specification ........................................................................................... 4 2.1 Wi-Fi 2.4GHz RF Specification .......................................................................... 4 2.2 Wi-Fi 5GHz RF Specification ............................................................................. 4 3 Bluetooth Specification ......................................................................................... 6 3.1 Bluetooth Specification ...................................................................................... 6 4 Pin Assignments .................................................................................................... 7 4.1 Pin Outline ........................................................................................................ 7 4.2 Pin Definition ..................................................................................................... 7 5 Dimensions ............................................................................................................ 9 5.1 Physical Dimensions and Module Photo ........................................................... 9 5.2 Marking Description .......................................................................................... 9 5.3 Module Physical Dimensions .......................................................................... 10 5.4 Layout Recommendation ................................................................................ 11 6 Interface Timing Specification ............................................................................ 12 6.1 USB Bus Timing during Power On Sequence ................................................. 12 7 Reference Design ................................................................................................ 13 8 Ordering Information ........................................................................................... 13 9 The Key Material List ........................................................................................... 14 10 Recommended Reflow Profile .......................................................................... 14 11 Package Information ......................................................................................... 15 11.1 Reel ............................................................................................................... 15 11.2 Packaging Details .......................................................................................... 15 11.3 Moisture Sensitivity ....................................................................................... 16 6221B-UUC FN-LINK TECHNOLOGY LIMITED Proprietary & Confidential Information 1 1 Overview 1.1 Introduction The 6221B-UUC is a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is based on Realtek RTL8821CU chipset, a highly-integrated IEEE 802.11a/b/g/n/ac MAC/Baseband/RF WLAN and Bluetooth Baseband/RF single chip. For Wireless LAN (WLAN) operation, this module supports 1-stream 802.11ac solution with Multi-user MIMO STA mode with USB2.0 network interface controller. For Bluetooth operation, it supports Bluetooth 2.1/4.2. 6221B-UUC complies with IEEE 802.11a/b/g/n/ac standard and it can achieve up to a speed of 433.3Mbps with single stream in 802.11ac to connect to the WLAN. This compact module is a total solution for a combination of Wi-Fi and BT technologies. 1.2 Features  Highly-integrated module for 5G 802.11ac, or 2.4G/5G 802.11n WLAN applications.  Maximum PHY data rate up to 86.7MHz using 20MHz bandwidth, 200Mbps using 40Mhz bandwidth and 433.3Mbps using 80Mhz bandwidth.  Backward compatible with 802.11a/b/g device.  Support IEEE 802.11e QoS Enhancement and 802.11i (WPA, WPA2).  Support IEEE 802.11h DFS.  Wi-Fi Direct supports wireless peer to peer applications.  Supports Bluetooth 4.2 and backward compatible with Bluetooth 2.1 + EDR.  Bluetooth 4.0 Dual Mode support: Simultaneous LE and BR/EDR.  Supports Bluetooth Low Energy.  Integrated internal Class 1, Class 2 and Class 3 …

Text truncated - open the document above for the full version.

． ． ． ． ． DATE: 22021-1-13 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AATL-6221B-UU C Product Name: 62218-UUC ReQuest for Confidentiality Pursuant t o Sectio ns 0. 457 and 0.459 of the commissions rules, we hereby request that the following do cuments be held confidential: { List here the documents for which you are seeking confidentiality ..:... for example ... ) • Schematics • Block diagram • Operation description 丁hesematerials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to ou「competitors. <Signature> Name: Wayne Zou Title: Manager Applicant Company: LIMITED ． 电 HUNAN FN-LINK TECHNOLOGY ’

Single Modular approval Declaration letter We ，HUNAN FN-LINK TECHNOLOGY LIMITED . apply Single modular approval for Product Name: 6221B-UUC Model: 6221B-UUC FCC ID: 2AATL-6221B-UUC According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer ：Yes， Shielded for both side . 2) The module must have buffered modulation/data inputs to ensure that the device willcomply with Part 15 requirements with any type of input signal; Answer ：Yes ；All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer ：Yes ；A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antennaconnector, and be marketed and operated only with specific antenna(s), per Sections15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Yes ；Device is equipped with non-detachable external antenna . (5) The module must demonstrate compliance in a stand-alone configuration; Answer ：Yes，distance between modular and all AEs are bigger than 10cm ，refer to setup photo. (6) The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer ：Yes ；The modular has a permanent fixed label, and below statement was listed in the UserManual;The host device must be labeled to display the FCC ID of the module “Contains FCC ID: 2AATL-6221B-UUC” (7) The module must comply with all specific rules applicable to the transmitter includingall the conditions provided in the integration instructions by the grantee; Answer ：Yes ；The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8) The module must comply with RF exposure requirements Answer ：Yes ；Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual Please contact me if you have any further questions. Thanks for your attention. Best Regards, <Signature> Name ：Wayne Zou Title：Manager Applicant Company：HUNAN FN-LINK TECHNOLOGY LIMITED

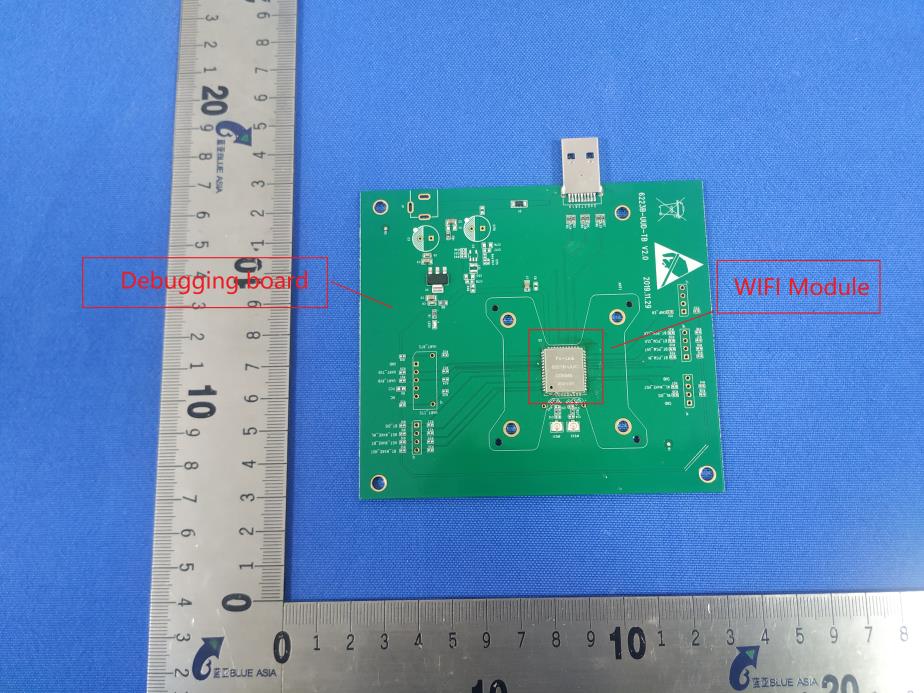

Model No.: 6221B-UUC The EUT is wifi module

Fn-Link - · tt ·－...－ Brand 62218-UUC - · H · - · - · - Model Name xxxxxx ......．．．．．．． Lot Code ，．”· - · - · - XXXX: Date Code xxxxoo FCCID:2AATL-6221B-UUC 00: Internal control code k...－－－...－－－－－...－ · -· - Pin 1 Marker

Model No.: 6221B-UUC

Page 1 of 2 Product Name: 6221B-UUC Model No.：6221B-UUC FCC ID：2AATL-6221B-UCC RF Exposure Evaluation 1.1 RF Exposure Compliance Requirement 1.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Page 2 of 2 1.1.3 EUT RF Exposure Evaluation Antenna Gain: BLE/EDR/ WIFI:2dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.58 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: BLE: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Highest 2480 9.18 8.28 0.004 1.0 PASS EDR: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Highest 2480 12.01 15.89 0.007 1.0 PASS 2.4G WIFI: 802.11n20 Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Middle 2437 14.02 25.23 0.012 1.0 PASS 5G WIFI:802.11N20 Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Middle 5320 14.99 30.90 0.014 1.0 PASS Note: Refer to report No. BLA-EMC-202012-A2901/02/03/04 for EUT test Max Conducted Peak Output Power value. The distance r (4th column) calculated from the Fries transmission formula is far greater than 20 cm separation Requirement

Page 1 of66 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : 6221B-UUC Brand Mark : HUNAN FN-LINK Model No. : 6221B-UUC FCC ID : 2AATL-6221B-UUC Report Number : BLA-EMC-202012-A2902 Date of Sample Receipt : 2020/12/8 Date of Test : 2020/12/10 to 2021/1/11 Date of Issue : 2021/1/11 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: HUNAN FN-LINK TECHNOLOGY LIMITED No. 8, Litong Road, Liuyang Economic Development Zone, Liuyang China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/1/11 Report No.: BLA-EMC-202012-A2902 Page 2 of66 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/1/11 Original Report No.: BLA-EMC-202012-A2902 Page 3 of66 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY .............................................................................................................................................. 6 2 GENERAL INFORMATION ............................................................................................................................... 7 3 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................... 7 4 TEST ENVIRONMENT ...................................................................................................................................... 8 5 TEST MODE ...................................................................................................................................................... 8 6 MEASUREMENT UNCERTAINTY .................................................................................................................... 8 7 DESCRIPTION OF SUPPORT UNIT ................................................................................................................ 9 8 LABORATORY LOCATION .............................................................................................................................. 9 9 TEST INSTRUMENTS LIST ............................................................................................................................ 10 1 ANTENNA REQUIREMENT ............................................................................................................................ 14 1.1 CONCLUSION ................................................................................................................................................................ 14 2 CONDUCTED SPURIOUS EMISSIONS ......................................................................................................... 15 2.1 LIMITS ....................................................................................................................................................................... 15 2.2 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 15 2.3 TEST DATA .................................................................................................................................................................. 16 3 CONDUCTED BAND EDGES MEASUREMENT ........................................................................................... 17 3.1 LIMITS ....................................................................................................................................................................... 17 3.2 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 17 3.3 TEST DATA .................................................................................................................................................................. 18 4 RADIATED SPURIOUS EMISSIONS ............................................................................................................. 19 4.1 LIMITS ....................................................................................................................................................................... 19 4.2 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 20 4.3 PROCEDURE .............................................................................................................................................................. 20 4.4 TEST DATA .................................................................................................................................................................. 22 5 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ....................................................... 30 5.1 LIMITS ....................................................................................................................................................................... 30 5.2 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 31 5.3 PROCEDURE .............................................................................................................................................................. 31 5.4 TEST DATA ............................................................................................................................................…

Text truncated - open the document above for the full version.

Page 1 of96 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : 6221B-UUC Brand Mark : HUNAN FN-LINK Model No. : 6221B-UUC FCC ID : 2AATL-6221B-UUC Report Number : BLA-EMC-202012-A2903 Date of Sample Receipt : 2020/12/8 Date of Test : 2020/12/10 to 2021/1/11 Date of Issue : 2021/1/11 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: HUNAN FN-LINK TECHNOLOGY LIMITED No. 8, Litong Road, Liuyang Economic Development Zone, Liuyang China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/1/11 Report No.: BLA-EMC-202012-A2903 Page 2 of96 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/1/11 Original Report No.: BLA-EMC-202012-A2903 Page 3 of96 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY .............................................................................................................................................. 5 2 GENERAL INFORMATION ............................................................................................................................... 6 3 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................... 6 4 TEST ENVIRONMENT ...................................................................................................................................... 7 5 TEST MODE ...................................................................................................................................................... 7 6 MEASUREMENT UNCERTAINTY .................................................................................................................... 7 7 DESCRIPTION OF SUPPORT UNIT ................................................................................................................ 8 8 LABORATORY LOCATION .............................................................................................................................. 8 9 TEST INSTRUMENTS LIST .............................................................................................................................. 9 1 RADIATED SPURIOUS EMISSIONS ............................................................................................................. 12 1.1 LIMITS ....................................................................................................................................................................... 12 1.2 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 13 1.3 PROCEDURE .............................................................................................................................................................. 13 1.4 TEST DATA .................................................................................................................................................................. 15 2 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ....................................................... 23 2.1 LIMITS ....................................................................................................................................................................... 23 2.2 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 24 2.3 PROCEDURE .............................................................................................................................................................. 24 2.4 TEST DATA .................................................................................................................................................................. 26 3 CONDUCTED PEAK OUTPUT POWER ........................................................................................................ 42 3.1 LIMITS ....................................................................................................................................................................... 42 3.2 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 42 3.3 TEST DATA .................................................................................................................................................................. 43 4 MINIMUM 6DB BANDWIDTH ......................................................................................................................... 44 4.1 LIMITS ....................................................................................................................................................................... 44 4.2 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 44 4.3 TEST DATA .................................................................................................................................................................. 44 5 CONDUCTED SPURIOUS EMISSIONS ......................................................................................................... 45 5.1 LIMITS ......................................................................................................................................…

Text truncated - open the document above for the full version.

Model No.: 6221B-UUC
