2AATL-6222D-UUCWi-Fi/BT Module

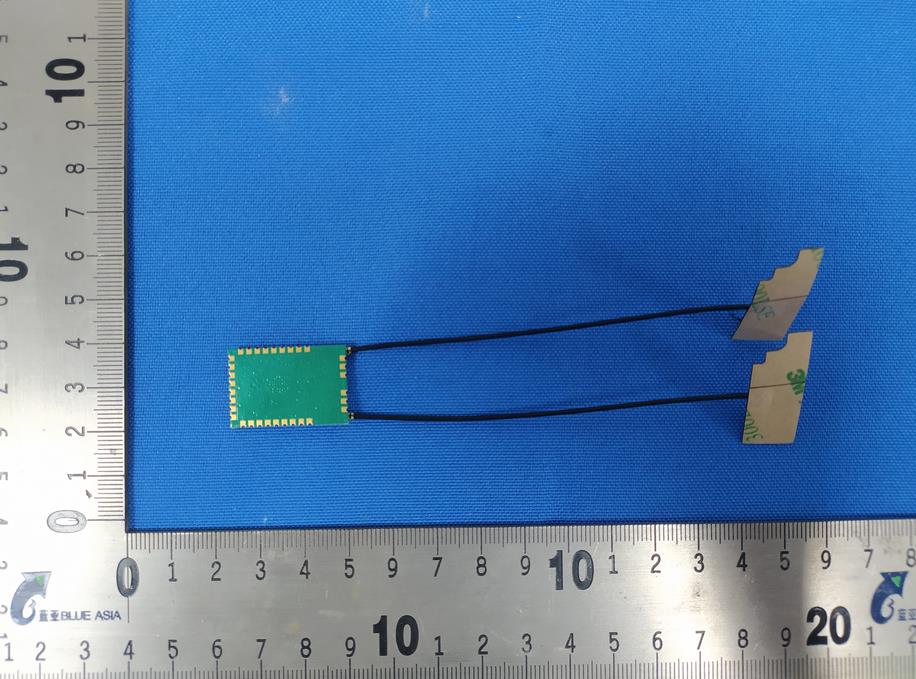

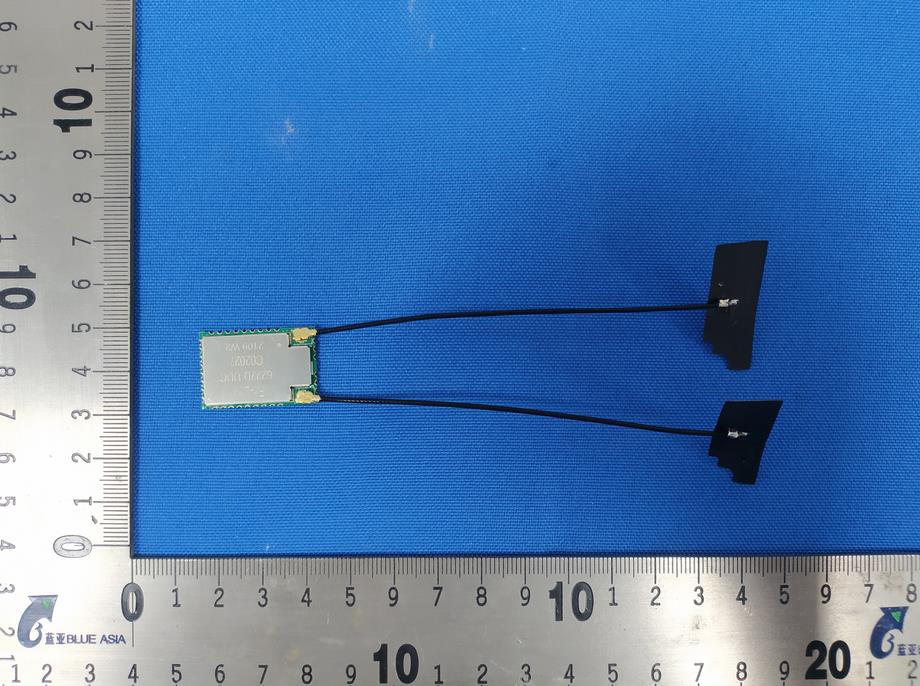

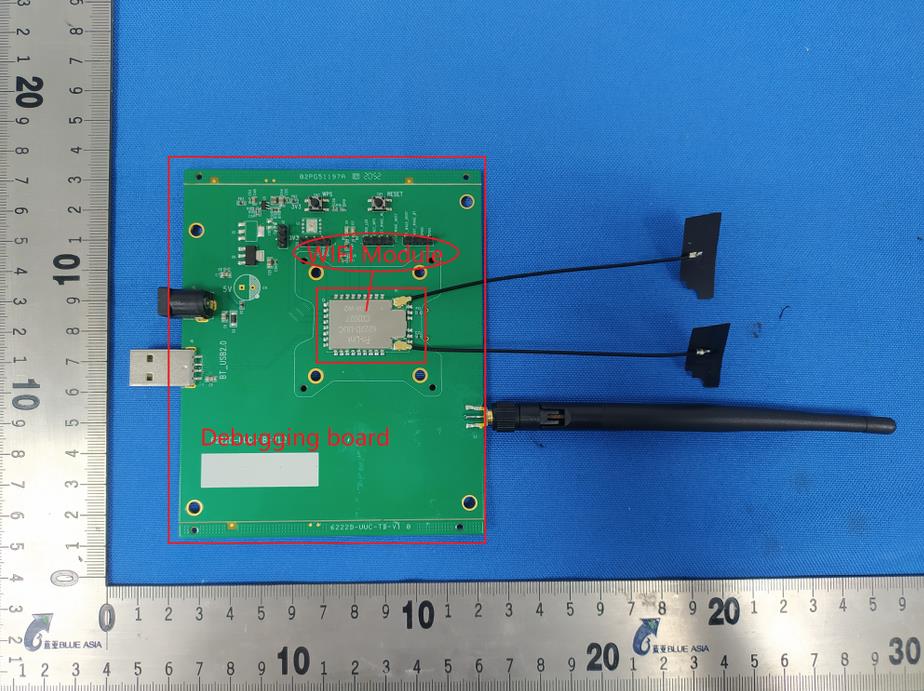

FN-LINK TECHNOLOGY LIMITEDProprietary & Confidential Information 6222D-UUC Wi-Fi Dual-band 2X2 11ac +Bluetooth 5.0 Combo Module Datasheet FN-LINK TECHNOLOGY LIMITEDProprietary & Confidential Information 6222D-UUC Module Datasheet Office:6 Floor, Building U6, Junxiang U8 Park, Hangcheng Avenue, Bao'an District, Shenzhen City, CHINA Factory:No.8, Litong Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, CHINA TEL:+86-755-2955-8186 Website:www.fn-link.com Customer Approval :Company Title Signature Date Fn-Link FN-LINK TECHNOLOGY LIMITEDProprietary & Confidential Information Revision History VersionDateRevision ContentDraftApproved 1.02020/04/22New versionLYJSZS 1.12020/06/09 Update Pin assignments, reference design and ordering information for share antenna version LYJSZS 1.22020/08/04Update Power on sequenceLYJSZS 1.32020/08/19Update ordering informationLYJSZS 1.42020/08/26Update 2.4G RF SpecificationLYJSZS 1.52020/9/1 Update Module Picture and Marking Description LYJSZS 2.02021/3/16Add -W4 infoLGPSZS 6222D-UUC FN-LINK TECHNOLOGY LIMITEDProprietary & Confidential Information CONTENTS 1 Overview .................................................................................................................................... 1 1.1 Introduction ......................................................................................................................... 1 1.2 Features .............................................................................................................................. 1 1.3 General Specification ........................................................................................................ 2 1.4 Recommended Operating Rating .................................................................................... 3 ※ 1.5 EEPROM Information....................................................................................................3 2 Wi-Fi RF Specification ........................................................................................................... 4 2.1 2.4GHz RF Specification .................................................................................................. 4 2.2 5GHz RF Specification ...................................................................................................... 6 3 Bluetooth Specification ....................................................................................................... 10 3.1 Bluetooth Specification ................................................................................................... 10 4 Pin Assignments ................................................................................................................... 11 5 Dimensions ............................................................................................................................. 13 5.1 Module Picture ................................................................................................................. 13 5.2 Physical Outline ............................................................................................................... 14 5.3 Marking Description ......................................................................................................... 14 5.4 Layout Recommendation ............................................................................................... 15 6 Reference Design ................................................................................................................. 16 7 Power on Sequence ............................................................................................................. 17 8 Ordering Information ........................................................................................................... 18 9 The Key Material List ........................................................................................................... 18 10 Recommended Reflow Profile ......................................................................................... 19 11 Package Information .......................................................................................................... 20 11.1 Reel .................................................................................................................................. 20 11.2 Packaging Detail ............................................................................................................ 20 10.3 Carrier Tape Detail ........................................................................................................ 22 10.4 Moisture sensitivity ........................................................................................................ 22 6222D-UUC FN-LINK TECHNOLOGY LIMITEDProprietary & Confidential Information 1 1 Overview 1.1 Introduction Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi and Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetoothheadsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/b/g/n/ac 2x2 Access Points in the wireless LAN. The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN. The integrated module provides USB2.0 interface for Wi-Fi and Bluetooth. This compact module is a total solution for a combination of Wi-Fi+ BT technologies. The module is specifically developed for Smart TV and OTT Box application. 1.2 Features Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications. Dual-stream spatial multiplexing up to 867 Mbps data rate. Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz Supports USB interface for WLAN and Bluetooth. Complies with USB2.0 for WL…

Text truncated - open the document above for the full version.

Single Modular approval Declaration letter We ，HUNAN FN-LINK TECHNOLOGY LIMITED. apply Single modular approval for Product Name: Wi-Fi/BT Module Model: 6222D-UUC FCC ID: 2AATL-6222D-UUC According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer ：Yes， Shielded for both side . 2) The module must have buffered modulation/data inputs to ensure that the device willcomply with Part 15 requirements with any type of input signal; Answer ：Yes ；All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer ：Yes ；A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antennaconnector, and be marketed and operated only with specific antenna(s), per Sections15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Yes ；Device is equipped with non-detachable external antenna . (5) The module must demonstrate compliance in a stand-alone configuration; Answer ：Yes，distance between modular and all AEs are bigger than 10cm ，refer to setup photo. (6) The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer ：Yes ；The modular has a permanent fixed label, and below statement was listed in the UserManual;The host device must be labeled to display the FCC ID of the module “Contains FCC ID:2AATL-6222D-UUC” (7) The module must comply with all specific rules applicable to the transmitter includingall the conditions provided in the integration instructions by the grantee; Answer ：Yes ；The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8) The module must comply with RF exposure requirements Answer ：Yes ；Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual Please contact me if you have any further questions. Thanks for your attention. Best Regards, <Signature> Name：Wayne Zou Title：Manager Applicant Company：HUNAN FN-LINK TECHNOLOGY LIMITED

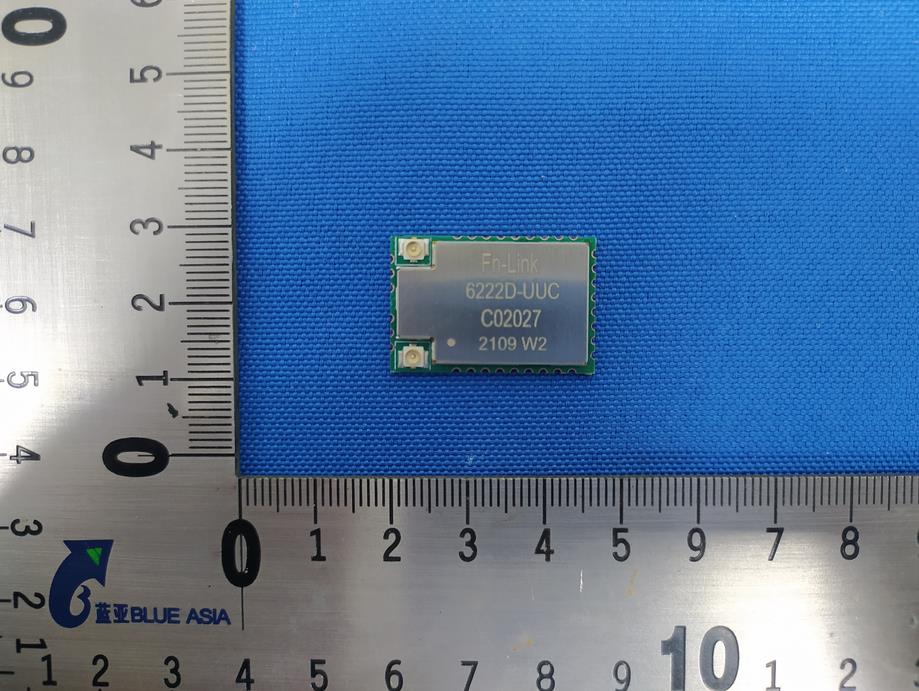

Model No.: 6222D-UUC

Label Location

Model No.: 6222D-UUC

Page 1 of 2 Product Name: Wi-Fi/BT Module Model No.：6222D-UUC FCC ID：2AATL-6222D-UUC RF Exposure Evaluation 1.1 RF Exposure Compliance Requirement 1.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Page 2 of 2 1.1.3 EUT RF Exposure Evaluation Antenna Gain: 2.5dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.78 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: BLE: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Highest 2480 -1.69 0.68 0.00024 1.0 PASS BDR: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Highest 2480 -2.21 0.60 0.00021 1.0 PASS 2.4G WIFI: 802.11n20 Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result middle 2437 16.66 46.34 0.01640 1.0 PASS 5G WIFI:802.11n20 Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result lowest 5745 20.73 118.30 0.04185 1.0 PASS Note: Refer to report No. BLA-EMC-202103-A7001/02/03/04 for EUT test Max Conducted Peak Output Power value. The distance r (4th column) calculated from the Fries transmission formula is far greater than 20 cm separation Requirement

Page 1 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Wi-Fi/BT Module Brand Mark : FN-LINK Model No. : 6222D-UUC FCC ID : 2AATL-6222D-UUC Report Number : BLA-EMC-202103-A7003 Date of Sample Receipt : 2021/3/19 Date of Test : 2021/3/19 to 2021/4/7 Date of Issue : 2021/4/7 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: HUNAN FN-LINK TECHNOLOGY LIMITED No.8, Litong Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, CHINA Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/4/7 Report No.: BLA-EMC-202103-A7003 Page 2 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/4/7 Original Report No.: BLA-EMC-202103-A7003 Page 3 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................5 2 GENERAL INFORMATION .........................................................................................................................6 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................6 4 BLOCK DIAGRAM OF EUT CONNECTION ..............................................................................................6 5 TEST ENVIRONMENT ................................................................................................................................7 6 TEST MODE ................................................................................................................................................7 7 MEASUREMENT UNCERTAINTY ..............................................................................................................7 8 DESCRIPTION OF SUPPORT UNIT...........................................................................................................8 9 LABORATORY LOCATION .........................................................................................................................8 10 TEST INSTRUMENTS LIST ........................................................................................................................9 1 MINIMUM 6DB BANDWIDTH .................................................................................................................. 12 1.1 LIMITS ................................................................................................................................................................... 12 1.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 12 1.3 TEST DATA .............................................................................................................................................................. 12 2 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 13 2.1 LIMITS ................................................................................................................................................................... 13 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 14 2.3 PROCEDURE .......................................................................................................................................................... 14 2.4 TEST DATA .............................................................................................................................................................. 16 3 CONDUCTED PEAK OUTPUT POWER ................................................................................................. 32 3.1 LIMITS ................................................................................................................................................................... 32 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 32 3.3 EST DATA ................................................................................................................................................................ 32 4 RADIATED SPURIOUS EMISSIONS ....................................................................................................... 33 4.1 LIMITS ................................................................................................................................................................... 33 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 34 4.3 PROCEDURE .......................................................................................................................................................... 34 4.4 TEST DATA .............................................................................................................................................................. 36 5 ANTENNA REQUIREMENT ..................................................................................................................... 50 Report No.: BLA-EMC-202103-A7003 Page 4 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: marketing@c…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202103-A7003 Page 43 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX high channel]; [Polarity: Vertical] Test Result: Pass Report No.: BLA-EMC-202103-A7003 Page 44 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX Low channel]; [Polarity: Horizontal] Test Result: Pass Report No.: BLA-EMC-202103-A7003 Page 45 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX Low channel]; [Polarity: Vertical] Test Result: Pass Report No.: BLA-EMC-202103-A7003 Page 46 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX middle channel]; [Polarity: Horizontal] Test Result: Pass Report No.: BLA-EMC-202103-A7003 Page 47 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX middle channel]; [Polarity: Vertical] Test Result: Pass Report No.: BLA-EMC-202103-A7003 Page 48 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX high channel]; [Polarity: Horizontal] Test Result: Pass Report No.: BLA-EMC-202103-A7003 Page 49 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX high channel]; [Polarity: Vertical] Test Result: Pass Report No.: BLA-EMC-202103-A7003 Page 50 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 5 ANTENNA REQUIREMENT Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method N/A 5.1 CONCLUSION Standard Requirement: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit permanently attached antenna or of an so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. EUT Antenna: The antenna is integrated on the main PCB and no consideration of replacement. The best case gain of the antenna is 2.5dBi. Report No.: BLA-EMC-202103-A7003 Page 51 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 6 CONDUCTED SPURIOUS EMISSIONS Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method ANSI C63.10 (2013) Section 7.8.8 Test Mode (Pre-Scan) TX Test Mode (Final Test) TX Tester Ben Temperature 25°C Humidity 60% 6.1 LIMITS Limit: In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). 6.2 BLOCK DIAGRAM OF TEST SETUP 6.3 TEST DATA Pass: Please Refer To Appendix: For Details Report No.: BLA-EMC-202103-A7003 Page 52 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 7 POWER SPECTRUM DENSITY Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method ANSI C63.10 (2013) Section 11.10.2 Test Mode (Pre-Scan) TX Test Mode (Final Test) TX Tester Ben Temperature 25°C Humidity 60% 7.1 LIMITS Limit: ≤8dBm in any 3 kHz band during any time interval of continuous transmission 7.2 BLOCK DIAGRAM OF TEST SETUP 7.3 TEST DATA Pass: Please Refer To Appendix: For Details Report No.: BLA-EMC-202103-A7003 Page 53 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 8 APPENDIX 8.1 MAXIMUM CONDUCTED OUTPUT POWER Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 12.482 0 12.482 30 Pass NVNT b 2412 Ant2 12.931 0 12.931 30 Pass NVNT b 2437 Ant1 12.624 0 12.624 30 Pass NVNT b 2437 Ant2 11.863 0 11.863 30 Pass NVNT b 2462 Ant1 13.225 0 13.225 30 Pass NVNT b 2462 Ant2 12.861 0 12.861 30 Pass NVNT g 2412 Ant1 11.396 0 11.396 30 Pass NVNT g 2412 Ant2 13.134 0 13.134 30 Pass NVNT g 2437 Ant1 13.962 0 13.962 30 Pass NVNT g 2437 Ant2 14.529 0 14.529 30 Pass NVNT g 2462 Ant1 12.91 0 12.91 30 Pass NVNT g 2462 Ant2 13.37 0 13.37 30 Pass NVNT n20 2412 Ant1 10.898 0 10.898 30 Pass NVNT n20 2412 Ant2 12.201 0 12.201 30 Pass NVNT n20 2412 Sum 14.608 0 14.608 30 Pass NVNT n20 2437 Ant1 13.669 0 13.669 30 Pass NVNT n20 2437 Ant2 13.614 0 13.614 30 Pass NVNT n20 2437 Sum 16.652 0 16.652 30 Pass NVNT n20 2462 Ant1 12.444 0 12.444 30 Pass NVNT n20 2462 Ant2 12.738 0 12.738 30 Pass NVNT n20 2462 Sum 15.604 0 15.604 30 Pass NVNT n40 2422 Ant1 10.993 0 10.993 30 Pass NVNT n40 2422 Ant2 11.985 0 11.985 30 Pass NVNT n40 2422 Sum 14.528 0 14.528 30 Pass NVNT n40 2437 Ant1 13.477 0 13.477 30 Pass NVNT n40 2437 Ant2 13.585 0 13.585 30 Pass …

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202103-A7003 Page 102 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Band Edge NVNT n20 2412MHz Ant2 Ref Band Edge NVNT n20 2412MHz Ant2 Emission Report No.: BLA-EMC-202103-A7003 Page 103 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission Report No.: BLA-EMC-202103-A7003 Page 104 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Band Edge NVNT n20 2462MHz Ant2 Ref Band Edge NVNT n20 2462MHz Ant2 Emission Report No.: BLA-EMC-202103-A7003 Page 105 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Band Edge NVNT n40 2422MHz Ant1 Ref Band Edge NVNT n40 2422MHz Ant1 Emission Report No.: BLA-EMC-202103-A7003 Page 106 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Band Edge NVNT n40 2422MHz Ant2 Ref Band Edge NVNT n40 2422MHz Ant2 Emission Report No.: BLA-EMC-202103-A7003 Page 107 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Band Edge NVNT n40 2452MHz Ant1 Ref Band Edge NVNT n40 2452MHz Ant1 Emission Report No.: BLA-EMC-202103-A7003 Page 108 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Band Edge NVNT n40 2452MHz Ant2 Ref Band Edge NVNT n40 2452MHz Ant2 Emission Report No.: BLA-EMC-202103-A7003 Page 109 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 8.5 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -45.42 -30 Pass NVNT b 2412 Ant2 -45.27 -30 Pass NVNT b 2437 Ant1 -45.41 -30 Pass NVNT b 2437 Ant2 -44.79 -30 Pass NVNT b 2462 Ant1 -46.47 -30 Pass NVNT b 2462 Ant2 -45.25 -30 Pass NVNT g 2412 Ant1 -37.94 -30 Pass NVNT g 2412 Ant2 -40.18 -30 Pass NVNT g 2437 Ant1 -40.58 -30 Pass NVNT g 2437 Ant2 -41.55 -30 Pass NVNT g 2462 Ant1 -38.02 -30 Pass NVNT g 2462 Ant2 -40.25 -30 Pass NVNT n20 2412 Ant1 -36.97 -30 Pass NVNT n20 2412 Ant2 -38.3 -30 Pass NVNT n20 2437 Ant1 -39.63 -30 Pass NVNT n20 2437 Ant2 -40.23 -30 Pass NVNT n20 2462 Ant1 -39.06 -30 Pass NVNT n20 2462 Ant2 -38.82 -30 Pass NVNT n40 2422 Ant1 -33.9 -30 Pass NVNT n40 2422 Ant2 -35.41 -30 Pass NVNT n40 2437 Ant1 -36.66 -30 Pass NVNT n40 2437 Ant2 -36.89 -30 Pass NVNT n40 2452 Ant1 -35.83 -30 Pass NVNT n40 2452 Ant2 -36.46 -30 Pass Report No.: BLA-EMC-202103-A7003 Page 110 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT b 2412MHz Ant1 Ref Tx. Spurious NVNT b 2412MHz Ant1 Emission Report No.: BLA-EMC-202103-A7003 Page 111 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT b 2412MHz Ant2 Ref Tx. Spurious NVNT b 2412MHz Ant2 Emission Report No.: BLA-EMC-202103-A7003 Page 112 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT b 2437MHz Ant1 Ref Tx. Spurious NVNT b 2437MHz Ant1 Emission Report No.: BLA-EMC-202103-A7003 Page 113 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT b 2437MHz Ant2 Ref Tx. Spurious NVNT b 2437MHz Ant2 Emission Report No.: BLA-EMC-202103-A7003 Page 114 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT b 2462MHz Ant1 Ref Tx. Spurious NVNT b 2462MHz Ant1 Emission Report No.: BLA-EMC-202103-A7003 Page 115 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT b 2462MHz Ant2 Ref Tx. Spurious NVNT b 2462MHz Ant2 Emission Report No.: BLA-EMC-202103-A7003 Page 116 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT g 2412MHz Ant1 Ref Tx. Spurious NVNT g 2412MHz Ant1 Emission Report No.: BLA-EMC-202103-A7003 Page 117 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT g 2412MHz Ant2 Ref Tx. Spurious NVNT g 2412MHz Ant2 Emission Report No.: BLA-EMC-202103-A7003 Page 118 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT g 2437MHz Ant1 Ref Tx. Spurious NVNT g 2437MHz Ant1 Emission Report No.: BLA-EMC-202103-A7003 Page 119 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT g 2437MHz Ant2 Ref Tx. Spurious NVNT g 2437MHz Ant2 Emission Report No.: BLA-EMC-202103-A7003 Page 120 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT g 2462MHz Ant1 Ref Tx. Spurious NVNT g 2462MHz Ant1 Emission Report No.: BLA-EMC-202103-A7003 Page 121 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT g 2462MHz Ant2 Ref Tx. Spurious NVNT g 2462MHz Ant2 Emission Report No.: BLA-EMC-202103-A7003 Page 122 of135 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT n…

Text truncated - open the document above for the full version.

Page 1 of64 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Wi-Fi/BT Module Brand Mark : FN-LINK Model No. : 6222D-UUC FCC ID : 2AATL-6222D-UUC Report Number : BLA-EMC-202103-A7001 Date of Sample Receipt : 2021/3/19 Date of Test : 2021/3/19 to 2021/4/7 Date of Issue : 2021/4/7 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: HUNAN FN-LINK TECHNOLOGY LIMITED No.8, Litong Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, CHINA Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/4/7 Report No.: BLA-EMC-202103-A7001 Page 2 of64 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/4/7 Original Report No.: BLA-EMC-202103-A7001 Page 3 of64 BlueAsia of Technical Services(Shen…

Text truncated - open the document above for the full version.
