2AATL-F89ESSM23WIFI Module

Product Specification IEEE 802.11b/g/n 1T1R SDIO WiFi Module Project Name RTL8189ES 11n WIFI Module Model NO F89ESSM23-W1 Approved:: SYMEN SONG Check: Jim HU Prepared: SJ LI FN-LINK TECHNOLOGY LIMITD 5th Floor, A Building, Haoye Logistics Park, Shugang Channel, Bao'an District, Shenzhen City, CHINA TEL: 86-0755-29558186 FAX: 86-0755-29558196 Website: www.fn-link.com FN-LINK TECHNOLOGY LIMITED http://www.fn-link.com Page 2/14 3/27/2014 INDEX 0. REVESION HISTORY........................................................................................3 1. INTRODUCTION..............................................................................................4 1.1 OVERVEIW.................................................................................................4 1.2 SPECIFICATION REFERENCE.......................................................................4 1.3 SYSTEM CHARACTERISTICS........................................................................5 2. MECHANICAL SPECIFICATION...........................................................................6 2.1 OUTLINE DRAWING.....................................................................................6 2.2 CONNECTOR PIN DEFENITION.....................................................................6 2.3 LAYOUT GUIDLINE.......................................................................................7 3. RF SPECIFICATION..........................................................................................8 3.1 TRANSMITTER POWER................................................................................8 3.2 EVM...........................................................................................................8 3.3 TRANSMIT CENTER FREQUENCY TOLERANCE..............................................9 3.4 RECEIVER SENSITIVITY................................................................................9 3.5 POWER CONSUMPTION...............................................................................10 4. PACKAGE........................................................................................................11 5. USER’S MANUAL.............................................................................................12 . FN-LINK TECHNOLOGY LIMITED http://www.fn-link.com Page 3/14 3/27/2014 0. Revision History REV NO Date Modifications Draft Approved Rev1.0 May 11 th ,2012 XJ Hu Rev1.1 Dec 30 th ,2013 SJ LI FN-LINK TECHNOLOGY LIMITED http://www.fn-link.com Page 4/14 3/27/2014 1. Introduction F89ESSM23 is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network interface device. High-speed wireless connection up to 150 Mbps . 1.1 Overview The general hardware for the module is shown in Figure 1. This WLAN Module design is based on Realtek RTL8189ES. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) SDIO network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective. Figure 1: Single-brand 11n (1*1) solution 1.2 Specification Reference This specification is based on additional references listed as below. iEEE 802.11b iEEE 802.11g iEEE 802.11n FN-LINK TECHNOLOGY LIMITED http://www.fn-link.com Page 5/14 3/27/2014 1.3 System Characteristics Main Chipset Realtek RTL8189ES Operating Frequency 2.412～2.462GHz WIFI Standard Ieee802.11b/g/n 1*1 Modulation 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) 802.11 g/n: OFDM PHY Data rates 802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802.11n: up to 150Mbps Receiver Sensitivity 130M：-70dBm@10% PER; 108M：-70dBm@10% PER; 54M： -70dBm@10% PER; 11M：-87dBm@8% PER; 6M：-90dBm@10% PER; 1M：-92dBm@8% PER Host Interface SDIO/GSPI Operation Range Up to 150meters in open space RF Power <9.0dBm@11n,<9.8dBm@11b,<9.5dBm@11g RF Antenna Integral Antenna (0dBi gain) OS Support Android / Win CE /iOS /Linux/Windows 2000/XP/Vista/WIN7 Security WEP,TKIP,AES,WPA,WPA2 Power Consumption 3.3Vdc 110mA Max Operating Temperature -20~ +45°C Ambient Temperature Storage Temperature -40~ +70°C Ambient Temperature Humidity 5% to 90% maximum (non-condensing) Dimension Typical L14.00*W12.50*T2.00mm FN-LINK TECHNOLOGY LIMITED http://www.fn-link.com Page 6/14 3/27/2014 2. Mechanical Specification 2.1 Outline Drawing 2.2 Connector Pin Definition Pin # Name Description 1 SD_CMD SDIO Command Input 2 SD_D3 SDIO Data Line 3 3 SD_D2 SDIO Data Line 2 4 SD_D1 SDIO Data Line 1 5 SD_D0 SDIO Data Line 0 6 SD_CLK SDIO Clock Input 7 GND POWER GND 8 GND POWER GND 9 ANTENNA RF OUT 10 WAKE Wake Function 11 VDIOSDIO SDIO Voltage 1.8V-3.3V FN-LINK TECHNOLOGY LIMITED http://www.fn-link.com Page 7/14 3/27/2014 12 3.3 Power Supply 13 CS PDn 2.3 Layout reference FN-LINK TECHNOLOGY LIMITED http://www.fn-link.com Page 8/14 3/27/2014 3. RF Performance 3.1Transmitter Power (Unit in dBm) (Typical 1,6,11 Channel) 11n 20MHz Mode （Spec<9dBm） Mode Rate Channel 1 Channel 6 Channel 11 MCS0 8.5 8.3 8.4 MCS3 8.3 8.4 8.3 MCS5 8.5 8.2 8.5 11n 20MHz MCS7 8.3 8.5 8.4 11n 40MHz Mode ( Spec<9dBm） Mode Rate Channel 1 Channel 6 Channel 11 MCS0 7.6 7.4 7.3 MCS3 7.5 7.2 7.4 MCS5 7.3 7.5 7.6 11n 40MHz MCS7 7.5 7.2 7.3 3.2 EVM 11b Mode: unit in % （Spec≦10%） Mode Rate Channel 1 Channel 6 Channel 11 1Mbps 5.2 5.3 5.5 2Mbps 5.4 5.3 5.5 5.5Mbps 5.6 5.3 5.5 11b CCK 11Mbps 5.9 5.6 5.9 11g Mode: unit in dB （Spec≦-25dB） Mode Rate Channel 1 Channel 6 Channel 11 6Mbps -29.3 -29.5 -29.1 18Mbps -29.2 -28.5 -29.3 36Mbps -28.5 -28.9 -28.1 11g OFDM 54Mbps -29.8 -29.1 -29.0 11n 20MHz Mode: unit in dB（Spec≦-25dB） Mode Rate Channel 1 Channel 6 Channel 11 MCS0 -28.3 -28.5 -28.5 MCS3 -28.2 -29.5 -28.4 MCS5 -28.3 -28.5 -28.1 11n 20MHz MCS7 -28.1 -28.4 -28.0 11n 40MHz Mode: unit in dB （Spec≦-25dB） FN-LINK TECHNOLOGY LIMITED http://www.fn-link.com Page 9/14 3/27/2014 Mode Rate Ch…

Text truncated - open the document above for the full version.

FN-LINK TECHNOLOGY LIMITED Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: FN-LINK TECHNOLOGY LIMITED FCC ID : 2AATL-F89ESSM23 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Anne Xu Position Manager Company Name FN-LINK TECHNOLOGY LIMITED Address 5th Floor, A Building, Haoye Logistics Park, Shugang Channel, Bao’an District, Shenzhen City, China Tel 075529558186 Email [email protected]

FN-LINK TECHNOLOGY LIMITED Date: 10.03.2014 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Zhu Position Manager Company Name Shenzhen Certification Technology Service Co., Ltd. Address 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao’an District, Shenzhen 518126, P.R. China Tel / Fax 0755-86375541/0755-26736857 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name WIFI Module Model Name F89ESSM23-W1, F89ETSM23-W1 Brand Name . Yours sincerely, Signatory Name Anne Xu Position Manager Company Name FN-LINK TECHNOLOGY LIMITED Address 5th Floor, A Building, Haoye Logistics Park, Shugang Channel, Bao’an District, Shenzhen City, China Tel 075529558186 Email [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 FN-LINK TECHNOLOGY LIMITED Date: 3/10/2014 Subject: Ad Hoc Mode Function Declaration FCC ID: 2AATL-F89ESSM23 To Whom it may concern, This device is acting as slave and operating in 2412-2462MHz band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Signatory (YOUR CONTACT DETAILS) Name : Anne Xu Position : Manager Company: FN-LINK TECHNOLOGY LIMITED Adress : 5th Floor, A Building, Haoye Logistics Park, Shugang Channel, Bao’an District, Shenzhen City, China Tel. : 075529558186 Email : [email protected]

FCC Modular Approval Request To the FCC or FCC TCB handling this application Hereby we, Company (grantee) FN-LINK TECHNOLOGY LIMITED Addresss 5th Floor, A Building, Haoye Logistics Park, Shugang Channel, Bao’an District, Shenzhen City, China City / ZIP / State / Country Shenzhen/China Request Limited modular approval for the certification of our equipment within this application, identified by: FCC ID: 2AATL-F89ESSM23 The table below contains justification for modular approval of this equipment. Requirement per DA 00-1407 Explanation from grantee 1. The modular transmitter must have its own RF shielding. No RF shielding. 2.The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular have buffered modulation/data inputs.( RTL8189ES) 3. The modular transmitter must have its own power supply regulation. The modular transmitter have its own power supply regulation.(Chip RTL8189ES regulation DC 3.3V) 4.The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. This module is equipped with Integral antennas, please refer to the External Photo for the detail 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The module was tested in a stand-alone configuration, please refer to the Setup Photo for the detail 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2AATL-F89ESSM23” or “Contains FCC ID: 2AATL-F89ESSM23.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please refer to label sample exhibit - host labeling is described in integration manual 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The required FCC rule has been fulfilled and all the instructions for the maintaining compliance have been clearly stated in the User Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimetre wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. submitted for the compliance of RF Exposure requirement. Attestation (by grantee) City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen/China 2014.03.05 Anne Xu Manager

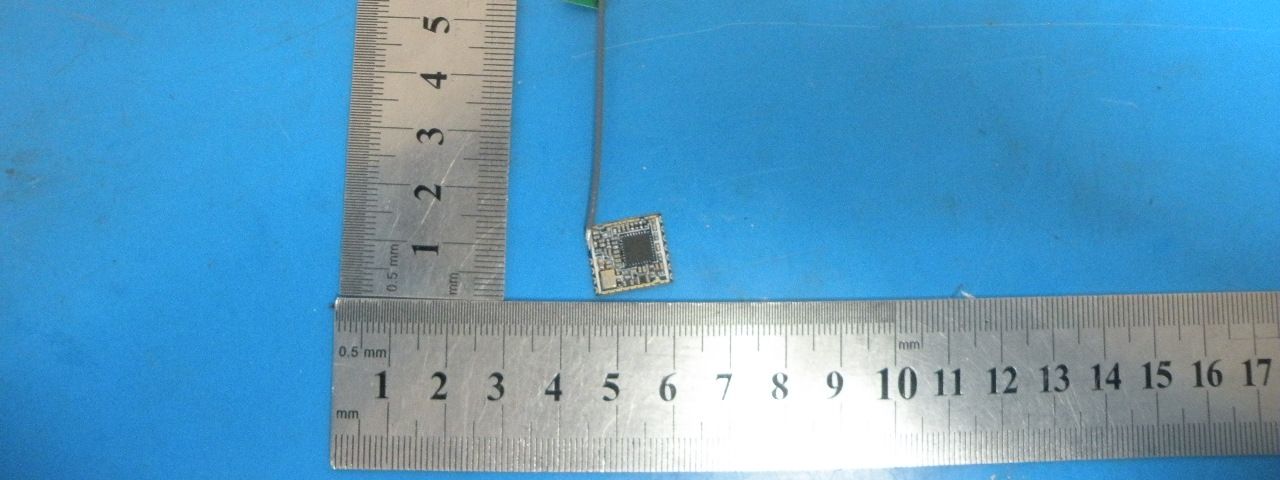

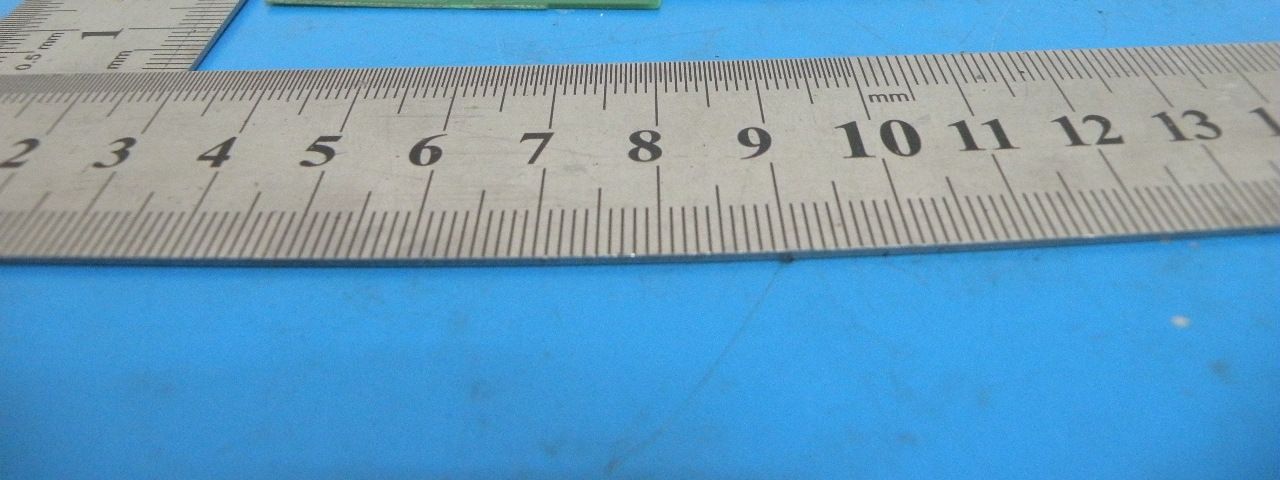

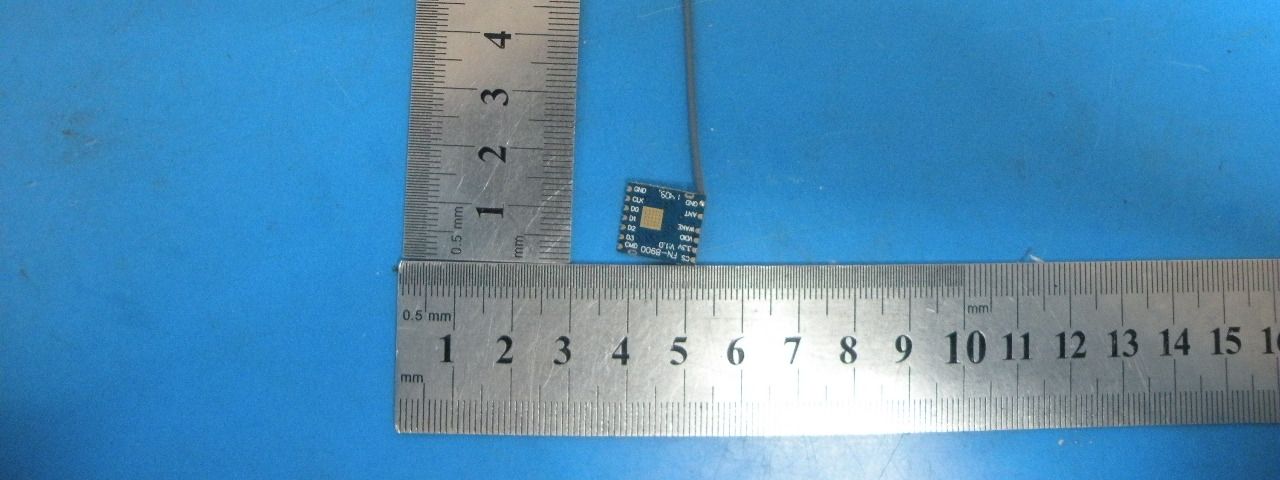

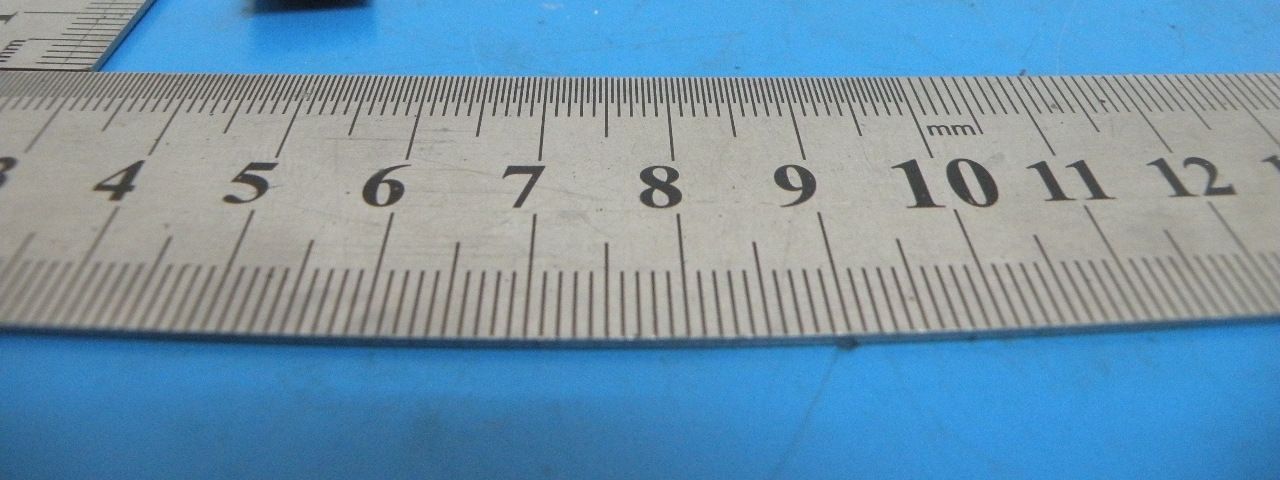

Top View Bottom View Front View Right View Rear View Left View

Label Location

12mm 5mm FCC ID: 2AATL-F89ESSM23

Antenna

FCC ID: 2AATL-F89ESSM23 RF EXPOSURE TEST FCC ID: 2AATL-F89ESSM23 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2AATL-F89ESSM23 For user manual RF Power: <9.0dBm@11n,<9.8dBm@11b,<9.5dBm@11g The max.output power E.I.R.P is 9.8dBm=9.55mW, Frequency is 2.462GHz So (9.55/5)* √2.462=2.997≤ 3.0 Note: √2.462 =1.569 Conclusion: No SAR is required. Maximum measured transmitter power. Mode Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power (mW) CH1: 2412 9.47 8.85 CH6: 2437 9.31 8.53 IEEE 802.11 b CH11: 2462 9.25 8.41 CH1: 2412 9.02 7.98 CH6: 2437 8.94 7.83 IEEE 802.11 g CH11: 2462 8.85 7.67 CH1: 2412 8.73 7.46 CH6: 2437 8.46 7.01 IEEE 802.11 n/HT20 CH11: 2462 8.63 7.29 CH1: 2422 7.58 5.73 CH4: 2437 7.31 5.38 IEEE 802.11 n/HT40 CH7: 2452 7.46 5.57 The max.output power E.I.R.P is 9.47dBm=8.85mW, Frequency is 2.412GHz So (8.85/5)* √2.412=2.75≤ 3.0 Note: √2.412 =1.553 Conclusion: No SAR is required.

Shenzhen Certification Technology Service Co., Ltd 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, Shenzhen 518126, P.R. China. FCC ID: 2AATL-F89ESSM23 Page 1 of 73 TEST REPORT FCC ID: 2AATL-F89ESSM23 Applicant : FN-LINK TECHNOLOGY LIMITED Address : 5 th Floor, A Building, Haoye Logistics Park, Shugang Channel, Bao’an District, Shenzhen City, China Equipment under Test (EUT): Name : WIFI Module Model : F89ESSM23-W1, F89ETSM23-W1 Standards : FCC PART 15, SUBPART C : 2012 (Section 15.247) / IC RSS-210 ISSUE 8 with amendment June 2010 Report No. : CST-TCB140212006 Date of Test : February 15-25, 2014 Date of Issue : February 26, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: CST-TCB140212006 FCC ID: 2AATL-F89ESSM23 Page 2 of 73 TABLE OF CONTENT Description Page 1 General Information--------------------------------------------------------------------------------------4 1.1 Description of Device (EUT)---------------------------------------------------------------------4 1.2 Description of Test Facility-----------------------------------------------------------------------4 2 EMC Equipment List--------------------------------------------------------------------------------------5 3 Test Procedure---------------------------------------------------------------------------------------------6 4 Summary of Measurement---------------------------------------------------------------------------7 4.1 Summary of test result-----------------------------------------------------------------------------7 4.2 Test connection-------------------------------------------------------------------------------------7 4.3 Assistant equipment used for test----------------------------------------------------------------8 4.4 Test mode--------------------------------------------------------------------------------------------8 4.5 Channel list------------------------------------------------------------------------------------------8 4.6 Test Conditions-------------------------------------------------------------------------------------9 4.7 Measurement Uncertainty (95% confidence levels, k=2)-------------------------------------9 5 Spurious Emission-----------------------------------------------------------------------------------10 5.1 Radiation Emission--------------------------------------------------------------------------------10 5.1.1 Radiation Emission Limits(15.209)-------------------------------------------------------------10 5.1.2 Test Setup-------------------------------------------------------------------------------------------10 5.1.3 Test Procedure-------------------------------------------------------------------------------------12 5.1.4 Test Equipment Setting For emission test Result---------------------------------------------12 5.1.5 Test Condition-------------------------------------------------------------------------------------12 5.1.6 Test Result------------------------------------------------------------------------------------------12 6 POWER LINE CONDUCTED EMISSION-------------------------------------------------------27 6.1 Conducted Emission Limits(15.207)-----------------------------------------------------------27 6.2 Test Setup-------------------------------------------------------------------------------------------27 6.3 Test Procedure-------------------------------------------------------------------------------------28 6.4 Test Results-----------------------------------------------------------------------------------------28 7 Conducted Maximum Output Power-----------------------------------------------------------31 7.1 Test limit--------------------------------------------------------------------------------------------31 7.2 Test Procedure-------------------------------------------------------------------------------------31 7.3 Test Setup-------------------------------------------------------------------------------------------31 7.4 Test Results-----------------------------------------------------------------------------------------31 8 PEAK POWER SPECTRAL DENSITY-----------------------------------------------------------33 8.1 Test limit--------------------------------------------------------------------------------------------33 8.1.1 Please refer section15.247.----------------------------------------------------------------------33 8.2 Method of measurement--------------------------------------------------------------------------33 8.3 Test Setup-------------------------------------------------------------------------------------------33 8.4 Test Results-----------------------------------------------------------------------------------------34 9 Bandwidth-----------------------------------------------------------------------------------------------41 9.1 Test limit--------------------------------------------------------------------------------------------41 9.2 Method of measurement--------------------------------------------------------------------------41 9.3 Test Setup-------------------------------------------------------------------------------------------41 9.4 Test Results-----------------------------------------------------------------------------------------41 10 Band Edge…

Text truncated - open the document above for the full version.

Photographs-Radiated Emission Test Setup in Chamber Below 1G Above 1G Photographs-Test Connection Photographs-Conducted Emission Test Setup
