2AATL-H158A-SWIFI Module H158A-S

H158A-S Wi-Fi Single-band 1X1 802.11b/g/n SDIO Module Datasheet FN-LINK TECHNOLOGY LIMITEDProprietary & Confidential Information H158A-S Module Datasheet Office:6 Floor, Building U6, Junxiang U8 Park, Hangcheng Avenue, Bao'an District, Shenzhen City, CHINA Factory:No.8, Litong Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, CHINA TEL:+86-755-2955-8186 Website:www.fn-link.com Customer Approval :Company Title Signature Date Fn-Link H152A-S Revision History VersionDateRevision ContentDraftApproved 1.02020/12/23New versionLxySZS H158A-S FN-LINK TECHNOLOGY LIMITEDProprietary & Confidential Information CONTENTS 1 Overview .................................................................................................................................... 1 1.1 Introduction ......................................................................................................................... 1 1.2 Features .............................................................................................................................. 1 1.3 General Specification ........................................................................................................ 2 1.4 Recommended Operating Rating .................................................................................... 2 1.5 Current informations .......................................................................................................... 2 ※ 1.6 EEPROM Information....................................................................................................3 2 General Specification ............................................................................................................. 3 2.1 Wi-Fi RF Specifications ..................................................................................................... 3 3 Pin Assignments ..................................................................................................................... 4 3.1 Pin Outline ........................................................................................................................... 4 3.2 Pin Definition ....................................................................................................................... 5 4 Dimensions ............................................................................................................................... 6 4.1 Module Picture ................................................................................................................... 6 4.2 Marking Description ........................................................................................................... 7 4.3 Module Physical Dimensions ........................................................................................... 7 4.4 Layout Reference ............................................................................................................... 8 6 Host Interface Timing Diagram ............................................................................................ 8 6.1 SDIO Pin Description ........................................................................................................ 8 6.2 SDIO Default Mode Timing Diagram .............................................................................. 9 6.3 SDIO Power-on sequence ................................................................................................ 9 7 Reference Design ................................................................................................................. 12 8 Ordering Information ........................................................................................................... 12 9 The Key Material List ........................................................................................................... 13 10 Environmental Requirements ......................................................................................... 13 10.1 Recommended Reflow Profile ..................................................................................... 13 10.2 Patch Wi-Fi modules installed before the notice ...................................................... 13 11 Package ................................................................................................................................. 15 11.1 Reel .................................................................................................................................. 15 11.2 Packaging Detail ............................................................................................................ 15 12.3 Moisture sensitivity ........................................................................................................ 16 H158A-S FN-LINK TECHNOLOGY LIMITEDProprietary & Confidential Information 1 1 Overview 1.1 Introduction H158A-S is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO2.0 network interface device. Based on iCOMM chipset SV6158P. support 802.11b/g/n standard. 1.2 Features Operate at ISM frequency bands (2.4GHz) CMOS MAC, Baseband PHY, and RF in a single chip for 802.11b/g/n compatible WLAN Wi-Fi 1 T 1 R allow data rates supporting up to 150 Mbps PHY rates 1bit/4bits mode supported,clock up to 50Mhz Block Diagram: H158A-S FN-LINK TECHNOLOGY LIMITEDProprietary & Confidential Information 2 1.3 General Specification Model NameH158A-S Product DescriptionSupport Wi-Fi functionalities Dimension L x W x T: 12 x 12 x 2.2 mm (typical) Wi-Fi Interface Support SDIO Operating temperature-10°C to 70°C Storage temperature-40°C to +85°C 1.4 Recommended Operating Rating Min.Typ.Max.Unit Operating Temperature-102570 deg.C VBAT3.03.33.6V VDDIO1.71.8 or 3.33.6V 1.5 Current informations Vcc=3.3V, Ta=25°C, unit: mA currentTyp.Max. 802.11b11Mbps TX mode186.6 802.11g54Mbps TX mode158 802.11n HT20MCS7 TX mode159.4 802.11n HT40MCS7 TX mode161 RX mode35.7 Saving mode DTIM30.21 BLE TX90.3 BLE RX33 H158A-S FN-LINK TECHNOLOGY LIMIT…

Text truncated - open the document above for the full version.

Agent Authorization Company: HUNAN FN-LINK TECHNOLOGY LIMITED Address: No. 8, Litong Road, Liuyang Economic Development Zone, Liuyang City, Hunan Province, China Product Name: WIFI Module Model Number(s): H158A-S Product Description: WIFI Module H158A-S We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-06 Name: Wayne Zou Title: Manager Company: HUNAN FN-LINK TECHNOLOGY LIMITED

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021.05.06 Subject; Request for Confidentiality FCC ID: 2AATL-H158A-S To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wayne Zou Title: Manager

HUNAN FN-LINK TECHNOLOGY LIMITED (No. 8，Litong Road，Liuyang Economic Development Zone， Liuyang City, Hunan Province, China) \\win-2o9nanaifvf\公司运作\EMC部门\1 案件\案件\2021\4月\EC2104010R-H158A-S FCC CE SRRC\送 审资料\Modular-Approval-Letter_140225.docx MODULAR APPROVAL LETTER FCC ID: 2AATL-H158A-S Dear Sir/Madam, In according with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID: 2AATL-H158A-S has been examined against the following requirements. Modular Approval Requirement Yes No (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The product is produced with permanently attached RF shield during production. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. The product buffers the modulation and data inputs ensuring compliance with regulations (iii) The modular transmitter must have its own power supply regulation. The product incorporates regulators to ensure operation in specified range. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. This product integrated with PIFA antenna. (v) The modular transmitter must be tested in a stand-alone configuration The product was tested in a stand-alone HUNAN FN-LINK TECHNOLOGY LIMITED (No. 8，Litong Road，Liuyang Economic Development Zone， Liuyang City, Hunan Province, China) \\win-2o9nanaifvf\公司运作\EMC部门\1 案件\案件\2021\4月\EC2104010R-H158A-S FCC CE SRRC\送 审资料\Modular-Approval-Letter_140225.docx configuration (placed on development/interface fixture) without enclosure. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. The product has required labeling placed on the module and instruction for placement on exterior of end product. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The product fully complies with all specific applicable rules and regulatory precautions are addressed in manual. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The product complies with applicable RF exposure requirements. Installation and RF exposure precautions are addressed in manual. HUNAN FN-LINK TECHNOLOGY LIMITED Date: 2021-05-06 ------------------------------- (Wayne Zou) (Manager)

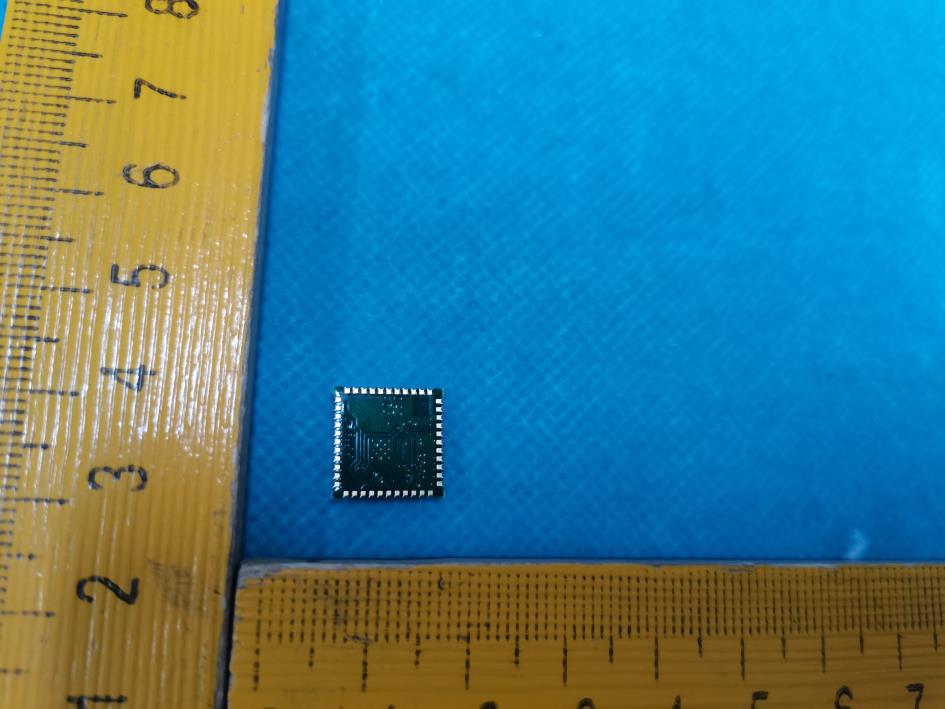

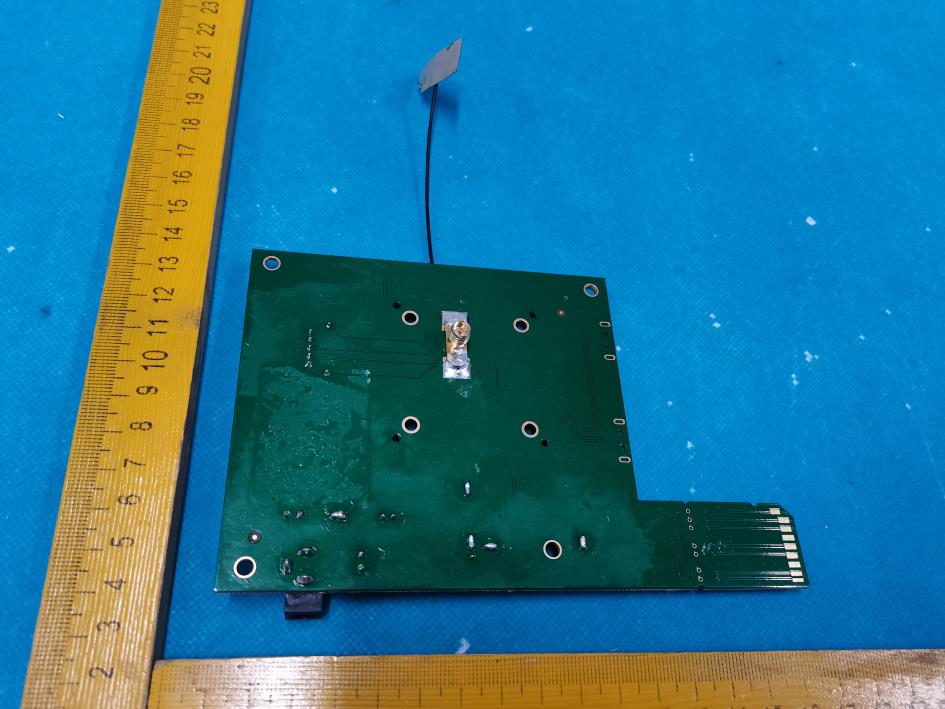

Report No.: EC2104010RF02 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 25 of 27 Appendix B. Photographs of EUT External Photographs Fig.1 Eut in Test Fixture Fig.2 Eut in Test Fixture Report No.: EC2104010RF02 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 26 of 27 Fig.4 Eut Front Fig.4 Eut Rear

Label Location WIFI Module Model: H158A-S Input:3.3V FCC ID: 2AATL-H158A-S Size:12 x 12mm

Report No.: EC2104010RF02 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 27 of 27 Internal Photographs Fig.1 Fig.2 --------------------------------------------------------End of the report-------------------------------------------------------- WIFI ANT

FCC ID: 2AATL-H158A-S RF Exposure Evaluation Limit The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1310 & 2.1091 Table 1-Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz Evaluation Method Transmission formula: P d = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in mW/cm2, Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm Conducted Power Results & Manufacturing tolerance Specification Operating Mode Conducted Output Power (dBm) Target (dBm) Tolerance ±(dB) 2.4GWIFI 802.11b 15.58 16 1 802.11g 15.18 16 1 802.11n(HT20) 15.78 16 1 802.11n(HT40) 12.84 13 1 FCC ID: 2AATL-H158A-S Evaluation Results Spec. Operating Mode Antenna Distance (cm) Conducted Output Power Gain of antenna in linear scale Power Density (mW /cm 2 ) Limit (mW /cm 2 ) Result dBm mW 2.4GWIFI 802.11b 20 17 50.12 1.58 0.0158 1 PASS 802.11g 20 17 50.12 1.58 0.0158 1 PASS 802.11n(HT20) 20 17 50.12 1.58 0.0158 1 PASS 802.11n(HT40) 20 14 25.12 1.58 0.0079 1 PASS Remark: 1. Output power including tune up tolerance; 2. The maximum 2.4G antenna gain is 2dBi 3. The exposure safety distance is 20cm. EUT can only work in 2.4GWIFI mode The formula of calculated the Simulation Transmission MPE is: CPD1/LPD1+CPD2/LPD2+......etc.＜1 CPD=Calculation Maximum Power Denisty Conclusion The measurement results comply with the FCC Limit per 47 CFR 1.1310 & 2.1091 for the uncontrolled RF Exposure and MPE complicance per KDB 447498 v06.

RF Test Report For HUNAN FN-LINK TECHNOLOGY LIMITED Test Standards: Part 15C Subpart C Product Name: WIFI Module Tested Model: H158A-S Brand Name: FN-LINK FCC ID: 2AATL-H158A-S Classification (DTS) Digital Transmission System Report No.: EC2104010RF01 Tested Date: 2021-04-19 to 2021-04-30 Issued Date: 2021-04-30 Prepared By: Jack Liu / Engineer Approved By: Tiny Yang / RF Manager Hunan Ecloud Testing Technology Co., Ltd. Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Liuyang Economic and Technological Development Zone, Hunan, P.R.C Tel.: +86-731-89634887 Fax.: +86-731-89634887 www.hn-ecloud.com Note: The test results in this report apply exclusively to the tested model / sample. Without written approval of Hunan Ecloud Testing Technology Co., Ltd., the test report shall not be reproduced except in full. Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 2 of 171 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2021.04.30 Valid Original Report Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 3 of 171 TABLE OF CONTENTS 1 TEST LABORATORY ................................................................................................................................. 5 1.1 Test facility ......................................................................................................................................... 5 2 GENERAL DESCRIPTION .......................................................................................................................... 6 2.1 Applicant ............................................................................................................................................ 6 2.2 Manufacturer ...................................................................................................................................... 6 2.3 General Description Of EUT .............................................................................................................. 6 2.4 Modification of EUT ........................................................................................................................... 7 2.5 Applicable Standards ......................................................................................................................... 7 3 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 3.1 Descriptions of Test Mode ................................................................................................................. 8 3.2 Test Mode .......................................................................................................................................... 9 3.3 Support Equipment .......................................................................................................................... 10 3.4 Test Setup ....................................................................................................................................... 10 3.5 Measurement Results Explanation Example ................................................................................... 13 4 TEST RESULT .......................................................................................................................................... 14 4.1 DTS and Occupied Channel Bandwidth Measurement ................................................................... 14 4.2 Maximum Conducted Output Power Measurement ........................................................................ 15 4.3 Maximum Power Spectral Density Measurement ........................................................................... 16 4.4 Band Edges and Spurious Emission Measurement ........................................................................ 17 4.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 18 4.6 AC Conducted Emission Measurement......................................................................................... 103 4.7 Antenna Requirements .................................................................................................................. 106 5 LIST OF MEASURING EQUIPMENT ...................................................................................................... 107 6 UNCERTAINTY OF EVALUATION ......................................................................................................... 109 Appendix A: DTS Bandwidth ................................................................................................................ 110 Appendix B: Occupied Channel Bandwidth ....................................................................................... 117 Appendix C: Maximum conducted output power .............................................................................. 124 Appendix D: Duty Cycle ........................................................................................................................ 131 Appendix E: Maximum power spectral density .................................................................................. 138 Appendix F: Band edge measurements .............................................................................................. 145 Appendix G: Conducted Spurious Emission ..................................................................................... 150 Appendix H: Setup Photographs ......................................................................................................... 170 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Ave…

Text truncated - open the document above for the full version.

Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 110 of 171 Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.640 2407.400 2417.040 >=0.5 PASS 2437 10.120 2431.920 2442.040 >=0.5 PASS 2462 10.120 2456.920 2467.040 >=0.5 PASS 11G Ant1 2412 16.400 2403.800 2420.200 >=0.5 PASS 2437 16.440 2428.760 2445.200 >=0.5 PASS 2462 16.400 2453.800 2470.200 >=0.5 PASS 11N20SISO Ant1 2412 17.720 2403.160 2420.880 >=0.5 PASS 2437 17.720 2428.120 2445.840 >=0.5 PASS 2462 17.680 2453.160 2470.840 >=0.5 PASS 11N40SISO Ant1 2422 36.480 2403.760 2440.240 >=0.5 PASS 2437 35.920 2419.320 2455.240 >=0.5 PASS 2452 36.080 2434.080 2470.160 >=0.5 PASS Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 111 of 171 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 112 of 171 11G_Ant1_2412 11G_Ant1_2437 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 113 of 171 11G_Ant1_2462 11N20SISO_Ant1_2412 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 114 of 171 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 115 of 171 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 116 of 171 11N40SISO_Ant1_2452 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 117 of 171 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 15.096 2404.447 2419.543 --- PASS 2437 15.126 2429.422 2444.548 --- PASS 2462 15.107 2454.433 2469.540 --- PASS 11G Ant1 2412 17.508 2403.209 2420.717 --- PASS 2437 17.448 2428.260 2445.708 --- PASS 2462 17.338 2453.328 2470.666 --- PASS 11N20SISO Ant1 2412 18.378 2402.823 2421.201 --- PASS 2437 18.378 2427.825 2446.203 --- PASS 2462 18.341 2452.822 2471.163 --- PASS 11N40SISO Ant1 2422 36.368 2403.817 2440.185 --- PASS 2437 36.419 2418.798 2455.217 --- PASS 2452 36.344 2433.820 2470.164 --- PASS Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 118 of 171 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 119 of 171 11G_Ant1_2412 11G_Ant1_2437 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 120 of 171 11G_Ant1_2462 11N20SISO_Ant1_2412 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 121 of 171 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 122 of 171 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 123 of 171 11N40SISO_Ant1_2452 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 124 of 171 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 15.58 <=30 PASS 2437 15.37 <=30 PASS 2462 15.52 <=30 PASS 11G Ant1 2412 14.88 <=30 PASS 2437 15.04 <=30 PASS 2462 15.18 <=30 PASS 11N20SISO Ant1 2412 15.44 <=30 PASS 2437 15.62 <=30 PASS 2462 15.78 <=30 PASS 11N40SISO Ant1 2422 12.84 <=30 PASS 2437 12.76 <=30 PASS 2452 12.71 <=30 PASS Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic…

Text truncated - open the document above for the full version.

Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 141 of 171 11G_Ant1_2462 11N20SISO_Ant1_2412 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 142 of 171 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 143 of 171 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 144 of 171 11N40SISO_Ant1_2452 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 145 of 171 Appendix F: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 7.62 -29.27 <=-22.38 PASS High 2462 8.00 -42.5 <=-22 PASS 11G Ant1 Low 2412 3.65 -27.34 <=-26.35 PASS High 2462 3.98 -38.25 <=-26.02 PASS 11N20SISO Ant1 Low 2412 3.84 -28.5 <=-26.16 PASS High 2462 4.45 -37.3 <=-25.55 PASS 11N40SISO Ant1 Low 2422 -5.58 -38.47 <=-35.58 PASS High 2452 1.55 -33.22 <=-28.45 PASS Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 146 of 171 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 147 of 171 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 148 of 171 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 Report No.: EC2104010RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AATL-H158A-S www.hn-ecloud.com Page 149 of 171 …

Text truncated - open the document above for the full version.
