2AAV2-BOXR200HOLL WIFI Disk

 Thanks for purchasing Holl Wirless Disk -- BOX R200.Holl R200 are the newest generation of multi-functional wireless hard drive.The product collect of wireless router, wireless storage, wireless multi-media,USB3.0 mobile hard disk and portable source functionLet your phone and PC easily share the contents of wireless box anytime and where. Built in optional, Super speed interface Support contents auto-sorting ,read, delete, share and transfer .Support multiple streaming media formats of wireless playerBuilt in polymer battery charging for smart devices The battery will be 4500mAh if you choose 1T storage HDD ) - 320GB/500G/1TB USB3.0 - 6000mAh ， . ( Functionality： Mobile HDDWireless storageWireless multi-mediaPortable sourceWireless router Support wireless AP and wireless Relay function. I. Accessories: II. Product port view 1 234 65 7 8 9 10 BOX R200 ： 、 icro USB2.0 : icro USB3. : package list as below 1 Box R200: 1pcs2 Data and charging cable 1pcs 3 0 cable 1 pcs 45 、、、、 MMUser Quick Guide: 1pcsCertificate of approval and warranty card: 1pcs ①②③④ ⑧ ⑤ ⑥⑦ USB2.0 port Micro USB3.0 port RJ45 Micro U SB2.0 p ort Power button WiFi LED HDD LED ⑨ WLAN LED ⑩ Battery capacity LED 1、 Hardware interface Introductions. No. Port Logo Function details ① USB2.0 charge for your smar t devices when Box shutdown. After connect smar t device ,press thepower button, the battery capacity LED willbe bright. Box discharging ② Reset button When BOX is working press reset button,system parameters will be restored thefactory setting . then device will be automatically shutdown. , ③ Micro USB3.0 USB and USB2.0 are all available. when the PC or Notebook isn’t supportUSB device will be automatically adapte to USB2.0.When BOX shutdown connect Micro to PC or Notebook BOX will be a mobile harddisk. 3.03.0， ， USB3.0 ， ④RJ45PORT Support dynamic and static IP, Default isDHCP. if change to static IP It can be set upby Smart phone’s Holl through WiFi When J connectted the left yellow LED will bright when date transfer the right green LED will be flashing , APP R45 ， （Link)， ， （ACT） No. Interface Logo Function details ⑤ Micro USB2.0 Micro USB2.0 , charge port support input current 5V@2A Pleasebesuretouseattachedstandard Micro USB2.0 c when ； able charging. ⑥ Power button support battery capacity display, or devicestart or shutdown functionLong press power button, if batter y LEDisn’t light, Be sure to recharge the battery III. Device Usage1、 Holl APP download and install Holl App support OS W Operating System Please download Holl App by your smart device . Android,i , indows iOS Holl App download and install Please search “Holl”in or scan QR code to download Holl Apk . Click “install”, Holl App will be installedsuccessfully into smart devices “ App Store " （iPhone/iPad) iOS Reset button port ©20 Copyright by C .Ltd. All rights reserved. 11 HOLL Technology o, Holl WiFi Disk Box R200 User Quick Guide  IV. WiFi Disk Application1 WiFi AP、 Wireless Router Internet ADSLmodems/router RJ 45 Cable - Phone Ta b l e t WiFi WiFi WiFi Computer 2 Wireless relay、 Internet Phone omputer Ta b l e t Game machine 1 Battery capacity check . ： Check battery capacity by following step Press power button battery LED will light . user can judge battery capacity by displaying the number of LED. After 10 seconds, the light will go out. a) , V. Por table source BOX R200 discharging step b battery LED meaning as below list)： Lighting LED number battery capacity meaning Battery Capacity LED None Please charging one % lower than 25 Two % % between 25 and 50 Three between 50 and 75 %% Four between 75 and 100 %% Press power button to check batter y Battery capacity LED Four levels （） 2. Discharging for Phone or Tablet Connect BOX to Phone or Tablet with Micro USB cable press power button to star t discharging for phone or Tablet. 2.0 , Friendly Tips ： Please use Apple s charge cable for iPhone, iPad, iPod, tandard . Andro d , Phone tablets device, please use Wifi Disk standard charging cable i Phone Tablet PSP Camera Discharge for smartdevices by USB2.0 VI. Charging for Box R200 Micro USB2.0 ： Charging notes 1 （ 600 20 ）, 、 2： 2 3 . Please choose adapter charger voltage is 5V current between and 00mA such as the charger adapter of iPhone iPad A . Charging time if charger adapter is 5V 000mA, . Please don’t discharging for others devices at the same time when charging for Box 、； 4.5-5.5 ndroid device about hours Two ways of charging for Box when the battery is running out1. Adapter charge Connect BOX and power adapter with m cable 2 Computer USB port charge Connect BOX and computer or Notebook USB port with m cable ： ： icro USB2.0 , ： icro USB2.0 VII Firmware upgrade . Welcome users download the latest firmware on Holl website. Copy firmware to Box, After BOX work, run Holl App by phone, and click setting ->Firmware update ,Apk will check device firmware version and update, When update iscompleted, device will automatically shut down More details please l or call 82 400- -8 ogin Holl website: www.holl.com.cn 8853 Android Holl Apk download and install Please search “Holl” in “Android market”or scan QR code todownload Holl Apk , then click “install”, Holl Apk will beinstalled successfully into Android smart device Winodws Holl App download and install Please download Holl App for Windows from Holl website or scan QR code download, then click install Holl App will be installed successfully into PC or Notebook "", www.holl.com.cn Andr id o Windows 2S、 tart device Long press power button about 3 seconds blue i i L E D f l a s h t h r e e t i m e s . then release power button, After 40 seconds, WiFi LED flashing, the devicebegin to work. ,WF 3 App using guide、 Holl “”→“ 。 Wireless connection: After BOX work , open Holl Apk, click setting WLAN”, connect Holl WiFi disk successfully ““ Local” is phone or Tablet internal storage data.WiFi” is Holl WiFi disk storage data. User can sort, manage and operate local or WiFi device storage data by Holl Apk 4、 Device s…

Text truncated - open the document above for the full version.

SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2AAV2-BOXR200 To Whom It May Concern: This letter is to ascertain that SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. （Product：HOLL WIFI Disk Model name: R200）has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Client’s signature Client’s name / title : He Jieping/Engineer Contact address: Floor 1st to 4th, NO.20 Building, Zhiheng Strategic New Industrial Park, Guankou 2nd Road, Nanshan District, Shenzhen, China Contact telephone: 008675586220808 Email: [email protected]

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. Sep 24,2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: HOLL WIFI Disk Model No.: R200 FCC ID: 2AAV2-BOXR200 We affirm that between SIEMIC and SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : He Jieping/Engineer Contact address: Floor 1st to 4th, NO.20 Building, Zhiheng Strategic New Industrial Park, Guankou 2nd Road, Nanshan District, Shenzhen, China Contact telephone: 008675586220808 Email:[email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] FCC Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. FCC Confidentiality Request Letter Sep 24,2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AAV2-BOXR200 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : He Jieping/Engineer Contact address: Floor 1st to 4th, NO.20 Building, Zhiheng Strategic New Industrial Park, Guankou 2nd Road, Nanshan District, Shenzhen, China Contact telephone: 008675586220808 Email: [email protected]

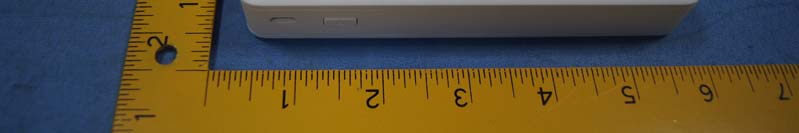

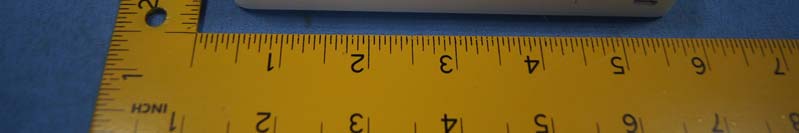

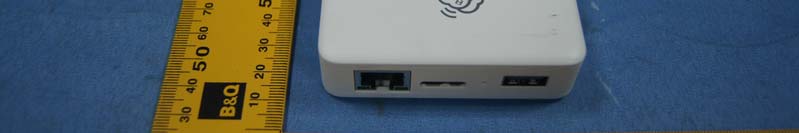

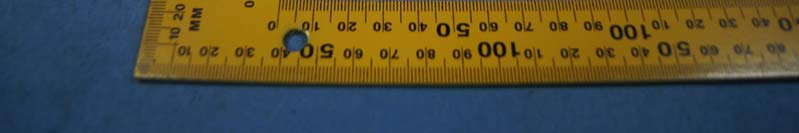

External Photos

Label and label location

Internal Photos Antenna

FCC ID : 2AAV2-BOXR200 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power Frequency(GHz) Conducted Power (mw) 2.412（802.11b） 8.91 Maximum Tx power is 8.91mW. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)]= 8.91/5*√2.412=2.77≤ 3.0 Threshold at which no SAR required is 10mW and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Report No.: ATE20131789 Page 1 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION FCC Part 15C On Behalf of SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. HOLL WIFI Disk Model No.: R200 FCC ID: 2AAV2-BOXR200 Prepared for : SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. Address : Floor 1st to 4th, NO.20 Building, Zhiheng Strategic New Industrial Park, Guankou 2nd Road, Nanshan District, Shenzhen, China Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report No. : ATE20131789 Date of Test : Aug 22- Sep 22, 2013 Date of Report : Sep 22, 2013 Report No.: ATE20131789 Page 2 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Carrier Frequency of Channels .................................................................................................................6 1.3. Accessory and Auxiliary Equipment ........................................................................................................6 1.4. Description of Test Facility ......................................................................................................................6 1.5. Measurement Uncertainty.........................................................................................................................7 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 8 3. OPERATION OF EUT DURING TESTING ................................................................................. 9 3.1. Operating Mode ........................................................................................................................................9 3.2. Configuration and peripherals ..................................................................................................................9 4. TEST PROCEDURES AND RESULTS ....................................................................................... 10 5. POWER LINE CONDUCTED MEASUREMENT ..................................................................... 11 5.1. Block Diagram of Test Setup.............................................................................................................11 5.2. Power Line Conducted Emission Measurement Limits..................................................................11 5.3. Configuration of EUT on Measurement............................................................................................11 5.4. Operating Condition of EUT...............................................................................................................11 5.5. Test Procedure.....................................................................................................................................12 5.6. Power Line Conducted Emission Measurement Results...............................................................13 6. 6DB BANDWIDTH MEASUREMENT ........................................................................................ 16 6.1. Block Diagram of Test Setup..................................................................................................................16 6.2. The Requirement For Section 15.247(a)(2) ............................................................................................16 6.3. EUT Configuration on Measurement .....................................................................................................16 6.4. Operating Condition of EUT ..................................................................................................................16 6.5. Test Procedure ........................................................................................................................................16 6.6. Test Result ..............................................................................................................................................17 7. MAXIMUM PEAK OUTPUT POWER ....................................................................................... 24 7.1. Block Diagram of Test Setup..................................................................................................................24 7.2. The Requirement For Section 15.247(b)(3)............................................................................................24 7.3. EUT Configuration on Measurement .....................................................................................................24 7.4. Operating Condition of EUT ..................................................................................................................24 7.5. Test Procedure ........................................................................................................................................24 7.6. Test Result ..............................................................................................................................................25 8. POWER SPECTRAL DENSITY MEASUREMENT.................................................................. 32 8.1. Block Diagram of Test Setup..................................................................................................................32 8.2. The Requirement For Section 15.247(e).................................................................................................32 8.3. EUT Configuration on Measurement .....................................................................................................32 8.4. Operating Condition of EUT ...........................…

Text truncated - open the document above for the full version.

Report No.: ATE20131789 Page 76 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 77 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 78 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 79 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 80 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 81 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 82 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 83 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 84 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 85 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 86 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 87 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 88 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 89 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Above 1G Report No.: ATE20131789 Page 90 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 91 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 92 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 93 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 94 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 95 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 96 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 97 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 98 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 99 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 100 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 101 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 102 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 103 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 104 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 105 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 106 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 107 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 108 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 109 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 110 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 111 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 112 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD Report No.: ATE20131789 Page 113 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD 11. CONDUCTED SPURIOUS EMISSION COMPLIANCE TEST 11.1.Block Diagram of Test Setup 11.2.The Requirement For Section 15.247(d) Section 15.247(d): In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in Section 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a). 11.3.EUT Configuration on Measurement The equipment is installed on the emission measurement to meet the commission requirements and operating regulations in a manner which tends to maximize its emission characteristics in normal application. 11.4.Operating Condition of EUT 11.4.1.Setup the EUT and simulator as shown as Section 11.1. 11.4.2.Turn on the power of all equipment. 11.4.3.Let the EUT work in TX modes measure it. The transmit frequency are 2412-2462 and 2422-2452MHz. We select 2412MHz, 2437MHz, 2462MHz and 2422MHz, 2437MHz, 2452MHz TX frequency to transmit. Low Loss Cable Spectrum Analyzer EUT Report No.: ATE20131789 Page 114 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD 11.5.Test Procedure 11.5.1.The transmitter output was connected to the spectrum analyzer via a low loss cable. 11.5.2.Set RBW of spectrum analyzer to 100kHz and VBW to 300kHz (below 1GHz). 11.5.3.Set RBW of spectrum analyzer to 1MHz and VBW to 3MHz (above 1GHz). 11.5.4.The Conducted Spurious Emission was measured and recorded. 11.6.Test Result Pass. The spectrum analyzer plots are attached as below. Report No.: ATE20131789 Page 115 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD TX 802.11b Channel Low 2412MHz Report No.: ATE20131789 Page 116 of 127 FCC ID: 2AAV2-BOXR200 ACCURATE TECHNOLOGY CO., LTD TX 802.11b Channel Middle 2437MHz Report No.: ATE20131789 Page 117 of 127 FCC ID: 2AAV2-BOXR2…
