2AAV2-MINIR210HOLL WIFI Disk

Thanks for purchasing Holl wireless hard drive Mini R210. Holl R210 are the latest generation of multi-functional wireless hard drive. The product collect of wireless router, Wireless storage, wireless video, see mobile hard disk and mobile power supply, and other functions in one body Letting your phone and PC easily share the contents of wireless box anytime and anywhere Support contents auto-sorting ,read, delete, share and sent . Support multiple formats of wireless audio. Built in 3800 polymer battery charging for ect smart devices : Support cable turn wireless and wireless relay function. 。 - mAh . iPhone、iPad、Android . ：SD GB , .. . . ：USB 3G Functionality ： 3GMobile HDD intelligent router card port can support 32 storage card share wireless by inserting U disk to USB 2 0 and also can through micro USB2 0 as SD card reader Suppor t ZTE ,Huawei modes turn to wireless router Wireless relay;Realization of signal relay, to extend the range of wireless network coverage.Wireless storageWireless audioMobile power supply Wireless router One Accessories list 、 Mini 1 the package and list 1 Major Product one Mini 210.2 One m charging line 3 User instruction.4 Certificate of approval and warranty card R2 0 ： 、、 icro USB2.0 、、 ©20 Copyright by C .Ltd. All rights reserved. 11 HOLL Technology o User Quick Guide Holl WiFi Disk Mini R2 0 1  Two:Products pictorial view ①② ③ ④ ⑤ ⑧ ⑥ ⑦ ⑨ ①②③④⑧ ⑤⑥⑦ Rj45 portUSB2.0 portMicro USB2.0 portReset button SD card portWiFi indicator lightWLAN indicator light Battery capcity indicator light Power button ⑨ 1、 Hardware interface Introductions. No. Port Logo Function details ①Rj45 port Support dynamic and static IP, Thedefault for DHCP and dynamic if need turn to static IP use phone or PC byconnect Holl to set up. ， ,WIFI APP No. Port Logo Function details ② USB2.0 port Can charging for smart devicesConnect ZTE Huawei USB 3G modesEVDOor inser t U disk , hard drive t ； ,, ； USB 。 o share wireless ③ Micro USB2.0 port Use line connect charger and MINI to charge, support inputcurrent is 5V@1ACan used as U disk when Mini isshutdown Micro USB2.0 ; 。 ④ Reset button When the Mini is working press the resetbutton, the interior system parameterswill be restored the factory setting .thenautomatic shutdown. , ⑤SD card port Support Maximum of 32G SD card storage extension. ⑥ Power button Power display or open, shutdown buttonLong press the power button, if themachine no faction, please charge for it. 2 indicator light instruction. 、LED Referent Name Status Detailed instrcution WiFi Blue lightflashing The blue light flash three times whenstarting up . Blue lightflashing The blue light flash once per secend afterstarting up. WLAN Green Bright （ ） Products through the wireless relay to otherwireless devices. Green Not bright （ ） Not by wireless relay to other wirelessdevices. Battery power Blue Bright （ ） Four blue lights, the number of blue lightsup says the current power, each lamprepresents about 25% of the battery.(thepower indicator light only to provide thereference power) Red ight （） Br Battery is insufficient, the red light, toremind the user needs to recharge. Three Software Usage 、 1 Holl micro manager APP download and installing 、 Holl App support OS W three main operating system Please download the right App according to your smar t device operating system. Android,i , indows Four Application scenarios 、 Cable turn wireless and shared network 3G turn wireless share network Internet ADSLmodems/router RJ 45 Cable - Phone Ta b l e t WiFi WiFi Wireless Router Cable turn wireless WiFi mode RJ 45Cable - Phone Tablet 3G Router3G turn wifiwork mode 3G/3.75GNetwork3G/3.75GNetwork Insert USB 3G wireless evdo Copmuter WiFi Computer WiFi WiFi WiFi Wireless relay  Step two Charging for Phone or Tablet ： Friendly Tips：Please use Apple original charge line for Phone tablets please use the standard charging line.iPhone, iPad, iPod,Android , Phone Tablet PSP Camare Charge for smartdevices by USB Connect Mini and Phone Tablet) by USB to star t charging (2.0. Six: Charging for Mini R210 ： Charging notes 1 （ 600 20 ）, 、 、 ； 2： 2 ； 3 。 . Please choose adapter charger output is 5V current output bettwen and 00mA such as the charger of iPhone iPad Android . Charging time the charger is 5V 000mA need about 3-4 hours. Please stop charging for others devices when chagring for Box Micro USB2.0Please insert this port Micro USB2.0 Seven Firmware upgrade 、 The two ways of charging for Mini when the power is running out1.Adapter charger Connect of Mini and the USB 2 0 of adapter charger by USB charging line.2.Computer USB Connect of Mini and USB of computer by USB charging line. ： Micro USB2.0 . ： Micro USB2.0 2.0/3.0 ： Welcome users download the latest corresponding firmware on Holl website. copy to Box, open the wireless function then run Holl App andenter the configuration management interface to upgrade the firmware. More details please check on www.holl.com.cn or call 8853 82 400- -8 Wireless routerWireless relay IOS Holl micro manager download and installing Please search Holl Apk in or scan the two- dimension code in the right to download the latest Holl APP .Click “install”to make Holl App installed successfully in yoursmar t devices IOS “ App Store " （iPhone/iPad/iPod)。 Android Holl micro manager download and installing Please search Holl Android APK in “Android market”or scan thetwo-dimension code in the right to download ,then click“install”to install the latest Holl Android App successful. Winodws Holl micro manager download and installing Please search Holl Windows APK on websiteor scan the two-dimension code in the right to download thelatest Windows App then click install to install the WindowsApp successful ，"" . www.holl.com.cn iOS system Android System Windows system 2B、 oot device Long press the button until the blue i i indicator light flash three times , when the blue WiFi LED flashing, the device ready ro work . WF Internet Internet Phone Computer Ta b l e t Game machine …

Text truncated - open the document above for the full version.

SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2AAV2-MINIR210 To Whom It May Concern: This letter is to ascertain that SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. （Product：HOLL WIFI Disk Model name: R210）has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Client’s signature Client’s name / title : He Jieping/Engineer Contactaddress:Floor 1st to 4th, NO.20 Building, Zhiheng Strategic New Industrial Park, Guankou 2nd Road, Nanshan District, Shenzhen, China Contact telephone: 008675586220808 Email:[email protected]

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. Sep 24,2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: HOLL WIFI Disk Model No.: R210 FCC ID: 2AAV2-MINIR210 We affirm that between SIEMIC and SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : He Jieping/Engineer Contact address: Floor 1st to 4th, NO.20 Building, Zhiheng Strategic New Industrial Park, Guankou 2nd Road, Nanshan District, Shenzhen, China Contact telephone: 008675586220808 Email:[email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] FCC Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. FCC Confidentiality Request Letter Sep 24,2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AAV2-MINIR210 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : He Jieping/Engineer Contact address: Floor 1st to 4th, NO.20 Building, Zhiheng Strategic New Industrial Park, Guankou 2nd Road, Nanshan District, Shenzhen, China Contact telephone: 008675586220808 Email: [email protected]

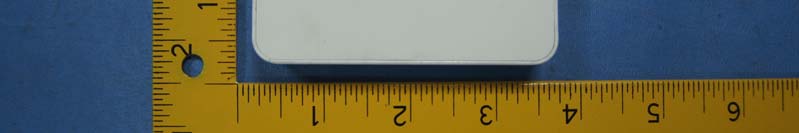

External Photos

Label and label location

Internal Photos Antenna

FCC ID : 2AAV2-MINIR210 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 802.11b Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2412 9.46 8.83 2.74 3.0 2437 8.41 6.93 2.16 3.0 2462 7.34 5.42 1.70 3.0 802.11g Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2412 7.43 5.53 1.72 3.0 2437 7.28 5.35 1.67 3.0 2462 7.81 6.04 1.90 3.0 802.11n20 Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2412 7.09 5.12 1.59 3.0 2437 6.55 4.52 1.41 3.0 2462 6.34 4.31 1.35 3.0 802.11n40 Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2422 7.28 5.35 1.67 3.0 2437 6.66 4.63 1.45 3.0 2452 6.55 4.52 1.42 3.0 Threshold at which no SAR required is ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Report No.: ATE20131790 Page 1 of 127 FCC ID: 2AAV2-MINIR210 ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION FCC Part 15C On Behalf of SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. HOLL WIFI Disk Model No.: R210 FCC ID: 2AAV2-MINIR210 Prepared for : SHENZHEN WEI DA HUI ER TECHNOLOGY CO.,LTD. Address : Floor 1st to 4th, NO.20 Building, Zhiheng Strategic New Industrial Park, Guankou 2nd Road, Nanshan District, Shenzhen, China Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report No. : ATE20131790 Date of Test : Aug 22- Sep 23, 2013 Date of Report : Sep 23, 2013 Report No.: ATE20131790 Page 2 of 127 FCC ID: 2AAV2-MINIR210 ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Carrier Frequency of Channels .................................................................................................................6 1.3. Accessory and Auxiliary Equipment ........................................................................................................6 1.4. Description of Test Facility ......................................................................................................................6 1.5. Measurement Uncertainty.........................................................................................................................7 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 8 3. OPERATION OF EUT DURING TESTING ................................................................................. 9 3.1. Operating Mode ........................................................................................................................................9 3.2. Configuration and peripherals ..................................................................................................................9 4. TEST PROCEDURES AND RESULTS ....................................................................................... 10 5. POWER LINE CONDUCTED MEASUREMENT ..................................................................... 11 5.1. Block Diagram of Test Setup.............................................................................................................11 5.2. Power Line Conducted Emission Measurement Limits..................................................................11 5.3. Configuration of EUT on Measurement............................................................................................11 5.4. Operating Condition of EUT...............................................................................................................11 5.5. Test Procedure.....................................................................................................................................12 5.6. Power Line Conducted Emission Measurement Results...............................................................13 6. 6DB BANDWIDTH MEASUREMENT ........................................................................................ 16 6.1. Block Diagram of Test Setup..................................................................................................................16 6.2. The Requirement For Section 15.247(a)(2) ............................................................................................16 6.3. EUT Configuration on Measurement .....................................................................................................16 6.4. Operating Condition of EUT ..................................................................................................................16 6.5. Test Procedure ........................................................................................................................................16 6.6. Test Result ..............................................................................................................................................17 7. MAXIMUM PEAK OUTPUT POWER ....................................................................................... 24 7.1. Block Diagram of Test Setup..................................................................................................................24 7.2. The Requirement For Section 15.247(b)(3)............................................................................................24 7.3. EUT Configuration on Measurement .....................................................................................................24 7.4. Operating Condition of EUT ..................................................................................................................24 7.5. Test Procedure ........................................................................................................................................24 7.6. Test Result ..............................................................................................................................................25 8. POWER SPECTRAL DENSITY MEASUREMENT.................................................................. 32 8.1. Block Diagram of Test Setup..................................................................................................................32 8.2. The Requirement For Section 15.247(e).................................................................................................32 8.3. EUT Configuration on Measurement .....................................................................................................32 8.4. Operating Condition of EUT ........................…
