2AAV8QT-12WIRELESS REMOTE CONTROLLER FOR FOG MACHINE

It is very important to operate this product according to the following instructions. Failure to do so may render your guarantee void. Accessories List The product comes with ● 1 x Product Body with Power Cable ● 1 x Wired Control Cable and Box ● 1 x Wireless Remote Control Transmitter with Battery Installed ● 1 x User Manual 5. Connect the product with proper power socket. 6. Warm up time is approximately 4 – 5 minutes. When fully heated, the Wired Control Indication Light will turn on and the Fog Machine will be ready to produce and spray fog. 7. Set the On/Off Switch to on position on the Wired Control Box, nozzle will start spraying fog. Or you can remote control the Fog Machine to spray fog by the Remote Control Transmitter according to following sequence: a. Remove the battery insulation tab carefully. This is to activate the battery. The battery insulation tab is located at the back cover of the Remote Control Transmitter. b. Press and hold the Push Button on the Remote Control Transmitter within 10 meters, and the Wireless Remote Indication Light on the Transmitter will be on at the same time. Then the fog machine will be spraying. Please be well noted: ● The maximum transmitting distance is 10M in the open air. ● If you just press but not hold the Push Button on the remote control transmitter, the fog machine would just spray very shortly and stop. It is necessary for you to hold the button if you want the fog machine to spray continuously. 8. Turn off the unit before refilling the fog machine. 9. Unplug the unit when not in use. 10. To refill the tank; turn off the unit, unplug and follow the directions in Step 3. ● Keep away from the spray nozzle at least 0.5 meters when the nozzle spraying fog. ● Attention! Do not place the product onto wet or uneven surfaces. Accidental falls may cause fire. ● The product shall be changed if it has become damaged or thermally deformed. Disconnect this product from power immediately in case of malfunction. Do not resume use until it’s repaired. ● Do not use the Fog Machine or Remote Control Transmitter outdoors. They are not waterproof. ● This product is not a toy. Please keep this unit out of reach of children and pets. ● Close supervision is necessary when this product is used by invalids, or disabled persons, or near children. ● Use this product only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer. ● Keep the power cable away from heated surfaces. ● Never drop or insert any object into any opening. ● Please unplug the power cable if you want to stop use of this unit for long time. ● The external flexible cable of this product cannot be replaced; if the power cable is damaged, the product shall be destroyed. Never operate this product if it has a damaged cable or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. WEEE Directive & Product Disposal At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Maintenance and Cleaning ● Maintenance and cleaning shall only be done to the product surface. Unplug this product from the power socket before cleaning. ● Do not wet any electric parts of this product. Please use a dry, soft cloth instead of sharp tools for cleaning. ● If you find there is low fog output after many hours of continuous operation or after the machine has been idle or in storage for a long time, it is advised to empty all Fog Liquid from the machine and clean the tank. Please unplug the machine from power socket before cleaning. Replace Battery for the Remote Control Transmitter If the Remote Control Transmitter does not work at all within the working distance, it is probably that the battery has been run-out. Please replace the used battery with a new one. Note: Before replacement, you need to prepare a small cross-headed screw driver and a new battery with correct specification: 23A 12V 1. Unscrew the 3 screws at the back cover of the Transmitter. 2. Remove the used battery and load the new battery into the Transmitter. Please note the correct polarity. 3. Fix the 3 screws back to the back cover. Storage It is important to keep fluid in the Fog Machine when storing for an extended period of time. This will keep the seal and the parts lubricated. 1. Remove the tank lid. 2. Pour liquid into the tank. 3. Store on a flat, level surface to prevent liquid from spilling. Fuse Replacement If the Fog Machine does not work at all when it is connected to the power socket, then it is probably that the fuse has been broken. WARNING: Risk of electric shock and fire. Disconnect from power socket before replacing the fuse. 1. Turn the fuse knob counterclockwise to reveal the fuse. 2. Replace the fuse with the same size and type fuse: 5A, 125V 3. Place fuse in cover and reinstall by turning clockwise. Be sure not to over tighten. Cautions and Warnings ● Please read through this instructions manual before use. ● Before use, check the fog machine to see if there is any crack in the product cover, wired control cable and box, power cable and plug. Make sure there is not any exposed wired. Do not use if any of the above conditions is found. ● The fog machine will become hot during use. After use, please wait for some minutes before trying to touch it by hand. 123 456 Product Body with Power Cable Remote Control Transmitter User Manual Names for Parts (A) (B) (E) (F) (K) (C) (D) (G) (H) (I) (J) (M) (L) (O) (N) (A) Spray Nozzle (B) Handle (C) Tank Lid (D) Product Cover (E) Wired Control Cable Interface (F) Fuse Knob (G) On/Off Switch (H) Wired Control Indication Light (I) Wired Control Box (J) Wired Control Cable (K) Wireless Remote Indication Light (L) Push Button (M) Remote Control Transmitter (N) Screws (O) Battery Insulation Tab How to Use? Before using the fog machine, you …

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: August 27, 2013 SUBJECT: FCC Application for (FCC ID:2AAV8QT-12 ) To Whom It May Concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the receiver operate at frequencies from 30-960 MHz device. I understand the following FCC requirements: 1.Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2.Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3.Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer . Regards, Signature: Hu Guozhi/ General manage: Applicant: SHENZHEN QIAOHUA INDUSTRIES LIMITED Address: Qiaohua Industrial Zone, Luo Tian Forestry Center, Song Gang Town, Bao An District, Shenzhen, China SHENZHEN QIAOHUA INDUSTRIES LIMITED

SHENZHEN QIAOHUA INDUSTRIES LIMITED Date: August 27, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AAV8QT-12 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics SCH.pdf Block Diagram BlockDiagram.pdf Operational Description CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Qiaohua Industrial Zone, Luo Tian Forestry Center, Song Gang Town, Bao An District, Shenzhen, China ............................................................... Signature Swiss.yang/ General manager ............................................................... Typed name and Title

SHENZHEN QIAOHUA INDUSTRIES LIMITED FCC ID: 2AAV8QT-12 POWER OF ATTORNEY Date: August 27, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on August 26, 2014. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, SHENZHEN QIAOHUA INDUSTRIES LIMITED, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ................................................................................. Signature Swiss.yang/ General manager ................................................................................. Typed name and Title

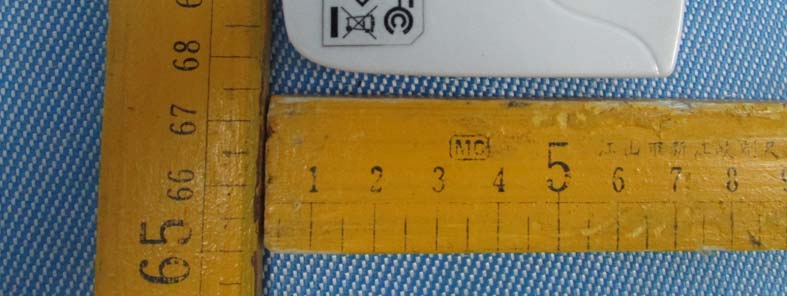

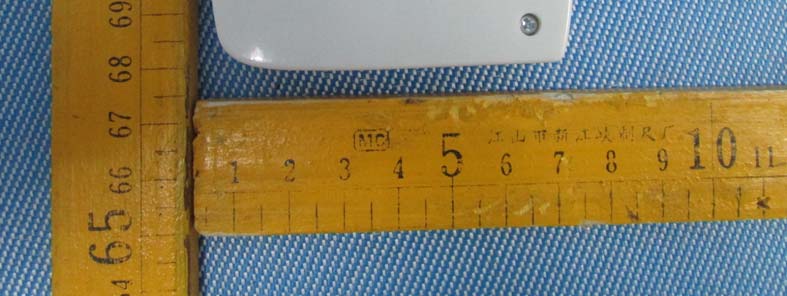

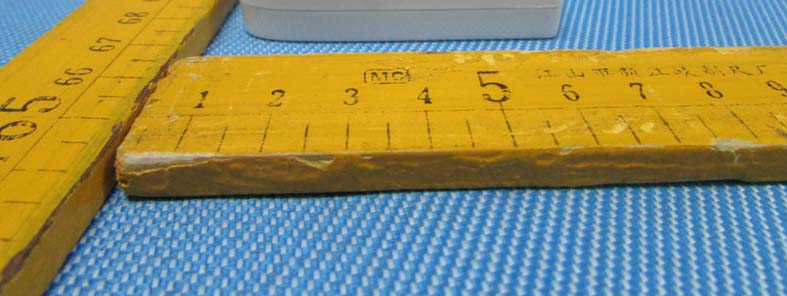

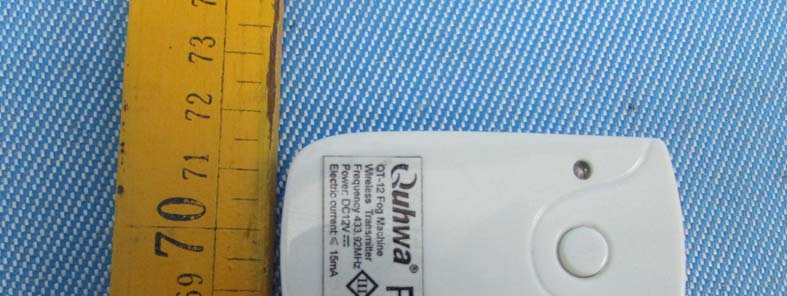

Reference No.: WTD13S0604574E Page 23 of 27 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 12 Photographs - Constructional Details 12.1 EUT - Appearance View Reference No.: WTD13S0604574E Page 24 of 27 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No.: WTD13S0604574E Page 25 of 27 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: QT-12 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. SHENZHEN QIAOHUA INDUSTRIES LIMITE Model No.: QT-12 FCC ID: 2AAV8QT-12 DC120V by battery This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any nterference received, including interference that may cause undesired operation.

FCC Label FCC Label Sample for model: QT-12 FCC ID: 2AAV8QT-12 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Reference No.: WTD13S0604574E Page 26 of 27 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 12.2 EUT- Internal View Reference No.: WTD13S0604574E Page 27 of 27 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn =End of test report== RF ANTENNA

Reference No.: WTD13S0604574E Page 1 of 27 FCC TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC ID : 2AAV8QT-12 Applicant : SHENZHEN QIAOHUA INDUSTRIES LIMITED Address : Qiaohua Industrial Zone, Luo Tian Forestry Center, Song Gang Town, Bao An District, Shenzhen, China Manufacturer : The same as above Address : The same as above Equipment Under Test (EUT) : Product Name : Wireless Remote Controller for Fog Machine Model No. : QT-12 Rules : FCC CFR47 Part 15 Subpart C: 2010 Date of Test : Jun 21~25, 2013 Date of Issue : July 25, 2013 Test Result : PASS* Remark: * The sample described above has been tested to be in compliance with the requirements of ANSI C63.4:2003. The test results have been reviewed and comply with the rules listed above and found to meet their essential requirements. PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West of Baima Road., Songgang Street, Bao’an District, Shenzhen, China Tel: +86-755-83551033 Fax: +86-755-83552400 Compiled by: Approved by: Maikou Zhang / Project Engineer Philo Zhong / Manager Reference No.: WTD13S0604574E Page 2 of 27 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 N/A Radiated Spurious Emissions 15.205(a) 15.209 15.231(b) PASS Periodic Operation 15.231(a) PASS 20dB Bandwidth 15.231(c) PASS Antenna Requirement 15.203 PASS Reference No.: WTD13S0604574E Page 3 of 27 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ............................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 GENERAL DESCRIPTION OF E.U.T..............................................................................................................4 4.2 DETAILS OF E.U.T........................................................................................................................................4 4.3 TEST FACILITY..............................................................................................................................................4 4.4 TEST LOCATION............................................................................................................................................4 4.5 GENERAL CONDITION...................................................................................................................................4 4.5.1 Environmental condition of test site .............................................................................................................5 4.5.2 Test Mode .....................................................................................................................................................5 5 EQUIPMENT USED DURING TEST....................................................................................................................6 5.1 EQUIPMENTS LIST........................................................................................................................................6 5.2 MEASUREMENT UNCERTAINTY....................................................................................................................6 5.3 TEST EQUIPMENT CALIBRATION..................................................................................................................6 6 CONDUCTED EMISSION TEST...........................................................................................................................7 7 RADIATION EMISSION TEST..............................................................................................................................8 7.1 EUT OPERATION:........................................................................................................................................9 7.2 TEST SETUP.................................................................................................................................................9 7.3 SPECTRUM ANALYZER SETUP...................................................................................................................11 7.4 TEST PROCEDURE.....................................................................................................................................11 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..................................................................................11 7.6 SUMMARY OF TEST RESULTS....................................................................................................................12 8 PERIODIC OPERATION......................................................................................................................................16 9 20DB BANDWIDTH..............................................................................................................................................19 9.1 TEST PROCEDURE.....................................................................................................................................19 9.2 TEST RESULT.............................................................................................................................................19 10 ANTENNA REQUIREMENT................................................................................................................................20 11 PHOTOGRAPHS OF TESTING..........................................................................................................................21 11.1 RADIATION EMISSION TEST VIEW..........…

Text truncated - open the document above for the full version.

Reference No.: WTD13S0604574E Page 21 of 27 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 11 Photographs of Testing 11.1 Radiation Emission Test View Below 30MHz From 30MHz to 1GHz Reference No.: WTD13S0604574E Page 22 of 27 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Above 1GHz
