2AAVI-HS2R9RFID/Bluetooth Handheld Scanner

Flexpoint HS2R9 2 9/10/15 Chapter 1 – Getting Started ......................................................................................... 5 About This Manual ...................................................................................................... 5 flexpoint HS2R9 Imager Identification .......................................................................... 6 flexpoint HS2R9 Imager Components ............................................................................ 7 About the Battery ......................................................................................................... 8 Charging Information ............................................................................................... 8 Battery Recommendations....................................................................................... 8 Proper Disposal of the Battery ................................................................................. 9 Connecting the Base ................................................................................................. 10 Reading Techniques ................................................................................................. 11 Chapter 2 – Basic System Operation ............................................................................ 12 Base .......................................................................................................................... 12 RF (Radio Frequency) Module Operation .................................................................. 12 Cordless HS2R9 ........................................................................................................ 12 System Conditions .................................................................................................... 13 Bluetooth Association Process .............................................................................. 13 HS2R9 Is Out of Range ......................................................................................... 13 Base Charge Mode ................................................................................................... 14 Beeper and LED Indicators........................................................................................ 14 Troubleshooting ............................................................................................................ 18 Chapter 6 – Symbologies .............................................................................................. 20 All Symbologies ......................................................................................................... 21 3 9/10/15 Message Length Description ..................................................................................... 21 Chapter 8 – Product SpecificationsHS2R9 Product Specifications ............................ 23 Chapter 9 – Maintenance .............................................................................................. 26 Cleaning the Scanning Window ................................................................................. 26 Cleaning the Scanner Housing .................................................................................. 26 Interface Cable .......................................................................................................... 28 Replacing the Battery ................................................................................................ 28 Repairs ...................................................................................................................... 28 Chapter 10 – REGULATORY, Service, Maintenance .................................................... 29 10.1 FCC, IC ............................................................................................................. 29 FCC Class B Compliance .......................................................................................... 29 10.2 Industry Canada IC Compliance ........................................................................ 30 10.3 CE ................................................................................................................. 31 10.4 – Customer Support .......................................................................................... 34 Obtaining Technical Assistance or Factory Service ................................................... 34 North America........................................................................................................ 34 Europe ................................................................................................................... 34 10.4 Limited Warranty ............................................................................................... 35 Appendices ............................................................................................................... 37 Appendix A - Programming Bar Codes ...................................................................... 37 Appendix B – ASCII Conversion Chart ...................................................................... 39 4 9/10/15 Appendix B – ASCII Conversion Chart (continued) .................................................... 41 Appendix C - Symbology Chart ................................................................................. 42 Appendix C - Symbology Chart (continued) ............................................................... 43 Appendix D - Data Matching, Collation [Needs 7-bit commands] ............................... 44 Appendix E – GS1 Formatting [Needs 7-bit commands] ............................................ 47 Appendix F - Japan 2 Byte Output Mode [Needs 7-bit commands] ............................ 50 Appendix G – HS2R9 Theory of Operation ................................................................ 50 Appendix H – Laser Safety ........................................................................................ 55 Appendix I – Power Input ..........…

Text truncated - open the document above for the full version.

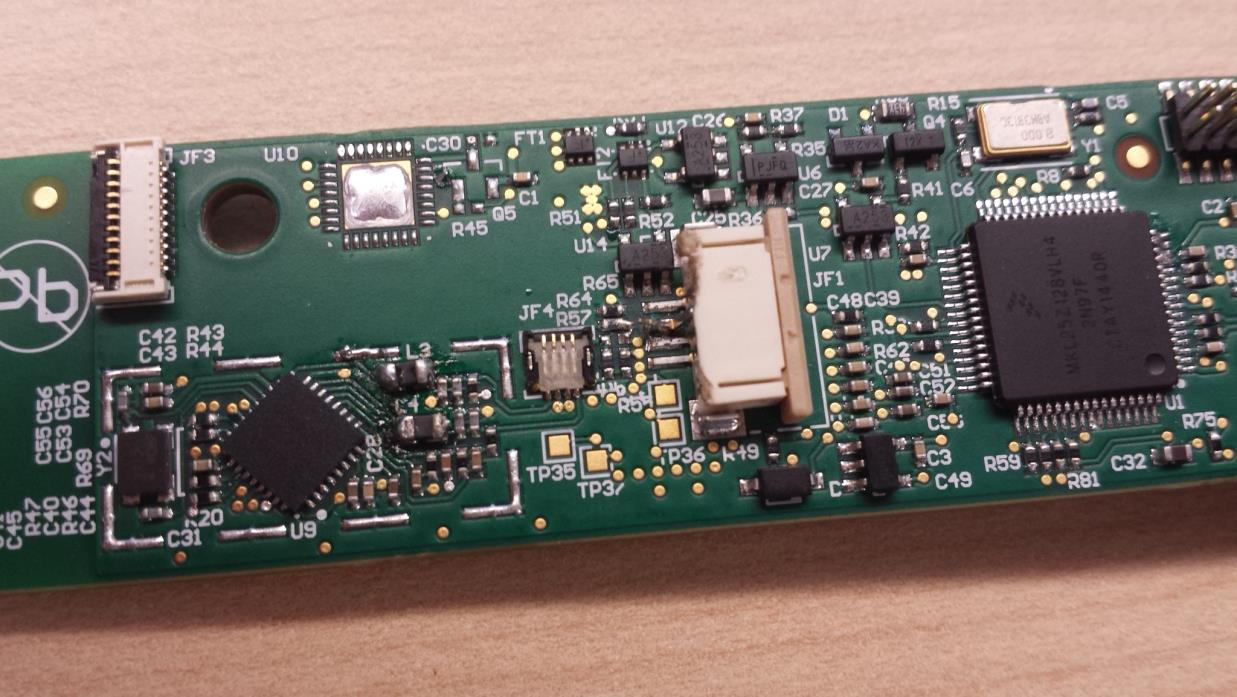

TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: 2AAVI-HS2R9 Tel: (585) 645-0125 IC ID: 11355A-HS2R9 Report Number: FCC - 31562536, IC - 31562537 Page 1 of 5 EUT: RFID Module with passive tag and Bluetooth Model: HS2R9 33_EME/I 01/29/2001 Internal Photos EUT Name: RFID Module with passive tag and Bluetooth EUT Model: HS2R9 FCC ID: 2AAVI-HS2R9 , IC ID: 11355A-HS2R9 FCC Title 47, Part 15, SubpartC, RSS-210 Issue 8 Prepared for: Adam Clifford JADK LLC 7279 William Barry Blvd North Syracuse, NY 13212 Tel: 315-218-1315 Fax: 315-701-0679 Prepared by: TUV Rheinland of North America 710 Resende Road Webster, NY 14580 Tel: (585) 645-0125 http://www.tuv.com/ Report/Issue Date: 30 November 2015 Report Number: FCC - 31562536, IC - 31562537 TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: 2AAVI-HS2R9 Tel: (585) 645-0125 IC ID: 11355A-HS2R9 Report Number: FCC - 31562536, IC - 31562537 Page 2 of 5 EUT: RFID Module with passive tag and Bluetooth Model: HS2R9 33_EME/I 01/29/2001 Internal Photos: Figure 1: Internal View Figure 2: Internal View – RF Cover removed TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: 2AAVI-HS2R9 Tel: (585) 645-0125 IC ID: 11355A-HS2R9 Report Number: FCC - 31562536, IC - 31562537 Page 3 of 5 EUT: RFID Module with passive tag and Bluetooth Model: HS2R9 33_EME/I 01/29/2001 Figure 3: Internal View – Figure 4: Internal View – Bluetooth Shield removed, Bluetooth antenna shown inside red box. This antenna has a minimum separation distance of 15mm to be exempt from SAR TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: 2AAVI-HS2R9 Tel: (585) 645-0125 IC ID: 11355A-HS2R9 Report Number: FCC - 31562536, IC - 31562537 Page 4 of 5 EUT: RFID Module with passive tag and Bluetooth Model: HS2R9 33_EME/I 01/29/2001 Figure 5: Internal View – Front and Back of Antenna TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: 2AAVI-HS2R9 Tel: (585) 645-0125 IC ID: 11355A-HS2R9 Report Number: FCC - 31562536, IC - 31562537 Page 5 of 5 EUT: RFID Module with passive tag and Bluetooth Model: HS2R9 33_EME/I 01/29/2001 Figure 6: Internal View – SAR Distance

FCC ID: 2AAVI-HS2R9 Report No.: 31562536.002_FCC_HS2R9.doc Page 33 of 39 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the Federal Government. TUV Rheinland of North America, Inc., 710 Resende Road, Webster NY 14580. Tel: 585-645-0125 MS-0005239 Version 3.0 5 RF Exposure – FCC - for RFID Device 5.1 Exposure Requirements – FCC KDB # 447498 DO1 FCC KDB # 447498 DO1 V05r02 - Mobile and Portable Device RF Exposure and Procedures and Equipment, Appendix C shows that the SAR Text Exclusion Threshold for a device with a separation distance of ≤ 50 mm at ≤ 100 MHz is 237 mW 5.1.1 Test Procedure If the antenna is located > 20cm from the user, then an MPE calculation is acceptable. If the antenna is located < 20cm (portable / mobile / hand-held device) from the user, then SAR evaluation is required. 5.1.2 Evaluation The EUT will be used as a portable device where the antenna will be located less than 20cm from the user, therefore SAR evaluation is required. 5.1.2.1 Evaluation for FCC FCC 447498 DO1 Mobile Portable RF Exposure V05r02, Appendix C shows that the SAR Text Exclusion Threshold for a device with a worst-case separation distance of < 50 mm and < 100 MHz is 237 mW. The minimum power that requires SAR testing with a separation distance of 50 mm at < 100 MHz is 237 mW. The maximum EiRP peak power output of the EUT is: < 0.1 mW The 0.1 mW EiRP of the EUT is well below the 237 mW power level that requires SAR Testing. 5.1.3 Conclusion SAR data is not required for FCC Note: The < 0.1 mW power level includes the 100% Duty Cycle factor. This is considered to be the absolute worst case. 5.1.4 Calculated EiRP Level Notes: The EUT does not have a means to make direct measurements. This EiRP calculation was made using the maximum Peak Field value of 27.80 dBμV/m at 1m. The Duty Cycle was at 100% FCC ID: 2AAVI-HS2R9 Report No.: 31562536.002_FCC_HS2R9.doc Page 34 of 39 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the Federal Government. TUV Rheinland of North America, Inc., 710 Resende Road, Webster NY 14580. Tel: 585-645-0125 MS-0005239 Version 3.0 5.1.5 Antenna Gain: The antenna used in the EUT is a Loop antenna which is etched onto a flexable PCB. According to the manufacturer, the antenna has a theoretical gain of 0 dBi or numeric gain of 1 (unity gain). The stated Maximum EiRP power of the EUT is < 0.1 mW (100% Duty Cycle) FCC ID: 2AAVI-HS2R9 Report No.: 31562536.002_FCC_HS2R9.doc Page 35 of 39 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the Federal Government. TUV Rheinland of North America, Inc., 710 Resende Road, Webster NY 14580. Tel: 585-645-0125 MS-0005239 Version 3.0 6 RF Exposure – FCC for Bluetooth Device 6.1 Exposure Requirements – FCC KDB # 447498 DO1 FCC KDB # 447498 DO1 V05r02 - Mobile and Portable Device RF Exposure and Procedures and Equipment, Appendix A shows that the SAR Text Exclusion Threshold for a device with a separation distance of 5 mm at 2450 MHz is 10 mW 6.1.1 Test Procedure If the antenna is located > 20cm from the user, then an MPE calculation is acceptable. If the antenna is located < 20cm (portable / mobile / hand-held device) from the user, then SAR evaluation is required. 6.1.2 Evaluation The EUT will be used as a portable device where the antenna will be located less than 20cm from the user, therefore SAR evaluation is required. 6.1.2.1 Evaluation for FCC FCC 447498 DO1 Mobile Portable RF Exposure V05r02, Appendix C shows that the SAR Text Exclusion Threshold for a device with a worst-case separation distance of < 5 mm at 2450 MHz is 10 mW. The minimum power that requires SAR testing with a separation distance of 5 mm at < 50 MHz is 308 mW. The maximum EiRP peak power output of the EUT is: 7 mW The 7 mW EiRP of the EUT is well below the 10 mW power level that requires SAR Testing. 6.1.3 Conclusion SAR data is not required for FCC Note: The 7 mW power level includes the 100% Duty Cycle factor. This is considered to be the absolute worst case. 6.1.4 Calculated EiRP Level Notes: The EUT does not have a means to make direct measurements. This EiRP calculation was made using the maximum Peak Field value of 8.21 dBm at 3m. The Duty Cycle was at 100% FCC ID: 2AAVI-HS2R9 Report No.: 31562536.002_FCC_HS2R9.doc Page 36 of 39 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be…

Text truncated - open the document above for the full version.

FCC ID: 2AAVI-HS2R9 Report No.: 31562536.004_FCC_HS2R9.doc Page 1 of 43 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the Federal Government. TUV Rheinland of North America, Inc., 710 Resende Road, Webster NY 14580. Tel: 585-645-0125 MS-0005239 Version 3.0 Electromagnetic Compatibility Test Report Prepared in accordance with FCC Part 15C, ANSI C63.10:2009 On RFID Module with Passive Tag and Bluetooth HS2R9 JADAK LLC 7279 William Barry Blvd. North Syracuse, NY 13212 Prepared by: TUV Rheinland of North America, Inc. FCC ID: 2AAVI-HS2R9 Report No.: 31562536.004_FCC_HS2R9.doc Page 3 of 43 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the Federal Government. TUV Rheinland of North America, Inc., 710 Resende Road, Webster NY 14580. Tel: 585-645-0125 MS-0005239 Version 3.0 Client: JADAK LLC 7279 William Barry Blvd. North Syracuse, NY 13212 Contact: Tel: Fax: e-mail Adam Clifford 315-218-1315 315-701-0679 [email protected] Identification: RFID Module with Passive Tag and Bluetooth Serial No.: TS-1 Test item: HS2R9 Date Test Completed: 9/2/2015 Testing location: TUV Rheinland of North America 710 Resende Road Webster, NY 14580 U.S.A. Tel: (585) 645-0125 Test specification: Emissions: FCC Part 15.225Radiated Emissions Std FCC Part 15.209, FCC Part 15.225(b), FCC Part 15.203 Test Result: The above product was found to be Compliant to the above test standard(s) tested by: Randall Masline reviewed by: Cecil Gittens 9 November 2015 Date Name Signature 9 November 2015 Date Name Signature Other Aspects: None Abbreviations: OK, Pass, Compliant, Complies = passed Fail, Not Compliant, Does Not Comply = failed N/A = not applicable Industry Canada VCCI BSMI US5253 Testing Cert.# 3331.08 482B-1 A-0203 SL2-IN-E- 050R FCC ID: 2AAVI-HS2R9 Report No.: 31562536.004_FCC_HS2R9.doc Page 4 of 43 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the Federal Government. TUV Rheinland of North America, Inc., 710 Resende Road, Webster NY 14580. Tel: 585-645-0125 MS-0005239 Version 3.0 TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................................... 5 1.1 SCOPE ......................................................................................................................................................... 5 1.2 PURPOSE ..................................................................................................................................................... 5 1.3 SUMMARY OF TEST RESULTS ..................................................................................................................... 6 2 LABORATORY INFORMATION ................................................................................................................ 7 2.1 ACCREDITATIONS & ENDORSEMENTS ........................................................................................................ 7 2.2 MEASUREMENT UNCERTAINTY EMISSIONS ............................................................................................... 8 2.3 CALIBRATION TRACEABILITY .................................................................................................................... 8 2.4 MEASUREMENT EQUIPMENT USED ............................................................................................................ 9 3 PRODUCT INFORMATION ....................................................................................................................... 10 3.1 EQUIPMENT MODIFICATIONS ................................................................................................................... 10 3.2 TEST PLAN ................................................................................................................................................ 10 4 EMISSIONS .................................................................................................................................................... 11 4.1 RADIATED EMISSIONS .............................................................................................................................. 11 4.2 FUNDAMENTAL FIELD STRENGTH AND HARMONIC EMISSIONS .............................................................. 26 4.1 FREQUENCY TOLERANCE ......................................................................................................................... 34 5 RF EXPOSURE – FCC - FOR RFID DEVICE.......................................................................................... 37 5.1 EXPOSURE REQUIREMENTS – FCC KDB # 447498 DO1 ...............................................................…

Text truncated - open the document above for the full version.

TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: 2AAVI-HS2R9 Tel: (585) 645-0125 IC ID: 11355A-HS2R9 Report Number: FCC - 31562536, IC - 31562537 Page 1 of 4 EUT: RFID Module with passive tag and Bluetooth Model: HS2R9 33_EME/I 01/29/2001 Test Setup Photos EUT Name: RFID Module with passive tag and Bluetooth EUT Model: HS2R9 FCC ID: 2AAVI-HS2R9 , IC ID: 11355A-HS2R9 FCC Title 47, Part 15, SubpartC, RSS-210 Issue 8 Prepared for: Adam Clifford JADK LLC 7279 William Barry Blvd North Syracuse, NY 13212 Tel: 315-218-1315 Fax: 315-701-0679 Prepared by: TUV Rheinland of North America 710 Resende Road Webster, NY 14580 Tel: (585) 645-0125 http://www.tuv.com/ Report/Issue Date: 10 September 2015 Report Number: FCC - 31562536, IC - 31562537 TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: 2AAVI-HS2R9 Tel: (585) 645-0125 IC ID: 11355A-HS2R9 Report Number: FCC - 31562536, IC - 31562537 Page 2 of 4 EUT: RFID Module with passive tag and Bluetooth Model: HS2R9 33_EME/I 01/29/2001 Test Setup Photos: Figure 1: ANSI C63.10:2009 Setup Front Figure 2: ANSI C63.10:2009 Setup Back TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: 2AAVI-HS2R9 Tel: (585) 645-0125 IC ID: 11355A-HS2R9 Report Number: FCC - 31562536, IC - 31562537 Page 3 of 4 EUT: RFID Module with passive tag and Bluetooth Model: HS2R9 33_EME/I 01/29/2001 Figure 3: ANSI C63.10:2013 Setup Front TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: 2AAVI-HS2R9 Tel: (585) 645-0125 IC ID: 11355A-HS2R9 Report Number: FCC - 31562536, IC - 31562537 Page 4 of 4 EUT: RFID Module with passive tag and Bluetooth Model: HS2R9 33_EME/I 01/29/2001 Figure 4: 13.56 MHz Setup Figure 5: 30-1000 MHz Emissions setup
