GE Measurement & Control GE Air Data Test Sets ADTS542F/552F/553F/554F User Manual K0553 © 2014 General Electric Company. All Rights Reserved. Specifications are subject to change without notice. GE is a registered trademark of General Electric Company. Other company or product names mentioned in this document may be trademarks or registered trademarks of their respective companies, which are not affiliated with GE. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by GE is under license. ADTS542F/552F/553F/554F User Manual 1 K0553 Issue No. A Introduction This Use Manual provides operating instructions for the Air Data Test Sets (ADTS) compatible with the requirements of first line operation. Scope This Use Manual contains the description, identification data and operating procedures for the user of this equipment . Safety The manufacturer has designed this equipment to be safe when operated using the procedures detailed in this manual. Do not use this equipment for any other purpose than that stated. This publication contains operating and safety instructions that must be followed to ensure safe operation and to maintain the equipment in a safe condition. The safety instructions are either warnings or cautions issued to protect the user and the equipment from injury or damage. Use qualified* technicians and good engineering practice for all procedures in this publication. Pressure Do not apply pressure greater than the maximum safe working pressure to the equipment . Toxic Materials There are no known toxic materials used in this equipment . Maintenance The equipment must be maintained using the manufacturer’s procedures and should be carried out by the manufacturer’s service department or approved service agents. Technical Advice For technical advice contact the manufacturer or subsidiary. *A qualified technician must have the necessary technical knowledge, documentation, special test equipment and tools to carry out the required work on this equipment . 2 ADTS542F/552F/553F/554F User Manual K0553 Issue No. A Marks and Symbols on the equipment This equipment meets the requirements of all relevant European safety directives. The equipment carries the CE mark. This symbol, on the equipment , indicates that the user should read the user manual. This symbol, on the equipment , indicates a warning and that the user should refer to the user manual. Do not dispose of this product as household waste. Use an approved organisation that collects and/or recycles waste electrical and electronic equipment . For more information, contact one of these: - Our customer service department: www.ge-mcs.com - Your local government office. The Bluetooth® wireless technology word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by GE is under license. Other trademarks and trade names are those of their respective owners. For the list of GE approved service centres, go to: www.ge-mcs.com ADTS542F/552F/553F/554F User Manual 3 K0553 Issue No. A Compliance Statements Note: You can view the compliance information stored on the ADTS Touch as follows: From the ADTS Touch Dashboard, select: 1. Tools 2. System Status 3. Certification Status. USA Base Unit This device has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This device is only authorized for use in a mobile application. At least 20 cm of separation distance between the ADTS542F device and the user's body must be maintained at all times. Contains Transmitter Module FCC ID: QOQWT41. ADTS Touch This device has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This device must not be used with any other antenna or transmitter that has not been approved to operate in conjunction with this device. FCC ID: 2AAVWADTSTOUCH-01. Canada Base Unit Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. Contains IC ID: 5123A-BGTWT41 4 ADTS542F/552F/553F/554F User Manual K0553 Issue No. A L'unité de base Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1. l'appareil ne doit pas produire de brouillage. 2. l'utilisateur de l'appareil doit accepter to…

Text truncated - open the document above for the full version.

Page 1 of 55 DN0195 ISSUE A Design note ADTouch Bluetooth Radio Technical Description For FCC application DN0195    Druck Limited 2014 This document is the property of Druck Limited and may not, either in part or whole, be copied or otherwise reproduced, communicated in any way to third parties, nor stored in any data processing system, without the express written authority of Druck Limited. Pressure measurement for research & industry Druck Limited Fir Tree Lane Groby Leicester LE6 0FH England Tel: 0116 231 7100 Page 2 of 55 DN0195 ISSUE A Amendment Record Issue No Date C/N No Originator Typed Workflow Amendments A 31-Oct-14 N/A N. Sands N. Sands 226164 New document Approvals Checked G. Holmes Engineering P.Bradley Chief Engineer N/A Production N/A Quality N/A Project Management N/A Page 3 of 55 DN0195 ISSUE A Contents 1 Introduction ................................................................................................................................................................................................. 4 2 Applicable Documentation .................................................................................................................................................................. 4 3 Abbreviations .............................................................................................................................................................................................. 4 4 Block diagram ............................................................................................................................................................................................ 4 5 Description of radio generation ........................................................................................................................................................ 4 Appendix A BlueGIGA WT41 Data sheet ................................................................................................................................................ 6 Table 1 - Applicable Documentation ......................................................................................................................................................... 4 Page 4 of 55 DN0195 ISSUE A 1 INTRODUCTION This document details the Bluetooth radio operation within the ADTouch In order to apply for FCC certification due to the need for SAR testing as the ADTouch is classified as a portable device and will be used within 20cm of the body. 2 APPLICABLE DOCUMENTATION The following documents and specifications are referenced by this document: Ref Title Revision / Date Description Ref 1 C-A2-1532 1/05-sept-14 ADTS HAND TERMINAL Circuit Diagram Ref 2 WT41 WT41 -A Version 1.42/ 08-Oct-2013 Bluegiga Technologies data sheet Table 1 - Applicable Documentation 3 ABBREVIATIONS EDR Enhanced data rate FCC Federal Communications Commission UART universal asynchronous receiver/transmitter 4 BLOCK DIAGRAM The block diagram of the ADtouch is contained within sheet 1 of C-A2-1532 (Ref 1). 5 DESCRIPTION OF RADIO GENERATION The ADTouch embeds a pre-approved radio module manufactured by Bluegiga part number WT41 –A. The data sheet (Ref 2) for this part is included in Appendix A. The Bluegiga module is approved under FCC ID: QOQWT41. No modifications have been made to the module or on board ceramic Ariel. Page 5 of 55 DN0195 ISSUE A WT41 is a long-range class 1, Bluetooth® 2.1 + EDR module. The WT41 contains all the necessary elements from Bluetooth® radio to antenna and a fully implemented protocol stack. The ADTouch microprocessor (IMX534) sends data to be transmitted via RS232 to the Bluetooth module UART. Data received by the Bluetooth module is transmitted to the microprocessor via the same RS232 link. The Microprocessor can control the data embedded within the Bluetooth packet and set the transmit power limit up to the module maximum of 19dBm but has no direct control of the RF generation. Page 6 of 55 DN0195 ISSUE A APPENDIX A BLUEGIGA WT41 DATA SHEET WT41-A / WT41-N DATA SHEET Tuesday, 08 October 2013 Version 1.42 Bluegiga Technologies Oy Copyright © 2000-2013 Bluegiga Technologies All rights reserved. Bluegiga Technologies assumes no responsibility for any errors which may appear in this manual. Furthermore, Bluegiga Technologies reserves the right to alter the hardware, software, and/or specifications detailed here at any time without notice and does not make any commitment to update the information contained here. Bluegiga’s products are not authorized for use as critical components in life support devices or systems. The WRAP is a registered trademark of Bluegiga Technologies The Bluetooth trademark is owned by the Bluetooth SIG Inc., USA and is licensed to Bluegiga Technologies. All other trademarks listed herein are owned by their respective owners. Bluegiga Technologies Oy VERSION HISTORY Version Comment 0.1 First draft 0.2 Description and product codes added 0.21 Dimensions updated, layout guide added, UART and USB chapters added 0.22 Pin descriptions, PCM, USB, UART, SPI 0.3 Physical dimensions corrected 0.31 Product codes corrected 0.32 Recommendation for a power-up reset circuitry added to chapter 10 0.4 Pins 1 and 52 (GND) removed. Dimensions updated, recommended land pattern added 0.5 Certification information added 0.6 Physical dimensions and recommended PCB land pattern updated 0.7 Figure 5 recommended land pattern corrected 1.0 Radio and antenna characteristics, layout guide for WT41-N 1.1 Japan certification info added 1.2 FCC RF radiation exposure statement updated 1.3 Layout guide updated 1.31 VDD added to table 1 1.32 FCC and IC statements updated 1.33 PIO current drive capability added. List of approved antennas added. 1.34 IC statements in French added 1.35 Information about Japan compliance updated 1.36 Absolute maximum supply voltage 3.7V 1.37 MIC Japan information updated Bluegiga Technologies Oy 1.4 FCC C2PC to remove 20 cm restriction 1.41 MIC Japan ID corrected…

Text truncated - open the document above for the full version.

ADTSTouch External Photography

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected]

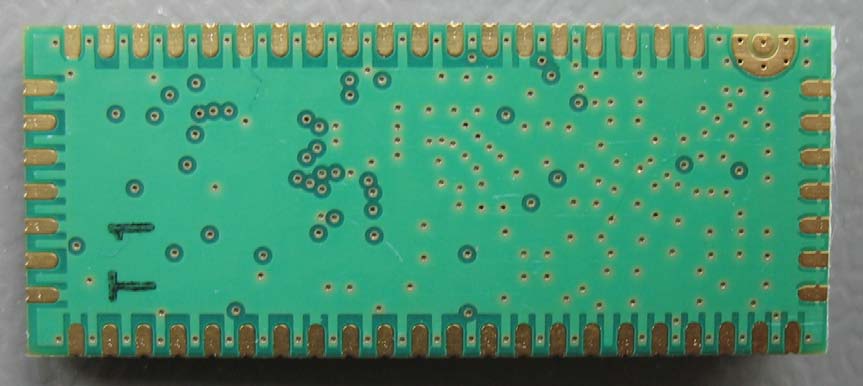

ADTSTouch Internal Photography

Bluegiga Technologies Sinikalliontie 5A, P.O. Box 120 02630 Espoo FINLAND Tel +358 9 435 5060 | Fax +358 9 435 50660 Co ID 0934238-1, VAT registered, domicile: Espoo www.bluegiga.com | [email protected]

SAR_Report_TRaC_60320_6140365_FCC_BT_2.4GHz_ADTS_TOUCH Page 1 of 27 The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. SAR Test Report Dosimetric Assessment of the ADTS TOUCH Hand Terminal from GE Druck (FCC ID: 2AAVWADTSTOUCH-01) (IC: 12097A-ADTSTOUCH01) According to the FCC Requirements November 20, 2014 IMST GmbH Carl-Friedrich-Gauß-Str. 2 - 4 D-47475 Kamp-Lintfort Customer TRaC Global Ltd Unit 1, Pendle Place, Skelmersdale, West Lancashire, WN8 9PN, UK The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR_Report_TRaC_60320_6140365_FCC_BT_2.4GHz_ADTS_TOUCH Page 2 of 27 Dasy_Report_FCC_DECT_1900_1.1.doc/28.11.2013/AvB Executive Summary The ADTS TOUCH is a new hand terminal (Portable Device) from GE Druck operating in the 2402 MHz – 2480 MHz frequency range. The device has an integrated antenna and works in Bluetooth standard. The objective of the measurements done by IMST was the dosimetric assessment of one device according the applicable KDB. For SAR assessment, a special test software was used to set the device to a specific frequency and maximum output power with a specific data rate. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the 47 CFR § 2.1093 [47CFR] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. Additional information and guidelines given by the following FCC documents were used:  SAR Measurement Requirements for 100 MHz to 6 GHz [KDB 865664 D01 v01r03]  Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies [KDB 447498 D01 v05r02] All measurements have been performed in accordance to the recommendations given by the System Manufacturer SPEAG AG, Switzerland. SAR_Report_TRaC_60320_6140365_FCC_BT_2.4GHz_ADTS_TOUCH Page 3 of 27 Dasy_Report_FCC_DECT_1900_1.1.doc/28.11.2013/AvB Compliance Statement The assessed SAR values for ADTS TOUCH hand terminal from GE Druck (FCC ID: 2AAVWADTSTOUCH-01; IC: 12097A-ADTSTOUCH01) are in compliance with the following standards for uncontrolled exposure:  47 CFR § 2.1093 [47CFR],  ANSI / IEEE C95.1-1999 [IEEE C95.1-1999] The device was tested in body supported configuration with a closest distance of 0 mm between test device and phantom. All measured SAR results are shown in Table 6, the highest results of SAR for the ADTS TOUCH are as follows: WORST CASE SAR RESULTS Mode Freq. [MHz] CH Phantom Configuration Fig. No Reported SAR 1g [W/kg] SAR Limit [W/kg] Bluetooth 2441 39 Body Top Side 11 0.223 1.6 PASS prepared by: ........................................ reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer SAR_Report_TRaC_60320_6140365_FCC_BT_2.4GHz_ADTS_TOUCH Page 4 of 27 Dasy_Report_FCC_DECT_1900_1.1.doc/28.11.2013/AvB Table of Contents SUBJECT OF INVESTIGATION ...................................................................................................................5 1 FCC EXPOSURE CRITERIA ................................................................................................................5 1.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES ...........6 1.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS ....................................6 2 THE FCC MEASUREMENT PROCEDURE .........................................................................................7 2.1 GENERAL REQUIREMENTS ..............................................................................................................7 2.2 PHANTOM REQUIREMENTS ..............................................................................................................7 2.3 TEST TO BE PERFORMED ................................................................................................................7 2.3.1 MEASUREMENT VARIABILITY .......................................................................................................8 3 THE MEASUREMENT SYSTEM ..........................................................................................................9 3.1 PHANTOMS ...................................................................................................................................10 3.2 E-FIELD-PROBES ..........................................................................................................................11 3.3 MEASUREMENT PROCEDURE .........................................................................................................12 3.4 UNCERTAINTY ASSESSMENT .........................................................................................................13 4 OUTPUT POWER VALUES ...............................................................................................................14 5 SAR TEST EXCLUSION CONSIDERATION ACCORDING KDB 447498........................................14 6 SAR RESULTS ...................................................................................................................................15 7 APPENDIX ..........................................................................................................................................16 7.1 ADMINISTRATIVE DATA ..................................................................................................................16 7.2 DEVICE UNDER TEST AND TEST CONDITIONS .................................................................................16 7.3 TISSUE RECIPES .......................................................................................................................…

Text truncated - open the document above for the full version.

SAR_Report_TRaC_60320_6140365_FCC_BT_2.4GHz_ADTS_TOUCH_CalData The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. Appendix for the SAR Test Report Dosimetric Assessment of the ADTS TOUCH Hand Terminal from GE Druck (FCC ID: 2AAVWADTSTOUCH-01) (IC: 12097A-ADTSTOUCH01) According to the FCC Requirements Calibration Data November 21, 2014 IMST GmbH Carl-Friedrich-Gauß-Str. 2 - 4 D-47475 Kamp-Lintfort Customer TRaC Global Limited Unit 1, Pendle Place, Skelmersdale West Lancashire, WN8 9PN, UK The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. Cal_D2450V2_SN709_Jul14 Page 1 of 7 Calibration Certificate Certificate No: Cal_D2450V2_SN709_Jul2014 Object: D2450V2 SN: 709 Date of Calibration: July 30, 2014 Next Calibration: July 2016 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Nov 12 Rohde&Schwarz (262487-D-K-15012- 01-00-2012-11) Nov 14 Power Sensor E9301H US40010212 Nov 12 Rohde&Schwarz (262492-D-K-15012- 01-00-2012-11) Nov 14 Powermeter E4417A GB41050441 Nov 12 Rohde&Schwarz (262488-D-K-15012- 01-00-2012-11) Nov 14 Power Sensor E9301A MY41495584 Nov 12 Rohde&Schwarz (262489-D-K-15012- 01-00-2012-11) Nov 14 Network Analyzer E5071C MY46103220 Jul 13 Rohde&Schwarz (11-300285997) Jul 15 Reference Probe EX3DV4 SN 3860 Jul 13 SPEAG (EX3-3860_Jul13) Jul 14 DAE3 SN 335 Jan 14 SPEAG (DAE3-335_Jan14) Jan 15 Cal_D2450V2_SN709_Jul14 Page 2 of 7 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 IEC 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", February 2005 IEC 62209-2 "Evaluation of Human Exposure to Radio Frequency Fields from Handheld and Body-Mounted Wireless Communication Devices in the Frequency Range of 30 MHz to 6 GHz: Human models, Instrumentation, and Procedures ", Part 2: “Procedure to determine the Specific Absorption Rate (SAR) for including accessories and multiple transmitters” Edition 1.0, 2010-01 Additional Documentation: DASY 4/5 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08 Cal_D2450V2_SN709_Jul14 Page 3 of 7 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1176 Distance Dipole Center – TSL: 10mm With spacer Area Scan resolution dx, dy = 10mm Zoom Scan resolution dx, dy, dz = 5mm Frequency: 2450 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 39.20 1.80 Measured Head TSL Parameters 21.8 40.40 ± 6% 1.84 S/m ± 6% SAR Result with Head TSL Averaged over 1g SAR measured 250 mW input power 14.30 mW/g SAR normalized normalized to 1W 57.20 mW/g SAR for nominal Head TSL parameters normalized to 1W 56.98 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250 mW input power 6.50 mW/g SAR normalized normalized to 1W 26.00 mW/g SAR for nominal Head TSL parameters normalized to 1W 25.98 mW/g ± 16.5 % (k=2) Cal_D2450V2_SN709_Jul14 Page 4 of 7 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 52.70 1.95 Measured Body TSL Parameters 21.6 53.80 ± 6% 1.96 S/m ± 6% SAR Result with Body TSL Averaged over 1g SAR measured 250 mW input power 14.30 mW/g SAR normalized normalized to 1W 57.20 mW/g SAR for nominal Body TSL parameters normalized to 1W 57.33 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250 mW input power 6.46 mW/g SAR normalized normalized to 1W 25.84 mW/g SAR for nominal Body TSL parameters normalized to 1W 25.89 mW/g ± 16.5 % (k=2) General Antenna Parameters Antenna Parameters with Head TSL Impedance, transformed to feed point 48.0 Ω + 0.61 jΩ Return Loss -33.60 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 48.9 Ω – 1.38 jΩ Return Loss -35.10 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feedpoint can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: January 15, 1998 Cal_D2450V2_SN709_Jul14 Page 5 of 7 SAR Result with Head TSL Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: 300714_y_3860_2450.da4 DUT: Dipole 2450 MHz SN: 709; Type: D2450V2; Serial: D2450V2 - SN:709 Program Name: System Performance Check at 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.84 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3860; ConvF(7.38, 7.38, 7.38); Calibrated: 29.07.2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 23.01.2014 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 16.0 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.2 V/m; Power Drift = 0.080 dB Peak SAR (extrapolated) = 31.3 W/kg SAR(1 g) = 14.3 mW/g; SAR(10 g) = 6.5 mW/g Maximum value of SAR (me…

Text truncated - open the document above for the full version.

SAR_Report_TRaC_60320_6140365_FCC_BT_2.4GHz_ADTS_TOUCH_Plots Page 1 of 7 The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. Appendix for the SAR Test Report Dosimetric Assessment of the ADTS TOUCH Hand Terminal from GE Druck (FCC ID: 2AAVWADTSTOUCH-01) (IC: 12097A-ADTSTOUCH01) According to the FCC Requirements SAR Distribution Plots November 21, 2014 IMST GmbH Carl-Friedrich-Gauß-Str. 2 - 4 D-47475 Kamp-Lintfort Customer TRaC Global Limited Unit 1, Pendle Place, Skelmersdale West Lancashire, WN8 9PN, UK The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR_Report_TRaC_60320_6140365_FCC_BT_2.4GHz_ADTS_TOUCH_Plots Page 2 of 7 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots Test Laboratory: IMST GmbH, DASY Blue (I); File Name: ADTS_899_bhm_front.da4 DUT: GE Druck; Type: ADTS Touch; Serial: 4294899 Program Name: Bluetooth Communication System: Bluetooth; Frequency: 2441 MHz;Duty Cycle: 1:1.3 Medium parameters used: f = 2441 MHz; σ = 1.94 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.34, 7.34, 7.34); Calibrated: 24.07.2014 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2014 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (9x22x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.076 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.01 V/m; Power Drift = -0.195 dB Peak SAR (extrapolated) = 0.162 W/kg SAR(1 g) = 0.075 mW/g; SAR(10 g) = 0.042 mW/g Maximum value of SAR (measured) = 0.081 mW/g Fig. 1: SAR distribution for Bluetooth, channel 39, front side, gap = 0 mm (October 30, 2014) SAR_Report_TRaC_60320_6140365_FCC_BT_2.4GHz_ADTS_TOUCH_Plots Page 3 of 7 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: ADTS_899_bhm_back.da4 DUT: GE Druck; Type: ADTS Touch; Serial: 4294899 Program Name: Bluetooth Communication System: Bluetooth; Frequency: 2441 MHz;Duty Cycle: 1:1.3 Medium parameters used: f = 2441 MHz; σ = 1.94 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.34, 7.34, 7.34); Calibrated: 24.07.2014 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2014 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (9x12x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.136 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.59 V/m; Power Drift = 0.158 dB Peak SAR (extrapolated) = 0.294 W/kg SAR(1 g) = 0.139 mW/g; SAR(10 g) = 0.073 mW/g Maximum value of SAR (measured) = 0.153 mW/g Fig. 2: SAR distribution for Bluetooth, channel 39, back side, gap = 0 mm (October 30, 2014) SAR_Report_TRaC_60320_6140365_FCC_BT_2.4GHz_ADTS_TOUCH_Plots Page 4 of 7 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: ADTS_899_bhm_top.da4 DUT: GE Druck; Type: ADTS Touch; Serial: 4294899 Program Name: Bluetooth Communication System: Bluetooth; Frequency: 2441 MHz;Duty Cycle: 1:1.3 Medium parameters used: f = 2441 MHz; σ = 1.94 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.34, 7.34, 7.34); Calibrated: 24.07.2014 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2014 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (8x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.197 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.04 V/m; Power Drift = -0.124 dB Peak SAR (extrapolated) = 0.374 W/kg SAR(1 g) = 0.181 mW/g; SAR(10 g) = 0.093 mW/g Maximum value of SAR (measured) = 0.202 mW/g Fig. 3: SAR distribution for Bluetooth, channel 39, top side, gap = 0 mm (October 30, 2014) SAR_Report_TRaC_60320_6140365_FCC_BT_2.4GHz_ADTS_TOUCH_Plots Page 5 of 7 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: ADTS_899_bhm_left.da4 DUT: GE Druck; Type: ADTS Touch; Serial: 4294899 Program Name: Bluetooth Communication System: Bluetooth; Frequency: 2441 MHz;Duty Cycle: 1:1.3 Medium parameters used: f = 2441 MHz; σ = 1.94 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.34, 7.34, 7.34); Calibrated: 24.07.2014 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2014 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (8x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.048 mW/g Body/Zoom Scan (7x…
