BOM EYE Manual BOMTECH ELECTRONICS Co., Ltd.The Bombldg., 322, Gonghang‐daero, Gangseo‐gu, Seoul, KoreaTel: +82‐2‐523‐8294~6 / Fax: +82‐2‐523‐8297 1. CompositionMain body 1ea, Stand 1ea,Lens 4ea (Lens for SkinX80, Lens for Hair/Scalp, X80, X250, X80 0) USB cable 1ea, Adapter 1ea Main body Lens Stand 2 2. Instructions2.1 How to operate1) How to attach lens: Attach lens to the main body How to detach lens: Pull lens straight off the main body 2) Press power button for 2 seconds to switch on the main bod y (Blue light on + Sound effect) 3) Press power button 2 seconds again to switch off the main body (Blue light off + Sound effect) Power/ FRZ. button 3 Attach Detach Main body Main body Lens Lens 2.2 Charging1) Connect stand, adapter and USB cable2) Put main body on a stand and charging starts automatically3) Charging : Blue light is flashing Fully charged: Blue light is on without flashing Fully Charged Charging 4 3. APPS3.1 Connection1) Select & attach a lens and press power button for 2 seconds on the main body to switch on the main body 2) Go to Seƫng → Wifion a mobile phone and search wifi‘ BOMEYE_A00XX ’ (This manual takes ‘ BOMEYE_A0024 ’ as example) 3) Connect ‘ BOMEYE_A00XX ’ 5 6 3.2 Run Apps1) Find and run or on the scre en of mobile phone. SD: Apps for Skin , HD: Apps for Hair/Scalp 2) Select ▶ button on the screen to go to customer list HD 3.3 Analysis c. Select the name tab that just savedd. Touch camera icon to take photos 7 a. Touch ‘+ ‘ to enter customer’s basic information *Name, gender, birthday must be filled in. b. Touch ‘Save’ button after finishing filling in basic information √ √ √ a. b. c. d. 8 e. Select one among No make‐up, Suncreen,Make‐up 3.3 Analysis (In the case of ) f. Firmly attach the lens to skin and press Power/Frzbutton to take photos of pore, wrinkle, pigmentation, sebumin order. g. After 4 photos are taken, press Power/Frz. Button one more time to measure moisture and elasticity *Camera and sensor can be operat ed by the buttons on the screen as well. h. Touch ‘Result’ button to see results e. f. g. h. Power/FRZ. button Lens for SkinX80 9 3.3 Analysis (In the case of ) HD e. Select an item according to how many hours passed after shampooing last time f. Select an item according to current hair condition and touch ‘Save’ button g. Select an item according to how much/often you sweat and touch ‘Save’ button 10 3.3 Analysis (In the case of ) HD h. Select an items according to current hair loss conditions and touch ‘Save’ button . i. Firmly attach the lens to scalp/hair and press Power/Frz. but ton to take photos of sebum, scalp, pores, hair damage in order Sebum/Scalp : Use lens X80 for hair/scalp Pore : Use lens X250 for hair/scalpHair Loss : Use lens x800 for hair/scalp j. Press ‘Result’ to see results h. i. j. X800 x250 x80 Lens for Hair/Scalp 11 FCC InstructionsFCC Compliance StatementThis device complies with part 15 of the FCC rules. Operation is subject to t he following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any int erference received, including interference that may cause undesired operation. FCC Interference StatementThis equipment has been tested and found to comply with the limits for a Clas s B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment genera tes, uses and can radiate radio frequ ency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radi o communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the eq uipment off and on, the user is encouraged to correct the interference by one of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from which the r eceiver is connected. Consult the dealer or an experienced radio/TV technician for help. 12 FCC Caution Any changes or modifications not expressly approved by the party responsi ble for compliance could void the user's authority to operate this equipment. This transmitter must not be co-loca ted or operating in conjunction with any other antenna or transmitte r. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter . 13 4. WARRANTY 14 The BomBldg., 322, Gonghang‐daero, Gangseo‐gu, Seoul, Korea Tel. +82‐2‐523‐8294~6 Fax. +82‐2‐523‐829

BOMTECH ELECTRONICS CO., LTD 322, Gonghang-daero, Gangseo-gu, Seoul, Korea Tel. +82-2-523-8295 / Fax. +82-2-523-8297 Date: July 30, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Athena Kim/Assistant manager of KCTL Inc. and hereafter referred to as KCTL to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Athena Kim/Assistant manager of KCTL Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KCTL as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising m atter that contains any reference thereto and return any certification docume nts as required by the Certific ation Division; f) use certification only to indicate the products are certified as being in conformity with specified sta ndards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a m isleading m anner; h)ensure that any reference to our product certification in communication medi a such as docum ents, brochures or advertising, complies with the requirements of the Certification Division ; i)k eep a record of all complaints made known to the us relating to the pro duct’s c ompliance with requirements of the relevant standard and to make these records available to the Certification Division when requ ested; j)tak e appropriate action with respect to such complaints and any deficiencie s fou nd in products or services that affect compliance with the requirements for certific ation; k)docum e nt the actions taken. Thi s authorization is valid until further written notice from the applicant. Sincerely Yours, Kyunghoon, Kim / General manager BOMTECH ELECTRONICS CO., LTD

BOMTECH ELECTRONICS CO., LTD 322, Gonghang-daero, Gangseo-gu, Seoul, Korea Tel. +82-2-523-8295 / Fax. +82-2-523-8297 CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 July 30, 2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, BOMTECH ELECTRONICS CO., LTD requests confidentiality for the following products: FCC ID Number Product Title/Model 2AAXE-BOM-EYE Skin&Hair diagnosis system / BOM-EYE The following exhibits contain trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. We request that the following information submitted be held permanent confidential treatment. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description -. Antenna specification We also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give temporary confidentiality of commercially sensitive information prior to product release. Short-Term Confidential Request -. External Photos -. Internal Photos -. Test set-up photo -. User Manual If you have any questions, please feel free to contact me at the address shown below. Sincerely, Kyunghoon, Kim / General manager BOMTECH ELECTRONICS CO., LTD

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Cradle http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Lens_Hair_X80 http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Lens_Hair_X250 http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Lens_Hair_X800 http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Lens_Skin_X80 http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

Product : Skin&Hair diagnosis system Model : BOM-EYE Serial No.FCC ID: 2AAXE-BOM-EYE Manufacturer : BOMTECH ELECTR ONICS CO.,LTD Address : 322, Gonghang-daero, Gangseo-gu, Seoul, Korea Tel: +82-2-523-8294~6 / Fax: +82-2-523-8297 1. Label 2. Label attachment drawing

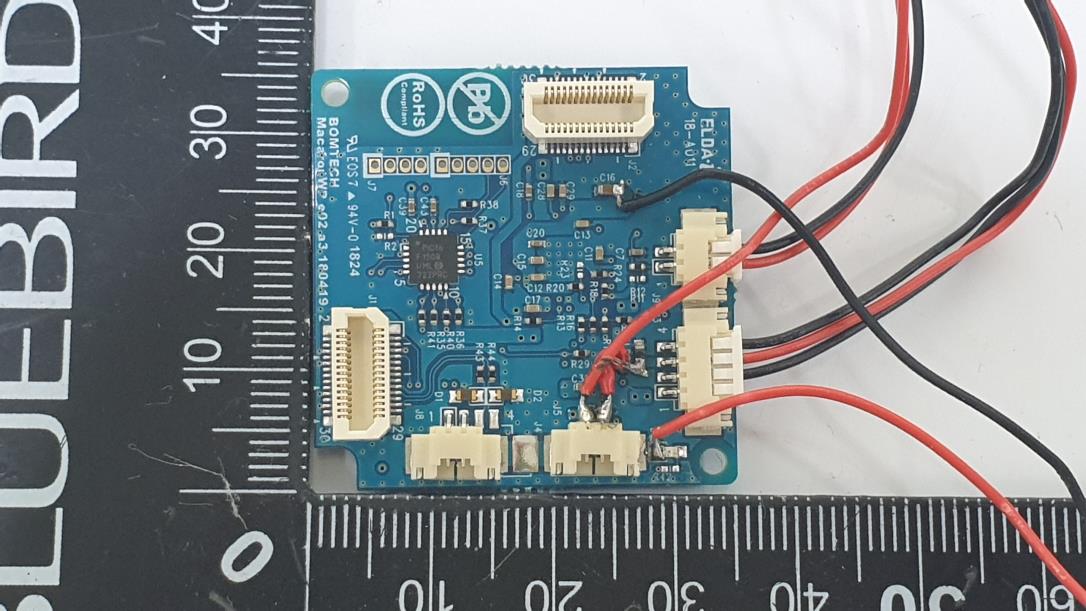

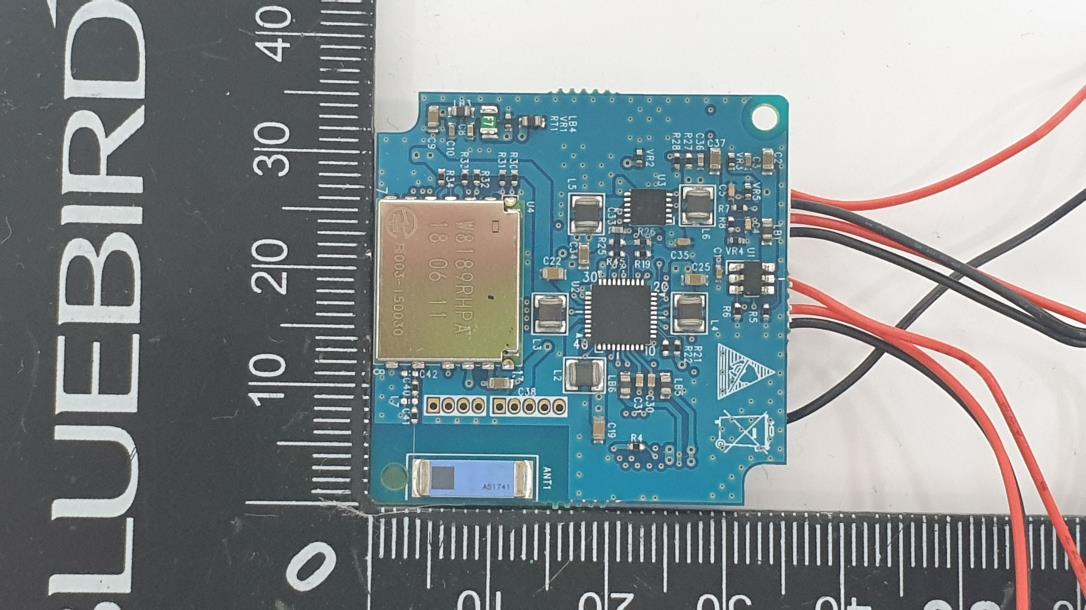

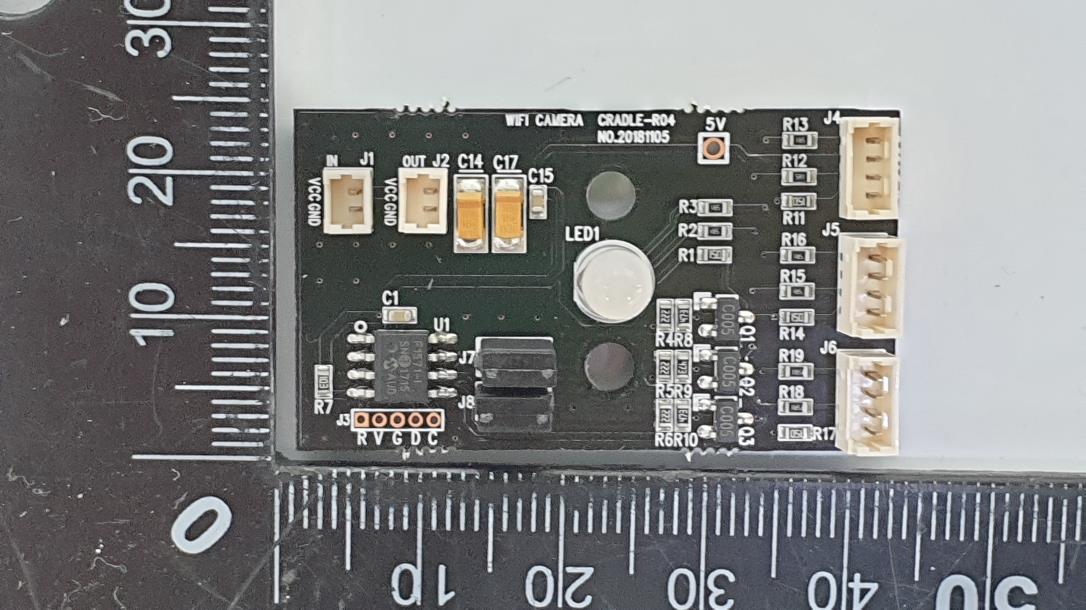

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT Multilayer Chip Antenna http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Cradle http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Lens_Hair_X80 http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Lens_Hair_X250 http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Lens_Hair_X800 http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Lens_Skin_X80 http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval * RF Exposure 1. Regulation According to the KDB 447498 D01 V06, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance defined in 4.1 f) is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified, typically in the SAR measurement or SAR analysis report, by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting are required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops and tablets, etc. a) For 100 ㎒ to 6 ㎓ and test separation distances ≤ 50 ㎜, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] · [√f(㎓)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR,30 where ● f(㎓) is the RF channel transmit frequency in ㎓ ● Power and distance are rounded to the nearest ㎽ and mm before calculation ● The result is rounded to one decimal place for comparison ● The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 ㎜, and for transmission frequencies between 100 ㎒ and 6 ㎓. When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ according to 4.1 f) is applied to determine SAR test exclusion. b) For 100 ㎒ to 6 ㎓ and test separation distances > 50 ㎜, the 1-g and 10-g SAR test exclusion thresholds are determined by the following (also illustrated in Appendix B): 1) {[Power allowed at numeric threshold for 50 ㎜ in step a)] + [(test separation distance – 50 ㎜)·(f(㎒)/150)]} ㎽, for 100 ㎒ to 1500 ㎒ 2) {[Power allowed at numeric threshold for 50 ㎜ in step a)] + [(test separation distance – 50 ㎜)·10]} ㎽, for > 1500 ㎒ and ≤ 6 ㎓ c) For frequencies below 100 ㎒, the following may be considered for SAR test exclusion (also illustrated http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval in Appendix C): 1) For test separation distances > 50 ㎜ and < 200 ㎜, the power threshold at the corresponding test separation distance at 100 ㎒ in step b) is multiplied by [1 + log(100/f(㎒))] 2) For test separation distances ≤ 50 ㎜, the power threshold determined by the equation in c) 1) for 50 ㎜ and 100 ㎒ is multiplied by ½ 3) SAR measurement procedures are not established below 100 ㎒. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any SAR test results below 100 ㎒ to be acceptable. http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval 2. Result 2-1. Calculation Result of RF Exposure Mode Test frequency [㎒] Max. tune-up Power [㏈m] Conducted output power [㎽/] Min. test separation distance [㎜] SAR test exclusion thresholds ≤ 3.0 for 10-g SAR WIFI 2 412 8.00 6.31 5.00 1.96 Note: 1. SAR test exclusion thresholds = [(max. power of channel, including tune-up tolerance, ㎽)/(min. test separation distance, ㎜)] · [√f(㎓)] WIFI = [(6.31)/(5)] · [√2.412] = 1.96 3. Target power and tolerance, Max tuneup power Mode Target power [㏈m] Tolerance [㏈] Max tuneup power [㏈m] Average Power [㏈m] WIFI 802.11b_ 2 412 ㎒ 6.00 ±2.0 8.00 7.29 WIFI 802.11b_ 2 437 ㎒ 6.00 ±2.0 8.00 7.21 WIFI 802.11b_ 2 462 ㎒ 6.00 ±2.0 8.00 7.25 WIFI 802.11g_ 2 412 ㎒ 1.00 ±2.0 3.00 2.15 WIFI 802.11g_ 2 437 ㎒ 1.00 ±2.0 3.00 2.20 WIFI 802.11g_ 2 462 ㎒ 1.00 ±2.0 3.00 2.53 WIFI 802.11n HT20_ 2 412 ㎒ 3.00 ±2.0 5.00 4.44 WIFI 802.11n HT20_ 2 437 ㎒ 3.00 ±2.0 5.00 4.56 WIFI 802.11n HT20_ 2 462 ㎒ 3.00 ±2.0 5.00 4.67 WIFI 802.11n HT40_ 2 422 ㎒ 3.00 ±2.0 5.00 3.96 WIFI 802.11n HT40_ 2 442 ㎒ 3.00 ±2.0 5.00 4.06 WIFI 802.11n HT40_ 2 452 ㎒ 3.00 ±2.0 5.00 4.17 4. RF Exposure Compliance Issue Therefore, EUT is not required the SAR Evaluation.

verify No.431075984102 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (2 ) of (61) KCTL-TIR001-003/3 KP19-05655 REPORT REVISION HISTORY Date Revision Page No 2020-07-24 Originally issued - 2020-08-07 Updated 17,19,22,23 This report shall not be reproduced except in full, without the written approv al of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only , and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. Note. The report No. KR20-SRF0183 is superseded by the report No. KR20-SRF0183-A. General remarks for test reports Nothing significant to report. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (3) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 CONTENTS 1. General information ...................................................................................................... 4 2. Device information ........................................................................................................ 4 2.1. Accessory information ............................................................................................ 4 2.2. Frequency/channel operations ................................................................................ 5 2.3. Duty Cycle Correction Factor .................................................................................. 6 3. Antenna requirement .................................................................................................... 7 4. Summary of tests .......................................................................................................... 8 5. Measurement uncertainty ............................................................................................. 9 6. Measurement results explanation example ................................................................ 10 7. Test results ................................................................................................................. 11 7.1. Maximum peak output power ................................................................................ 11 7.2. Peak Power Spectral Density ............................................................................... 14 7.3. 6 dB Bandwidth(DTS Channel Bandwidth) ........................................................... 18 7.4. Spurious Emission, Band Edge and Restricted bands .......................................... 24 7.5. Conducted Spurious Emission .............................................................................. 54 7.6. AC Conducted emission ....................................................................................... 59 8. Measurement equipment ............................................................................................ 61 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (4) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 1. General information Client : BOMTECH ELECTRONICS CO., LTD Address : 322, Gonghang-daero, Gangseo-gu, Seoul, Korea Manufacturer : BOMTECH ELECTRONICS CO., LTD Address : 322, Gonghang-daero, Gangseo-gu, Seoul, Korea Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 Industry Canada Registration No. : 8035A KOLAS No.: KT231 2. Device information Equipment under test : Skin&Hair diagnosis system Model : BOM-EYE Modulation technique : WIFI(802.11b/g/n HT20/HT40)_DSSS, OFDM Power source : DC 3.7 V Antenna specification : Multilayer Chip Antenna Antenna gain : 3.50 ㏈i Software version : BOM-EYE 1.0 Hardware version : BOM-EYE 1.0 Operation temperature : -10 °C ~ 50 °C Frequency range & Number of channels 2 412 ㎒ ~ 2 462 ㎒ : WIFI(802.11b/g/n_HT20)_11 ch 2 422 ㎒ ~ 2 452 ㎒ : WIFI(802.11n_HT40)_9 ch 2.1. Accessory information Equipment Manufacturer Model Serial No. Power source Polymer Li-ion Battery Dongguan Lean Power NEW Energy Technology Co., Ltd XK652631 - DC 3.7 V, 520 ㎃ Charging Cradle BOMTECH ELECTRONICS CO., LTD - - AC 5V, 1A Adaptor (Micro USB 5pin) Hair Lens X80 BOMTECH ELECTRONICS CO., LTD - - DC 3 V, 300 ㎃ Hair Lens X250 BOMTECH ELECTRONICS CO., LTD - - DC 3 V, 300 ㎃ Hair Lens X800 BOMTECH ELECTRONICS CO., LTD - - DC 3 V, 300 ㎃ Skin Lens X80 BOMTECH ELECTRONICS CO., LTD - - DC 3 V, 300 ㎃ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (5) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 2.2. Frequency/channel operations This device contains the following capabilities: WIFI(802.11b/g/n_HT20/n_HT40) Ch. Frequency (㎒) 01 2 412 . . . . 06 2 437 . . . . 11 2 462 Table 2.2.1. 802.11b/g/n_HT20 mode Ch. Frequency (㎒) 03 2 422 . . . . 06 2 442 . . . . 09 2 452 Table 2.2.2. 802.11n_HT40 mode KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (6) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 2.3. Duty Cycle Correct…

Text truncated - open the document above for the full version.

KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (32) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 2 437 ㎒ Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 4 873.42 1) H 63.38 33.95 -54.98 - 42.35 74.00 31.65 16 424.48 V 56.66 41.85 -45.96 - 52.55 74.00 21.45 Average Data No spurious emissions were detected within 20 ㏈ of the limit. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (33) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (34) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 2 462 ㎒ Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 2 487.23 1) H 45.03 32.07 -29.22 - 47.88 74.00 26.12 4 923.72 1) H 61.99 33.97 -55.31 - 40.65 74.00 33.35 16 570.84 V 57.27 41.57 -45.74 - 53.10 74.00 20.90 Average Data No spurious emissions were detected within 20 ㏈ of the limit. Horizontal/Vertical for Band-edge KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (35) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (36) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 802.11g 2 412 ㎒ Frequency Pol. Reading Antenna Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 2 388.74 1) V 43.98 31.88 -29.05 - 46.81 74.00 27.19 4 824.03 1) H 63.61 33.93 -53.58 - 43.96 74.00 30.04 16 543.20 V 57.07 41.54 -45.65 - 52.96 74.00 21.04 Average Data No spurious emissions were detected within 20 ㏈ of the limit. Horizontal/Vertical for Band-edge KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (37) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (38) of (61) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP19-05655 2 437 ㎒ Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) 1) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 4 873.88 1) V 63.19 33.95 -54.99 - 42.15 74.00 31.85 16 557.25 V 57.32 41.56 -45.70 - 53.18 74.00 20.82 Average Data No spurious emissions were detected within 20 ㏈ of the limit. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0183-A Page (39) of (61) This test report shall not be reproduced, except in full, without the wr…
