2AAXS-ECL208Electronic Cabinet Lock

Fast User Guide for Electronic Cabinet Lock ECL208S The ECL208S is an electronic cabinet lock which is powered by 2 AAA 1.5V alkaline batteries. It can be unlocked with user codes or RFID user cards, also with mechanical keys in case of emergency. Only one master – master code or master card, factory master setting is under master code “22446688” which is the factory user code. Master Code To manage of user codes, master card, user cards and working modes. The digit of master code can be any 4~10 digits. Master Card Created by master code and same function as master code. User Code (Max. 100 Codes) Used to unlock the ECL208S. It can be any 4~10 digits. User Card (Max. 100 Cards) Used to unlock the ECL208S. Open with User Code 1. Press the user code one by one via keypad; 2. Confirm it with , until “beep” sounds and green LED lights; 3. While LED green lights, turn lock knob to move cam 90°, then open door. Open with User Card 1. Present the user card in front of reader range until “beep” sounds and green LED lights; 2. While LED green lights, turn lock knob to move cam 90°, then open door. Remark: the door must be closed manually – turn lock knob and move back cam to close position. ECL208 has 2 working mode, default working mode or security working mode. Default Working Mode: open with user code or user card. Security Working Mode: open with user code and user card Red LED Green LED Delete/Cancel Button Unlock Button Start Position Mark Lock Knob Cylinder Cover RFID Key Card Reading Range PIN Code Keypad Buzzer Indicator (Invisible) Cam Security Working Mode: open with user code and user card How to reset to factory setting 1. 2. To take battery out and press button 1 or 2 with holding, then to put the battery to power on, To hear sounds with 1 short beep tone and 1 long beep tone. After 2 seconds to hear another 1 short beep tone then LED green and red flash alternative to confirm it is successful to back factory setting. Anti-peep Function Successful to open if the last 15 input digital numbers included a string valid user code. Example: 12345 is valid user code. You can input the below code to open the door: 11009123452372361. Master Code/Master Card and User Codes/User Cards Management Function Operation Factory Master Code Factory User Code Change master code Add master card Add user code ... ... Add user card ... ... Delete an user code ... ... Reset ECL208S Delete all key cards Delete all user codes Delete all user codes and all key cards Set Default Mode Set Security Mode FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Orient RFID Technology Limited Date (03/09/2013) TUV SUD BABT TCB Octag on House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AAXS-ECL208 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (Orient RFID Technology Limited) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Yan Long/ Sales Manager Telephone Number: 0755-26650078 Email: [email protected]

Orient RFID Technology Limited Declaration on Model Differences We, Orient RFID Technology Limited 6/F, Yuyi Industrial Building, Shekou Fishing Port, Wanghai Road, Nanshan District, Shenzhen, 518067, China Declare that the following product(s): Electronic Cabinet Lock: Electronic Cabinet Lock Model Number: ECL208-1, ECL208-2, ECL208-3, ECL208-4, ECL208-5 Utilize the identical circuit design, PCB layout, shielding and interface with (ECL208-1), only the trademark and model number are difference. Therefore this application can be regarded as identical in performance to the submitted test sample. The manufacturer would take all the responsibilities for the above product(s). For and on behalf of Shenzhen, China Authorized person Location Name: Yan Long Position: Sales Manager Date of issue: 2013-09-03 *I hereby declare that I am entitled to sign on behalf of the applicant and that the information supplied is correct and complete.

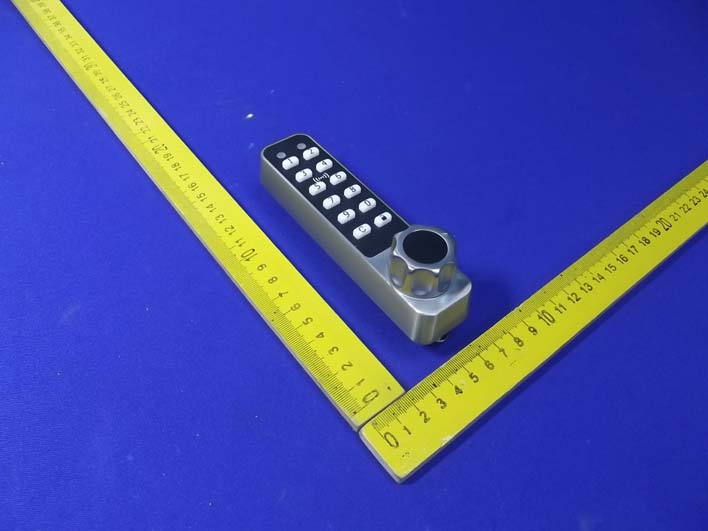

Figure 1 The EUT-Front View Figure 2 The EUT-Back View

FCC Label Statement Remarks: Size: 21mm(W)x9.5mm(H)x0.2mm(D) 30mm(W)x9.5mm(H)x0.2mm(D) Material: PVC Silver Label with 3M Glue Color: Silver Label with Black Font or Black Label with White Font Requirement: Label Place: Near Buzzer on Bottom

Figure 3 The EUT-Inside View Figure 4 PCB of the EUT-Front View Figure 5 PCB of the EUT-Back View

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AAXS-ECL208 Page 1 of 19 Report No.: 201308774F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com FCC TEST REPORT for Orient RFID Technology Limited Electronic Cabinet Lock Model No.: ECL208-1, ECL208-2, ECL208-3, ECL208-4, ECL208-5 Prepared for : Orient RFID Technology Limited Address : 6/F, Yuyi Industrial Building, Shekou Fishing Port, Wanghai Road, Nanshan District, Shenzhen, 518067, China Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Report Number : 201308774F Date of Test : Aug. 10~ 30, 2013 Date of Report : Sep. 03, 2013 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AAXS-ECL208 Page 2 of 19 Report No.: 201308774F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com TABLE OF CHONTENTS Description Page Test Report Verification 1. GENERAL INFORMATION ............................................................................................................... 4 1.1. Description of Device (EUT) ..........................................................................................................................4 1.2. Description of Test Facility .............................................................................................................................5 1.3. Measurement Uncertainty ...............................................................................................................................5 2. TEST PROCEDURE ............................................................................................................................. 6 3. POWER LINE CONDUCTED MEASUREMENT ............................................................................ 7 3.1. Block Diagram of Test Setup ..........................................................................................................................7 3.2. Power Line Conducted Emission Measurement Limits (FCC Part 15 15.207) ...............................................7 3.3. Configuration of EUT on Measurement ..........................................................................................................7 3.4. Operating Condition of EUT ...........................................................................................................................7 3.5. Test Procedure .................................................................................................................................................8 3.6. Power Line Conducted Emission Measurement Results .................................................................................8 4. RADIATED EMISSION MEASUREMENT ....................................................................................... 9 4.1. Radiated Emission Limits ...............................................................................................................................9 4.2. Test Procedure .................................................................................................................................................9 4.3. Test Setup ......................................................................................................................................................10 4.4. Test Results (Below 30MHz) ........................................................................................................................12 4.5. Test Results (Between 30-1000MHz) ...........................................................................................................12 5. OCCUPIED BANDWIDTH ................................................................................................................ 15 5.1. Requirements (2.1049): .................................................................................................................................15 5.2. Test Procedure ...............................................................................................................................................15 5.4. Test Results ...................................................................................................................................................15 APPENDIX I (External Photos) (1 Pages) APPENDIX II (Internal Photos) (2 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AAXS-ECL208 Page 3 of 19 Report No.: 201308774F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com TEST REPORT VERIFICATION Applicant : Orient RFID Technology Limited Manufacturer : Orient RFID Technology Limited EUT : Electronic Cabinet Lock Model No. : ECL208-1, ECL208-2, ECL208-3, ECL208-4, ECL208-5 Rating : DC 3V Battery Trade Mark : , Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C 15.207&15.209-2012, Part 2: 2012 & FCC / ANSI C63.4-2009 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited To determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits both radiated and conducted emissions. The measurement results are contained in this test report and Shenzhen Anbotek Compliance Laboratory Limited Is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Shenzhen Anbotek Compliance Laboratory Limited. Date of Test : Aug. 10~ 30, 2013 Prepared by : (Engineer/ Rock Zeng) Reviewer : (Project Manager/ Sally Zhang) Approved & Authorized Signer : (Manager/ Tom Chen) Shenz…

Text truncated - open the document above for the full version.

1. Photo of Radiated Emission Test
