2AAXS-XC2000DT266 - Security Lockdown Electronic Door Lock

The Security Door Lock XC/XM Rev. Oct. 29, 2014 User's Manual V1.0 Electronic Door Locking System An Intelligent Security Alarm Door Locking System Rev. Oct. 29, 2014 User’s Manual The Security Door Lock XC /XM - 2 - The Security Door Lock XC/XM series are a standalone, battery operated, motorized lock with an encrypted reader, remote control unit (RCU) and applicable encrypted cards. The programming of the lock and Keycards is done using the reader of the lock. XC model- RFID with a Grade 1 cylindrical lock body XM model- RFID with a Grade 1 mortise lock body Keycards: Keycards come with an imbedded RFID chip and antenna, there is no battery in the keycards. The keycards are encrypted and only these cards can be used and programmed to work with the security door lock. Encryption is on sector 1 of the cards, other sectors can be used for other purposes independent of the lock. Keycards are labeled with their “type” and function- a Keycard can only be programmed for their labeled function. Keycards exchange data with the lock by “swiping” the Keycard within the effective reading distance (0 to ½”) of the lock reader surface that is located on the front face of the lock. The Keycard needs to be authorized (programmed) before use with the lock. For identification and Keycard control all Keycards have a unique serial number that is printed on the Keycard surface. 250 keycards (combined total of User, Office and Lockdown Cancel Keycards) can be programmed into each lock. 120 RCUs can be programmed into each lock. The following is a description of the type of Keycards and function: Construction Keycard- Used for opening the lock in the Factory Mode, the door will relock within 5 seconds after opening. The lock is shipped from the factory in Factory Mode, it is not programmed and any Factory Mode lock will work with any Construction Keycard. It is recommended that the locks be programmed as soon as possible. The Construction Keycard will not work in a programmed lock. User Keycard- Used to open the lock once it is programmed. Under normal conditions the lock will relock within 5 seconds after opening. During lockdown mode the User Keycard will open the lock and will relock within 2 seconds. Office Keycard- Used to open and lock the lock once it is programmed. Under normal conditions the Office Keycard will open the lock and it will remain open until the Office Keycard is used again and it will lock the lock. During lockdown mode the User Keycard will open the lock and will relock within 2 seconds. Remote Control Unit (RCU)- used to put lock in the Lockdown Mode. Pushing the button for 1 second on the RCU will enter the lock in the Lockdown Mode. If the lock is open it will lock. In the Lockdown Mode the User and Office Keycards will only open the locks for 2 seconds before it relocks. Only the Lockdown Cancel Keycard can cancel the An Intelligent Security Alarm Door Locking System Rev. Oct. 29, 2014 User’s Manual The Security Door Lock XC /XM - 3 - Lockdown Mode. The RCU also has an Office Keycard imbedded in the unit. This can be used and programmed exactly like the Office Keycard by swiping the RCU on the lock reader. Lockdown Cancel Keycard- Used to cancel the lockdown mode. The Lockdown Cancel Keycard does not open the lock after the lockdown mode is canceled. Programming Keycard- Used for programming User Keycards, Office Keycards, RCUs and importing information into the lock. Can only program 1 Programming Keycard per lock. Clear Keycard- Used for deleting User Keycards, Office Keycards, RCUs and exporting information from the lock. Can only program 1 Clear Keycard per lock. Register Keycard- Used as a backup in the event that the Programming and/or Clear Keycard(s) are lost. The Register Keycard can program a new Programming or Clear Keycard and makes the previous Programming or Clear Keycards inactive. Can only program 1 Register Keycard per lock. Database Keycard- Used to download and upload data to and from the lock. Database Keycard can be used to export information from 1 programmed lock and import that information into another programmed lock. Database Keycard has more memory than the other cards used. The Programming, Clear and Register Keycards are critical to the overall control of the lock system and it is recommended that these cards be kept in a secure location and controlled. If possible the Register Keycard should be kept in a separate location. Programming and Initialization of the RFID Lock: Initialization: The lock needs to be initialized using the Programming, Clear and Register Keycards. Once initialized the lock will not respond to the Construction Keycard or other Programming/Clear/Register Keycards. Once initialized the lock is ready for programming. Initialization can only be done on locks in Factory Mode. Procedure for Initialization: Swipe the keys in the listed order. Valid entry- Blue LED followed by a short and long “beep”. Invalid entry- Red LED followed by 3 short “beeps”. 1. Programming Keycard (swipe)- Blue LED followed by a short and long “beep” 2. Clear Keycard (swipe)- Blue LED followed by a short and long “beep” 3. Register Keycard (swipe)- Blue LED followed by a short and long “beep” IMPORTANT: All 3 Keycards must be used and accepted as valid to complete the Initialization. In all cases the Register Keycard must but used last. Once the unit is initialized it is ready for further programming. An Intelligent Security Alarm Door Locking System Rev. Oct. 29, 2014 User’s Manual The Security Door Lock XC /XM - 4 - Programming- Adding Keycards and RCUs to the lock: This is to add /program Keycards (up to 250 per lock) and RCUs (up to 120 per lock) to the lock. Swiping the Programming Keycard will put the lock in Programming Mode. Programming Mode will continue for 8 seconds after the last valid card was swiped. When the Programming Keycard is swiped the Programming Mode is indicated by a long “beep” and a flashing blue LED (the LED will continue flashing un…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Revised wording (obsolete)1.02.0Sept–25-2007 Updated company template (obsolete)2.03.0Jan-31-2012 Updated letter information (obsolete)3.04.0May-23-2014 Added FCC ID field (current)4.05.0Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 (Orient RFID Technology Limited) (2014-11-03) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____Orient RFID Technology Limited_____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description: DT266 - Security Lockdown Electronic Door Lock Model name: XC2000, XC4000, XM2000, XM4000 FCC ID: 2AAXS-XC2000 Sincerely, Client’s signature Yan Long / Sales Manager Company Name: Orient RFID Technology Limited Address: 4/F, Section B, Block E, Chi Wan Industrial Zone, Nanshan District, Shekou, Shenzhen, 518068, PR China Tel: 0755-26650078 Email: [email protected]

SCS-F19: Confidentiality Request LetterPage 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Adding CFR 2.459 (obsolete)1.02.0August – 11 - 2008 Updated company template & Added text box (current) 2.03.0Jan-31-2012 SCS-F19: Confidentiality Request LetterPage 2 of 2 Rev 3.0 (Orient RFID Technology Limited) (2014-11-03) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject:Permanent Confidentiality Requestfor FCC ID:2AAXS-XC2000 We hereby request confidential treatment of information accompanying this application as outlined below: -Block Diagram -Schematics -Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Yan Long / Sales Manager Company Name: Orient RFID Technology Limited Address: 4/F, Section B, Block E, Chi Wan Industrial Zone, Nanshan District, Shekou, Shenzhen, 518068, PR China Tel: 0755-26650078 Email: [email protected]

Orient RFID Technology Limited Declaration on Model Differences We, Orient RFID Technology Limited 4/F, Section B, Block E, Chi Wan Industrial Zone, Nanshan District, Shekou, Shenzhen, 518068, PR China Declare that the following product(s): Product Name: DT266 - Security Lockdown Electronic Door Lock Model Number: XC2000, XC4000, XM2000, XM4000 FCC ID: 2AAXS-XC2000 Utilize the identical circuit design, PCB layout, shielding and interface with (XC2000), only the color and model number are difference. Therefore this application can be regarded as identical in performance to the submitted test sample. The manufacturer would take all the responsibilities for the above product(s). For and on behalf of Shenzhen, China Authorized person Location Name: Yan Long Position: Sales Manager Date of issue: 2014-11-03 *I hereby declare that I am entitled to sign on behalf of the applicant and that the information supplied is correct and complete.

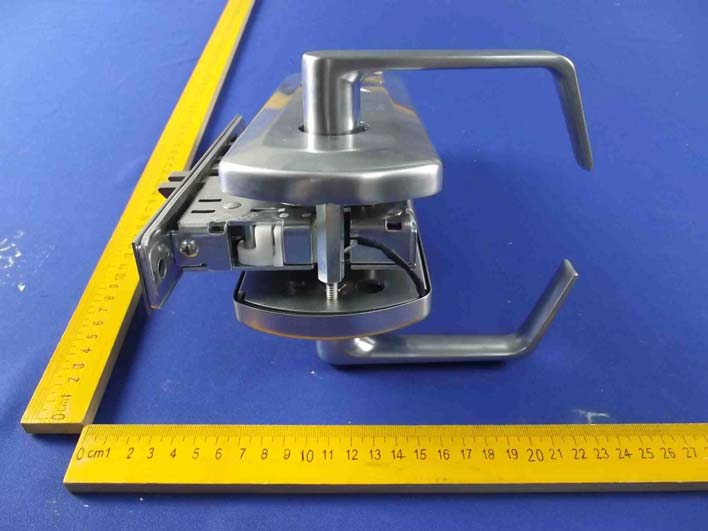

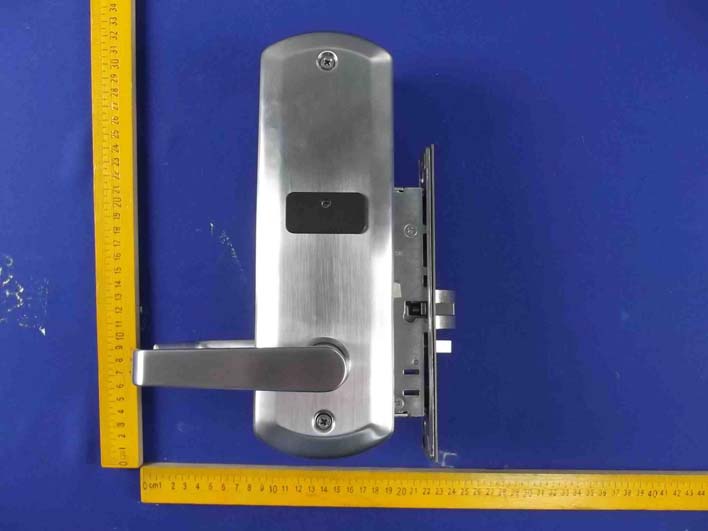

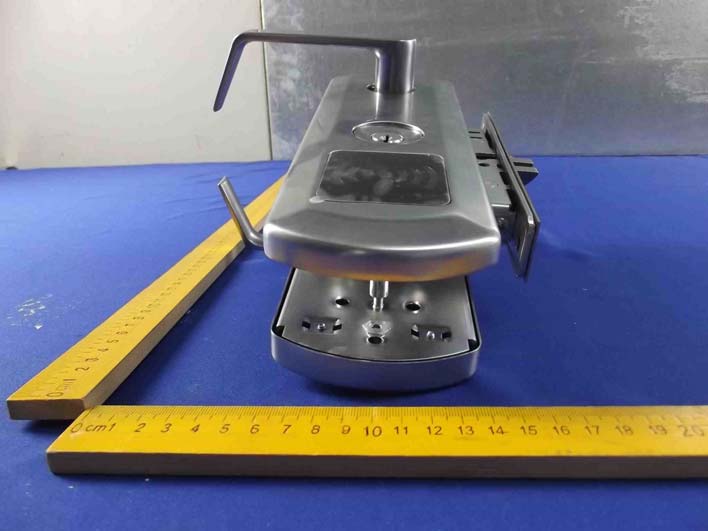

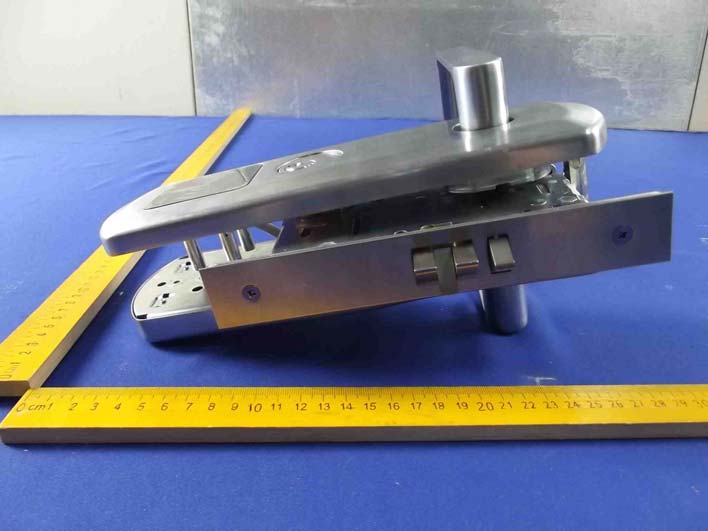

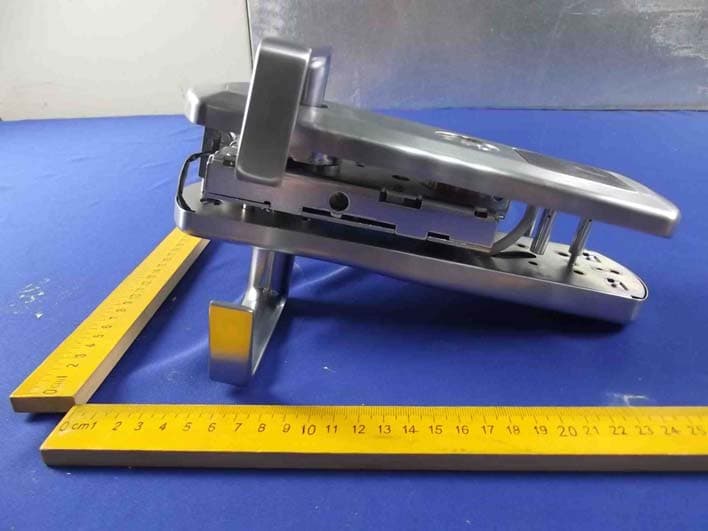

Figure 1 The EUT-Front View Figure 2 The EUT- Back View Figure 3 The EUT-Top View Figure 4 The EUT-Bottom View Figure 5 The EUT-Left View Figure 6 The EUT-Right View

Product Name:DT266 - Security Lockdown Electronic Door Lock Model No.:XC2000 FCC ID: 2AAXS-XC2000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Label Location On EUT

Figure 7 The EUT-Inside View Figure 8 The EUT-Inside View Figure 9 The EUT-Inside View Figure 10 The EUT-Inside View Figure 11 The EUT-Inside View Figure 12 PCB of the EUT-Front View Figure 13 PCB of the EUT-Back View (Antenna) Figure 14 PCB of the EUT-Front View Figure 15 PCB of the EUT-Back View

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AAXS-XC2000 Page 1 of 27 Report No.: R011409305E Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com FCC TEST REPORT for Orient RFID Technology Limited DT266 - Security Lockdown Electronic Door Lock Model No.: XC2000, XC4000, XM2000, XM4000 Prepared for : Orient RFID Technology Limited Address : 4/F, Section B, Block E, Chi Wan Industrial Zone, Nanshan District, Shekou, Shenzhen, 518068, PR China Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Report Number : R011409305E Date of Test : Sept. 17~ Oct. 31, 2014 Date of Report : Nov. 04, 2014 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AAXS-XC2000 Page 2 of 27 Report No.: R011409305E Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com TABLE OF CHONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................................ 4 1.1. Description of Device (EUT) ..........................................................................................................................4 1.2. Auxiliary Equipment Used during Test ..........................................................................................................5 1.3. Description of Test Facility .............................................................................................................................5 1.4. Measurement Uncertainty ...............................................................................................................................5 2. TEST PROCEDURE ............................................................................................................................. 6 3. RADIATED EMISSION MEASUREMENT ....................................................................................... 7 3.1. Radiated Emission Limits ...............................................................................................................................7 3.2. Test Procedure .................................................................................................................................................7 3.3. Test Setup ........................................................................................................................................................8 3.4. Test Results (Field Strength within the band of operation) ...........................................................................10 3.5. Test Results (Field strength outside of the band of operation) ......................................................................10 4. FREQUENCY TOLERANCE ............................................................................................................ 13 4.1. Frequency Tolerance Limits ..........................................................................................................................13 4.2. Test Setups ....................................................................................................................................................13 4.3. Test Procedure ...............................................................................................................................................13 4.4. Test Results ...................................................................................................................................................14 5. 20DB BANDWIDTH ............................................................................................................................ 15 5.1. Limits ............................................................................................................................................................15 5.2. Test Setups ....................................................................................................................................................15 5.3. Test Procedure ...............................................................................................................................................15 5.4. Test Results ...................................................................................................................................................15 6. ANTENNA APPLICATION ............................................................................................................... 17 6.1. Antenna Requirement ....................................................................................................................................17 6.2. Result .............................................................................................................................................................17 7. PHOTOGRAPH ................................................................................................................................ 18 7.1. Photo of Radiation Emission Test .................................................................................................................18 APPENDIX I (External Photos) (3 Pages) APPENDIX II (Internal Photos) (5 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AAXS-XC2000 Page 3 of 27 Report No.: R011409305E Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com TEST REPORT VERIFICATION Applicant : Orient RFID Technology Limited Manufacturer : Orient RFID Technology Limited EUT : DT266 - Security Lockdown Electronic Door Lock Model No. : XC2000, XC4000, XM2000, XM4000 Rating : DC 6V Battery Trade Mark : Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C 15.225 & FCC / ANSI C63.4-2009 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited To…

Text truncated - open the document above for the full version.

1. Photo of Radiation Emission Test
