1 MX-LOCare MX-Beacon1 MobilMAX USER MANUAL Thank you for purchasing the MX-LOCare® BR1 Bracelet GPS Locator and/or MX-Beacon1. This manual shows how to operate the device correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to change without prior notice. Any change will be integrated in the latest release. The manufacturer assumes no responsibility for any errors and omissions in this document. The content of your package includes: 2 - 1. MX-LOCare® BR1 - 2. MX-PowerEXT® - 3. MX-Beacon® - 4. USB cable - 5. Charger - 6. Warranty cards (for MX-LOCare® BR1Bracelet and MX-Beacon® each): Bracelet ID, Telephone number for bracelet, beacon ID and beacon serial number. - 7. SIM card has been pre-installed - 8. MX-LOCare® BR1 Torx Screw driver 3 Contents 1. GENERAL INFORMATION................................... 4 1.1 HARDWARE DESCRIPTION................................. 4 1.2 LED LIGHT DEFINITION...................................... 6 2. GETTING STARTED............................................ 9 2.1 FUNCTIONS...................................................... 9 2.2 BATTERY AND CHARGER.................................... 9 3. STARTUP........................................................ 11 4. MX-CLOUD ® SERVER AND WEB........................ 12 4.1 Registration and Login............................. 12 4.2 Locator Management .............................. 14 4.3 MX-Beacon® Management...................... 17 4.4 Real-time Tracking................................... 19 4.5 History..................................................... 20 4.6 Cursers and icons..................................... 22 4.7 Member Center....................................... 23 5. MX-LOCATE® APP............................................ 25 5.1 Registration and Log In............................ 25 5.2 Add New Locators.....................................27 5.3 MX-Beacon® and System Configure ........ 28 5.4 Overview of Locator ................................ 31 5.5 History..................................................... 35 6. HOW TO USE GPS LOCATOR DEVICE................. 37 7. SAFETY INFORMATION.................................... 37 8. CARE AND MAINTENANCE.............................. 40 4 1. General Information The Bracelet works on existing GSM/GPRS network and satellites. This product can locate and monitor any wearer by SMS or GPRS. 1.1 Hardware Description Front Face Back Side MX-LOCare® Locator Description 1. Link LED Light (Blue) 2. MXConn ® connector 3. SOS/ON Button 4. Power LED Light (Red) 5. GPS LED Light (Green) 6. Back Cover (SIM Cover) 7. Proximity Sensor 8. PowerOff Button 5 MX-PowerEXT® Description 1. Hook structure (to connect to the locator) 2. LED indicators 3. USB Connector 4. MXConn ® Connector Power Button Definition Function Description 1. SOS/ON Button - Power On: Press 3 seconds to Power On the device (The LED light “Red”, “Green” and “Blue” will flash sequentially twice) - SOS: Under Power On status , hold down the button 3 seconds, all three LED lights will flash until the locator sends out the SOS Warning. (Please refer to section 4.1.1 or 5.1 to register from a web browser or MX-Locate® APP respectively.) 2. Power Off Button The PowerOff button is a hole located in the back of the Bracelet. Insert a small paperclip in the hole in order to power off the locator 6 1.2 LED Light Definition 1.2.1 Locator LED LED Light Status definition 1. Link LED Light (Blue) Link status: - Network Linked: light “ON” for 2 seconds and shuts “OFF” in 10 seconds. - SIM Card Error or GSM Network Failed: light flashes 3 times and shuts “OFF” in 2 seconds. - Network Searching : light “ON” in 0.5 seconds and shuts “OFF” in 2 seconds. - Data Network Failed: light flashes 2 times and shuts “OFF” in 2 seconds. 2. GPS/Beacon LED Light (Green) GPS status: - Searching GPS Satellites : light “ON” in 0.5 seconds and shuts “OFF” in 2 seconds. - Beacon Search Succeed : light flashes 3 times and shuts “OFF” in 2 seconds. - Positioning Succeed : light will turn “ON” in 5 seconds after positioning success and will keep flashing for 2 seconds and then will shut “OFF” in 10 seconds. 7 3. Power LED Light (Red) Battery status: - Low Battery: light turns “ON” for 2 seconds and then shuts “OFF” for 10 seconds - Charging: light flashes every 1 second. - Fully Charged: light shows “ON”. 1.2.2 MX-PowerEXT® LED LED Light Status definition 1. Charge LED Light (White) USB connected: - When the battery of MX-PowerEXT® itself is NOT fully charged: the 4 white LEDs will flash sequentially from right to left. - When the battery of MX-PowerEXT® itself is full: all the 4 white LEDs will be on constantly. USB NOT connected: - When MX-PowerEXT® is connected to the MX-LOCare® Bracelet: light will be “ON” constantly, NOT all the 4 white LEDs are “ON” the same time. The number of LED’s on will indicate the battery level remaining in the MX-PowerEXT®. - When MX-PowerEXT® is NOT connected to the MX-LOCare® Bracelet: 4 white LEDs are “OFF". 8 2. Discharge LED Light (Red) When the MX-PowerEXT is Connected to MX-LOCare® Bracelet: - When the battery level of MX-LOCare® Bracelet is Not fully charged: the Red LED will be “ON”. - When the battery level of MX-LOCare® Bracelet is full: the Red LED will be “OFF” *Important - Please note that although the Bracelet is IP-67 waterproof rated the charging bank is not. At no time should the MX-PowerEXT® be exposed to any water or any liquid will void the warranty. When the MX-PowerEXT is NOT connected to MX-LOCare® Bracelet: the Red LED on the power pack will be “OFF” 9 2. Getting started 2.1 Functions
Periodic reporting or real time tracking functions are generated from web or MX-Locate® downloadable APP.
Location and activity history is easily accessed and stored to check past records.
SOS Button sends out an emergency signal.
Up to 10 inbound/outbound GeoFences. Can be in forms of circle, rectangle and po…

Text truncated - open the document above for the full version.

Safety and Regulatory Guide PLEASE READ BEFORE PROCEEDING THE MX-LOCare GPS LOCATOR BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. PLEASE REFER TO THE QUICK START GUIDE INCLUDED IN THE BOX FOR CHARGING INSTRUCTIONS. YOUR WARRANTY SHALL BE DEEMED INVALID SHOULD YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE MX-LOCare GPS LOCATOR. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“Accessed Information”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY (EXPRESS OR IMPLIED) OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, MobilMAX Technology Inc. AND ITS AFFILIATES EXPRESSLY DISCLAIM ANY AND ALL REPRESENTATIONS AND WARRANTIES, ARISING BY LAW OR OTHERWISE, RELATED TO THE ACCESSED INFORMATION, INCLUDING WITHOUT LIMITATION ANY EXPRESSED OR IMPLIED REPRESENTATION OR WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT, QUALITY, ACCURACY, COMPLETENESS, EFFECTIVENESS, RELIABILITY OR USEFULNESS. WITHOUT LIMITING THE FOREGOING, IT IS FURTHER UNDERSTOOD THAT MobilMAX Technology AND ITS AFFILIATES ARE NOT RESPONSIBLE FOR ANY USE OF THE ACCESSED INFORMATION OR THE RESULTS ARISING FROM SUCH USE, AND THAT YOU USE SUCH INFORMATION AT YOUR OWN RISK. MobilMAX Technology DOES NOT WARRANT THAT THE PRODUCT WILL: (A) WORK PERFECTLY; (B) NOT NEED OCCASIONAL UPGRADES OR MODIFICATIONS; OR (C) NOT BE NEGATIVELY AFFECTED BY NETWORK RELATED MODIFICATIONS, UPGRADES OR SIMILAR ACTIVITY. FURTHERMORE, THERE IS NO WARRANTY THAT SERVICE WILL BE: (A) UNINTERRUPTED OR ERROR FREE; OR (B) FREE FROM LOSS, CORRUPTION, ATTACK, VIRUSES, INTERFERENCE, AND HACKING OR OTHER SECURITY INTRUSION. THE MX-LOCare GPS LOCATOR (WITH OR WITHOUT SERVICE OFFERED) IS NOT A MEDICAL DEVICE, IS NOT A LIFE SAVING DEVICE AND IS TO BE CONSIDERED AS A BACK-UP DEVICE TO ANY AND ALL RECOMMENDED PRACTICES. Limitation of Damages BY USING THE MX-LOCare GPS LOCATOR, THE USER AGREES, TO THE EXTENT PERMITTED BY LAW, TO INDEMNIFY AND HOLD MobilMAX Technology Inc., ITS DIRECTORS, OFFICERS, EMPLOYEES, AFFILIATES, AGENTS, CONTRACTORS, AND LICENSORS HARMLESS WITH RESPECT TO ANY CLAIMS ARISING OUT OF FAILURE OR DELAY TO USE ANY SERVICE AND/OR THE MX-LOCare GPS LOCATOR, OR ANY ACTION TAKEN BY MobilMAX Technology AS PART OF ITS INVESTIGATION OF A SUSPECTED VIOLATION OF THIS AGREEMENT OR OTHER INVESTIGATION REASONABLY REQUIRED. MobilMAX Technology IS NOT RESPONSIBLE FOR INFORMATION DELETED FROM OR INACCURATELY PORTRAYED ON THE USER’S ACCOUNT OR DEVICE. Health Information & Safety Precautions When using the MX-LOCare GPS Locator or any of its accessories, the safety precautions described herein must be taken to avoid possible legal liabilities and damages. The user should retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions of the product and the services associated with the product. To reduce the risk of bodily injury, electric shock, fire and damage to the MX-LOCare GPS Locator or its accessories, observe the following precautions. Electrical Safety This product is intended for use when supplied with power from the integrated battery or approved charging unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to the product. The MX-LOCare GPS Locator is equipped with a USB Cable that can be connected to desktop or laptop computers. Be sure your computer is properly grounded to earth ground before connecting this product to your computer. The computer power supply cord includes an equipment grounding conductor and grounding plug. The computer plug must be plugged into a suitable power outlet which is properly installed and grounded according to all local building and electrical codes and ordinances. Safety precautions for charging CAUTION: Use the correct external power source when using charging devices powered from AC line voltage. A charging device should only be operated from the type of power source indicated on its electrical ratings label. If you are not sure of the type of power source required, consult an authorized service provider or local power company. Refer to the User Manual or Quick Start Guide for information regarding charging of the MX-LOCare GPS Locator. BATTERY: Your MX-LOCare GPS Locator incorporates a Lithium-ion Polymer battery that can only be serviced by MobilMAX Technology Inc. or its authorized Affiliates. There is a risk of fire or burns if the battery is handled improperly. Do not attempt to open or service the battery. Do not disassemble, crush, puncture the case, dispose of in fire or water, or expose the MX-LOCare GPS Locator to temperatures higher then 60C (140F). WARNING: Danger of explosion if the battery is incorrectly serviced. To reduce the risk of fire or burns, do not disassemble, crush, puncture, dispose of in fire or water, or expose the MX-LOCare GPS Locator to temperatures higher then 60C (140F). WARNING: IF YOUR MX-LOCare GPS LOCATOR IS DAMAGED, PERFORATED OR SHOWS SIGNS OF WATER INFILTRATION, REMOVE FROM THE PERSON AND STOP USING THE LOCATOR IMMEDIATELY AND DO NOT EXPOSE THE LOCATOR TO WATER AS THE BATTERY MAY CATCH FIRE OR EXPLODE. Contact MobilMAX Technology or one of its authorized Affiliates on how to service or dispose of the Locator. Safety precautions for direct sunlight Keep this product away from excessive heat or extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60C (1 40F), such as a car or dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose risk to the vehicle or vehicle occupants. Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation and co…

Text truncated - open the document above for the full version.

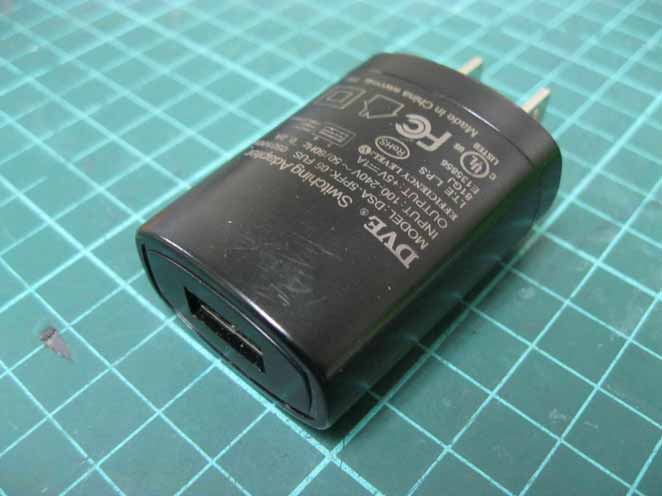

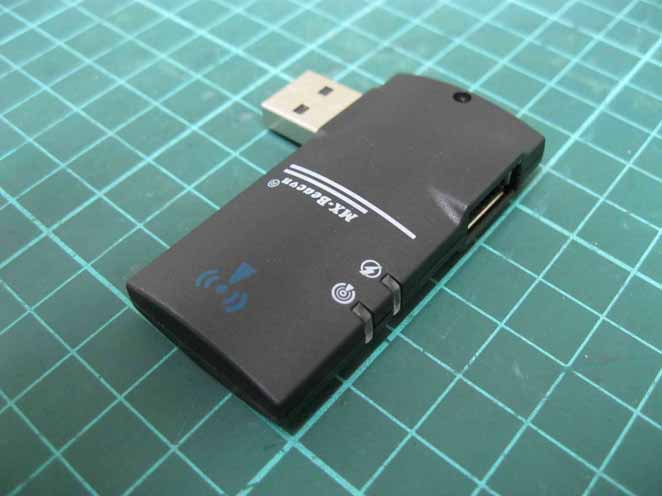

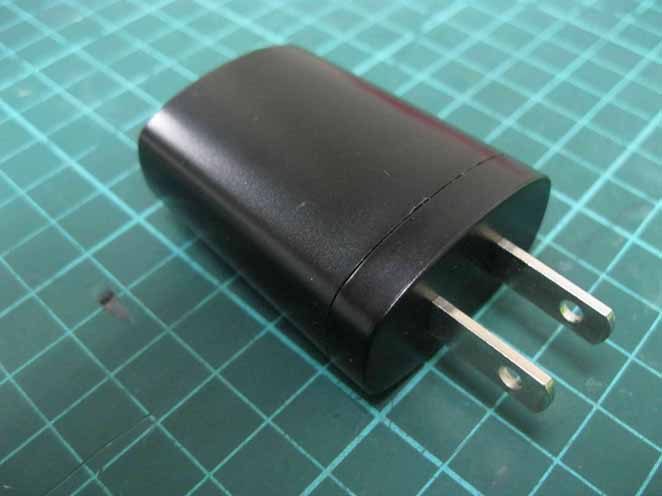

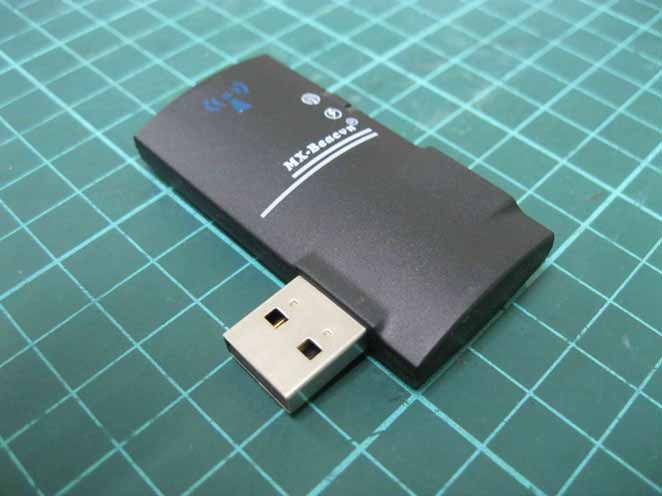

Report No.T150519S02 Page 1 of 4 External Photo Report No.T150519S02 Page 2 of 4 Report No.T150519S02 Page 3 of 4 Power Adapter (Model: DSA-5PFK-05 FUS 050100a) Report No.T150519S02 Page 4 of 4

X1 MXB Product Label 20150826 A Label DesignLabel Design Beacon Label Mark_Lu MX-Beacon BID:MXB_YYM_5678902 Made By MobilMAX FCC ID:2AAYEBEACON1 Beacon Product Label The Beacon Label stick on back side of product.

Report No.T150519S02 Page 1 of 3 Internal Photo Report No.T150519S02 Page 2 of 3 Report No.T150519S02 Page 3 of 3 Antenna

Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.: T150519S02-RP1-3 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[f(GHz)] ≤ 3.0 The tune-up power is -1dBm +/- 2dB, therefore the highest tune-up power is -1.19 dBm(0.76 mW)@ 2402 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (0.76mW / 5mm)* (2.402GHz ^0.5 )= 0.2 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [f(GHz)] = 0.2 < 3.0 Therefore, standalone SAR measurements are not required for both head and body.

Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.T150519S02-RP1-1 Page 1 / 60 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10:2013 TEST REPORT For MX-LOCare Model : MX-Beacon1 Trade Name : MobilMAX Issued for MobilMax Technology Inc. 2F-5, No. 28, Tai-Yuan St., Chupei City, Hsinchu County 302, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. No.989-1, Wenshan Rd., Shangshan Village, Qionglin Township, Hsinchu County 30741, Taiwan (R.O.C.) TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: August 26, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.T150519S02-RP1-1 Page 2 / 60 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 07/20/2015 Initial Issue All Page 60 Michelle Chiu 01 08/26/2015 Revised The Unit of 6dB BW P.11 Gloria Chang Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.T150519S02-RP1-1 Page 3 / 60 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 7 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS ................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 9 7. FCC PART 15.247 REQUIREMENTS .......................................................................... 10 7.1 6dB BANDWIDTH .................................................................................................. 10 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 14 7.3 AVERAGE POWER ............................................................................................... 16 7.4 POWER SPECTRAL DENSITY ............................................................................. 18 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 22 7.6 RADIATED EMISSION ........................................................................................... 26 7.7 CONDUCTED EMISSION ...................................................................................... 51 APPENDIX SETUP PHOTOS .......................................................................................... 56 Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.T150519S02-RP1-1 Page 4 / 60 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant MobilMax Technology Inc. Address 2F-5, No. 28, Tai-Yuan St., Chupei City, Hsinchu County 302, Taiwan Equipment Under Test MX-LOCare Model MX-Beacon1 Trade Name MobilMAX Tested Date May 19 ~ June 04, 2015 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2013 & ANSI C63.4:2014 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.T150519S02-RP1-1 Page 5 / 60 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name MX-LOCare Model Number MX-Beacon1 Identify Number T150519S02 Received Date May 19, 2015 Frequency Range 2402 MHz ~ 2480 MHz Transmit Power -1.19dBm (0.0008W) Channel Spacing 2 MHz Channel Number 40 Channels Transmit Data Rate 1 Mbps Type of Modulation GFSK Antenna Type Chip Antenna, Antenna Gain : 0dBi Power Rating 5Vdc Test Voltage 120Vac, 60Hz I/O Port USB Port × 2 Power Adapter : No. Manufacturer Model No. Power Input Power Output 1 DVE DSA-5PFK-05 FUS 050100a 100-240Vac, 50/60Hz, 0.2A +5Vdc, 1A Remark : 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. For more details, please refer to the User’s manual of the EUT. 3. This submittal(s) (test report) is intended for FCC ID: 2AAYEBEACON1 filing to c…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.T150519S02-RP1-1 Page 56 / 60 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz Mode 1 Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.T150519S02-RP1-1 Page 57 / 60 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Mode 2 Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.T150519S02-RP1-1 Page 58 / 60 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.T150519S02-RP1-1 Page 59 / 60 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID : 2AAYEBEACON1 Report No.T150519S02-RP1-1 Page 60 / 60 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP Mode 1
