1 MX-LOCare BR1 MobilMAX USER MANUAL Thank you for purchasing the MX-LOCare® BR1 Bracelet GPS Locator and/or MX-Beacon1. This manual shows how to operate the device correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to change without prior notice. Any change will be integrated in the latest release. The manufacturer assumes no responsibility for any errors and omissions in this document. The content of your package includes: 2 - 1. MX-LOCare® BR1 - 2. MX-PowerEXT® - 3. MX-Beacon® - 4. USB cable - 5. Charger - 6. Warranty cards (for MX-LOCare® BR1Bracelet and MX-Beacon® each): Bracelet ID, Telephone number for bracelet, beacon ID and beacon serial number. - 7. SIM card has been pre-installed - 8. MX-LOCare® BR1 Torx Screw driver 3 Contents 1. GENERAL INFORMATION...................................5 1.1 HARDWARE DESCRIPTION..................................5 1.2 LED LIGHT DEFINITION.......................................7 2. GETTING STARTED...........................................10 2.1 FUNCTIONS.....................................................10 2.2 BATTERY AND CHARGER...................................10 3. STARTUP.........................................................12 4. MX-CLOUD ® SERVER AND WEB........................13 4.1 Registration and Login .............................13 4.2 Locator Management...............................15 4.3 MX-Beacon® Management......................19 4.4 Real-time Tracking ...................................20 4.5 History .....................................................21 4.6 Cursers and icons.....................................23 4.7 Member Center .......................................24 5. MX-LOCATE® APP............................................26 5.1 Registration and Log In ............................26 5.2 Add New Locators....................................28 5.3 MX-Beacon® and System Configure.........29 5.4 Overview of Locator.................................31 5.5 History .....................................................36 6. HOW TO USE GPS LOCATOR DEVICE.................38 7. SAFETY INFORMATION....................................38 4 8. CARE AND MAINTENANCE...............................41 5 1. General Information The Bracelet works on existing GSM/GPRS network and satellites. This product can locate and monitor any wearer by SMS or GPRS. 1.1 Hardware Description Front Face Back Side MX-LOCare® Locator Description 1. Link LED Light (Blue) 2. MXConn ® connector 3. SOS/ON Button 4. Power LED Light (Red) 5. GPS LED Light (Green) 6. Back Cover (SIM Cover) 7. Proximity Sensor 8. PowerOff Button 6 MX-PowerEXT® Description 1. Hook structure (to connect to the locator) 2. LED indicators 3. USB Connector 4. MXConn ® Connector Power Button Definition Function Description 1. SOS/ON Button - Power On: Press 3 seconds to Power On the device (The LED light “Red”, “Green” and “Blue” will flash sequentially twice) - SOS: Under Power On status , hold down the button 3 seconds, all three LED lights will flash until the locator sends out the SOS Warning. (Please refer to section 4.1.1 or 5.1 to register from a web browser or MX-Locate® APP respectively.) 2. Power Off Button The PowerOff button is a hole located in the back of the Bracelet. Insert a small paperclip in the hole in order to power off 7 the locator 1.2 LED Light Definition 1.2.1 Locator LED LED Light Status definition 1. Link LED Light (Blue) Link status: - Network Linked: light “ON” for 2 seconds and shuts “OFF” in 10 seconds. - SIM Card Error or GSM Network Failed: light flashes 3 times and shuts “OFF” in 2 seconds. - Network Searching : light “ON” in 0.5 seconds and shuts “OFF” in 2 seconds. - Data Network Failed: light flashes 2 times and shuts “OFF” in 2 seconds. 2. GPS/Beacon LED Light (Green) GPS status: - Searching GPS Satellites : light “ON” in 0.5 seconds and shuts “OFF” in 2 seconds. - Beacon Search Succeed : light flashes 3 times and shuts “OFF” in 2 seconds. - Positioning Succeed : light will turn “ON” in 5 seconds after positioning success and will keep flashing for 2 seconds and then will shut “OFF” in 10 seconds. 8 3. Power LED Light (Red) Battery status: - Low Battery: light turns “ON” for 2 seconds and then shuts “OFF” for 10 seconds - Charging: light flashes every 1 second. - Fully Charged: light shows “ON”. 1.2.2 MX-PowerEXT® LED LED Light Status definition 1. Charge LED Light (White) USB connected: - When the battery of MX-PowerEXT® itself is NOT fully charged: the 4 white LEDs will flash sequentially from right to left. - When the battery of MX-PowerEXT® itself is full: all the 4 white LEDs will be on constantly. USB NOT connected: - When MX-PowerEXT® is connected to the MX-LOCare® Bracelet: light will be “ON” constantly, NOT all the 4 white LEDs are “ON” the same time. The number of LED’s on will indicate the battery level remaining in the MX-PowerEXT®. - When MX-PowerEXT® is NOT connected to the MX-LOCare® Bracelet: 9 4 white LEDs are “OFF". 2. Discharge LED Light (Red) When the MX-PowerEXT is Connected to MX-LOCare® Bracelet: - When the battery level of MX-LOCare® Bracelet is Not fully charged: the Red LED will be “ON”. - When the battery level of MX-LOCare® Bracelet is full: the Red LED will be “OFF” *Important - Please note that although the Bracelet is IP-67 waterproof rated the charging bank is not. At no time should the MX-PowerEXT® be exposed to any water or any liquid will void the warranty. When the MX-PowerEXT is NOT connected to MX-LOCare® Bracelet: the Red LED on the power pack will be “OFF” 10 2. Getting started 2.1 Functions
Periodic reporting or real time tracking functions are generated from web or MX-Locate® downloadable APP.
Location and activity history is easily accessed and stored to check past records.
SOS Button sends out an emergency signal.
Up to 10 inbound/outbound GeoFences. Can be in forms of circle, rectangle and polygon.
Detach al…

Text truncated - open the document above for the full version.

Safety and Regulatory Guide PLEASE READ BEFORE PROCEEDING THE MX-LOCare GPS LOCATOR BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. PLEASE REFER TO THE QUICK START GUIDE INCLUDED IN THE BOX FOR CHARGING INSTRUCTIONS. YOUR WARRANTY SHALL BE DEEMED INVALID SHOULD YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE MX-LOCare GPS LOCATOR. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“Accessed Information”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY (EXPRESS OR IMPLIED) OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, MobilMAX Technology Inc. AND ITS AFFILIATES EXPRESSLY DISCLAIM ANY AND ALL REPRESENTATIONS AND WARRANTIES, ARISING BY LAW OR OTHERWISE, RELATED TO THE ACCESSED INFORMATION, INCLUDING WITHOUT LIMITATION ANY EXPRESSED OR IMPLIED REPRESENTATION OR WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT, QUALITY, ACCURACY, COMPLETENESS, EFFECTIVENESS, RELIABILITY OR USEFULNESS. WITHOUT LIMITING THE FOREGOING, IT IS FURTHER UNDERSTOOD THAT MobilMAX Technology AND ITS AFFILIATES ARE NOT RESPONSIBLE FOR ANY USE OF THE ACCESSED INFORMATION OR THE RESULTS ARISING FROM SUCH USE, AND THAT YOU USE SUCH INFORMATION AT YOUR OWN RISK. MobilMAX Technology DOES NOT WARRANT THAT THE PRODUCT WILL: (A) WORK PERFECTLY; (B) NOT NEED OCCASIONAL UPGRADES OR MODIFICATIONS; OR (C) NOT BE NEGATIVELY AFFECTED BY NETWORK RELATED MODIFICATIONS, UPGRADES OR SIMILAR ACTIVITY. FURTHERMORE, THERE IS NO WARRANTY THAT SERVICE WILL BE: (A) UNINTERRUPTED OR ERROR FREE; OR (B) FREE FROM LOSS, CORRUPTION, ATTACK, VIRUSES, INTERFERENCE, AND HACKING OR OTHER SECURITY INTRUSION. THE MX-LOCare GPS LOCATOR (WITH OR WITHOUT SERVICE OFFERED) IS NOT A MEDICAL DEVICE, IS NOT A LIFE SAVING DEVICE AND IS TO BE CONSIDERED AS A BACK-UP DEVICE TO ANY AND ALL RECOMMENDED PRACTICES. Limitation of Damages BY USING THE MX-LOCare GPS LOCATOR, THE USER AGREES, TO THE EXTENT PERMITTED BY LAW, TO INDEMNIFY AND HOLD MobilMAX Technology Inc., ITS DIRECTORS, OFFICERS, EMPLOYEES, AFFILIATES, AGENTS, CONTRACTORS, AND LICENSORS HARMLESS WITH RESPECT TO ANY CLAIMS ARISING OUT OF FAILURE OR DELAY TO USE ANY SERVICE AND/OR THE MX-LOCare GPS LOCATOR, OR ANY ACTION TAKEN BY MobilMAX Technology AS PART OF ITS INVESTIGATION OF A SUSPECTED VIOLATION OF THIS AGREEMENT OR OTHER INVESTIGATION REASONABLY REQUIRED. MobilMAX Technology IS NOT RESPONSIBLE FOR INFORMATION DELETED FROM OR INACCURATELY PORTRAYED ON THE USER’S ACCOUNT OR DEVICE. Health Information & Safety Precautions When using the MX-LOCare GPS Locator or any of its accessories, the safety precautions described herein must be taken to avoid possible legal liabilities and damages. The user should retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions of the product and the services associated with the product. To reduce the risk of bodily injury, electric shock, fire and damage to the MX-LOCare GPS Locator or its accessories, observe the following precautions. Electrical Safety This product is intended for use when supplied with power from the integrated battery or approved charging unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to the product. The MX-LOCare GPS Locator is equipped with a USB Cable that can be connected to desktop or laptop computers. Be sure your computer is properly grounded to earth ground before connecting this product to your computer. The computer power supply cord includes an equipment grounding conductor and grounding plug. The computer plug must be plugged into a suitable power outlet which is properly installed and grounded according to all local building and electrical codes and ordinances. Safety precautions for charging CAUTION: Use the correct external power source when using charging devices powered from AC line voltage. A charging device should only be operated from the type of power source indicated on its electrical ratings label. If you are not sure of the type of power source required, consult an authorized service provider or local power company. Refer to the User Manual or Quick Start Guide for information regarding charging of the MX-LOCare GPS Locator. BATTERY: Your MX-LOCare GPS Locator incorporates a Lithium-ion Polymer battery that can only be serviced by MobilMAX Technology Inc. or its authorized Affiliates. There is a risk of fire or burns if the battery is handled improperly. Do not attempt to open or service the battery. Do not disassemble, crush, puncture the case, dispose of in fire or water, or expose the MX-LOCare GPS Locator to temperatures higher then 60C (140F). WARNING: Danger of explosion if the battery is incorrectly serviced. To reduce the risk of fire or burns, do not disassemble, crush, puncture, dispose of in fire or water, or expose the MX-LOCare GPS Locator to temperatures higher then 60C (140F). WARNING: IF YOUR MX-LOCare GPS LOCATOR IS DAMAGED, PERFORATED OR SHOWS SIGNS OF WATER INFILTRATION, REMOVE FROM THE PERSON AND STOP USING THE LOCATOR IMMEDIATELY AND DO NOT EXPOSE THE LOCATOR TO WATER AS THE BATTERY MAY CATCH FIRE OR EXPLODE. Contact MobilMAX Technology or one of its authorized Affiliates on how to service or dispose of the Locator. Safety precautions for direct sunlight Keep this product away from excessive heat or extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60C (1 40F), such as a car or dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose risk to the vehicle or vehicle occupants. Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation and co…

Text truncated - open the document above for the full version.

承認書 SPECIFICATION FOR APPROVAL ■樣品承認□新品承認□規格/材質變更承認 客戶名稱(Customer): 摩比麥斯移動科技股份有限公司 麗臺科技股份有限公司 客戶料號(Customer P/N): Q5001G00134A 產品料號(Product No.): A8-A006-00247 產品品名(Product Name)： FPC 824MHz~960MHz/1710MHz~1990MHz 1.27dBi/1.94dBi 31.87mm*24 .4mm 0. 2T 文件編號(Approved No)： 日期(Issued Date)： 2015 年 06 月 04 日 客戶承認簽章 Customer Approval Signature In Charge Checked Approval 天凱科技股份有限公司TSKY CO., LTD. 新竹縣竹北市自強南路8號15F-1 Tel:03-5502626 Fax:03-5503131 15F-1,No.8,Ziqiang S.Rd., Jhubei City, Hsinchu County 30264,Taiwan (R.O.C.) 業務 核准 審核 主辦員 www.tsky.com.tw Contents Item Description Page 1. Cover 1 2. Contents 2 3. Specification 3 4. Drawing 4 5. Test Report 5~27 6. Packing 28~29 7. RoHS Report 30~101 www.tsky.com.tw Specification .Electrical Properties : 1. Frequency : 824MHz ~ 960MHz/1710MHz~1990MHz 2. Impedance : 50Ω 3. Return Loss : ≦ -7dB 4. Peak Gain : 1.27dBi/1.94dBi .Physical Properties : 1. Material : FPC T=0.2mm 2. Operation temperature : -20°C~+65°C 3. Storage temperature : -30°C~ +75°C www.tsky.com.tw Bracelet Antenna Test Report 2015/05/22 Bracelet Antenna Set 2 GPS Ant. + BT Ant. 2G Ant. 2G Antenna Return loss • 2G LB: 824M~960M , RL < -7.1dB • 2G MB: 1710M~1990M, RL < -8.7dB 3 GPS Antenna Return loss • GPS + Glonass: RL < -17dB 4 Bluetooth Antenna Return loss • Bluetooth: RL < -10 dB 5 Bluetooth & 2G Antenna Isolation • BT & 2G: IL < -17dB 6 GPS & 2G Antenna Isolation • GPS & 2G: IL < -11.5dB 7 GPS & BT Antenna Isolation • GPS & BT: IL < -14.8dB 8 2G Ant. 3D Gain Pattern @824MHz 9 2G Ant. Frequency 824M Efficiency Total (dB) -1.02 Gain Total (dBi) 1.27 2G Ant. 3D Gain Pattern @880MHz 10 2G Ant. Frequency 880M Efficiency Total (dB) 0.92 Gain Total (dBi) -1.33 2G Ant. 3D Gain Pattern @894MHz 11 2G Ant. Frequency 894M Efficiency Total (dB) 1.05 Gain Total (dBi) -1.54 2G Ant. 3D Gain Pattern @960MHz 12 2G Ant. Frequency 960M Efficiency Total (dB) -0.47 Gain Total (dBi) -2.49 2G Ant. 3D Gain Pattern @1710MHz 13 2G Ant. Frequency 1.71G Efficiency Total (dB) 0.19 Gain Total (dBi) -2.20 2G Ant. 3D Gain Pattern @1850MHz 14 2G Ant. Frequency 1.85G Efficiency Total (dB) 0.56 Gain Total (dBi) -2.42 2G Ant. 3D Gain Pattern @1990MHz 15 2G Ant. Frequency 1.99G Efficiency Total (dB) 1.94 Gain Total (dBi) -2.00 GPS Ant. 3D Gain Pattern @1575MHz 16 GPS Ant. Frequency 1.575G Efficiency Total (dB) -0.64 Gain Total (dBi) -4.71 GPS Ant. 3D Gain Pattern @1605MHz 17 GPS Ant. Frequency 1.605G Efficiency Total (dB) -1.04 Gain Total (dBi) -5.03 Bluetooth Ant. 3D Gain Pattern @2450MHz 18 BT Ant. Frequency 2.45G Efficiency Total (dB) 0.41 Gain Total (dBi) -2.62 2G Antenna Gain & Efficiency Frequency 824M 880M 894M 960M 1.71G 1.85G 1.88G 1.99G Efficiency Total (dB) -1.02 -1.33 -1.54 -2.49 -2.20 -2.42 -2.09 -2.00 Efficiency Total (%) 79.10 73.62 70.15 56.36 60.26 57.28 61.80 63.10 Gain Total (dBi) 1.27 0.92 1.05 -0.47 0.19 0.56 1.39 1.94 19 GPS + Glonass Antenna Gain & Efficiency Frequency 1.565G 1.575G 1.585G 1.595G 1.605G 1.615G Efficiency Total (dB) -4.38 -4.71 -4.91 -5.01 -5.03 -5.22 Efficiency Total (%) 36.48 33.81 32.28 31.55 31.41 30.06 Gain Total (dBi) -0.42 -0.64 -0.78 -0.96 -1.04 -1.38 20 Bluetooth Antenna Gain & Efficiency Frequency 2.4G 2.45G 2.5G Efficiency Total (dB) -2.81 -2.62 -2.64 Efficiency Total (%) 52.36 54.70 54.45 Gain Total (dBi) 0.51 0.41 0.21 21 Bracelet GPRS TRP GSM 850 EGSM DCS PCS Channel 128 190 251 975 38 124 512 700 885 512 661 810 Freqyency (MHz) 824.2 836.6 848.8 880.2 897.6 914.8 1710.2 1747.8 1784.8 1850.2 1880 1909.8 TRP (dBm) 28.61 28.75 29.01 28.98 29.47 29.09 26.32 26.32 27.11 28.06 28.07 27.86 Mobile Station OTA Radiated Power Information Date: 2015/05/22 Operator: Linda Project number: Bracelet Test Condition: Free space 22 Bracelet Antenna Test Conclusion •We’ve fine-tuned FPC antennas to achieve very good antenna performances. •2G antenna –2G low band: 824M~960M, Eff = 56%~79%, Return loss < -7.1dB –2G high band: 1710M~1990M, Eff = 57%~63%, Return loss < -8.7dB •GPS and Glonass antenna –GPS: 1575M~1605M, Eff = 31%~33% –Return loss < -17dB •BT antenna –BT: 2400M~2500M, Eff = 52%~55%, –Return loss < -10dB 23 检测结果 产品料号 A8-A006-00247 客户料号 Q5001G00134A 版本号 A 版本号 A 检测结果 ■符合 □不符 合，《产品环境物质管理，限，禁用物质管理标准》、ROHS指令及相关的法律法规要求 。 产品组成及其相关信息 序号 部件名称 材质编号 供应商 检测报告 SGS Report 有 / 无 报告编号 出报告日期 即生效日期 报告 截止 日期 1 铜箔基材 GHD101318BJB-1 金鼎 有 TSNEC1500252301 2015.3. 13 2016.3.12 OK 3 文字油墨 NS-411/W 新韩 有 SHAEC1415074402 2014.8. 12 2015.8.11 OK 4 胶纸 3M468 顺邦 有 SHAEC1423355509 A01 2014.12.26 2015.12.26 OK 5 镀镍 Ni Plating 汇湖 有 ECL01H010211001C 2015.3. 12 2016.3.11 OK 6 镀金 AU Plating 汇湖 有 ECL01H010211002C 2015.3. 12 2016.3.11 OK 7 保护膜 FD12/15B 深泰虹 有 CANEC1408653601 2014.6.12 2015.6.11 OK 生产工艺： 备注： 零件本體說明 www.tsky.com.tw 零件包装说明报告 日期 ： 15/5/28 客户料号 Q5001G00134A 制造商 天凱科技 内部料号 A8-A006-00247 装箱数 10000CS 产品名称 FPC 外箱尺寸 L ： 250 W ： 150 H ： mm 55 捆包数量 1000 PCS * 1 ◆PE袋 □捲（ 捆） □盒 □层 □其 防潮&缓行 □干燥剂 □真空包 □气泡袋 □泡棉 □纸材 ◆其 内 外 包 装 标 示 每9PCS为一条 每1000PCS为一包 包 装 方 式 示 意 图 10包为一箱（10000PCS一箱） www.tsky.com.tw Test Report. No. TSNEC1500252301 Date: 13 Mar 2015.Page 1 of 6. SHANDONG GOLDING ELECTRONIC MATERIAL CO., LTD. GANG CHENG HI-TECH DEVELOPMENT ZONE,LAIWU CITY IN SHANDONG CHINA. . The following sample(s) was/were submitted and identified on behalf of the clients as : FLEXIBLE COPPER CLAD LAMINATE. SGS Job No. :TP15-001105 - TJ. Model No. :.GHD. Client Ref. Info. :.OTHER MODEL NO.:GHS. Date of Sample Received :. 10 Mar 2015. Testing Period :.10 Mar 2015 - 13 Mar 2015. Test Requested :.Selected test(s) as requested by client.. Please refer to next page(s).. Please refer to next page(s).. Test Method :. Test Results :. Conclusion :. Based on the performed tests on submitted sample(s), the results of Lead, Mercury, Cadmium, Hexavalent chromium, Polybrominated biphenyls (PBBs), Polybrominated diphenyl ethers (PBDEs) comply with the limits as set by RoHS Directive 2011/65/EU Annex II; recasting 2002/95/EC.. Reabeca Zhou. Approved Signatory. Signed for and on behalf of SGS-CSTC Standards Technical Services (Tianjin) Co., Ltd.. Test Repo…

Text truncated - open the document above for the full version.

承認書 SPECIFICATION FOR APPROVAL ■樣品承認□新品承認□規格/材質變更承認 客戶名稱(Customer): 摩比麥斯移動科技股份有限公司 麗臺科技股份有限公司 客戶料號(Customer P/N): Q5001G00135A 產品料號(Product No.): A8-A006-00248 產品品名(Product Name)： FPC 1575MHz/1605MHz/2400MHz~2500MHz 0dBi 31.8mm*24.35 mm 0. 2T 文件編號(Approved No)： 日期(Issued Date)： 2015 年 06 月 04 日 客戶承認簽章 Customer Approval Signature In Charge Checked Approval 天凱科技股份有限公司TSKY CO., LTD. 新竹縣竹北市自強南路8號15F-1 Tel:03-5502626 Fax:03-5503131 15F-1,No.8,Ziqiang S.Rd., Jhubei City, Hsinchu County 30264,Taiwan (R.O.C.) 業務 核准 審核 主辦員 www.tsky.com.tw Contents Item Description Page 1. Cover 1 2. Contents 2 3. Specification 3 4. Drawing 4 5. Test Report 5~27 6. Packing 28~29 7. RoHS Report 30~101 www.tsky.com.tw Specification .Electrical Properties : 1. Frequency : 1575MHz/1605MHz/2400MHz~2500MHz 2. Impedance : 50Ω 3. Return Loss : ≦ -10dB 4. Peak Gain : 0dBi .Physical Properties : 1. Material : FPC T=0.2mm 2. Operation temperature : -20°C~+65°C 3. Storage temperature : -30°C~ +75°C www.tsky.com.tw Bracelet Antenna Test Report 2015/05/22 Bracelet Antenna Set 2 GPS Ant. + BT Ant. 2G Ant. 2G Antenna Return loss • 2G LB: 824M~960M , RL < -7.1dB • 2G MB: 1710M~1990M, RL < -8.7dB 3 GPS Antenna Return loss • GPS + Glonass: RL < -17dB 4 Bluetooth Antenna Return loss • Bluetooth: RL < -10 dB 5 Bluetooth & 2G Antenna Isolation • BT & 2G: IL < -17dB 6 GPS & 2G Antenna Isolation • GPS & 2G: IL < -11.5dB 7 GPS & BT Antenna Isolation • GPS & BT: IL < -14.8dB 8 2G Ant. 3D Gain Pattern @824MHz 9 2G Ant. Frequency 824M Efficiency Total (dB) -1.02 Gain Total (dBi) 1.27 2G Ant. 3D Gain Pattern @880MHz 10 2G Ant. Frequency 880M Efficiency Total (dB) 0.92 Gain Total (dBi) -1.33 2G Ant. 3D Gain Pattern @894MHz 11 2G Ant. Frequency 894M Efficiency Total (dB) 1.05 Gain Total (dBi) -1.54 2G Ant. 3D Gain Pattern @960MHz 12 2G Ant. Frequency 960M Efficiency Total (dB) -0.47 Gain Total (dBi) -2.49 2G Ant. 3D Gain Pattern @1710MHz 13 2G Ant. Frequency 1.71G Efficiency Total (dB) 0.19 Gain Total (dBi) -2.20 2G Ant. 3D Gain Pattern @1850MHz 14 2G Ant. Frequency 1.85G Efficiency Total (dB) 0.56 Gain Total (dBi) -2.42 2G Ant. 3D Gain Pattern @1990MHz 15 2G Ant. Frequency 1.99G Efficiency Total (dB) 1.94 Gain Total (dBi) -2.00 GPS Ant. 3D Gain Pattern @1575MHz 16 GPS Ant. Frequency 1.575G Efficiency Total (dB) -0.64 Gain Total (dBi) -4.71 GPS Ant. 3D Gain Pattern @1605MHz 17 GPS Ant. Frequency 1.605G Efficiency Total (dB) -1.04 Gain Total (dBi) -5.03 Bluetooth Ant. 3D Gain Pattern @2450MHz 18 BT Ant. Frequency 2.45G Efficiency Total (dB) 0.41 Gain Total (dBi) -2.62 2G Antenna Gain & Efficiency Frequency 824M 880M 894M 960M 1.71G 1.85G 1.88G 1.99G Efficiency Total (dB) -1.02 -1.33 -1.54 -2.49 -2.20 -2.42 -2.09 -2.00 Efficiency Total (%) 79.10 73.62 70.15 56.36 60.26 57.28 61.80 63.10 Gain Total (dBi) 1.27 0.92 1.05 -0.47 0.19 0.56 1.39 1.94 19 GPS + Glonass Antenna Gain & Efficiency Frequency 1.565G 1.575G 1.585G 1.595G 1.605G 1.615G Efficiency Total (dB) -4.38 -4.71 -4.91 -5.01 -5.03 -5.22 Efficiency Total (%) 36.48 33.81 32.28 31.55 31.41 30.06 Gain Total (dBi) -0.42 -0.64 -0.78 -0.96 -1.04 -1.38 20 Bluetooth Antenna Gain & Efficiency Frequency 2.4G 2.45G 2.5G Efficiency Total (dB) -2.81 -2.62 -2.64 Efficiency Total (%) 52.36 54.70 54.45 Gain Total (dBi) 0.51 0.41 0.21 21 Bracelet GPRS TRP GSM 850 EGSM DCS PCS Channel 128 190 251 975 38 124 512 700 885 512 661 810 Freqyency (MHz) 824.2 836.6 848.8 880.2 897.6 914.8 1710.2 1747.8 1784.8 1850.2 1880 1909.8 TRP (dBm) 28.61 28.75 29.01 28.98 29.47 29.09 26.32 26.32 27.11 28.06 28.07 27.86 Mobile Station OTA Radiated Power Information Date: 2015/05/22 Operator: Linda Project number: Bracelet Test Condition: Free space 22 Bracelet Antenna Test Conclusion •We’ve fine-tuned FPC antennas to achieve very good antenna performances. •2G antenna –2G low band: 824M~960M, Eff = 56%~79%, Return loss < -7.1dB –2G high band: 1710M~1990M, Eff = 57%~63%, Return loss < -8.7dB •GPS and Glonass antenna –GPS: 1575M~1605M, Eff = 31%~33% –Return loss < -17dB •BT antenna –BT: 2400M~2500M, Eff = 52%~55%, –Return loss < -10dB 23 检测结果 产品料号 A8-A006-00248 客户料号 Q5001G00135A 版本号 A 版本号 A 检测结果 ■符合 □不符 合，《产品环境物质管理，限，禁用物质管理标准》、ROHS指令及相关的法律法规要求 。 产品组成及其相关信息 序号 部件名称 材质编号 供应商 检测报告 SGS Report 有 / 无 报告编号 出报告日期 即生效日期 报告 截止 日期 1 铜箔基材 GHD101318BJB-1 金鼎 有 TSNEC1500252301 2015.3. 13 2016.3.12 OK 3 文字油墨 NS-411/W 新韩 有 SHAEC1415074402 2014.8. 12 2015.8.11 OK 4 胶纸 3M468 顺邦 有 SHAEC1423355509 A01 2014.12.26 2015.12.26 OK 5 镀镍 Ni Plating 汇湖 有 ECL01H010211001C 2015.3. 12 2016.3.11 OK 6 镀金 AU Plating 汇湖 有 ECL01H010211002C 2015.3. 12 2016.3.11 OK 7 保护膜 FD12/15B 深泰虹 有 CANEC1408653601 2014.6.12 2015.6.11 OK 8 9 10 生产工艺 ： 备注： 零件本體說明 www.tsky.com.tw 零件包装说明报告 日期 ： 15/5/28 客户料号 Q5001G00135A 制造商 天凱科技 内部料号 A8-A006-00248 装箱数 10000CS 产品名称 FPC 外箱尺寸 L ： 250 W ： 150 H ： mm 55 捆包数量 1000 PCS * 1 ◆PE袋 □捲（ 捆） □盒 □层 □其 防潮&缓行 □干燥剂 □真空包 □气泡袋 □泡棉 □纸材 ◆其 内 外 包 装 标 示 每9PCS为一条 每1000PCS为一包 包 装 方 式 示 意 图 10包为一箱（10000PCS一箱） www.tsky.com.tw Test Report. No. TSNEC1500252301 Date: 13 Mar 2015.Page 1 of 6. SHANDONG GOLDING ELECTRONIC MATERIAL CO., LTD. GANG CHENG HI-TECH DEVELOPMENT ZONE,LAIWU CITY IN SHANDONG CHINA. . The following sample(s) was/were submitted and identified on behalf of the clients as : FLEXIBLE COPPER CLAD LAMINATE. SGS Job No. :TP15-001105 - TJ. Model No. :.GHD. Client Ref. Info. :.OTHER MODEL NO.:GHS. Date of Sample Received :. 10 Mar 2015. Testing Period :.10 Mar 2015 - 13 Mar 2015. Test Requested :.Selected test(s) as requested by client.. Please refer to next page(s).. Please refer to next page(s).. Test Method :. Test Results :. Conclusion :. Based on the performed tests on submitted sample(s), the results of Lead, Mercury, Cadmium, Hexavalent chromium, Polybrominated biphenyls (PBBs), Polybrominated diphenyl ethers (PBDEs) comply with the limits as set by RoHS Directive 2011/65/EU Annex II; recasting 2002/95/EC.. Reabeca Zhou. Approved Signatory. Signed for and on behalf of SGS-CSTC Standards Technical Services (Tianjin) Co., Ltd.. Test Report. No. TSN…

Text truncated - open the document above for the full version.

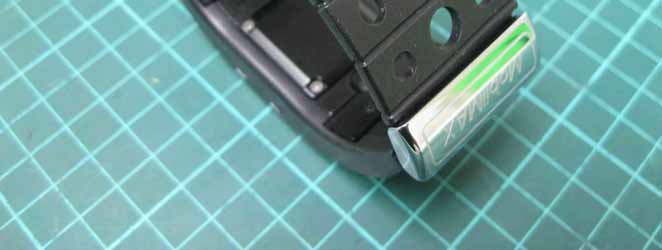

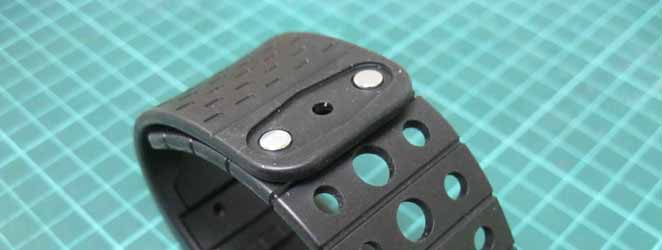

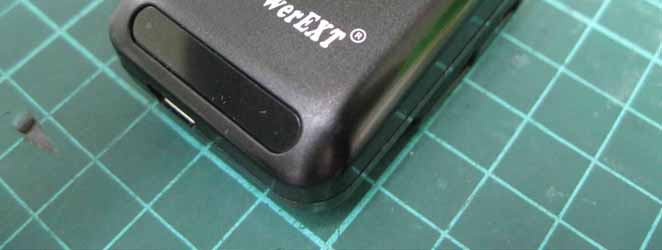

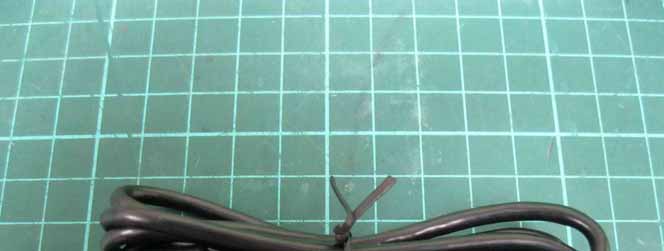

Report No.T150608S03 Page 1 of 6 External Photo Report No.T150608S03 Page 2 of 6 Power Adapter Report No.T150608S03 Page 3 of 6 Report No.T150608S03 Page 4 of 6 Cable Report No.T150608S03 Page 5 of 6 Power Bank Report No.T150608S03 Page 6 of 6

X1 MXB Product Label 20150828 A Label DesignLabel Design X1 Label Mark_Lu Made By MobilMAX MX-Locare BR1 MEID:123456789012345 SN:MB123456789A FCC ID:2AAYELOCAREBR1 BR1 Product Label The BR1 product Label stick on QC card.

Report No.T150608S03 Page 1 of 13 Internal Photo Report No.T150608S03 Page 2 of 13 Report No.T150608S03 Page 3 of 13 Report No.T150608S03 Page 4 of 13 Report No.T150608S03 Page 5 of 13 Report No.T150608S03 Page 6 of 13 Report No.T150608S03 Page 7 of 13 Report No.T150608S03 Page 8 of 13 Battery Report No.T150608S03 Page 9 of 13 Power Bank Report No.T150608S03 Page 10 of 13 Report No.T150608S03 Page 11 of 13 Power Bank Battery Report No.T150608S03 Page 12 of 13 Antenna Report No.T150608S03 Page 13 of 13 Antenna(3G)

MobilMax Technology Inc. Tune up procedure The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting: GSM 850: 32.5 dBm± 1 dB GSM 1900: 29.0 dBm± 1 dB GPRS 850: 32.5 dBm± 1 dB GPRS 1900: 29.0 dBm± 1 dB Company representatives( 公司代表人) : Daizhong Zhang Job title(職稱) : Vice President of Marketing Company Name(公司名稱) ：MobilMax Technology Inc. TEL: 03-552-5616 FAX: 03-552-5619 E-Mail: [email protected]

Compliance Certification Services Inc. FCC ID: 2AAYELOCAREBR1 Report No.: T150608S03-MF Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE C95.1 KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For MX-LOCare Model: BR1 Trade Name: MobilMAX Issued to MobilMax Technology Inc. 2F-5, No. 28, Tai-Yuan St., Chupei City, Hsinchu County 302, Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: July 28, 2015 Compliance Certification Services Inc. FCC ID: 2AAYELOCAREBR1 Report No.: T150608S03-MF Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/07/28 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: 2AAYELOCAREBR1 Report No.: T150608S03-MF Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. LIMIT .................................................................................................................... 4 2. EUT SPECIFICATION .......................................................................................... 4 3. TEST RESULTS ................................................................................................... 6 4. MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 7 Compliance Certification Services Inc. FCC ID: 2AAYELOCAREBR1 Report No.: T150608S03-MF Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. 2. EUT SPECIFICATION EUT MX-LOCare Model BR1 Model Discrepancy N/A Frequency band (Operating) GSM 850MHz: 824.2MHz ~ 848.8MHz GSM 1900MHz: 1850.2MHz ~ 1909.8MHz WCDMA Band II: 1852.4MHz ~ 1907.6MHz WCDMA Band IV: 1712.4MHz ~ 1752.6MHz WCDMA Band V: 826.4MHz ~ 846.6MHz Others Multislot classes Class 1 Class 10 Class 12 Class 33 Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification GSM / GPRS 850MHz :1.27 dBi (Numeric gain:1.34) GSM / GPRS 1900MHZ :1.94 dBi (Numeric gain:1.56) Measurement Average output power SystemPower GSM850 33.20 dBm (2089.30 mW) GPRS850 32.80 dBm (1905.46 mW) GSM1900 29.60 dBm (912.01 mW) GPRS1900 29.10 dBm (812.83 mW) Power Target / Tolerance SystemTarget PowerTolerance GSM850 32.5 dBm ± 1 dB GPRS850 32.5 dBm ± 1 dB GSM1900 29.0 dBm ± 1 dB GPRS1900 29.0 dBm ± 1 dB Compliance Certification Services Inc. FCC ID: 2AAYELOCAREBR1 Report No.: T150608S03-MF Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Max tune up Power/ Max time Average Power GPRS/EGPRS System GSM85033.5dBm (2238.721mW) 24.5dBm (281.838mW) GPRS85033.5dBm (2238.721mW) 27.5dBm (562.341mW) GSM190030.0dBm (1000.000mW) 21.0dBm (125.893mW) GPRS190030.0dBm (1000.000mW) 24.0dBm (251.189mW) Time Average Power Max Tune up Power Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. FCC ID: 2AAYELOCAREBR1 Report No.: T150608S03-MF Page 6 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 3. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 W…
