2AAZPFAN53TREMOTE CONTROL

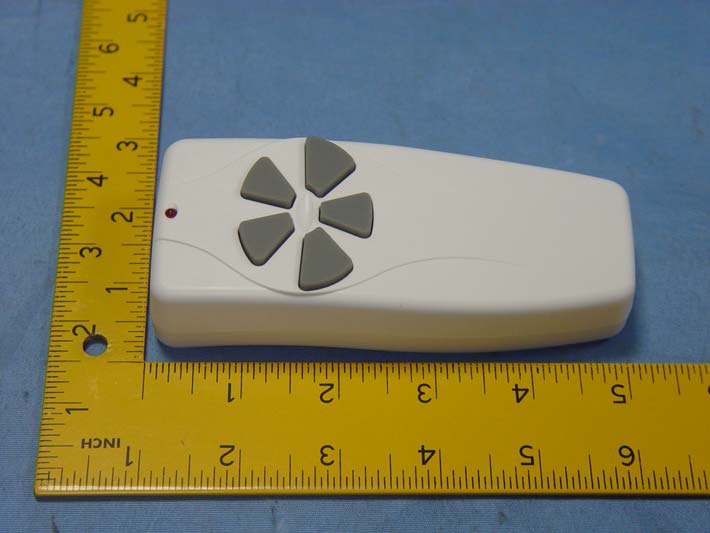

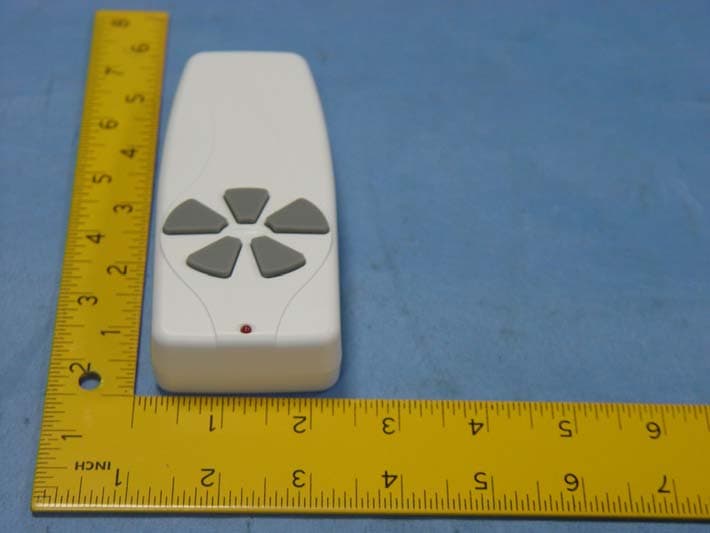

Remote controller GENERAL INFORMATION This remote controller is designed to separately control your ceiling fan speed and light brightness. There are four buttons (HI, MED, LOW, OFF) to control the speed of the fan and off. The light dimmer button will control the light brightness dimmer and off. The red indicator on the transmitter will light when one of the five buttons is pressed. INSTRUCTION OF INSTALLATION AND OPERATION 1.SETTING THE CODES This unit has 16 different code combinations. To set the codes, perform the following steps: A. Setting the codes on the transmitter: a. Remove battery cover. Press firmly on the arrow and slide battery cover off. b. Slide code switches to your choice of up or down position. Factory setting is all up. Do not use this position. Use a small screwdriver or ball point pen to slide firmly up or down (Figure 1). B. Setting the codes on the receiver: a. Slide code switches to the same position as set on your transmitter (Figure 2) b. Replace battery cover on the transmitter. 2.INSTALLING RECEIVER IN CEILING FAN A. Safety precautions: WARNING: HIGH VOLTAGE! Disconnect power by removing fuse or switching off circuit breaker. Do not use with solid state fans. Electrical wire must meet all local and national electrical code requirements. Supply for fan must be 110/120 volt, 60Hz. Maximum fan motor amps: 1.0, Maximum light watts: 240 incandescent or ballast. Otherwise power can cause serious injury or death. B. Installing receiver in fan: a. Remove power from the circuit. b. Remove ceiling fan canopy from the mounting bracket. c. Disconnect existing wiring between ceiling fan and Supply in electrical junction box. d. Make connections as follows, using the wire nuts supplied: Use wire connecting nuts supplied with the fan (FIG.3) FROM POWER SOURCE AC 110~120 VOLT 60Hz 3.5AMPS. CONNECT TO Green fan wire ....Bare supply wire Red or Black receiver wire(AC IN L) ....Red or Black supply wire White receiver wire(AC IN N) ....White supply wire White receiver wire(TO MOTOR N) ....White fan wire Black receiver wire(TO MOTOR L) ....Black fan wire Blue receiver wire(FOR LIGHT) ....Blue light wire CAUTION: Ceiling Angle Shall Not Exceed 30 Degrees, For Mounting Controller, Model FAN28R-240W ACN ACL ANT COM FAN LIGHT TRANSMITTER CODE SWITCHES (FIG.1) (FIG.2) SWITCHES CODE ON 1 2 3 4 ON 2 3 4 1 O N ON 2 3 4 1 O N INPUT OUTPUT EN53T28R1311DIM RECEIVER WHITE A C L A C N INPUT OUTPUT RED or BLACK F A N L I G H T BLUE ANT CANOPY BLUE C O M B L A C K WHITE WHITE B L A C K Use wire connecting nuts supplied with the remote controller. WIRE NUT R E C E I V E R RECEIVER CANOPY (FIG.4) ANTENNA PUT AT OUTSIDE OF CANOPY BOX CAN GET MORE OPERATION DISTANCE LIGHT MUST BE KEPT AT THE ON POSITION FAN MUST BE KEPT AT THE HIGH SPEED If other fans or supply wires are different color, have this unit installed by qualified licensed electrician. e. Push all connected wires up into junction box. f. Lay the brown antenna wire on top of the receiver, and put the receiver into the mounting bracket. g. Reinstall the canopy on the mounting bracket. h. Restore power. 3. OPERATING TRANSMITTER: A. Install 9 volt battery(not included). (To prevent damage to transmitter, remove the battery if not used for a long time). B. Store the transmitter away from excessive heat or humidity. C. This remote control unit is equipped with 16 code combinations. In order to prevent possible interference from or to other remote units such as garage door openers, car alarm or security system. If you find that your fan and light kit go on and off without using your remote control, simply change the code combination in your transmitter and receiver. D. Operating the buttons on the panel of the transmitter. HI key -for fan high speed. MED key-for fan medium speed. LOW key-for fan low speed. OFF key-for fan off. LIGHT/DIMMER key-for light brightness and off. The light function is controlled by pressing the LIGHT/DIMMER key down to increase or decrease light. Tap key quickly to turn light off or on. Keep pressing the button in excess of 0.7 second and it becomes a dimmer, the light varies cyclically in 0.8 second. The receiver can remember the last status of the light brightness when the light was switched, so that it can resume to adjust the light brightness. YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT. OPERATION DISTANCE 20 FEET TRANSMITTER MODEL: FAN-53T Optional Wall Mounting for Transmitter Holder Place in accessible area of your home, and screw the transmitter holder into wall using the two screws provided, slide hand unit into holder. 4. TROUBLE SHOOTING GUIDE 1. Fails to operate a. Power to receiver ? b. Receiver wired correctly ? c. Fan manual speed control in highest position ? d. Light kit switch turned on ? e. Good battery in the transmitter ? f. Code set at exact same positions in both transmitter and receiver ? 2. Won't operate at distance If transmitter operates fan/light kit when up close, but not at 20 feet away. Try placing the brown antenna wire higher, up through ceiling/outside the junction box. NOTICE ! Your ceiling fan and light kit assembly must meet the following requirements: 1. Do not use with solid state fans. 2. Electrical rating: 120v 60Hz 3.5A MAX. Motor amps: 1.0 MAX. Light watts: 240-(incandescent, or ballast non-dimmer) WARNING TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED WITH A WALL CONTROL/SWITCH. EN53T28R1311DIM LO MED HI OFF 1 2 3 4 ON B A T T E R Y 9 V O L T FCC Statement: This device is in conformance with Part 15 of the FCC Rules and Regulations for Information Technology Equipment. Operation of this product is subject to the following two conditions: This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party resp void the use's authority to operate the equipment.

Carewell Electric Technology (Zhongshan) Co., Ltd. 2013-11-15 To: SIEMIC, INC. 775 Montague Expressway Milpitas , CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We , Carewell Electric Technology (Zhongshan) Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: REMOTE CONTROL Model name: FAN-53T FCC ID: 2AAZPFAN53T We affirm that between SIEMIC and Carewell Electric Technology (Zhongshan) Co., Ltd. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature ： Allen XU Client’s name / title：Manager Contact information / address ：+86-760-88582800 （ Torch Development Zone, No.2, Ouya Road, Zhongshan, Guangdong,China ）

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 Carewell Electric Technology (Zhongshan) Co., Ltd. 2013-11-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2AAZPFAN53T We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature ： Allen XU Client’s name / title：Manager Contact information / address ：+86-760-88582800 （Torch Development Zone, No.2, Ouya Road, Zhongshan, Guangdong,China ）

THIS DEVICE COMPLIES WITH PART I5 OF T HE FCC RULES. OPERATION IS SUBJECT T O T HE FOLLOWING T WO CONDITIONS: (1)T HIS DEVICE MAY NOT CAUSE HARMFUL. INTERFERENCE A ND (2) T HIS DEVICE MUST A CCEPT A NY INTERFE- RENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION FCC ID:2AAZPFAN53T MODEL:FAN-53T SIZE: 30*20MM
