2AB2S-IAM1010Smart phone Watch

I.am.aware •Bluetooth® License This product contains ODID: B019784, ODID: B016770 and ODID: B017137 The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Pebble Technology, Corp is under license. Other trademarks and trade names are those of their respective owners •CE Declaration of Conformity We, ------------------------declare under our sole responsibility that the product ----------------------to which this declaration relates is in conformity with the following standard(s) or other non-native document(s) Article 3.1 a - Safety Article 3.1 b - E MC Article 3.2 - Radio EN 60950-1: 2006 EN 301 489-01: V1.9.2 EN 301 489-17: V2.1.1 EN 300 328: V1.7.1 following the provisions of the R&TTE Directive (99/5/EC) DATE: TIME: Introduction I.am.aware lets you leave your phone at home and still remain connected. This android powered device lets you do everything from making calls, listening to your music, displaying notifications such as text and multimedia messages, setting calendar events and reminders, Facebook TM notifications, updates, tweets and much more. Overview 1 2 3 Power Button Display Charge Port 1 2 3 4 SIM Tray 4 Quick Start Guide What’s in the box - One I.am.aware smart watch - One I.am.aware USB charge cable - One Bluetooth Headset Turning on and off -To turn on smartwatch, press and hold down the power button for 2 seconds -To turn off the smartwatch when the display is active, press and hold down the power key and then follow the on-screen instructions. Charging I.am.aware Attach the hooked charge connector to the charging pins at the base of the watch .Plug the other end of the cable into a USB port on a computer, laptop or USB wall charger. It should take at least 3 hours to obtain a full charge. Once fully charged, disconnect the charger by unhooking. 3 1 Bluetooth Pairing Enable Bluetooth in watch settings. Perform a Bluetooth device scan. I.am.aware Bluetooth headset will show up with the name “XXXX” where XXXX is a unique identifier (the last 4 digits of the serial number imprinted on the back of the watch). After selecting the ‘Pair’ option, a confirmation prompt will be presented on the watch display. Press the on screen prompt to confirm the pairing. The devices will then be paired. Connecting to Mobile Network Make sure your smartwatch is turned off. Use to SIM ejector PIN on the side of the watch to release the sim tray and insert your nano sim card. Once properly inserted, slide the tray back into the slot until a soft click. The smartwatch by default will connect to your mobile network. For data related queries please contact your network provider. Please note that I.am.aware uses mobile network data or WiFi to use most of the applications. WiFi Pairing If setting up for the first time, you will be prompted to enter your WiFi network details. Once entered correctly you will be able to connect to your WiFi. If left on for later, you can enable WiFi in watch settings. Perform a WiFi scan and connect to your network. Connecting to a computer I.am.aware can be easily connected to a computer using the micro USB cable in order to sync your contacts, music, calendar etc. To do so, you will require the Aware app (available for Mac, PC and Linux). Once installed on your computer, you would be able to transfer all relevant files to your smart watch. 4 Using I.am.watch Gestures and Navigation The main view on the I.am.aware is the Clock screen. You can navigate from this screen to other screens including applications using various gestures. Pinching on the clock screen will take you to the notifications page. Swiping left on home screen will take you to your app list and Swiping right from any screen will take you the contextual app menu. PINCHING SWIPE LEFT SWIPE RIGHT Application Screen Applications you install on the Smart Watch are displayed as a list. Swipe left to launch the application screen. Just tap on the name to open the associated application. The Application screen extends beyond the regular dimensions of the display, so you may need to scroll down to see the remaining applications. Alternately, swipe right to close the app list. Notification Screen Notifications from all your apps show up here. Pinching on the home screen will take you to the notifications screen. The notification screen is in the form of a 3d stack. When a notification arrives, a card with the notification type arrives on your display. Such notifications include, for example, new text messages and Facebook™ updates. To open the notification just tap on the card, which will then expand to show you the full notification. Swipe left to access the contextual menu for that particular notification. Latest notifications are always displayed on the top of the stack. Customising the display To choose a clock type to be displayed You can access various watch faces, timer, alarms etc. by swiping left from the main screen to open the contextual menu. You can then choose from the different options. Calls When your phone rings, I.am.aware displays the name or number of the caller. You can then answer or reject the call. You answer the call through the Bluetooth headset. Alternatively, you can also use the on screen options. To reject the call just swipe up on the screen. To accept the call, just swipe down. Text messages When your watch receives a text message, a notification with the senders name will arrive on your screen.. You can then click on it to expand it and show you the whole text message. Swipe to the right to access the contextual menu for that particular message. Pinching on the message will take you back to the notification screen. While on the notification screen, you can swipe right to delete the message and swipe left to reply. TO send a text message open the messaging app, swipe right to context menu and select New option to compose a new msg. Music player You can use IMaware to listen to your music. The default view for the music app is the a…

Text truncated - open the document above for the full version.

Rev. 1/1/03 i.am.plus electronics 10960 Wilshire Blvd., 5th Floor, Los Angeles, CA 90024 United States Tel: (310) 229-5121 Date: November 4, 2014 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: 2AB2S-IAM1010 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Parts List  Operation Description  Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ CHANDRASEKAR RATHAKRISHNAN [email protected]

1/1 i.am.plus electronics 10960 Wilshire Blvd., 5th Floor, Los Angeles, CA 90024 United States Tel: (310) 229-5121 Date: November 4, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : 2AB2S-IAM1010 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, CHANDRASEKAR RATHAKRISHNAN [email protected]

i.am.plus electronics 10960 Wilshire Blvd., 5th Floor, Los Angeles, CA 90024 United States Tel: (310) 229-5121 Date: November 4, 2014 Power of Attorney To whom it may concern, Please be notified that I, CHANDRASEKAR RATHAKRISHNAN, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: 2AB2S-IAM1010 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, CHANDRASEKAR RATHAKRISHNAN [email protected]

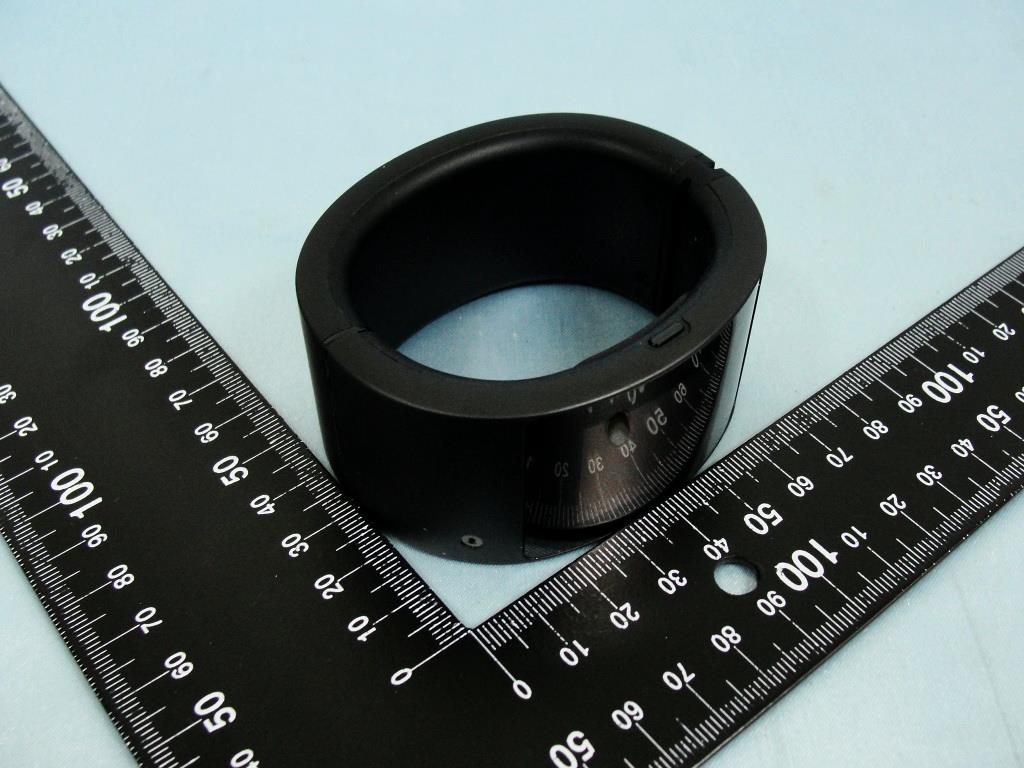

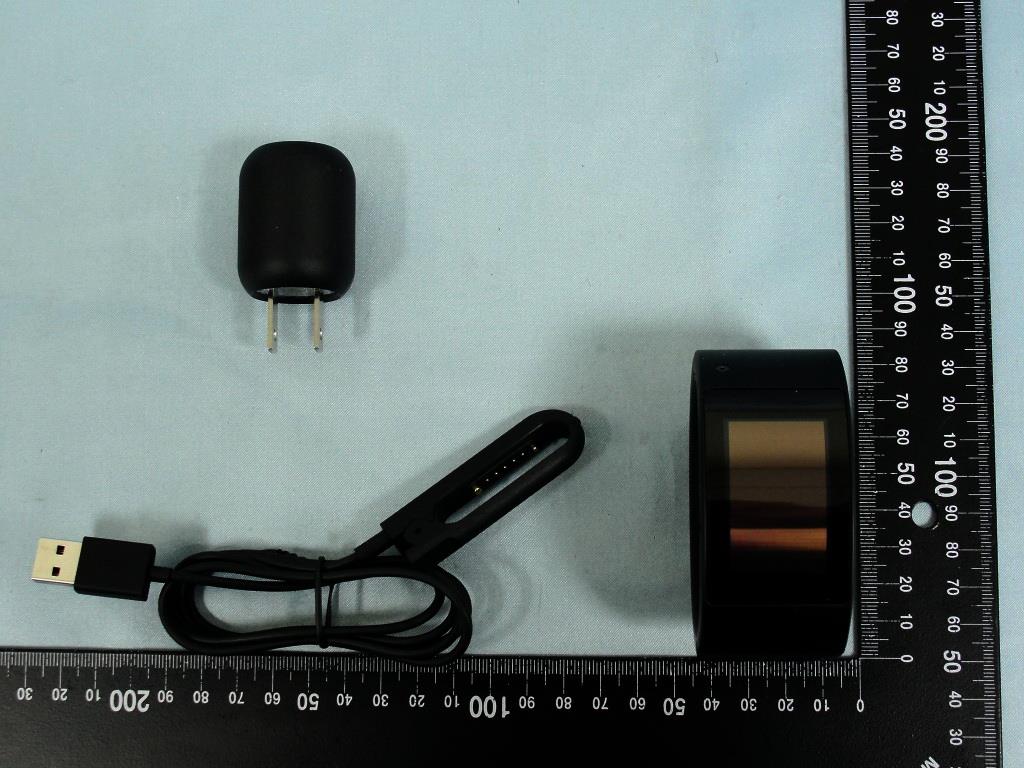

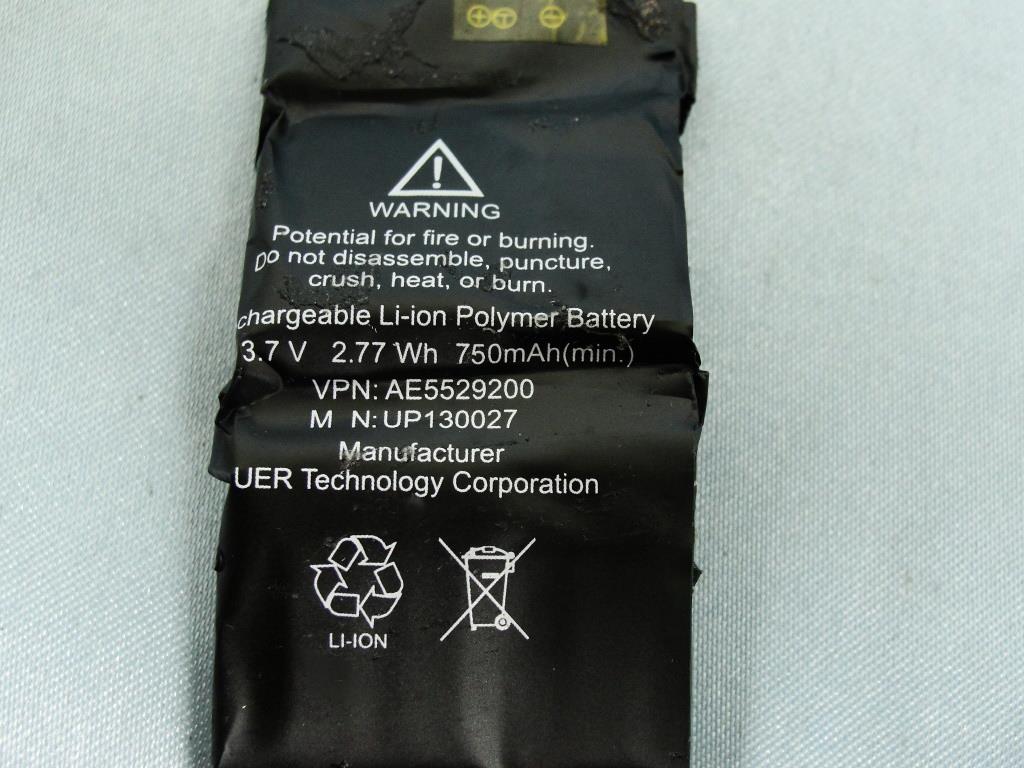

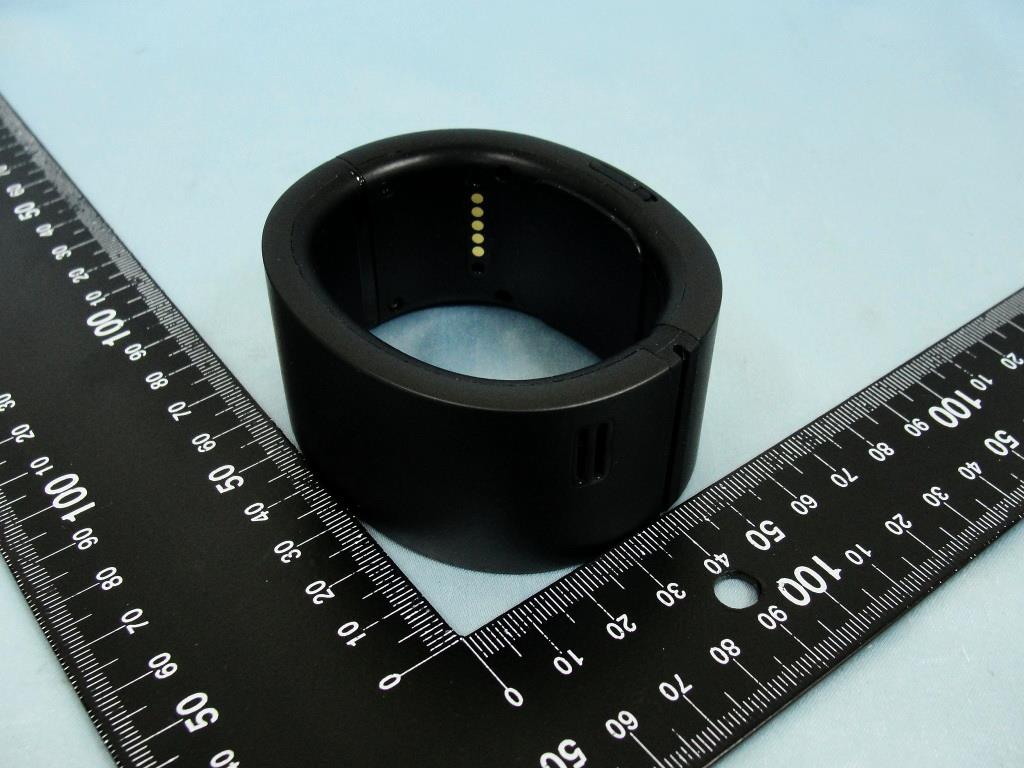

Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 1 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 2 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 3 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 Specification of Accessory AC Adapter Brand Name iamplus Model Name C5010-A02N Battery Brand Name iamplus Model Name UP130027 USB Cable Brand Name iamplus Model Name CP05C04B04-T306-EH Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 4 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 5 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 AC Adapter Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 6 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 7 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 8 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Battery Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 9 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510

IWP Label FCC

Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 10 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 11 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 12 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 13 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 14 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 15 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 16 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 17 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 18 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 19 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 20 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 21 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 22 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 WWAN Antenna Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 23 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 24 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 Bluetooth and WLAN Antenna Photographs of EUT Report No.: EP422550 Brand Name: iamplus / Model Name: IAM1010 / Marketing Name: PULS SPORTON INTERNATIONAL INC. Page Number : 25 of 25 TEL : 886-3-327-3456 Report Issued Date : Jun. 16, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AB2S-IAM1010 720510 GPS Antenna

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Nov. 11, 2014 FCC ID : 2AB2S-IAM1010 Page 1 of 31 Form version. : 140422 FCC SAR Test Report Report No. : FA422550 FCC SAR Test Report APPLICANT : i.am.plus electronics inc EQUIPMENT : Smart phone Watch BRAND NAME : iamplus MODEL NAME : IAM1010 MARKETING NAME : PULS FCC ID : 2AB2S-IAM1010 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Nov. 11, 2014 FCC ID : 2AB2S-IAM1010 Page 2 of 31 Form version. : 140422 FCC SAR Test Report Report No. : FA422550 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 3. Guidance Standard ........................................................................................................................................................5 4. Equipment Under Test (EUT) ........................................................................................................................................6 4.1 General Information ................................................................................................................................................6 4.2 Maximum Tune-up Limit ..........................................................................................................................................7 5. RF Exposure Limits .......................................................................................................................................................8 5.1 Uncontrolled Environment .......................................................................................................................................8 5.2 Controlled Environment ...........................................................................................................................................8 6. Specific Absorption Rate (SAR) ....................................................................................................................................9 6.1 Introduction .............................................................................................................................................................9 6.2 SAR Definition .........................................................................................................................................................9 7. System Description and Setup ...................................................................................................................................10 8. Measurement Procedures ...........................................................................................................................................11 8.1 Spatial Peak SAR Evaluation ................................................................................................................................ 11 8.2 Power Reference Measurement............................................................................................................................12 8.3 Area Scan .............................................................................................................................................................12 8.4 Zoom Scan ............................................................................................................................................................13 8.5 Volume Scan Procedures ......................................................................................................................................13 8.6 Power Drift Monitoring ...........................................................................................................................................13 9. Test Equipment List .....................................................................................................................................................14 10. System Verification ....................................................................................................................................................15 10.1 Tissue Verification ...............................................................................................................................................15 10.2 System Performance Check Results ...................................................................................................................16 11. RF Exposure Positions ..............................................................................................................................................17 12. Conducted RF Output Power (Unit: dBm) ................................................................................................................19 13. Bluetooth Exclusions Applied ..................................................................................................................................24 14. SAR Test Results .......................................................................................................................................................25 14.1 Nex…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2014/3/28 System Check_Head_835MHz_140328 DUT: D835V2-4d162 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_140328 Medium parameters used: f = 835 MHz; σ = 0.9 S/m; ε r = 40.826; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(9.76, 9.76, 9.76); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.03 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.42 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 3.03 W/kg 0 dB = 3.03 W/kg = 4.81 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2014/3/28 System Check_Head_1900MHz_140328 DUT: D1900V2-5d142 Communication System: CW ; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_140328 Medium parameters used: f = 1900 MHz; σ = 1.438 S/m; ε r = 39.21; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(8.13, 8.13, 8.13); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.6 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 101.6 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 18.2 W/kg SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.27 W/kg Maximum value of SAR (measured) = 14.3 W/kg 0 dB = 14.3 W/kg = 11.55 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2014/3/28 System Check_Head_2450MHz_140328 DUT: D2450V2-924 Communication System: CW ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_140328 Medium parameters used: f = 2450 MHz; σ = 1.824 S/m; ε r = 37.873; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(7.26, 7.26, 7.26); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 22.6 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 110.9 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 29.7 W/kg SAR(1 g) = 14 W/kg; SAR(10 g) = 6.4 W/kg Maximum value of SAR (measured) = 21.4 W/kg 0 dB = 21.4 W/kg = 13.30 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2014/11/7 System Check_Body_835MHz_141107 DUT: D835V2-4d092 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_141107 Medium parameters used: f = 835 MHz; σ = 0.994 S/m; ε r = 56.003; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.15, 6.15, 6.15); Calibrated: 2014/9/26; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2014/8/21 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.74 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.27 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 3.36 W/kg SAR(1 g) = 2.37 W/kg; SAR(10 g) = 1.57 W/kg Maximum value of SAR (measured) = 2.75 W/kg 0 dB = 2.75 W/kg = 4.39 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2014/11/7 System Check_Body_1900MHz_141107 DUT: D1900V2-5d018 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_141107 Medium parameters used: f = 1900 MHz; σ = 1.527 S/m; ε r = 51.264; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.7, 4.7, 4.7); Calibrated: 2014/9/26; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2014/8/21 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.0 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.48 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 16.8 W/kg SAR(1 g) = 10.2 W/kg; SAR(10 g) = 5.41 W/kg Maximum value of SAR (measured) = 12.7 W/kg 0 dB = 12.7 W/kg = 11.04 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2014/11/7 System Check_Body_2450MHz_141107 DUT: D2450V2-924 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_141107 Medium parameters used: f = 2450 MHz; σ = 2.02 S/m; ε r = 53.936; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.29, 4.29, 4.29); Calibrated: 2014/9/26; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2014/8/21 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (8);SEMC…

Text truncated - open the document above for the full version.

Test Laborato ry: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2014/3/28 #01_GSM850_GSM Voice_Front_1cm_Ch189 Communication System: GSM850 ; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_140328 Medium parameters used : f = 836.4 MHz; σ = 0.902 S/m; ε r = 40.816; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(9.76, 9.76, 9.76); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Version 14.6.10 (7331) Configuration/Ch189/Area Scan (101x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.371 W/kg Configuration/Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.77 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.427 W/kg SAR(1 g) = 0.301 W/kg; SAR(10 g) = 0.207 W/kg Maximum value of SAR (measured) = 0.369 W/kg 0 dB = 0.369 W/kg = -4.33 dBW/kg Test Laborato ry: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2014/3/28 #02_GSM1900_GSM Voice_Front_1cm_Ch810 Communication System: PCS ; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3…

Text truncated - open the document above for the full version.
