2AB2S-IAM5110BT headset

USER GUIDE DOTS by i.am+ Bluetooth Headphones IAM5110 Visit PULS.com for support. English User guide Warning letter: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1. + Button 2. • Power On 0忏/ Pairing / Function Button 3. - Button 4. LED indicator 5 Micro USB(only for charging) 6 USB door 7 Microphone 2 3 7 5 6 What’s in the Box. l DOTS by i.am+ Bluetooth Headphones l Micro USB charging cable. l Quick Start Guide l User Guide l Warranty Headphones operation Item Requirement and Description Power On/Off l Power On: Press and hold the Function button for 3 seconds. (release the button after the blue LED bright, the red LED and blue LED start flashing means the device enter pairing mode) l Power Off: Press and hold the Function button until the red LED light up. Red LED turn off means the device power off Pairing l First paring: Press and hold Function button for 3 sec. to power on, earphones auto-enter pairing mode - LED alternates flashing Red and White. l To paring with your PULS or phone, go to settings on your PULS or phone, make sure Bluetooth is switched on. l The ear-phones appears as “DOTS by i.am+” Select to pair. l Bluetooth pairing after a successful first pairing: n Power off then Press and hold Function button for 5 sec. to place earphones in pairing mode - LED alternates flashing Red and White, mobile phone search the Bluetooth device to connect the headphones (headphones ID is “ DOTS by i.am+ ” n If the earphones are outside Bluetooth range and disconnect from PULS or your phone, the headphones will automatically try to re-connect. If reconnection is unsuccessful for more than 5 mins, the headset will power off. l Set up use of DOTS headphones with multiple devices such as your PULS and your smartphone. 1. Pair headphones to PULS or phone 1 2. Turn off the Bluetooth on PULS phone 1, and turn on Bluetooth on phone 2 3. Search and pair the headset to phone 2 4. Turn on Bluetooth on PULS phone 1 and connect to headset Charging Open USB door “6” on controller and connect micro USB cable “5” The headset will power off then enter charging mode - LED signal red while charging Solid white when full charge is reached Using Headphones with Aneeda voice assistant Use the Aneeda button on your PULS device to speak to and hear Aneeda on your headphones LED Indication l LED turned off when headset powered off or not charging l Power on: white LED on 1s l Power off: red LED on 1s l Pairing: LED alternates flashing Red and White l Connected: white LED 0.1s on/4s off l Disconnected: white LED 0.1s on 2 times/2s off l Incoming call: white LED 0.5s on /0.5s off l Outgoing call: white LED 0.5s on /0.5s off l Active call: white LED 1s on /1s off l Music play: white LED 1s on /4s off l LED is changed from white blinking to Red blinking when battery low l Charging：The headset will power off and enter charging mode - LED signal red while charging, Solid white when full charge is reached. Music Mode Function Status Sound indication Operation Volume up Music or phone call mode No Press volume + Vo l u m e down Music or phone call mode No Press volume - Play/Pause Music mode No Short press Function button Next song Music mode No Double press Function button Previous song Music mode No - Phone call mode Answer call Incoming call ‘Beep’ sound once Press Function button 1 time Reject incoming call Incoming call No Press and hold Function button for 2 seconds Hang up phone call During phone call ‘Beep’ sound one time Press Function button 1 time Switch call between headset and phone During phone call No Double press Function button Mute During phone call ‘Beep’ sound two times Fast press volume down button for 2 times Cancel Mute During phone call No Fast press volume up button for 2 times l Incoming call status: n When mobile phone connected to headset through Bluetooth, mobile phone will stop music player and play ring tone when have incoming call n Mobile phone to resume playing music after hanging up phone call l 3 party phone call: - Short press Function button to connect the waiting phone call and hang off current call - Long press 1s the Function button to connect the waiting phone call and hold current call. Long press 1s again to switch the two phone call status DOTS by i.am+ Bluetooth Headphones Specification: AptX for enhanced audio quality with PULS and compatible devices. Up to 6hrs use time Micro USB charging Ip54 water resistance. Frequency Response 20 ~ 20K Hz Sensitivity 107 dB/mW at 1KHz Impedance 32 Ohm Speaker driver Magnet type NdFeB Distortion <1% at 1KHz Music playback time 6hours Batteries charging time 3hours Battery typeLi-Polymer Battery Bluetooth version v4.1 Bluetooth range 10m Audio connection HSP, A2DP with aptX Weight 18g Hardware Version: 1.0 Software Version (FVIN): 1.0 Antenna Gain: 2.0dBi Antenna Type: Ceramic § 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to r…

Text truncated - open the document above for the full version.

Rev 11/20/07 I.am.plus electronics inc. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AB2S-IAM5110. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram 2AB2S-IAM5110 _Block Diagram.pdf Circuit Diagram 2AB2S-IAM5110_Schematics.pdf Operational Description 2AB2S-IAM5110_Operational description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name: Chandrasekar Rathakrishnan Signature: Date: 2015-9-1

\\192.168.6.111\任务\15-12255 冠旭(IAM5110) FCC IC\签字表格\FCC\POA_Letter_140225.docx I.am.plus electronics inc. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2015-09-01 SUBJECT: FCC Application for (2AB2S-IAM5110) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Zhang Shangwen from CCIC-SET on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CCIC-SET on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Name: Chandrasekar Rathakrishnan Signature:

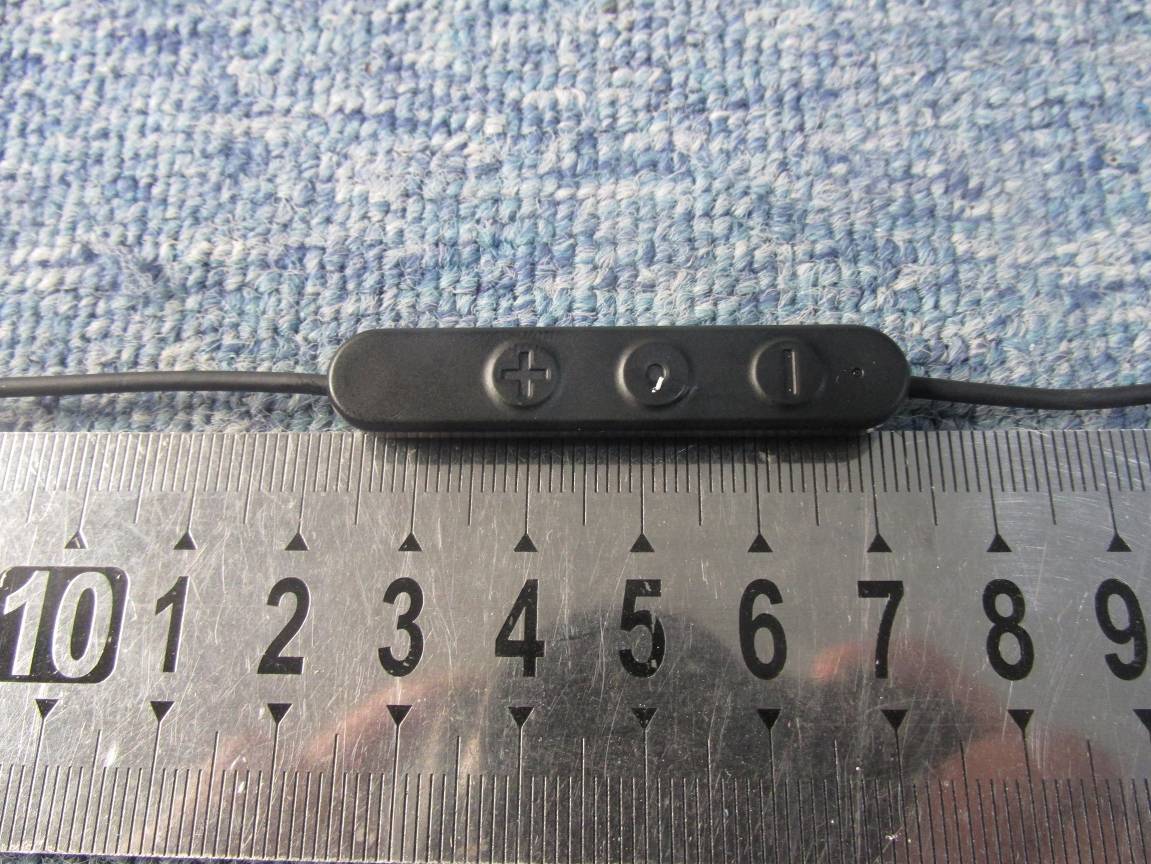

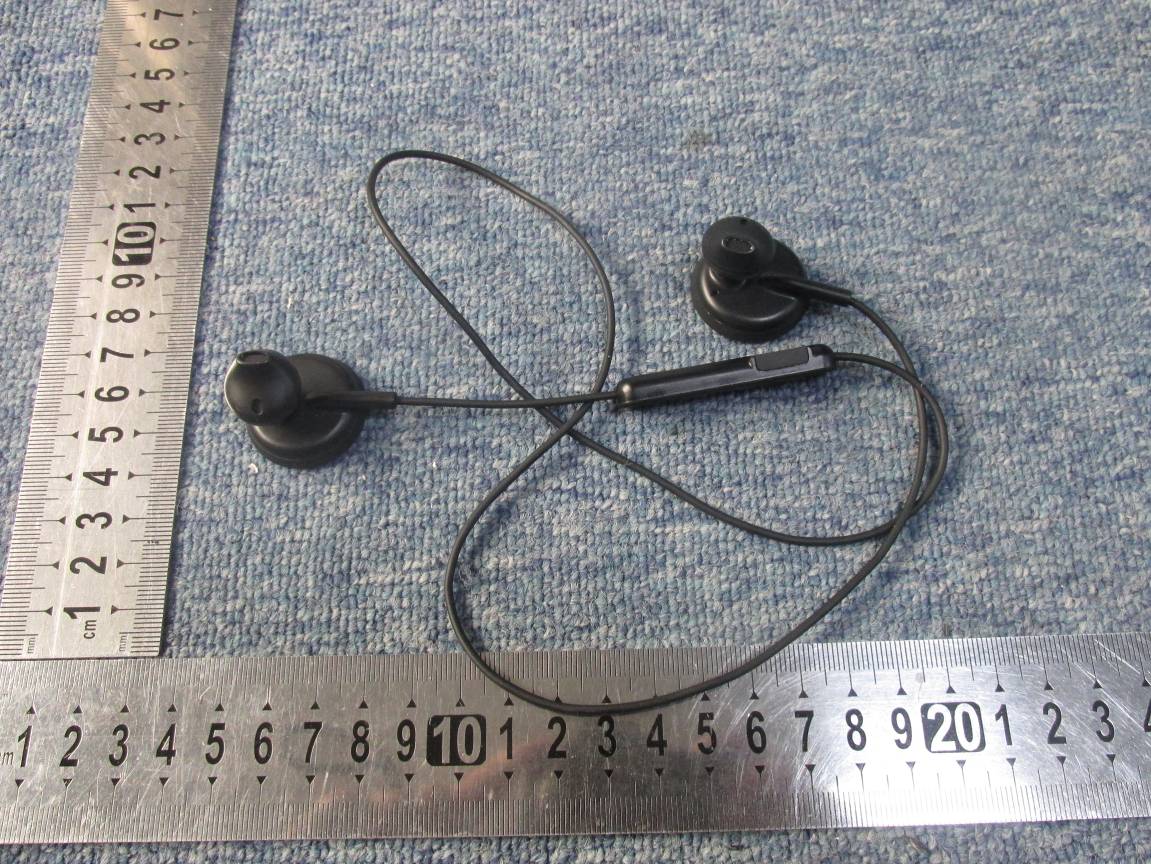

External Photo

LRLR l e f t a n d g o n e r i g h t a n d w r o n g l e f t a n d g o n e r i g h t a n d w r o n g I.AM+ FCC ID:2AB2S-IAM5110 IC:20547-IAM5110 MODEL:IAM5110 I.AM+ FCC ID:2AB2S-IAM5110 IC:20547-IAM5110 MODEL:IAM5110 Headset product markings 2015-09-21

Internal Photo BT antenn a

FCC RF Exposure FCC ID: 2AB2S‐IAM5110 Applicant: I.am.plus electronics inc. Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1093 Evaluation method According to KDB447498 D01 General RF Exposure Guidance v05r01Section 4.3.1 Standalone SAR test exclusion considerations:“ Unless specifically required by the published RF exposure KDB procedures, standalone 1‐g head or body and 10‐g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source‐based time‐averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune‐up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two‐way radios, handsets, laptops & tablets etc.23 “[(max. power of channel, including tune‐up tolerance, mW)/ (min. test separation distance, mm)] ∙ [√f (GHz)]≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is <5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Conducted Power Results GFSK mode Channel Channel 0 Channel 39 Channel 78 Output Power (dBm) 3.16 3.02 3.15 π/4‐DQPSK mode Channel Channel 0 Channel 39 Channel 78 Output Power (dBm) 2.56 2.71 2.63 8‐ DPSK mode Channel Channel 0 Channel 39 Channel 78 Output Power (dBm) 2.46 2.54 2.38 Manufacturing tolerance GFSK mode Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3 3 3 Tolerance ±(dB) 0.5 0.5 0.5 π/4‐DQPSK mode Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3 3 3 Tolerance ±(dB) 0.5 0.5 0.5 8‐ DPSK mode Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2.5 2.5 2.5 Tolerance ±(dB) 0.5 0.5 0.5 Evaluation Results GFSK mode Frequency Antenna Distance （mm） RF output power (including tune‐up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2402MHz 5 3.5 2.24 0.7＜3.0 Yes 2441MHz 5 3.5 2.24 0.7＜3.0 Yes 2480MHz 5 3.5 2.24 0.7＜3.0 Yes π/4‐DQPSK mode Frequency Antenna Distance （mm） RF output power (including tune‐up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2402MHz 5 3.5 2.24 0.7＜3.0 Yes 2441MHz 5 3.5 2.24 0.7＜3.0 Yes 2480MHz 5 3.5 2.24 0.7＜3.0 Yes GFSK mode Frequency Antenna Distance （mm） RF output power (including tune‐up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2402MHz 5 3 2.00 0.6＜3.0 Yes 2441MHz 5 3 2.00 0.6＜3.0 Yes 2480MHz 5 3 2.00 0.6＜3.0 Yes Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v05r02.

Report No.: SET2015-11556 Page 1 of 71 RF TEST REPORT Report No.: SET2015-11556 Product Name: BT headset FCC ID: 2AB2S-IAM5110 IC: 20547-IAM5110 Model No. : IAM5110 Applicant: I.am.plus electronics inc. Address： 10960 Wilshire Blvd.,5th Floor Los Angeles California, 90024, the United States Dates of Testing: 08/03/2015 — 08/14/2015 Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 71 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-11556 Page 2 of 71 Test Report Product Name ....................... : BT headset Brand Name .......................... : I.AM+ Trade Name ........................... : DOTS Applicant ............................... : I.am.plus electronics inc. Applicant Address ................ : 10960 Wilshire Blvd.,5th Floor Los Angeles California, 90024, the United States Manufacturer ........................ : I.am.plus electronics inc. Manufacturer Address ......... : 10960 Wilshire Blvd.,5th Floor Los Angeles California, 90024, the United States Factory .................................. : Shenzhen Grandsun Electronic Co., Ltd. Factory Address ................... : Pingdi Gaoqiao Industry Zone , Longgang District , Shenzhen, China Test Standards ...................... : 47 CFR Part 15 Subpart C 2014：Radio Frequency Devices ANSI C63.10:2013：American National Standard for Testing Unlicensed Wireless Devices RSS-247:Issue 1,December2015 / RSS-GEN Issue 4, November 2014 DA 00-705: Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems Test Result ............................ : PASS Tested by ............................. : 2015.08.14 Lu Lei， Test Engineer Reviewed by ......................... : 2015.08.14 Zhu Qi, Senior Engineer Approved by ......................... : 2015.08.14 Wu Li’an, Manager Report No.: SET2015-11556 Page 3 of 71 Table of contents 1. GENERAL INFORMATION .................................................................................................... 4 1.1. EUT Description ....................................................................................................................... 4 1.2. Test Standards and Results ........................................................................................................ 5 1.3. Frequency Hopping System Requirements ............................................................................... 6 1.4. Description of test environment test modes .............................................................................. 7 1.5. Facilities and Accreditations ..................................................................................................... 8 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 9 2.1. Antenna requirement ................................................................................................................. 9 2.2. Number of Hopping Frequency .............................................................................................. 10 2.3. Peak Output Power.................................................................................................................. 13 2.4. Bandwidth ............................................................................................................................... 15 2.5. Carried Frequency Separation ................................................................................................. 26 2.6. Dwell time ............................................................................................................................... 29 2.7. Conducted Spurious Emissions ............................................................................................... 36 2.8. Conducted Band Edge ............................................................................................................. 46 2.9. Conducted Emission ............................................................................................................... 53 2.10. Radiated Band Edges and Spurious Emission ........................................................................ 57 3. LIST OF MEASURING EQUIPMENT ................................................................................. 71 Change History Issue Date Reason for change 1.0 2015.08.14 First edition Report No.: SET2015-11556 Page 4 of 71 1. General Information 1.1. EUT Description EUT Type BT headset Hardware Version 1.0 Software Version 1.0 EUT supports Radios application Bluetooth EDR Frequency Range 2402MHz~2480MHz Channel Number 79 Bit Rate of Transmitter 1/2/3Mbps Modulation Type GFSK,π/4-DQPSK,8DPSK Antenna Type Ceramic Antenna Antenna Gain 2dBi Note 1: The EUT is a BT headset, it contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: a. When power on, the EUT will scan the whole frequency until a Connection command from the other BT devices. b. When receiving the signal from the oth…
